USER MANUAL MyFridge MF1F WAECO

Line drawing of a portable air purifier with ventilation slots and a separate electrical connector (no text or symbols)

MyFridge MF-1F

EN 10 Thermoelectric bottle cooler Instruction Manual

We will be happy to provide you with further information about WAECO products. Please order our free catalogue with no obligation to buy on our homepage: www.waeco.com

F

Technical line drawing of a portable appliance with labeled parts (1 and 2), no text or symbols present.

Technical diagram of a device with labeled components and an inset view showing internal structure and assembly.

3 A2A1 COLD HEAT OFF B

Please read this manual carefully before starting up and store it in a safe place. If the appliance is handed over to another person, this operating manual must be handed over along with it.

2 Safety instructions

2.1 General safety

• Only connect the device as follows:
• Using a suitable connecting cable to the cigarette lighter in the vehicle
  ● Never pull the plug out of the cigarette lighter by the cable.
• If the connection cable is damaged, it must be replaced to prevent possible electrical hazards.
• Do not operate the appliance if it is visibly damaged.
• This appliance may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.
• Disconnect the connection cable:
  – Before cleaning and maintenance
• After use
  ● Ensure that the ventilation slots are not covered.

2.2 Operating the appliance safely

● Before starting the device, ensure that the power supply line and the plug are dry.
● Never start the device when your hands are wet.
- Only operate the device when you or another person can attend to it.
- Do not operate the device on hot surfaces.
● Never place the device near naked flames.
- Do not fill the liquid which you wish to cool directly into the device. Instead, put the vessel containing the drink in in the appliance.
● Never immerse the device in water.
● Protect the device and the cable against heat and moisture.
- WAECO cannot be held liable for damage resulting from improper usage or incorrect operation.

3 Scope of delivery

No. in fig. 1, page 3 Quantity Description

1 1 M F - 1

2 1 12/24 V DC cable

- Fastening material

(Dummy plug, self-tapping screw, machine bolt, 2 washers, self-locking nut)

Accessories:

WAECO offers installation panels for many types of vehicle.

4 Intended use

The appliance is for cooling, heating or keeping warm drinks in suitable vessels.

Do not let yourself be distracted while driving.

The appliance is designed for standard bottles: PET (polyethylene terephthalate) and glass.

5 Technical description

The MyFridge thermoelectric bottle cooler (item no. MF-1F) is a compact cooler designed for mobile use. It can cool drinks to around 22 °C under room temperature or warm them to around 60 °C.

Its cooling system is a non-wearing Peltier cooling system with the heat discharged by a fan.

6 Installing the bottle cooler

Observe the following installation instructions:

When fastening the bottle cooler in the vehicle, make sure:

- It cannot become loose under any circumstances (sudden braking, accidents) and cause injuries to occupants of the vehicle.

- Bottles cannot roll out under the pedals.

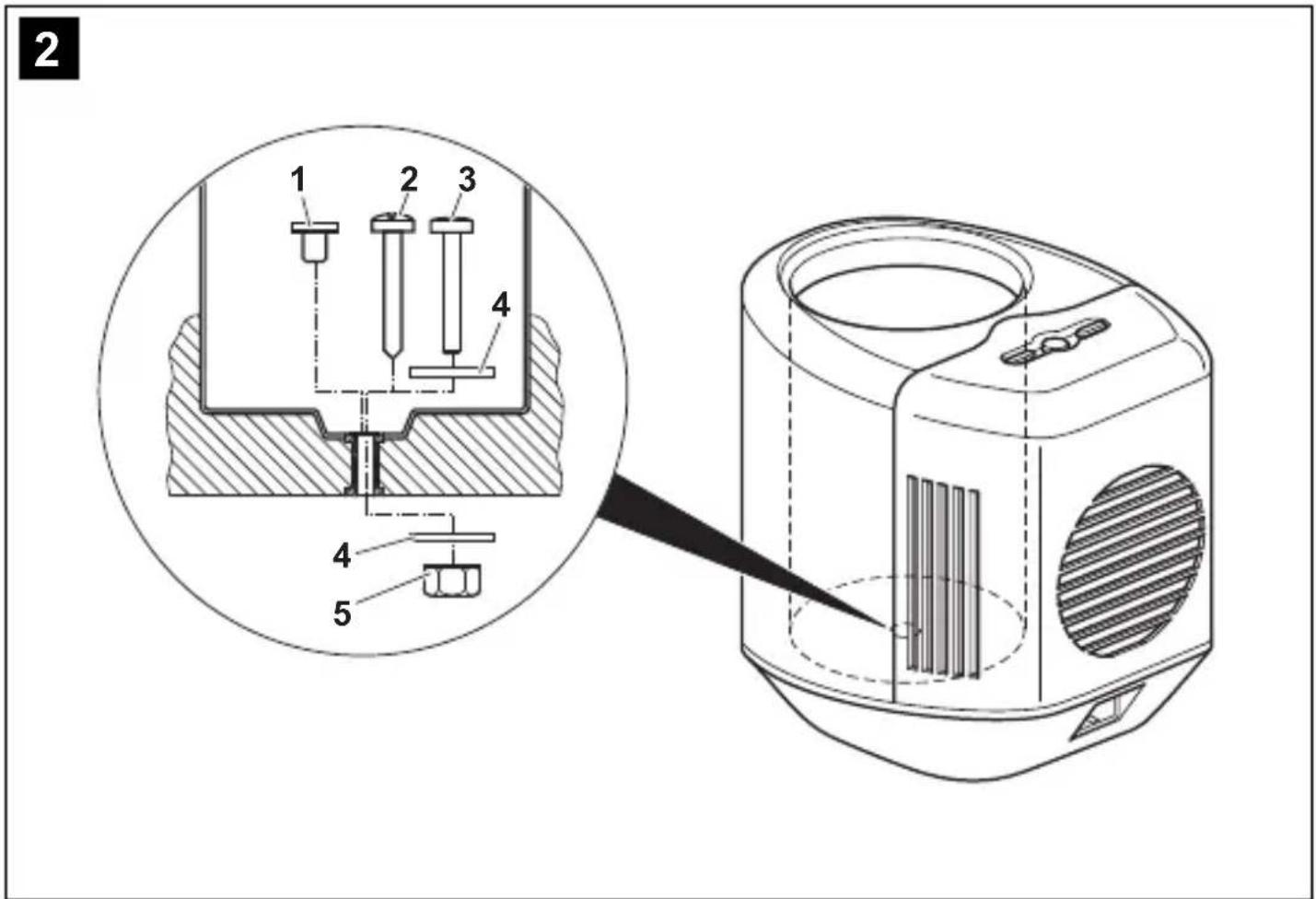

If you want to fasten the bottle cooler with a self-tapping screws:

▶Drill a hole where you want to fasten the appliance.

To prevent damage when drilling make sure there is sufficient space on the other side for the drill head to come out.

▶Deburr the hole.

Screw the self-tapping screw (fig. 2 2, page 3) through the opening in the bottom of the container.

If you want to fasten the bottle cooler with a machine bolt:

▶Drill a hole where you want to fasten the appliance.

To prevent damage when drilling make sure there is sufficient space on the other side for the drill head to come out.

▶ Push the machine bolt (fig. 2 3, page 3) through the opening in the bottom of the container and fasten the bottle cooler with both washers (fig. 2 4, page 3) and the nut (fig. 2 5, page 3).

If you do not want to permanently fasten the bottle cooler:

▶If you do not want to permanently fasten the bottle cooler, put the dummy plug (fig. 2 1, page 3) in the opening on the bottom of the container.

7 Operation

Before starting your new device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the see "Cleaning and care" on page 13).

If the device malfunctions (e.g. due to electrostatic discharge) you only need to press a function button for the device to function normally again.

7.1 Cooling drinks

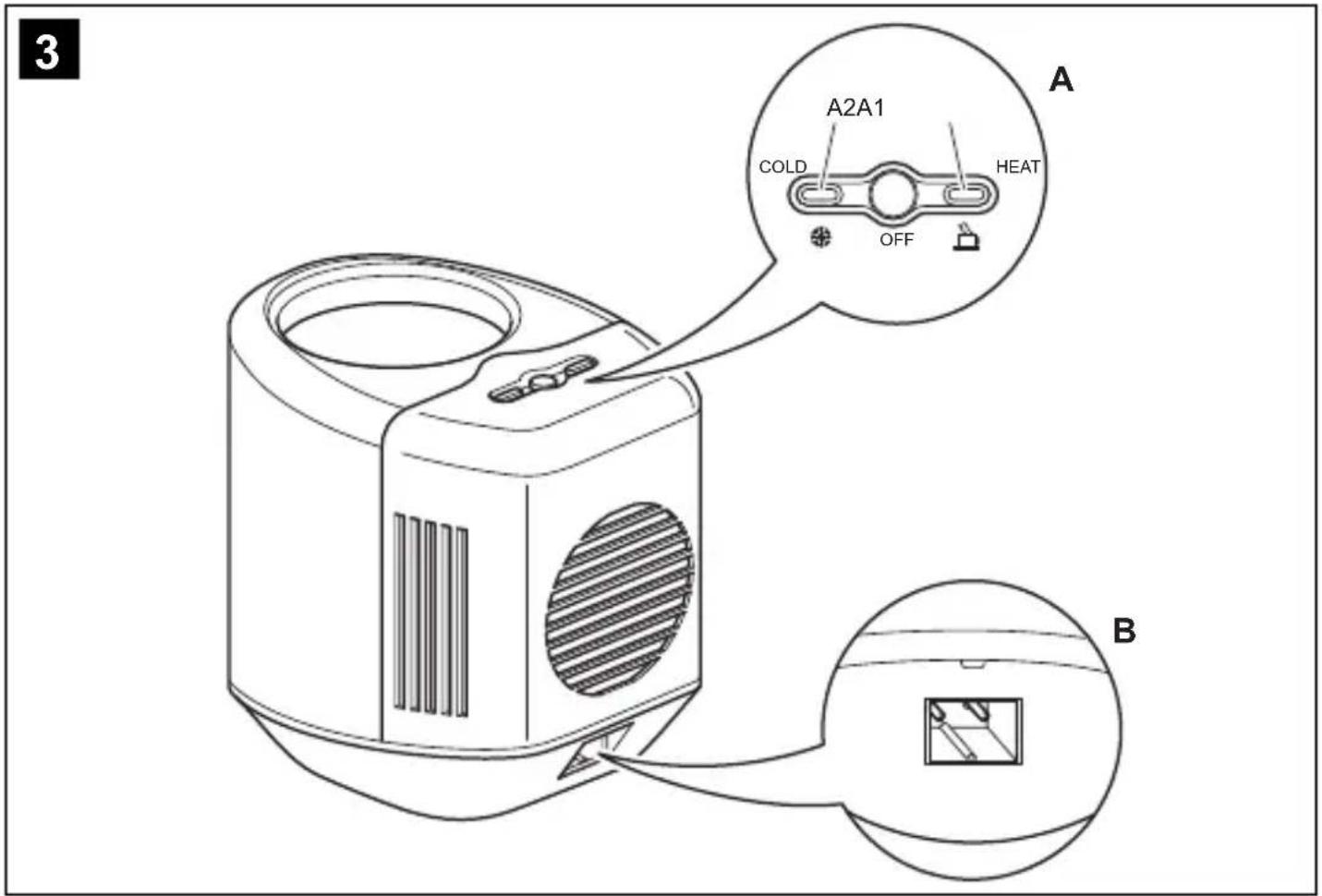

If you want to cool drinks, connect the device to a power source and press the "Cold" button (fig. 3 A2, page 4).
√The operating display lights up and the device begins cooling.

The device does not switch off automatically when cooling. Because the device cools drinks up to 22 °C below the ambient temperature, the drinks can freeze. When using glass containers, ensure that they are not cooled for too long as otherwise the liquid will freeze and the glass will break.

If you wish to end cooling, press the "Off" button (fig. 3 A, page 4).
To switch off the device, pull out the connecting cable.

7.2 Heating drinks

You must open the drinks bottle before heating. The drink expands as it heats and can burst the bottle if it is not open.

If you want to heat drinks, connect the device to a power source and press the "Heat" button (fig. 3 A2, page 4).
√The operating display lights up and the device begins heating.
√The device stops heating automatically when the drink has been heated to a temperature of around 60 °C. This prevents the device from overheating. It warms the drink again if the temperature falls.
▶To end heating, press the "Off" button.
▶ To switch off the device, pull out the connecting cable.

7.3 Connecting to the cigarette lighter

If you connect the device to the cigarette lighter, remember that the ignition must be turned on to supply it with power.

8 Cleaning and care

Caution!

Always unplug the cable from the cigarette lighter before cleaning the device.

Caution!

Never clean the device under running water or in dish water.

Caution!

Do not use sharp, abrasive cleaning agents or hard objects during cleaning as these can damage the device and the coating of the container.

▶Clean the inside of the device with a damp cloth now and again.
▶Clean the exterior of the device with a damp cloth.

9 D i s p o s a l

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you need to scrap the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

10 Technical data

Item number: MF-1F

Gross capacity: For standard drink containers up to 1.5 l

Voltage: 12 / 24 V

DC

Power consumption: max. 44 W

Temperature range: Cooling: Up to 22 °C below ambient temperature

Heating: heats drinks to up to approx. 60 °C

Weight: 1.2 kg

Testing/certification:

CE e 4 www.tuv.com TÜV GS gezeichnet
