USER MANUAL MD 2867 MEDION

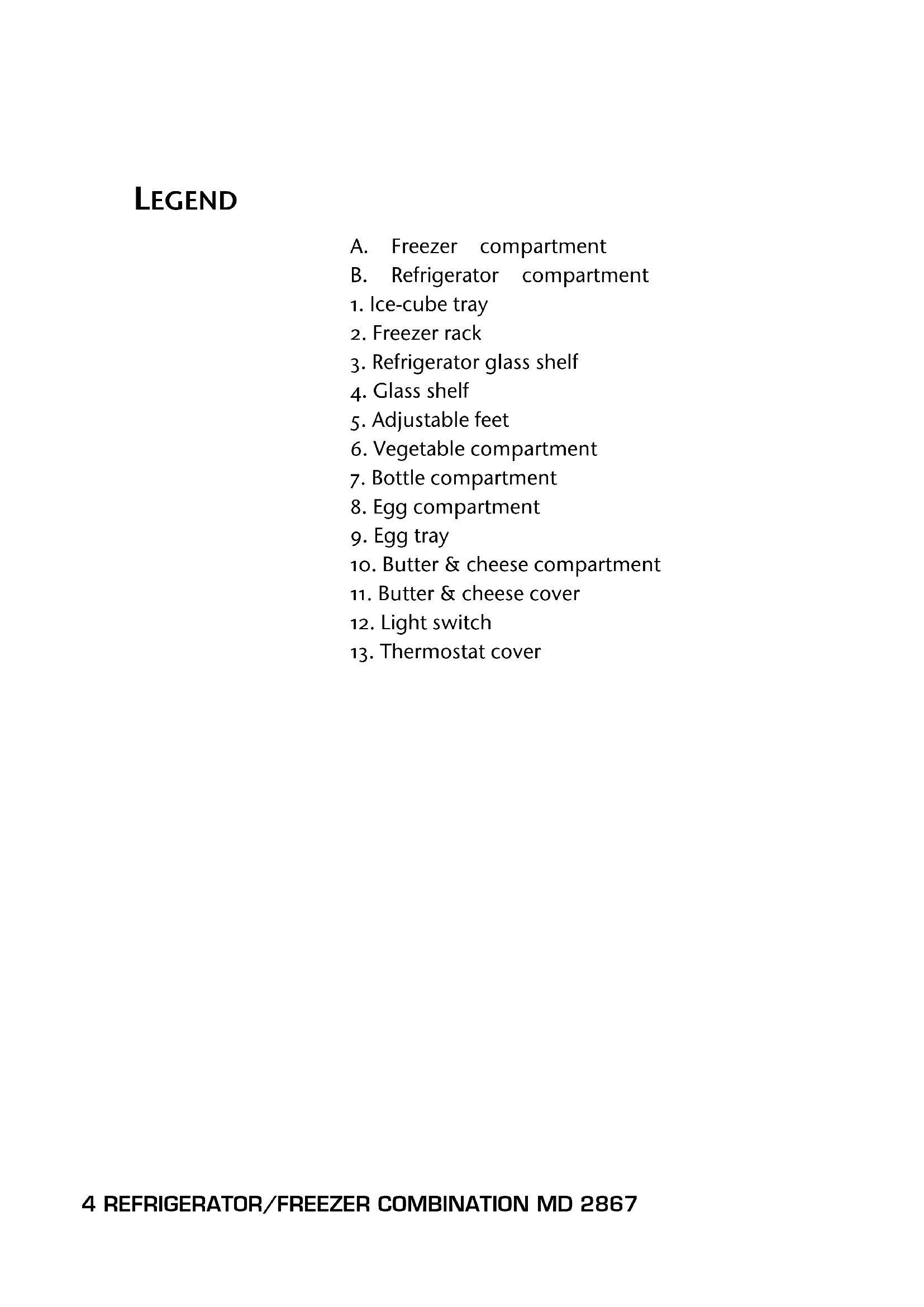

6. Vegetable compartment

7. Bottle compartment

10. Butter & cheese compartment

11. Butter & cheese cover

SAFETY INSTRUCTIONS Please observe the following safety precautions carefully before putting the unit into operation. Heed all warnings labelled onto the unit and specified in the operating manual. Always keep these operating instructions near at hand. If you sell or pass on the unit, make sure to include this manual together with the unit. Units with the refrigerant R600a are very environmentally friendly, but the gas is highly inflammable. During transport and installation, be careful not to damage the refrigerant circuit. In the event of any damage, open flames must be avoided. Ventilate the room where the unit is located for several minutes.

• Older units contain cooling and insulating gas which have to be disposed of correctly. Dispose of an old unit at your local industrial spillage deposal. In case of further questions, please contact your local authority. Make sure that the pipework is not damaged until it has been disposed of correctly.

• Do not allow your children to play with the unit. Never sit on the unit or hang onto the door as it swings.

• Do not use sharp metal instruments to remove ice because these could irreparably damage the refrigerator.

• Store liquors and spirits vertically in well-sealed bottles in the refrigerator.Safety instructions

6 REFRIGERATOR/FREEZER COMBINATION MD 2867

Connect the unit to an easily accessible domesticpower outlet 230V ~ 50Hz close to the place where it is installed.

• Do not connect the unit to the mains supply if your hands are wet.

• Do not wind up or kink the cable. To prevent the risk of fire or overheating, do not use adapters, extension cables or multisocket connectors.

• Electrical equipment must not be operated inside the refrigerator.

• Do not use the unit if the connecting cable is damaged. If this is the case, immediately pull out the mains plug and have the cable repaired by an electrician to prevent anyhazard. Information on the refrigerant circuit The refrigerant circuit of the unit contains the refrigerant R600a. (HCFC- and HFC-free). If used in the commercial sector, the applicable regulations must be observed. The refrigerant circuit has been tested for leakages. This product corresponds to the relevant safety regulations for electrical equipment.Safety instructions GB-7

Information on the refrigerant Cooling and freezing units with the ozone-friendly refrigerant R600a in their refrigerant circuit and with pentane in the insulation do not contain any chlorine. Refrigerant R600a This means that they are 100% HCFC-free, and thus do not destroy the ozonosphere which protects our planet from hazardous UV radiation. This is indicated by the comment "Refrigerant R600a" on the nameplate of the unit. If you own such a unit, please ensure that the pipework on the rear side of your refrigerator or freezer is not damaged because R600a can contribute slightly to the greenhouse effect if it is released into the atmosphere. This applies to both transportation and the entire service life of your unit. Ensure that these units are correctly disposed of according to the local regulations. This contributes to avoid harmful environmental impacts. Disposal information Disposal of the old unit Dispose of disused units immediately and properly. Pull out the mains plug and cut through the connection cable. Remove any snap or bolt locks - this prevents children from locking themselves in and thus putting their life at serious risk. Environmental information Older refrigerator and freezer units contain hydrochlorofluorocarbons (HCFC) in the refrigerant circuit and in the insulation. If released, this HCFC can damage the ozone layer in the atmosphere. Therefore, use your local communal waste disposal service to dispose of your old unit. Ensure that the pipework of your cooling unit is not damaged.Safety instructions

8 REFRIGERATOR/FREEZER COMBINATION MD 2867

Disposal of the packaging of the new unit All materials used to package your new unit can be disposed of safely: Cut up the box and add it to your recycling paper for collection. The foils are made of polyethylene (PE) and the padding of HCFC-free polystyrene (PS). If you send all these valuable materials to a recycling centre, they can be reused after reconditioning. Only environmentally friendly materials have been used. They can be safely dis- posed of or incinerated in a waste incin- eration plant. Ask your local administration for the address of your nearest recycling centre for the disposal of the packaging and old units.GB-9

Before you connect the unit to the mains supply, check the type of current and voltage at the installation location with respect to the information given on the manufacturer's nameplate. After transport, leave the unit for 3 hours in an upright position before connecting it. The manufacturer is not responsible for any incorrect installation or operating errors. You will be charged for any servicing costs resulting from such errors, even during the warranty period.Installation and connection of the unit

10 REFRIGERATOR/FREEZER COMBINATION MD 2867

Locating the refrigerator

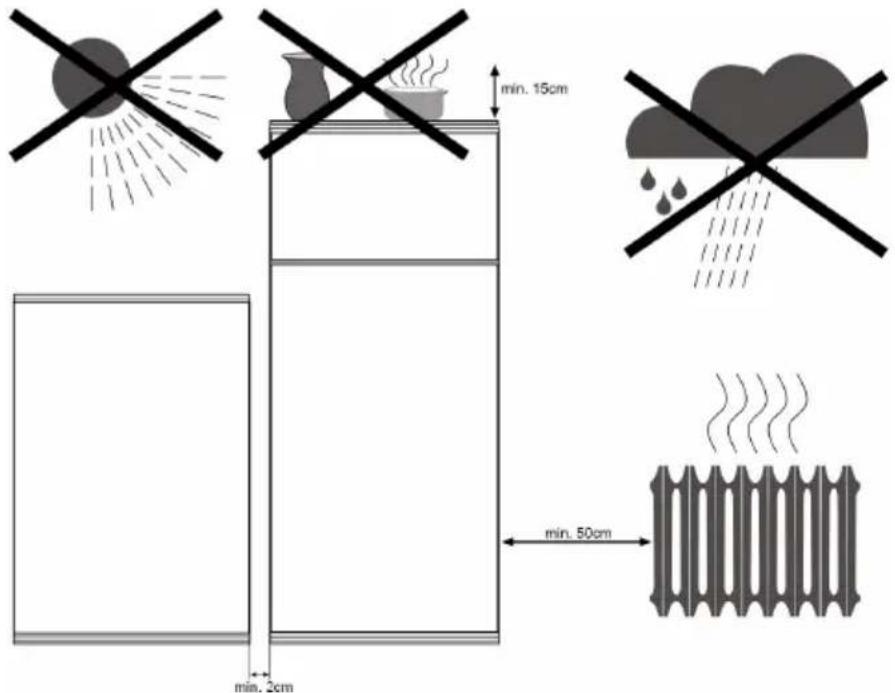

• The refrigerator must not be exposed to direct sunlight or any other thermal influences.

• The unit must not stand outdoors.

• Do not put any heavy objects or lots of smaller objects on top of the unit.

• Do not put very hot foodstuffs or objects on the unit. This could damage the surface.

• Do not install the unit in the vicinity of a heat source. If this cannot be avoided, maintain a minimum distance of 50 cm to radiators, gas or coal heaters and 5 cm to electrical cookers. The air must be able to circulate.

• The distance to the ceiling must be at least 15 cm.

• If you install the unit next to another refrigerator or freezer chest, keep a distance of at least 2 cm to avoid condensation.Installation and connection of the unit GB-11

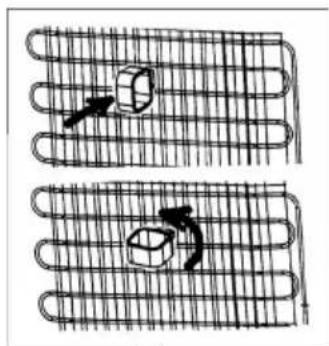

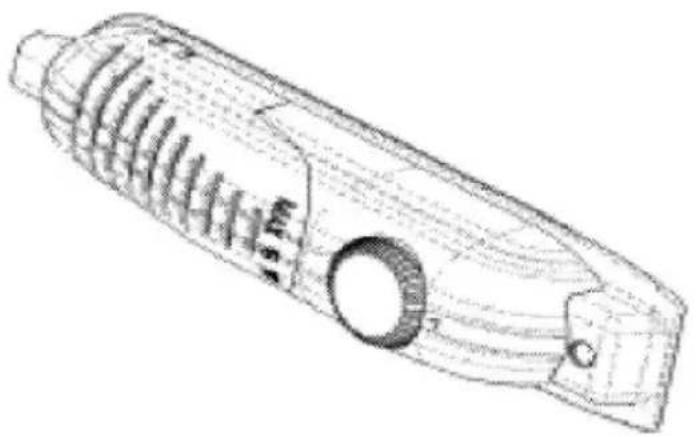

Distance to the wall Mount the wall spacers on the upper part of the condenser (corrugated plate on the rear side). These prevent the unit from leaning on the wall. Alignment of the unit Make sure that the refrigerator is standing in a stable horizontal position on the floor. Use the two adjustable feet at the front to align the unit horizontally. There may be an odour the first time the unit is switched on. This odour disappears as soon as cooling starts. If the unit is operating and the door of the freezer compartment is opened and then closed, the suction on the seal is so strong that for a short period, it will be difficult to open the door. This is not a malfunction because it ensures that the door is properly closed. The door can be opened again quite easily after a short stabilisation time.12 REFRIGERATOR/FREEZER COMBINATION MD 2867 TEMPERATURE CONTROL Rotary switch for the thermostat The refrigerator and the freezer compartment are automatically kept at a constant temperature by a thermostat. The temperature is controlled with a rotary switch. When the switch is turned to the right end position /position MAX/, then the temperatures are relatively low; when the switch is turned to the left end position /position MIN/, the temperatures are relatively high. The other positions between these two correspond to intermediate cooling levels. Position "0" means that the thermostat is switched off along with the cooling. For short-term storage of foodstuffs in the freezer compartment, set the switch to between the minimum and a middle position. For long-term storage, set the switch to the middle position. Note that the temperature inside the refrigerator compartment depends on many factors: e.g. the position of the thermostat, the ambientTemperature control GB-13

temperature, frequent opening of the door as well as the amount and consistency of the foods to be frozen and stored. Change the temperature setting according to your requirements. To ensure sufficient cooling, the unit should be left to run for 24 hours non-stop before it is put into use for the first time. During this period, the door should not be frequently opened. Store as many foods as possible in the unit. To avoid damage to the compressor, wait for at least 5 minutes between switching the unit on and off. This also applies if you pull out the plug and then push it back in.14 REFRIGERATOR/FREEZER COMBINATION MD 2867

TIPS ON COOLING FOODSTUFFS

Foodstuffs in the refrigerator To avoid moisture triggering defrosting, cover up Always cover up liquids liquids before putting them in the refrigerator. Frost tends to concentrate in the coldest zones of the evaporator and thus promotes defrosting. Do not chill warm foods Never put warm foods into the fridge compartment, all food must cool down to room temperature before storing it in the fridge. Place the foodstuffs so that there is sufficient circulation of air within the refrigerator. Do not allow objects to come into contact with the rear wall of the refrigerator since they can freeze on to it. Avoid opening the door too often. Store liquors and spirits vertically in well-sealed bottles in the refrigerator. Wrap meat and fish in film Store meat and cleaned fish (wrapped in several layers of paper or plastic foil) in the coldest part of the refrigerator to keep them as fresh as possible. This is on top of the glass plate over the vegetable bin. However, do not keep meat and fish longer than 2 days. Fruit and vegetables can be stored un- wrapped in the vegetable compartment.Tips on cooling foodstuffs GB-15

Foodstuffs in the freezer compartment The freezer compartment is used for long-term storage of food and to make ice-cubes. Ensure that the foods to be frozen lie on the freezing surface with their largest surface downwards. Leave a gap bet- ween frozen goods Store frozen food so that it does not come into contact with packages that have to be frozen. This could easily cause the frozen goods to thaw. Pack the goods in suitably sized portions for your household and then freeze them. Keep the tem- perature con- stant Goods that are kept in the refrigerator during defrosting of the freezer compartment must be used as quickly as possible after replacing them in the freezer compartment. An increase in temperature reduces the storage time of frozen goods. Do not place warm food into the freezer com- partment Never put warm foods into the freezer compartment. This would thaw foods that are already frozen. For deep-frozen goods, always observe the storage time specified by the manufacturer. If there is no information given, then do not store the goods for more than 3 months after the date of purchase. When buying deep-frozen foods, pay attention to correct packaging and storage temperatures. Deep-frozen goods should be transported in a cooler bag and placed into the freezer compartment as soon as possible. If the packaging of frozen goods becomes damp and swollen, then it can be assumed that they have been incorrectly stored and that the contents are spoiled. The lifetime of frozen foodstuffs depends on many factors: the ambient temperature, thermostat position, frequent opening of the door, consistency of the foodstuffs and the transport conditions from the shop back home. Always observe the manufacturer's information andTips on cooling foodstuffs

16 REFRIGERATOR/FREEZER COMBINATION MD 2867

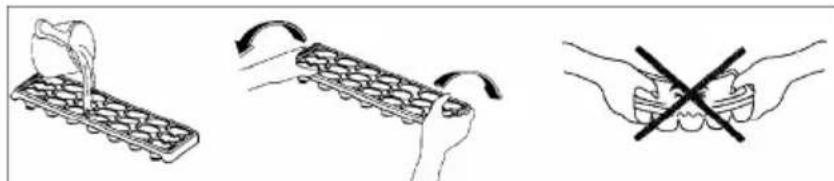

never exceed the specified storage time. Ice-cube tray Fill the cube tray three-quarters full of water and leave it to freeze in the freezer compartment. The ice-cubes can be removed from the tray by twisting it or by holding the tray under flowing water for a short time.GB-17

Before cleaning, always pull out the mains plug or switch off the fuse. Do not pour water into the unit. Use lukewarm water with a gentle disinfecting cleaner (washing-up liquid) for regular cleaning. Clean the housing and the accessories separately with soapy water and put them back after drying. Do not clean the accessories in the dishwasher. Do not use acid cleaning agents or chemical solvents. Rinse all parts with clear water and dry them carefully. After the unit has been cleaned, it can be reconnected to the power supply, but make sure your hands are dry. To save energy and to maintain efficiency, the condenser (corrugated plate at the rear) should be cleaned at least 2 times a year with a broom.18 REFRIGERATOR/FREEZER COMBINATION MD 2867 DEFROSTING Refrigerator compartment The refrigerator compartment automatically defrosts while the unit is operating. The melted water is collected in the evaporation tray where it evaporates. Clean the melt water drainage channel and the drainage hole in the refrigerator compartment frequently so that the melted water can drain away easily. To do so, use a suitable pointed instrument. You can also pour ½ glass of water into the drainage pipe. Freezer compartment Remove the layer of frost regularly. To do so, use the plastic scraper. Clean the freezer compartment at least 2 times a year, as already described for the refrigerator compartment. Set the thermostat to the position MAX one day before defrosting in order to completely freeze all goods. Wrap all frozen goods in newspaper and then store them in a cool place until the unit has defrosted. Due to the extreme increase in temperature, the lifetime of the frozen goods is shortened so that they should be consumed as soon as possible. Set the thermostat to the 0 position or pull the plugDefrosting GB-19

out of the power socket. Leave the door open during the defrosting process. Place one or more bowls with hot, not boiling, water into the freezer compart- ment to accelerate the defrosting process. Thoroughly dry the freezer compartment and set the thermostat to the position MAX. Do not use any electrical equipment, e.g. hot air blowers or hair dryers, to accelerate the defrosting process. Exchanging the light bulb If you need to exchange the light bulb in the refrigerator compartment, then proceed as follows:

1. Pull the plug out of the power socket

2. Remove the lamp cover by pressing the hooks on

3. Exchange the defect bulb with a new one

4. Replace the lamp cover and wait 5 minutes

before you switch on the unit again. Transport and changing the location Please observe the transport specifications on the packaging box. Before transporting, remove all movable parts out of the unit or fasten them with adhesive tape.20 REFRIGERATOR/FREEZER COMBINATION MD 2867

CHANGING THE DOOR MOUNTING

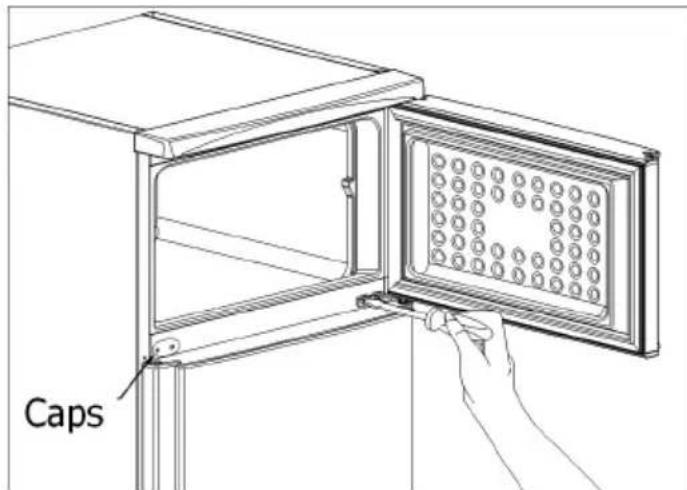

Depending on where you locate your refrigerator, it may be necessary to change the door mounting from left to right. You can do this yourself or you can contact your customer service centre (who will charge this). If you do decide to do it yourself, have a cross-head and a flat-tip screwdriver at hand and then follow the instructions given below: Step 1 Loosen and remove the two screws on the middle hinge with a cross-head screwdriver. Carefully remove the two big caps and the small cap on the left side by levering them carefully out with a flat object. This is where the hinge will be attached later on.Changing the door mounting GB-21

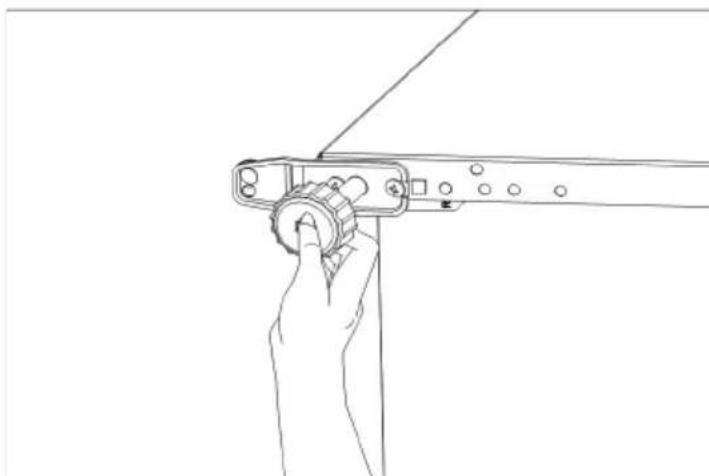

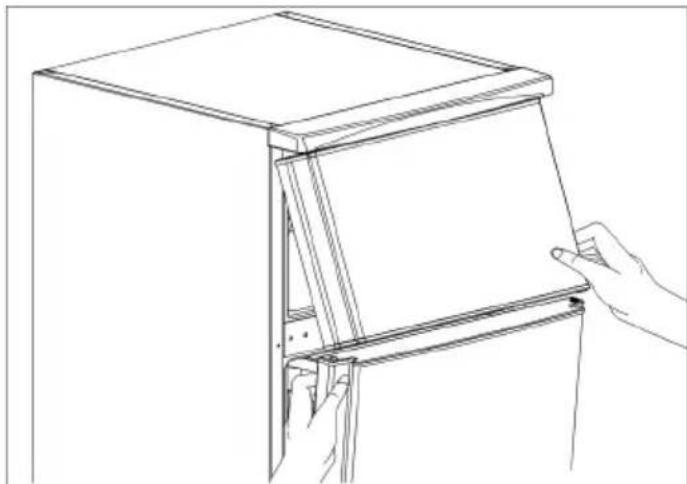

Step 2 Now remove the two doors by pulling them towards you together with the middle hinge. Step 3 Lay the unit on its left side. Remove both adjustable feet by unscrewing them counterclockwise.Changing the door mounting

22 REFRIGERATOR/FREEZER COMBINATION MD 2867

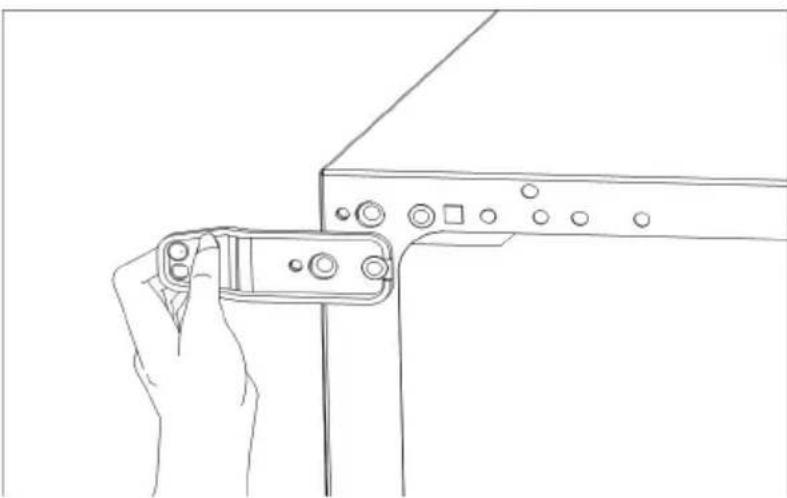

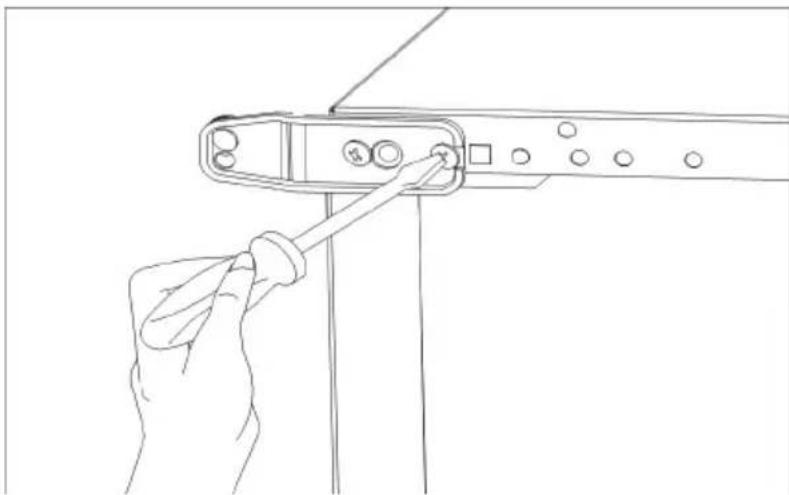

Step 4 Use the cross-head screwdriver to remove both screws that attach the bottom hinge. Step 5 Remove the bottom hinge.Changing the door mounting GB-23

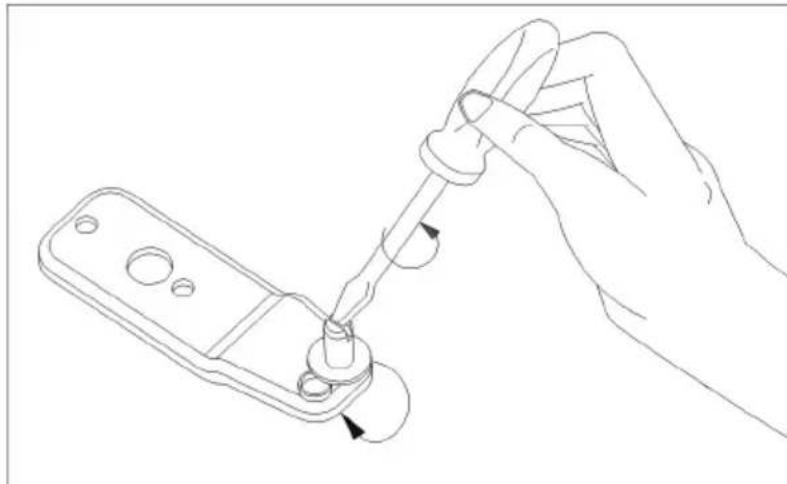

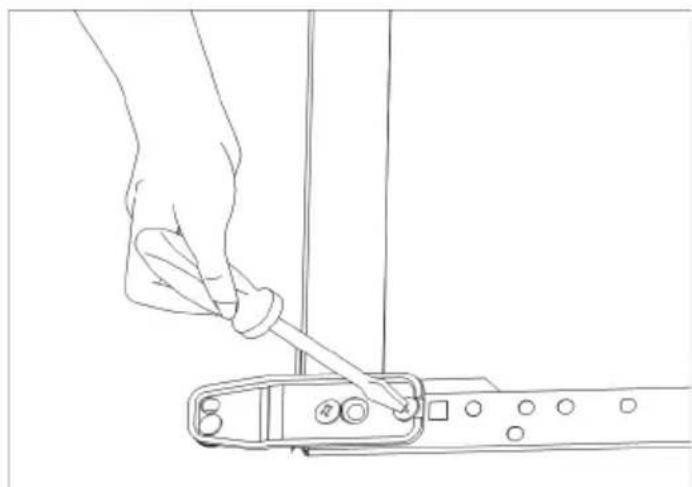

Step 6 Unscrew the pin of the bottom hinge with a flat-tip screwdriver and screw it back into the other hole. Step 7 Attach the hinge to the left (opposite) side by screwing in the two screws into the corresponding holes.Changing the door mounting

24 REFRIGERATOR/FREEZER COMBINATION MD 2867

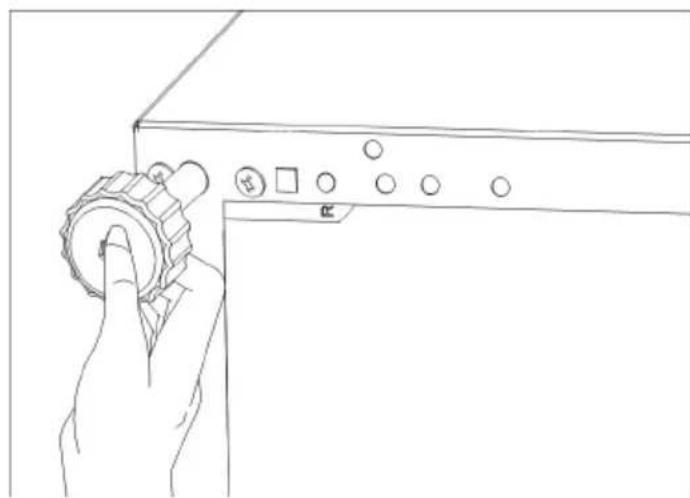

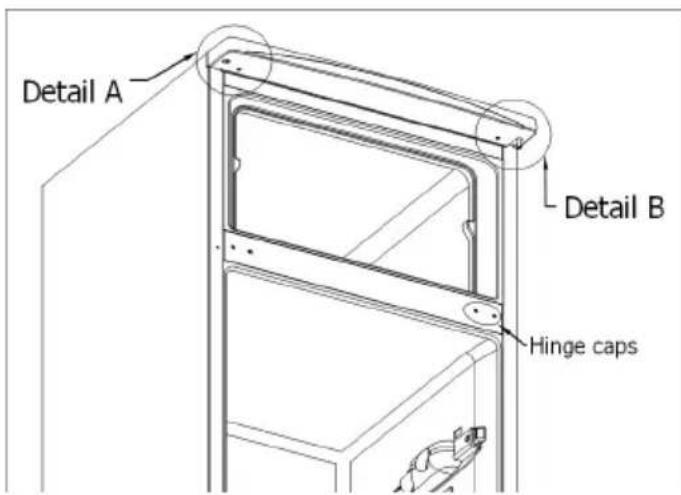

Step 8 Screw the two adjustable feet back in. Step 9 Unscrew the pin of the top hinge on the right-hand side with a flat-tip screwdriver. Push in the two big caps and the little cap into the holes on the right-hand side.Changing the door mounting GB-25

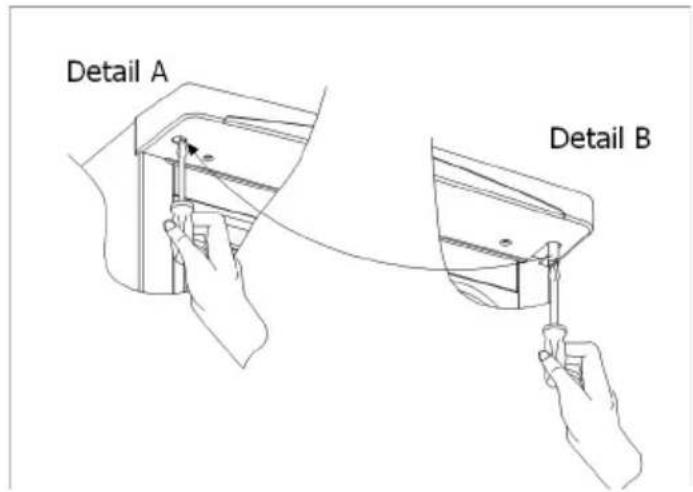

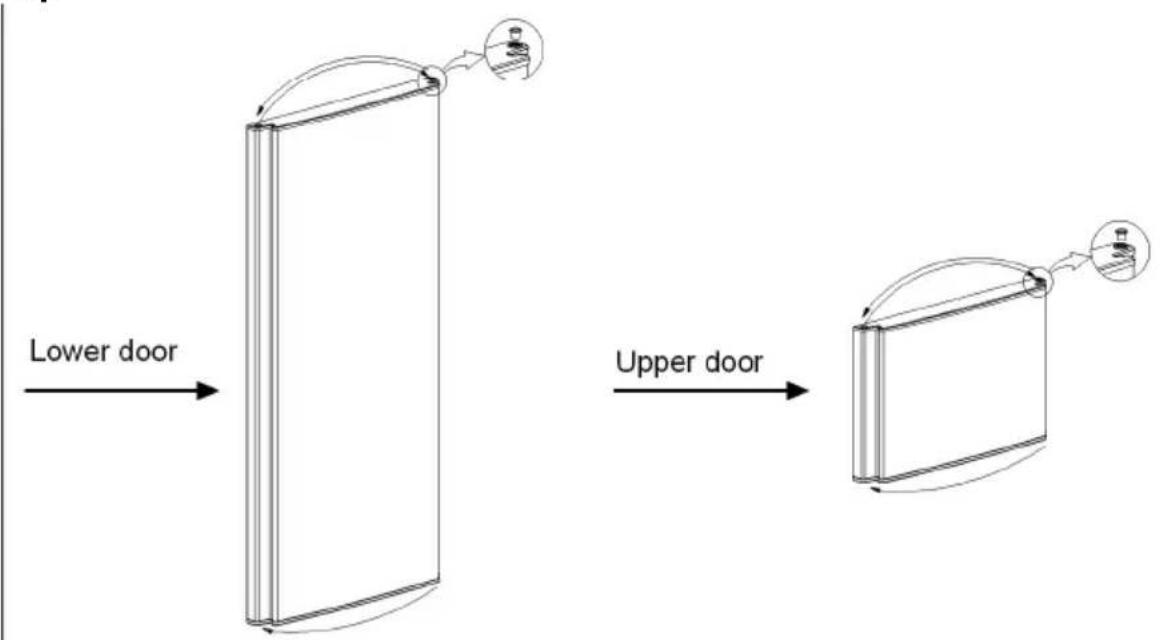

Step 10 Break open the left-hand opening on the headpiece. Screw in the pin for the top hinge on the left-hand side. Step 11 Change over the hinge bushings and hinge caps on the doors. To do so, carefully lever off the caps and bushing heads with a flat object and reinsert them on the opposite side.Changing the door mounting

26 REFRIGERATOR/FREEZER COMBINATION MD 2867

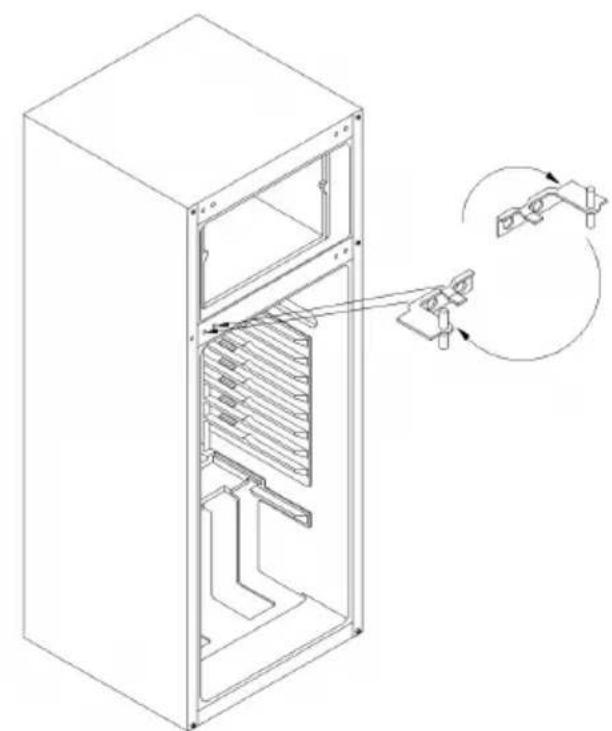

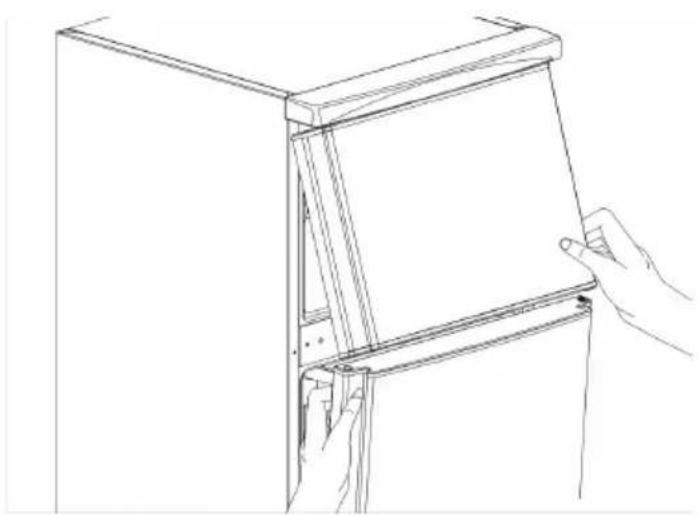

Step 12 Attach the middle hinge after turning it clockwise by 180°. Mount the doors on the middle hinge. Do this in reverse order to that described for dismantling. Tighten the screws firmly but do not force them.GB-27

Your unit is constructed and manufactured so that it should have a long service life without any malfunction. If a fault should occur during operation, please contact your nearest customer service centre. However, check beforehand whether the fault is due to an operating error, because in this case you will be charged for any customer service costs, even during the warranty period. You may be able to eliminate the following faults by checking for possible causes: The unit does not function

• The main fuse has blown

• The thermostat is set to " 0 "

• The fuse on the power socket is faulty. Check this by connecting another appliance to the same power socket. The temperature in the freezing compartment is not low enough

• The unit is overloaded

• The doors do not shut properly

• Dust on the condenser

• Air cannot circulate correctly.

• The unit is standing too close to a wall or another object.In case of faults

28 REFRIGERATOR/FREEZER COMBINATION MD 2867

The unit is too noisy Noise due to circulation in the refrigerant circuit cannot be avoided. If the noise should change, then check the following:

• Is the unit resting firmly on the floor ?

• Are neighbouring pieces of furniture or objects made vibrate by the cooling aggregate when it operates?

• Are objects on top of the unit vibrating? There is water in the lower part of the refrigerator compartment

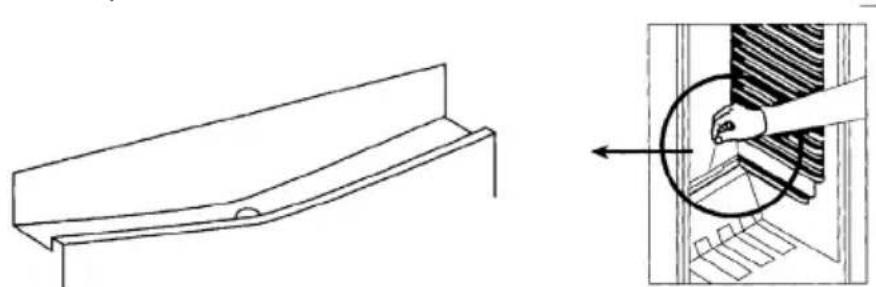

• The drainage pipe is clogged. Clean the drainage hole. Note To improve the appearance, the cooling system is installed into the rear wall of the refrigerator compartment. There may water droplets or frost form on the wall, depending on whether the compressor is running. This is no cause for concern, it is quite normal. It is recommended to defrost the unit only if there is an excessive layer of ice on the wall. If the unit is switched off for longer periods (e.g. during the summer holidays): switch off the unit, pull out the mains plug. Clean the unit and leave the door open to avoid odours and mildew.GB-29

SPECIFICATIONS Voltage supply: 230V~50Hz Average power consumption: 0,79 kWh / 24 h Capacity: 187l freezer compartment, 48l refrigerator compartment Ambient temperature: 16 - 32 °C Light bulb: E14/15W The unit is fitted with interference suppression according to EU Guideline 87/308/EEC. It complies with the accident prevention regulations applicable to refrigeration units (German Federal law VBG 20). Subject to technical modifications!30 REFRIGERATOR/FREEZER COMBINATION MD 2867F-3
