Product type	Multiroom wireless hi-fi system (audio receiver)
Power supply	9V, 1A power adapter (input 100-240V~, 50/60Hz)
Connectivity	WiFi 802.11b/g, Bluetooth 2.1+EDR (AVRCP 1.0, A2DP 1.0), AUX IN (3.5mm), Line Out RCA (L/R), Optical digital output S/PDIF, USB port 5V/500mA (update)
Maximum number of devices	Up to 14 Munet speakers on WiFi network (at 256 kbit/s)
Frequency response	20 Hz - 20 kHz
Signal-to-noise ratio	≥ 90 dB
Input sensitivity	580 mV (L/R)
Bluetooth range	Up to 10 meters (open space)
System requirements	iOS 5.0 or later, Android 10.1 or later
Indicator lights	Multicolor LED indicating states: startup (red flashing), WiFi connection (blue flashing), Bluetooth connection (blue 3 flashes), standby (steady violet), update (rapid violet flashing), etc.
Package contents	1x Munet Link, 1x power adapter, 1x case, 1x 3.5mm audio cable, 2x Line Out audio cable, 1x quick start guide, 1x user manual, 1x warranty card
Dedicated app	Munet App (iOS and Android)
Intended use	Household, indoor only
Care and cleaning	Unplug the power before cleaning. Use a soft, dry cloth. Do not immerse in water or use liquid products.
Safety instructions	Read the manual carefully. Do not open the casing. Use only the supplied adapter. Avoid humidity and heat sources. Unplug during prolonged periods of non-use.
Spare parts and repairability	Repairs must be carried out by qualified personnel. Contact the retailer for any replacements.
Environment	Temperate, non-tropical

Frequently Asked Questions - Munet Link PMN400 PEAQ

How to connect Munet Link via WiFi?

Connect the power adapter and connect the audio cables. Enable WiFi on your audio source, connect to the temporary network "My Munet xxxxxx", then open the configuration page (iOS automatically, Android via 192.168.1.1). Choose your WiFi network, enter the password, and click "Save". Then download the Munet App to control the device.

How to connect via Bluetooth?

Connect the power adapter and connect the audio cables. Enable Bluetooth on your audio source (phone, tablet), search for devices, select "My Munet xxxxxx", and confirm the connection. If asked, enter the password 0000. Only one Bluetooth connection is possible at a time.

What do the indicator lights mean?

The LED indicator shows the state: red flashing = startup; steady red = power off; blue flashing = WiFi connection in progress; steady blue = connected to WiFi; blue 3 flashes = connected via Bluetooth; steady violet = standby; rapid violet flashing = software update; violet 2 flashes = volume min/max; violet 3 flashes = identification via app.

How to add another Munet speaker to the network?

Repeat the WiFi connection steps for each new device. Connect to the temporary network of the new device, configure it on the same WiFi network as the first, then use the Munet App to group them and stream music simultaneously.

Can I use Munet Link without the app?

Yes, for wired (AUX IN) and Bluetooth connections, the app is not required. For WiFi connection, initial setup requires a web browser, but the app is recommended for multiroom management. Streaming via WiFi is possible without the app once configured.

How to reset Munet Link?

The manual does not describe a reset button. In case of a problem, unplug the power adapter for 30 seconds, then plug it back in. If the problem persists, contact customer service. A software update may also resolve some issues.

What is the maximum Bluetooth range?

The Bluetooth range is about 10 meters in open space. Walls, furniture, and other obstacles can reduce this range. For optimal connection, place the devices close to each other.

How to update the software of Munet Link?

The update is performed via the Munet App or automatically when a new version is available. During the update, the indicator flashes rapidly violet. Do not unplug the power or Internet connection for at least 10 minutes.

What to do if WiFi connection fails?

Check that the WiFi router is on and the password entered is correct. If the network does not appear in the list, press "Refresh". Make sure your audio source is connected to the Munet temporary network. You can also restart the router and Munet Link.

How to clean Munet Link?

Unplug the power adapter before any cleaning. Use a soft, dry, lint-free cloth to wipe the surface. Do not use liquid or abrasive cleaning products. Avoid moisture entering the device openings.

USER MANUAL Munet Link PMN400 PEAQ

WiFi Mac Address Label

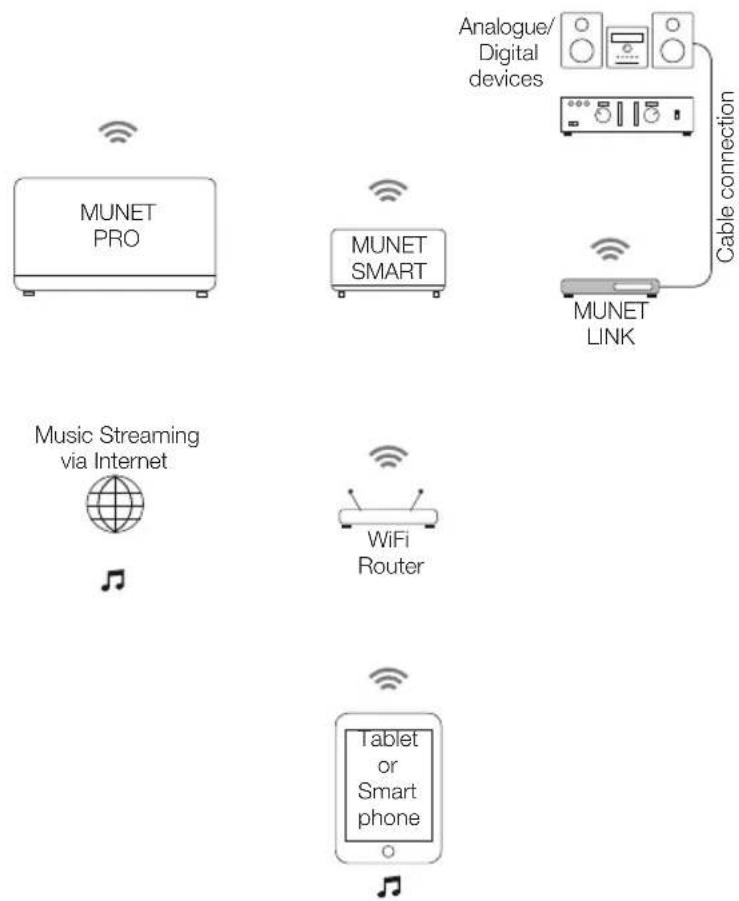

This MUNET LINK enables your home stereo to become part of a wireless network and to manage it wirelessly via a single iOS/Android App:

Example setup

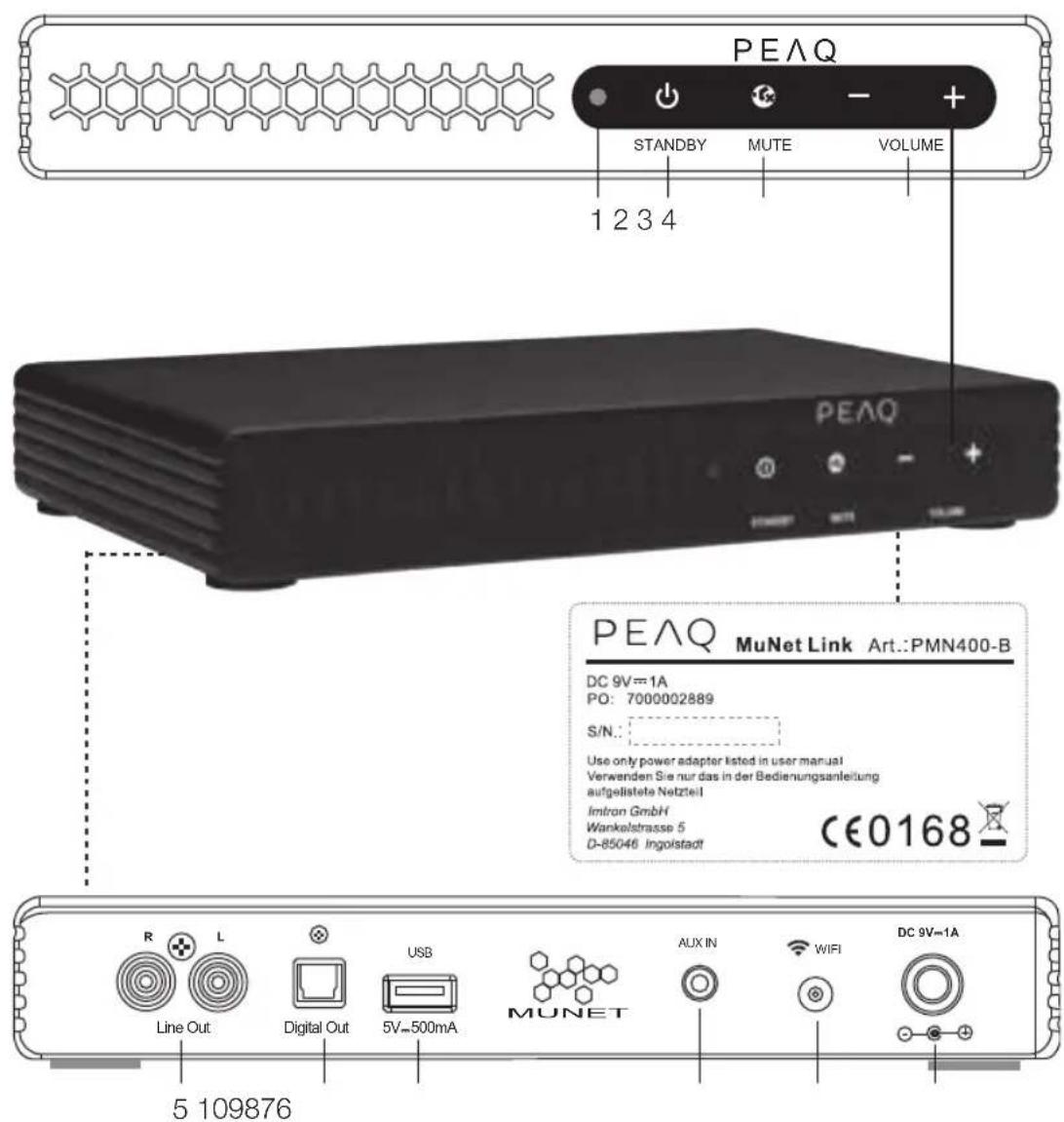

Components

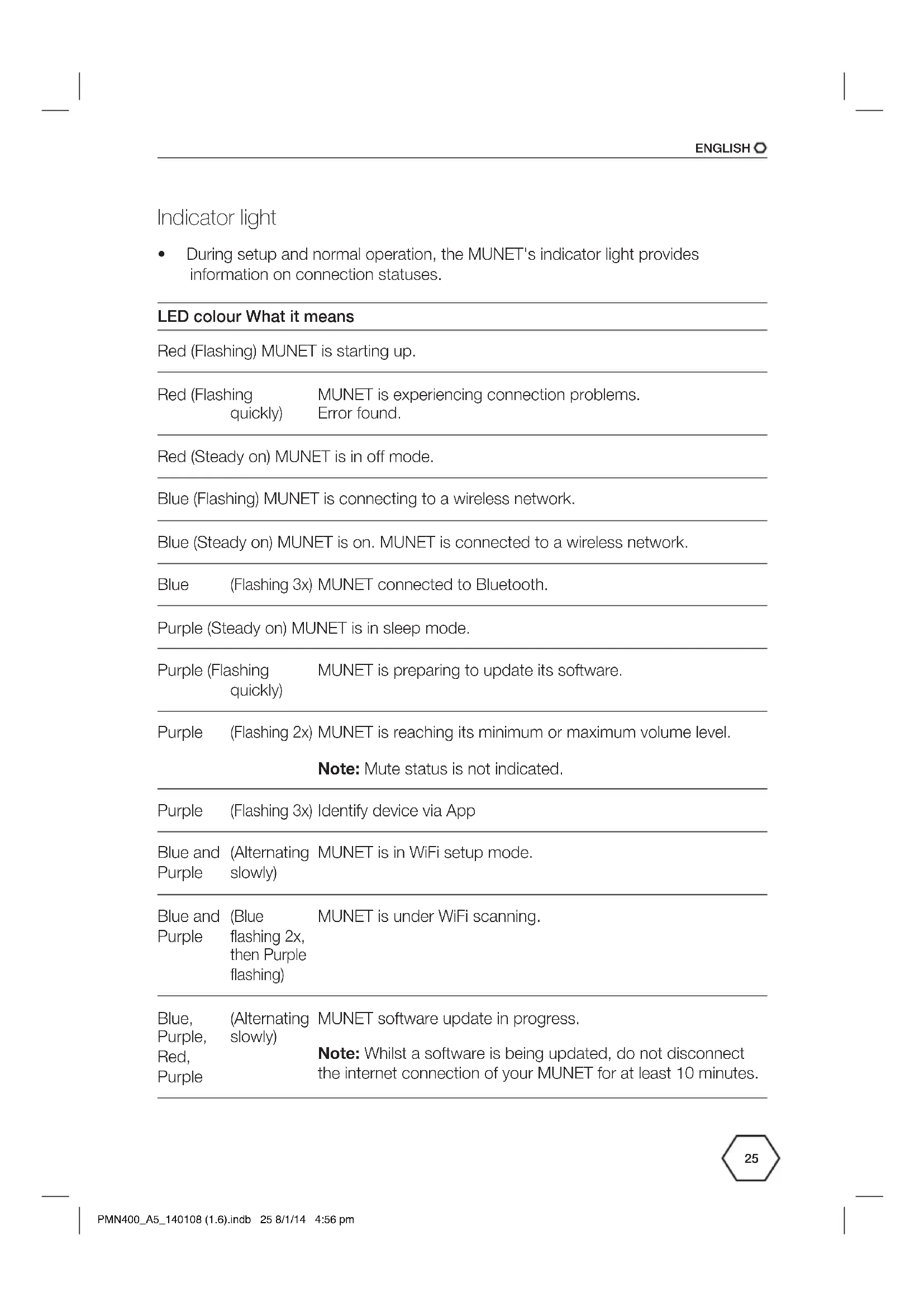

- During setup and normal operation, the MUNET's indicator light provides information on connection statuses.

LED colour What it means

Red (Flashing) MUNET is starting up.
Red (Flashing quickly)	MUNET is experiencing connection problems.Error found.
Red (Steady on) MUNET is in off mode.
Blue (Flashing) MUNET is connecting to a wireless network.
Blue (Steady on) MUNET is on. MUNET is connected to a wireless network.
Blue (Flashing 3x) MUNET connected to Bluetooth.
Purple (Steady on) MUNET is in sleep mode.
Purple (Flashing quickly)	MUNET is preparing to update its software.
Purple (Flashing 2x) MUNET is reaching its minimum or maximum volume level.Note: Mute status is not indicated.
Purple (Flashing 3x) Identify device via App
Blue and Purple (Alternating slowly)	MUNET is in WiFi setup mode.
Blue and Purple (Blue flashing 2x, then Purple flashing)	MUNET is under WiFi scanning.
Blue, Purple, Red, Purple (Alternating slowly)	MUNET software update in progress.Note: Whilst a software is being updated, do not disconnect the internet connection of your MUNET for at least 10 minutes.

Connection modes

- The MUNET can easily be connected to an external audio source by 3 different ways. With wired or Bluetooth connection, MUNET can act as audio source. Under ideal setup conditions, among them a suitable WiFi connection, up to 14 MUNET speakers can stream your music, everywhere throughout your house.

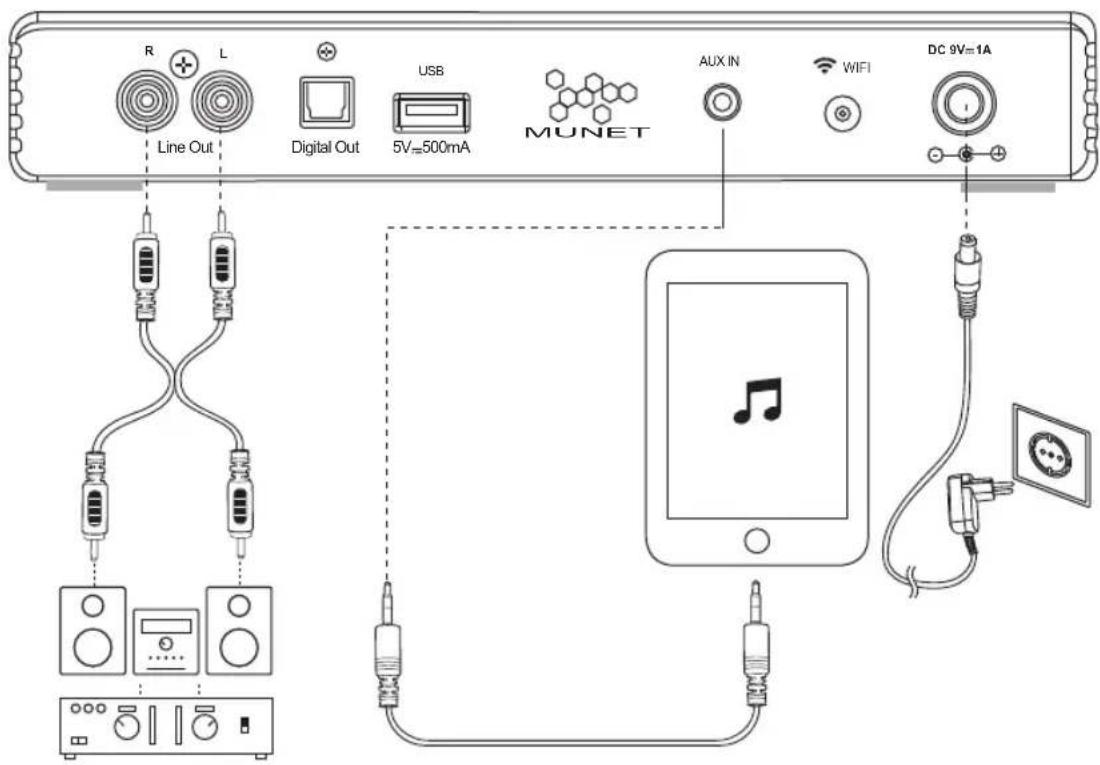

Wired connection

1. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.

2. Connect the supplied audio cables with the Line Out R/L sockets and with an audio output source (i.e. your stereo).

3. Connect the supplied audio cable to the AUX IN socket and to an external audio source (e.g. mobile phone).

4. Start playing music from the audio source.

Note:

• No installation of the Munet App required.

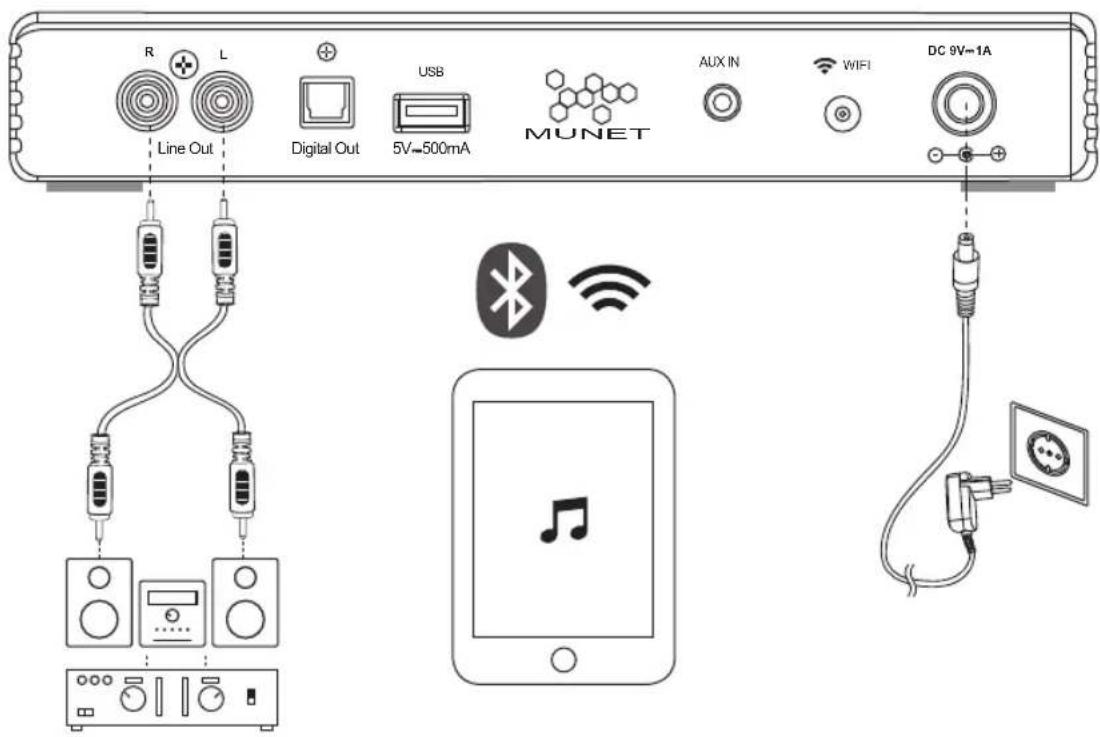

Bluetooth connection

1. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.
2. Connect the supplied audio cables with the Line Out R/L sockets and with an audio output source (i.e. your stereo).
3. Activate Bluetooth on audio source (e.g. mobile phone). Browse for devices and select "My Munet xxxxxx *".
4. Establish connection. If necessary, enter password 0000.
5. If necessary, select "My Munet xxxxxx * " as audio output device.

Notes:

• No installation of the Munet App required.
• Only one Bluetooth connection is possible at a time.
- In order to connect another audio source with Bluetooth, the previous connected device must be disconnected.
* For "xxxxxx" use the WiFi Mac address of the individual MUNET.

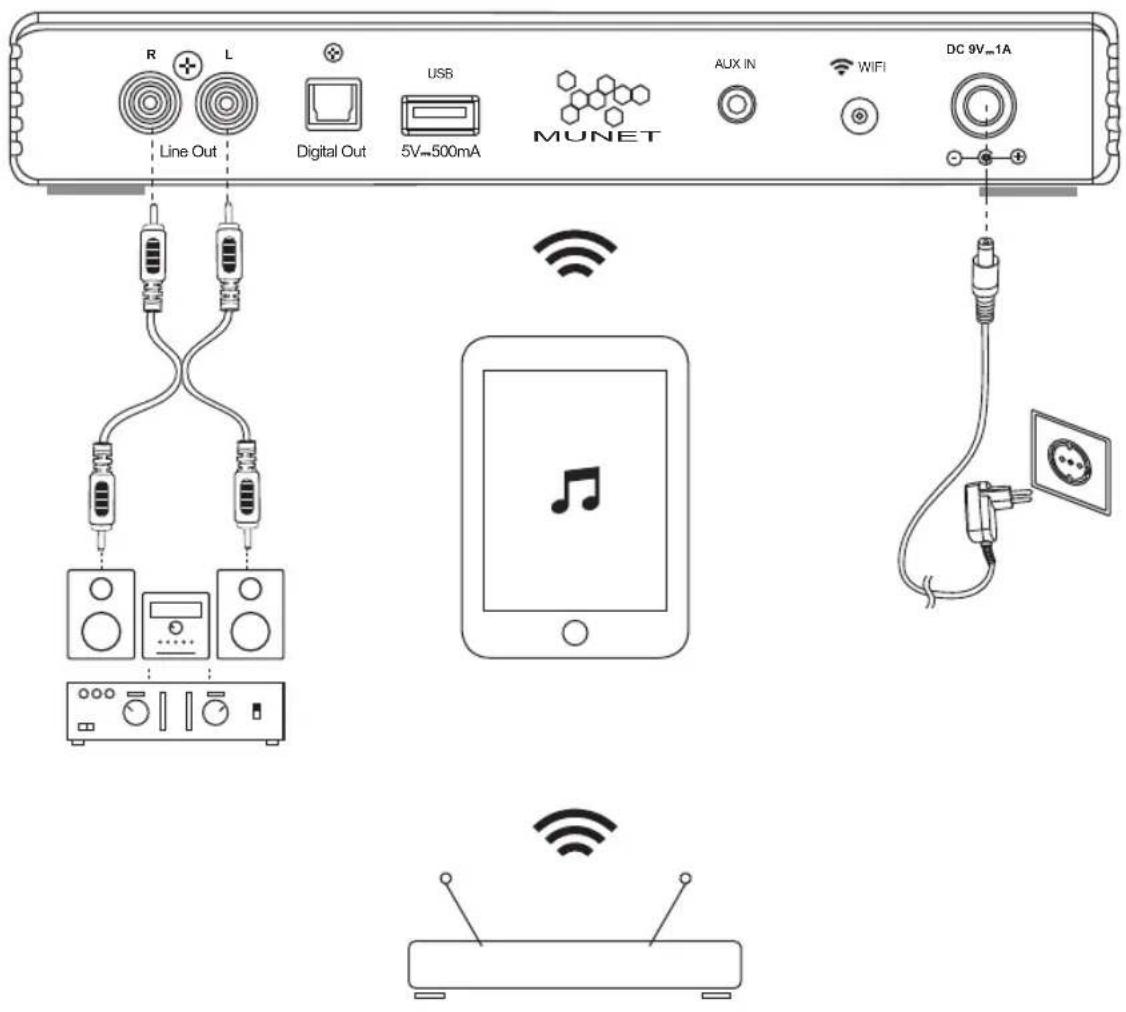

WiFi connection

Preparation

1. Place the MUNET LINK in range of your WiFi router.
2. Connect the supplied adaptor to the power inlet. Connect the adaptor to a suitable wall outlet.
3. Connect the supplied audio cables with the Line Out R/L sockets and with an audio output source (i.e. your stereo).
4. Activate WiFi on audio source (e.g. mobile phone).
5. Open the list of available WiFi networks on your audio source.

WiFi connection

Establishing the WiFi connection

1. Open the WiFi connection on your audio source (e.g. mobile or tablet).
2. Connect to your designated MUNET device.
3. Join the temporary WiFi Network "My Munet xxxxxx *". No password is required.

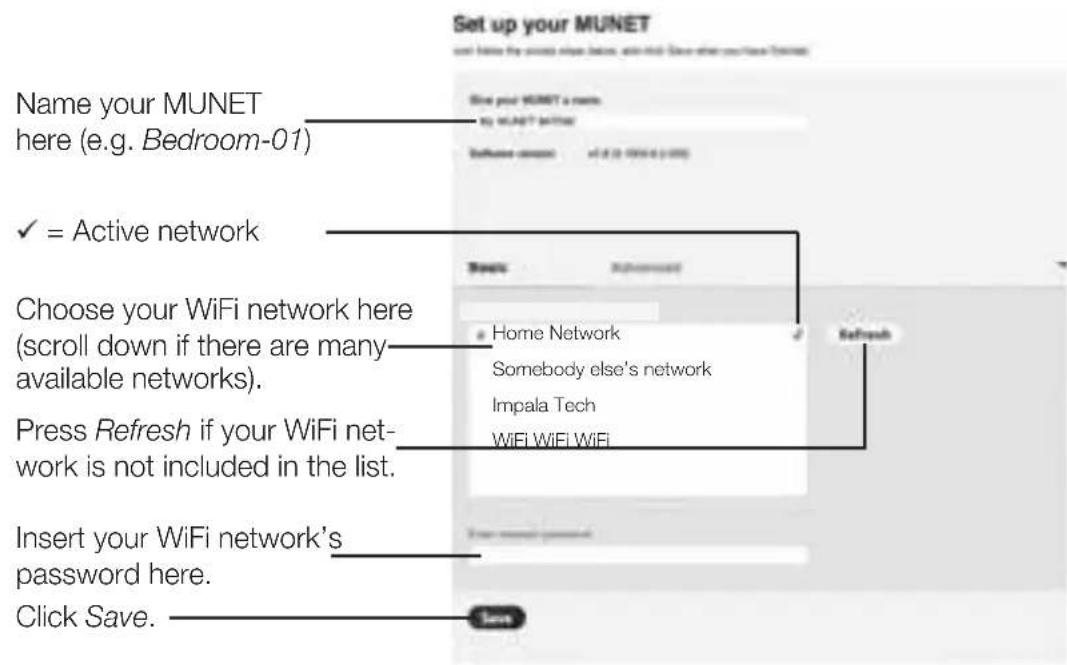

4a. For iOS devices: The network setup page will open up automatically:

4b. For Android devices: Enter the following address into your web browser: http://192.168.1.1. The network setup page will open up:

1. Your MUNET is now paired with the WiFi network.
2. Download the MUNET App from the Apple App Store (iOS) or from Google Play (Android) to control the MUNET.

Adding another MUNET device to the WiFi network

Repeat above Steps 1 to 5 under Establishing the WiFi connection.

* For "xxxxxx" use the WiFi Mac address of the individual MUNET.

Technical data

Adaptor

Input: 100 - 240 V\~, 50/60 Hz

Output: 9 V, 1 A

Sensitivity: L/R: 580 mV

Signal-to-noise ratio: ≥90 dB

Frequency response: 20 Hz – 20 kHz

USB socket: 5 V, 500 mA

Streaming capabilities: up to 14 devices (@ 256 kbit/s AAC tracks)

Audio output

Analogue output: CHINCH

Optical digital output: SPDIF

Bluetooth version: Bluetooth version 2.1 + EDR

Supported Bluetooth profiles: AVRCP 1.0, A2DP 1.0

Operating range: Up to approx. 10 metres (measured in open space.

Wall and structures may affect range of appliance)

Bluetooth and wireless system requirements

- IEEE 802.11b/g

• Apple iOS 5.0 or above

• Android 10.1 or above

All PEAQ MuNet products are compatible with each other

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

Important safety instructions

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Follow all safety instructions in order to prevent damage being caused by incorrect use! Comply with all safety warning on the appliance.

2. Please keep the user manual for further use. If you pass this appliance on to third parties, you must also deliver this user manual with it.

3. Use the appliance for the intended use only. The appliance is not suitable for commercial use. This appliance has been designed for exclusively for household use. Do not use the appliance outdoors or in a bathroom.

4. No liability for any damage that occurs can be accepted in the event of improper use or incorrect handling.

5. Before connecting the appliance to the mains power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label.

6. Never use an appliance that is damaged! Disconnect the appliance from the mains and contact your supplier if it is damaged.

7. Danger of electric shock! Never try to repair the appliance yourself. In the event of any malfunction, repairs are to be conducted by qualified personnel only.

8. Warning! Never immerse electrical parts of the appliance in water or any other fluids when cleaning or during operation. Never hold the appliance under flowing water.

9. The appliance should not be used near water – for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

10. Do not operate the appliance with wet hands or while standing on a wet floor. Never touch the mains plug with wet or moist hands.

11. Do not open the appliance casing under any circumstances. Do not insert any foreign objects into the inside of the casing.

12. Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. You must therefore use original accessories only.

13. The appliance is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.

14. Keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a level, stable, clean and dry surface. Protect the appliance against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.

15. Do not place heavy objects on top of the appliance. Do not place objects with open flames, e.g. candles, on top or beside the appliance. Do not place objects filled with water, e.g. vases on or near the appliance.

16. Do not pull the power adaptor out of the electrical outlet by the connection cord and do not wrap the connection cord around the appliance.

1. Connect the power adaptor to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power adaptor out of the electrical outlet to completely switch off the appliance. Use the power adaptor as the disconnection device.
2. Disconnect the power adaptor from the electrical outlet when not in use and before cleaning.
3. Only use this appliance with the supplied power adaptor.
4. Lay the cables in such a way that nobody can inadvertently pull them or trip over them.
5. The appliance is powered when connected to the power adaptor.
6. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary electrical surges, unplug the appliance and plug it in again.
7. Make sure that no electrical wires, water, gas or other lines are located around the installation location.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances.

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Primer uso

Product: Wireless Audio Streaming Receiver

is in conformity with the following directives: /
