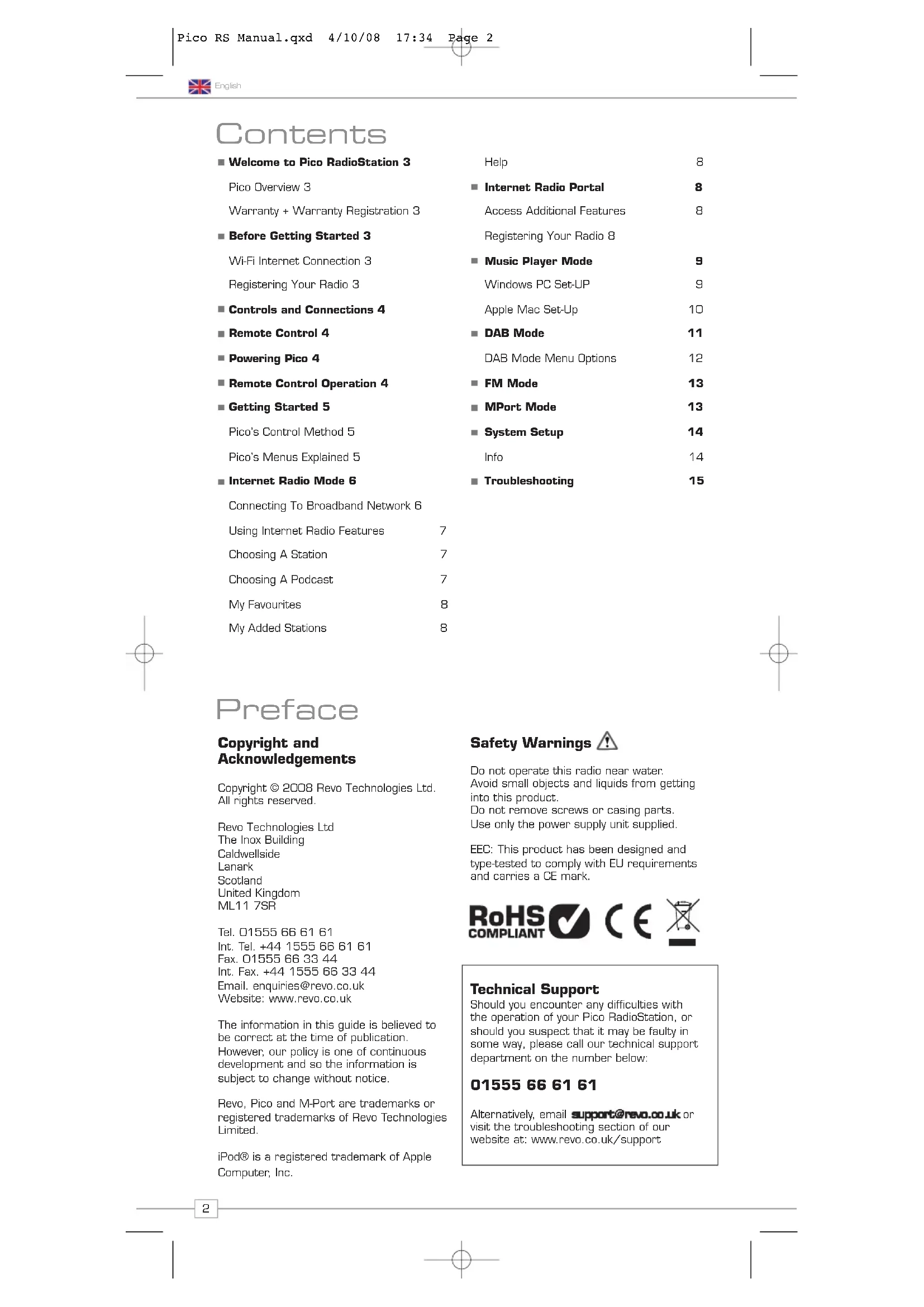

USER MANUAL Pico Radio Station REVO

Warranty + Warranty Registration 3

Before Getting Started 3

Wi-Fi Internet Connection 3

Registering Your Radio 3

Controls and Connections 4

Remote Control 4

Powering Pico 4

Remote Control Operation 4

Getting Started 5

Pico's Control Method 5

Pico's Menus Explained 5

Internet Radio Mode 6

Connecting To Broadband Network 6

Using Internet Radio Features 7

Choosing A Station 7

Choosing A Podcast 7

My Favourites 8

My Added Stations 8

Preface

Copyright and Acknowledgements

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland

United Kingdom

ML11 7SR

Tel. 01555 66 61 61

Int. Tel. +44 1555 66 61 61

Fax. 01555 66 33 44

Int. Fax. +44 1555 66 33 44

Email: enquiries@revo.co.uk

Website: www.revo.co.uk

The information in this guide is believed to be correct at the time of publication. However, our policy is one of continuous development and so the information is subject to change without notice.

Revo, Pico and M-Port are trademarks or registered trademarks of Revo Technologies Limited.

iPod® is a registered trademark of Apple Computer, Inc.

Help 8

Internet Radio Portal 8

Access Additional Features 8

Registering Your Radio B

Music Player Mode 9

Windows PC Set-UP 9

Apple Mac Set-Up 10

DAB Mode 11

DAB Mode Menu Options 12

FM Mode 13

■ MPort Mode 13

System Setup 14

Info 14

Troubleshooting 15

SafetyWarnings

Do not operate this radio near water. Avoid small objects and liquids from getting into this product.

Do not remove screws or casing parts.

Use only the power supply unit supplied.

EEC: This product has been designed and type-tested to comply with EU requirements and carries a CE mark.

RoHS

COMPLIANT

REVO Pico Radio Station - COMPLIANT - 1

REVO Pico Radio Station - COMPLIANT - 2

REVO Pico Radio Station - COMPLIANT - 3

REVO Pico Radio Station - COMPLIANT - 4

Technical Support

Should you encounter any difficulties with the operation of your Pico RadioStation, or should you suspect that it may be faulty in some way, please call our technical support department on the number below:

01555666161

Alternatively, email support@revo.co.uk or visit the troubleshooting section of our website at: www.revo.co.uk/support

Welcome to Pico RadioStation

Thank you for buying our Pico RadioStation digital radio, we feel sure that it will provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening to your radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration.

Pico RadioStation Overview

Pico RadioStation is the ultimate 'one box' portable digital radio, providing an unprecedented choice of over 11,000 stations from around the globe. Whether your preferred station is broadcasting from your own country on DAB or DAB+ digital radio, or on the other side of the world via internet radio.

Pico is capable of receiving new DAB+ digital radio broadcasts without the need for any software upgrades or modification, and all in a splashproof design with the convenience of internal battery power.

Pico also provides coverage of traditional FM radio and the added benefit of doubling as an iPod ® speaker system.

Throw-in high-quality audio performance and the ability to stream music from your PC or Mac, and Pico RadioStation becomes the ultimate go-anywathere digital radio.

Warranty

Revo Technologies Ltd warrants to the purchaser that this product will be free from parts and manufacturing defects in the course of normal use for a period of one year from the date of purchase.

This warranty does not apply in cases of accidental damage, where the case has been removed, wear and tear, negligence, modification or inappropriate use.

Should you encounter problems with this product, please contact your supplier or alternatively see page 2 of this guide for technical support contact details.

Warranty Registration

It is a warranty condition that you register your purchase by either completing the warranty card enclosed with your radio or alternatively registering online at www.revo.co.uk/register

Before Getting Started

IMPORTANT

To ensure that your Pico RadioStation is running the latest software release (and therefore has access to the latest software

features], we advise you to perform a software update. Please see page 14 of this operating guide for full details.

Network Connection

In order to use the internet radio functions of your Pico RadioStation you will require either a wireless [Wi-Fi] or wired LAN broadband internet connection.

For setup instructions please see page 6.

NB. If your wireless network is configured to use Wired Equivalent Privacy (WEP), or Wi-Fi Protected Access (WPA or WPA2) data encryption, you need to know the WEP or WPA code (Web Key) in order to allow Pico to connect to your wireless network.

Registering Your Radio and Accessing Additional Services

Some of Pico RadioStation's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal (www.wifiradio-frontier.com).

These features include the ability to create a "Favourites" list and add unlisted radio stations and podcasts. See page 8 for instructions on how to register your radio.

Pico RadioStation and DAB+

At the time of writing, Pico RadioStation is one of the first digital radio products that are capable of receiving broadcasts on the new DAB+ digital radio platform - without the need for modification or additional software.

Meaning that Pico is ready for future developments. This facility is in addition to Pico's reception of standard DAB signals.

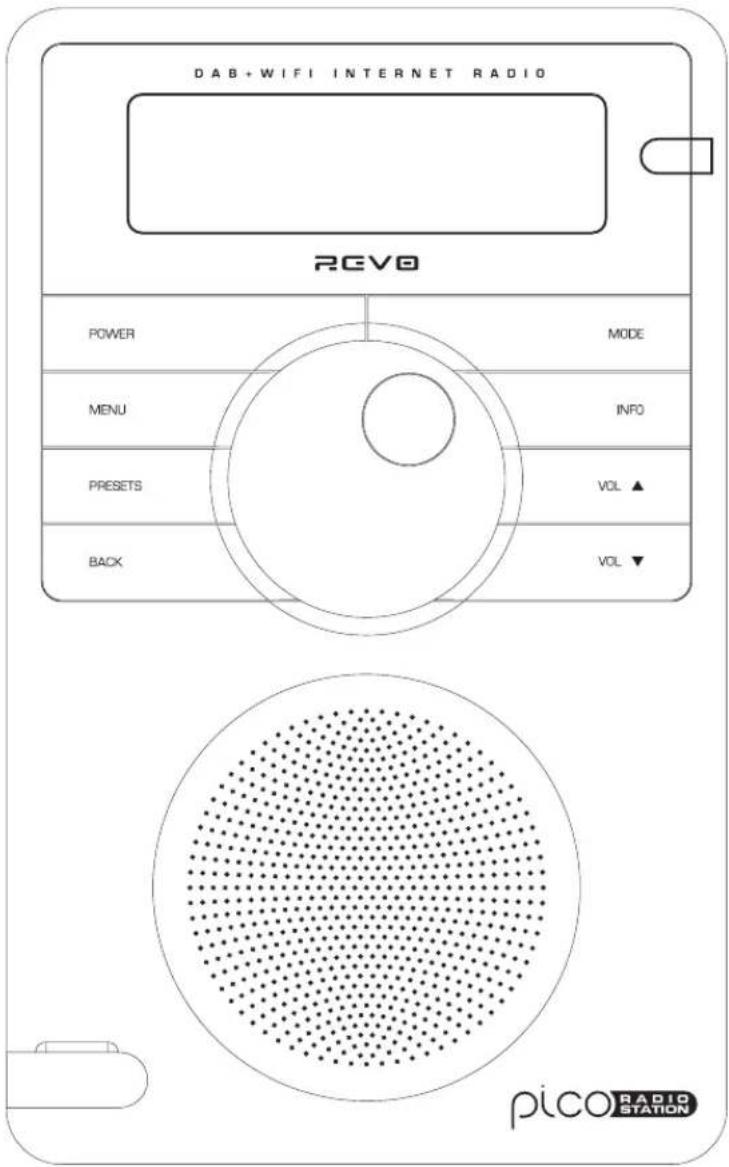

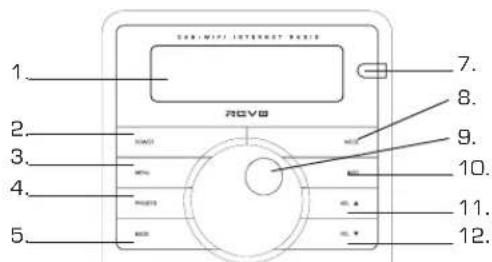

Controls and Connectors

REVO Pico Radio Station - Controls and Connectors - 1

REVO Pico Radio Station - Controls and Connectors - 2

LCD Screen
2、Power
Menu
4.Presents
Back
6.M-Port
Remote Control Sensor
8.Mode
Scroll Wheel
Info
Volume Up
Volume Down

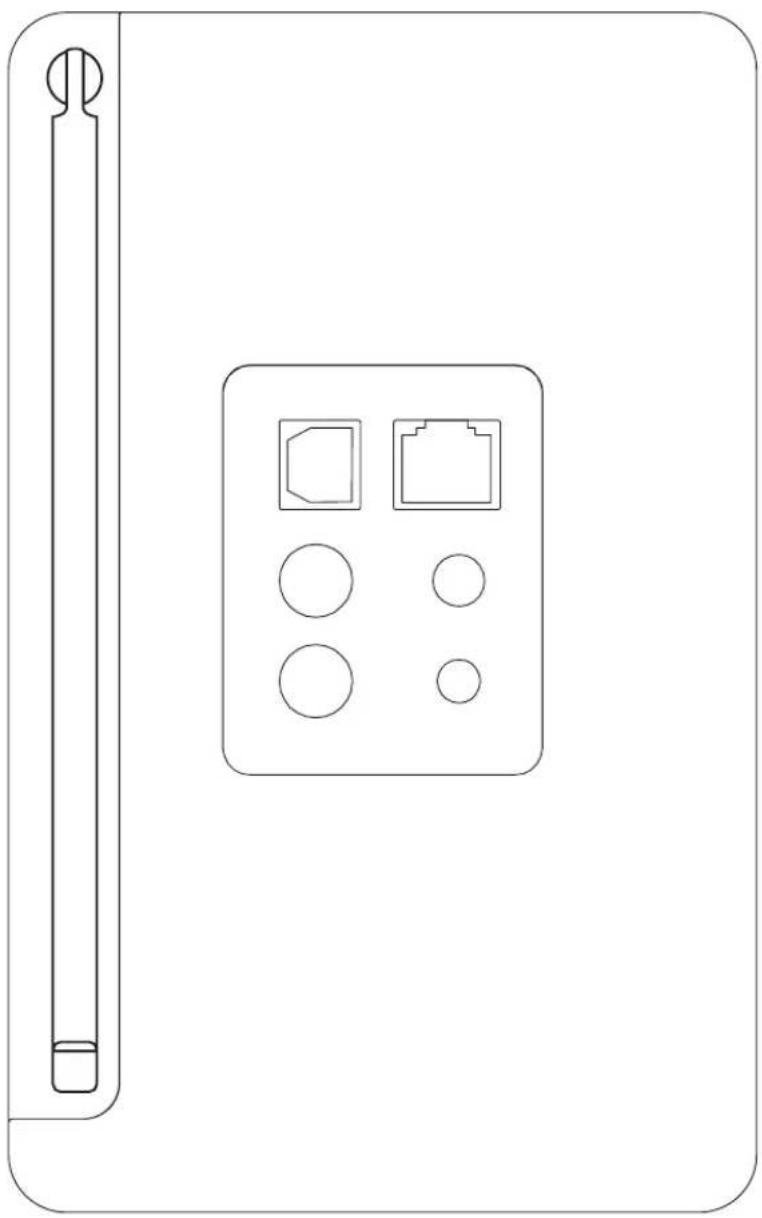

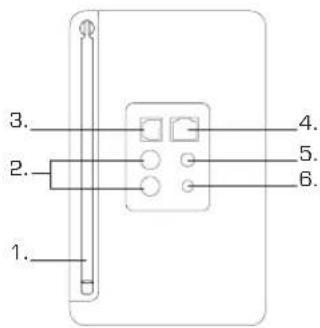

REVO Pico Radio Station - Controls and Connectors - 3

Telescopic Antenna
Sterep BCA
USB Update Port
Wired LAN
5.3.5 Headphone Connecter
DC Power Socket

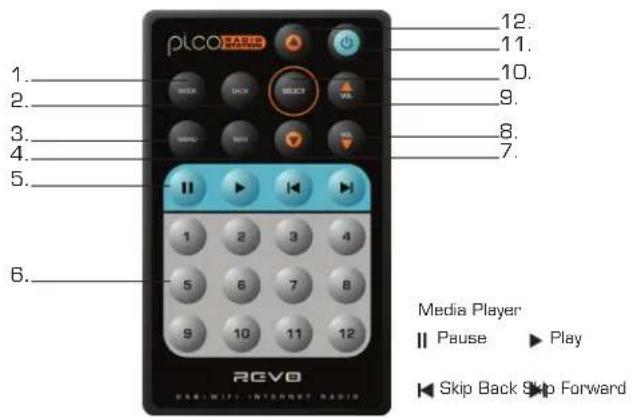

Remote Control

Mode
Back
Menu
Info
Media Player
6.12 Presets
Down
Volume Down
Volume Up
Select
Standby
12.Up

REVO Pico Radio Station - Remote Control - 1

Powering Pico RadioStation

Your Pico radio is powered from the mains using the power adaptor supplied, or from its own internal rechargeable battery pack.

To power from the mains, insert the power adaptor plug into the DC power socket on the rear of Pico. When Pico is connected to mains power, its internal battery pack will commence charging. On a full charge, Pico's internal battery pack has a 12 hour life.

Only use the power adaptor supplied. Replacements are available from www.revo.co.uk

Getting Started

Pico RadioStation is a sophisticated digital radio device, with several modes of operation and many advanced features.

In order for you to get the most out of Pico's functions, it is important that you learn how to use the cursor based control system, and also understand how Pico's menus work.

Pico's Control Method

Pico's control method is based around a central scroll wheel (with push to select function).

SCROLL WHEEL:

Rotate clockwise and anti-clockwise to scroll through menu options.

PUSH TO SELECT:

Press the scroll wheel to select the current menu option. In FM mode, pressing the scroll wheel will initiate an FM scan.

BACK:

Press to return to the previously selected menu entry. Repeatedly pressing will return you to the top level of the Mode menu (for the mode you are in).

Press to enter [or return to] the Mode menu for the mode of operation you are currently in. Pressing for a second time will return you to the 'playing' screen.

MODE:

Sequentially cycles through each of the modes of operation.

Using these keys, you will be able to perform most functions and navigate through Picos various menus.

Pico has three types of menu as follows:

This is Pico's principle (top level) menu, and allows you to enter different operating modes, setup the radio, and view information such as software version and your radio's ID number.

Mode Menus

The Mode menus are so called because they show the functions available within the context of each of the operating modes (DAB mode, FM mode etc.).

Pressing the MENU button at any time will take you to the Mode menu of the operating mode your radio is currently in. Each Mode menu includes a listing for Main Menu - selecting this option will return you to the top level Main Menu (as described above).

The Main menu provides access to the following modes and sub-menus:

DAB

Info System

Setup

To select an option from the menu, simply use the scroll wheel to move through the menu options, then press to select.

Internet Radio Mode

Connecting to your broadband network

In order to access Pico RadioStation's internet radio features, first you must connect Pico to your broadband connection.
Firstly, select 'Internet Radio' by pressing the MODE key until 'Internet Radio Mode' appears on the display, or alternatively select from Pico's main menu.
Pico will now ask you to select a 'Wlan region'. To do so, simply rotate the scroll wheel to cycle through the list of available options, then push to make your selection.
Pico will ask you to choose the network you'd like to use. If there is more than one available, all will be listed.
If you are using a wired LAN connection choose 'Wired' option from the network list. To make your selection rotate the scroll wheel to cycle through the list of available options, then push to select.
If the Wi-Fi network you have chosen doesn't require a password, Pico will automatically connect.
If your chosen network has security enabled, you will be asked to input the relevant key or password. Remember, the password will be case-sensitive.
Use the scroll wheel to move through the banks of characters and push the wheel to select your chosen character. When the password has been entered, move the flashing cursor to the symbol at the end of the line and push to enter the code. Pico will now connect to the network.
Pico will remember the security key or password, you will not be required to enter it again, even after Pico has been used on another network in a different location.
Pico can also remember keys and passwords for multiple Wi-Fi networks.
If at some time you would like to connect to another Wi-Fi network, you can do so by selecting 'Wizard' from the 'Internet Setup' option on the main menu, and entering the required key/password.
Advanced users can edit their Wi-Fi settings by accessing the 'System Setup' option from the Main menu.

Most of Europe USA

[Rescan] [Wired]

My Home Network

Connected

Key:01234567894C

Please wait Connecting...

Internet setup Time setup

Using Internet Radio Features

The internet radio mode allows you to choose from a number of services, including listening to live radio or Podcasts. There are five options on the internet radio menu as follows:

My Favourites: Used to navigate to your favourite stations. This list is compiled using your PC/Mac via the internet radio portal. See page 8 for details.

Stations: Find stations by location, genre, most popular, new station or by alphabetical search.

Podcast: Find Podcasts or 'Listen-Again' services by location, genre or search.

My Added Stations: Shows stations which you have personally added to Pico RadioStation's list through the vTuner internet radio portal. See page 8 for details.

Help: Find your Access Code here, see page B.

Choosing A Station

To select a station select 'Internet Radio' by pressing the MODE key until 'Internet Radio Mode' appears on the display, or alternatively select from Pico's main menu.
Using the scroll wheel, scroll to the Stations' option and press to select.
You now have the option of selecting a station by location (country), genre, alphabetical search, most popular stations or new stations. Using the scroll wheel, scroll through the options and press to choose your search criteria.
Choosing location will give you an alphabetical list of continents,/regions and then a list of countries. Use the scroll wheel to scroll through the list and push to select your chosen country. You will then be given the option of choosing a genre, to further refine your search.
After selecting your search criteria, you will be presented with a list of stations that meet your requirements. Simply select a station from the list to begin listening.

Choosing A Podcast

Podcasts [also referred to as 'Listen Again'] are selected in the same way as a regular station.
Select 'Podcast' from the 'Internet Radio' menu, you can search for a station by location, genre or a combination of both.
The main difference is that when you have selected a station, you will then be presented with a list of 'shows' or Podcasts available from that station.
- Select your choice using the scroll wheel before pushing to select your choice.

Internet Radio Mode

My Favourites. Stations

Location Genre

Location

Genre

Finland
France

BEC Radio 1

BBc 1xtra

BBC Radio 1 Playing

)Podcast My Added Stations

BBBC 6 Music BBC Radio 7

My Favourites

It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of varied stations. To do this you must first register your radio and then choose your favourites by visiting the Frontier Internet Radio Portal - see 'Internet Radio Portal' section below for details.
When in 'Internet Radio Mode', choose 'Station List' from the options, then select 'My Favourites'.
If you have set up a 'My Favourites' list via the Frontier Portal, your list will appear on Pico's screen.

My Added Stations

If you have added any of your own stations to Pico's already huge station list [via the Frontier Portal - see section below], they will be listed here. The 'My Added Stations' option can be found under 'Station List' in 'Internet Radio Mode'.

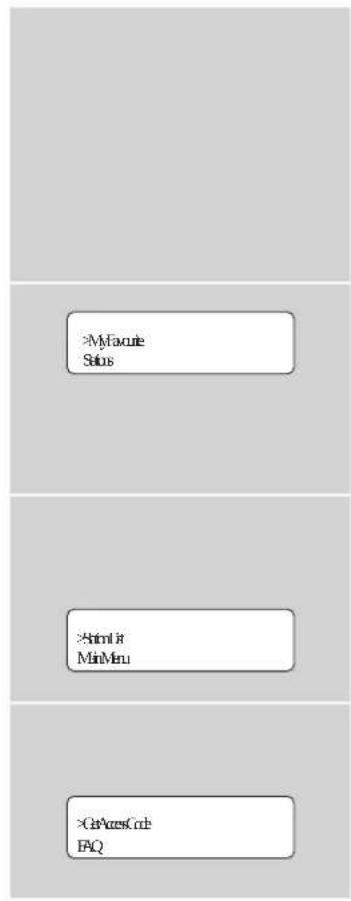

Help

The 'Help' option is where you can find the Access Code that you require to register your radio on the Frontier Portal (see below for full instructions). A helpful FAQ audio track can also be found under this heading.

REVO Pico Radio Station - Help - 1

Internet Radio Portal

Access Additional Features

Some of Pico RadioStation's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal.
In order to access these features you must first register your radio.

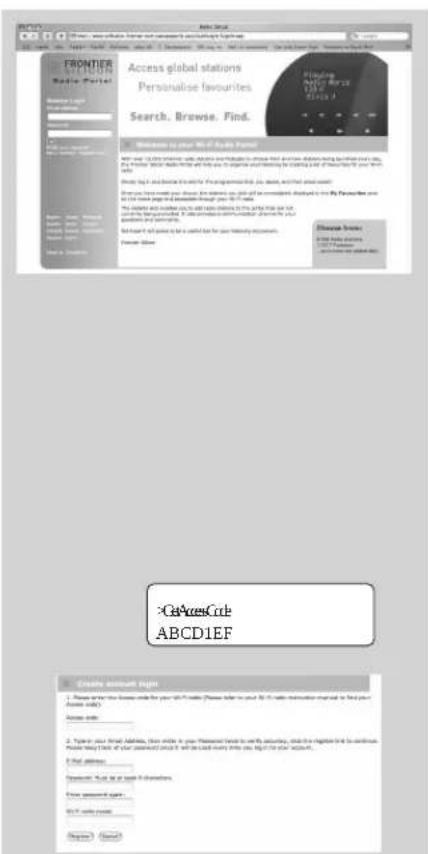

Registering Your Radio

Firstly, open your web browser on your PC or Mac and go to the Frontier Portal at http://www.wifiradio-frontier.com
- Click on the Register link, (located on the left hand panel) to begin the registration process.

You will now be asked for an Access Code.

To find your Access Code enter 'Internet Radio Mode', select 'Station List' from the options, then select 'Help'. From the 'Help' menu now select "Get Access Code".
Now fill-in the rest of the from to complete the registration process. You will now be able to login and take advantage of the various additional features and services offered by the Frontier Internet Radio Portal.

REVO Pico Radio Station - Registering Your Radio - 1

Music Player Mode

Music Player Operation

Pico RadioStation's media player functionality allows you to play audio files (AIFF, AU, MP3, RM, WAV and WMA) and playlists (M3U) stored on a networked PC or Apple Mac. The media player functions have been tested and certified to operate with Windows 2000, Windows XP, Windows Vista and Mac OSX 10.2 - 10.4.9.

Windows PC Set-Up

There are two Music Player modes available. Each of them requires different settings, and either one can be used to playback music from a media server.

Shared Folders (CIFS)

In order to set up the device to playback music stored on shared network drives, user name, password and domain settings must be configured to work with the PC share settings. This is only required if the user has set a password on his/her shared folders.

PC: Domain/Workgroup configuration

The Domain configuration item can be found on a Windows XP machine as follows:

From the start menu, select Control Panel > System then select the Computer Name tab.
The Domain or Workgroup that this Computer is a member of is displayed in this tab.
If the PC is not a member of any Domain or Workgroup then one must be joined. To do this click on the change button on the computer name tab and enter the name of the domain (default on Windows XP is MSHOME).
A reboot of the PC may be prompted if the Domain or Workgroup has been changed.
PC: Setting up a new user account (Windows XP)

Pico RadioStation may require you to set-up a user account on each PC that you wish to browse. By default most PCs have at least one user account associated with it. The user name and password (optional) needs to be the same on each PC as the Internet Radio only stores one user name and one password. For windows XP this can be set up as follows:

From the start menu, select Control Panel -> User accounts
From this screen left click the Add ... and enter the new user name and the Domain/Workgroup setting noted above. Select the type of user (limited) and then select 'create account'.
Select the user just created, select 'Create Password ...' and enter a password for this user.
Note the User Name and Password.

Note for Windows VISTA: Users have to turn on the Guest account via manage user accounts in the control panel in VISTA, then add access to either 'Everyone' or 'Guest' on the shared drive. They could create a new account for the internet radio, with a password, if they are concerned about security. The Guest account has no password by default, so the Wi-Fi radio will connect to it from its factory default settings.

PC: Configuring A Shared Drive

From the Start menu select My Computer and navigate to the directory you wish to share. Right click on the directory and select Sharing and Security. Configure the shared drive as read only, and ensure that the User Name created above has read access to the share.

Wi-Fi Radio: Storing TheUsername And Password

Before the radio can stream music from a PC, you need to ensure you have shared folder available on the PC, and set up the radio so that it knows the username and password (if one has been set) for the shared folder on the PC. This can be set up using the PC settings menu.

Shared Media (UPnP)

Media sharing uses Windows Media Player (WMP) 1.1 and above as media server. This mode does not require any setting in the radio, but the PC needs to be configured to allow the radio access to the media. You will only have to do it once, following the next steps.

The PC must be connected to network (wired or wireless) that will be used to share media with the radio.
Ensure that the radio is powered on and connected to the same network as the PC.
In WMP, add to the media library the audio files and folders you want to share with your internet radio [in Library > Add to library].
In the WMP main window, click on Library, then Media sharing.

The Internet radio is presented as an "Unknown Device". Make sure that the device has access to the shared media by selecting it and clicking . Then click OK>.

The PC is now ready to stream the music to the radio.

Music Player Mode

Apple Mac Set-Up

Set-Up for OSX 10.2.1 -> 10.4.9

Setup Windows File Sharing on the MAC:

From the 'Dock', click 'System Preferences'. From the 'System Preferences' window [under the 'Internet & Network' section] click 'Sharing'.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'Personal File Sharing' and 'Windows Sharing'. Also, click 'Start' for each of these services. Under Windows file sharing you will also need to 'enable' the account you wish to share from [This needs your administrator password].

Under the 'Firewall' section, keep firewall off.

Under the 'Internet' section, keep 'Internet Sharing' off.

Setup an Account:

From the 'System Preferences' window, under the 'System' section, click 'Accounts'. Select an account and remember its 'Short Name' and password. This information will be used by Pico RadioStation when connecting to your Mac.

Directory Setup:

From the Dock', click Finder'. From the Finder' window, click Applications > Utilities'. Holding Ctrl click on Directory Access then select Get Info' and ensure that read / write enabled. Next double click on Directory Access' and enable the following:

REVO Pico Radio Station - Directory Setup: - 1

AppleTalk LDAPv3

REVO Pico Radio Station - Directory Setup: - 2

SLP SMB/CIFS

Also, for the 'SMB/CIFS' item, click 'Configure' and select an appropriate workgroup.

To allow your Pico RadioStation you need to add your login details, by following the path Main Menu System Setup Internet Setup PC Settings. You should input your short username and administrator password here. Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting Browse SharedFolders on Pico, then selecting the workgroup chosen in the step above. On selecting your Mac scroll through the available folders until you find the one which contains your music files.

Apple Mac Set-Up

Set-Up for OSX Leopard 10.5.1-->

Setup Windows File Sharing on the MAC:

From the Dock, click 'System Preferences'. From the 'System Preferences' window (under the 'Internet & Network' section) click 'Sharing'.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'File Sharing' click 'Start' for this service. Then under the shared folders click the "+" and select the folder which contains your music files. Then Select the music folder from the shared folders area, in the users area make sure "Everyone" is set to read and write. Finally click on "Options" and make sure "Share files and folders using AFP" is checked and "Share files and folders using SMB" [This will require your admin password to activate] lastly make sure your account is also checked as active.

Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting 'Browse > Shared Folders' on Pico, then selecting your Mac from the list of devices. On selecting your Mac, you should see your folder that you selected above.

DAB Mode

Choosing a Station

Extend the telescopic antenna found on the rear of Pico RadioStation.
Now select 'DAB Mode' by pressing the MODE key until 'DAB Mode' appears on the display, or alternatively select from Pico's main menu.
If this is the first time Pico RadioStation has been used in DAB Mode, it will scan for DAB stations in your area and store them in memory. Pico will also set its clock at this point.
When the station scan has been completed, stations will be displayed in numeric then alphabetic order. The first station in the list will be selected.
If no DAB signal is found, it may be necessary for you to relocate your radio, or to check whether DAB coverage is available in your area.
Select your station choice by scrolling through the station list and pushing the scroll wheel to make your selection.

MODE

DBB Mode

Scanning...

AarrnRck

BECAsian

BEC Music

Service not available

BEC 6Music

Playing

To Change the Display Mode

Pico has nine different display modes.

Simply press the INFO button to cycle through each mode. These display modes are explained in the table opposite:

Display option Example

Normal display

with scrolling text

BSC Radio 1

calls cost max

Signal level,

indicator on bar

shows minimum

acceptable level

t1kSPORT

糟

Type of broadcast

BBC Radio 1

Pop Music

Broadcaster

BBC Radio 1

EBC National DAB

Station name and

BBC Radio 1

1222564

Signal strength

Radio 1

Data rate and

BPC Radio 1

128kbs stereo

Time

BBC Radio Music

1.1:48:03

Date

BDC Radio Music

19/12/2007

Pico RadioStation has a number of additional functions that are accessed through the DAB Mode menu, as follows:

Station Order

Press the MENU key in DAB Mode then press select Station order.
To specify the order in which stations are displayed
Select the Station order option.
Use the scroll wheel to move through the available options, then push the wheel to make your selection.

Manual Tune

Choose the Manual Tune option from the DAB Mode menu.
The Manual Tune selection screen allows you to select a particular frequency to tune to. The list of frequencies displayed is dependant on the currently-set frequency band and contains all of the frequencies within that band. It starts with the short name of the frequency, for example 12B, and is followed by the actual frequency in MHz.
If there is a station corresponding to this station number and frequency, the display will show the name, frequency, and a tuning meter will show the signal strength.

DRC - Dynamic Range Control

Pico RadioStation includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments.
The DRC control is found in the DAB Mode menu under 'DRC'. There are three pre-defined settings as follows:

DRC Description

DRC Low Dynamic Range Control is set to half

DRC High The recommended setting for noisy environments

DRC Off Dynamic Range Control is switched off

The following table describes the options available under the 'Station Order' menu:

Station order Description

Alphanumeric Lists stations in alphabetical order.

Ensemble Lists stations by multiplex.

Valid Lists only active stations

Local and Full Scan

As time passes, new stations will become available in your area. To find them and add them to your station list it is necessary to perform either a 'Local' or 'Full' scan. Both operations can be accessed via the DAB Mode menu.
A Local Scan performs a shorter scan of only the 'local' ensemble range.
A Full Scan will take longer, but will cover the complete DAB ensemble range.

Favourite Station Presets

Pico allows you to store 12 favourite station presets, either via the PRESET button on Pico itself, or via the optional Pico remote control.
To save the station you are currently listening to as a preset, simply press the PRESET button then use the scroll wheel to find an unused location. Now press the scroll wheel to store.

To listen to a stored station press the PRESET button then use the scroll wheel to locate your desired preset, then press to select.

3 FM Mode

FM Operation

Extend the telescopic antenna found on the rear of Pico.
Enter FM Mode by pressing the MODE key and switching between DAB Mode and FM Mode. Alternatively, FM Mode can be accessed via the Main Menu.
If this is the first time Pico has been in FM mode, it will start at the beginning of the FM frequency range. Otherwise, the last FM station you were listening to will be selected.
To scan through the FM frequency range turn the scroll wheel.
To 'SEEK' the next active station, press the scroll wheel.

Favourite Station Presets

Pico allows you to store 12 favourite station presets, either via the PRESET button on Pico itself, or on the optional Pico remote control.
To save the station you are currently listening to as a preset, simply press the PRESET button then use the scroll wheel to find an unused location. Now press the scroll wheel to store.
To listen to a stored station press the PRESET button then use the scroll wheel to locate your desired preset, then press to select.

MODE

FM Mode

87.50mhz

Preset 1 unset
Preset 2 unset
Preset 1 set
Preset 2 unset

MPort Mode

Using MPort

Revo's MPort connector allows for quick and easy connection of an iPod, similar MP3 player or sound source.
Using the connection lead supplied, Pica is transformed into a high quality digital audio speaker system.
- Connect one end of the supplied audio lead to the headphone [or auxiliary out] socket of your source device, then connect the other end to the MPort on the front of Pico.
Now press the MODE key and cycle through the options until 'MPort Mode' is displayed.
Pico's LCD screen will now display the word 'MPort' on its screen.
- You should adjust the output volume level on both the source device and on Pico itself to gain optimal volume levels and sound performance.

REVO Pico Radio Station - Using MPort - 1

MPort Mode

M-Part

System Setup

Internet Setup

Advanced users can find and edit their Wi-Fi settings in this section, these include MAC address, DHCP status, PC Settings,SSID, IP Settings etc.

Factory Reset

In the unlikely event that Pico RadioStation should 'crash', 'freeze' or start behaving in a strange way, it is possible to perform a full software reset. This operation will completely reset Pico's memory, clearing all WEP/WPA codes and user settings. This will effectively return Pico to its default factory settings.

Software Update

It is possible to remotely update Pico RadioStation's software via your Wi-Fi internet connection, to ensure that you have all the latest features, or to fix known bugs in the software. To check whether there are any updates available, simply go to the 'System Setup' option on the 'Main Menu' and select 'Software Update'. Pico will search to see if a software update is necessary, then report back. If an update is available and necessary, Pico will start the download process and install its new software automatically.

Info

Software Version and Radio ID

You may be asked for one or both of these pieces of information when dealing with a technical support issue.
Both can be found under the 'Info' heading, located in the 'Main Menu'.

SW version in.dabp-mni.rvo.ve

Radio ID 0013E0A11D25

Troubleshooting

Wi-Fi Internet Radio

If you are experiencing any problems with your Pico RadioStation please read the following 'troubleshotting' guide.

Alternatively you can visit the support section of the Revo website

(www.revo.co.uk) or call our technical support staff on 01555 66 61 61.

If you have trouble connecting Pico RadioStation to your wireless network, these steps may help to resolve the problem:

Confirm that a Wi-Fi connected PC can access the Internet (i.e. can browse the web) using the same network.
Check that a DHCP server is available, or that you have configured a static IP address on the radio.
Check that your network's firewall is not blocking any outgoing ports.

As a minimum, Pico RadioStation needs access to UDP and TCP ports 80, 554, 1755, 5000 and 7070.

Check your access point does not restrict connections to particular MAC addresses. You can view the radio's MAC address under the 'Internet Setup' section, accessed via the 'System Setup' option on Pico's main menu.
If you have an encrypted network, check that you have entered the correct key or pass phrase into the radio. Remember that text-format keys are case sensitive. If, when attempting to connect to an encrypted network, your radio displays: 'Wireless error' followed by a 5-digit number, then please ensure that you enter the correct pass phrase for the network. If the problem persists, then you may need to consult your network configuration.

If Pico RadioStation can connect to the network successfully, but is unable to play particular stations, it may be due to one of the following causes:

The station is not broadcasting at this time of the day [remember it may be located in a different time zone].
The station has reached the maximum allowed number of simultaneous listeners.
The station is not broadcasting anymore.
The link on the radio is out of date.
The Internet connection between the server (often located in a different country) and you is slow.

DAB Digital Radio

I hear a 'burbling' noise on some stations.
A. If the signal strength is too low, a break-up in reception can occur. This sound is the result. Make sure that Pico's antenna is fully extended and in an upright position. If no DAB signal is found, it may be necessary for you to relocate your radio.
Q. I get a 'No stations available' message?
A. Make sure that your antenna is fully extended and vertical and check whether DAB coverage is available in your area.

REVO
