USER MANUAL Domino REVO

Should you encounter problems using this product, please refer to the troubleshooting section on page 39 of this owner's guide.

Alternatively, call Revo technical support on :

UK 01555 666161

From outside the UK + 44 1555 666161

Alternatively, e-mail [e-mail] or visit the troubleshooting section of our website at: www.revo.co.uk/support

ENVIRONMENTAL INFO

PRODUCT DISPOSAL INSTRUCTIONS (WEEE DIRECTIVE)

The symbol shown here and on the product means that it is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.

For more information please contact your local authority or the retailer where the product was purchased.

RoHS COMPLIANT & CE MARK

RoHS COMPLIANT

This product has been designed to comply with International directives on the Restriction of Hazardous Substances (RoHS) and has been designed and type-tested to comply with EU requirements and carries a CE mark.

SAFETY WARNINGS

• Do not operate this radio near water
• Do not remove screws or casing parts
• Use only the power supply unit supplied
• Avoid small objects and liquids from entering the product

WARRANTY

Revo Technologies Ltd warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of one year from the date of purchase. This guarantee covers breakdowns due to manufacturing faults and does not apply In cases such as accidental damage, general wear and tear, user negligence, modification or repair not authorised by Revo Technologies Ltd.

To register your purchase please visit www.revo.co.uk/register

COPYRIGHTS AND ACKNOWLEDGEMENTS

Copyright 2009 Revo technologies Ltd. All rights reserved.

No part of this publication may be copied, distributed, transmitted or transcribed in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, without the permission of Revo Technologies Limited.

REVO and DOMINO and are trademarks or registered trademarks of Revo Technologies Ltd. iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Revo Technologies Ltd

The Inox Building, Caldwellside, Lanark,

Scotland, United Kingdom, ML11 7SR

Tel: [phone] Int. Tel: [phone]

Fax: [phone] Int. Fax: [phone]

Email: [e-mail] Website: www.revo.co.uk

DISCLAIMER

Revo Technologies Limited makes no representation or warranties with respect to the content of this publication, and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Revo Technologies Limited reserves the right to make changes to this publication from time to time, without notification to any person or organisation.

CONTENTS

D: D2: D1 cal Support

D2 D3 mental information

D1 D2 D3 ty

D1 D2 D3 Right and Acknowledgements

D: D2: D3: ner

D1 W2 D3 ne / Unpacking

D4 D2 D1 ny

D4 D2 D3e Control

D1 D2 D3 Supply

D1 D2 D3

D1 D2 D3 Rolling Domino / Menu Structure

08/D1/D3 Mode

10/D1/D3 Mode Menu Options

12 Dz Mode

23 Dte Dist Radio Portal

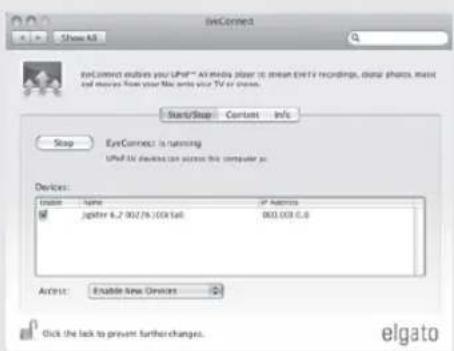

24/22 Setting up a Music Server

26/27 Music Player Mode

29/D2LD3.fm Mode

B2 D2 D3 m Clock

B4/B2 System Settings

D1/D2 D1 bleshooting

D1 D2 D3 messages

WELCOME

Thank you for purchasing our Domino radio, we are sure that it will provide you years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running with your radio, and explain the more complex features of this product, as well as providing information on safety, warranty details and troubleshooting.

There are three models in the Domino range (D1 D2 and D3), each with its own set of features and benefits. This owner's manual offers guidance on all three versions.

Please note: Not all features are available on all models.

At the top of each page you will see the three model logos displayed. If this particular section of the manual is not applicable to your model, the model logo will be crossed-out., as shown below.

This denotes that INTERNET RADIO Mode is not available on Domino D1.

UNPACKING DOMINO

Carefully remove Domino from its packaging before removing the other items from the box.

The box should contain the following:

• Domino radio
- Remote control
- iPod dock adaptor kit
• Power supply with multi-country adaptors (UK, Euro, USA)
- Owner's Manual

Should any item be missing or damaged, please contact your point of purchase or call Revo directly on [phone]

NOTE: Domino's packaging should be retained for possible future use, it is the safest way to transport Domino should it be necessary.

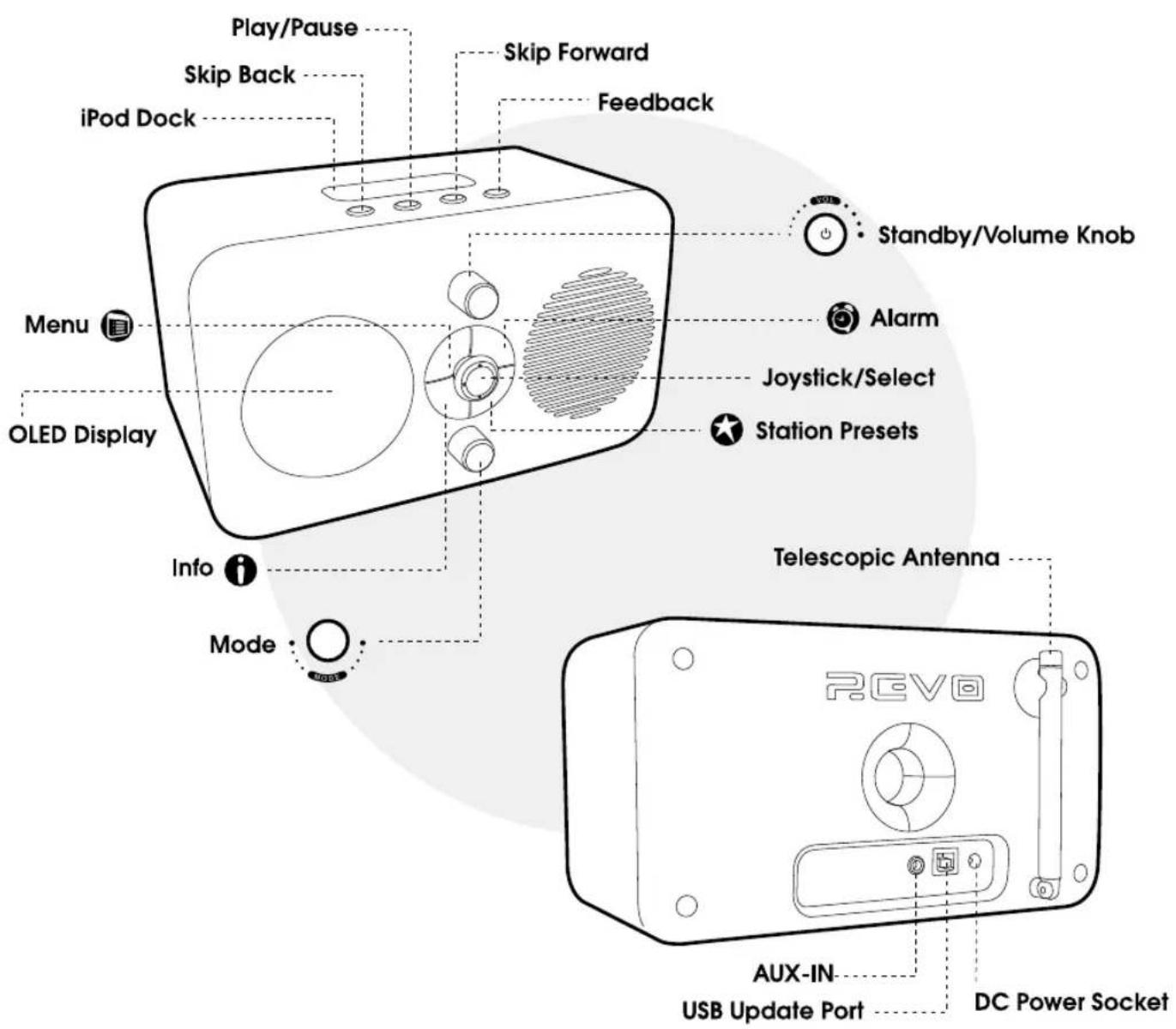

ANATOMY OF DOMINO

D1 D2 D3

Play/Pause Skip Back iPod Dock Skip Forward Feedback Menu OLED Display Info Mode Telescopic Antenna Standby/Volume Knob Alarm Joystick/Select Station Presets PCVO AUX-IN USB Update Port DC Power Socket

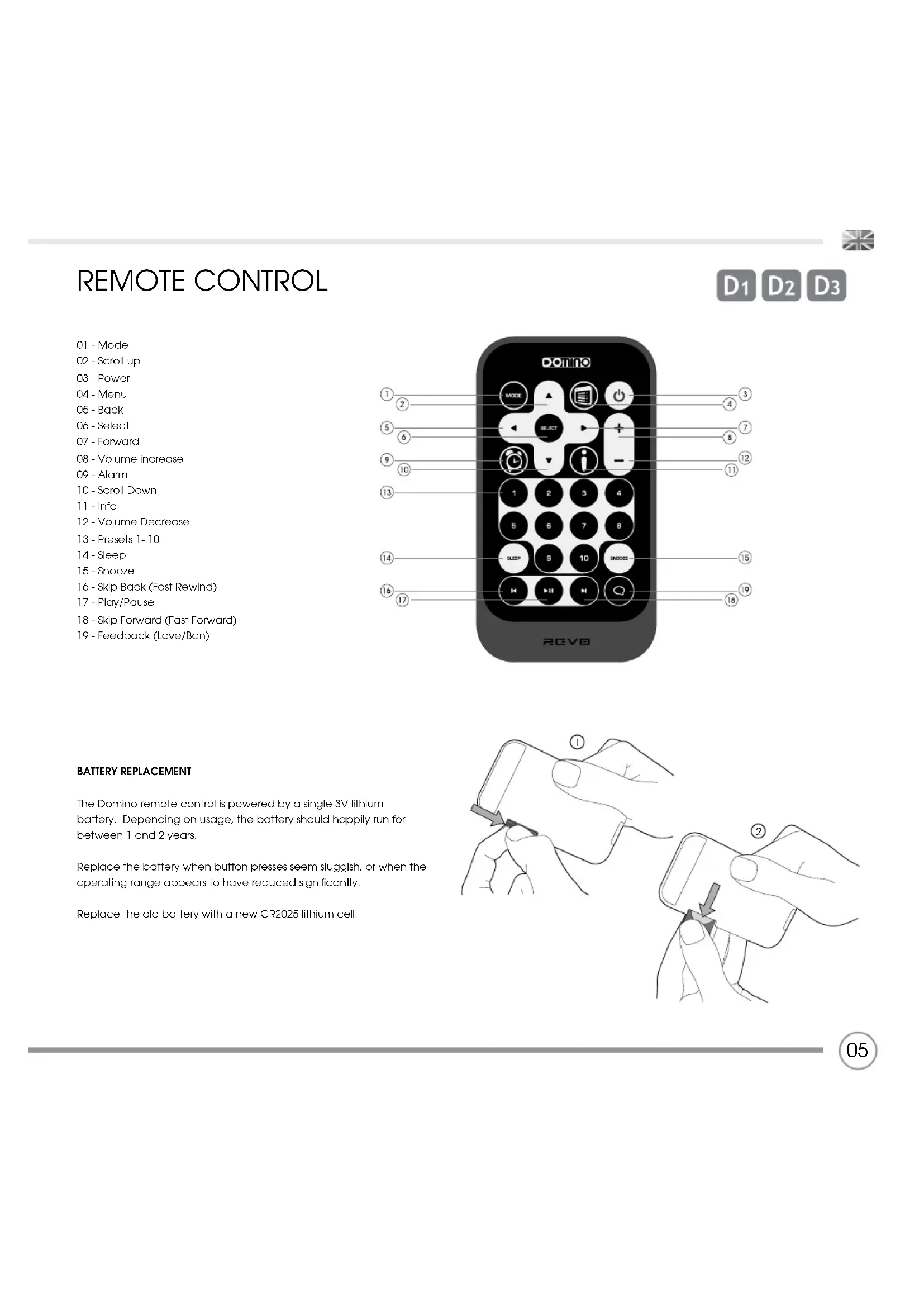

REMOTE CONTROL

D1 D2 D3

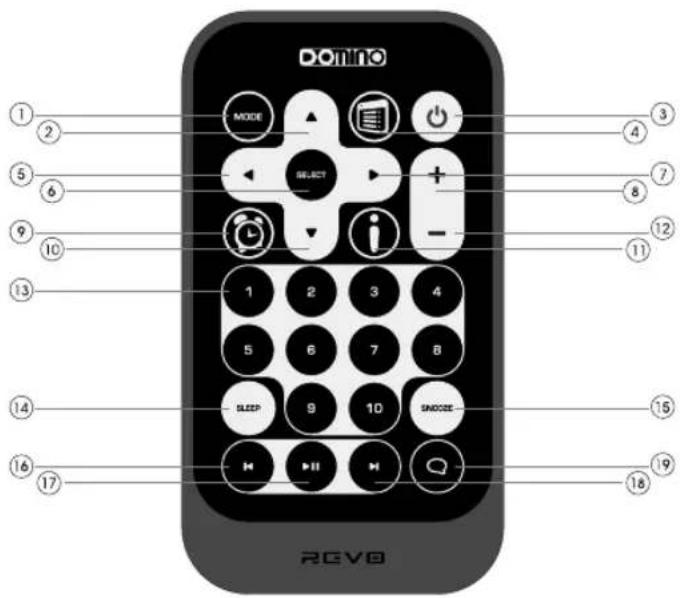

01 - Mode
02 - Scroll up
03 - Power
04 - Menu
05 - Back
06 - Select
07 - Forward
08 - Volume increase
09 - Alarm
10 - Scroll Down
11 - Info
12 - Volume Decrease
13 - Presets 1-10
14 - Sleep
15 - Snooze
16 - Skip Back (Fast Rewind)
17 - Play/Pause
18 - Skip Forward (Fast Forward)
19 - Feedback (Love/Ban)

domino MODE SELECT i - 1 2 3 4 5 6 7 8 SLEEP 9 10 SMOOE M H I M Q 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 RcV8

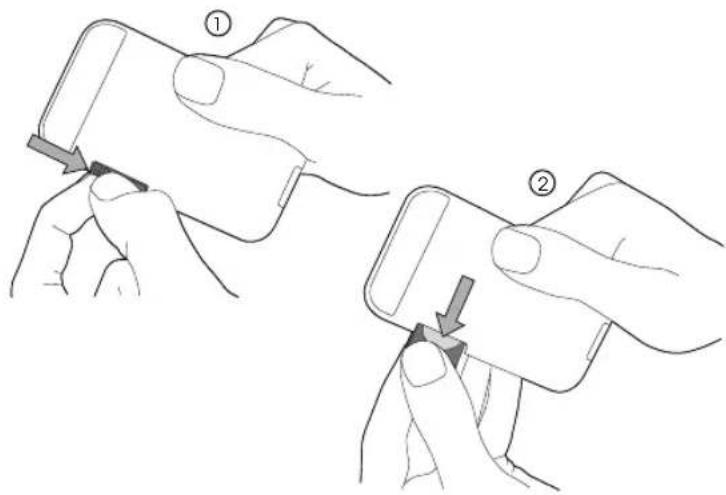

BATTERY REPLACEMENT

The Domino remote control is powered by a single 3V lithium battery. Depending on usage, the battery should happily run for between 1 and 2 years.

Replace the battery when button presses seem sluggish, or when the operating range appears to have reduced significantly.

Replace the old battery with a new CR2025 lithium cell.

Diagram showing two-step smartphone shipment process with labeled steps ① and ②, indicating step ① to close the cable.

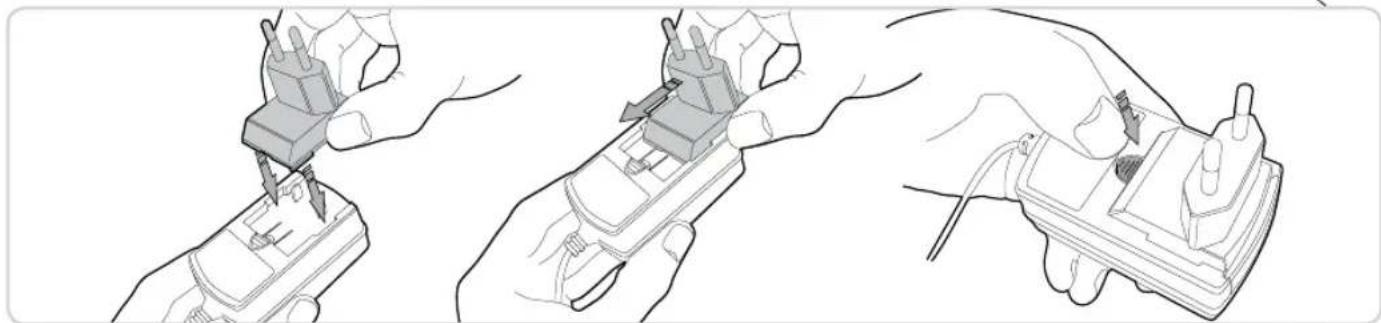

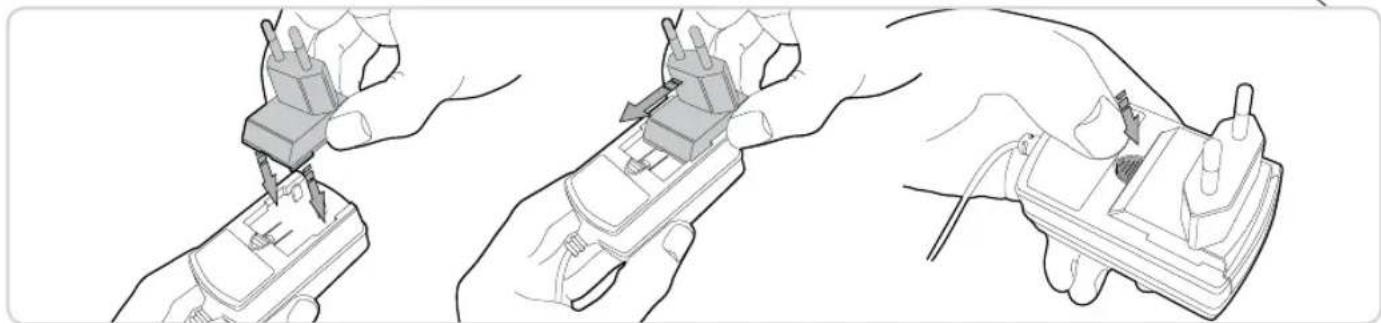

POWER SUPPLY (PSU)

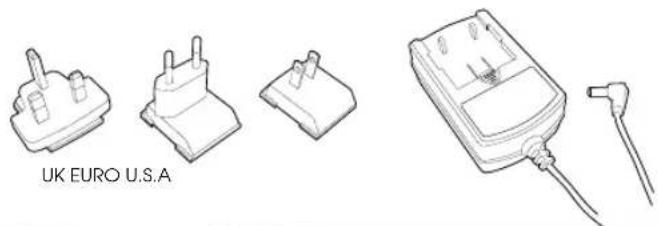

Your Domino radio is supplied with a multi-region power supply, meaning that it can be operated in a number of countries around the world.

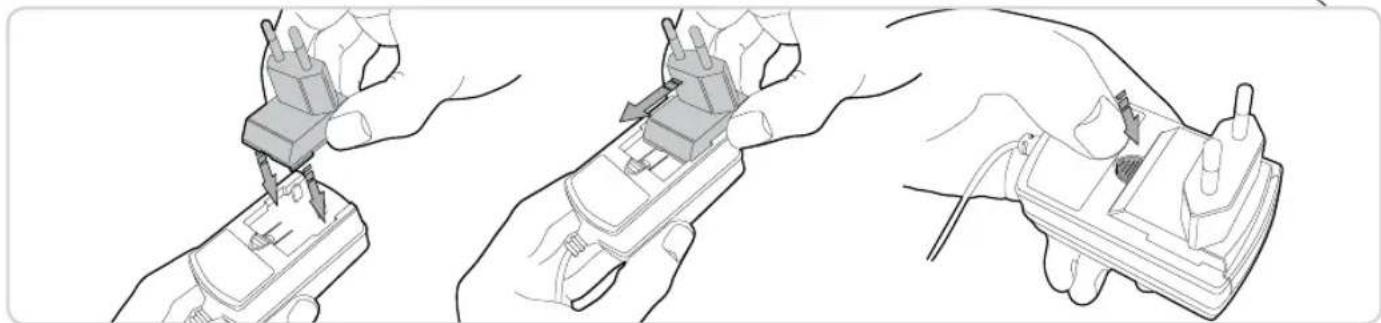

Simply choose the correct adaptor for your country from the selection supplied, then follow the instructions below.

Line drawings of UK EURO U.S.A. electrical plug and meter (no text or symbols on components)

Three-step illustration showing hand tool application on a device, with no visible text or symbols

SET-UP

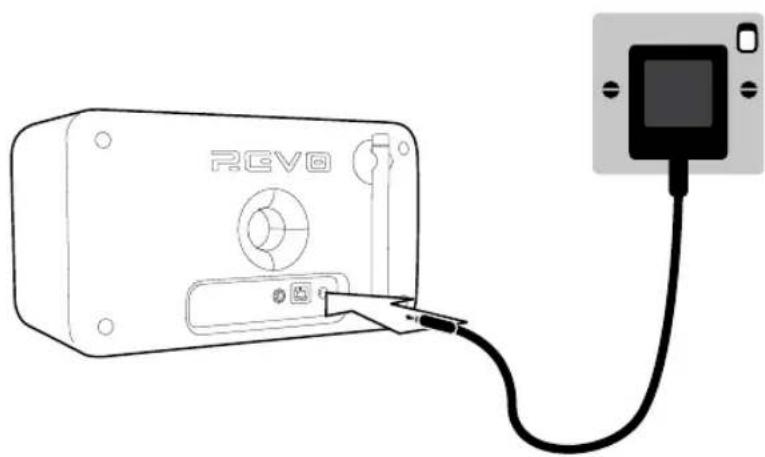

① Using the PSU supplied, connect one end to the DC power socket found on the rear of Domino, then plug the opposite end into the mains socket on the wall.

Line drawing of a RGVO device connected to a cable, showing ports and wiring (no text or symbols)

② Fully extend the antenna for DAB or FM operation

REV0

③ Press the POWER button once to start the Initialization process.

Diagram of a microwave oven with a rotary knob and mechanical components (no text or symbols)

CONTROLLING DOMINO

Despite it's sophisticated range of features, Domino is surprisingly simple to use. By utilising a joystick control method, minimising the number of buttons and switches, and employing a multi-line graphical OLED display, we have created an extremely user-friendly radio.

To get the best from your radio, it's important that you fully understand how Domino's controls and menu systems work.

POWER / VOLUME

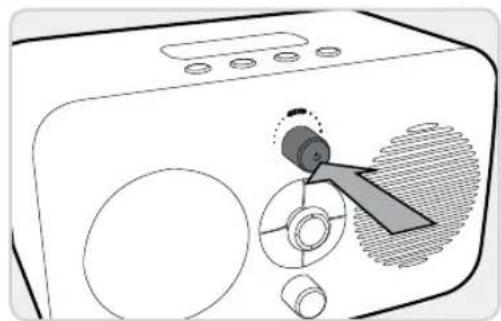

To power-up Domino, press the VOLUME knob. To send Domino back into STANDBY mode, press the VOLUME knob again.

MODE SELECTION

Turning the MODE knob in either direction will switch between Domino's modes of operation.

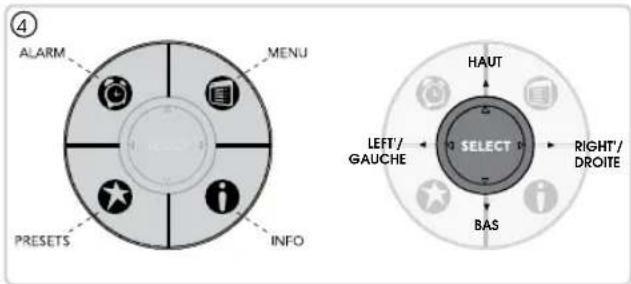

JOYSTICK CONTROL

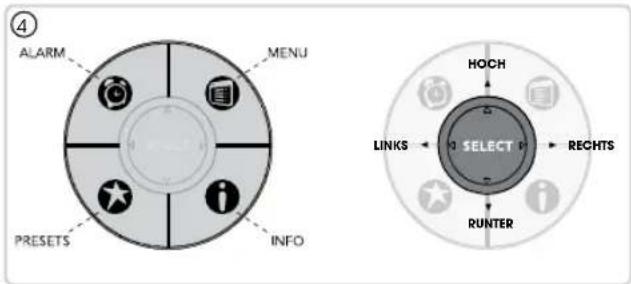

The joystick controller has five functions (see illustration 4), as follows:

UP Scrolls Up

DOWN Scrolls Down

LEFT Scrolls Left and moves back through menus

RIGHT Scrolls Right and moves forward through menus

PRESS SELECT

FUNCTION BUTTONS

Positioned around Domino's joystick you will find the ALARM, MENU, INFO and PRESET buttons.

MEDIA KEYS

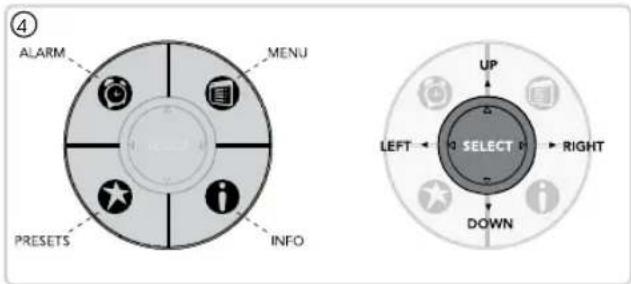

On Domino's top face you will find a selection of MEDIA keys (see illustration 5). These are used in a number of modes including iPod. Media Player and Last.fm.

Simple line drawing of a computer monitor with four buttons (no text or symbols)

④ ALARM MENU PRESETS INFO UP LEFT SELECT RIGHT DOWN

MENU STRUCTURE EXPLAINED

MAIN MENU

This is Domino's principle (top level) menu, and offers entry to all modes, as well as access to your radio's various settings.

The MAIN MENU provides access to the following modes and sub-menus (depending on your model).

• Internet Radio • Music Player • Last.fm
  • DAB Radio • AUX-IN • iPod
  • FM Radio • System Settings • Alarms

MODE MENUS

The Mode Menus are so called because they show the functions available within the currently selected mode.

Pressing the 📄 at any time will take you to the Mode Menu for the mode of operation your radio is currently in.

Each of the Mode Menus also includes a listing for MAIN MENU, allowing you to return to the top level MAIN MENU.

DAB RADIO MODE

Please ensure that the radio's antenna is extended before operation in DAB Mode.

To enter DAB MODE, turn the MODE knob until the DAB MODE intro screen is displayed, alternatively press then select MAIN MENU, then DAB from menu option list.

On power-up, Domino will automatically perform a full scan to see what stations are being broadcast in your area, before storing them alphabetically in the radio's memory.

It may be necessary to perform a manual scan from time to time. In order to update your radio's station list. This may be required for any one of the following reasons:

1. Station availability can change from time to time as new stations appear, or existing stations cease broadcasting.
2. If reception was poor during the initial automatic scan, for example the radio's antenna was not completely extended, it may be that the station list is incomplete or even empty.
3. If you have poor reception on some of the stations (resulting in broken or poor quality audio), you may wish to list only stations that have a strong signal strength.

To start a manual scan, press the button then select FULL SCAN from the menu list.

To scan for only stations that have a strong signal strength, press then select LOCAL SCAN from the menu list.

When the scan is complete, your radio will list all available stations.

To remove stations that are listed but unavailable, press 📄 then choose PRUNE INVALID. When asked whether you wish to remove all invalid stations", select YES.

DAB RADIO MODE

SELECTING A STATION

To access your radio's station list, press UP, DOWN or LEFT on the joystick controller at any time, alternatively press then select STATION LIST.

Scroll through the available stations using UP and DOWN on the joystick controller, then either press the joystick to select your station choice, or tap RIGHT.

FAVOURITE STATION PRESETS

Domino allows you to store your favourite stations as presets, either via its button or 10 preset buttons located on the Domino remote control.

To store the station you are currently listening to as a preset, simply press the 📄 then select an empty preset number from the 10 available in the list. Now press and hold the joystick to store your selection. "Preset Stored" will be displayed on your radio's screen. The preset number that has been assigned to the station will be displayed at the bottom of the screen.

If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.

Circular diagram with four quadrants, one shaded with a star and two outer circles containing icons (no text or labels)

DAB MODE MENU OPTIONS

STATION INFO

In DAB MODE, Domino is capable of displaying various pieces of information on its screen. By pressing the button, you can sequentially cycle through the following types of information.

STANDARD DAB SCREEN Shows scrolling text info from broadcaster

PROGRAMME TYPE For example News, Rock Music, Classical etc.

MULTIPLEX AND FREQUENCY Multiplex owner and station frequency

SIGNAL STRENGTH Station's current signal strength

BIT RATE AND CODEC Audio format, sample rate, mono or stereo

DATE Today's date

DAB MODE MENU OPTIONS

DYNAMIC RANGE COMPRESSION (DRC)

If you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking), you may wish to compress the audio's dynamic range. This has the effect of making quiet sounds louder, and loud sounds quieter.

To change the DRC setting, press 📄 then choose the DRC option, before selecting OFF, LOW or HIGH.

STATION ORDER

It is possible to choose the order of the DAB station list to be either ALPHANUMERIC, ENSEMBLE or VALID.

As the name implies, ALPHANUMERIC lists stations in alphanumeric order.

ENSEMBLE lists groups of stations that are broadcast together on the same ensemble, for example BBC or Central Scotland Local.

VALID lists valid stations first, alphanumeric, then off-air stations.

To change the station order, press then select STATION ORDER, before choosing either ALPHANUMERIC, ENSEMBLE or VALID.

DRC DRC Low DRC High DRC OFF #

Station order Alphanumeric # Ensemble Valid

STATION ORDER DESCRIPTION

ALPHANUMERIC Display all stations in alphanumeric order.

ENSEMBLE List active stations (ones that are currently broadcasting) before inactive ones.

VALID Remove inactive stations from the station list.

FM RADIO MODE

FM OPERATION

Please ensure that the radio's antenna is extended before operation in FM MODE.

To enter FM MODE, turn the MODE knob until the FM MODE intro screen is displayed, alternatively press then select MAIN MENU, then FM from menu option list.

If this is the first time that Domino has been used in FM MODE, scanning will start at the beginning of the frequency range - otherwise Domino will default to the station you were listening to last.

Pressing the joystick controller will start the radio scanning for the next available station. Domino will automatically stop scanning when a station is found.

To fine tune, use UP or DOWN on the joystick controller to incrementally change the frequency.

When on an FM station that has a strong signal and is broadcasting RDS information, Domino will display the station name and other pieces of text information on-screen.

FAVOURITE STATION PRESETS

Domino allows you to store your favourite stations as presets, either via its button or 10 preset buttons located on the Domino remote control.

To store the station you are currently listening to as a preset, simply press the star then select an empty preset number from the 10 available in the list. Now press and hold the joystick to store your selection. "Preset Stored" will be displayed on your radio's screen. The preset number that has been assigned to the station will be displayed at the bottom of the screen.

If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.

FM RADIO MODE

FM SETTINGS

Press the 📄 button to access the FM MODE MENU. From here you can set some FM preferences such as SCAN SETTING and AUDIO SETTING.

SCAN SETTING allows you to decide whether the radio should stop scanning only when it finds a station with a strong signal.

AUDIO SETTING gives you the option of listening to a station in mono, should the signal strength not be sufficiently strong to allow stereo reception.

AUX IN MODE

AUX IN MODE allows you to play audio from an external source (such as an MP3 player) through your radio.

To do so, connect your external audio source to the 3.5mm AUX IN connector on the rear of Domino.

Turn the volume down low on both Domino and, if adjustable, the external device.

Now turn the MODE knob until the AUX IN screen is displayed, alternatively press then select MAIN MENU, then AUX IN.

Adjust the volume of Domino and, if necessary, the external audio device as required.

Aux in

iPod MODE

D1 D2 D3

FITTING A DOCK ADAPTOR

Domino is supplied with a selection of iPod dock adaptors to fit most iPod and iPhone models.

Select the adaptor that is compatible with your iPod/iPhone using the compatibility table on the right - each one is numbered (see illustration ① below).

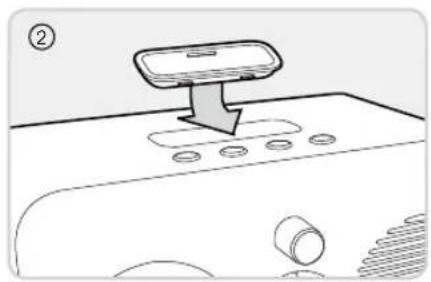

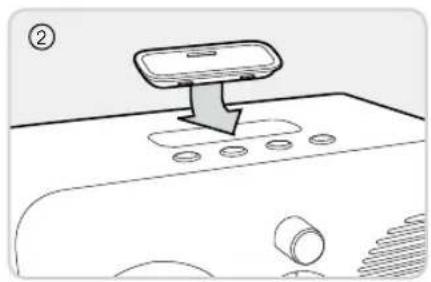

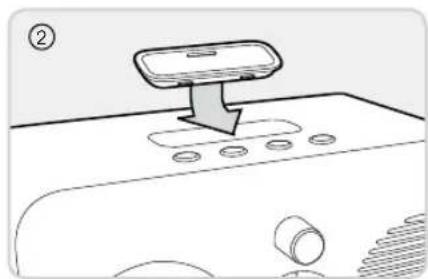

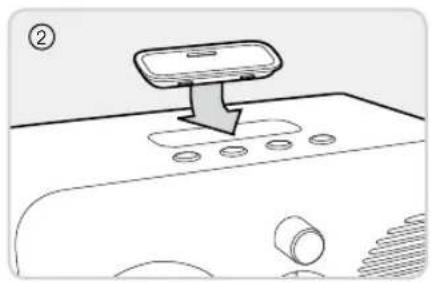

To fit the adaptor, remove the dock dust cover before inserting the adaptor into the recess that surrounds the iPod connector (see Illustration ②). If a dock adaptor for your specific iPod/iPhone model is not one of the adaptors included with your radio, please use the adaptor supplied by Apple as part of your iPod kit.

Adaptor No.	iPod Model
7 iPod Photo + iPod with colour display
8 iPod Nano
9	iPod Classic (80/120GB), 5G iPod with video (30GB), U2 iPod
10 iPod Classic (160GB), 5G iPod with video (60/80GB)
11 iPod Nano (2nd Gen)
13 iPod Nano (3rd Gen)
14 iPod Touch
15 iPhone 3G
16 iPod Touch (2nd Gen)
17 iPod Nano (4th Gen)

Simple line drawing of a rectangular container with a lid and handle, labeled with number 1 (no text or symbols on the object itself)

Diagram of a device with a screen and directional arrow, showing components like buttons and a cylindrical object (no text or symbols)

ENTERING iPod MODE

Connect your iPod to the dock connector. Domino will automatically ask if you would like to switch to iPod mode. Select YES or NO using the joystick controller.

If an iPod is already connected to Domino, press MODE until the iPod MODE Intro screen is displayed, or press then select MAIN MENU, the iPod.

iPod iPod attached - switch to iPod mode? YES NO iPod

iPod MODE

CONTROL AND PLAYBACK

Basic track control functions can be carried out by using the media controls located on the top face of Domino.

Pressing ⬤ will start the currently selected track. Pressing it when a track is playing will PAUSE the current track.

Pressing ▶ will advance to the next track. Pressing and holding will fast-forward.

Pressing 🖼️ will skip-back to the previous track. Pressing and holding will fast-rewind.

Alternatively, your iPod can be operated using the Domino remote control, which offers advanced iPod control, including control of your iPod's menus etc.

Lastly, it is possible to control the iPod by using the controls on the iPod Itself.

iPod MODE

NOW PLAYING INFO

When an iPod has been docked and the authentication process has been completed, your radio will display the artist and track information for the current track (If this Information is stored on your iPod).

Domino is capable of displaying various pieces of information about the current track and the iPod that is connected. By pressing the 📷 button, it is possible to sequentially cycle through the following types of information.

STANDARD SCREEN Shows track name and artist

AUTHENTICATION STATUS Whether authentication was successful or not

TRACK TIME Shows track length and current position in track

ALBUM TITLE Displays album title if available

DATE Today's date

INTERNET SETUP

D2

D3

USING THE INTERNET RADIO SETUP WIZARD

The first time you use Domino in INTERNET RADIO MODE, you will be asked whether you would like to run the SETUP WIZARD. The 'WIZARD' will run through a series of questions, and is the simplest way to get Internet radio up and running on your device.

You can run the SETUP WIZARD again at any time, it can be found under the NETWORK heading, in the SYSTEM SETTINGS MENU.

To set up your radio for online operation using the INTERNET WIZARD, follow these steps:

Press the joystick controller to select YES, and start the SETUP WIZARD procedure.

① Choose and select your preferred hour format (12 or 24 hour).
② Choose and select UPDATE FROM NETWORK.
③ Scroll and select your local timezone from the menu.
④ Choose and select your preferred daylight savings status.
⑤ Scroll and select your Wlan region.

INTERNET SETUP

⑥ Scroll and select your NETWORK. In some cases your radio may find more than one wireless network. Simply choose the one you want Domino to use.

⑦ If your wireless network is not password protected, Domino will automatically connect, and the following screen will be displayed:

⑧ If you do use password protection, enter your network password using the joystick controller to scroll over and select the correct alphanumeric characters. When you have correctly entered your password, select OK.

Select BKSP (back space) if you have entered an incorrect character.

Domino will save the password into its memory. There will be no need to re-enter the password again.

INTERNET RADIO MODE

GETTING STARTED

To enter INTERNET RADIO MODE, turn the MODE knob until the INTERNET RADIO MODE intro screen is displayed, alternatively press then select MAIN MENU, then INTERNET RADIO from menu option list.

Internet radio

The INTERNET RADIO MENU comprises of the following options:

My Favourites: Used to navigate to your favourite stations. These can be set up by visiting the Frontier Silicon Radio Portal (using your PC or Mac). See page 23 for further information.

Local: A comprehensive list of all the stations being broadcast from within your own geographical area (or country).

BBC: Used as a shortcut to all BBC stations broadcast worldwide.

Stations: Find stations using a number of search criteria such as: location, genre, most popular etc.

Podcasts: Find Podcasts or 'Listen-Again' broadcasts by location, genre or search by name.

My Added Stations: Shows stations that you have personally added to your radio's station list via the Frontier Silicon Radio Portal. See page 23 for full details.

Help: Find your radio's ACCESS CODE here. Required to access the Frontier Silicon Radio Portal. See page 23.

Internet radio My Favourites > Local United Kingdom > BBC > Stations > Podcasts >

CHOOSING A STATION

To choose a station, select STATION LIST from the INTERNET RADIO MENU, then select STATIONS using the joystick controller.

Stations Location > Genre > Search Stations > Popular Stations > New Stations >

You now have the option to choose or find a station using the following search criteria:

LOCATION (country of origin) GENRE SEARCH STATIONS (by name) POPULAR STATIONS NEW STATIONS

INTERNET RADIO MODE

D2

D3

CHOOSING A STATION (Continued)

Using the joystick controller, scroll through the options and press to choose your search criteria.

For example, choosing LOCATION will give you an alphabetical list of continents/regions, and then a list of countries. Use the joystick controller to scroll through the list and push to select your chosen continent, then country. You will then be given the option of choosing ALL STATIONS or a GENRE, to further refine your search.

After selecting your search criteria, you will be presented with a list of stations. Simply select a station from the list to begin listening.

SEARCH

You can search for an Internet radio station by name (If you know it), or by using a keyword from within its title.

To SEARCH for a station, select SEARCH STATIONS from the STATIONS MENU, then enter a keyword using the keyboard input screen (similar to the keyboard screen you used for password input).

If your station is found, simply select to listen.

If you searched for a keyword, Domino will list all the stations found that contain that particular keyword. Scroll through the list and select your station.

CHOOSING A PODCAST

Podcasts (also referred to as 'Listen Again') are searched and selected in the same way as a regular station.

Select PODCAST from the INTERNET RADIO MENU, then search by location, genre or a combination of both.

The main difference when searching for a Podcast, is that when you have selected a station, you will then be presented with a list of Shows (or Podcasts) available from that station.

Simply select your choice from the list.

INTERNET RADIO MODE

MY FAVOURITES

It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of stations from different countries and genres.

To do this you must first register your radio with the Frontier Silicon Radio Portal. See the INTERNET RADIO PORTAL section on page 23.

To store a station as a favourite, press and hold the joystick controller until FAVOURITE ADDED appears on the screen. The chosen station will now appear in the default favourites stations list.

To access the MY FAVOURITES list, select STATION LIST, then MY FAVOURITES, followed by STATIONS. You can now scroll through and select any station in the list.

MY ADDED STATIONS

If you have added any of your own stations to the internet radio station list (via the Frontier Silicon Radio Portal, see page 23), they will be listed here. The MY ADDED STATIONS option can be found under the STATION LIST MENU, in INTERNET RADIO MODE.

BBC

The BBC option is a shortcut to the entire BBC station list. Simply select this option from the STATION LIST MENU, then scroll through and select a station in the normal way.

LAST LISTENED

When you enter INTERNET RADIO MODE, the last-listened station is automatically selected. To select another station that you've listened to recently, select LAST LISTENED. A full list will be displayed (the most recent being at the top).

Your Rock Favourites Kerrans! North Sea Classic rock Rock FM Takeover Radio The Arrow

BBC BBC Radio 1 > BBC Radio 1Xtra > BBC Radio 2 > BBC Radio 3 > BBC Radio 3 >

INTERNET RADIO MODE

D2

D3

HELP

The HELP option can be found in the STATIONS LIST MENU. Under HELP, you will find the ACCESS CODE that you require to register your radio on the Frontier Silicon Radio Portal (see page 23 for full instructions).

A helpful FAQ audio track can also be found under the HELP heading.

LOCAL

The LOCAL station list can be found under the STATION LIST MENU and will differ depending on which country you are currently located in. For example, if you are based in the UK, this selection will display stations originating from the UNTIED KINGDOM. Likewise, if you are using your radio in Germany, this selection will display only stations that are being broadcast from Germany.

Select this option to navigate either all of the available local stations, or alternatively you can search the list by genre.

INTERNET RADIO PORTAL

ACCESSING ADDITIONAL FEATURES

Some of Domino's more advanced internet radio features can only be accessed by visiting the Frontier Silicon Radio Portal.

In order to access these features you must first register your radio.

REGISTERING YOUR RADIO

In order to register your radio, you will need your radio's unique access code.

To find the access code, firstly enter INTERNET RADIO MODE, then press 📄. Select STATION LIST, then HELP. Now select GET ACCESS CODE.

Write down the access code.

Now, using your PC or Mac, visit the portal website at - www.wifiradio-frontier.com

Click on the REGISTER HERE link (located on the left hand panel) to begin the registration process.

If you already have an account and wish to add an additional radio, log in to your account and select MY PREFERENCES, then ADD ANOTHER Wi-Fi RADIO.

When you have registered your radio with the portal, you can immediately take advantage of various additional features and services that it provides.

D2

D3

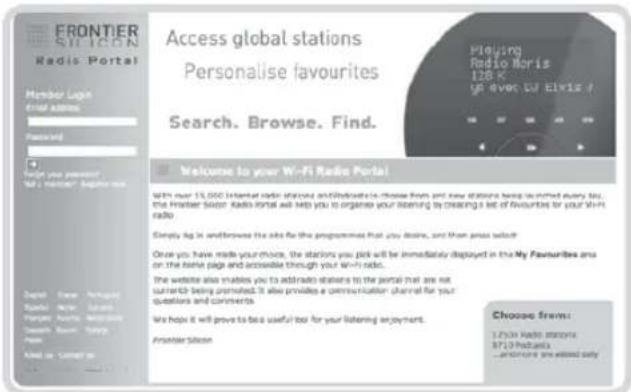

FRONTIER SILICON Radio Portal Member Login Email address Password Login you present My Favorites: Listen us Access global stations Personalise favourites Search. Browse. Find. Playing Radio Horis 126 K yi ever by Elvis # Welcome to your Wi-Fi Radio Portal With our 15,000 Internet radio stations and digital is choose from and new stations being installed every day, the Premier Silicon radio portal will help you to organize your listening by creating a set of favourites for your Wi-Fi radio. Simply log in and browse the site for the programmes that you desire, and then access which Once you have made your choice, the stations you pick will be immediately deployed in the My Favorites are on the home page and accessible through your Wi-Fi radio. The website also enables you to add radio stations to the portal that are not currently being promoted. It also provides a communication channel for your questions and comments. We hope it will prove to be useful for your listening enjoyment. Frontier Silicon Choose from: 125.00 Radio stations 871.9 Hz/Hz and more are allowed only

SETTING UP A MUSIC SERVER

In order for Domino to be able to play music files from a connected computer, the computer must first be set up for media sharing.

UPnP media sharing allows devices like Domino to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.

If you are running a PC with Windows Media Player 11 or later (WMP), or an Apple Mac with OS X 10 or later and a UPnP application installed, you can connect Domino and stream audio.

NOTE: iTunes does not currently operate as a UPnP media server, but there are a number of third party software add-ons available that will allow you to access your iTunes library.

SHARING MEDIA WITH WINDOWS MEDIA PLAYER

The most common UPnP server is Windows Media Player (version11 or later) although other UPnP platforms and servers may be used.

To set up WMP for media sharing, performs the following steps:

Ensure that your PC and radio are connected to the same network. Domino will be recognised as 'Jupiter 6.2' by your PC.

① In WMP, add to the media library the audio files and folders you want to share with Domino (LIBRARY > ADD TO LIBRARY . . .).

② Make sure that the radio has access to the shared media by selecting it and clicking ALLOW. You can also set a name for the shared media settings.

The PC is now ready to stream music to your radio. The WMP UPnP service runs in the background; there is no need to start WMP explicitly.

D2

D3

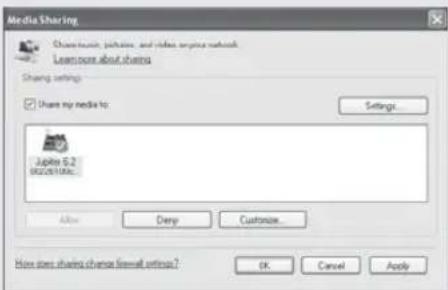

Media Sharing Share music, pictures, and video on your network. Learn about sharing Online Sharing settings: □ Share my media How does sharing change firewall settings? OK Cancel

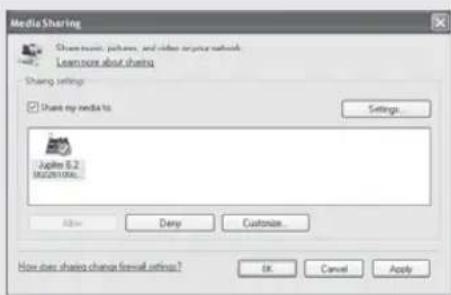

Media Sharing Share menu, folder, and video audio network Learn more about sharing Sharing settings Share my media to: Settings... Alpha 8.2 MCM1004... Allow Deny Customize... How does share channel firewall settings? OK Cancel Apply

SETTING UP A MUSIC SERVER

SHARING MEDIA WITH A MAC

In order to connect Domino to your Apple Mac, a third party UPnP server application is required. There are a number of applications available to download from the Internet.

One such application is EyeConnect. This is an easy to install media sharing application that enables Domino to stream audio. EyeConnect can be downloaded from:

http://www.elgato.com

③ Once installed, EyeConnect can be found on the System Preference panel. When connecting Domino, make sure EyeConnect is shown as running on its setup screen.

Domino will appear as 'Jupiter 6.2' in the EyeConnect list of devices. The ENABLE box must be checked and the ACCESS selection set to ENABLE NEW DEVICES.

Your Mac is now ready to stream music to your radio. EyeConnect will normally run automatically after boot up.

IntelConnect Start/Stop Corrent Info EyeConnect enables your Intel® All media player to mean Intel® recordings, data photos, music and movies from your file into your TV or video. EyeConnect is running Intel® 10 devices can access this computer as Devices: Name IP America Jupiter 6.2 002 (95.00% ball) 800.00% 0.0 Active: Enable new Devices Click the back to prevent further changes. elgato

MUSIC PLAYER MODE

D2

D3

PLAYING AUDIO TRACKS IN THE MUSIC PLAYER

MUSIC PLAYER MODE allows you to play audio files such as MP3s, AACs, WMAs or FLACs directly from a computer or music server on your local wireless network.

To enter MUSIC PLAYER MODE, turn the MODE knob until the MUSIC PLAYER MODE intro screen is displayed, alternatively press then select MAIN MENU, then MUSIC PLAYER from menu option list.

Once in music player mode, press 📄, then select SHARED MEDIA.

MUSIC PLAYER MODE

SHARED MEDIA (From a UPnP Media Server)

In MUSIC PLAYER MODE select SHARED MEDIA. If you have set up shared media (as described on page 24), you should see an entry, for the server you set up, example "SB-Laptop: Audio". If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.

From this point on, the menus are generated from the shared media server (typically Windows Media Player). The first menu shows a list of media types, for example music, video, pictures and playlists. Domino can only play music and playlists.

There is also a search function, which finds tracks in a similar way to Internet radio search, as described on page 20.

For music there are numerous ways of selecting tracks, including:

Genre | Artist | Album | Composer | Rating

Once you have found a track you want to play, press the joystick to select. A short press plays the track immediately while a long press will add the track to the PLAYLIST.

Note: Tracks played in UPnP mode are SROBBLED to Last.fm, if SCROBBLING is turned on in the Last.fm menu. For more information about SCROBBING, see page 29.

MUSIC PLAYER MODE

D2

D3

PLAYLISTS

Domino is capable of holding a queue of up to 500 tracks in its playlist. To manage the playlist, select MY PLAYLIST from the MUSIC PLAYER MENU.

To view the contents of the playlist, scroll through it using the joystick controller. To play the playlist from a certain track, give the joystick a short press. To delete a track from the playlist, give the joystick a long press, then confirm YES to erase.

If you select a track/album/folder for instant playback, without using the playlist feature, the playlist will be preserved and will continue to be stored by your radio until you choose to delete it.

REPEAT/SHUFFLE

You can choose to repeat tracks or play them in random order by selecting REPEAT PLAY or SHUFFLE PLAY from the MUSIC PLAYER MENU.

NOW PLAYING INFORMATION

While a track is playing, Domino will display the track and artist name together with elapsed and total track time. At the bottom of the screen, an icon indicates that the audio source is UPnP.

To view further track information, press

Each time you press ⓘ, another piece of information is displayed as follows:

Track name/artist, progress bar/track times, album, codec/sampling rate, playback buffer and today's date.

LAST.FM MODE

In addition to its terrestrial and internet radio capabilities, Domino is also capable of providing access to online music service Last.fm. Simply choose an artist or genre and let Last.fm build the perfect playlist from its library of 5 million tracks - unique to you, and fresh every time.

If you already subscribe to the service, you can use your existing Last.fm profile on Domino, alternatively visit www.last.fm, complete a profile, then subscribe.

If you have a Trial Subscription Voucher, visit www.last.fm/voucher and follow the on-screen prompts.

ADDING A USER ACCOUNT

To enter LAST.FM MODE, turn the MODE knob until the LAST.FM MODE Intro screen is displayed, alternatively press then select MAIN MENU, then LAST.FM from menu option list.

To add an account, select LAST.FM SETUP from the menu, then select USER ACCOUNTS.

Now select ADD NEW ACCOUNT and enter your LAST.FM user name and password using the on-screen keyboard.

SCROBBLING AND LOVE/BAN TRACKS

To get the most from LAST.FM, you can SCROBBLE all the tracks that you've listened to, in both UPnP and LAST.FM modes (and even those from an iPod or computer media server with the correct software plug-ins). This sends track names to LAST.FM, adding them to your library, and helps the service tailor recommendations (and neighbours) to your musical tastes. You can playback your LAST.FM library by selecting the YOUR LIBRARY station in the LAST.FM MENU.

To turn SCROBBLING ON or OFF, select LAST.FM SETUP, then SCROBBLING, now select ON or OFF.

Note: if you intend to let other people use Domino in LAST.FM MODE, you may want to turn SCROBBLING OFF. Alternatively, you could switch to another account.

LAST.FM MODE

D2

D3

While listening to LAST.FM you can choose to LOVE or BAN tracks (which SCROBBLES them even if SCROBBLING is set to OFF). Telling LAST.FM that you LOVE a track will add that particular track to your YOUR LOVED TRACKS list, allowing playback at a future time. BANNING a track will mean It will never be played again.

To LOVE or BAN a track press the 🔒 button and use the joystick to select either LOVE or BAN.

The 🔒 button can be found on the top face of your radio, or alternatively on the remote control. When listening to LAST.FM you can choose to SKIP a track by pressing the ▶ button. It is not possible to PAUSE a track in LAST.FM.

Note: You can edit your library and track ratings by visiting the LAST.FM website.

PLAYING MUSIC

There are several types of streams, or 'radio stations' available in LAST.FM. To choose one, select STATION LIST from the LAST.FM MODE menu. If you are new to LAST.FM, we recommend that you perhaps start off with ARTIST or TAG RADIO, to allow you to be fully comfortable with the basic features of the service.

The following options are available:

YOUR LIBRARY

Plays all the tracks SCROBBLED to your profile, or tracks by artists you've added to your library. Can be edited on the LAST.FM website.

YOUR RECOMMENDATIONS

Plays tracks recommended to you based on your music profile and that of other listeners with similar tastes.

YOUR LOVED TRACKS

Plays tracks you have rated as LOVED.

YOUR NEIGHBOURHOOD

Plays tracks from the libraries of people on LAST.FM with similar music tastes to yours.

LAST.FM MODE

D2

D3

PLAYING MUSIC (continued)

ARTIST RADIO

Plays a selection of tracks by a certain artist, together with tracks by artists that have a similar musical style. Pick an artist by entering their name or part of their name (you don't have to enter the full name, so for example to find ROLLING STONES you can just enter ROLLING), then pick the artist from the list of search results and select OK.

TAG RADIO

Plays a selection of tracks tagged with certain keywords. Pick a tag word/genre by entering a word or phrase (Its advisable to be as specific as possible, for example BOLLYWOOD rather than BOLLY, because tags are user-generated, so there tends to be many spurious tags connected to only a few tracks, which may then give an insufficient content error). Pick a tag from the list of search results and select OK.

HISTORY

Lists the tracks you have listened to recently, with the most recent track listed first. It is not possible to select a track from this list and listen to it again on demand.

ON-SCREEN INFORMATION

While LAST.FM is playing, the screen will display the track name and progress bar, with figures for elapsed and total track time. A LAST.FM icon is shown at the bottom of the screen to signify that you are in LAST.FM MODE.

During track playback, pressing the button will allow you to cycle though other pieces of information such as artist, album, track name, radio name, codec/sampling rate, playback buffer and today's date.

ALARM CLOCK

SETTING AN ALARM

Domino is able to store two individual alarm settings. To set or change an alarm, either press the button, or press then MAIN MENU, then ALARM. Select which of the ALARM SETTINGS (Alarm 1 or Alarm 2) you would like to modify or enable.

Using the joystick controller, scroll through the options below, setting your preferences.

• Enable: on/off
  ● Frequency: Daily, Once, Weekends or Weekdays.
  • Time
  ● Mode: Buzzer, Internet Radio, DAB, FM or iPod or Last.fm
• Preset: Last listened or favourite station preset 1-10
  Volume: 0 - 20

When your preferences have been set, remember to select SAVE.

Domino shows any active alarms by displaying an icon at the bottom of its screen.

When in STANDBY MODE, by simply pressing the button, you can turn any alarms held in memory ON or OFF. Pressing will cycle through ALARM 1 and ALARM 2 settings, enabling, and disabling them. If the ALARM icons are displayed, the alarm is enabled. If no alarm icon is shown, the alarms are switched off.

STOPPING AN ALARM

When an alarm is sounding, pressing any one of Domino's buttons will STOP the alarm.

When the alarm has been cancelled, an ALARM OFF message will be displayed on Domino's screen.

ALARM CLOCK

SLEEP MODE

By using the SLEEP function, you can set Domino to automatically switch itself into STANDBY mode. The SLEEP function can be engaged in the following way:

Press the button, then choose MAIN MENU, now select SLEEP.

By pressing the joystick UP or DOWN, you can cycle through a number of pre-set SLEEP durations, from SLEEP OFF, through 15, 30, 45 and 60 minutes.

When you have selected a sleep duration, Domino will return to the MAIN MENU.

Press the 📄 to return to the Mode Menu, press again to return to the PLAYING screen.

SNOOZE FUNCTION

Domino includes a SNOOZE feature that allows you to temporarily silence the alarm for a period of up to 30 minutes.

The SNOOZE duration can only be set when your radio is actually in the process of alarming. At this point, simply press the joystick to cycle through a range of pre-set SNOOZE durations, either 5, 10, 15 or 30 minutes.

When SNOOZE is activated, Domino will return to standby for the set period with the icon of the SNOOZED alarm shown on-screen.

SYSTEM SETTINGS

EQUALISER

Domino provides the user with a significant degree of control over its standard (factory default) audio settings. This includes control over BASS and TREBLE, LOUDNESS and the ability to use one of a number of preset EQ settings. It is also possible to create your own personalised EQ setting - known as "My EQ".

To adjust the audio settings, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select EQUALISER from the menu.

Domino will display a list of nine EQ options as follows: Normal, Flat, Jazz, Rock, Movie, Classic, Pop, News and My EQ.

Simply select your preference from the list by pressing the joystick controller (or tapping right). Domino will now store this setting in its memory. For reference, the current EQ setting is highlighted by an asterisk (*) in the EQ list.

To configure your own personal EQ setting, select MY EQ PROFILE SETUP from the EQUALISER menu. Now adjust the BASS and TREBLE levels, decide whether you would like the LOUDNESS function OFF or ON - before selecting SAVE. Your personalised EQ setting can now be selected by choosing MY EQ from the EQUALISER menu.

SYSTEM SETTINGS

NETWORK

The NETWORK MENU can be found under SYSTEM SETTINGS in the MAIN MENU and includes an entry for the INTERNET WIZARD, which will assist you in setting up your radio's internet connection.

For the more experienced user, a variety of manual settings can also be accessed from here, as follows:

INTERNET WIZARD :

Simplifies the setup of your radio's internet connection by taking you through step-by-step instructions.

PBC WLAN SETUP :

Used to pair your radio with a router that uses WPS security.

VIEW SETTINGS :

View the MAC address, Wlan region, etc.

WLAN REGION :

Where you are using your radio - Europe, USA etc.

MANUAL SETTINGS :

Detailed control of Wired and Wireless connections.

NETWORK PROFILE :

Shows the names of the last four wireless networks Domino has been connected to.

NOTE: Domino remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. It's possible however to delete unwanted networks, simply select SYSTEM SETTINGS, then NETWORK, then NETWORK PROFILE. Now select the network profile you'd like to delete by selecting and confirming delete YES.

SYSTEM SETTINGS

TIME / DATE

Found in the SYSTEM SETTINGS menu, this menu offers you the option of changing a number of time/date related settings. The TIME/DATE menu has three listings as follows:

SET TIME / DATE : Allows you to manually set the time/date.

AUTO UPDATE : Choose from three different automatic setting options.

SET FORMAT : Choose whether you would like to use 12hr or 24hr formats.

Update from DAB :

Automatically takes time/date from DAB signal. Domino needs to have been operated in DAB MODE (and have received a signal) before this information can be extracted.

Update from FM :

Sets time/date from FM broadcast. Like DAB, Domino needs to have been operated in FM MODE, and have received RDS information before time/date information can be extracted.

Update from Network :

Takes time/date from your internet connection.

BRIGHTNESS

Domino's allows a degree of control over the brightness of Its OLED display, meaning that both its STANDBY and POWER ON brightness levels can be independently set to either HIGH, MEDIUM or LOW brightness levels.

To change the brightness settings, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select BRIGHTNESS from the menu list. You will now be able to modify the default brightness level settings for the two modes of operation - STANDBY and POWER ON.

Select the mode you'd like to change from these two options, then choose your desired brightness level. Your chosen settings will be held in memory indefinitely, but can be changed at any time.

SYSTEM SETTINGS

LANGUAGE

The default language on your radio is English, though 12 other languages are supported as follows:

Danish Dutch Finnish French German Italian

Norwegian Polish Portuguese Spanish Swedish Turkish

To change the current language setting, select SYSTEM SETTINGS from the MAIN MENU, then LANGUAGE, then select your choice.

FACTORY RESET

By selecting FACTORY RESET from the SYSTEM SETTINGS menu, you can reset Heritage to its default factory values, erasing any personal settings that may have been configured (time/date, network configuration and presets will be erased). However, Domino's current software version is maintained, as is its registration with the internet radio portal. Internet radio favourites are therefore retained, unless you re-register your radio with another account on the portal.

To perform a factory reset, press then select MAIN MENU, followed by SYSTEM SETTINGS, then FACTORY RESET. Now answer YES.

SOFTWARE UPDATES

From time to time we will make software updates available for your radio. These are necessary for general maintenance reasons, as well as for adding additional functionality to your radio. Software updates are carried out 'over-the-air', via your broadband connection.

Domino will to check for software updates each time it is switched on, and if an update is available, will ask you to confirm that you'd like to go ahead and commence the download.

Please note that after a software upgrade, all user settings are maintained.

SYSTEM SETTINGS

If you'd prefer to manually check for software updates, press then select MAIN MENU. Now choose SYSTEM SETTINGS, then SOFTWARE UPDATES. Select AUTO-CHECK SETTING then choose NO when prompted.

To manually check for updates, select CHECK NOW from the SOFTWARE UPDATES menu.

CAUTION: Before commencing a software upgrade, ensure that Heritage is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage your radio.

SETUP WIZARD

The SETUP WIZARD simplifies the set-up of both time/date and Internet settings, by running through a series of questions.

To access the SETUP WIZARD, press then select MAIN MENU, followed by SYSTEM SETTINGS. Now select SETUP WIZARD from the menu list.

INFO

When dealing with a technical support issue, you may be asked for the SOFTWARE VERSION or RADIO ID number. Both these pieces of information can be found under the INFO heading, in the SYSTEM SETTINGS menu.

Press 📄 then select MAIN MENU, followed by SETTINGS, then INFO.

TROUBLESHOOTING

D1 D2 D3

PROBLEM CAUSE SOLUTIONS
FM: HISS	Low signal strength. Check/move antenna.
DAB: Burbling/Intermittent		Move radio to another location.Rescan local (high-strength) stations only.For DAB, check local coverage at www.ukdigitalradio.com/coverage
Cut-Out
DAB: 'No stations available' Low signal strength. As above, then rescan stations.
Cannot connect to network Network down. Check that network is working between computer and the router.
	Router restricts access to listed MAC addresses.	Obtain the MAC address for your radio from MENU > SYSTEM SETTINGS > NETWORK > VIEW SETTINGS and add to router listNOTE: Your radio has separate MAC addresses for wired and wireless networks; only the current net-work adaptor method address is displayed, but the other address can be obtained by changing the first pair of digits between '00' (wireless) and '02' (wired)
	Insufficient Wi-Fi signal strength. Check distance to router. See if a computer can connect to the network in this location.
	Unknown encryption method. Change encryption method on router. Your Radio supports WEP, WPA and WPA2.
	Unusual network configuration. Setup network manually through MENU > SYSTEM SETTINGS > NETWORK > MANUAL SETTINGS
	Firewall preventing access. Check the following ports are open on the router:UDP and TCP ports 80 and 123DNS port 53Windows shares: ports 135 - 139 and 445Windows media player: varies - Non-Microsoft firewalls may require configuration for UPnP.

TROUBLESHOOTING

D1 D2 D3

PROBLEM CAUSE SOLUTIONS
Cannot connect to Internet Internet	connection down Check that the Internet is working for a computer connected to the same network.
	Firewall preventing access Check the following ports are open:UDP and TCP ports 80 and 123 DNS port 53.Some Internet radio stations may require additional ports to be opened.
Cannot play particular Internet radio station	Station not broadcasting Overloaded or insufficient bandwidth.Station broadcasting using unknown codec.Link out of date.	Try other stations.Try listening on computer via Internet radio portal website.Try later.
Cannot play Last.fm/Pandora/SIRIUS	‘Unauthorized’ message Account details wrong.	Account details not entered.Region not supported.(Last.fm? Pandora/SIRIUS are currently restricted to particular regions e.g. US/UK)Due to licensing issues.
Last.fm: Insufficient content to play There are not enough tracks available and licensed to play for the particular artist or tag radio station you have.		Select a different radio station.

ERROR MESSAGES

D1 D2 D3

MESSAGE DESCRIPTION EXAMPLE
Failed to connect Correct key entered, but router rejects request.		MAC filtering enabled on router.
Format error Cannot recognise file format - independent of network.		Received .wma, but found that the stream wasn't WMA when trying to decode.
Network error Problem past router - incorrect data being received from network.		Data obtained from server is unreadable.
Network timeout Problem past router - no response being received from network.		Streaming IR station and suddenly station becomes unavailable.
No UPnP media found No UPnP servers found.
No USB device found Trying to access USB menu, but no		USB device plugged in.
Service not available (DAB) No DAB reception.
Unauthorised Access not grated by UPnP server. Allow access for Domino in UPnP server settings.
Update failed Software upgrade failed.
USB device unsupported Unsupported USB device plugged in.
USB error	General USB problems.
USB read error	Unable to read particular data from memory.	Bad memory sector found on USB device.
USB underpowered	Power failure to USB device - user have to remove the device.
Network not ready	problem with connection to router.	Router switched off.

NOTES

REVO

TECHNICAL SUPPORT

TEL - [phone]

E-MAIL - [e-mail]

WEB - www.revo.co.uk/support

Made for iPod

Works with iPhone

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

"Works with iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

DOMINO

D1 D2 D3

TECHNISCHE HILFE

Revo Technologies Ltd The Inox Building, Caldwellside, Lanark, Scotland, United Kingdom, ML11 7SR

Tel: [phone] Int. Tel: [phone] Fax: [phone] Int. Fax: [phone]

Diagram showing two-step instructions for using a smartphone to adjust the cable or cable pin, labeled with step numbers ① and ②.

STROMZUFUHR (PSU)

Line drawings of electrical plug and meter components (no text or symbols)

Three-step line drawing showing hand tool application on a device, with no visible text or symbols

INBETRIEBNAME

Line drawing of a RGVO device connected to a wall-mounted cable (no text or symbols visible)

Illustration of a microwave oven with a rotary knob and mechanical components inside (no text or symbols)

DOMINO BEDIENUNG

Simple line drawing of a device panel with four buttons (no text or symbols)

④ ALARM MENU PRESETS INFO HOCH LINKS SELECT RECHTS RUNTER

Circular diagram with four quadrants and a star symbol, no text or labels present

DAB MODE MENÜOPTIONEN

SENDERINFORMATIONEN

Auxiliary Input 05:28PM Audio in Today's Date : 15/10/09

iPod MODE

D1 D2 D3

ANBRINGEN EINES DOCKADAPTERS

Adaptor No. iPod Model

11 iPod Nano (2nd Gen)

13 iPod Nano (3. Generation)

14 iPod Touch

15 iPhone 3G

16 iPod Touch (2. Generation)

17 iPod Nano (4. Generation)

Line drawing of a rectangular container with a lid and handle, labeled with number 1 (no text or symbols on the object itself)

Diagram of a device with a screen and directional arrow, showing components like buttons and a cylindrical object (no text or symbols)

DEN iPod MODUS BETRETEN

iPod iPod attached - switch to iPod mode? YES NO iPod

iPod MODE

KONTROLLE UND WIEDERGABE

Stations Location > Genre > Search Stations > Popular Stations > New Stations >

Your Rock Favourites Kerrans! North Sea Classic rock Rock FM Takeover Radio The Arrow

FRONTIER SIMICON Radio Portal Member Login Email address Password Help you password? Help you password? Search. Browse. Find. Access global stations Personalise favourites Search. Browse. Find. Playing Radio Horis 128 K Ig ever by Elvis ? Welcome to your Wi-Fi Radio Portal with our 15,000 Internet radio stations and broadcasts to choose from and save stations, being on which every day, the Frontier Silicon Radio portal will help you to organize your listening by creating a list of favourites for your Wi-Fi radio. Simply log it and browse the radio for the programmes that you desire, and then please select. Once you have made your choice, the stations you pick will be immediately displayed in the My Favorites area on the name page and accessible through your Wi-Fi radio. The website also enables you to address stations to the portal that are not currently being promoted. It also provides a communication channel for your questions and comments. We hope it will prove to be useful for your listening enjoyment. Frontier Silicon Choose from: 17:30 Radio stations $71.9 Products ...and/orers are added only

Media Sharing Share music, pictures, and video on your network. Learn about sharing Online Sharing settings □ Share my media How does sharing change hereof online? OK Cancel

Media Sharing Choose music, videos, and video service network Learn more about sharing Sharing settings: ✓ Share my media to: Jupiter E.2 RECISIONAL... Settings... Allow Deny Customize... How does sharing change format settings? OK Cancel Apply

EnConnect Start/Stop Custom Info EnConnect enables you EnPF® Alexinita Player to Stream ENF's recordings, digital phones must and access from your file into your TV or video. EnPF® is running ENPF® devices can access this computer as Devices: Enable:I Name P Address Jupiter 6.2 902/16.100140 803.003.0.8 Address: Enable New Devices Click the back to prevent further changes. elgato

MUSIKABSPIEL MODE

D2

D3

E-MAIL - [e-mail]

WEB - www.revo.co.uk/support

Made for iPod

Works with iPhone

Revo Technologies Ltd

The Inox Building, Caldwellside, Lanark, Scotland, United Kingdom, ML11 7SR

Tel: [phone] Int. Tel: [phone]

Fax: [phone] Int. Fax: [phone]

Email: [e-mail] Website: www.revo.co.uk

DISCLAIMER

Diagram showing two-step smartphone shipment process with labeled steps ① and ②, indicating step ① to close the device.

ALIMENTATORE (PSU)

Line drawings of electrical plug and meter components (no text or symbols)

Three-step illustration showing hand tool application on a device, with no visible text or symbols

SET-UP

Line drawing of a remote control device connected to a wall-mounted device (no text or symbols visible)

② Estrarre completamente l'antenna per DAB o FM

REV0

Line drawing of a microwave oven with a hand operating the button and a circular vent, showing mechanical components (no text or symbols)

CONTROLLO DOMINO

Simple line drawing of a computer monitor with four buttons (no text or symbols)

④ ALARM MENU PRESETS INFO

SPIEGAZIONE STRUTTURA MENU

MENU PRINCIPALE

Circular diagram with four quadrants, one shaded with a star and two outer circles containing symbols (no text or labels)

Station order Alphanumeric # Ensemble Valid

Simple line drawing of a rectangular basin or container with a handle, no text or symbols present.

Diagram of a device with a screen and directional arrow, showing components like buttons and a cylindrical object (no text or symbols)

ENTRARE IN MODALITA' iPod

iPod iPod attached - switch to iPod mode? YES NO iPod

MODALITA' iPod

Internet radio My Favourites > Local United Kingdom > BBC > Stations > Podcasts >

Stations Location > Genre > Search Stations > Popular Stations > New Stations >

MODALITA' RADIO INTERNET

D2

D3

FRONTIER SILICON Radio Portal Member Login Email address Password Help your personal http://www.fr/rista/ Welcome to your Wi-Fi Radio Portal With your 15,000 Internet radio stations and irradiate to choose from and new stations, being installed every day, the Frontier Silicon Radio Portal will help you to organize your listening by creating a set of favourites for your Wi-Fi radio. Simply log in and browse the site for the programmes that you desire, and then access about Once you have made your choice, the stations you pick will be immediately displayed in the My Favorites are on the home page and accessible through your Wi-Fi radio. The website also enables you to add radio stations to the portal that are not currently being promoted. It also provides a communication channel for your questions and comments. We hope it will prove to be useful too for your listening enjoyment. Frontier Silicon Choose from: 12500 Radio stations 873.9 Radio stations and/orare we added only

PREDISPORRE UN SERVER MUSICALE

D2

D3

Media Sharing Share music, pictures, and video on your network. Learn about sharing Online Sharing settings Share my media How does sharing change firmware settings? OK Cancel

Media Sharing Share mount, pictures, and video syncs network Learn more about sharing Sharing settings Share my media to: John E.2 Mach1004... Options Deny Customize... How does share channel linkset options? OK Cancel Apply

IMPOSTARE UN SERVER MUSICALE

D2

D3

CONDIVIDERE CON UN MAC

DOS:OFFSET Show All FileConnect solution your UFSF® All media player to stream EMTV recordings, digital photos, music and video from your file into your TV or audio. Start/Stop Custom Info Stop EyeConnect is running UFSF IV devices can access this computer as Devices: Name IP Address @ 6.2 007.78.100140 800.003.0.0 Access: Enable New Devices Click the link to prevent further changes. elgato

MODALITA' MUSIC PLAYER

D2

D3

ESEGUIRE TRACCE AUDIO NEL LETTORE MUSICALE

E-MAIL - [e-mail]

WEB - www.revo.co.uk/support

Made for iPod

Works with iPhone

Revo Technologies Ltd

The Inox Building, Caldwellside,

Diagram showing two-step instructions for using a smartphone to adjust the cable or cable pin, labeled with step numbers ① and ②.

ALIMENTATION ÉLECTRIQUE

Line drawings of UK EURO U.S.A. electrical plug, socket, and meter (no text or symbols on components)

Three-step illustration showing hand tool application on a device, with no visible text or symbols

INSTALLATION

Line drawing of a remote control device connected to a wall-mounted cable (no text or symbols visible)

Illustration of a microwave oven with a rotary knob and mechanical components (no text or symbols)

CONTROLE DE DOMINO

Simple line drawing of a device panel with four buttons (no text or symbols)

④ ALARM MENU PRESETS INFO HAUT LEFT/ GAUCHE SELECT RIGHT/ DROITE BAS

EXPLICATION DE LA STRUCTURE DU MENU

MENU PRINCIPAL

On power-up, Domino will automatically perform a full scan to see what stations are being broadcast in your area, before storing them alphabetically in the radio's memory.

Circular diagram with four quadrants, one shaded with a star and two outer circles, no text or symbols present.

OPTIONS DES MENUS EN MODE DAB

INFORMATIONS SUR LES STATIONS

Station order Alphanumeric # Ensemble Valid

ORDRE DES STATIONS DESCRIPTION

Simple line drawing of a rectangular container with a lid and handle, labeled with number 1 (no text or symbols on the object itself)

Diagram of a device with a screen and directional arrow, showing components on a surface (no text or symbols)

PASSER EN MODE iPod

iPod iPod attached - switch to iPod mode? YES NO iPod

MODE iPod

CONTROLE ET PLAYBACK

Stations Location > Genre > Search Stations > Popular Stations > New Stations >

FRONTIER SILICON Radio Portal Member Login Email address Password Login your personal http://www.orient.com/ Capital Search Helping Radio store Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home Radio station Radio home

INSTALLER UN SERVEUR MUSICAL

D2

D3

Media Sharing Share music, pictures, and video on your network. Learn about sharing Online Sharing settings Share my media How does sharing share herself allows? OK Cancel

Media Sharing Share counts, returns, and video sharing networks. Learn more about sharing Sharing settings Share my media to: Options... Apple E.2 MSSIONAL... Settings... Apply Deny Customize... How does sharing channel firewall settings? OK Cancel Apply

INSTALLER UN SERVEUR MUSICAL

D2

D3

PARTAGER DES MEDIA AVEC UN MAC

EnConnect Start/Stop Custom Info EnConnect enables your EnConnect. All media player to Stream Entity recordings, digital photos, music and video from your file or write your TV or video. EnConnect is running EnConnect's devices can access this computer as Devices: Name IP Address Jupiter 6.2 00126 100146 003.003.0.9 Access: Enable New Devices Click the lock to prevent further changes. elgato

MODE LECTEUR DE MUSIQUE

D2

D3

JOUER DES PISTES AUDIO DANS LE LECTEUR DE MUSIQUE

INFORMATIONS SUR ECRAN

MISES A JOUR DU LOGICIEL

E-MAIL - [e-mail]

WEB - www.revo.co.uk/support

Made for iPod

Works with iPhone
