| Product Type | Battery-Powered Portable PA System |
| Brand | Samson |
| Model | Expedition Express |
| Dimensions (W x H x D) | 222 mm x 323 mm x 210 mm |
| Weight | 4.6 kg |
| Power Supply | AC 100-240 V, 50/60 Hz / DC 19 V 3 A power adapter |
| Built-in Battery | 12 V, 2.2 Ah, rechargeable, sealed, up to 8 hours of battery life |
| Wireless Connectivity | Bluetooth for audio playback |
| Audio Inputs | 1 combo XLR/6.35mm jack input (mic/line), 1 6.35mm jack input (instrument), 1 3.5mm jack input (MP3/line) |
| Audio Outputs | 1 6.35mm jack line output for daisy-chaining multiple speakers |

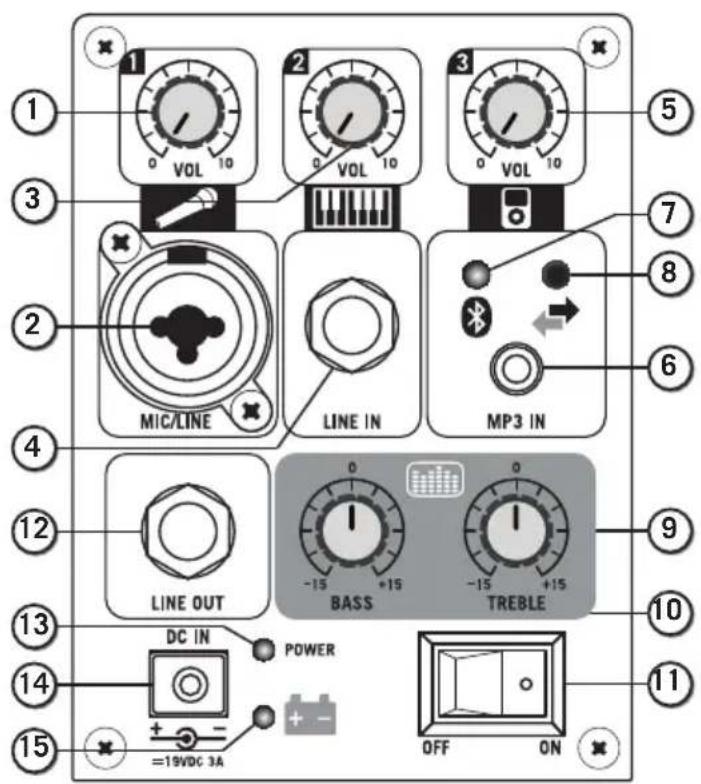

| Controls | 3 volume controls (VOL), 2 EQ controls (treble/bass ±15 dB), Bluetooth pairing button |
| Amplifier | Power not specified, woofer + 1" tweeter |
| Mounting | Standard 1 3/8" pole mount receptacle |
| Material | Polypropylene with internal reinforcement, perforated steel grille |
| Recommended Use | Karaoke, presentations, concerts, outdoor or classroom use |
| Maintenance and Cleaning | Clean with a dry cloth, do not use liquids |
| Safety | Do not expose to rain or moisture, do not block ventilation openings |
| Spare Parts and Repairability | Contact Samson or an authorized distributor for repairs and battery replacement |
| Warranty | Contact your local dealer for warranty information |
| Compliance | FCC Part 15, IC RSS-310, CE marked |
Frequently Asked Questions - Expedition Express SAMSON

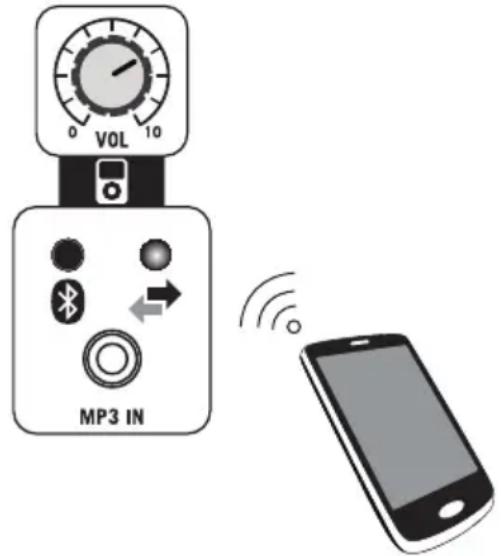

How do I pair my phone with the Expedition Express via Bluetooth?
Power on the speaker and press the pairing button on the back. The blue LED flashes. In your device's Bluetooth settings, select Samson Express. If a code is requested, enter 0000. Once connected, the LED becomes solid.
What is the battery life?
The built-in battery provides up to 8 hours of continuous playback after a full charge. Charging time is approximately 4 to 6 hours.
Can I use the speaker while it is charging?

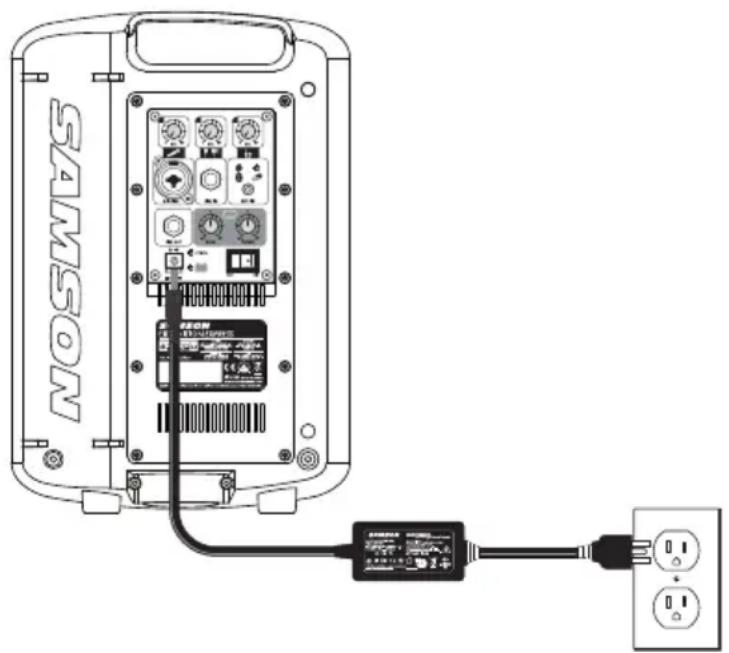

Yes, you can plug in the AC adapter and use the speaker simultaneously. This allows continuous playback without relying on the battery.
What types of audio inputs are available?

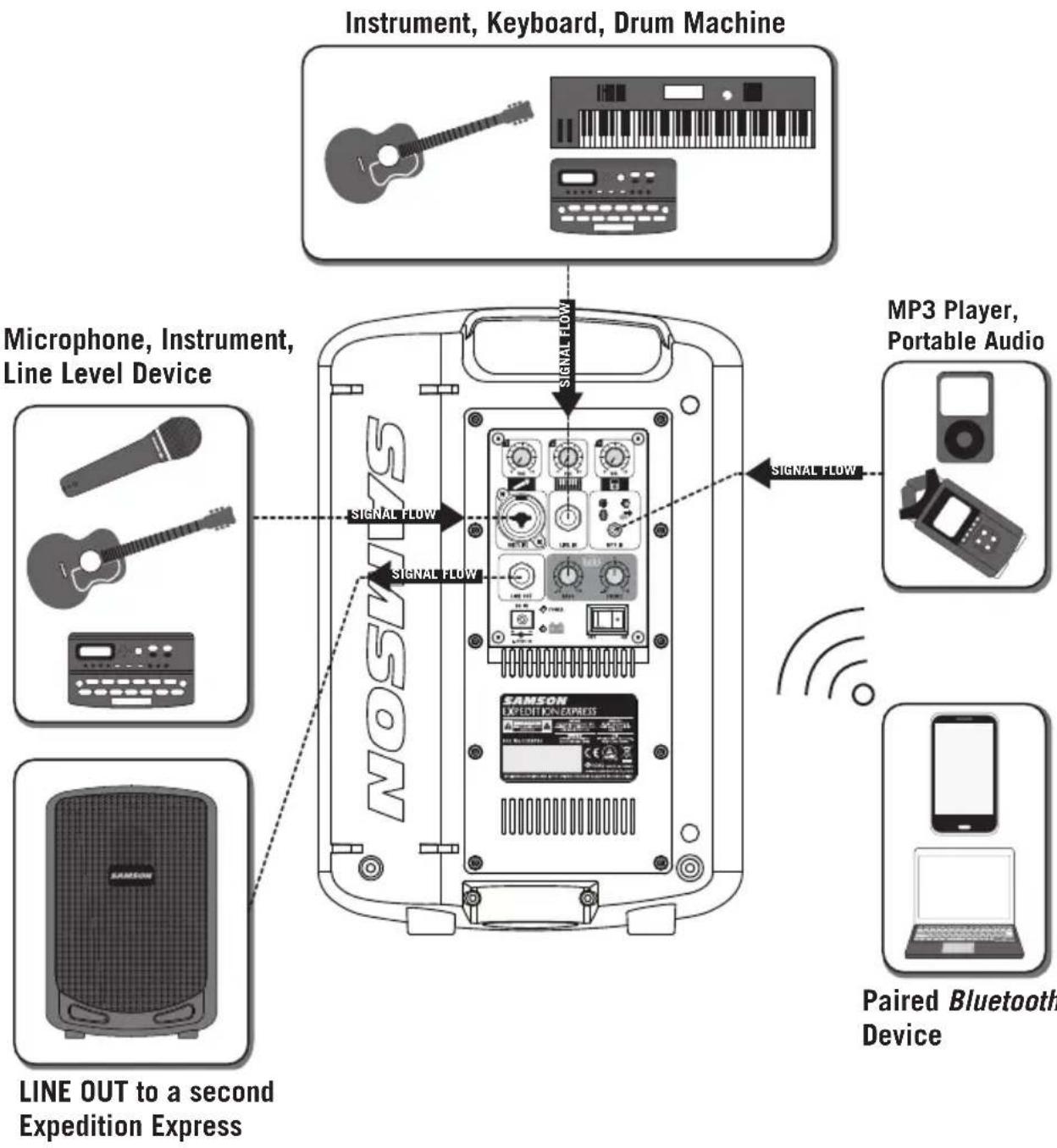

The Expedition Express has: a combo XLR/6.35mm jack input for microphone or line, a 6.35mm jack input for instrument, and a 3.5mm jack input for MP3 player or other audio source.

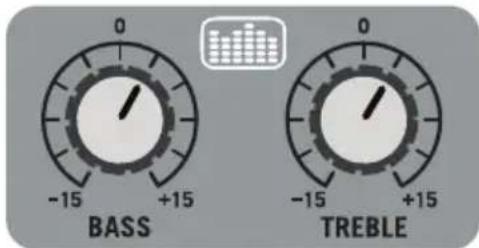

How do I adjust the EQ for better sound?
Use the BASS and TREBLE knobs to adjust low and high frequencies. For music, slightly increase both. For vocals, reduce bass and increase treble. The neutral position is at 12:00.
What to do in case of feedback (howling)?
Move the microphone away from the speaker, place it behind the speaker, reduce the overall volume, or bring the microphone closer to the sound source. Avoid pointing the microphone directly at the speaker.
How do I maintain the Expedition Express?
Clean the speaker with a dry cloth. Do not use liquid products. Avoid prolonged exposure to sunlight and moisture. Charge the battery every 6 months if not used.
Can I connect multiple Expedition Express speakers?
Yes, use the LINE OUT (6.35mm jack) to connect an additional speaker. The audio signal will be daisy-chained.
What type of stand should I use to mount the speaker?
The speaker has a standard 1 3/8 inch (35 mm) pole mount receptacle. Use a speaker stand or compatible mount.
What to do if the battery no longer holds a charge?
If battery life decreases significantly, the internal battery needs to be replaced. Contact Samson customer service or your dealer for a replacement battery. Do not attempt to replace it yourself.
