KL 2106 - Cd player/recorder Karcher Audio - Free user manual and instructions

Brand	Karcher Audio
Model	KL 2106
Product type	Cassette player/recorder
Power source	4 x 1.5V UM2/R14 batteries (not included) or 6V / 500 mA mains adapter (not included)
Playback functions	Play, pause, stop, fast forward, rewind
Recording functions	Record onto blank cassette with built-in microphone
Karaoke functions	Sound effects "cheer" and "applause", microphone volume control
Microphone	Built-in with ON/OFF switch and volume control
Headphone jack	3.5 mm jack, 32 ohms
Speaker	Built-in (muted when headphones are used)
Cassette door	Opens via STOP/EJECT button
Indicator lights	Power LED (on), REC LED (recording)
Cleaning	Wipe with a soft, damp cloth; do not use abrasive cleaners
Safety	Do not open the casing, do not expose to water, unplug before cleaning
Repairs	Refer to a qualified professional only
Recommended battery type	Non-rechargeable batteries (rechargeable under adult supervision)
Operating conditions	Flat and stable surface, avoid heat and humidity

Frequently Asked Questions - KL 2106 Karcher Audio

How to insert a cassette into the KL 2106?

Press the STOP/EJECT button to open the cassette door. Insert the cassette with the tape facing up and the fully wound side on the right. Close the cassette door.

How to record with the microphone?

Insert a blank cassette that is not write-protected. Set the ON/OFF switch of the microphone to ON. Adjust the volume with the - MIC VOL + knob. Press REC to start recording.

Can I use rechargeable batteries?

Yes, but they must be removed from the device before recharging. Rechargeable batteries can only be charged under adult supervision. Use UM2/R14 type batteries.

What to do if the Power LED does not light up?

Check that the batteries are inserted correctly (observe polarity) or that the mains adapter is plugged in and working. Make sure the OFF/- Vol + knob is turned clockwise.

How to clean the device?

Turn off the device and unplug the mains adapter if used. Wipe the device with a soft, damp cloth. Never use abrasive or chemical cleaners.

Can I plug in headphones?

Yes, plug headphones with a 3.5 mm connector and impedance of about 32 ohms into the PHONE jack. The internal speakers are then muted.

How to use the karaoke effects?

During cassette playback, activate the microphone with the ON/OFF switch. Use the "cheer" and "applause" buttons to add sound effects.

The device does not play the cassette, what to do?

Check that the cassette is correctly inserted and that the tape is not tangled. Make sure the batteries are sufficiently charged or the mains adapter is properly plugged. If the problem persists, contact a qualified repair technician.

Where can I find the mains adapter?

The mains adapter is not supplied. Use a 6V / 500 mA adapter with the correct polarity. You can purchase it from an electronics retailer.

How to change the batteries?

Unscrew the battery compartment screw with a screwdriver. Remove the cover. Insert 4 UM2/R14 batteries respecting the polarity marks. Close and screw back.

USER MANUAL KL 2106 Karcher Audio

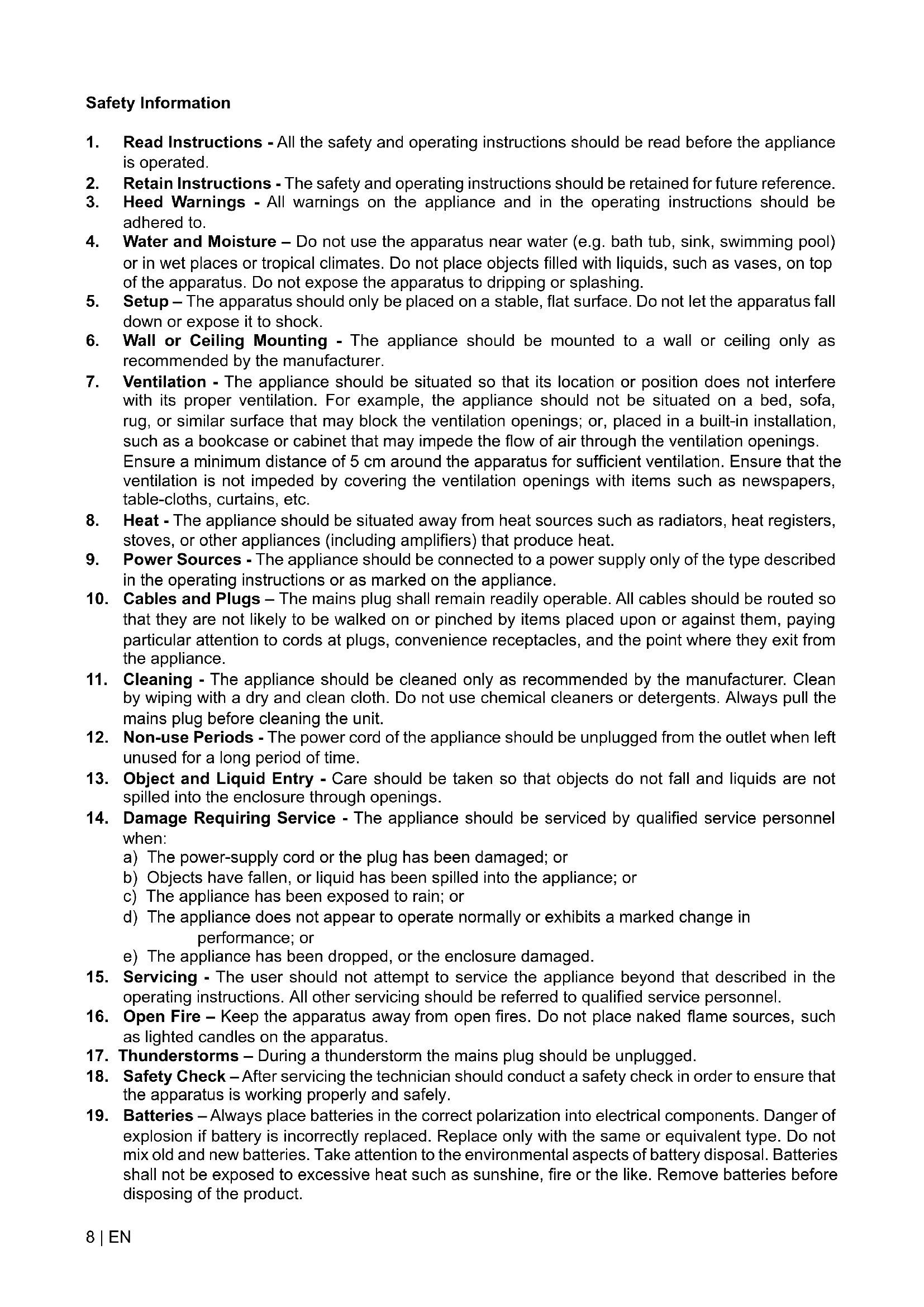

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. HeedWarnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture - Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup - The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
   Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs - The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire - Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms - During a thunderstorm the mains plug should be unplugged.
4. Safety Check - After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries - Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Headphones - Excessive sound pressure from earphones and headphones can cause hearing loss.

Special Safety Instructions

1. Batteries must be inserted/replaced by an adult.
2. The unit may only be operated by using one of the power sources available (either by batteries or external power adaptor - power adaptor not included).
3. Non-rechargeable batteries may not be recharged.
4. Rechargeable batteries may only be charged under the supervision of an adult.
5. Rechargeable batteries must be removed from the unit before charging.
6. Exhausted batteries must be removed from the unit.
7. The supply terminals may not be short-circuited.
8. The transformer is not a toy.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

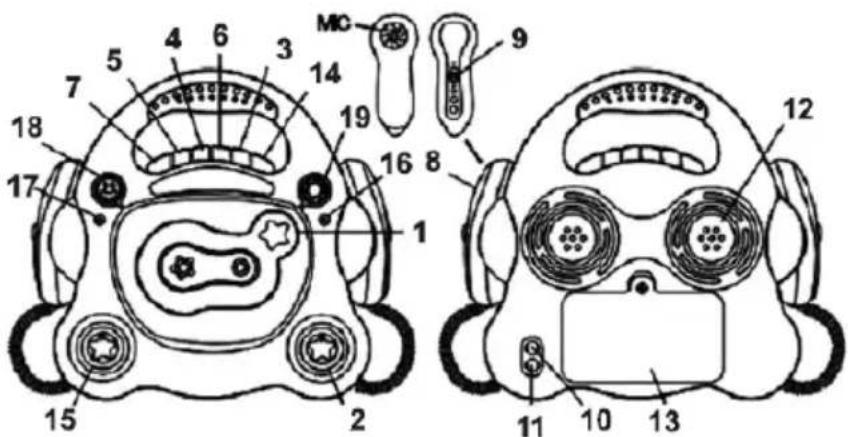

LOCATION OF CONTROLS

1. Cassette door
2. OFF / - Vol +
3. PLAY button
4. F.FWD button
5. STOP / EJECT button
   6 REW button
6. PAUSE button
7. Microphone
8. ON/OFF for microphone
9. DC jack
10. PHONE jack
11. Speaker
12. Battery compartment
13. REC button
14. -MIC VOL +
15. Power indicator
16. REC indicator
17. Karaoke button "Laughter"
18. Karaoke button "Applause"

POWER SUPPLY

Battery operation

• Open the battery compartment (13): Loosen the screw on the cover of battery compartment with a screwdriver and remove the cover.
• Insert 4 UM2 / R14 1.5V type batteries (not included). Make sure that you follow the polarity markings inside the compartment!
• Close the battery compartment and tighten the screw.

Operation of power adaptor

• Only use a common 6V/500mA power adaptor (not included).
• Connect the power adaptor to the DC jack (10).

Phone jack

A Phone jack (11) has been provided. To use it, plug in headphones (3.5mm connector / 32ohm) available at your local dealer and adjust the OFF / - Vol + (2) to a comfortable listening level. When external headphones are connected, the main speakers (12) of the unit will be mute.

BASIC OPERATION

On/Off

Switch on the unit and adjust to a comfortable listening level by turning the OFF / - Vol + knob (2) clockwise. The Power indicator (16) lights up.

To switch off, turn the knob counter - clockwise until it snaps. The Power indicator goes out.

Play A Cassette

1. Press the STOP / EJECT button (5) to open the cassette door (1).
2. Insert a cassette with the exposed tape facing upwards and the full reel on the right into the cassette compartment. Close the cassette door (1).

3. Press the PLAY button (3) to play the cassette.

4. To interrupt playback, press the PAUSE button (7). Press the PAUSE button again to resume playback.

5. Press the STOP / EJECT button (5) to stop playback.
6. Press the STOP / EJECT button (5) once again to open the cassette door (1).

Fast Forward / Rewind

If necessary, advance or rewind the tape using the F.FWD / REW (4 / 6) buttons.

To stop advancing or rewinding the tape or when switching between fast-forward and rewind, press the STOP / EJECT button (5). This helps avoiding damage to the unit or to the tape.

Record

1. Insert a blank cassette with the exposed tape facing upwards and the full reel on the right into the cassette compartment (1). Make sure the cassette is not copy protected: The copy protection clip on the upper narrow side (opposite the exposed tape side) of the cassette still has to be in place.
2. Set the ON/OFF for microphone (9) to ON.
3. Adjust the microphone volume using the - MIC VOL+ button (15).
4. Press the REC button (14). The PLAY button (3) will automatically be pressed at the same time. The REC indicator (17) lights up.
5. To interrupt recording, press the PAUSE button (7), to stop recording, press STOP / EJECT button (5).

Karaoke

The microphones (8) being used when recording a cassette can also be switched on when playing a cassette to sing along or to add comments and the like. To switch the microphones on, set the ON / OFF for microphone (9) to ON.

In addition, there are two buttons available to accompany your singing etc. With "Laughter" (button 18) or "Applause" (button 19). With the unit switched on, simply press the respective button.

Cleaning and maintenance

Turn off the unit before cleaning. When using a power adaptor, unplug it from the wall outlet.

• If necessary, wipe the unit with a soft damp cloth.
• Do not use any abrasive cleaning agents.
• When the unit is not used over a longer period of time, remove batteries!

TECHNICAL SPECIFICATION

Battery operation: 4x UM-2 / R14, 1.5V (not included)

Power adaptor: 6V 500mA, polarity (not included)

Technical specifications and design may change without notice.
