USER MANUAL RR 5030 Karcher Audio

Kassettenteil

ALLGEMEINE FUNKTION

Energie sparen

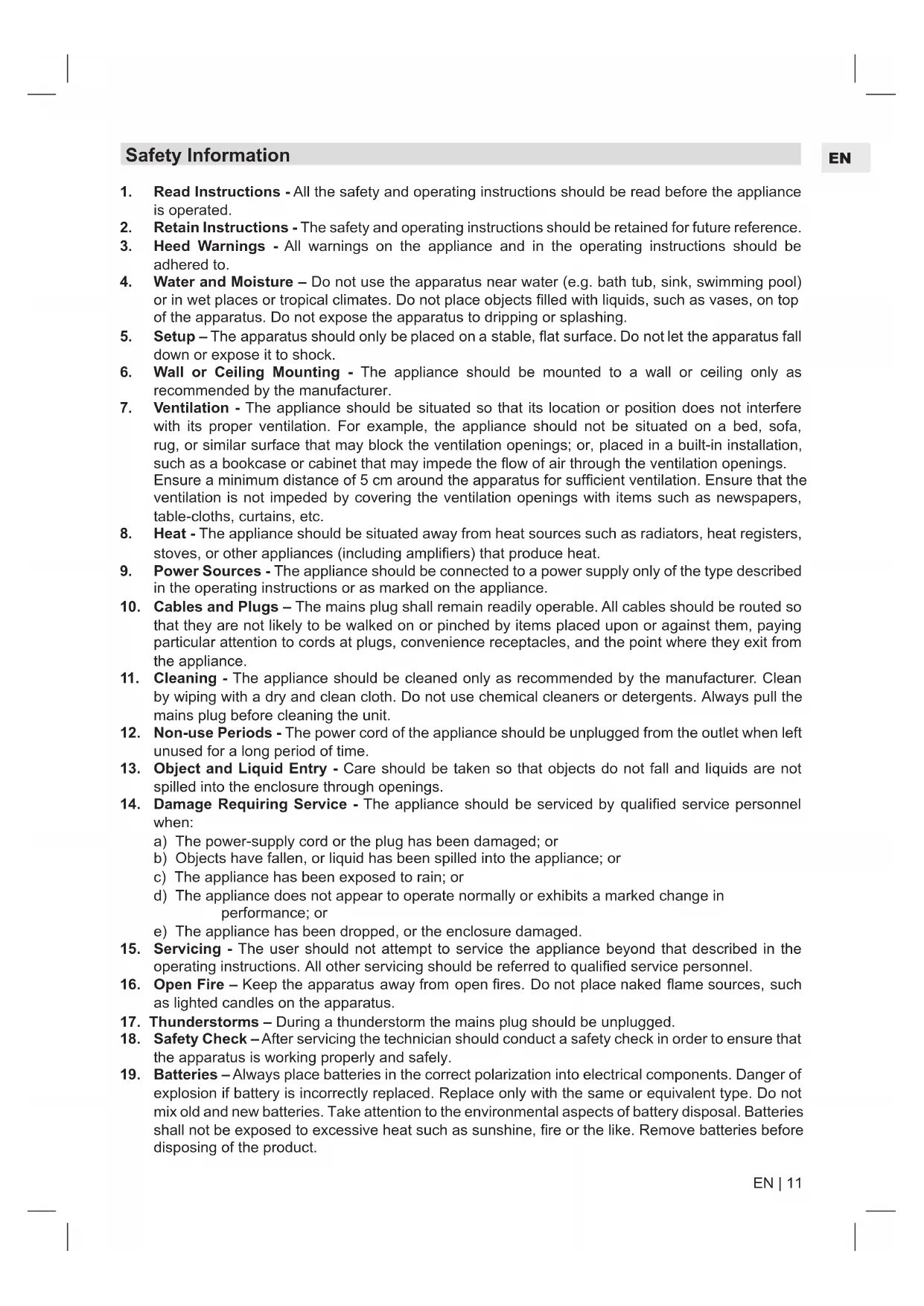

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.

5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.

6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.

8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.

12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or

b) Objects have fallen, or liquid has been spilled into the appliance; or

c) The appliance has been exposed to rain; or

d) The appliance does not appear to operate normally or exhibits a marked change in performance; or

e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

2. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.

3. Thunderstorms - During a thunderstorm the mains plug should be unplugged.

4. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

7. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

2. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

3. Cleaning discs

• Use a soft cloth to wipe fingerprints and dust from the disc surface.
• Carefully move the cloth from the center of the disc to its edge:

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

4. Compatibility

- Due to the numerous compression methods, some discs may not play.

Power Sources

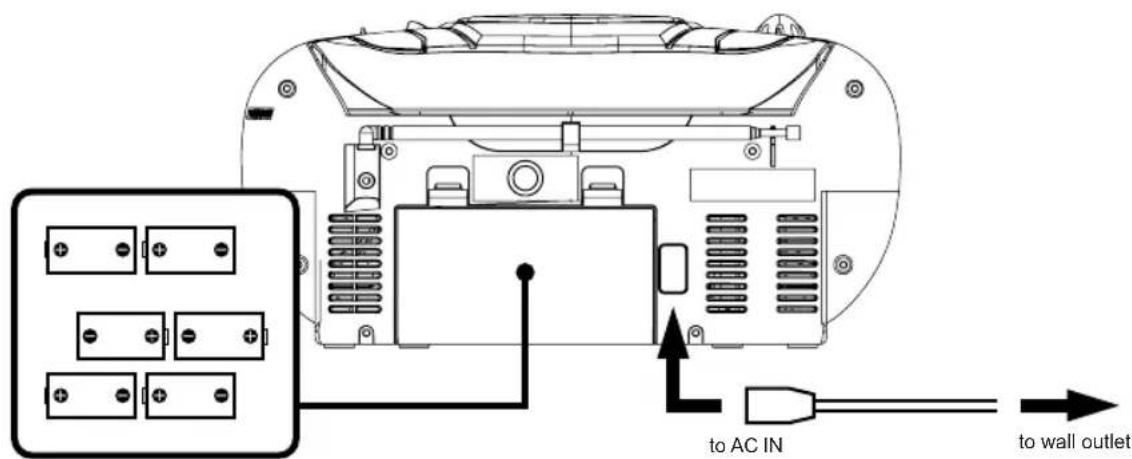

Insert 6 x "C" size batteries into the battery compartment

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at

the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 x "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
  • To use the appliance with batteries, disconnect the AC power cord from it.

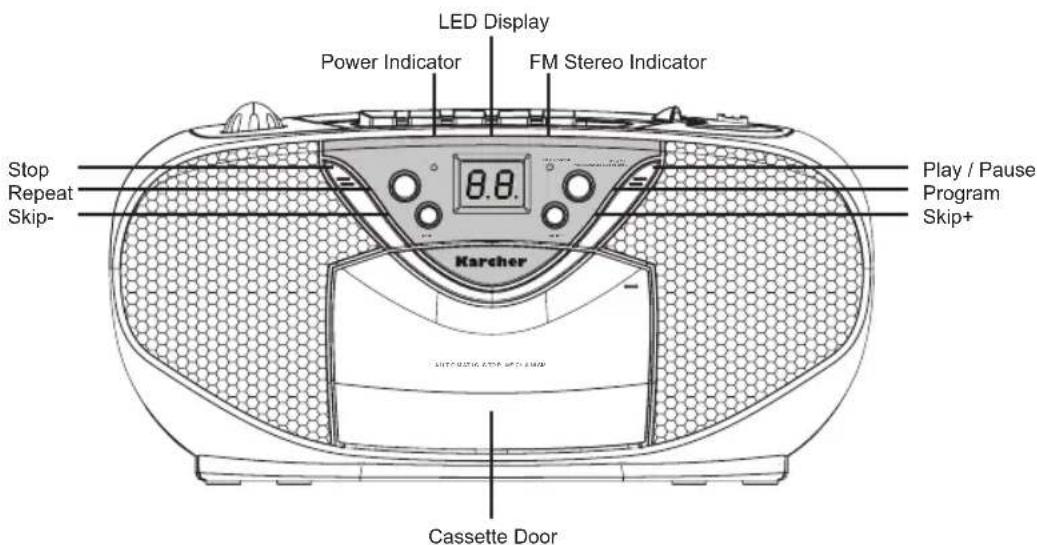

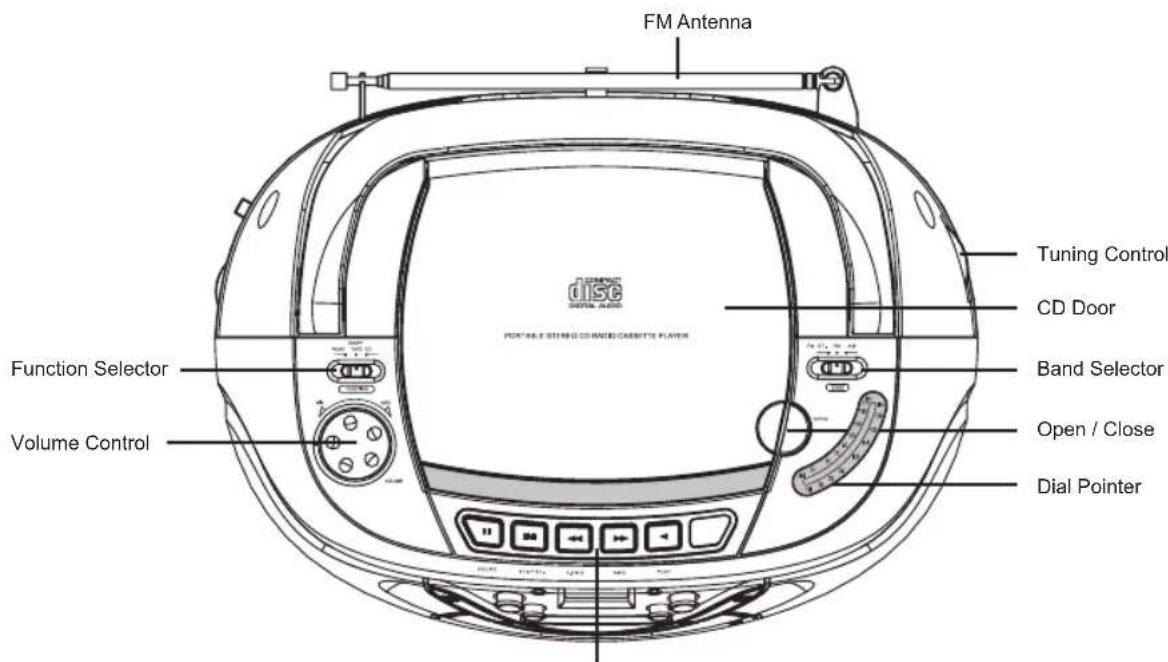

Location of Controls

Tape Buttons - Pause, Stop / Eject, Fast Forward, Rewind, Play

Radio Operation

EN

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

1. Set the "BAND" selector to FM mode for MONO reception.
2. Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

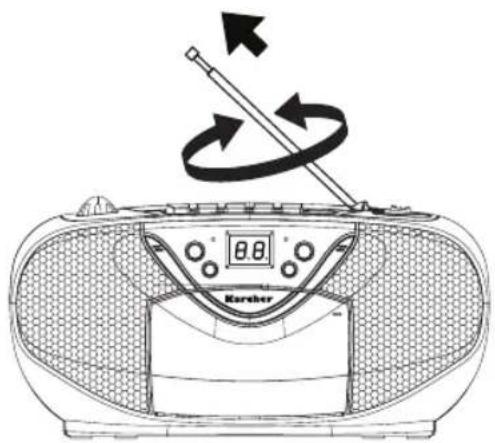

• Reorient the antenna for better reception

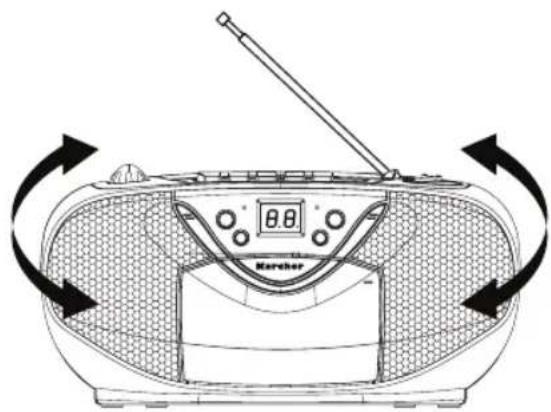

• Reorient the appliance to get better AM reception

Tape Operation

GENERAL OPERATION

PAUSE ||Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP / EJECT ■ ▲ Press to stop tape operations.

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD ◀◀ & REWIND ▶▶ Press to start rapid tape winding either forward or reverse direction.

PLAY ◀ Press to start playing tape.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

CD Operation

GENERAL OPERATION

PLAY / PAUSE ▶Press to start playing CD disc.

Press again to stop playing CD operation temporarily.

Press again to resume playback.

SKIP+ ▶▶| &

Press to go to the next track or back to the previous track.

SKIP- |

Press and hold while playing until you find the point of the sound.

STOP ■ Press to stop all CD operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD" mode.
2. Open the CD door and place a CD disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Press the "PLAY / PAUSE" button to start playing CD disc.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

PROGRAM

Up to 20 tracks can be programmed for disc play in any order.

Be sure to press the "STOP" button before use.

1. Press the "PROGRAM" button, the display will show "01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button.
3. Press the "PROGRAM" button again to confirm desired track into the program memory.
4. Repeat steps 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed. Press the "PLAY / PAUSE" button to play the disc in the order you have programmed and the program indicator flashes.

1. Press the "STOP" button twice to terminate programmed play and the program indicator will turn off.

REPEAT

Press the "REPEAT" button before or during playing CD, a single track or all the tracks can be repeated.

Each press switches the repeat mode as follows:

1 - REPEAT 1 (the repeat indicator is flashing)
2 - REPEAT ALL (the repeat indicator is steadily on)
3 - NORMAL PLAYBACK

Energy Saving

EN

For energy saving, the system will switch to the standby mode automatically in case the unit has stopped operating in CD mode for 10 minutes.

Technical Specifications

GENERAL

Power Supply: AC 220-240V \~ 50Hz

DC === 9V (6x batteries size „C“, not included)

Power Consumption (max.): 10W

Dimensions (WxDxH) ca.: 290 x 224 x 147 mm

RECEIVER

Receiving Bands: AM/FM

Tuning Range / Sensitivity: AM 540 - 1600 kHz

FM 88 – 108 MHz

Technical specifications and design may change without notice.
