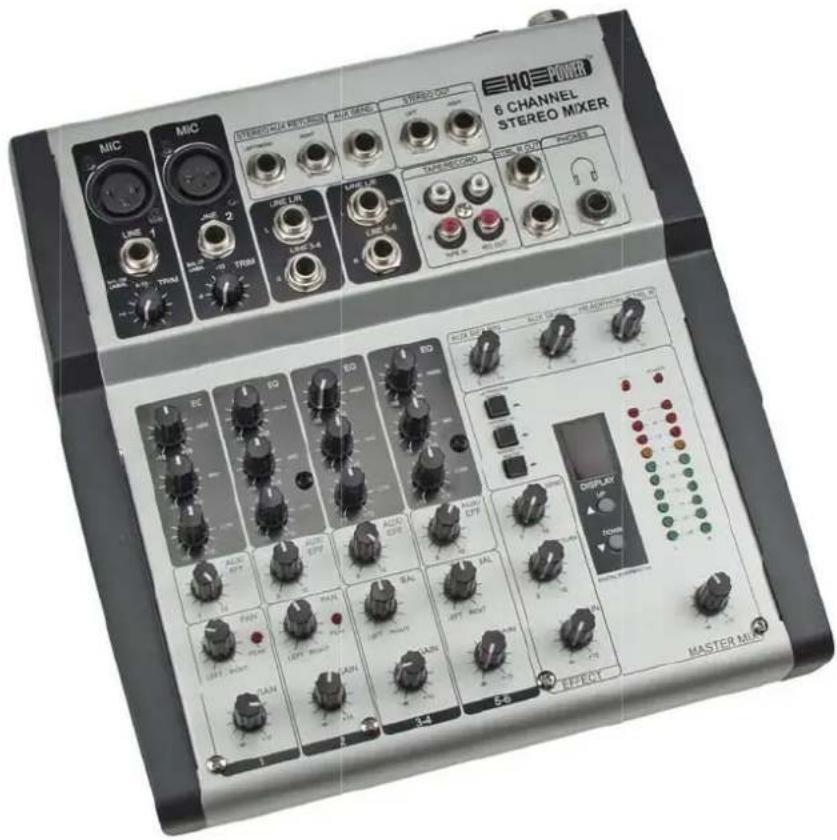

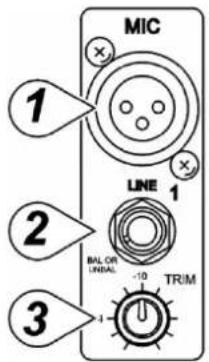

The TRIM control adjusts the input sensitivity (channel gain) of the MIC and LINE inputs on the mono input channels. This control can be adjusted to accommodate input signals from a wide variety of sources, from the high outputs from keyboards or drum machines to the small signal outputs of microphones. This wide range eliminates the need for MIC / LINE switching. The best S/N balance and dynamic range will be achieved if you adjust the TRIM control on each channel separately so that the PEAK LED (7) for that channel lights occasionally. Note: This control should always be turned fully anticlockwise whenever you connect or disconnect a signal source to one of the inputs.

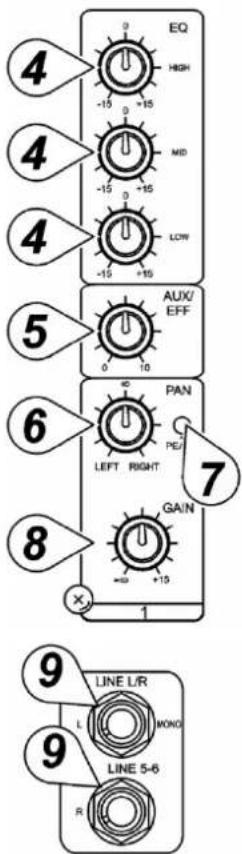

All mono input channels are fitted with three-band EQ. The upper (HIGH) and lower (LOW) shelving controls have their frequencies fixed at 12 kHz and 80 Hz respectively. The midrange control has a peaking response, with Q fixed at 2 octaves and the frequency at 2.5 kHz. All three bands have up to 15 dB of cut and boost with a centre detent for “off”.

5. AUX / EFF SEND Control

The AUX / EFF controls are mono and post-EQ and post-fader. The signal level sent to the AUX / EFF bus will be affected by the channel fader setting. The AUX configuration is ideal for almost all monitoring purpose e.g. for a separate stage monitor mix in live performances or a studio room monitor in recording applications, such as for a headphone cue system. The EFF controls the adjustment of level sent by each channel to the internal DSP (Digital Sound Processor).

The channel PAN positions the output of the channel in the stereo field of the Master Mix. Its constant-power design ensures there are no level discrepancies whether a signal is hard-panned, centre-stage or somewhere in-between.

The PEAK LED illuminates when a channel is going into overload. It detects the peak level after the EQ and will light at 3 dB before clipping to warn that the signal is approaching overload. You do not want the PEAK LED to light except very intermittently during a take or a mix. If it does light persistently, reduce input gain with the TRIM control (3).

8. CHANNEL GAIN Control

The channel GAIN controls determine the output signal level to the master mix bus. There is no PFL function on the mixer. In order to audition any single channel for proper gain, you can turn off the gain control of all the other channels (fully anticlockwise) and set both the auditioned channel and MASTER MIX control (29) to unity gain (0 dB). The LED OUTPUT meter (21) should read around 0 dB. STEREO Input Channel (fig. 2)

4. EQUALIZER Controls

The stereo channel EQs operate in the same manner as those in the mono channels. The left and right signals will be affected equally. A stereo equalizer is generally preferable to using two mono equalizers when equalizing a stereo signal as it avoids possible discrepancies between the left and right settings. 5.AUX / EFF SEND Control These are the same as for the mono channels. Note that a mono sum is taken from the stereo input.

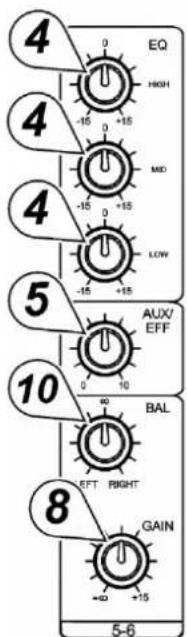

8. CHANNEL GAIN CONTROL

The channel GAIN controls determine the output signal level to the MASTER MIX bus. There is no PFL function on the mixer. In order to audition any single channel for proper gain you can turn off the gain control of all the other channels (fully anticlockwise) and set both the auditioned channel and MASTER MIX control (29) to unity gain (0 dB). The LED OUTPUT meter (21) should read around 0 dB.PROMIX66N/PROMIX88N

Each stereo channel has two balanced line level inputs on 1/4" TRS jacks for left and right channels (tip = positive (+), ring = negative (-), sleeve = ground). If only the connector marked “L” (left) is used, the channel operates in mono. The stereo channels are designed to handle typical line level signals. The input signals to these jacks can be either balanced or unbalanced.

For a mono input to the L (MONO) input the function of the control is the same as the PAN controls (6) of the mono channels. However, when a channel is run in stereo, this control functions as a BALANCE control, determining the relative balance of the left and right channel signals being sent to the left and right MASTER MIX buses. For example, with the BALANCE control turned fully clockwise, only the right portion of the channel’s stereo signal will be routed to the MASTER MIX. MASTER Section (fig. 3 & 4)

11. STEREO AUX RETURNS (LEFT / MONO, RIGHT)

The AUX RETURN jacks are the mono or stereo returns for AUX SEND. If you connect a signal to the LEFT / MONO RETURN jack only, the AUX RETURN will operate in mono and the signal will be routed to the AUX RETURN control (19) and then mixed into the left and right MASTER MIX stereo outputs (13). The separate left and right return jacks are provided for use with stereo signals such as those from the output of a stereo effects processor. The left and right return signals will be routed to the AUX RETURN level control (19) and mixed into the left and right STEREO OUT (13) while maintaining stereo separation.

The AUX SEND is the output for the signal sent from the channel AUX / EFF controls (5) and by the AUX SEND controls (18) control. They are 1/4" unbalanced phone jacks (tip = positive (+), sleeve = ground). AUX SEND is a post-fader. These signals can be sent to the input of an effects processor, multi-track recorder, or used for any other line-level auxiliary purpose.

Use these jacks to connect to an external power amplifier if extra output power for a larger PA system is required. The stereo outputs are left (L) and right (R) unbalanced 1/4" phone jacks, wired as tip = positive (+), sleeve = ground.

These jacks will accept the signal from an external device with a stereo output such as a cassette recorder.

The REC outputs also provide an output of the MASTER MIX. These outputs are RCA jacks and designed primarily for inputs to tape recorders etc.

16. L-R Control Room Outputs

The L-R control room outputs can be connected to an amp to power stereo control room (or other) monitor speakers and are 1/4" unbalanced phone jacks, wired as tip = positive (+), sleeve = ground.PROMIX66N/PROMIX88N

The PHONES output will feed headphones and is a 1/4" TRS jack, wired as tip = left signal, ring = right signal, sleeve = ground.

This is a master control that adjusts the output signal level at the AUX SEND (12) jack.

19. AUX RETURN Control

The left and right return signals will be routed to the AUX RETURN level control and mixed into the left and right stereo OUT (13) while maintaining stereo separation.

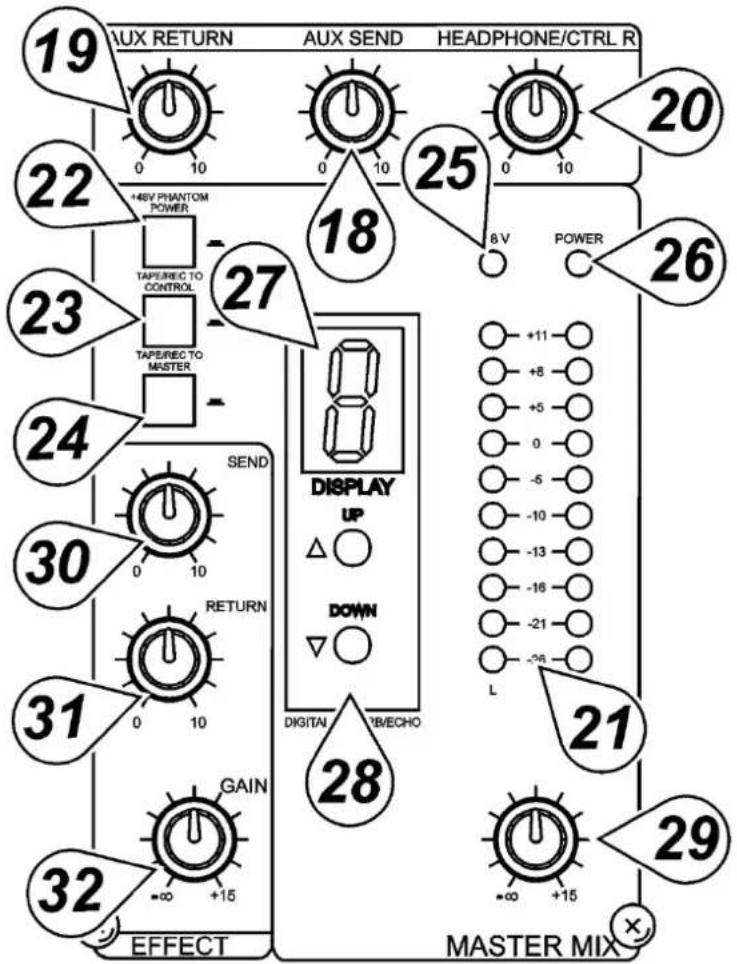

20. PHONES/CONTROL ROOM CONTROL

The mixer allows you to monitor the MASTER MIX. The signal level is adjusted with the PHONES / CONTROL ROOM control and routed to both the CONTROL ROOM (16) and HEADPHONES (17) outputs.

When using condenser microphones, +48 VDC can be switched globally on or off to the XLR MIC inputs for all mono channels. When this switch is in the “ON” position, the PHANTOM POWER ON LED (25) will light and +48 VDC will be provided between pins 2 and 3 on all the mono MIC input XLR connectors. If you do not need phantom power, be sure to turn this switch to the “OFF” position. Note: It is safe to connect balanced dynamic microphones or line-level devices even if this switch is on, but connecting unbalanced devices or devices whose transformers are centre- grounded will cause hum or malfunctions. Shorting the +48 VDC can also damage your mixer. Also, mute the monitor or PA speakers first when turning the phantom power on or off.

23. TAPE / REC TO CONTROL ROOM Switch

Use the TAPE / REC TO CONTOL ROOM switch to route signals from the TAPE input (14) to the PHONES / CONTROL ROOM control (20). 24 TAPE / REC TO MASTER Switch Use the TAPE / ECHO TO MASTER switch to route signals from the TAPE input (14) to the MASTER MIX GAIN control (29).

25. PHANTOM POWER LED

The red +48V LED lights up when the phantom power is turned on.

The red LED indicates that the console is powered on. DIGITAL EFFECTS Section

Press either ECHO effect buttons to scroll in either direction through the 16 presets. The numeric effects display will indicate which of the 16 effect presets has been selected.

28. ECHO EFFECT SELECT Buttons

The built-in DSP (Digital Sound Processor) offers 16 different preset level and echo intervals selectable by the echo effect UP / DOWN buttons. The DSP processes the signal on the EFFECTS bus, which is the sum of the mono and stereo channel inputs controlled by the EFF control (5).PROMIX66N/PROMIX88N

The output level routed to the stereo outputs and REC outputs is determined ultimately by the setting of the MASTER MIX GAIN control.

The EFFECT SEND control adjusts the level of the signal on the EFFECTS bus fed to the DSP.

31. EFFECT (ECHO) RETURN

The EFFECT (ECHO) RETURN control adjusts the number of repeats of the echo effect selected with the UP / DOWN buttons (28).

The EFFECTS GAIN fader controls the signal level sent to the MASTER MIX buses. Rear Panel (fig. 5)

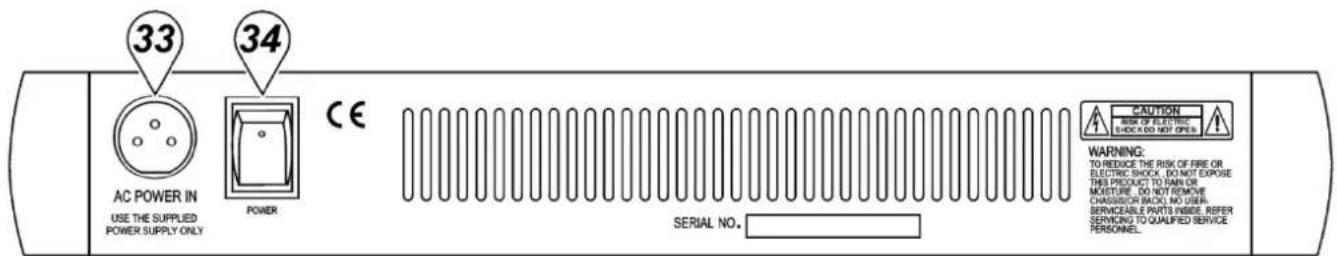

33. AC POWER IN Socket

Connect the enclosed power supply to the 3-pin mains connector on the rear of the console. Use the included adapter to connect the console to the mains.

34. MAIN POWER Switch

This switches the mixer ON or OFF. Note: Be sure to switch on the power to your mixer before switching on the amplification system.

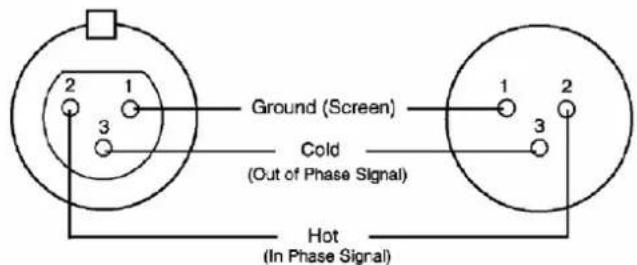

Unbalanced equipment may be connected to balanced inputs/outputs. Either use mono 1/4" jacks or connect the ring and sleeve of TRS jacks. Never use unbalanced XLR connectors on the MIC input connectors when using the phantom power supply. Microphone input Group & mix outputs

1. Tip = left signal

2. Ring = right signal

Unbalanced use of mono 1/4" plugs

Balanced use of stereo 1/4" plugs
