USER MANUAL HMDA230 SONY

Trinitron® Color Computer Display

Operating Instructions GB

Mode d'emploi FR

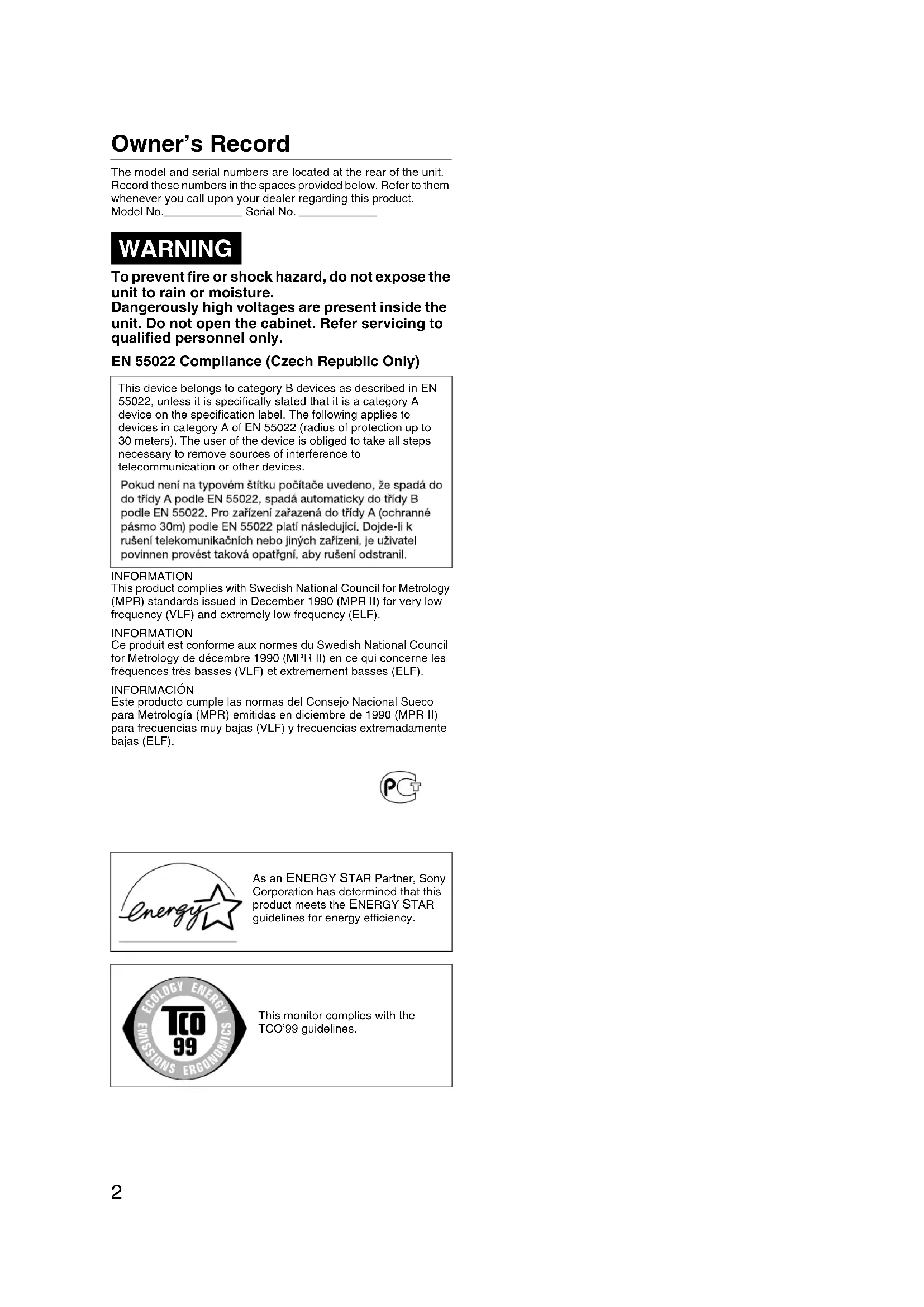

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No. ____ Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

EN 55022 Compliance (Czech Republic Only)

This device belongs to category B devices as described in EN 55022, unless it is specifically stated that it is a category A device on the specification label. The following applies to devices in category A of EN 55022 (radius of protection up to 30 meters). The user of the device is obliged to take all steps necessary to remove sources of interference to telecommunication or other devices.

This product complies with Swedish National Council for Metrology (MPR) standards issued in December 1990 (MPR II) for very low frequency (VLF) and extremely low frequency (ELF).

INFORMATION

As an ENERGY STAR Partner, Sony Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

ECOLOGY ENERGY EMISSIONS 99 ERGONOMICS TCO

This monitor complies with the TCO'99 guidelines.

Table of Contents

Setup 3

Adjustments 4

Troubleshooting 6

Specifications 7

Precautions....8

Appendix .... i

Preset mode timing table ..... i

TCO'99 Eco-document .... Back Cover

• Tr i n ^® is a registered trademark of Sony Corporation.
  • Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.
• Windows ^® and MS-DOS are registered trademarks of Microsoft Corporation in the United States and other countries.
• IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.
• VESA and DDC ^™ are trademarks of the Video Electronics Standard Association.
  • ENERGY STAR is a U.S. registered mark.
• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.
• Furthermore, “TM” and “®” are not mentioned in each case in this manual.

Setup

1 Connecting your monitor to your computer

Video signal cable of the monitor to HD15 of connecting

Connecting to a Macintosh or compatible computer

When connecting this monitor to a Macintosh computer, use the Macintosh adapter (not supplied) if necessary. Connect the Macintosh adapter to the computer before connecting the cable.

The pin assignment of the HD 15 video signal cable

Pin No.	Signal
1	Red
2	Green (Sync on Green)
3	Blue
4	ID (Ground)
5	DDC Ground*
6	Red Ground
7	Green Ground
8	Blue Ground

Pin No.	Signal
9	DDC HOST 5V*
10	Ground
11	ID (Ground)
12	Bi-Directional Data (SDA)*
13	H. Sync
14	V. Sync
15	Data Clock (SCL)*

* DDC (Display Data Channel) is a standard of VESA.

2 Turning on the monitor and computer

1 Connect the power cord to the monitor and press the ⏻ (power) switch to turn on the monitor.

2 Turn on the computer.

No need for specific drivers

This monitor complies with the "DDC" Plug & Play standard and automatically detects all the monitor's information. No specific driver needs to be installed to the computer. The first time you turn on your PC after connecting the monitor, the setup Wizard may appear on the screen. In this case, follow the on-screen instructions. The Plug & Play monitor is automatically selected so that you can use this monitor.

Notes

• Do not touch the pins of the video signal cable connector.
• Check the alignment of the HD15 connector to prevent bending the pins of the video signal cable connector.

Adjustments

Navigating the menu

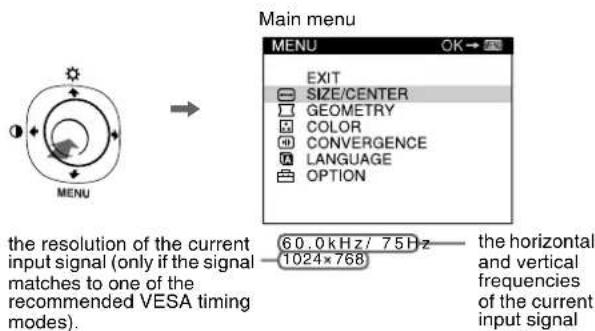

1 Press the center of the Joystick to display the main menu.

Main menu MENU EXIT SIZE/CENTER GEOMETRY COLOR CONVERGENCE LANGUAGE OPTION the resolution of the current input signal (only if the signal matches to one of the recommended VESA timing modes). 60.0 kHz/ 75Hz 1024×768 the horizontal and vertical frequencies of the current input signal

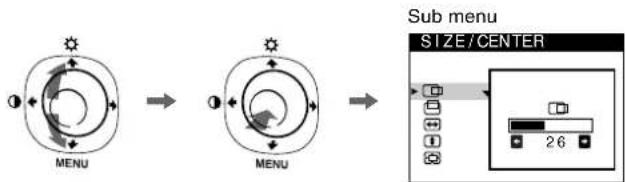

2 Move the joystick ↓/↑ to highlight the main menu you want to adjust and press the center of the Joystick.

3 Move the joystick ↓/↑ to highlight the sub menu you want to adjust. Then move the joystick ←/→ to make adjustments.

Adjusting the brightness and contrast

Brightness and contrast adjustments are made using a separate BRIGHTNESS/CONTRAST menu. These adjustments are effective for all input signals.

1 Move the joystick in any direction to display the BRIGHTNESS/CONTRAST menu.
2 Move the joystick ↓/↑ to adjust the brightness (☐), and ←/→ to adjust the contrast (☐).

Note If you set the brightness and contrast level to "0", the picture will black out and no picture will appear.

On-Screen menu adjustments

Main menu icons and adjustment items		Sub menu icons and adjustment items
	Adjusting the size or centering of the picture*1		Horizontal position
			Horizontal size
			Vertical position
			Vertical size
			Enlarge/reduce
	Adjusting the shape of the picture		Rotating the picture*2
			Expanding or contracting the picture sides*1
			Shifting the picture sides to the left or right*1
			Adjusting the picture width at the top of the screen*1
			Shifting the picture to the left or right at the top of the screen*1
	Adjusting the color of the picture*2	See “: To adjust the color of the picture”.
	Adjusting the convergence *2		Horizontally shifts red or blue shadows
			Vertically shifts red or blue shadows
	Selecting language Selecting the on-screen menu language *3
	Additional settings		DEGAUSS: demagnetizes the monitor.
			MOIRE ADJUST: Minimises moire*4
			See “To reset the adjustment”.
			Protecting adjustment data (CONTROL LOCK) *5

*1 This adjustment is effective for the current input signal.
*2 This adjustment is effective for all input signals.
*3Language Menu
• ENGLISH • NEDERLANDS: Dutch
• FRANÇAIS: French • SVENSKA: Swedish
• DEUTSCH: German • PRUSSKANI
- ESPAÑOL: Spanish • 日本語: Japanese
• ITALIANO: Italian
*4Example of Moire

*5 Only the ⏻ (power) switch, EXIT, and 📄 (CONTROL LOCK) menu will operate.

☐ : To adjust the color of the picture

The COLOR settings allow you to adjust the picture's color temperature by changing the color level of the white color field. Colors appear reddish if the temperature is low, and bluish if the temperature is high. This adjustment is useful for matching the monitor's color to a printed picture's colors.

■ Adjustment items

You can select the preset color temperature from 5000K or 9300K. The default setting is 9300K. If necessary, you can make additional fine adjustments to the color by selecting ☐

→: To reset the adjustment

The RESET option erases your customized settings. To restore your monitor to the factory settings, refer to the following steps.

■ Resetting the adjustment for current input signal

Move the joystick →.

■ Resetting the adjustment for all input signals

Hold the joystick for 2 seconds.

Note

When “reset the adjustment for all input signal” is activated, the customized language selection goes back to the default language of English.

Troubleshooting

■No picture

If the ⏻ (power) indicator is not lit

- Check that the power cord is properly connected.

- Check that the ⏻ (power) switch is in the “on” position.

The ⏻ (power) indicator is orange

• Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets.
• Check that the HD15 video input connector's pins are not bent or pushed in.
• Check that the computer's power is "on".
• The computer is in power saving mode. Try pressing any key on the computer keyboard or moving the mouse.
• Check that the graphic board is completely seated in the proper bus slot.

If the ⏻ (power) indicator is green or flashing orange

- Use the Self-diagnosis function.

■Picture flickers, bounces, oscillates, or is scrambled

• Isolate and eliminate any potential sources of electric or magnetic fields such as other monitors, laser printers, electric fans, fluorescent lighting, or televisions.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Try turning the monitor 90^ to the left or right.
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode and the frequency of the input signal are supported by this monitor (see “Preset mode timing table” on page i). Even if the frequency is within the proper range, some graphics board may have a sync pulse that is too narrow for the monitor to sync correctly.
• Adjust the computer's refresh rate (vertical frequency) to obtain the best possible picture.

■Picture is fuzzy

• This monitor has a high luminance mode, so small characters may not appear clearly if the monitor receives signals over 1280 × 1024 resolution. If this occurs, lower the contrast or set the computer to a lower resolution.
• Adjust the brightness and contrast.
• Degauss the monitor.*
• Adjust for minimum moire.

■Picture is ghosting

• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.

■Picture is not centered or sized properly

• Adjust the size or centering. Note that with some input signals and/or graphics board the periphery of the screen is not fully utilized.
• Just after turning on the power switch, the size/center may take a while to adjust properly.

■Edges of the image are curved

- Adjust the geometry.

■Wavy or elliptical pattern (moire) is visible

• Adjust for minimum moire.
• Change your desktop pattern.

■Color is not uniform

- Degauss the monitor.* If you place equipment that generates a magnetic field, such as a speaker, near the monitor, or if you change the direction the monitor faces, color may lose uniformity.

■White does not look white

- Adjust the color temperature.

■Monitor buttons do not operate (appears on the screen)

- If the control lock is set to ON, set it to OFF.

■Letters and lines show red or blue shadows at the edges

- Adjust the convergence.

■A hum is heard right after the power is turned on

• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is automatically degaussed for five seconds.
  * If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a malfunction.

On-screen messages

1 If "OUT OF SCAN RANGE" appears:

This indicates that the input signal is not supported by the monitor's specifications. Refer to the following remedies.

- Check that the video frequency range is within that specified for the monitor. If you replaced an old monitor with this monitor, reconnect the old monitor and adjust the frequency range to the following.

Horizontal: 30 - 80 kHz

Vertical: 48 – 170 Hz

1 If "NO INPUT SIGNAL" appears:

This indicates that no input signal is present. Refer to the following remedies.

• Check that the video signal cable is properly connected and all plugs are firmly seated in their sockets.
• Check that the HD15 video input connector's pins are not bent or pushed in.
• Check that the computer's power is "on."
• Check that the graphic board is completely seated in the proper bus slot.

① If "MONITOR IS IN POWER SAVE MODE" appears:

This indicates that the computer is in power saving mode. This message is displayed only when your computer is in a power saving mode and you press any one of the buttons on the monitor. Refer to the following remedies.

• Try pressing any key on the computer keyboard or moving the mouse.
• Check that the computer's power is "on."
• Check that the graphic board is completely seated in the proper bus slot.

To display this monitor's name, serial number, and date of manufacture.

While the monitor is receiving a video signal, press and hold the Joystick for more than five seconds to display this monitor's information box.

If thin lines appear on the screen (damper wires)

These lines do not indicate a malfunction; they are a normal effect of the Trinitron picture tube with this monitor. These are shadows from the damper wires used to stabilize the aperture grille. The aperture grille is the essential element that makes a Trinitron picture tube unique by allowing more light to reach the screen, resulting in a brighter, more detailed picture.

Self-diagnosis function

This monitor is equipped with a self-diagnosis function. If there is a problem with your monitor or computer, the screen will go blank and the ⏻ (power) indicator will either light up green or flash orange. If the ⏻ (power) indicator is lit in orange, the computer is in power saving mode. Try pressing any key on the keyboard or moving the mouse.

■If the ⏻ (power) indicator is green

1 Disconnect the video input cable or turn off the connected computer.
2 Press the ⏻ (power) button twice to turn the monitor off and then on.
3 Move the joystick for 2 seconds.

If all 4 color bars appear (white, red, green, blue), the monitor is working properly. Reconnect the video input cables. Adjust the brightness and contrast, and check the monitor. If the fault still exists, check your computer.

If the color bars do not appear, there is a potential monitor failure. Inform your authorized Sony dealer of the monitor's condition.

■If the ⏻ (power) indicator is flashing orange

Turn the monitor OFF and then ON.

If the ⏻ (power) indicator lights up green, the monitor is working properly.
If the ⏻ (power) indicator is still flashing, there is a potential monitor failure. Count the number of seconds between orange flashes of the ⏻ (power) indicator and inform your authorized Sony dealer of the monitor's condition. Be sure to note the model name and serial number of your monitor. Also note the make and model of your computer and graphics board.

Specifications

CRT 0.24 mm aperture grille pitch (center)

17 inches measured diagonally

90-degree deflection

FD Trinitron

Viewable image size

Approx. 327 × 243 mm (w/h)

(12 7/8 × 9 5/8 inches)

Viewing image Approx. 406 mm (16.0 inches)

Resolution

Maximum Horizontal: 1280 dots

Vertical: 1024 lines

Recommended Horizontal: 1024 dots

Vertical: 768 lines

Standard image area

Approx. 312 × 234 mm (w/h)

(12 3/8 × 9 1/4 inches)

Deflection frequency

Horizontal: 30 to 80 kHz

Vertical: 48 to 170 Hz

AC input voltage/current

220 to 240 V, 50-60 Hz, Max. 0.7 A

Power consumption Approx.100 W

Operating temperature

10 °C to 40 °C

Approx. 418 × 416 × 426 ~mm(w/h/d)(16^1/2 × 16^1/2 ×

16 ^7 /8 inches)

Mass Approx. 19 kg (41.9 lb)

Plug and Play DDC2B/DDC2Bi

GTF

Supplied accessories

Power cord (1)

Warranty card (1)

Notes on cleaning the screen's surface (1)

This instruction manual

Preset and user modes

When the monitor receives an input signal, it automatically matches the signal to one of the factory preset modes stored in the monitor's memory to provide a high quality picture (see "Preset mode timing table" on page i). For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor's frequency range (horizontal: 30 – 80 kHz, vertical: 48 – 170 Hz). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received.

Power saving function

This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If no signal is received by the monitor from your computer, the monitor will automatically reduce power consumption as shown below.

Power mode Power consumption ⏻ (power) indicator
normal operation	≤ 100 W green
active off*	≤ 3 W orange
power off	0 W (Approx.)	off

* When your computer is in active off mode, MONITOR IS IN POWER SAVE MODE appears on the screen if you press any button on the monitor. After a few seconds, the monitor enters the power saving mode again.

Design and specifications are subject to change without notice.

Precautions

Warning on power connections

- Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the UK

If you use the monitor in the UK, be sure to use the supplied UK power cable.

Example of plug types

for 200 to 240 V AC

for 240 V AC only

• Before disconnecting the power cord, wait at least 30 seconds after turning off the power to allow the static electricity on the screen's surface to discharge.
• After the power is turned on, the screen is demagnetized (degaussed) for about 5 seconds. This generates a strong magnetic field around the screen which may affect data stored on magnetic tapes and disks placed near the monitor. Be sure to keep magnetic recording equipment, tapes, and disks away from the monitor.

The equipment should be installed near an easily accessible outlet.

Installation

Do not install the monitor in the following places:

• on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place subject to direct sunlight
• in a place subject to severe temperature changes
  • in a place subject to mechanical vibration or shock
  • on an unstable surface
• near equipment which generates magnetism, such as a transformer or high voltage power lines
• near or on an electrically charged metal surface
  • inside an enclosed rack

Maintenance

• Clean the screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the screen's coating.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzine.

Transportation

When you transport this monitor for repair or shipment, use the original carton and packing materials.

Notes on Display Stand

• Do not carry this monitor by the stand.
• Be careful not to pinch your fingers at the monitor's stand.
• Do not remove this monitor's stand.
• Install this monitor in a place that has enough space to safely support the monitor's front and rear stand bars.

Use of the tilt-swivel

This monitor can be adjusted within the angle shown right. To turn the monitor vertically, hold it at the bottom with both hands. Be careful not to pinch your fingers at the back of the monitor when you tilt the monitor up vertically.

15°

Table des Matières

Configuration.... 3

Réglages.... 4

Dépannage 6

Spécifications 7

Précautions 8

Appendix ...... i

Preset mode timing table .... i

TCO'99 Eco-document. . . . . . . . . . . . . . . . . . . . . . . . . Couverture dos

MANUFACTURED: 2001-52

Plug and Play DDC2B/DDC2Bi

GTF

Accessoires fournis Cordon d'alimentation (1)

Plug and Play DDC2B/DDC2Bi

GTF

Horizontal: 30 a 80 kHz

Vertical: 48 a 170 Hz

Plug and Play DDC2B/DDC2Bi

GTF

MANUFACTURED: 2001-52

Circa ×4108×426 mm (l/a/p)

Circa 19 kg

Plug and Play DDC2B/DDC2Bi

GTF

Plug and Play DDC2B/DDC2Bi

GTF

Diagram showing a USB connector connected to an VGA terminal, with no text or symbols present.

Bildskärmens videokabel
till HD15 på datorn

Ansluta till en Macintosh eller kompatibel dator

1 Om "EJ I FREKVENSOMFÅNG" visas:

MANUFACTURED: 2001 - 52

Plug and Play DDC2B/DDC2Bi

GTF

Medföljande tillbeh

Nätkabel (1)

Garantisedel (1)

De ⏻ (aan/uit) indicator is oranje

Plug and Play DDC2B/DDC2Bi

GTF

If the input signal does not match one of the factory preset modes above, the Generalized Timing Formula feature of this monitor will automatically provide an optimal image for the screen as long as the signal is GTF compliant.

TCO'99 Eco-document

ECOLOGY ENERGY EMISSIONS TCO 99 ERGONOMICS

■Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

■Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

■What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

■Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
