USER MANUAL AXX204 Axxion

You should have the following items in the packaging:

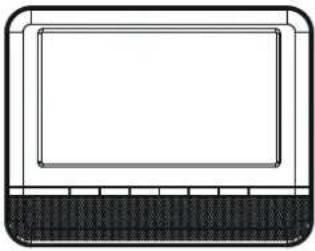

Main Portable DVD player / Screen Unit 1PC

Remote Control (with 1 CR2025 battery) 1PC

Instruction Manual 1PC NOTE: THE AXX-204 COMES WITHOUT AN AC ADAPTOR! Please retain all packaging materials for when the product needs transportation.GB-2 OVERVIEW OF THE DVD PLAYER:

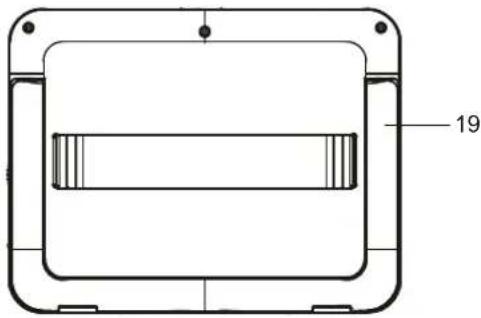

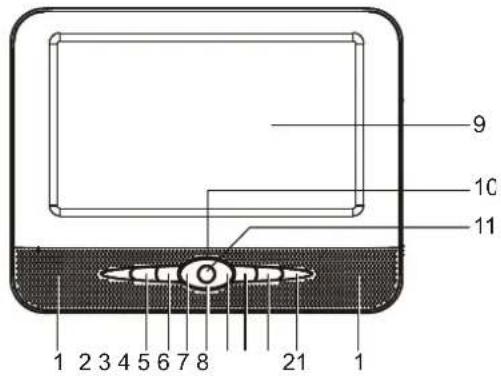

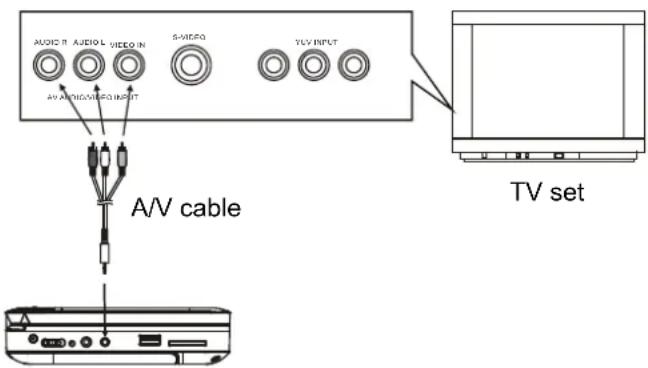

BASIC CONNECTION It is recommended to connect a multi-system TV. Ensure that this player and other equipment to be connected are set to OFF mode and disconnect the AC power cords before commencing connection. Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely. Read through the instructions before connecting other equipment. Ensure that you observe the color coding when connecting audio, video cables. Note: During DVD play, the TV volume may be at a lower level than during TV broadcasts, etc. If this is the case, adjust the volume to the desired level. If the DVD/CD player is connected to the TV through a video cassette recorder, the picture may not be played back normally with some DVDs. If this is the case, do not connect the player via the VCR. The mother unit of the DVD player is designed to be used both for indoor and in-car, the slave is only for in-car usage. Connecting to a stereo TV set AUDIO RAV AUDIO/VIDEO INPUTAUDIO LVIDEO INS-VIDEOYUV INPUT After connection is firmed and securely done, plug AC adapter (not included) to an applicable wall outlet and turn on the player. Connecting to an affiliated screen

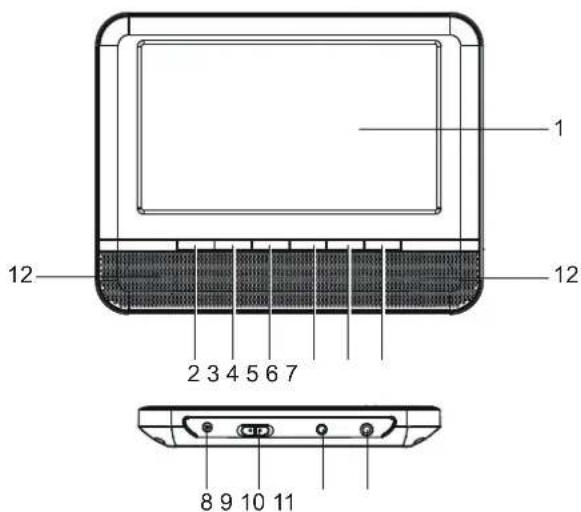

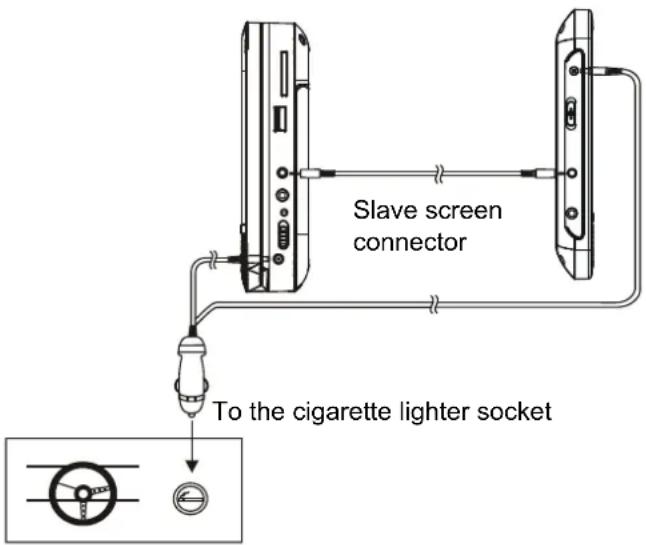

This unit is equipped with another affiliated screen, you can use the affiliated screen and player to appreciate the programme at the same time, the connecting method is illustrated as below using the in car adapter.

The player is with a rechargeable lithium battery. Before using the battery, please make sure it is charged. If not, charge it first. Slide the power switch to OFF position and then connect one end of the AC adapter (not included) to the wall outlet and the other end to the unit for charging the built-in battery. Note:

1. The battery only could be charged at powering off

2. If the unit is not in use for a prolonged period of time,

it is recommendable to charge the built-in battery each three months.

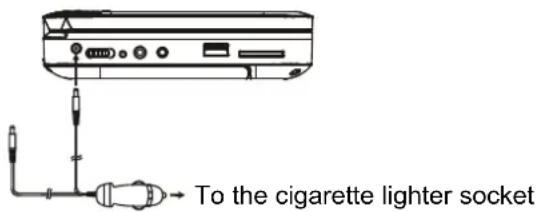

CONNECTING TO A CAR ADAPTOR

The car power adaptor is designed for use with vehicles that have a 12V, negative ground electrical system.

Disconnect the car power adaptor when not in use. Not in use in 24V vehicles. CAUTIONS: Use the unit only with the recommended car power adaptor, use with other car power adaptor might damage the unit. The recommended car power adaptor is for use with this unit only. Do not use it with other equipment. In the interests of road traffic safety, do not operate the unit or view video software while driving a vehicle. Make sure the unit is fastened securely to prevent from moving outside of the vehicle in an accident. When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug section may become hot due to poor contact. Be sure to clean the cigarette lighter socket before use. After use, disconnect the car power adaptor from both the unit and cigarette lighter socket. FUSE REPLACEMENT FUSE

POSITIVE (+) CAP NOTE: Don't throw out the positive (+) cap when replace the fuse. OPERATIONS PREPARATION Power on the TV set and select video input mode. Power on the audio system which is connected to the player. GET STARTED

1. Slide POWER switch to turn on the player.

2. Open the disc tray by hand.

3. Place a disc onto the disc tray.

4. Close the disc tray by hand and the playback starts

5. When a menu screen appears on the TV, press the

navigation buttons or press the numeric buttons to select a preferred track number, then press OK/ENTER button to start playback. Note: If not any operation in about FOUR hours during playback, the unit will be switched off. Before switching off the unit, alert information shows on the screen for warning. Press any button to continue operating while the alert information is showing. If the unit is powered off automatically, it is necessary to slide the POWER SWITCH to OFF position first, and then slide the POWER SWITCH to ON position to power on the unit again.

Press the VOLUME+/- button on the remote or press and hold the VOLUME+/- button on the unit to increase or reduce the volume. MUTE While the power is on, the audio output of the main unit is to be shut off by pressing the button. Press it again to resume sound output.

Press PREVIOUS button during play to skip previous chapter (DVD) or a track (CD), Press NEXT button during play to skip next chapter (DVD) or a track (CD).

COLOR AND BRIGHTNESS ADJUSTMENT (FOR

THE LCD SCREEN) Press TFT SET button on the remote repeatedly to adjust the color intensity and brightness respectively via navigation left/right button. Press and hold this button for a moment to turn on or off the TFT display.

RAPID ADVANCE/REVERSE

During playback, press and hold FF button or FB button on the unit or press F.FWD or F.BWD button on the remote respectively to scan the disc forward or backward at X2, X4, X8, X20 normal speed. Press PLAY button to resume normal play.

Press PAUSE/STEP button during playback to pause. During pause mode, each time the PAUSE/STEP button is pressed, the player will only play one frame; to resume normal play, press PLAY button.

Press STOP button during playback to stop playback; the player activates its resume function when STOP is pressed in STOP mode; press PLAY button again, playback resumes at the point it stopped previously; open the disc tray or press the STOP button one more time to clear the resume function. SLOW-MOTION PLAY (DVD) Press SLOW button during playback, the disc will be played at 1/2 normal speed at first, each time this button is pressed, the play speed becomes slower To the cigarette lighter socketGB-5 (down to 1/7 normal speed.) Press PLAY button, normal play will resume. REPEAT Press REPEAT 1/ALL&A-B button during play, it will repeat play one chapter/title or repeat all (for DVD disc), or repeat play a track or all tracks (for CD), or repeat the sections between two specific points (A-B).

SEARCH FOR PREFERRED SCENE

1. Press SEARCH button during play and highlight the

item to be played (Title, Chapter, or Chapter time) by navigation buttons.

3. Press OK/ENTER button to confirm and the playback

from the located scene starts.

1. Press PROGRAM during playback to display the

2. Select location(s) to be memorized via navigation

buttons and then enter desired Titles/Chapters numbers via numeric buttons. Example: Track 3, press "3" Track 12, press "+10" and then "2" Track 21, press "+10" twice and then "1"

3. To start programmed playback, select PLAY on the

menu; pressing PROGRAM button again to exit programming.

4. To clear a programmed item, enter program menu

and scroll to the item you want to clear, press CLEAR button on the remote to clear the selected item. To clear all items, select the <CLEAR> on the menu, and then press OK button to confirm.

5. You can also cancel program mode by clearing all

the items in the program menu. ZOOM PLAY Press ZOOM button continuously to zoom in the picture by 2, 3, and 4 times, zoom out by 1/2, 1/3, 1/4 normal size. Press this button once more when the picture is at 1/4 size to return to the normal size display. Scroll to view the enlarged picture using Navigation buttons.

ON SCREEN DISPLAY INFORMATION

When the player is in operation, press DISPLAY button continuously, the screen will display parts of information (current disc type, title number, chapter number, playtime, audio language, audio type, subtitle language and multi angle, etc) in a sequence.

CHANGING AUDIO SOUNDTRACK LANGUAGE

(DVD DISC) It is possible to change the audio soundtrack language to a different language from the one selected at the initial settings (This operation works only with discs on which multiple audio soundtrack languages are recorded). Press AUDIO button during DVD disc play, the sound track will be changed with a selected sound track showing on the screen. NOTE: When no soundtrack languages are recorded, pressing this button will not work. MULTI-ANGLE VIEWING (DVD ONLY) Press ANGLE button to select your desired angle to view the scene. Note: only the DVDs shot with multi-angle scenes have this function. CHANGING SUBTITLE LANGUAGE (DVD ONLY) Press SUBTITLE button several times during DVD playback, the subtitle language will be changed with the selected subtitle language showing on the screen; When the desired language appears, release the button to view the subtitle in that language. Note: this function only works on the DVDs recorded with multi-language subtitles. RETURN TO MAIN MENU AND PLAY THE TITLE (DVD) During playback, press MENU button to return to main menu and press TITLE button to play the title.

1. Load the MP3/MPEG 4 disc onto the disc tray. A

media menu shows on the screen, select a corresponding media type (music, picture, video) to play the disc with navigation left/right button and press OK/ENTER Button to confirm. Then the TV screen will show folders of the selected format on the disc.

2. Select the folder you want by the navigation buttons

and then press OK/ENTER button to confirm.

3. The files in this folder are displayed and select your

favourable track via navigation buttons and press ok button to start playback.

4. Press NEXT and PREVIOUS button to select track

Load a Kodak picture CD/JPEG CD disc onto the disc tray, then select the picture option on the media menu to play the disc with navigation left/right button and press OK/ENTER Button to confirm. Slide show of Kodak Picture CD begins automatically; Folders of JPEG picture CD are displayed on the TV screen; use the navigation buttons on the remote to select the desired folder and then press OK/ENTER button to confirm. The files in this folder are displayed and you can select your favourable pictures using the up/down navigation buttons on the remote and press OK/ENTER button to start playback. Preview of the picture and the corresponding information of the picture( resolution, size, date) will be displayed while you scroll across the file names.

Press REPEAT 1/ALL&A-B button to change play mode. During playback, press STOP to enter preview mode.

2. SKIP TO NEXT/PREVIOUS PICTURE

Press NEXT button to skip to the next picture or PREVIOUS button to the previous picture.GB-6

3. PICTURE ROTATIONS

Press RIGHT and LEFT navigation buttons to rotate the picture Clockwise and anti-clockwise respectively.

4. PICTURE FLIP AND TURN

Press UP navigation button to flip the picture up or down. Press DOWN navigation button to flip the picture left or right.

5. PICTURE ZOOM IN/OUT

Press ZOOM button continuously, the picture zooms in by 2, 3, 4 times or zooms out by 1/2, 1/3, 1/4 the original size. Press this button once more when the picture getting 1/4 size to return to the normal play. If the picture is enlarged, you may use the navigation buttons to view blocked parts of the picture.

6. SLIDE SHOW TRANSITION MODES

During slide show playback, press the PROGRAM button cyclically to select one slide show transition effect to play picture.

EXTERNAL MEMORY MEDIA OPERATION

(USB&SD/MMC CARD) Prepare the player for External Memory media operation

1. Slide the POWER switch to ON position, Insert a

USB data traveller filled with media files into the USB port or plug the SD/MMC card into the card slot, the USB or the SD/MMC card is successfully detected and read. A media menu shows on the screen, select a corresponding media type via navigation right/left button for play the inserted card or USB and press OK/ENTER Button to confirm. Folders show on the screen and use navigation buttons to select your desired folder and track to play.

2. Press NEXT or PREVIOUS button to skip forward or

backward. Note: Press and hold STOP button to call out the source menu and make selection among USB, card and disc via navigation RIGHT/LEFT button, press OK/ENTER button to enter the selected mode. CAUTION: To avoid electronic static discharge, don't touch the USB port and card slot during playback. INITIAL SETTINGS Initial settings page is for you to make your preferred settings up for your player. Once the initial settings are done they are retained in the CPU of the player until otherwise modified.

want to modify, setting page with further setting items displayed shows on the TV screen. Again use navigation buttons to make changes. Press OK/ENTER button to confirm modifications.

3. Use navigation buttons to switch to another setting

hold OK/SETUP button on the unit to exit main setting page.

1.1 TV SYSTEM - it is used to select the TV mode.

Please select this option as per your TV set.

1.2 SCREEN SAVER - when the player is not in used

for several minutes, a running DVD logo will move across the TV screen to protect the TV screen. Options: On: Screen saver is enabled Off: Screen saver is disabled

1.3 TV TYPE - it is used to select the TV scan mode,

please set as per your TV set. Options: 4:3PS : Normal Pan & scan mode 4:3LB : normal Letter box mode 16:9 : 16:9 wide screen mode

1.4 PASSWORD - input password to unlock the system.

The steps are as follows:

1.4.2 Input user's password "0000" to unlock it, in this

case, select the input box again to change the password by inputting another new four numeric numbers and then press ENTER/OK button to confirm. When the password is changed, you are needed to input the new one to unlock the system.

1.4.3 Once you forget your own password, use the

supervisor's password "8200" to unlock it. NOTE: If wrong password was input in unlock status, the system will lock.

1.5 RATING - Set the rating of this player. If you want to

change the rating of parental lock, please input the password to unlock first. Options: 1 KID SAFE / 2 G / 3 PG / 4 PG 13 / 5 PG-R /

6R / 7 NC-17 / 8 ADULT

1.6 DEFAULT - Reset to factory settings.

2.1 OSD LANGUAGE - It is used to select different On

Screen Display language for different user.

2.2 AUDIO LANG - select preferred audio language.

(DVD only, need disc software support)

2.3 SUBTITLE LANG - Select preferred subtitle

language. (DVD only, need disc software support)

2.4 MENU LANG - Select preferred disc menu

language. (DVD only, need disc software support)

3.1 BRIGHTNESS - to set the brightness for the

3.3 HUE - to set the colour impression for display.

Options: -6/-4/-2/0/+2/+4/+6

3.4 S AT URATION - to set the saturation level for

Options: LT/RT - Left/Right mix mode STEREO - Select this option if you don't have a 5.1 channels amplifier.GB-7

DISC HANDLING PRECAUTIONS

Hold the disc by the edge so the surface will not be soiled with finger prints. Finger prints, dirt and scratches can cause skipping and distortion. Do not write on the label side with a ball-point pen or other writing utensils. Do not apply benzine, thinner, and liquid that prevents against static electricity. Be careful not to drop or bend the disc. Install only one disc on the disc tray. Do not try to close the disc tray when the disc is not installed properly. Be sure to store the disc in its case when not in use. TROUBLESHOOTING If your DVD player does not seem to be functioning properly, check the items below before you contact an authorized service center. Symptom Check Power does not turn on or suddenly turns off.

Make sure the adapter is securely plugged in. Turn the power off and then back on. Battery pack is in place but the power does not turn on or suddenly turns off.

Check that the battery pack is charged. If not, recharge it. Remote control won't work

Check that the battery is inserted in the "+" and "-" direction properly. The battery may be flat. Replace it with a new one. Check that the signal transmission is directed at the remote control sensor on the DVD player.

Remove the obstacle between the remote controller and remote control sensor. No picture or sound Check that the A/V cables are securely connected. Check that the disc is a DVD, DVD-RW or AUDIO CD. Do not use a disc that has scratches or dirt. Check that the label-side of the disc is facing up. The pick-up lens of the DVD player may be dirty. Contact the service center for lens cleaning.

Check that the TV channel is set to VIDEO or AV if viewing with a TV. No picture

Check that the LCD display is turned on. No sound

Check the volume setting. If set to zero, turn up volume level. Check that the headphones are plugged into the PHONES socket. Speakers cannot be used with the headphones. No picture and sound

Check that the battery is properly installed and the adapter is properly connected. Distorted video or sound

Use a disc without scratches or dents.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. When the AC/DC adapter is used as the disconnect device, the disconnect device shall remain readily operable. To be completely disconnected the power input, the AC/DC adapter shall be disconnected from the mains completely. No naked flame sources, such as lighted candles, should be placed on the apparatus. Minimum distances 2.0cm around the apparatus for sufficient ventilation. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. The use of apparatus is in tropical and/or moderate climates. Attention should be drawn to the environmental aspects of battery disposal. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. Excessive sound pressure from earphones and headphones can cause hearing loss. The marking plate is located at the back of the apparatus.GB-8 SPECIFICATIONS Power source: AC adaptor 9V (not included) Car adaptor 12V Power consumption: 9.5W (Main unit) 16.5W (Main unit & Slave screen) TV systems supported: PAL/NTSC/AUTO Operating Temperature Range: +5°C to +35°C Continuous playing time: 120 minutes Dimensions: 200.4(L) x 156.2(W) x 39(H) mm (main unit) 200(L) x 156(W) x 21(H) mm (Slave screen) Operating Humidity Range: 10 % to 75 % Battery of Remote Control: CR2025, 3V Discs supported:

12 cm single-sided, single-layer 12 cm single-sided, dual-layer 12 cm double-sided, single-layer 8 cm single-sided, single-layer 8 cm single-sided, dual-layer 8 cm double-sided, single-layer

(1) Frequency response: 20Hz - 20KHz (2) S/N ratio: > 45dB (3) Dynamic range: 90dB Specifications are subject to change without notice.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)GB-9 INSTALLATION OF THE PORTABLE DVD PLAYER IN A VEHICLE There is a strap with plastic buckles contained in the package.

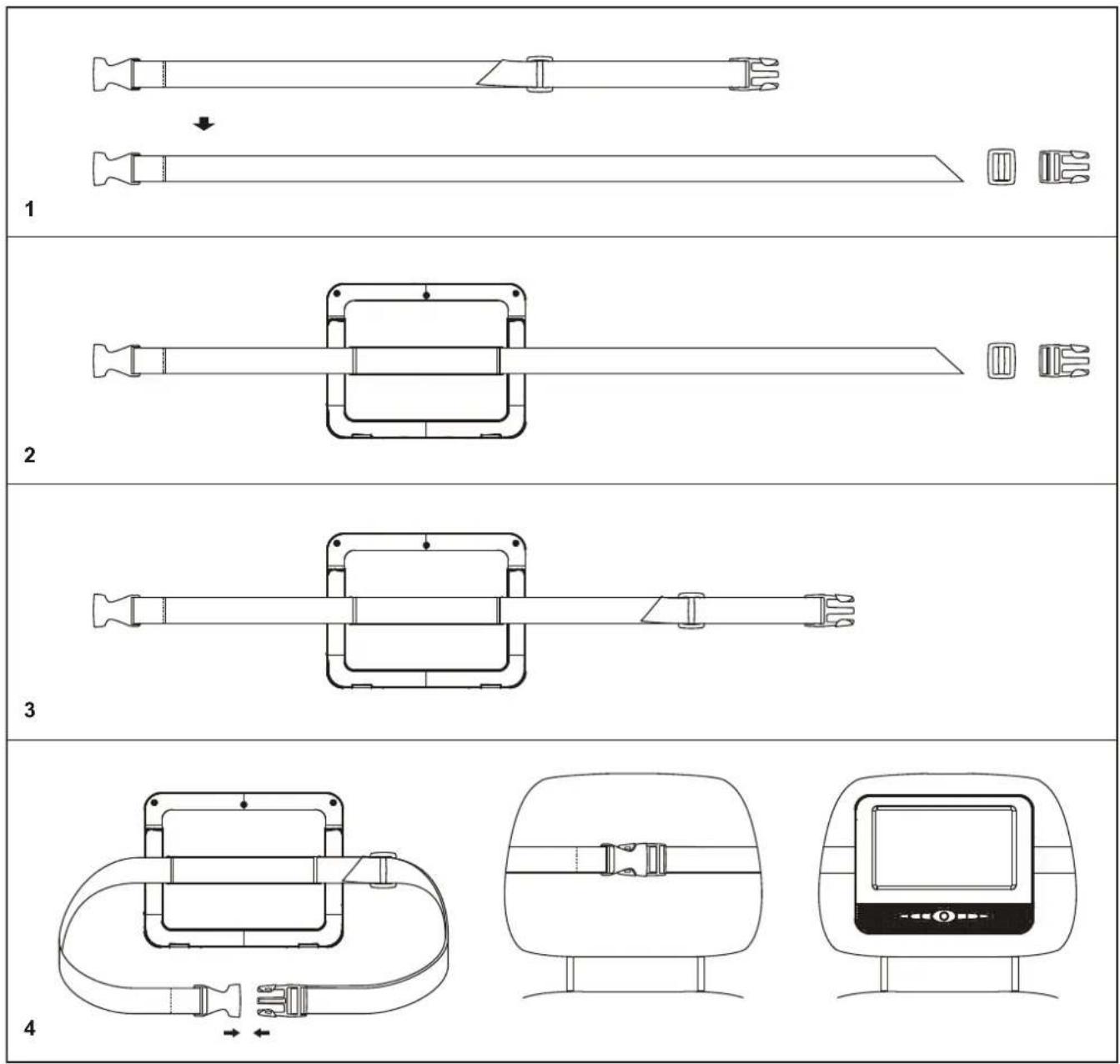

1. Remove the latch and the buckle off the strap as the diagram.

2. Reverse the unit and pass the strap through the metal bars.

3. Put the strap through the latch and the buckle. And then pass the strap through the latch again, pull the strap at

two opposite directions.

4. Buckle the two ends of the strap and adjust the length to fix the unit on the headrest.
