USER MANUAL AXX1403 Axxion

PORTABLE DVD

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

Important Safety Instructions

1. Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
2. Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
3. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
4. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.
5. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.
6. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
7. Never place heavy or sharp objects on the LCD panel or frame.
8. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.
9. The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.

10. Unplug the power from the outlet when the unit is not in use.
    11.WARNNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

11. WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

1. Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

2. Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

3. Warning: Never stare directly into the laser beam.

4. Caution: Do not install this product in a confined space such as a book case or similar unit.

5. Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book.

6. Warning: more than 250mm USB extension cord is prohibited to use for USB port

Notes on Copyrights:

1. It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

2. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

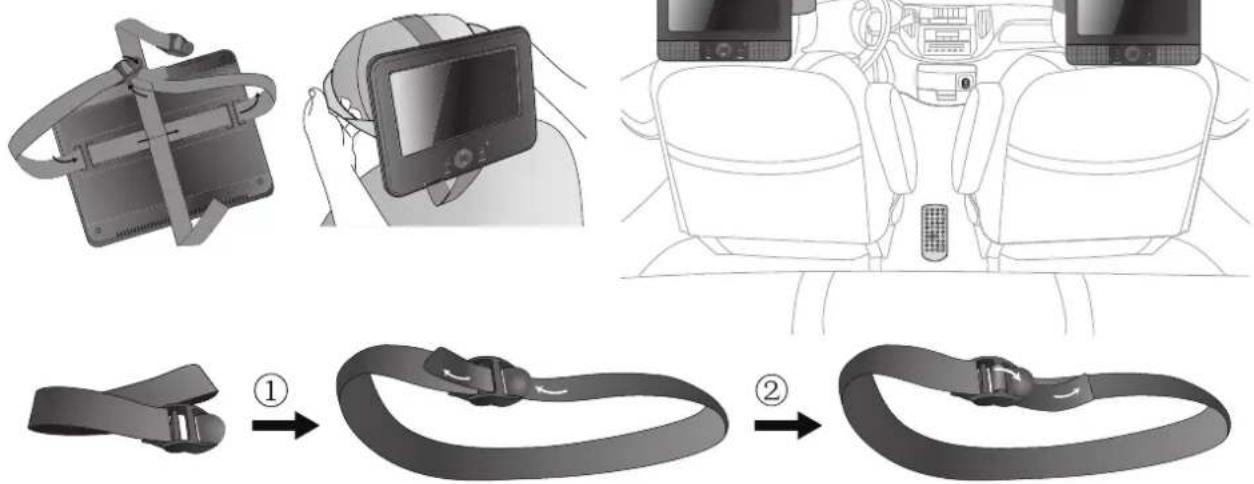

Mounting in the Vehicle

Use the supplied car mounting straps to install the main unit and monitor on the back of the vehicle's headrests. Tightly wrap the mounting strap around the headrest.

Diagram illustrating the step-by-step installation of a car seatbelt buckle, showing how to change from a device to a seatbelt.

Dear Customer:

Thank you for purchasing this Portable DVD player.

When opening the box for the first time, please check whether all the accessories are present. Before connecting parts and power, please carefully read the user manual and always keep

theseinstructions close by your Portable DVD player.

Box content:

1 x main unit

1 x slave unit

1 x Remote control including battery

1 x AC adapter

1x Car Adaptor

Straps

Note: if some parts are missing please contact your dealer as soon as possible.

Identification of Controls

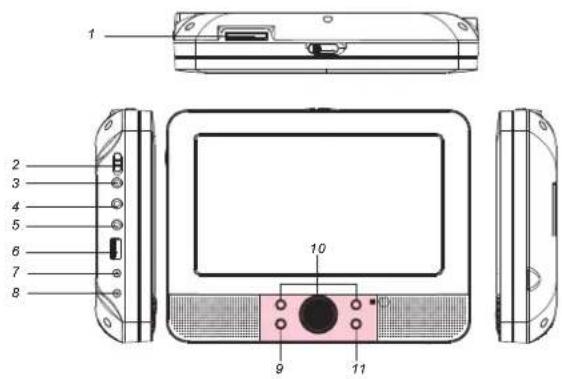

Main Unit

MASTER TFT SCREEN

1 2 3 4 5 6 7 8 9 10 11

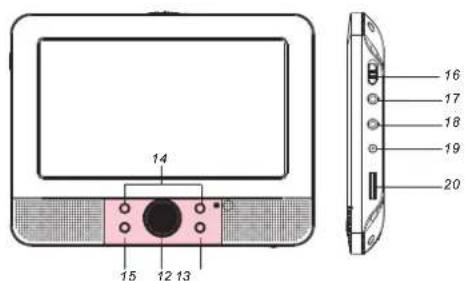

SLAVER TFT SCREEN

14 15 12 13 16 17 18 19 20

1.SD/MS/MMC
2. POWER ON/OFF
3. HEADPHONE OUT JACKS
4. VIDEO/AUDIO OUT
5. DIGITAL AUDIO OUT (COAXIAL)
6.USB
7. DC OUT
8. DC IN 9-12V
9. ENTER
10. UP/DOWN/LEFT/RIGHT
11. SOURCE
12. UP/DOWN
13. MODE
Slaver TFT menu setting.
14. LEFT/RIGHT
15.BACK LIGHT
Slaver TFT backlight switch.
16. POWER ON/OFF
17. AV IN
18. HEADPHONE OUT JACKS
19. DC IN
20. Volume Rotary

Identification of Controls

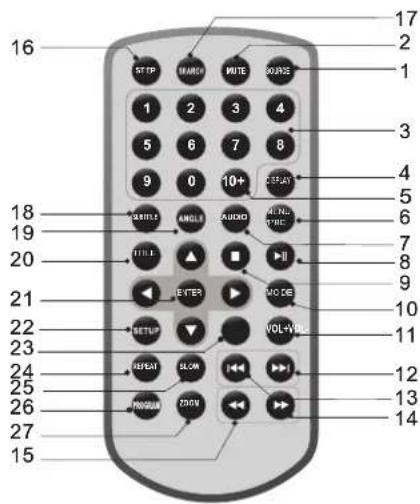

Remote control unit

16 17 2 1 1 2 3 4 5 6 7 8 9 0 10+ 18 19 20 21 22 23 24 25 26 27 15 START MANGO MUTE ROUTE STARTER AUDIO VOL+VOL INPUT SLON RPGUN ZOOM

1. SOURCE

DVD/CARD/USB.

2. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.DISPLAY

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

6. MENU/PBC

Return to DVD root menu(DVD).

PBC on/off switch (VCD).

7.AUDIO

DVD:Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available. MP3/CD/VCD:Press AUDIO repeatedly during playback to hear a different audio channel (Left, Right, Mix, Stereo).

8.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

9.STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if PLAY( ) is pressed after wards. But if STOP button is pressed again instead of PLAY( ) button, there will be no resume function.

10.MODE

Set LCD parameter(adjust bightness, contrast, and saturation).

11.VOL+

12. Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

14. ▶▶ BUTTON

Press ▶▶ BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.

Identification of Controls

Remote control unit

15. ◀ BUTTON

Press ◀◀ BUTTON allow skipping back at 5-level speed(X2->X4->X8->X16->X32 PLAY), press PLAY button return to normal playback.->

16.STEP

Step the motion in DVD mode.

17.SEARCH

Goto time point, title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

19.ANGLE

DVD:Press ANGLE will change the view angle, on DVDs that support this feature.

20.TITLE

Return to DVD title menu

21. ENTER

Confirms menu selection.

22.SETUP

Accesses or removes setup menu.

23.VOL-

Adjust volume

24.REPEAT

Press REPEAT during playback to select a desired repeat mode. DVD: you can play select repeat chapter/title/off.

VCD: you can select repeat single/all/off. CD/MP3: you can select repeat single/folder/off.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD/VCD:The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu.

27.ZOOM

DVD/VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the following sequence:

2X size → 3X size → 4X size → 1/2 size → 1/3 size → 1/4size→normal size

JPEG: Use ZOOM to enlarge or shrink the picture. 1. Press 'ZOOM'.

2,Used "▶" to enlarge,or "◀" to shorten the picture. Use the ▲▼◀▶ button to move through the zoomed picture.

Setup Menu Setting

General Setup Page

Press SETUP button to get the setup menu. Use direction buttons

▲▼◀▶ to select the preferred item. After finishing settings, press

SETUP again to normal display.

The following menu items can be changed:

GENERAL: selects the GENERAL PAGE menu.

AUDIO: selects the AUDIO PAGE menu.

VIDEO: selects the VIDEO PAGE menu.

PREFERENCE : selects the PREFERENCE PAGE menu.

PASSWORD: selects the PASSWORD PAGE menu.

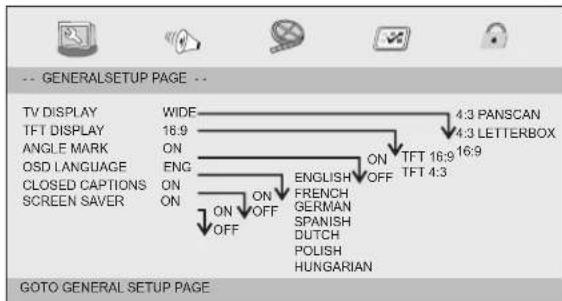

General Setup Page

-- GENERALSETUP PAGE -- TV DISPLAY WIDE 4:3 PANSCAN TFT DISPLAY 16:9 4:3 LETTERBOX ANGLE MARK ON ENGLISH ON TFT 16:9 16:9 QSD LANGUAGE ENG ON ENGLISH OFF TFT 4:3 CLOSED CAPTIONS ON FRENCH GERMAN SPANISH DUTCH POLISH HUNGARIAN SCREEN SAVER ON OFF ON OFF GOTO GENERAL SETUP PAGE

TV DISPLAY: selects the aspect ratio of the playback picture.

4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9:wide screen display.

TFT DISPLAY: Selects the TFT display to 16:9 or 4:3.

Angle Mark

Displays current angle setting information on the right hand corner of the TFT screen if available on the disc.

OSD Language

You can select your own preferred language settings.

Closed Captions

Closed captions are data that are hidden in the video signal of some discs. Before you select this function, please ensure that the disc contains closed captions information and your TV set also has this function.

Screen Saver

This function is used to turn the screen saver On or Off.

Audio Setup Page

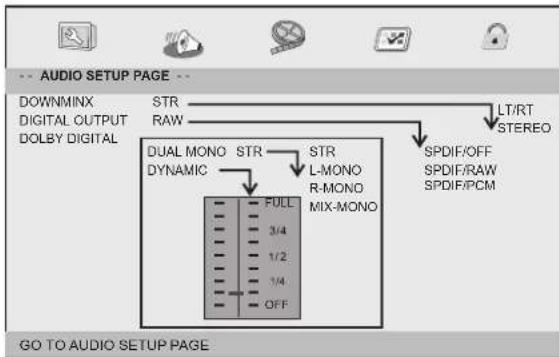

Audio Setup Page

AUDIO SETUP PAGE -- DOWNMINX DIGITAL OUTPUT DOLBY DIGITAL STR RAW DUAL MONO STR STR DYNAMIC L-MONO R-MONO MIX-MONO FULL 3/4 1/2 1/4 OFF LT/RT STEREO SPDIF/OFF SPDIF/RAW SPDIF/PCM GO TO AUDIO SETUP PAGE

Setup Menu Setting

Audio Setup Page

Downmix

This options allows you to set the stereo analog output of your DVD Player.

→ LT/RT : Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.

→ Stereo : Select this option when output delivers sound from only the two front speakers.

Digital Output

The function is used to select the SPDIF Output:SPDIF Off,SPDIF /RAW,SPDIF/PCM.

→ SPDIF Off: Turns off the SPDIF output.

→ SPDIF/RAW: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver.

→ SPDIF/PCM: Only if your receiver is not capable of decoding multi-channel audio.

Dolby digital

The options included in Dolby Digital Setup are: and'Dual Mono 'Dynamic'.

Dual Mono

→ Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker.
→ L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.
→ R-Mono: Right mono sound will send output signals to Left speaker and Right speaker.
→ Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers.

Dynamic

Dynamic range compression.

Video Setup Page

Video Setup Page

-- VIDEO SETUP PAGE -- BRIGHTNESS 00 CONTRAST 00 HUE 00 SATURATION 00 GOTO VIDEO SETUP PAGE

Brightness, Contrast, Hue, Saturation: setting the video quality.

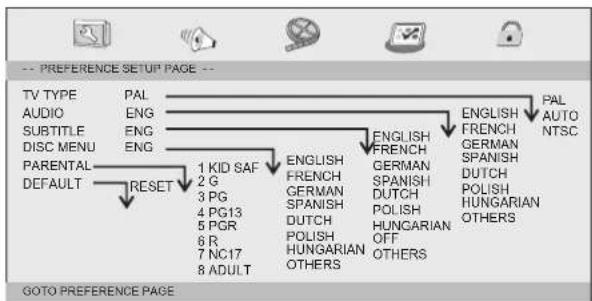

Preference Page

Preference Page

TV Type

Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

Setup Menu Setting

Preference Page

PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC-Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Auto: Chang the video signal output automatic according to the playing disk format.

Audio: Selects a language for audio (if available).

Subtitle: Selects a language for subtitle (if available).

Disc Menu: Selects a language for disc menu (if available).

Parental

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

Default: Back to the factory setting.

Password Setup Page

Password Setup Page

-- PASSWORD SETUP PAGE -- PASSWORD MODE ON PASSWORD OFF GOTO PASSWORD SETUP PAGE

Password mode: Set password mode on/off. If set to off, change parental level will not check password.

Password Setup Page

Password: select the menu password change page.

OLD PASSWORD NEW PASSWORD CONFIRM PWD OK

OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will jump automatically to NEW PASSWORD

NEW PASSWORD: Enter the NEW password. Enter 4 digits from the remote control unit numeric buttons, and the cursor will automatically jump to CONFIRM PASSWORD.

CONFIRM PASSWORD: Confirm the NEW password by entering it again. If the confirmation is incorrect, the cursor will stay in this column. After entering, the correct new password again, the cursor will jump automatically to OK.

OK: When cursor is on this button, press ENTER key to confirm setting.

Note: If the password has been changed, the parental and disc lock code will also be changed.

The default password(1369)is always active even the password has been changed.

Slaver TFT Menu Setting Picture Page

Brightness

Adjust screen Bright Setting.

Contrast

Adjust screen Contrast Setting.

Color

Adjust screen Color Setting.

LANG

Adjust Menu OSD Language

ZOOM

Adjust screen ZOOM 16:9 or 4:3

PICTURE BRIGHT 50 CONTRA ST 50 COLOR 50 LANG ENGLISH 200M 16:9

Parameters and specifications Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		:<15W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.0 Vrms (1 KHz, 0 dB)
	Audio	:Speaker:1WX2, output, Coaxial outputHeadphones

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 80 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

AXXION

BENUTZERHANDBUCH

AXX-1403

TRAGBARER DVD-PLAYER

Diagram illustrating the step-by-step installation of a black athletic belt buckle, showing front, side, and back views with labeled steps.

Diagram illustrating the step-by-step installation of a smart car seatbelt, showing component placement and assembly steps.

1. DC UITGANG

2. DC INGANG 9-12V

3. ENTER

4. OMHOOG/OMLAAG/LINKS/RECHTS

5. SOURCE

6. OMHOOG/OMLAAG

7. MODE

Slave TFT-menuinstelling.

1. LINKS/RECHTS

15.ACHTERGRONDVERLICHTING

The options included in Dolby Digital Setup are: and Dual Mono 'Dynamic'.

Dual Mono

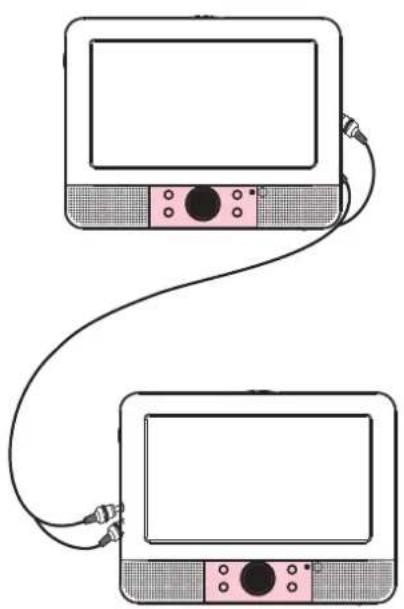

Two connected electronic devices with cables, no text or symbols visible

MANUEL DE L'UTILISATEUR AXX-1403

DVD PORTABLE

Diagram illustrating the step-by-step installation of a car seatbelt buckle, showing front, side, and back views with labeled steps.

Note: Design and specifications are subject to change prior notice.

AXXION

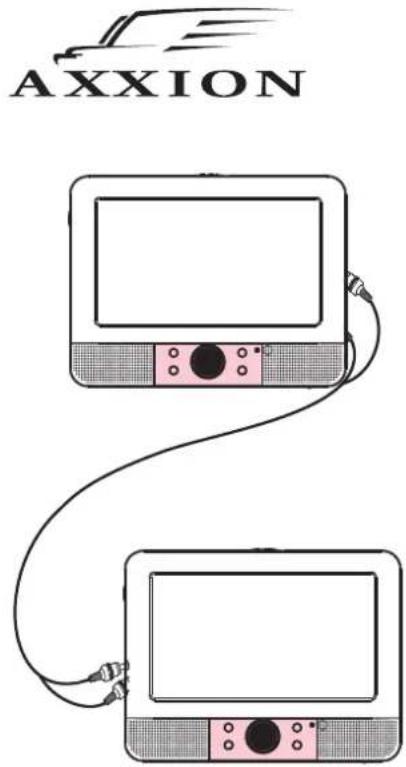

Two connected electronic devices with cables, no text or symbols visible

MANUAL DEL USUARIO

AXX-1403

REPRODUCTOR DE DVD PORTÁTIL

Antes de conectar, operar o ajustar este producto,

Diagram illustrating the step-by-step assembly of a wearable device, showing front, side, and back views with labeled steps.

Estimado cliente:
