USER MANUAL CLR2981MP ROADSTAR

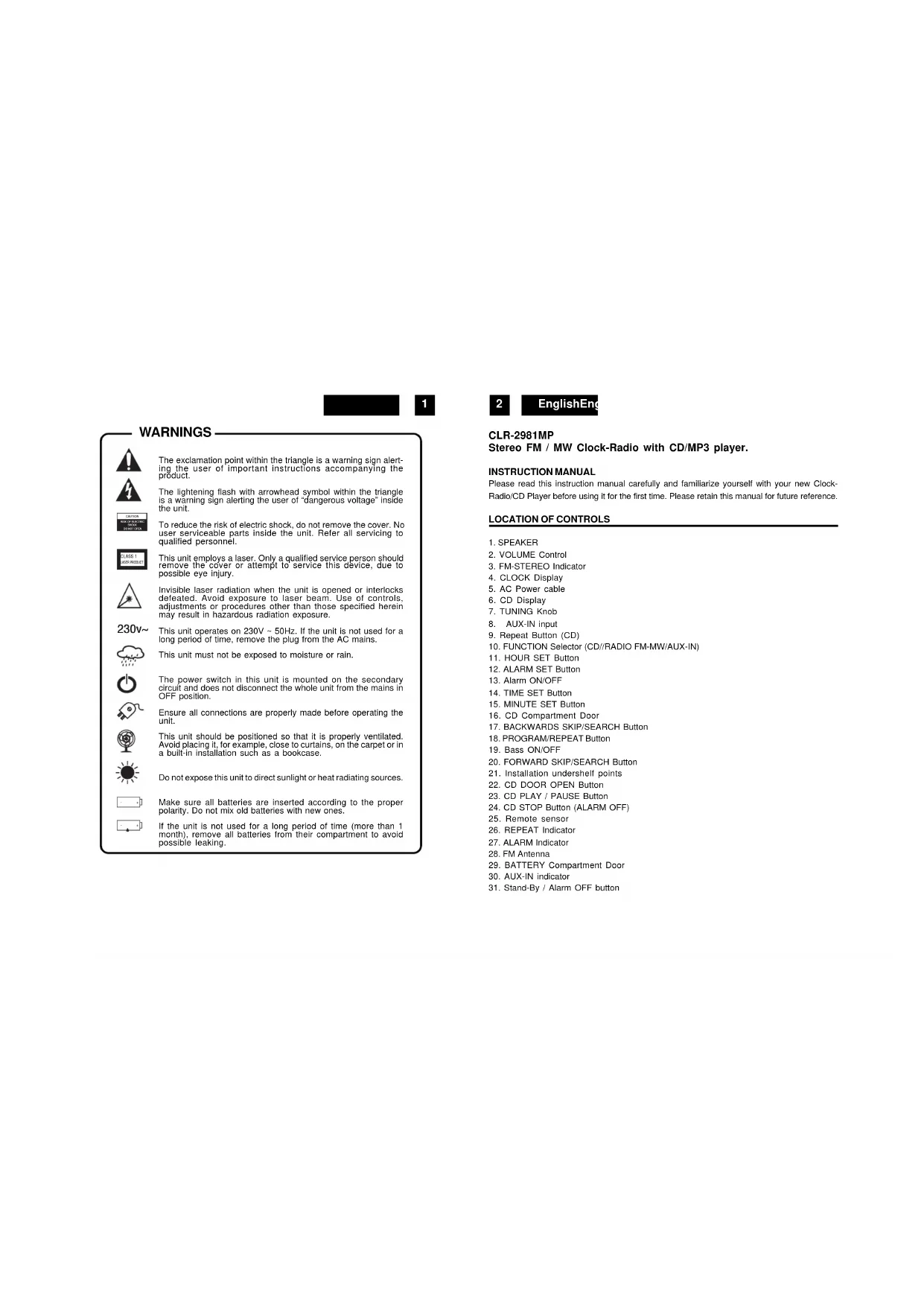

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit employs a lasor. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

Invisible laser radiation when the unit is opened or interlocks defeated. Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit operates on 230V 50Hz .If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the mains in OFF position.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Make sure all batteries are inserted according to the proper polarity. Do not mix old batteries with new ones.

If the unit is not used for a long period of time (more than 1 month), remove all batteries from their compartment to avoid possible leaking.

2

EnglishEng

CLR-2981MP

Stereo FM/MW Clock-Radio with CD/MP3 player.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Clock

Radio/CD Player before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

1. SPEAKER
2. VOLUME Control
3. FM-STEREO Indicator
4. CLOCK Display
5. AC Power cable
   6.CD Display
6. TUNING Knob
7. AUX-IN input
8. Repeat Button (CD)
9. FUNCTION Selector (CD//RADIO FM-MW/AUX-IN)
   11.HOUR SET Button
10. ALARM SET Button
11. Alarm ON/OFF
12. TIME SET Button
13. MINUTE SET Button
14. CD Compartment Door
15. BACKWARDS SKIP/SEARCH Button
    18.PROGRAM/REPEATButton
16. Bass ON/OFF
17. FORWARD SKIP/SEARCH Button
18. Installation undershelf p
    22.CDDOOROPENButton
19. CD PLAY/PAUSEButton
20. CD STOP Button (ALARM OFF)
21. Remote sensor
22. REPEAT Indicator
23. ALARM Indicator
24. FM Antenna
25. BATTERY Compartment Door
    30.AUX-IN Indicator
26. Stand-By / Alarm OFF button

POWERSUPPLY

This unit operates from a main supply of 230V 50Hz . Connect the AC power cord to the AC household main outlet. Ensure that the voltage is as indicated on the rating plate on the rear of the unit.

Battery Back-up Power Failure Protection

This radio has a battery back up circuit that will keep the correct time and alarm settings in the event of a temporary power interruption.

Install a 2 x UM4 Battery, not Included, into the battery compartment located on the back of the unit (29).

Note: We recommend an alkaline battery for longer usable life. Change the battery every 9 to 12 months for best result and avoid possible battery leakage.

If power is temporarily interrupted the display will blink and the radio will not play. However, the battery back-up circuit will continue to maintain the clock and alarm settings. When power is restored the clock will display the correct time and alarm settings, and no adjustment is necessary.

Note: If power is interrupted and there is no battery in the compartment or the battery is exhausted. The time and alarm settings will be lost. When power is restored the clock will begin to flash indicating that the time and alarm settings must be corrected.

RADIO OPERATION

1. Press the Stand-By / Alarm Off button (31)
2. Press the Function Button (10) to select the FM or MW RADIO Band.
3. Tune to the desired radio station by turning the Tuning cont
4. Adjust the Volume (2) control to the desired level.
5. To turn off the radio, Press the Function Button (10) to the OFF position.

Antenna

For FM reception there is a wire FM antenna (28) at the rear of the unit. Extend the antenna and move it around to obtain the best reception.

For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

FM Stereo and Mono Reception

The FM Stereo indicator (3) will light up when stereo signals are received.

4 EnglishEng

• To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges.

• Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light stains will have absolutely no effect on reproduction quality.
• Never use chemicals such as record sprays, antistatic sprays, benzine, or thinners to clean compact discs. These chemicals can irreparably damage the disc's surface.
• Discs should be returned to their cases after use. This avoids serious scratches that could cause the Laser pickup to skip.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended periods. Long exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ballpoint pen on the label slide of the disc.

CD OPERATION

Loading and Unloading Compact Discs

1. Press the Function Selector (10) to the CD Position.
2. Press the Door Open button (22) to open the disc compartment (16).
3. When the door has opened, remove a disc from its case and place it carefully in the compartment with the label side facing up. Locate 3" discs, on the central spindle in the compartment.
4. Close the door by pressing on the corner of the disc compartment door.

PLAY BACK

1. Load a CD into the disc compartment, and close the compartment.
2. Press the Play/Pause (23) button. The Play/Prog indicator (26) will light up and disc play

will begin from the start of the first track of the disc.
3. At the end of the disc, the unit will switch to stop mode and the play indicator will go out.

Notes: If the disc is deeply scratched, or too dirty, disc play may not start.

If an improperly centred disc is played, noise can be heard in the mechanism. The

use of such discs should be avoided.

IMPORTANT INFORMATION

This compact disc player has built-in error compensation circuits to correct for minor defects

in a disc. There are limits, however, to the amount of correction available.

In some cases the CD player may skip some tracks on a disc during disc play. This problem

may be caused by defects (such as scratches) on the disc being played, which are too large

for the error compensation circuits to handle.

TO STOP CD PLAY

1. Press the Stop Button (24). Disc play will stop, the Play indicator will go off, and the display will show the total number of tracks on the CD.
2. To temporarily stop disc play (pause mode), press the Pause Button (23). Disc play will stop at the current play position. The CD display will begin to flash.
3. To resume disc play, press the Play Button again.

Starting disc play from the beginning of a particular track

• Press the Forward or Reverse Skip Track Buttons (20/17) to select the desired track.

The number of the selected track will be shown on the CD display. Press the Play!

Pause Button (23) to start play.

To skip to the next track

1. Press the Skip Forward (20) Button once to skip to the beginning of next track.

Continuously pressing the Forward Skip Track Button until the desired trade is reached.

Once the beginning of the last track is reached the CD player will not advance any

further.

To skip back to the previous track on a disc

1. To skip back to the beginning of current track. Press the skip Backward (17) once.

2 To skip back to the beginning of previous track.

Press the skip Backward (17) Skip Track Button twice.

Continuously pressing the Reverse (17) Skip Track Button makes the CD player skip

back through the disc track by track. Once the beginning of the first track is reached, the

CD player will not go back any further.

6

EnglishEng

Manual Search

• During playback, pressing the Forward or Reverse Skip / Search buttons will cause the player to scan through the current track. At the end of a track the player will skip to the next track and continue scanning. At the beginning of a track the player will skip to the previous track and continue scanning.
• When the player reaches the end of the final track, or the beginning of the first track, it will stop scanning.

PROGRAMMED DISC PLAY

It is not possible to enter programs during disc play. Press the Stop button (24) first, then follow the Instructions below.

Press the Program button (18). The following information will be displayed on the CD Display:

P01

and the Program indicator will flash in the dispay.

Press the Forward and Reverse Skip Track buttons to select the track to be stored in location "01" (i.e. track no. 3).

003

Press the Program Button (18). The first program selection is now stored in the program memory and the following information will be displayed on the CD Display:

P02

The Program indicator will flash in the display.

Select the next track to be programmed using the Forward and Reverse Skip Track

buttons.

Press the Program button (18) to store this track.

Continue entering tracks in this way until all the desired tracks are stored (up to a limit of 21).

If you wish to add a track to the program, press the Program button (2) until the last

programmed track is displayed. Press the Program button again. Press the Forward or

Reverse Skip Track buttons until the desired track is displayed, then press the Program

Notes: If the Play/Pause button (23) is pressed before the Program button is pressed to store a track, that track will not be programmed, and the disc will start playing from the first selected track. Any track can be programmed to play more than once.

Listening to Programmed Tracks

Press the Play Pause button (23). Disc play will start at the beginning of the first programmed track.

To Clear The Program Memory

If the disc is playing, press the Stop button two times (24) to stop the disc.

REPEAT DISC PLAY

Use the Repeat button (18) to listen to one track or an entire disc repetitively.

For repeat play of one track

Press the Play/Pause button (23).

Press the Repeat button (18) once during playback. The "REPEAT" indicator (26) will light up. Select the desired track by pressing the Forward or Reverse Skip Track buttons (20/17). The selected track will be shown on the CD display.

Press the Play/Pause button (23).

The selected track will then begin playing through to its end. At which point it will automatically return to the beginning of that track. This will continue until the Stop button (24) is pressed. If the Repeat button (18) is pressed twice more, the Repeat Indicator is cancelled, Repeat play will end, and normal disc play will resume from that point.

When the selected track has finished playing, the CD play will Stop.

For repeat disc play of all the tracks on the CD

Press the Repeat button (18) twice during playback. The "REPEAT" indicator will light up.

The disc will then begin playing through to the end of the last track. At which point it will automatically return to the beginning of the first track. This will continue until the Stop button (24) is pressed.

If the Repeat button (12) is pressed once more, the repeat indicator will be cancelled, repeat play will end, and normal disc play will resume from that point.

When the last track has finished playing, the CD player will then Stop.

RANDOMPLAY

1. Press the PLAY/PAUSE button (6).
2. Press the REPEAT button (19) three times to enter the Random mode. Press PLAY/

EnglishEng

PAUSE button (23) to start playback in random order.

SETTING THE CORRECT TIME

1. Press and hold the TIME SET button (14) and then press the HOUR button (11) to advance hours.
2. Press and hold the TIME SET button (14) and then press the MINUTE button (15) to advance minutes.

SETTING THE ALARMTIME

1. Press and hold the ALARM SET button (12) and then press the HOUR button (11) to advance hours.
2. Press and hold the ALARM SET button (12) and then press the MINUTE button (15) to advance minutes.

WAKE TO THE RADIO

1. Set the alarm time as shown above.
2. Set the ALARM ON / OFF SWITCH (8) to ON position (a Bell symbol compare in the display).
3. Follow the procedure in LISTENING TO THE RADIO to tune the radio to a station.
4. Set the VOLUME Control (2) to a level you feel will wake you.

The radio will start playing at the set time.

WAKE TO CD MUSIC

1. Set the alarm time as shown above.
2. Set the ALARM ON / OFF SWITCH (8) to the ON position (a Bell symbol compare in the display).
3. Set the Function Selector (10) to CD.
4. Set the VOLUME Control (9) to a level you feel will wake you

The CD will start playing at the set time on the first track.

ALARM OFF FUNCTION

Press the Stand-By /Alarm OFF button to switch OFF the alarm.

BASS BOOST

Press the BASS BOOSR button (19) to empatize the bass frequency.

AUX-IN

Press the Function button (10) to select the AUX-IN function. The indicator (30) will light up.

AUX-IN

Follow the same procedure as described in section CD. Press the albums from the remote control (4) to select the desired folder.

IMPORTANT

Since movement of the CD mechanism and the sensitive circuitry may cause interference to a radio tuner nearby switch this unit off while operating other radio devices.

This product utilizes a laser

Danger - Invisible laser radiation when opened and interlock failed or defeated. Avoid direct exposure to the beam.

Caution - Use of controls, adjustments, or procedures not listed in this manual may result in hazardous radiation exposure.

9

10

EnglishEng

Concerning Compact Discs

Only compact discs identified with this mark can be used with

this player.

SPECIFICATIONS

Power Supply

AC:230V\~50Hz

Back-up Battery: 2 x UM4 Battery

Radio Frequency Coverage

FM:87.5-108MHz

MW:530-1640kHz

CD Player

Pick Up: 3-Beam. Semiconductor Laser

Encoding: 16-Bit Linear

Note: Specifications and the design are subject to possible modifications without notice due to improvement.
