Product type	Radio alarm clock
Brand	Roadstar
Model	CLR600LIGHT
Main power supply	AC 230V ~ 50Hz via AC/DC adapter 5V / 1A
Backup battery	2 LR03 (AAA) batteries
FM frequency range	87.5 - 108 MHz
Speaker	1 x 1 Watt RMS
Alarm functions	Simple alarm, sunrise simulation, nature sound or radio
Sunset simulation	Yes, 30 minutes before scheduled time
LED lighting	With color change and brightness adjustment
Gradual wake-up	Yes, brightness increases 30 min before alarm
Snooze	5 minutes
Time display	12h or 24h selectable
Antenna	Integrated, adjustable for better reception
Maintenance	Clean with a soft dry cloth
Safety	Do not open, risk of electric shock
Compliance	Directive 2014/53/EU
Recycling	Do not dispose of with household waste

Frequently Asked Questions - CLR600LIGHT ROADSTAR

How to set the clock?

Press the CLOCK button (1) to choose 12 or 24-hour format, then hold it down. Use the +/- buttons (6/7) to set the hour, press CLOCK to confirm. Set the minutes in the same way.

How to set the alarm?

In standby mode, hold down the ALARM button (2). Use +/- to set the hour, then ALARM to confirm. Set the minutes, then press SOUND (8) to choose the wake-up sound (1-6 nature sounds, 7 last FM radio). Confirm with SOUND.

How to turn the alarm on or off?

In standby mode, press the ALARM button (2) repeatedly to toggle between on and off. The alarm icon is displayed when active.

How to use the Snooze function?

During the alarm, press the SNOOZE button (11) to delay the alarm by 5 minutes. You can repeat this action several times.

How to set the sunset simulation?

In standby mode, hold down the SUNSET button (4). Use +/- to set the hour, then SUNSET to confirm. Set the minutes and confirm. To turn on/off, press SUNSET repeatedly in standby.

How to change the light color?

Press LIGHT (3) to turn on the light. Use +/- to adjust brightness. Press LIGHT again to activate automatic color change, then +/- to freeze the desired color.

What to do if the radio doesn't work?

Check that the device is plugged in and the antenna (15) is properly oriented. Make sure you are in an FM reception area. If the problem persists, try resetting the device by unplugging and plugging back the power.

How to replace the backup batteries?

The batteries are located in the compartment under the device (17). Open the compartment and insert 2 LR03 (AAA) batteries respecting polarity. Batteries preserve the time and settings in case of power outage.

How to clean the device?

Use a soft dry cloth to clean the surface. Do not use chemical or abrasive products. Ensure the device is unplugged before cleaning.

How to recycle this product at end of life?

Do not dispose of the device with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) or contact your local council for recycling instructions.

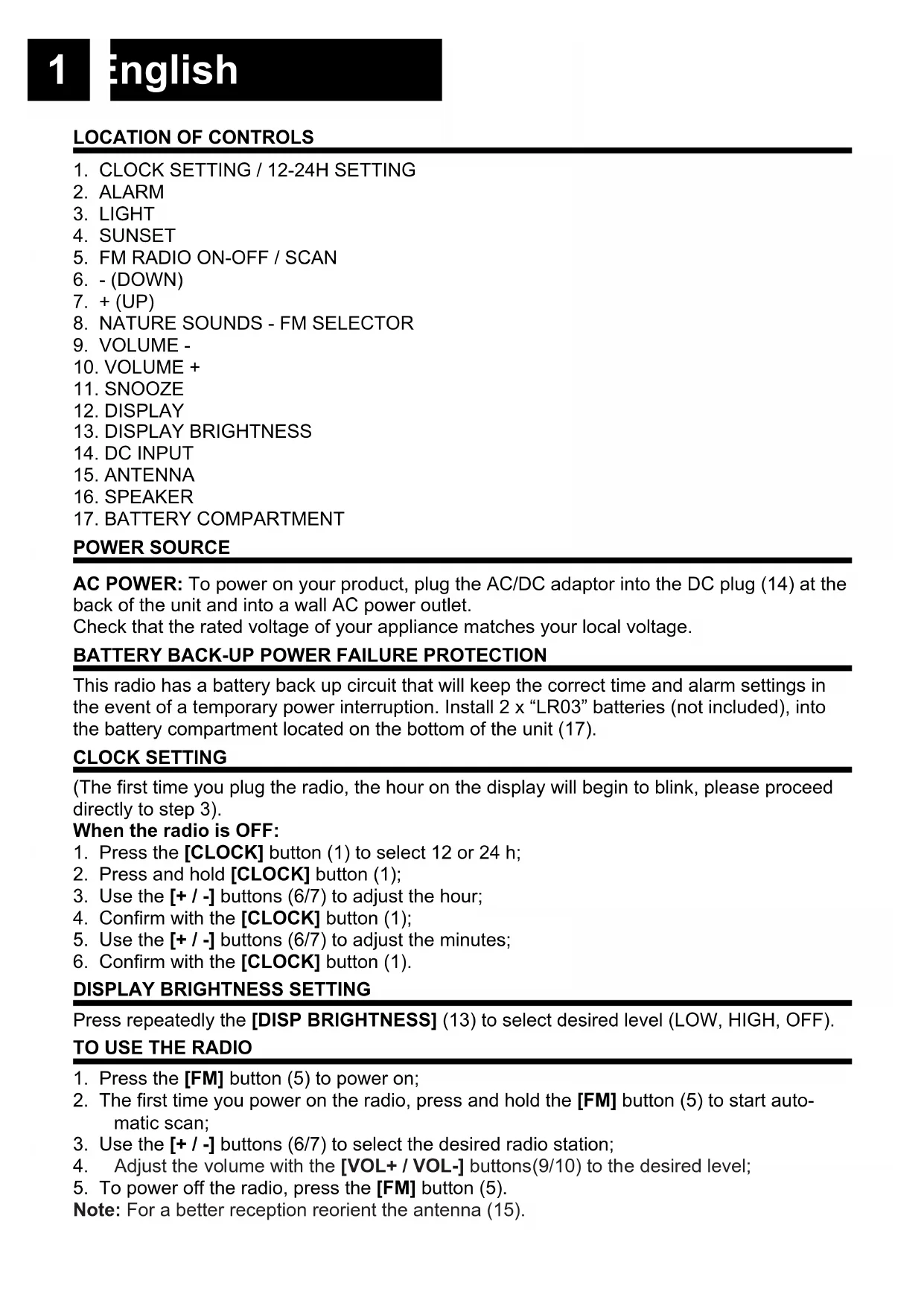

USER MANUAL CLR600LIGHT ROADSTAR

AC POWER: To power on your product, plug the AC/DC adaptor into the DC plug (14) at the back of the unit and into a wall AC power outlet.

Check that the rated voltage of your appliance matches your local voltage.

BATTERY BACK-UP POWER FAILURE PROTECTION

This radio has a battery back up circuit that will keep the correct time and alarm settings in the event of a temporary power interruption. Install 2 x "LR03" batteries (not included), into the battery compartment located on the bottom of the unit (17).

CLOCK SETTING

(The first time you plug the radio, the hour on the display will begin to blink, please proceed directly to step 3).

When the radio is OFF:

1. Press the [CLOCK] button (1) to select 12 or 24h
2. Press and hold [CLOCK] button (1);
3. Use the [+ / - ] buttons (6/7) to adjust the hour;
4. Confirm with the [CLOCK] button (1);
5. Use the [+I - ] buttons (6/7) to adjust the minutes;
6. Confirm with the [CLOCK] button (1).

DISPLAY BRIGHTNESS SETTING

Press repeatedly the [DISP BRIGHTNESS] (13) to select desired level (LOW, HIGH, OFF).

TO USE THE RADIO

1. Press the [FM] button (5) to power on;
2. The first time you power on the radio, press and hold the [FM] button (5) to start automatic scan;
3. Use the [+ / - ] buttons (6/7) to select the desired radio station;
4. Adjust the volume with the [VOL+ / VOL-] buttons(9/10) to the desired level;
5. To power off the radio, press the [FM] button (5).

Note: For a better reception reorient the antenna (15).

ALARM SETTING

SUNRISE LIGHT SIMULATION:

30 minutes before wake up time, the light will increase its brightness gradually.

At alarm time the nature sound or radio will be played for 5 minutes.

To set the alarm, when the radio is OFF:

1. Press and hold [ALARM] button (2);
2. Use the [+ / - ] buttons (6/7) to adjust the hour;
3. Confirm with the [ALARM] button (2);
4. Use the [+ / - ] buttons (6/7) to adjust the minutes;
5. Confirm with the [ALARM] button (2);
6. Press [SOUND] button (8);
7. Use the [+ / - ] buttons (6/7) to select the desired "wake up sound" (1-6 nature sounds, 7 last listened FM radio station);
8. Confirm with the [SOUND] button (8);
9. Adjust the volume with the [VOL+ / VOL-] buttons(9/10) to the desired level.

ACTIVATE/DEACTIVATEALARM SETTINGS:

In stand-by, press repeatedly the [ALARM] button (2) to activate / deactivate the alarm (the alarm icon will appear / disappear).

ALARM OFF:

During Alarm on:

• Press any button except the [SNOOZE] button (11) to deactivate the alarm sound (the Alarm setting remains).
• Press [SNOOZE] button (11) to postpone the alarm for 5 minutes.
• Press and hold [LIGHT] button (3) to switch OFF sunrise light simulation.

30 minutes before sunset time, the light will light up and will decrease its brightness gradually.

To set the sunset time, when the radio is OFF:

1. Press and hold [SUNSET] button (4);
2. Use the [+ / - ] buttons (6/7) to adjust the hour;
3. Confirm with the [SUNSET] button (4);
4. Use the [+I - ] buttons (6/7) to adjust the minutes;
5. Confirm with the [SUNSET] button (4).

ACTIVATE/DEACTIVATE SUNSET SETTING:

In stand-by, press repeatedly the [SUNSET] button (4) to activate / deactivate the setting (the alarm icon will appear / disappear).

LIGHT

When the radio is OFF:

1. Press [LIGHT] button (3);
2. Use the [+ / - ] buttons (6/7) to adjust the brightness;
3. Second touch on [LIGHT] button (3) to start automatic light color changing mode;
4. Use the [+ / - ] buttons (6/7) to stop automatic light color changing mode and select the desired color;
5. Third touch on [LIGHT] button (3) to switch OFF the light.

TECHNICAL SPECIFICATIONS

Power Supply: AC 230V ~ 50Hz (AC/DC 5 V = 1A adaptor).

Radio Frequency Coverage

FM: 87.5 - 108 MHz.

Speaker

Output Power: 1 × 1 Watt RMS.

Specifications and design are subject to possible modifications without notice due to improvement.

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ORT DER BEDIENELEMENTE

1. CLOCK SETTING / 12-24H SETTING (UHREINSTELLUNG)
2. ALARM
3. LIGHT (LICHT - LAMPE)
4. SUNSET (SONNENUNTERGANG)
5. FM RADIO ON-OFF / SCAN (UKW RADIO EIN - AUS / SENDERSUCHE)
6. • (MINUS)
7. • (PLUS)
8. NATURE SOUNDS - FM SELECTOR (AUSWAHL NATURTON ODER UKW)
9. VOLUME - (LAUTSTARKE-)
10. VOLUME + (LAUTSTARKE +)
11. SNOOZE (VERSCHIEBEN)
12. DISPLAY (ANZEIGE)
13. DISPLAY BRIGHTNESS (BILDSCHIRMHELLIGKEIT)
14. DC INPUT (DC BUCHSE)
    15.ANTENNA (ANTENNE)
15. SPEAKER (LAUTSPRECHER)
16. BATTERY COMPARTMENT (BATTERIEFACH)

STROMQUELLEN

m = 311

Hereby, Roadstar Management SA declares that the radio equipment type CLR600/LIGHT is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

or by scanning the following QR Code.

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

http://roadstar.com/images/ce/CLR-600LIGHT.pdf

Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
