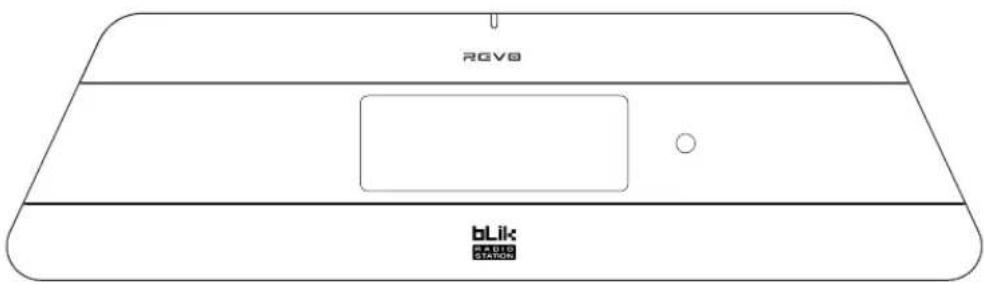

English BLIK RS Manual.qxd 4/1/08 19:37 Page 23 BLIK RadioStation Overview BLIK RadioStation is the ultimate ‘one box’ digital radio, providing an unprecedented choice of over 9,000 stations from around the globe. Whether your preferred station is broadcasting from your own country on DAB or DAB+ digital radio, or on the other side of the world via the internet radio platform ... BLIK RadioStation is ready to deliver. BLIK also provides coverage of traditional FM radio, comprehensive electronic alarm clock functionality and the added benefit of doubling as an iPod ® speaker system. Throw-in class-leading audio performance and the ability to stream music from your PC or Mac, and BLIK RadioStation becomes the radio of choice for the digital generation. Warranty Revo Technologies Ltd warrants to the purchaser that this product will be free from parts and manufacturing defects in the course of normal use for a period of one year from the date of purchase. This warranty does not apply in cases of accidental damage, where the case has been removed, wear and tear, negligence, modification or inappropriate use. Should you encounter problems with this product, please contact your supplier or alternatively see page 2 of this guide for technical support contact details. Warranty Registration It is a warranty condition that you registeryour purchase by either completing thewarranty card enclosed with your radio oralternatively registering online atwww.revo.co.uk/register Wi-Fi Internet Connection In order to use the internet radio functions of your BLIK RadioStation, you will require a wireless (Wi-Fi) broadband internet connection. If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption, you need to know the WEP or WPA code (Web Key) in order to allow BLIK RadioStation to connect to the network. BLIK RadioStation should be able to operate anywhere within 35 metres of the wireless base station – depending on the operating environment and the specification of your wireless base station. Please ensure that your wireless network is powered-up and connected to your broadband Internet connection Thank you for buying our BLIK RadioStation digital radio, we feel sure that it will provide you with years of enjoyment and reliable service. This guide has been designed to quickly get you up-and-running and listening to internet radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration. Welcome to BLIK RadioStation Before Getting Started English IMPORTANT To ensure that your BLIK RadioStation is running the latest software release (and therefore has access to the latest software

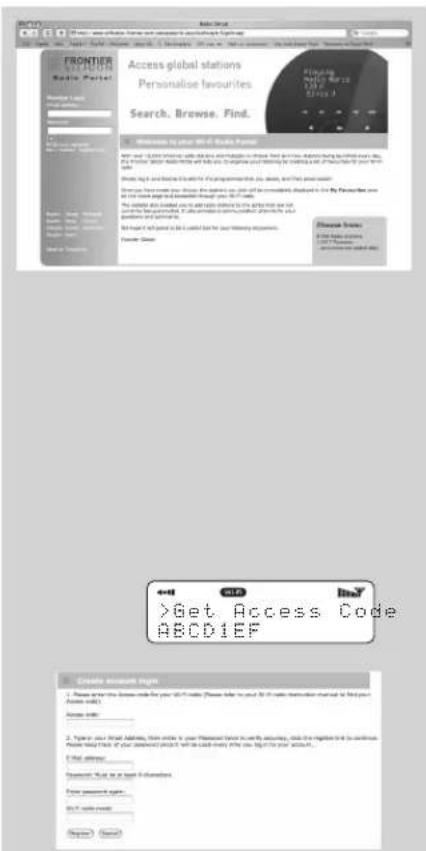

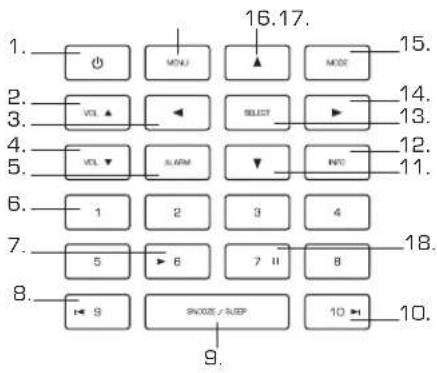

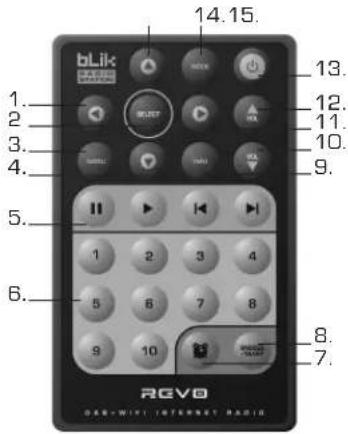

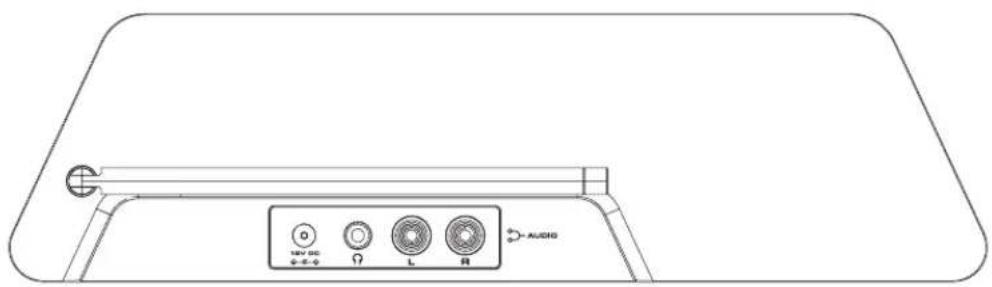

features), we advise you to perform a software update. Please see page 16 of this operating guide for full details. Registering Your Radio and Accessing Additional Services Some of BLIK RadioStation’s more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal (www.wifiradio-frontier.com). These features include the ability to create a “Favourites” list and add unlisted radio stations and podcasts. See page 8 for instructions on how to register your radio. BLIK RadioStation and DAB+ At the time of writing, BLIK RadioStation is the first and only digital radio product that is capable of receiving broadcasts on the new DAB+ digital radio platform - without the need for modification or additional software. Meaning that BLIK is ready for future developments. This facility is in addition to BLIK’s reception of standard DAB signals. BLIK RS Manual.qxd 4/1/08 19:37 Page 34 Controls and Connectors Remote Control Your BLIK RadioStation can be powered from the mains using the power adaptor supplied. To power from the mains, insert the power adaptor plug into the DC power socket on the rear of BLIK RadioStation. Pressing the button will switch BLIK RadioStation on. Only use the power adaptor supplied. Replacements can be purchased from our website www.revo.co.uk , or alternatively call us on 01555 66 61 61. 1. Scroll Back2. Select3. Menu4. Scroll Down5. Media Player6. Presets 1-107. Alarm / Clock8. Snooze / Sleep9. Info10. Volume Down11. Scroll Forward12. Volume Up13. Power On / Off14. Mode15. Scroll Up5. Media Player Controls Stop Skip Back Skip ForwardPlay / Pause

Media Player Controls Stop Skip Back Skip ForwardPlay / Pause The time can be set in one of two ways, either manually via the System Setup option on the Main Menu, or alternatively simply press the MODE key until BLIK RadioStation enters DAB Mode. In DAB mode, BLIK will automatically set the correct time and date from the DAB transmitter. Setting the Time and Date

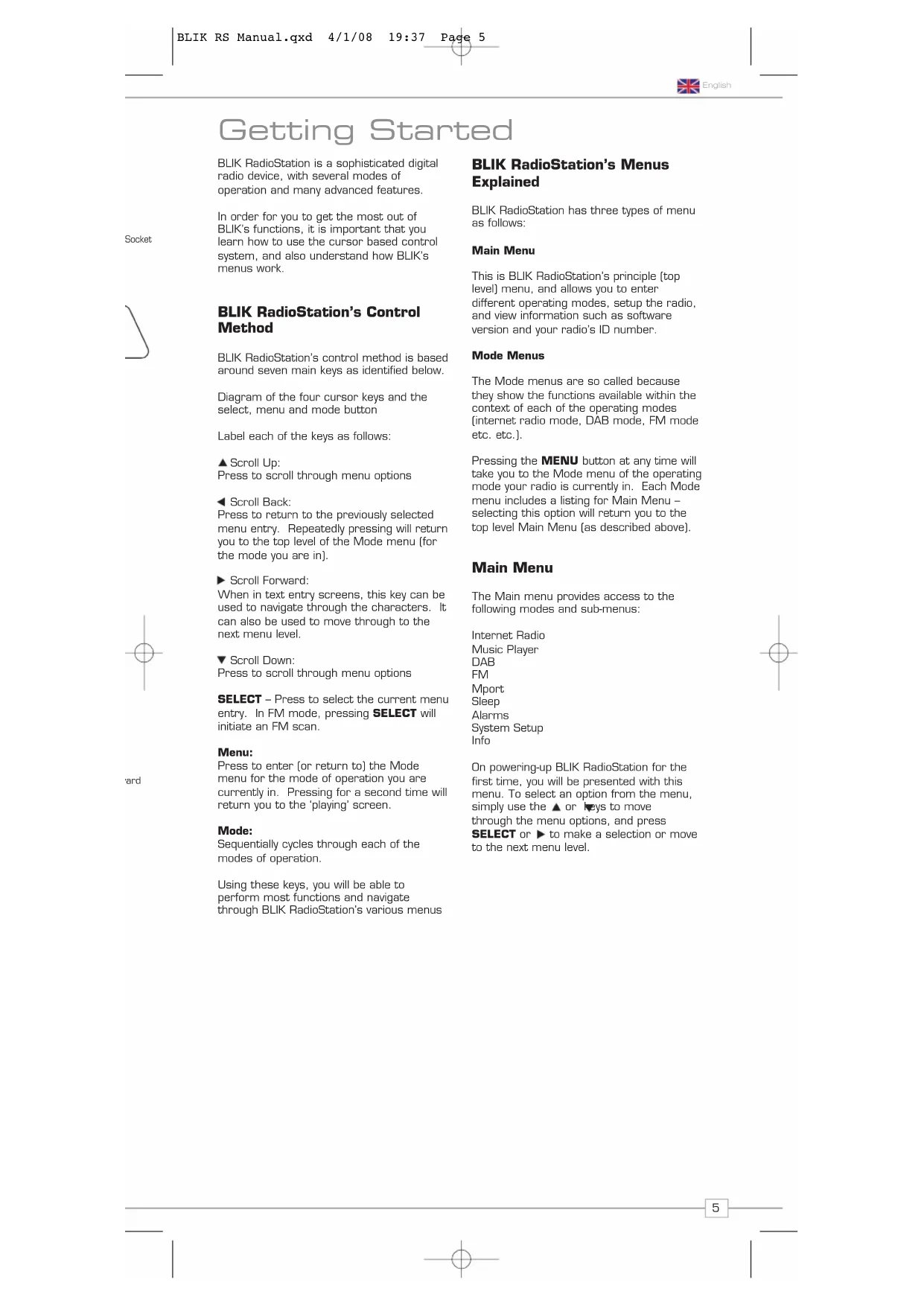

BLIK RS Manual.qxd 4/1/08 19:37 Page 45 Getting Started ward Socket BLIK RadioStation is a sophisticated digital radio device, with several modes of operation and many advanced features. In order for you to get the most out of BLIK’s functions, it is important that you learn how to use the cursor based control system, and also understand how BLIK’s menus work. BLIK RadioStation’s Control Method BLIK RadioStation’s control method is based around seven main keys as identified below. Diagram of the four cursor keys and the select, menu and mode button Label each of the keys as follows: Scroll Up: Press to scroll through menu options Scroll Back: Press to return to the previously selected menu entry. Repeatedly pressing will return you to the top level of the Mode menu (for the mode you are in). Scroll Forward: When in text entry screens, this key can be used to navigate through the characters. It can also be used to move through to the next menu level. Scroll Down: Press to scroll through menu options SELECT – Press to select the current menu entry. In FM mode, pressing SELECT will initiate an FM scan. Menu: Press to enter (or return to) the Mode menu for the mode of operation you are currently in. Pressing for a second time will return you to the ‘playing’ screen. Mode: Sequentially cycles through each of the modes of operation. Using these keys, you will be able to perform most functions and navigate through BLIK RadioStation’s various menus BLIK RadioStation’s Menus Explained BLIK RadioStation has three types of menu as follows: Main Menu This is BLIK RadioStation’s principle (top level) menu, and allows you to enter different operating modes, setup the radio, and view information such as software version and your radio’s ID number. Mode Menus The Mode menus are so called because they show the functions available within the context of each of the operating modes (internet radio mode, DAB mode, FM mode etc. etc.). Pressing the MENU button at any time will take you to the Mode menu of the operating mode your radio is currently in. Each Mode menu includes a listing for Main Menu – selecting this option will return you to the top level Main Menu (as described above). Main Menu The Main menu provides access to the following modes and sub-menus: Internet Radio Music Player DAB

Mport Sleep Alarms System Setup Info On powering-up BLIK RadioStation for the first time, you will be presented with this menu. To select an option from the menu, simply use the or keys to move through the menu options, and press SELECT or to make a selection or move to the next menu level. English BLIK RS Manual.qxd 4/1/08 19:37 Page 5Connecting to the Wi-Fi Network In order to access BLIK RadioStation’s internet radio features, first you must connect to your Wi-Fi broadband connection. Firstly, select ‘Internet Radio’ from BLIK’s main menu, or press the MODE key until ‘Internet Radio Mode’ appears on BLIK’s display. BLIK RadioStation will now ask you to select a ‘Wlan region’. To do so, use the and cursor keys to scroll through the selections. Press the SELECT or key to make your selection. BLIK RadioStation will ask you to choose the Wi-Fi network you’d like to use. If there are more than one available, all will be listed. To make your selection use the and cursor keys to scroll through the options. Press the SELECT or key to make your choice. If the Wi-Fi network you have chosen doesn’t require a password, BLIK RadioStation will automatically connect. If your chosen network has security enabled, you will be asked to input the relevant key or password. Remember, the password will be case-sensitive. Use the and cursor keys to scroll through the banks of characters. Use the and keys to move the flashing cursor along the row of characters, and press SELECT when your chosen character is flashing. When the password has been entered, move the flashing cursor to the symbol at the end of the line and press SELECT. BLIK RadioStation will now connect to the network. BLIK RadioStation will remember the security key or password, you will not be required to enter it again, even after BLIK has been disconnected from main power. BLIK can also remember keys and passwords for multiple Wi-Fi networks. If at some time you would like to connect to another Wi-Fi network, you can do so by selecting ‘Wizard’ from the ‘Internet Setup’ option on the main menu, and entering the required key/password. Advanced users can edit their Wi-Fi settings by accessing the ‘System Setup’ option from the Main menu. Internet Radio Mode Internet Radio Music Player >Most of Europe USA >My Home Network >Connected>Connected Key: 0123456789< C Please wait Connecting... >Internet setup Time setup

English BLIK RS Manual.qxd 4/1/08 19:37 Page 6Choosing A Station To select a station, enter ‘Internet Radio Mode’ from the Main Menu or by pressing the MODE key until ‘Internet Radio Mode’ is displayed on BLIK’s LCD display. Using the and cursor keys, scroll to the ‘Stations’ option and press SELECT or the key. You now have the option of selecting a station by location (country), genre, alphabetical search, most popular stations or new stations. Using the and cursor keys, scroll through the list and press SELECT or the key to choose your search criteria. Choosing location will give you an alphabetical list of continents/regions and then a list of countries. Use the and cursor keys, scroll through the list and press SELECT or the key to choose your country. You will then be given the option of choosing a genre, to further refine your search. After selecting your search criteria, you will be presented with a list of stations that meet your requirements. Simply select a station from the list to begin listening. Choosing A Podcast Podcasts (also referred to as ‘Listen Again’) are selected in the same way as a regular station. Select ‘Podcast’ from the ‘Internet Radio’ menu, you can search for a station by location, genre or a combination of both. The main difference is that when you have selected a station, you will then be presented with a list of ‘shows’ or Podcasts available from that station. Select your choice by using the and cursor keys, scroll through the list and press SELECT or the key to make your selection. Using Internet Radio Features The internet radio mode allows you to choose from a number of services, including listening to live radio or Podcasts. There are five options on the internet radio menu as follows: My Favourites: Used to navigate to your favourite stations. This list is compiled using your PC/Mac via the internet radio portal. See page 8 for details. Stations: Find stations by location, genre, most popular, new station or by alphabetical search. Podcast: Find Podcasts or ‘Listen-Again’ services by location, genre or search. My Added Stations: Shows stations which you have personally added to BLIK RadioStation’s list through the vTuner internet radio portal. See page 8 for details. Help: Find your Access Code here, see page 8. Internet Radio Mode My Favourites >Stations Location >Genre Location >Genre Finland >France BBC Radio 1 >BBc 1Xtra BBC Radio 1 Playing >Podcast My Added Stations >Podcast My Added Stations >BBC 6 Music BBC Radio 7

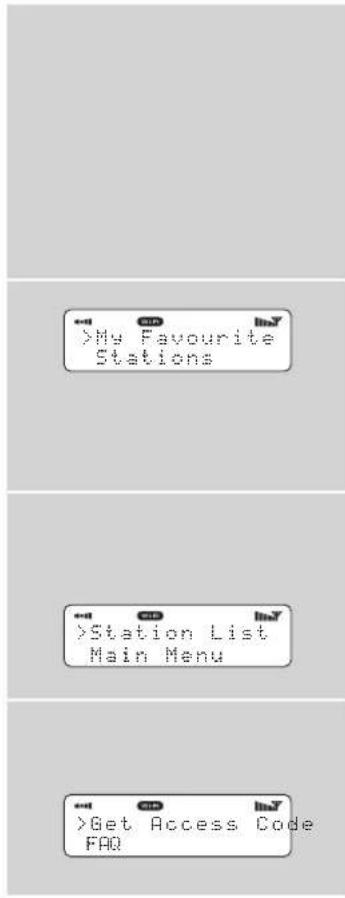

English BLIK RS Manual.qxd 4/1/08 19:37 Page 78 My Favourites It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of varied stations. To do this you must first register your radio and then choose your favourites by visiting the Frontier Internet Radio Portal - see ‘Internet Radio Portal’ section below for details. When in ‘Internet Radio Mode’, choose ‘Station List’ from the options, then select ‘My Favourites’. If you have set up a ‘My Favourites’ list via the Frontier Portal, your list will appear on BLIK’s screen. My Added Stations If you have added any of your own stations to BLIK’s already huge station list (via the Frontier Portal - see section below), they will be listed here. The ‘My Added Stations’ option can be found under ‘Station List’ in ‘Internet Radio Mode’. Help The ‘Help’ option is where you can find the Access Code that you require to register your radio on the Frontier Portal (see below for full instructions). A helpful FAQ audio track can also be found under this heading. English Internet Radio Portal Access Additional Features Some of BLIK RadioStation’s more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal. In order to access these features you must first register your radio. Registering Your Radio Firstly, open your web browser on your PC or Mac and go to the Frontier Portal at http://www.wifiradio-frontier.com Click on the Register link, (located on the left hand panel) to begin the registration process. You will now be asked for an Access Code. To find your Access Code enter ‘Internet Radio Mode’, select ‘Station List’ from the options, then select ‘Help’. From the ‘Help’ menu now select “Get Access Code”. Now fill-in the rest of the from to complete the registration process. You will now be able to login and take advantage of the various additional features and services offered by the Frontier Internet Radio Portal. >My Favourite Stations >Station List Main Menu >Get Access Code FAQ >Get Access Code ABCD1EF BLIK RS Manual.qxd 4/1/08 19:37 Page 89 English Music Player Mode Music Player Operation BLIK RadioStation’s media player functionality allows you to play audio files (ACC, AIFF, AU, MP3, RM, WAV and WMA) and playlists (M3U) stored on a networked PC or Apple Mac. The media player functions have been tested and certified to operate with Windows 2000, Windows XP, Windows Vista and Mac OSX 10.2 –

10.4.9 (currently Mac OSX ‘Leopard’ is not

supported). Windows PC Set-Up There are two Music Player modes available. Each of them requires different settings, and either one can be used to playback music from a media server. Shared Folders (CIFS) In order to set up the device to playback music stored on shared network drives, user name, password and domain settings must be configured to work with the PC share settings. This is only required if the user has set a password on his/her shared folders. PC: Domain/Workgroup configuration The Domain configuration item can be found on a Windows XP machine as follows:

2. The Domain or Workgroup that this

Computer is a member of is displayed in this tab.

3. If the PC is not a member of any Domain

or Workgroup then one must be joined. To do this click on the change button on the computer name tab and enter the name of the domain (default on Windows XP is MSHOME).

4. A reboot of the PC may be prompted if

the Domain or Workgroup has been changed. PC: Setting up a new user account (Windows XP) BLIK RadioStation may require you to set-up a user account on each PC that you wish to browse. By default most PCs have at least one user account associated with it. The user name and password (optional) needs to be the same on each PC as the Internet Radio only stores one user name and one password. For windows XP this can be set up as follows:

1. From the start menu, select Control

Panel -> User accounts

2. From this screen left click the ‘Add ...’,

and enter the new user name and the Domain/Workgroup setting noted above. Select the type of user (limited) and then select ‘create account’.

3. Select the user just created, select

‘Create Password ...’ and enter a password for this user.

4. Note the User Name and Password.

Note for Windows VISTA : Users have to turn on the Guest account via manage user accounts in the control panel in VISTA, then add access to either ‘Everyone’ or ‘Guest’ on the shared drive. They could create a new account for the internet radio, with a password, if they are concerned about security. The Guest account has no password by default, so the Wi-Fi radio will connect to it from its factory default settings. PC: Configuring A Shared Drive From the Start menu select My Computer and navigate to the directory you wish to share. Right click on the directory and select Sharing and Security. Configure the shared drive as read only, and ensure that the User Name created above has read access to the share. Wi-Fi Radio: Storing The Username And Password Before the radio can stream music from a PC, you need to ensure you have shared folder available on the PC, and set up the radio so that it knows the username and password (if one has been set) for the shared folder on the PC. This can be set up using the PC settings menu. Shared Media (UPnP) Media sharing uses Windows Media Player (WMP) 11 and above as media server. This mode does not require any setting in the radio, but the PC needs to be configured to allow the radio access to the media. You will only have to do it once, following the next steps.

1. The PC must be connected to network

(wired or wireless) that will be used to share media with the radio.

2. Ensure that the radio is powered on and

connected to the same network as the PC.

3. In WMP, add to the media library the

audio files and folders you want to share with your internet radio (in Library > Add to library).

4. In the WMP main window, click on

Library, then Media sharing. The Internet radio is presented as an “Unknown Device”. Make sure that the device has access to the shared media by selecting it and clicking <Allow>. Then click <OK>. The PC is now ready to stream the music to the radio. BLIK RS Manual.qxd 4/1/08 19:37 Page 910 Music Player Mode Apple Mac Set-Up Set-Up for OSX 10.2.1 --> 10.4.9 Setup Windows File Sharing on the MAC: From the ‘Dock’, click ‘System Preferences’. From the ‘System Preferences’ window (under the ‘Internet & Network’ section) click ‘Sharing’. From the ‘Sharing’ window, do the following: Under the ‘Services’ section, enable ‘Personal File Sharing’ and ‘Windows Sharing’. Also, click ‘Start’ for each of these services. Under Windows file sharing you will also need to 'enable' the account you wish to share from (This needs your administrator password). Under the ‘Firewall’ section, keep firewall off. Under the ‘Internet’ section, keep ‘Internet Sharing’ off. Setup an Account: From the ‘System Preferences’ window, under the ‘System’ section, click ‘Accounts’. Select an account and remember its ‘Short Name’ and password. This information will be used by BLIK RadioStation when connecting to your Mac. Directory Setup: From the ‘Dock’, click ‘Finder’. From the ‘Finder’ window, click ‘Applications > Utilities’. Holding Ctrl click on ‘Directory Access’ then select ‘Get Info’ and ensure that read / write enabled. Next double click on ‘Directory Access’ and enable the following: AppleTalk LDAPv3

Also, for the ‘SMB/CIFS’ item, click ‘Configure’ and select an appropriate workgroup. To allow your BLIK RadioStation you need to add your login details, by following the path Main Menu -> System Setup -> Internet Setup -> PC Settings. You should input your short username and administrator password here. Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting Browse -> Shared Folders on BLIK, then selecting the workgroup chosen in the step above. On selecting your Mac scroll through the available folders until you find the one which contains your music files. Apple Mac Set-Up Set-Up for OSX Leopard 10.5.1--> Setup Windows File Sharing on the MAC: From the ‘Dock’, click ‘System Preferences’. From the ‘System Preferences’ window (under the ‘Internet & Network’ section) click ‘Sharing’. From the ‘Sharing’ window, do the following: Under the ‘Services’ section, enable ‘File Sharing’ click ‘Start’ for this service. Then under the shared folders click the "+" and select the folder which contains your music files. Then Select the music folder from the shared folders area, in the users area make sure "Everyone" is set to read and write. Finally click on "Options" and make sure "Share files and folders using AFP" is checked and "Share files and folders using SMB" (This will require your admin password to activate) lastly make sure your account is also checked as active. Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting ‘Browse > Shared Folders’ on BLIK, then selecting your Mac from the list of devices. On selecting your Mac, you should see your folder that you selected above.

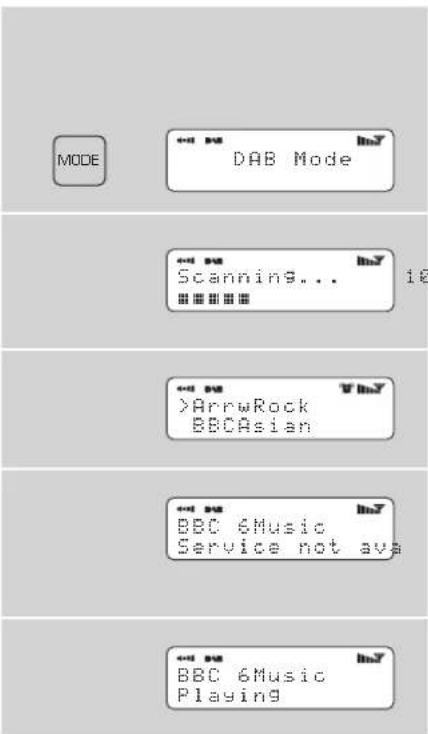

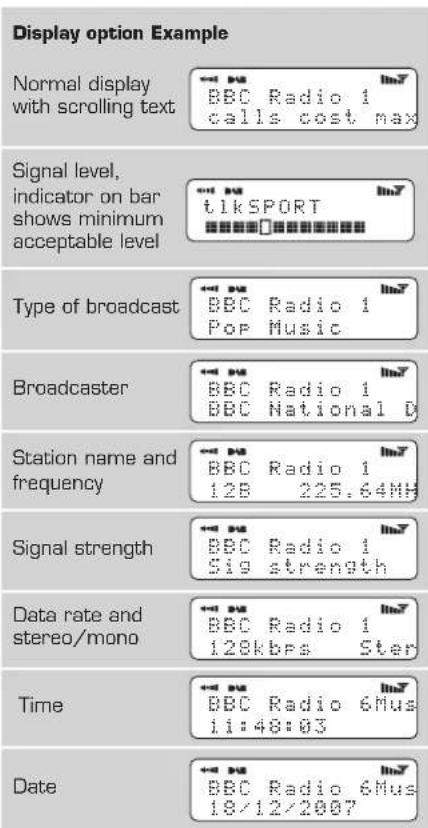

English BLIK RS Manual.qxd 4/1/08 19:37 Page 1011 Choosing a Station Extend the telescopic antenna found on the rear of BLIK RadioStation. Enter ‘DAB Mode’ from the Main Menu or by pressing the MODE key until ‘DAB Mode’ is displayed on BLIK’s LCD display. If this is the first time BLIK RadioStation has been used in DAB Mode, it will scan for DAB stations in your area and store them in memory. BLIK will also set its clock at this point. When the station scan has been completed, stations will be displayed in numeric then alphabetic order. The first station in the list will be selected. If no DAB signal is found, it may be necessary for you to relocate your radio. Or visit www.ukdigitalradio.com/coverage to check that DAB coverage is available in your area. Select your station choice by using the and cursor keys, scroll through the station list and press SELECT or the key to make your selection. DAB Mode To Change the Display Mode BLIK has nine different display modes. Simply press the INFO button to cycle through each mode. These display modes are explained in the table opposite: BBC Radio 1calls cost max BBC Radio 1Pop Music BBC Radio 1BBC National DAB BBC Radio 112B 225.64MHz BBC Radio 1128kbps Stereo BBC Radio 6Music11:48:03 BBC Radio 6Music18/12/2007 BBC Radio 1Sig strength 96 Normal display with scrolling text Display option Example Type of broadcast Broadcaster Date Station name and frequency Data rate and stereo/mono Signal strength tlkSPORT Signal level, indicator on bar shows minimum acceptable level Time DAB ModeScanning... 10•••••>ArrwRock BBCAsian BBC 6MusicService not avaBBC 6MusicPlaying MODE English BLIK RS Manual.qxd 4/1/08 19:37 Page 11English

BLIK RadioStation has a number of additional functions that are accessed through the DAB Mode menu, as follows: The following table describes the options available under the ‘Station Order’ menu: Station Order Press the MENU key in DAB Mode then press select Station order. To specify the order in which stations are displayed Select the Station order option. Use the and cursor keys to scroll through the options, and press SELECT or the key to make your selection. Alphanumeric Lists stations in alphabetical order. Ensemble Lists stations by multiplex. Valid Lists only active stations. Station order Description Manual Tune Choose the Manual Tune option from the DAB Mode menu. The Manual Tune selection screen allows you to select a particular frequency to tune to. The list of frequencies displayed is dependant on the currently-set frequency band and contains all of the frequencies within that band. It starts with the short name of the frequency, for example 12B, and is followed by the actual frequency in MHz. If there is a station corresponding to this station number and frequency, the display will show the name, frequency, and a tuning meter will show the signal strength. DRC - Dynamic Range Control BLIK RadioStation includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments. The DRC control is found in the DAB Mode menu under ‘DRC’. There are three pre-defined settings as follows: Local and Full Scan As time passes, new stations will become available in your area. To find them and add them to your station list it is necessary to perform either a ‘Local’ or ‘Full’ scan. Both operations can be accessed via the DAB Mode menu. A Local Scan performs a shorter scan of only the ‘local’ ensemble range. A Full Scan will take longer, but will cover the complete DAB ensemble range. Favourite Station Presets BLIK RadioStation allows you to store 10 favourite station presets, either via the 10 preset keys on BLIK itself, or on the BLIK remote control. To save the station you are currently listening to as a preset, simply press and hold a preset key (from 1 - 10) for 2 seconds. BLIK will confirm that the key has been programmed by displaying ‘Preset Stored’ on BLIK’s LCD screen. Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased. DAB Mode Menu Options DRC Low Dynamic Range Control is set to half DRC High The recommended setting for noisy environments DRC Off Dynamic Range Control is switched off DRC Description BLIK RS Manual.qxd 4/1/08 19:37 Page 12English

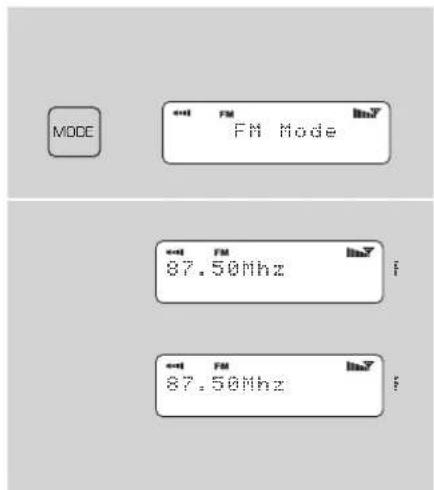

FM Operation Extend the telescopic antenna found on the rear of BLIK RadioStation. Enter ‘FM Mode’ from the Main Menu or by pressing the MODE key until ‘FM Mode’ is displayed on BLIK’s LCD display. If this is the first time BLIK has been in FM mode, it will start at the beginning of the FM frequency range. Otherwise, the last FM station you were listening to will be selected. To scan through the FM frequency range press the and buttons. To ‘SEEK’ the next active station, press the SELECT button. Favourite Station Presets BLIK RadioStation allows you to store 10 favourite station presets, either via the 10 preset keys on BLIK itself, or on the BLIK remote control. To save the station you are currently listening to as a preset, simply press and hold a preset key (from 1 - 10) for 2 seconds. BLIK will confirm that the key has been programmed by displaying ‘Preset Stored’ on BLIK’s LCD screen. Please note, if you store a preset on a key that was already holding a favourite station, the previous station will automatically be erased. FM Mode 87.50Mhz FM 87.50Mhz FM BBC Radio 1 Preset Stored FM Mode MODE Using MPort Revo’s MPort connector allows for quick and easy connection of an iPod®, similar MP3 player or sound source. Using the connection lead supplied, BLIK is transformed into a high quality digital audio speaker system. Connect one end of the supplied audio lead to the headphone (or auxiliary out) socket of your source device, then connect the other end to the MPort on the side of BLIK. Now press the MODE key and cycle through the options until ‘MPort Mode’ is displayed. BLIK’s LCD screen will now display the word ‘MPort’ on its screen. You should adjust the output volume level on both the source device and on BLIK itself to gain optimal volume levels and sound performance. MPort Mode M-Port MPort Mode

BLIK RS Manual.qxd 4/1/08 19:37 Page 1314 Alarms Mode Setting An Alarm BLIK allows you to store up to four different alarm programmes in memory. To set an alarm, press the ALARM button. BLIK will now ask you to choose which of the four alarm memories you’d like to use. Use the and keys too choose an alarm and press SELECT. To set the wake-up time, press SELECT and use the and keys to set the wake up hour, then press SELECT or the button to move onto the minute setting. When your wake-up time has been set, press SELECT. You can now decide whether you would like to be woken up by Internet Radio, DAB, FM or Buzzer. To choose the wake- up mode press the key to view the ‘Mode’ option and press SELECT. You can now decide whether you would like to be woken-up by the last played station, or by a specific preset (if none are set, BLIK will wake you up using the default Buzzer). You will now have the option to set the wake-up volume for your alarm. Use the and keys to adjust the volume and press SELECT to set. Finally, you should select ‘Save’ from the menu to complete your alarm programme. When BLIK has an active alarm in its memory, the alarm icon will appear on the top line of BLIK’s display at all times. ALARM To halt an alarm, press any button on BLIK’s keypad. Alternatively, tap the SNOOZE button to mute the alarm for a period of 5 minutes. When BLIK is in Snooze mode, the Snooze icon will be displayed on the LCD screen, together with the current time and remaining Snooze time. To cancel a preset alarm, go back into the ALARM programming mode and change ‘ON’ to ‘OFF. The details of the alarm will continue to be retained in memory, and the alarm programme can be switched back on again at a later date. BLIK RadioStation must have its clock and date set to use the alarm functionality. To automatically set the time and date, tune to a DAB service and BLIK will extract the correct time and date from the DAB broadcast stream. Alternatively, the time and date can be manually set via the ‘Time Setup’ option, this can be found under the ‘System Setup’ menu, which is located in the ‘Main Menu.” Alarm1: Off Alarm2: Off Set Alarm Time 07:15 >Internet Radio DAB Mode >Mode: DAB Mode Last Listened Alarm Volume

• •••••••••• Alarm Volume

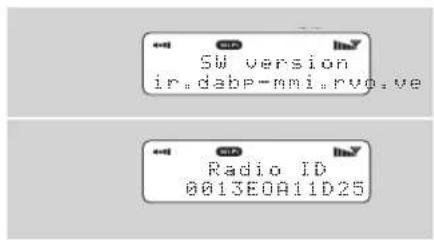

• •••••••••• 07:20:01 5:00 07:15 >off English BLIK RS Manual.qxd 4/1/08 19:38 Page 14System Setup Info Sleep Mode Setting A Sleep Period It is possible to programme BLIK RadioStation to turn off after a pre- defined period of time. To do so, select the ‘Sleep’ option from the Main Menu. Now, using the and keys, you can select a sleep time period of 15, 30, 45, 60, 75 or 90 minutes. BLIK will now automatically put itself into standby mode after the time has elapsed. Set sleep time Sleep time off Set sleep time Sleep time off SW version ir.dabp-mmi.rvo.ve Radio ID 0013EOA11D25 Software Version and Radio ID You may be asked for one or both of these pieces of information when dealing with a technical support issue. Both can be found under the ‘Info’ heading, located in the ‘Main Menu’. Internet Setup Advanced users can find and edit their Wi-Fi settings in this section, these include MAC address, DHCP status, PC Settings, SSID, IP Settings etc. Time Setup The time can be set in one of two ways, either manually via the System Setup option on the Main Menu, or alternatively simply press the MODE key until BLIK RadioStation enters DAB Mode. In DAB mode, BLIK will automatically set the correct time and date from the DAB transmitter. BLIK will remember its time setting even when in standby mode, and will only lose the time/date when power is removed. Under the ‘Time Setup’ menu, you can also switch between 12 an 24 hour clock formats. Lastly, the ‘Auto Update’ option in the ‘Time Setup’ menu allows you to select whether or not the time should be synchronised with the DAB broadcaster clock. If ‘No Update’ is selected, then the clock remains as manually set. Factory Reset In the unlikely event that BLIK RadioStation should ‘crash’, ‘freeze’ or start behaving in a strange way, it is possible to perform a full software reset. This operation will completely reset BLIK’s memory, clearing all WEP/WPA codes and user settings. This will effectively return BLIK to its default factory settings. Software Update It is possible to remotely update BLIK RadioStation’s software via your Wi-Fi internet connection, to ensure that you have all the latest features, or to fix known bugs in the software. To check whether there are any updates available, simply go to the ‘System Setup’ option on the ‘Main Menu’ and select ‘Software Update’. BLIK will search to see if a software update is necessary, then report back. If an update is available and necessary, BLIK will start the download process and install its new software automatically.

English BLIK RS Manual.qxd 4/1/08 19:38 Page 15Wi-Fi Internet Radio If you are experiencing any problems with your BLIK RadioStation please read the following ‘troubleshooting’ guide. Alternatively you can visit the support section of the Revo website (www.revo.co.uk) or call our technical support staff on 01555 66 61 61. If you have trouble connecting BLIK RadioStation to your wireless network, these steps may help to resolve the problem:

1. Confirm that a Wi-Fi connected PC can

access the Internet (i.e. can browse the web) using the same network.

2. Check that a DHCP server is available, or

that you have configured a static IP address on the radio.

3. Check that your network’s firewall is not

blocking any outgoing ports. As a minimum, BLIK RadioStation needs access to UDP and TCP ports 80, 554, 1755, 5000 and 7070.

4. Check your access point does not

restrict connections to particular MAC addresses. You can view the radio’s MAC address under the ‘Internet Setup’ section, accessed via the ‘System Setup’ option on BLIK’s main menu.

5. If you have an encrypted network, check

that you have entered the correct key or pass phrase into the radio. Remember that text-format keys are case sensitive. If, when attempting to connect to an encrypted network, your radio displays: ‘Wireless error’ followed by a 5-digit number, then please ensure that you enter the correct pass phrase for the network. If the problem persists, then you may need to consult your network configuration. If BLIK RadioStation can connect to the network successfully, but is unable to play particular stations, it may be due to one of the following causes:

1. The station is not broadcasting at this

time of the day (remember it may be located in a different time zone).

2. The station has reached the maximum

allowed number of simultaneous listeners.

3. The station is not broadcasting anymore.

4. The link on the radio is out of date.

5. The Internet connection between the

server (often located in a different country) and you is slow. DAB Digital Radio Q. I hear a ‘burbling’ noise on some stations. A. If the signal strength is too low, a break- up in reception can occur. This sound is the result. Make sure that BLIK’s antenna is fully extended and in an upright position. If the problem persists, move BLIK to another location or check that you are in an area where reception of this station is possible. Visit: www.ukdigitalradio.com/coverage to check DAB coverage in your area. Q. I get a ‘No stations available’ message? A. Make sure that your antenna is fully extended and vertical. Check the signal strength and move BLIK to another location if necessary. Q. BLIK’s clock isn’t set. A. BLIK needs to be able to pick-up a DAB signal or have its clock set manually. If BLIK can find a DAB station, it can then set its clock. Troubleshooting
