Individual Sound Universal Speaker - Speaker LOEWE - Free user manual and instructions

Product type	2-way passive speaker
Brand	Loewe
Model	Individual Sound Universal Speaker
Dimensions (W x D x H)	9 x 9 x 33 cm
Weight	3.4 kg
Power handling	50 W (RMS) / 85 W (max. music)
Impedance	8 Ohms
Sound pressure	85 dB SPL (1W/m)
Acoustic principle	D'Appolito configuration (2-way)
Drivers	2 x full-range drivers (paper cone, ∅ 80 mm), 1 x fabric dome tweeter (∅ 30 mm)
Recommended use	With Loewe Individual Sound Multiroom Receiver or as a passive speaker with subwoofer
Included accessories	2 speaker cables (2 x 6 m), 2 covers, user manual
Optional accessories	Recessed trim elements (aluminum grey, apple green, ebony, light oak, bright orange, rosewood, bright ruby, bright black, mirror)
Cleaning	Damp, soft, clean cloth (without corrosive cleaner)
Safety precautions	Avoid water, humidity, magnetic fields, heat, dust, shocks, excessive power
Minimum distance to sensitive devices	> 0.5 m (CRT TVs, magnetic media)
Cable polarity	Red terminal: positive, black: negative
Disposal	Do not dispose with household waste (WEEE)

Frequently Asked Questions - Individual Sound Universal Speaker LOEWE

How to connect the Individual Sound Universal Speaker speakers?

Connect each speaker to the amplifier (e.g., Loewe Multiroom Receiver) respecting polarity: red terminal for positive (+), black for negative (-). Use the supplied cables (6 m each). For the Multiroom Receiver, outputs are marked L+ / L- (left) and R+ / R- (right).

What is the maximum power supported by these speakers?

The nominal power is 50 W (RMS) and the maximum music power is 85 W. Impedance is 8 Ohms.

Can I use these speakers with an amplifier other than Loewe?

Yes, they can be used as passive speakers with any suitable amplifier (8 Ohm impedance, compatible power). They are also compatible with Individual Sound Subwoofer systems.

How to clean the Individual Sound Universal Speaker speakers?

Use a damp, soft, clean cloth, without any corrosive cleaning products. Avoid contact with liquids.

What are the dimensions and weight of the speaker?

Dimensions: 9 x 9 x 33 cm (W x D x H). Weight: 3.4 kg per speaker.

How to install the speakers on the wall?

Use the optional Loewe wall mount (not included). Securely attach the mount to the wall, then hang the speaker following safety instructions.

What is the sound pressure of these speakers?

The sound pressure is 85 dB SPL (1W/m).

Can I change the appearance of the speakers?

Yes, optional recessed trim elements are available: aluminum grey, apple green, ebony, light oak, bright orange, rosewood, bright ruby, bright black, and mirror. Caution: wood versions may fade in sunlight.

How to dispose of the speakers at end of life?

Do not dispose of them with household waste. In accordance with the WEEE Directive (2002/96/EC), take them to a recycling center or return them to your retailer when purchasing a similar new device.

Do the speakers generate a magnetic field?

Yes, they produce a magnetic field. Keep a minimum distance of 0.5 meters from sensitive devices (CRT TVs, hard drives, etc.).

USER MANUAL Individual Sound Universal Speaker LOEWE

Two modern white audio speakers with textured backends, one labeled 'LOME' (no additional text or symbols visible)

Bedienungsanleitung

Operating instructions

Mode d'emploi

Audio Products Group Pty Ltd

67 O'Riordan St

Alexandria NSW 2015, Australia

Tel +61 - 2 9669 3477

Fax +61 - 2 9578 0140

E-mail: [e-mail]

B NL L

Loewe Opta Benelux NV/SA

Uilenbaan 84

Customer Care Center

Industriestraße 11

GB IRL Lowe UK Limited

Century Court, Riverside Way

Riverside Business Park, Irvine, Ayrshire

KA11 5DJ, UK

Tel +44 - 1294 315 000

Fax +44 - 1294 315 001

E-mail: [e-mail]

Clear electronic entertainment Ltd

13 Noah Mozes St.

Agish Ravad Building

Tel Aviv 67442, Israel

Tel +972 - 3 - 6091100

Fax +972 - 3 - 6092200

E-mail: [e-mail]

KSA Salem Agencies & Services Co.

Hamad Al Haqueel Street, Rawdah,

Jeddah 21413

Kingdom of Saudi Arabia

Tel [phone]

Fax [phone]

E-mail: [e-mail]

LT A Cappella Ltd

Ausros Vartu 5, Pasazo skg.

01129 Vilnius, Lithuania

Tel +370 - 52 12 22 96

Fax +370 - 52 62 66 81

E-mail: [e-mail]

LV Loewe, service

Brivibas gatve 332,

Riga, Latvia, LV-1006

Tel [phone]

E-mail: [e-mail]

M Doneo Co. Ltd

34/36 Danny Cremona Street

Hamrun, HMR1514, Malta

Tel +356 - 21 - 22 53 81

Fax +356 - 21 - 23 07 35

E-mail: [e-mail]

MA Somara S.A.

377, Rue Mustapha El Maani

20000 Casablanca, Morocco

Tel +212 - 22 22 03 08

Fax +212 - 22 26 00 06

E-mail: [e-mail]

N

Electronics as

Ostre Kullerod 5

Service Center Loewe

per. Aptekarsky, dom 4 str. 2

105005 Moscow, Russia

Tel +7 - 495 730 78 00

Fax +7 - 495 730 78 01

E-mail: [e-mail]

s

Kiaerulff 1 AB

Ridbanegatan 4, Box 9076

Atlas Sound & Vision Pte Ltd

10 Winstedt Road #01-18

Singapore 227977

Tel +65 - 6334 9320

Fax +65 - 6339 1615

E-mail: [e-mail]

SLO

JADRAN d.d., Sežana

Partizanska cesta 69

P.O. Box 32836, Sheikh Zayed Road

Dubai, UAE

Tel +971 - 4 343 14 41

Fax +971 - 4 343 77 48

E-mail: [e-mail]

ZA

The Soundlab (Pty) Ltd

P.O. Box 31952, Kyalami 1684

Gauteng, Republic of South Africa

Tel +27 - 1 14 66 47 00

Fax +27 - 1 14 66 42 85

E-mail: [e-mail]

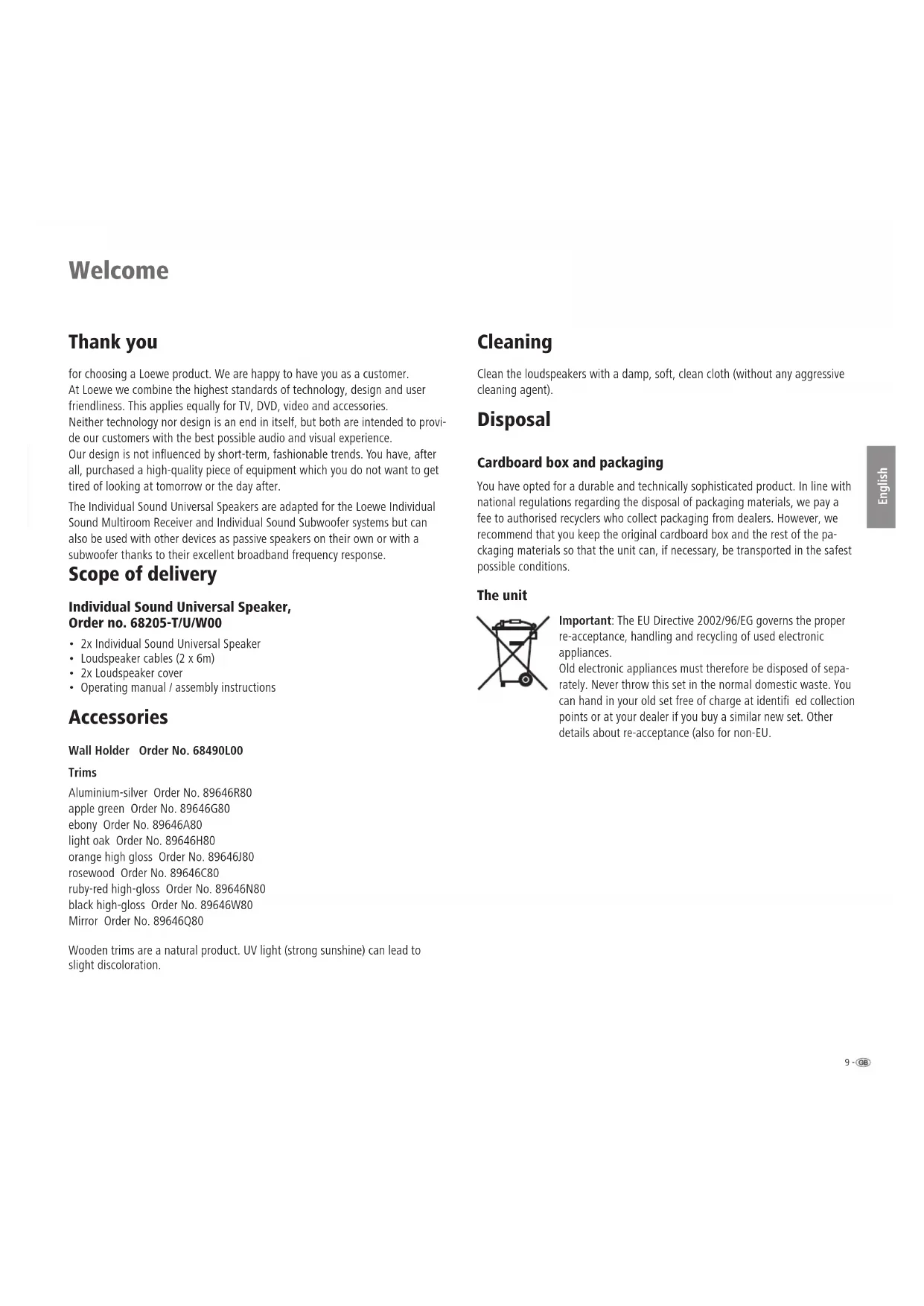

Herzlich willkommen

Vielen Dank,

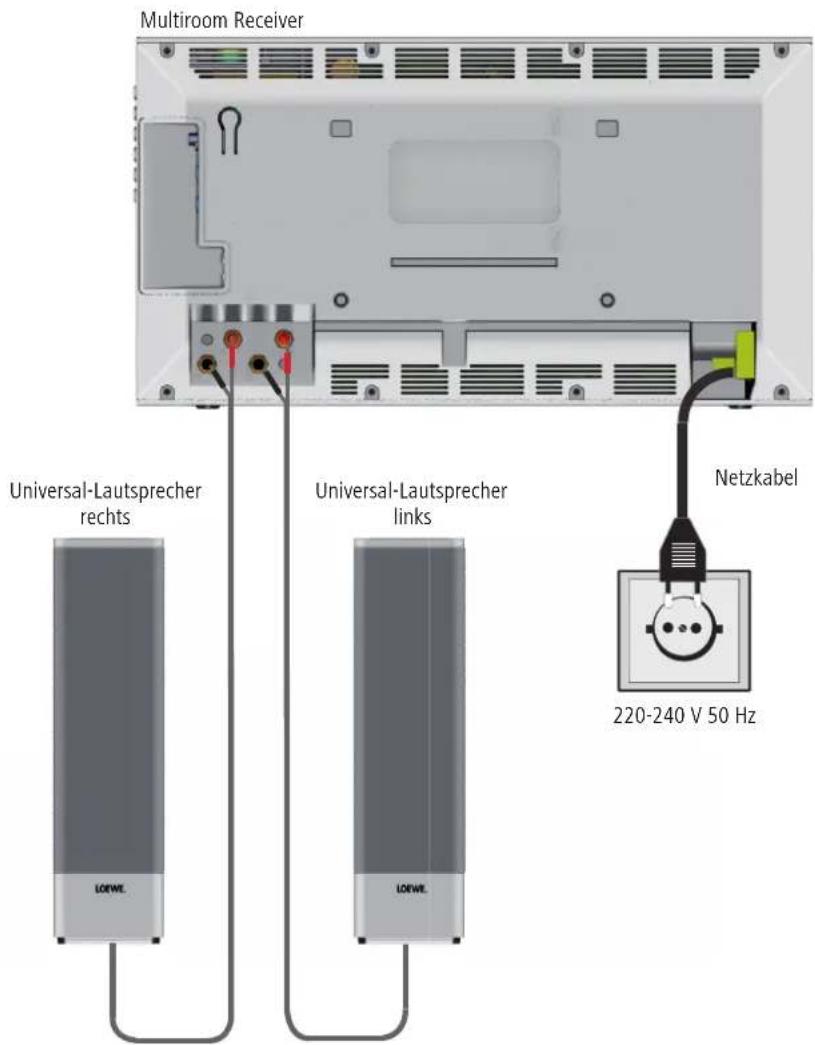

Verkabelung Individual Sound Universal Speaker – Individual Sound Multiroom Receiver

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

for choosing a Loewe product. We are happy to have you as a customer. At Loewe we combine the highest standards of technology, design and user friendliness. This applies equally for TV, DVD, video and accessories. Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience. Our design is not influenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to get tired of looking at tomorrow or the day after.

The Individual Sound Universal Speakers are adapted for the Loewe Individual Sound Multiroom Receiver and Individual Sound Subwoofer systems but can also be used with other devices as passive speakers on their own or with a subwoofer thanks to their excellent broadband frequency response.

Scope of delivery

Individual Sound Universal Speaker, Order no. 68205-T/U/W00

• 2x Individual Sound Universal Speaker
- Loudspeaker cables (2 x 6m)
• 2x Loudspeaker cover
- Operating manual / assembly instructions

Accessories

Wall Holder Order No. 68490L00

Trims

Aluminium-silver Order No. 89646R80

apple green Order No. 89646G80

ebony Order No. 89646A80

light oak Order No. 89646H80

orange high gloss Order No. 89646J80

rosewood Order No. 89646C80

ruby-red high-gloss Order No. 89646N80

black high-gloss Order No. 89646W80

Mirror Order No. 89646Q80

Wooden trims are a natural product. UV light (strong sunshine) can lead to slight discoloration.

Cleaning

Clean the loudspeakers with a damp, soft, clean cloth (without any aggressive cleaning agent).

Disposal

Cardboard box and packaging

You have opted for a durable and technically sophisticated product. In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. However, we recommend that you keep the original cardboard box and the rest of the packaging materials so that the unit can, if necessary, be transported in the safest possible conditions.

The unit

Important: The EU Directive 2002/96/EG governs the proper re-acceptance, handling and recycling of used electronic appliances.

Old electronic appliances must therefore be disposed of separately. Never throw this set in the normal domestic waste. You can hand in your old set free of charge at identified collection points or at your dealer if you buy a similar new set. Other details about re-acceptance (also for non-EU.

Welcome Setting up

For your safety

For your safety and to avoid unnecessary damage to your TV set, please read and observe the following safety instructions:

- Your Individual Sound Universal Speaker loudspeakers are designed exclusively for the reproduction of audio signals.

Protect the loudspeakers from ...

• Water, dampness, dripping or sprayed water or steam
- Knocks and mechanical stresses
• Magnetic and electrical fi elds
• Higher electrical powers than specified
• Cold, heat, direct sunlight and extreme temperature variations
- Dust
• Covering which obstructs air circulation
• Manipulations inside the set

Do not place objects containing liquids on top of the unit.

Candles and other open flames must be kept away from the unit at all times to prevent the spread of fire.

Your Individual Sound Universal Speaker loudspeakers have been designed exclusively for private domestic use. Warranty services cover this use for the intended purpose.

If you have moved the loudspeakers out of the cold into a warm environment, leave them switched off for about an hour to avoid any possible formation of condensation. Use the loudspeakers only when they have acclimatised to room temperature. This avoids seriously damaging the components.

Installing the loudspeakers

Basic information

• Place the loudspeakers on a stable, flat surface or use the optional Loewe wall mountings.
• Lay the speaker cables in such a way that they cannot be damaged.
• The speakers generate magnetic dispersion fields which act in the vicinity of the housing. We recommend a minimum distance of >0.5m from magnetically sensitive equipment such as CRT-TV sets, magnetic data media etc.

Loudspeakers

Use the wall mountings that we can supply as accessories, or position the speakers at the appropriate height on pieces of furniture or shelves.

For the best possible audio experience the loudspeakers should be installed symmetrically with respect to your sitting position - see the pictures on the following page.

If this should not be possible, correct the level of the loudspeakers using the Multiroom Receiver's configuration menu.

Setting up

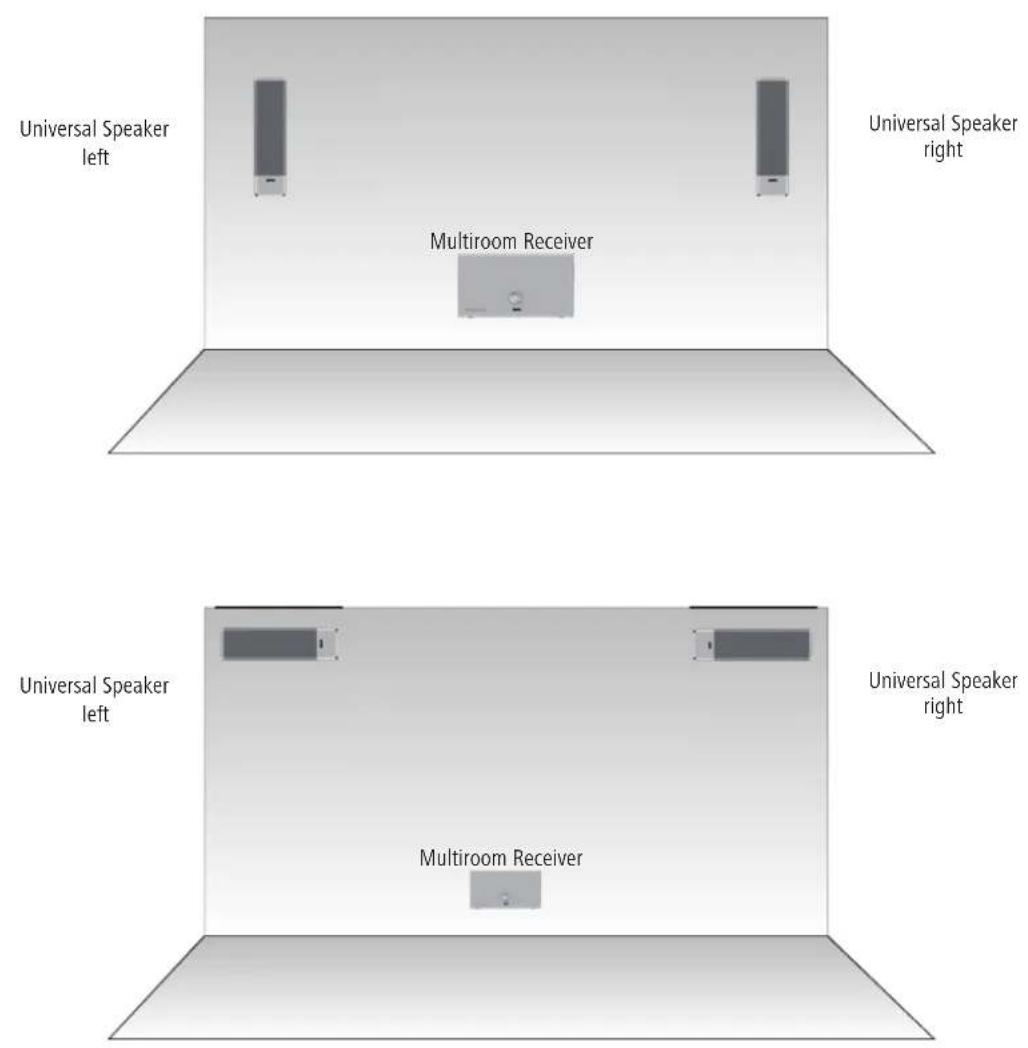

Recommended installation solution

Connection

Wiring of Individual Sound Universal Speaker – Individual Sound Multiroom Receiver

• Please refer to the directions in the assembly instructions.
• Connect the loudspeaker to the amplifier, in this case, for example, the Loewe Multiroom Receiver. When doing this take care that the polarities of the connecting lines are correct.
• On the Universal loudspeaker the positive pole on the terminal screw is marked red; the negative pole on the terminal screw is marked black.
• On the Multiroom Receiver the connection for the right-hand loudspeaker is identified by R+ (red) / R− (black) and that for the left hand loudspeaker by L+ (red) / L− (black).

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

Multiroom Receiver Universal Speaker right Universal Speaker left Mains cable 220-240 V 50 Hz LOFWL LOFWL

Technical Specifications

Universal Speaker

Dimensions in cm (W x D x H) 9 x 9 x 33

Weight in kg 3,4

Principle 2 way d'Appolito arrangement

Fitting 2x broadband 80 mm, paper diaphragm

1x treble, coated fabric calotte, ∅ 30mm

Load capacity 50W (sine) / 85W (max. music)

Impedance 8 Ohm

Transmission range 120 Hz - 22 kHz ± 3dB

Sound pressure 85 dB spl (1w/m)

Masthead

Loewe Opta GmbH is a public limited company of German law with its Head Office in Kronach.

Industriestrasse 11, 96317 Kronach

Telephone: [phone] / 99-0

Fax: [phone] / 99-500

E-mail: [e-mail]

Trade Register: Municipal Court Coburg, No. HRB 42243

All rights reserved including translation.

Design and technical specifications are subject to change without notice.

Bienvenue

Support mural Réf. 68490L00

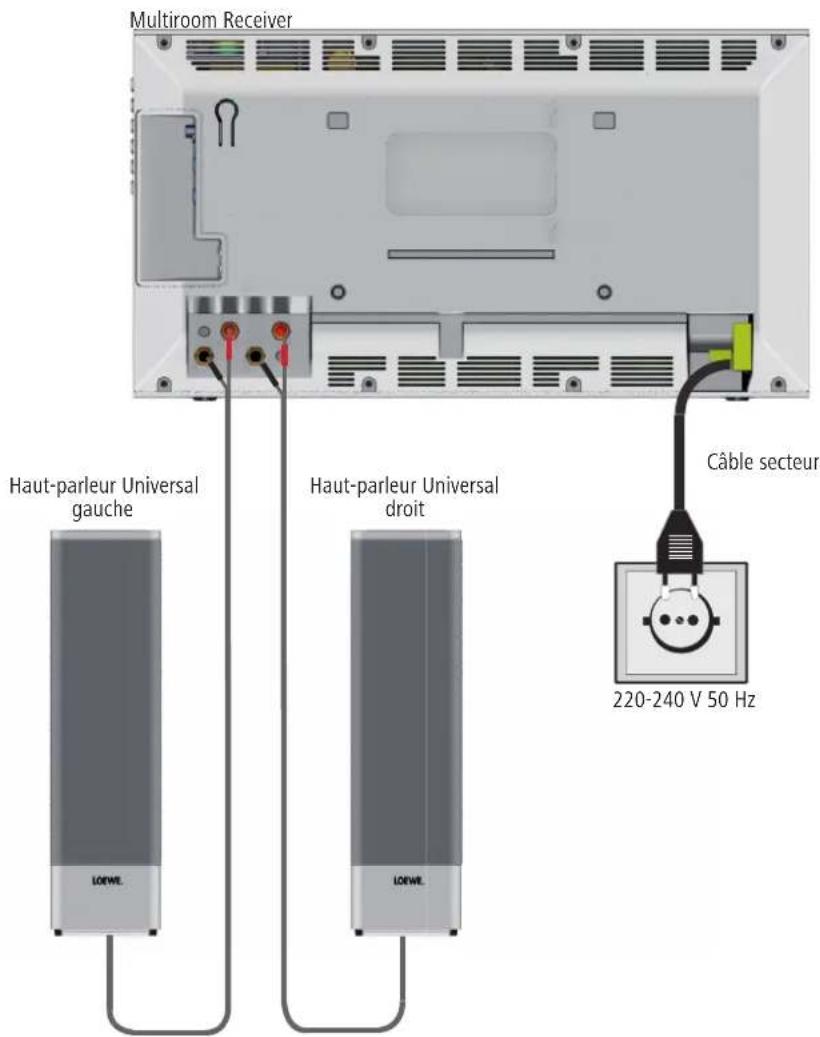

Raccordement Individual Sound Universal Speaker – Individual Sound Multiroom Receiver

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

Plage de transmission 120 Hz - 22 kHz ± 3dB

Cablaggio dell' Individual Sound Universal Speaker – Multiroom Receiver

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

Multiroom Receiver Altoparlante Universal destro Altoparlante Universal sinistro Cavo di rete LOFWL LOFWL 220-240 V 50 Hz

Dati tecnici

Universal Speaker

Dimensioni in cm (largh. x prof. x alt.) 9 x 9 x 33

Peso in kg 3,4

Exterior view of a black rectangular electronic device with a central connector and screw terminals (no visible text or symbols)

Multiroom Receiver Altavoz Universal derecho Altavoz Universal izquierdo Cable de red 220-240 V 50 Hz

Datos técnicos

Universal Speaker

Dimensiones en cm (An x Al x Pr) 9 x 9 x 33

Peso en kg 3,4

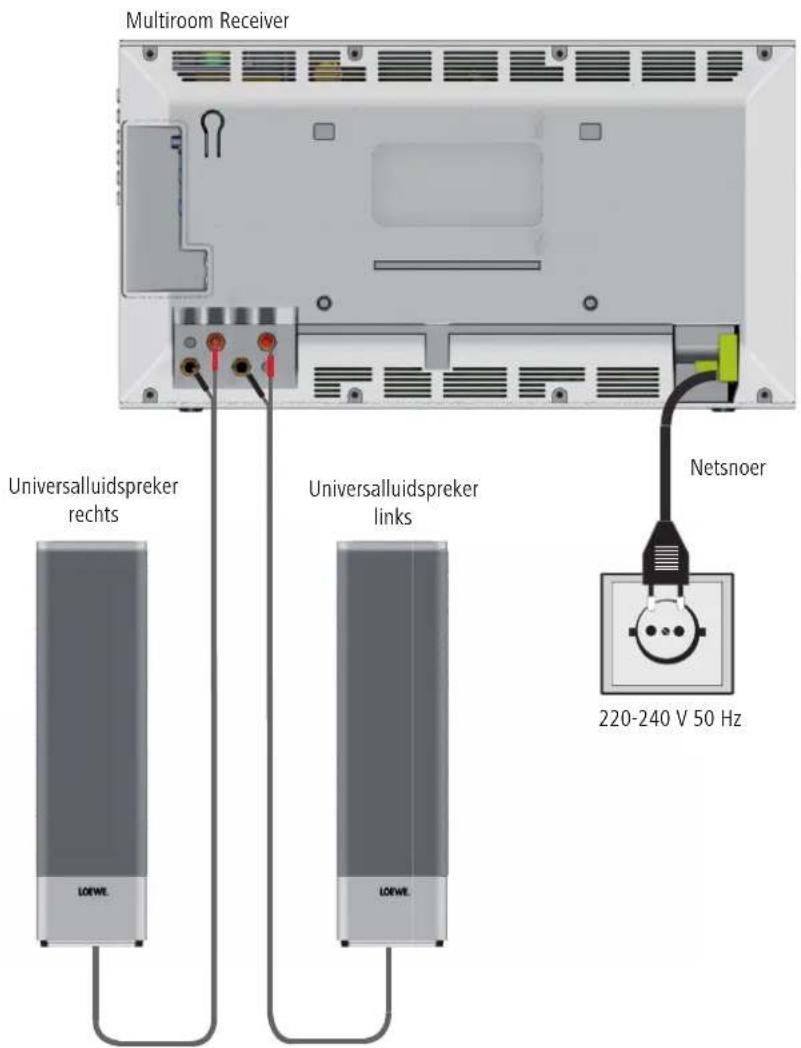

Bekabeling Individual Sound Universal Speaker – Individual Sound Multiroom Receiver

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

Multiroom Receiver Universalluidspreker rechts Universalluidspreker links Netsnoer 220-240 V 50 Hz

Technische gegevens

Universal Speaker

Afmetingen in cm (b x d x h) 9 x 9 x 33

Gewicht in kg 3,4

Principe 2-wegse d'Appolito-opstelling

Uitrusting 2x breedband 80 mm, papieren membraan

1x hogetonen, gecoate textielbolkap, ∅ 30mm

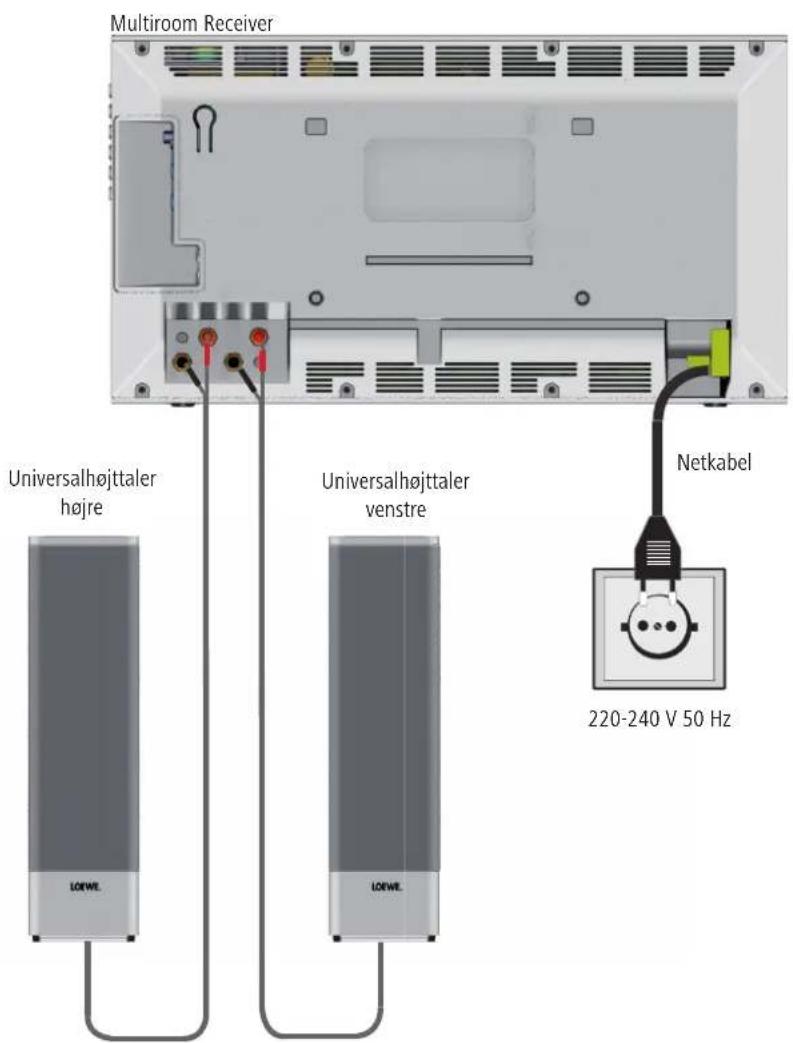

Kabellægning for Individual Sound Universal Speaker – Multiroom Receiver

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)

Kaapelointi Individual Sound Universal Speaker – Multiroom Receiver

Exterior view of a black rectangular electronic device with orange connectors and screw holes (no visible text or symbols)

Multiroom Receiver Universal-kaiutin, oikea Universal-kaiutin, vasen Verkkokaapeli LOFWL LOFWL 220-240 V 50 Hz

Tekniset tiedot

Universal Speaker

Mitat cm (lev. x syv. x kork.) 9 x 9 x 33

Paino kg 3,4

Exterior view of a black rectangular electronic device with a metallic screw and orange buttons (no visible text or symbols)
