USER MANUAL MWG 733 CLATRONIC

D-47906 Kempen/Germany

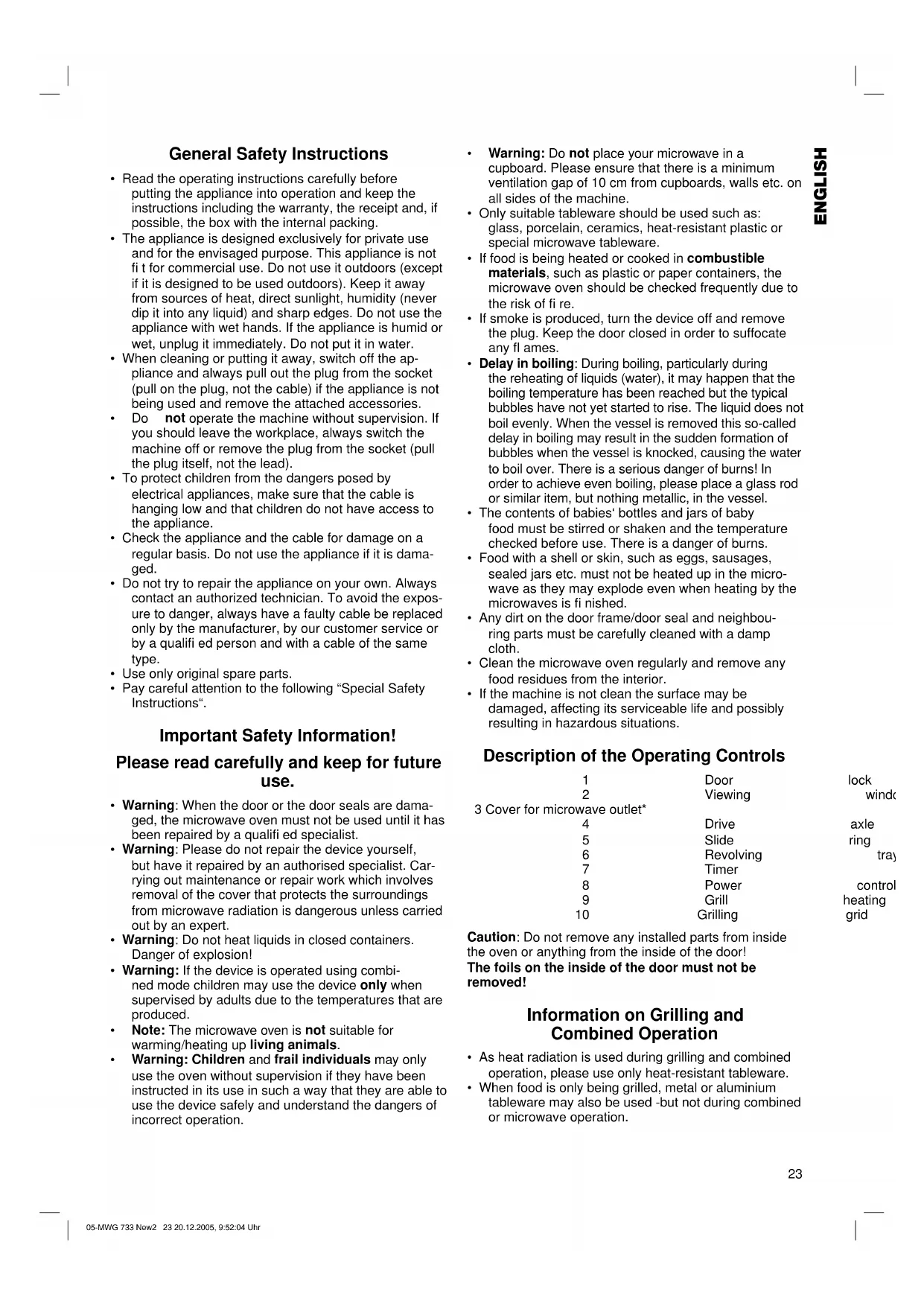

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Important Safety Information! Please read carefully and keep for future use.

• Warning: When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.
• Warning: Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.
• Warning: Do not heat liquids in closed containers. Danger of explosion!
• Warning: If the device is operated using combined mode children may use the device only when supervised by adults due to the temperatures that are produced.
  Note: The microwave oven is not suitable for warming/heating up living animals.

• Warning: Children and frail individuals may only use the oven without supervision if they have been instructed in its use in such a way that they are able to use the device safely and understand the dangers of incorrect operation.

• Warning: Do not place your microwave in a cupboard. Please ensure that there is a minimum ventilation gap of 10cm from cupboards, walls etc. on all sides of the machine.

• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
• If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
• Delay in boiling: During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.
• The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.
• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.

Description of the Operating Controls

1	Door	lock
2	Viewing	windows
3 Cover for microwave outlet*
4	Drive	axle
5	Slide	ring
6	Revolving	tray
7	Timer
8	Power	control
9	Grill	heating
10	Grilling	grid

Caution: Do not remove any installed parts from inside the oven or anything from the inside of the door! The foils on the inside of the door must not be removed!

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware.

• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.

• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.

• Please use the grilling grid to move the food to be cooked nearer to the heating element.

Initial Operation

After removing all the accessories from inside the oven, unpack them and place the sliding ring in the middle. Position the glass plate on the drive axle in such a way that it locks into the dents of the drive shafts and is lying flat.
- Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.
- In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.
- Remove any protective foils that may be adhered to the housing.
- Insert the mains plug into a properly installed 230 V, 50 Hz power socket.
- Do not remove any installed parts from inside the oven or from inside the door!

Using the Device

What you should know about microwave operation:

• Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.
• Only food should be heated up with this device.
  The device is not suitable for baking in floating fat.
  Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficienl.
  In order to interrupt the cooking process, turned the timer to 0^
• Do not heat up any food with a shell or skin, such as eggs, sausages or closed glass jars etc as there is a danger of explosion!
• Microwaves provide their full energy levels immediately. Pre-heating is therefore not necessary.
• Never operate the microwave function when the oven is empty.
• The microwave oven does not replace your traditional cooker. It is used mainly for:
• defrosting deep-frozen food
• rapid warming/heating of food or drinks
• cooking meals
• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic special microwave tableware.
• Please do not use any plastic or paper tableware.

Operation

1. Place the food to be heated in a suitable piece of tableware.

2. Open the door and place the vessel in the middle of the glass plate. Then close the door. (For safety reasons the oven only operates when the door is tightly closed.)

3. Adjust the microwave power as required:

Symbol	Value	Power		Field of Application
		Grill in %	Micro-wave in %*
LOW	Keeping warm	-18	Melting cheese etc.
DEFROST	Defrosting	36		Defrosting frozen - food
MED	Low	-58	Continued cooking
M.HIGH	Medium	-81	Cooking e.g. meat
HIGH	High	-	100	Rapid heating
GRILL	Grill	100	-	Grilling and browning on top
COMB. 1	Grill + microwave	70	30	Defrosting and grilling
COMB. 2	Grill + microwave	51	49	Cooking and browning
COMB. 3	Grill + microwave	33	67	Boiling and gentle browning

• 100% corresponds to 800 W

• Set the required cooking time with the timer. The cooking time depends on the quantity and constituency of the contents of the oven. With a little practice you will soon learn to estimate the cooking time.

Please note: preparation of food in a microwave oven is very much faster than in a conventional cooker. Set the cooking time to a low level if you are not sure and continue cooking again if necessary.

Once the cooking time is set the oven switches itself on. The light inside the oven goes on. If you would like to set times shorter than 3 minutes, turn the button past the 10 minute mark and then back. The timer will then run more accurately.

1. When the time has fi nished the oven switches off automatically. A sound is heard. The food should then be removed.

Please note: A cover should be placed over the food when operating the microwave.

You will find recipe books at specialist bookshops.

Cleaning

• Disconnect the oven from the power supply.
• Clean the inside of the oven after use with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully when dirty with a damp cloth.

Technical Data

Model: MWG 733

Power supply: 230-240 V, 50 Hz

Power consumption:

microwave: 1200

grill: 1000

Rated microwave power output: 800 W

Cavity volume: 20 litres

Protection class:

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

W Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.
