Product type	Combination microwave oven
Brand	Whirlpool
Model	Framtid MWC 6
External dimensions (HxWxD)	455 x 595 x 560 mm
Internal dimensions (HxWxD)	210 x 450 x 420 mm
Weight	Approximately 30 kg (estimate)
Power supply	230 V / 50 Hz
Rated power	2800 W
Microwave power	900 W (JET)
Recommended fuse	16 A (RU 13 A)
Main functions	Microwave, Grill, Turbo Grill, Hot air, Hot air combined, Automatic defrost, Automatic cooking, Automatic reheating, Timer, Clock
Microwave power levels	90 W, 160 W, 350 W, 500 W, 650 W, 750 W, 900 W
Included accessories	Glass turntable, Turntable support, Metal rack, Baking tray, Bottle holder
Child safety	Automatic lock after 1 minute in standby (open/close door to unlock)
Maintenance and cleaning	Clean with a soft sponge and mild detergent; do not use abrasive pads; for odors, boil water with lemon
General information	Manual available in several languages; after-sales service by specialized technician; recycling according to WEEE directive

Frequently Asked Questions - Framtid MWC 6 WHIRLPOOL

How to set the clock on the Whirlpool Framtid MWC 6 microwave oven?

Set the multifunction knob to zero, press the Select key for 3 seconds until the hours flash. Turn the adjustment knob to set the hour, press Select again, set the minutes, then press Select to confirm. Keep the door open during adjustment to have 10 minutes.

How to use the automatic defrost function?

Set the knob to Auto, press Auto to select the desired function, turn the knob to choose the food class (meat, poultry, fish, vegetables, bread), press Select to confirm the default weight, then turn to adjust the weight. Press Start. Halfway through, the oven stops and displays 'TURN FOOD': turn the food and restart.

What utensils can I use in this microwave oven?

Use heat-resistant and microwave-safe utensils. Avoid metal unless specified (metal rack for grill). Never place metal utensils in contact with the walls. The glass turntable is mandatory for all microwave cooking.

How to clean the inside of the oven?

Use a mild detergent, water and a soft cloth. For stubborn dirt, boil a cup of water for 2-3 minutes. Never use metal scouring pads or abrasive cleaners. To remove odors, boil water with two lemon slices.

What to do if the oven does not turn on?

Check that the plug is connected, the door is properly closed, the fuses are in good condition. Make sure the turntable and its support are in place. Wait 10 minutes and try again. Open and close the door before trying again. If the problem persists, contact after-sales service.

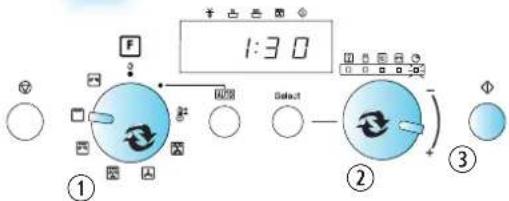

How to use the Grill function?

Set the knob to Grill, turn the adjustment knob to set the cooking time, then press Start. Use the metal rack over the baking tray. Do not leave the door open for long. Plastic utensils are not suitable.

Can I make popcorn in this oven?

Yes, use the Auto Cook function. Set the knob to Auto, press Auto to select 'Popcorn' (class 5), set the weight between 90 and 100 g, then press Start. Only put one bag at a time.

How to adjust the cooking degree?

With the Auto Reheat, Auto Cook or Auto Hot Air Combined functions, you can adjust the cooking degree during the first 20 seconds after pressing Start. Turn the adjustment knob to select H2 (hotter), H1, Lo1 or Lo2 (less hot).

What is the maximum microwave power in combined mode?

In Grill Combi and Turbo Grill modes, the microwave power is limited to a factory pre-set level. For Hot Air Combined, available levels are 350 W, 160 W and 90 W.

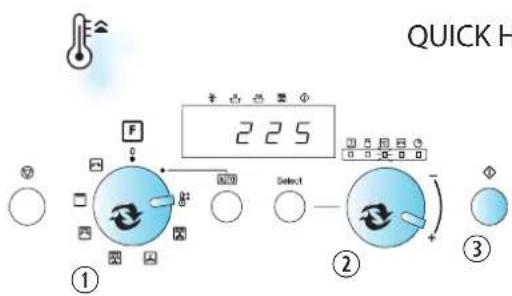

How to use the rapid preheat function?

Set the knob to 'Rapid Preheat', turn to set the temperature (e.g. 225°C), then press Start. The oven heats empty. The digits flash until the temperature is reached. Then the oven holds the temperature for 10 minutes before turning off to allow you to put in the food and switch to hot air.

USER MANUAL Framtid MWC 6 WHIRLPOOL

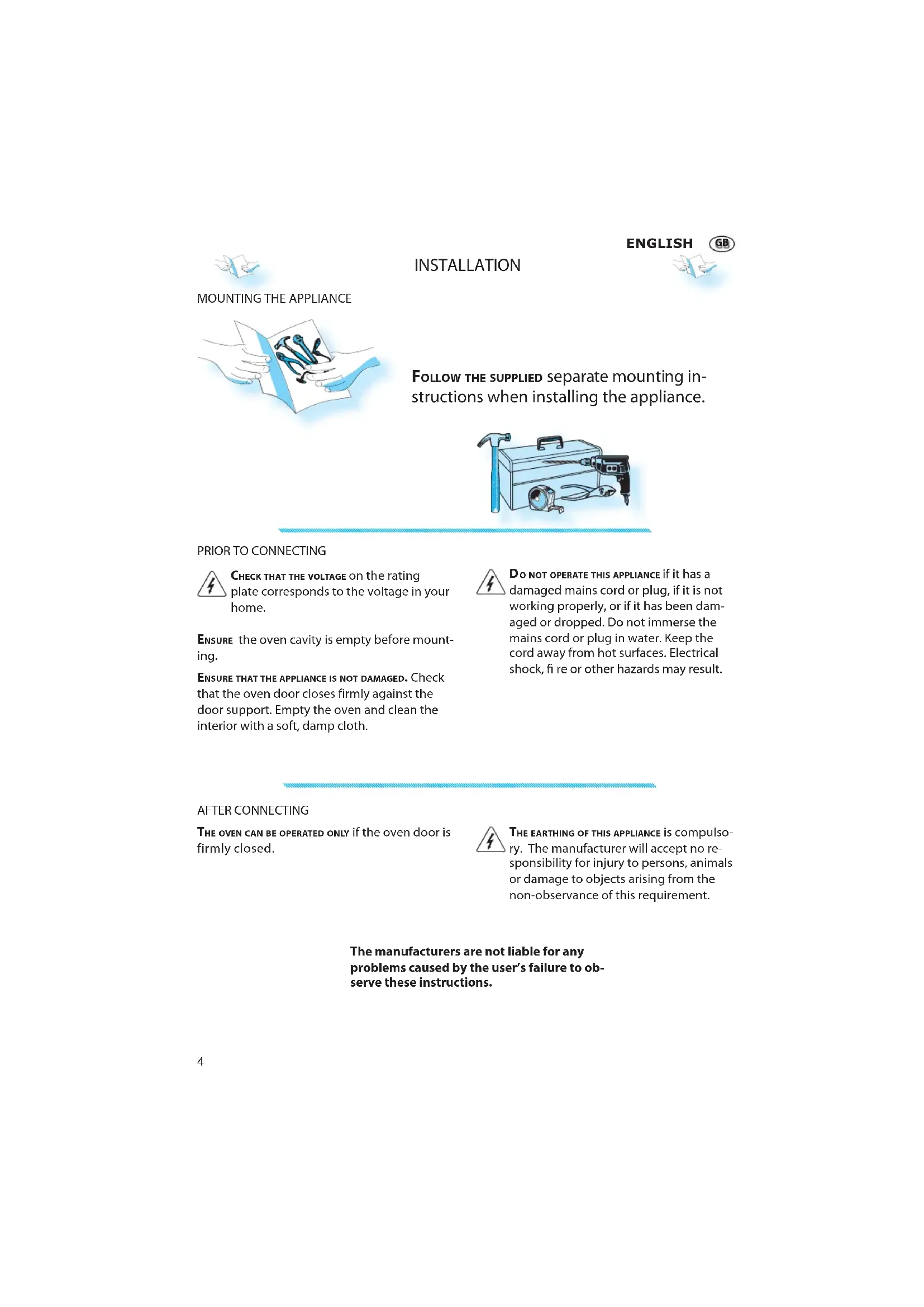

MOUNTING THE APPLIANCE

Illustration of two hands holding a document with abstract blue shapes (no text or symbols)

FOLLOW THE SUPPLIED separate mounting instructions when installing the appliance.

Illustration of a toolbox with a hammer, a drill bit, and a tool (no text or symbols)

PRIOR TO CONNECTING

CHECK THAT THE VOLTAGE on the rating plate corresponds to the voltage in your home.

ENSURE the oven cavity is empty before mounting.

ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check that the oven door closes firmly against the door support. Empty the oven and clean the interior with a soft, damp cloth.

Do NOT OPERATE THIS APPLIANCE if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces. Electrical shock, fire or other hazards may result.

AFTER CONNECTING

THE OVEN CAN BE OPERATED ONLY if the oven door is firmly closed.

THE EARTHING OF THIS APPLIANCE is compulsory. The manufacturer will accept no responsibility for injury to persons, animals or damage to objects arising from the non-observance of this requirement.

The manufacturers are not liable for any problems caused by the user's failure to observe these instructions.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Do NOT HEAT, OR USE FLAMMABLE MATERIALS in or near the oven. Fumes can create a fire hazard or explosion.

ONLY ALLOW CHILDREN to use the appliance under adult supervision and after adequate instructions have been given, so that the child is able to use the appliance in a safe way and understands the hazards of improper use.

Do NOT USE YOUR MICROWAVE oven for drying textiles, paper, spices, herbs, wood, flowers, fruit or other combustible materials. Fire could result.

THIS APPLIANCE IS NOT INTENDED FOR USE by persons (including children) with reduced physical, sensory or mental capabilities, unless used under the supervision of a person responsible for their safety.

IF MATERIAL INSIDE / OUTSIDE THE OVEN SHOULD IGNITE OR SMOKE IS OBSERVED, keep oven door closed and turn the oven off. Disconnect the power cord or shut off power at the fuse or circuit breaker panel.

ACCESSIBLE PARTS MAY BECOME HOT during use, young children should be kept away

Do NOT OVER-COOK FOOD. Fire could result.

DO NOT USE YOUR MICROWAVE oven for heating anything in airtight sealed containers. The pressure increases and may cause damage when opening or may explode.

Do not leave the oven unattended, especially when using paper, plastic or other combustible materials in the cooking process. Paper can char or burn and some plastics can melt if used when heating foods.

THE DOOR SEALS AND THE DOOR SEAL AREAS must be regularly inspected for damage. If these areas are damaged the appliance should not be operated until it has been repaired by a trained service technician.

Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use.

EGGS

DO NOT USE YOUR MICROWAVE oven for cooking or reheating whole eggs with or without shell since they may explode even after microwave heating has ended.

PRECAUTIONS

GENERAL

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!

THE APPLIANCE SHOULD NOT BE OPERATED without food in the oven when using microwaves. Operation in this manner is likely to damage the appliance.

IF YOU PRACTICE OPERATING the oven, put a glass of water inside. The water will absorb the microwave energy and the oven will not be damaged.

Do not use the cavity for any storage purposes.

REMOVE WIRE TWIST-TIES from paper or plastic bags before placing bag in the oven.

DEEP-FRYING

Do not use your microwave oven for deep-frying, because the oil temperature cannot be controlled.

USE HOT PADS OR OVEN MITTS to prevent burns, when touching containers, oven parts, and pan after cooking.

LIQUIDS

E.G. BEVERAGES OR WATER. Overheating the liquid beyond boiling point can occur without evidence of bubbling.

This could result in a sudden boil over of the hot liquid.

To prevent this possibility the following steps should be take

1. Avoid using straight-sided containers with narrow necks.

2. Stir the liquid before placing the container in the oven and let the teaspoon remain in the container.

3. After heating, allow standing for a short time, stirring again before carefully removing the container from the oven.

CAREFUL

ALWAYS REFER to a microwave cookbook for details. Especially, if cooking or reheating food that contains alcohol.

AFTER HEATING BABY FOOD or liquids in a baby bottle or in a baby food jar, always stir and check the temperature before serving.

This will ensure that the heat is evenly distributed and the risk of scalding or burns can be avoided.

Ensure the Lid and the Teat is removed before heating!

ACCESSORIES

GENERAL

THERE ARE a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use.

ENSURE THAT THE UTENSILS YOU USE are oven proof and allow microwaves to pass through them before cooking.

WHEN YOU PUT FOOD AND ACCESSORIES in the microwave oven, ensure that they do not come in contact with the interior of the oven.

This is especially important with accessories made of metal or metal parts.

IF ACCESSORIES CONTAINING METAL comes in contact with the oven interior, while the oven is in operation, sparking can occur and the oven could be damaged.

ALWAYS ENSURE that the turntable is able to turn freely before starting the oven.

TURNTABLE SUPPORT

USE THE TURNTABLE SUPPORT under the Glass turntable. Never put any other utensils on the turntable support.

Fit the turntable support in the oven.

GLASS TURNTABLE

USE THE GLASS TURNTABLE with all cooking methods. It collects the dripping juices and food particles that otherwise would stain and soil the interior of the oven.

- Place the Glass turntable on the turntable support.

BAKING PLATE

USE THE BAKINGPLATE when cooking in forced air only or when grilling. Never use

it in combination with microwaves.

WIRE RACK

USE THE WIRE RACK when cooking and baking with Forced Air, Grill, Forced Air Combi, Auto Forced Air Combi or Turbo Grill

WHEN GRILLING WITHOUT MICRO-

WAVES, place the wire rack on the baking plate in order to elevate the food closer to the grill element in the ceiling.

BABY BOTTLE HOLDER

USE THE BABY BOTTLE HOLD-ER when heating baby food in bottles that are too tall to stand-alone in the oven.

Please see also, the chapter "Precautions", for more information about heating baby food.

START PROTECTION / CHILD LOCK

THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE

MINUTE AFTER the oven has returned to "stand by mode". (The oven is in "stand by" when the 24-hour clock is displayed or if the clock has not been set, when the display is blank).

THE DOOR MUST BE OPENED AND CLOSED e.g. putting food into it, before the safety lock is released. Else the display will show "DOOR".

PAUSE OR STOP COOKING

To pause cooking:

THE COOKING CAN BE PAUSED to check, turn or stir the food by opening the door. The setting will be maintained for 10 minutes.

IF YOU DON'T WANT TO CONTINUE COOKING:

REMOVE THE FOOD, close the door and press the STOP button

To continue cooking:

CLOSE THE DOOR and press the Start button ONCE. The cooking is resumed from where it was paused.

PRESSING THE START BUTTON TWICE will increase the time by 30 seconds.

A BEEP WILL SIGNAL once a minute for 10 min-

utes when the cooking is fin- ished. Press the STOP but- ton or open the door to can- cel the signal.

NOTE: The oven will only hold the settings for 60 seconds if the door is opened and then closed after the cooking is finished.

DONENESS

DONENESS IS AVAILABLE IN THE FOLLOWING FUNCTIONS:

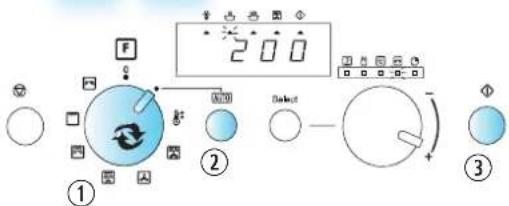

AUTO REHEAT

Auto Cook

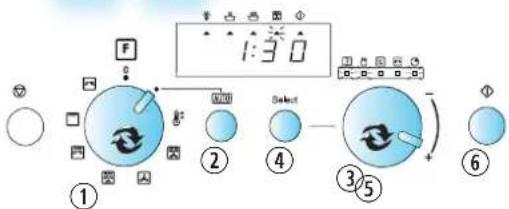

AUTO FORCED AIR COMBI

IN THE ABOVE functions, you have the possibility to personally control the end result through the Adjust doneness feature. This feature enables you to achieve higher or lower end temperature compared to the default standard setting.

DONENESS
LEVEL EFFECT
H,2	YIELDS HIGHEST END TEMPERATURE
H,1	YIELDS HIGHER END TEMPERATURE
----	DEFAULT STANDARD SETTING
Lo1	YIELDS LOWER END TEMPERATURE
Lo2	YIELDS LOWEST END TEMPERATURE

WHEN USING one of these functions the oven chooses the default standard setting. This setting normally gives you the best result. But if the food you heated became too warm to eat at once, you can easily adjust this before you use that function the next time. This is done by selecting a Doneness level with the adjust knob right after you have pressed the Start button.

Note:

THE DONENESS can only be set or altered during the first 20 seconds of operation.

COOLING DOWN

WHEN A FUNCTION IS FINISHED, the oven carries out a cooling procedure. This is normal.

After this procedure the oven switches off automatically.

THE COOLING PROCEDURE can be interrupted without any harm to the oven by opening the door.

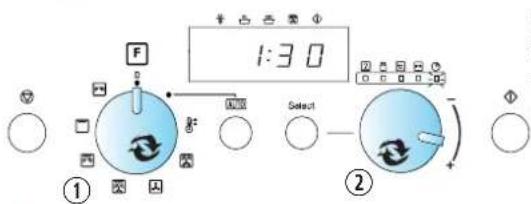

KITCHEN TIMER

1:30 F Select ① ②

USE THIS FUNCTION when you need a kitchen timer to measure exact time for various purposes such as cooking eggs or letting the dough rise before baking etc.

1 TURN THE MULTIFUNCTION KNOB to the zero position.

2 TURN THE ADJUST KNOB to set the time to measure. THE TIMER AUTOMATICALLY STARTS the countdown after 1 second. AN ACOUSTIC SIGNAL will be heard when the timer has finished to count down.

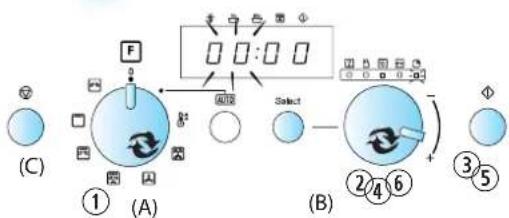

CLOCK

WHEN THE APPLIANCE IS FIRST PLUGGED IN or after a power failure, the display is blank. If the clock is not set, the display will remain blank until the cooking time is set.

1 (A). TURN THE MULTIFUNCTION KNOB to the zero position.

2 (B). PRESS THE SELECT BUTTON (3 seconds) until the left-hand digit (hour's) flicker.

3 TURN THE ADJUST KNOB to set the hours.

4 PRESS THE SELECT BUTTON again. (The two right hand digits (minutes) flicker).

5 TURN THE ADJUST KNOB to set the minutes.

6 PRESS THE SELECT BUTTON again.

THE CLOCK IS SET and in operation.

IF YOU WISH TO REMOVE THE CLOCK from the display once it has been set, simply press the Select button again for 3 seconds and then press the Stop button (c).

To REINSTATE THE CLOCK, follow the above procedure.

NOTE: KEEP THE DOOR OPEN WHILE SETTING THE CLOCK. This gives you 10 minutes to complete the setting of the Clock. Otherwise, each step must be accomplished within 60 seconds.

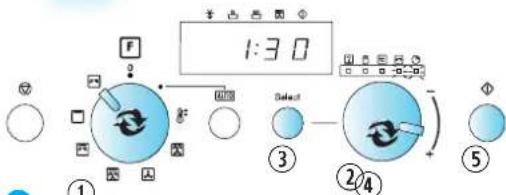

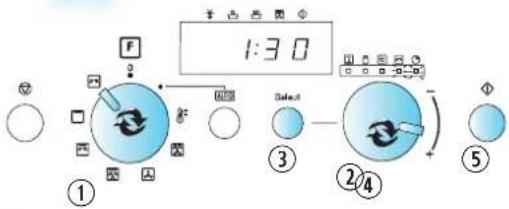

COOK & REHEAT WITH MICROWAVES

1:30 ① ③ ② ④ ⑤

USE THIS FUNCTION for normal cooking and reheating, such as vegetables, fish, potatoes and meat.

1 TURN THE MULTIFUNCTION KNOB to the microwave position.
2 TURN THE ADJUST KNOB to set the cooking time.
3 PRESS THE SELECT BUTTON to select power level.
4 TURN THE ADJUST KNOB to set the preferred power level.
5 PRESS THE START BUTTON.

ONCE THE COOKING PROCESS HAS BEEN STARTED:

The time can easily be increased in 30-second steps by pressing the Start button. Each press increases the time with 30 seconds. You may also alter the time by turning the adjust knob to increase or decrease the time.

By PRESSING THE SELECT BUTTON you may switch between cooking time and power level. Both can be altered during cooking by turning the adjust knob after selection.

CHOOSING POWER LEVEL

MICROWAVES ONLY
POWER	SUGGESTED USE:
JET(900 W)	REHEATING OF BEVERAGES, water, clear soups, coffee, tea or other food with a high water content. If the food contains egg or cream choose a lower power.
750 W C	OOKING OF fish, meat, vegetables etc.
650 W C	OOKING dishes not possible to stir.
500 W	MORE CAREFUL COOKING e.g. high protein sauces, cheese and egg dishes and to finish cooking casseroles.
350 W S	IMMERING STEWS, melting butter.
160 W D	EFROSTING. Softening butter, cheeses.
90 W KEEP	WARM
0 W SETTING	the standing time.

JET START

30 ① ②

THIS FUNCTION IS USED for quick reheating of food with a high water content such as clear soups, coffee or tea.

1 TURN THE MULTIFUNCTION KNOB to the microwave position.
2 PRESS THE START BUTTON.

THIS FUNCTION AUTOMATICALLY STARTS with maximum microwave power level and the cooking time set to 30 seconds. Each additional press increases the time with 30 seconds. You may also alter the time by turning the adjust knob to increase or decrease the time after the function has started.

MANUAL DEFROST

FOLLOW THE PROCEDURE for "cook & reheat with microwaves" and choose power level 160 W when defrosting manually.

CHECK AND INSPECT THE FOOD REGULARLY. Experience will give you the times needed for various amounts.

FROZEN FOOD IN PLASTIC BAGS, plastic films or cardboard packages can be placed directly in the oven as long as the package has no metal parts (e.g. metal twist ties).

THE SHAPE OF THE PACKAGE alters the defrosting time. Shallow packets defrost more quickly than a deep block.

SEPARATE PIECES as they begin to defrost. Individual slices defrost more easily.

SHIELD AREAS OF FOOD with small pieces of aluminum foil if they start to become warm (e.g. chicken legs and wing tips).

TURN LARGE JOINTS halfway through the defrost- ing process.

BOILED FOOD, STEWS AND MEAT SAUCES defrost better if stirred during defrosting time.

WHEN DEFROSTING it is better to under-thaw the food slightly and allow the process to finish during standing time.

STANDING TIME AFTER DEFROSTING ALWAYS IMPROVES

the result since the temperature will then be evenly distributed throughout the food.

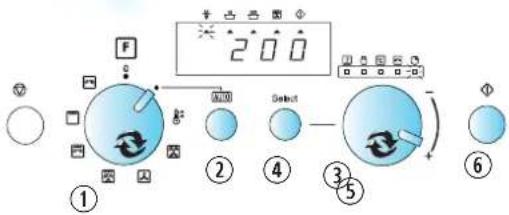

JET DEFROST

USE THIS FUNCTION only if the net weight is between 100 g-3 Kg.

ALWAYS PLACE THE FOOD on the glass turntable.

1 TURN THE MULTIFUNCTION KNOB to the Auto position.
2 PRESS THE AUTO BUTTON to select the desired auto function.
3 TURN THE ADJUST KNOB to choose desired food class.
4 PRESS THE SELECT BUTTON (DEFAULT WEIGHT IS DISPLAYED).
5 TURN THE ADJUST KNOB to set the weight of the food.
6 PRESS THE START BUTTON.

MIDWAY THROUGH THE DEFROSTING PROCESS the oven stops and prompts you to TURN FOOD.

\~:Open the door.
Turn the food.

Close the door and restart by pressing the Start button.

NOTE: The oven continues automatically after 2 min. if the food hasn't been turned. The defrosting time will be longer in this case.

JET DEFROST

THIS FUNCTION NEEDS TO KNOW the net weight of the food.

FROZEN FOODS:

IF THE WEIGHT IS LESSER OR GREATER THAN RECOMMENDED WEIGHT: Follow the procedure for "Cook & Reheat with microwaves" and choose 160 W when defrosting.

FROZEN FOODS:

IF THE FOOD IS WARMER than deep-freeze temperature (-18°C), choose lower weight of the food. IF THE FOOD IS COLDER than deep-freeze temperature (-18°C), choose higher weight of the food.

FOOD AMOUNT HINTS
	1 MEAT	100g - 2Kg	Minced meat, cutlets, steaks or roasts.
	2 POULTRY	100g - 3Kg	Chicken whole, pieces or fillets.
KKAA	3 FISH	100g - 2Kg	Whole, steaks or fillets.
	4 VEGETABLES	100g - 2Kg Mixed vegetables, peas, broccoli etc.
	5 BREAD	100g - 2Kg Loaf, buns or rolls.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight,you should follow the procedure for “Cook and reheat with microwaves” and choose 160 W when defrosting.

GRILL

1:30 ① ② ③

USE THIS FUNCTION TO quickly give a pleasant brown surface to the food.

FOR FOOD LIKE CHEESE, TOAST, STEAKS AND SAUSAGES, place the wire grid on top of the baking plate.

1 TURN THE MULTIFUNCTION KNOB to the grill position.

2 TURN THE ADJUST KNOB to set the cooking time.

3 PRESS THE START BUTTON.

DO NOT LEAVE THE OVEN DOOR OPEN for long periods when the Grill is in operation, as this will cause a drop in temperature.

i ENSURE THAT THE UTENSILS used are heat resistant and ovenproof before grilling with them.

Do not use PLASTIC utensils when grilling. They will melt. Items of wood or paper are not suitable either.

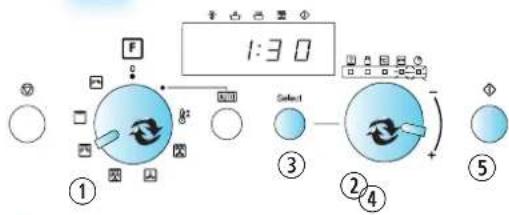

GRILL COMBI

1:30 ① ③ ② ④ ⑤

USE THIS FUNCTION TO quickly give a pleasant brown surface to the food at the same time as the food is cooked by the microwaves.

1 TURN THE MULTIFUNCTION KNOB to the Grill Combi position.

2 TURN THE ADJUST KNOB to set the power level.

3 PRESS THE SELECT BUTTON to select cooking time.

4 TURN THE ADJUST KNOB to set the cooking time.

5 PRESS THE START BUTTON.

i ENSURE THAT THE UTENSILS used are heat resistant and ovenproof before grilling with them.

Do NOT USE PLASTIC utensils when grilling. They will melt. Items of wood or paper are not suitable either.

THE MAX. POSSIBLE MICROWAVE POWER LEVEL when using the Grill is limited to a factory-preset level.

USE THE WIRE RACK to put food on to allow the air to circulate properly around the food.

CHOOSING POWER LEVEL

GRILL COMBI
POWER	SUGGESTED USE:
650 W C	OOKING Vegetables & Gratins
350 - 500 W C	OOKING Poultry & Lasagne
160 - 350 W C	OOKING Fish & frozen gratins
160 W C	OOKING Meat
90 W G	RATINATING fruit

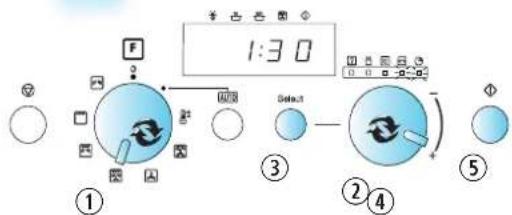

TURBO GRILL COMBI

1:30 ① ③ ② ④ ⑤

USE THIS FUNCTION TO cook such food as Gratin's, Lasagne, Poultry and Baked potatoes. PLACE FOOD ON THE WIRE RACK or on the glass turntable when cooking with this function.

1 TURN THE MULTIFUNCTION KNOB to the Turbo Grill position.
2 TURN THE ADJUST KNOB to set the power level.
3 PRESS THE SELECT BUTTON to select cooking time.
4 TURN THE ADJUST KNOB to set the cooking time.
5 PRESS THE START BUTTON.

THE MAX. POSSIBLE MICROWAVE POWER LEVEL when using the Grill is limited to a factory-preset level.

CHOOSING POWER LEVEL

TURBOGRILL COMBI
POWER	SUGGESTED USE:
650 W C	OOKING Vegetables & Gratins
350 - 500 W	C OOKING Poultry & Lasagne
160 - 350 W	C OOKING Fish & frozen gratins
160 W C	OOKING Meat
90 W G	RATINATING fruit
0 W B	ROWNING only during cooking

QUICK H 225 ① ② ③

USE THIS FUNCTION to preheat the empty oven. Do NOT PLACE FOOD before or during preheating in the oven. It will be burned from the intense heat.

1 TURN THE MULTIFUNCTION KNOB to the Quick heat position.
2 TURN THE ADJUST KNOB to set the temperature.
3 PRESS THE START BUTTON.

i DURING THE HEATING PROCESS the digits flicker and PRE-HEAT is displayed at intervals until the set temperature is reached.

ONCE THE HEATING PROCESS has been started the temperature can easily be adjusted by turning the multifunction knob.

THE OVEN THEN KEEPS the set temperature for 10 minutes before switching off. During this time, it is waiting for you to, insert food and choose a Forced Air function to begin cooking.

PREHEATING is always done with the oven empty.

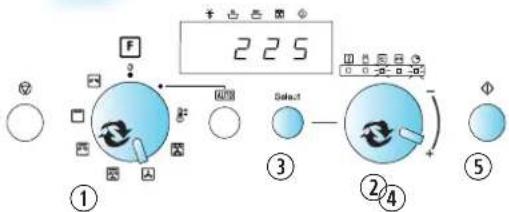

FORCED AIR

225 ① ③ ② ⑤

USE THIS FUNCTION to cook meringues, pastry, sponge cakes, soufflés, poultry and roast meats.

1 TURN THE MULTIFUNCTION KNOB to the Forced Air position.
2 TURN THE ADJUST KNOB to set the temperature.
3 PRESS THE SELECT BUTTON to select cooking time.
4 TURN THE ADJUST KNOB to set the cooking time.
5 PRESS THE START BUTTON.

THE DEFAULT SETTING when selecting Forced Air is 175°C

USE THE WIRE RACK to put food on to allow the air to circulate properly around the food.

USE THE BAKING PLATE when baking small items like cookies or rolls.

DURING THE HEATING PROCESS the digits flicker until the set temperature is reached.

ONCE THE HEATING PROCESS HAS BEEN STARTED THE TEMPERATURE CAN EASILY BE ADJUSTED BY TURNING THE ADJUST KNOB.

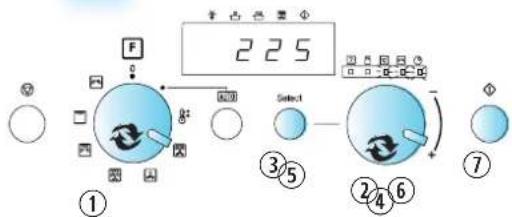

FORCED AIR COMBI

225 ① ③/5 ②/4 ⑥ ⑦

USE THIS FUNCTION to cook roast meats, poultry, and jacket potatoes, frozen convenience foods, sponge cakes, pastry, fish and puddings.

1 TURN THE MULTIFUNCTION KNOB to the Forced Air Combi position.
2 TURN THE ADJUST KNOB to set the temperature.
3 PRESS THE SELECT BUTTON to select microwave power.
4 TURN THE ADJUST KNOB to set the power level.
5 PRESS THE SELECT BUTTON to select cooking time.
6 TURN THE ADJUST KNOB to set the cooking time.
7 PRESS THE START BUTTON.

USE THE WIRE RACK to put food on to allow the air to circulate properly around the food.

DURING THE HEATING PROCESS the digits flicker until the set temperature is reached.

ONCE THE HEATING PROCESS HAS BEEN STARTED the temperature can easily be adjusted by turning the Adjust knob. Also the microwave power level is possible to change. The Max. possible microwave power level when using the Forced air is limited to a factory-preset level.

CHOOSING POWER LEVEL

FORCED AIR COMBI
POWER	SUGGESTED USE:
350 W C	OOKING Poultry, Fish & Gratins
160 W C	OOKING Roasts
90 W B	AKING Bread & Cakes

AUTO REHEAT

USE THIS FUNCTION when reheating ready-made food either frozen or chilled.

PLACE FOOD onto a microwave-safe heat proof dinner plate or dish.

1 TURN THE MULTIFUNCTION KNOB to the Auto position.
2 PRESS THE AUTO BUTTON to select the desired auto function.
3 PRESS THE START BUTTON.

MIDWAY THRU THE COOKING PROCESS the oven stops and prompts you to Stir Food.

Open the door.

\~: Stir or turn the food.

Close the door and restart by pressing the Start button.

NOTE: THE OVEN CONTINUES AUTOMATICALLY AFTER 2 MIN if the food hasn't been turned / stirred.

WHEN YOU ARE SAVING a meal in the refrigerator or "plating" a meal for reheating, arrange the

thicker, denser food to the outside of the plate and the thinner or less dense food in the middle.

PLACE THIN SLICES of meat on top of each other or interlace them.

THICKER SLICES such as meat loaf and sausages have to be placed close to each other.

1-2 MINUTES STANDING TIME ALWAYS IMPROVES the result, especially for frozen food.

PLASTIC FOIL should be scored or pricked with a fork, to relieve the pressure and to prevent bursting, as steam builds-up during cooking.

AUTO REHEAT

FOOD HINTS
	1DINNER PLATE(250g - 600g)	PREPARE FOODin line with recommendations above. Heat under cover.
	2SOUP(200g - 800g)	REHEAT UNCOVEREDin separate bowls or in a large one.
	3FROZEN PORTION(250g - 600g)	FOLLOW THE DIRECTIONS ON PACKAGE, IE. ventilation, pricking and so on.
	4MILK(100g - 500 g)	HEAT UNCOVEREDand use a metal spoon in a mug or cup.
	5CASSEROLE(200g - 800g)	REHEAT UNDER COVER.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight, you should follow the procedure for “Cook & Reheat with microwaves”.

AUTO

[Non-Text]

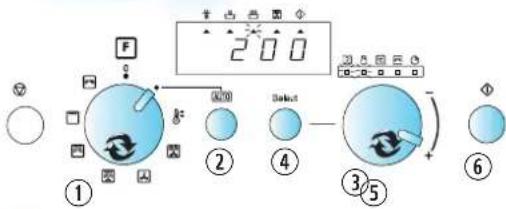

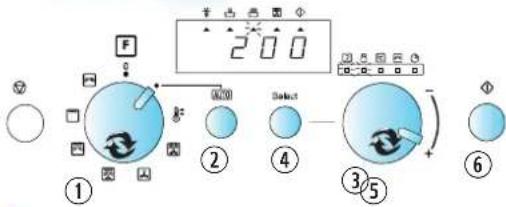

AUTO COOK

AUTO

[Non-Text]

USE THIS FUNCTION FOR cooking ONLY. Auto Cook can only be used for food belonging to the categories listed in the table.

PLACE FOOD onto a microwave-safe heat proof dinner plate or dish.

1 TURN THE MULTIFUNCTION KNOB to the Auto position.
2 PRESS THE AUTO BUTTON to select the desired auto function.
3 TURN THE ADJUST KNOB to choose desired food class.
4 PRESS THE SELECT BUTTON (default weight is displayed).
5 TURN THE ADJUST KNOB to set the weight of the food.
6 PRESS THE START BUTTON.

MIDWAY THRU THE COOKING PROCESS the oven stops and prompts you to STIR FOOD or TURN FOOD.

:Open the door.
: Stir or turn the food.

Close the door and restart by pressing the Start button.

NOTE: THE OVEN CONTINUES AUTOMATICALLY AFTER 2 MIN if the food hasn't been turned / stirred.

WHEN YOU ARE SAVING a meal in the refrigerator or "plating" a meal for reheating, arrange the

thicker, denser food to the outside of the plate and the thinner or less dense food in the middle.

ALWAYS USE A COVER with this function except when reheating chilled soups in which case the cover is not needed! If the food is pack-

aged in such way that it isn't possible to use a cover, the package should be cut with 2-3 score to allow for excess pressure to escape during reheating.

PLACE THIN SLICES of meat on top of each other or interlace them.

THICKER SLICES such as meat loaf and sausages have to be placed close to each other.

1-2 MINUTES STANDING TIME ALWAYS IMPROVES the result, especially for frozen food.

PLASTIC FOIL should be scored or pricked with a fork, to relieve the pressure and to prevent bursting, as steam builds-up during cooking.

AUTO COOK

FOOD AMOUNT HINTS
	1 BAKED POTATOES	200g - 1Kg	PRICK THE POTATOES and place them in a microwave safe and oven proof dish. Turn the potatoes when the oven beeps. Please be aware that the oven, dish and food are hot.
	2 FRESH VEGETABLES	200g - 800g	CUT VEGETABLES into even size pieces. Add 2-4 table spoons water and cover. Stir when oven beeps.
	3 FROZEN VEGETABLES	200g - 800g	COOK UNDER COVER. Stir when oven beeps.
	4 CANNED VEGETABLES	200g - 600g	POUR AWAY most of the liquid and cook in a microwave safe dish with cover.
	5 POPCORN	90g - 100g	ONLY COOK ONE BAG at the time. If more popcorn is needed, cook the bags one after another.
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight, you should follow the procedure for "Cook & Reheat with microwaves".

AUTO FORCED AIR COMBI

USE THIS FUNCTION for cooking from raw or frozen.

1 TURN THE MULTIFUNCTION KNOB to the Auto position.
2 PRESS THE AUTO BUTTON to select the desired auto function.
3 TURN THE ADJUST KNOB to choose desired food class.
4 PRESS THE SELECT BUTTON (DEFAULT WEIGHT IS DISPLAYED).
5 TURN THE ADJUST KNOB to set the weight of the food.
6 PRESS THE START BUTTON.

FOR CHICKEN AND LASAGNE; ensure that the dish you use, is oven proof and allow microwaves to pass through it before cooking. Else, you may obtain a poor end result.

ALWAYS USE the baking plate when making cookies and canned or frozen rolls.

GREASE THE BAKING PLATE lightly or cover it with baking paper.

DURING USE OF THE PROGRAMS for cookies and canned or frozen rolls the oven needs to pre-heat before you can put food in it. When the correct temperature is reached, the oven will prompt you to put the

food in.

Open the door.

Place the baking plate with food on the guides situated on the cavity walls.
Close the door and restart by pressing the Start button.

AUTO FORCED AIR COMBI

RECOMMENDED WEIGHTS
	1 CHICKEN (800G - 11⁄2Kg)	SPRINKLE THE CHICKEN with salt and spices. Brush with oil if needed. Place on an oven-proof and microwave safe dish. Place the dish on the wire rack.
	2 FROZEN LASAGNE (400G - 1Kg)	PLACE IN an ovenproof and microwave safe dish. Place the dish on the wire rack.
	3 COOKIES (9-12 pieces)	PLACE ON the lightely greased baking plate. Put the plate in the oven when it prompts you to "Add Food".
	4 CANNED BREAD DOUGH	TO BE USED FOR items like croissants and rolls. Place the unbaked bread on the baking plate. Put the plate in the oven when it prompts you to "Add Food".
	5 FROZEN ROLLS	TO BE USED FOR ready baked frozen rolls. Place the rolls on the baking plate. Put the plate in the oven when it prompts you to "Add Food".
FOR FOOD NOT LISTED IN THIS TABLE and if the weight is lesser or greater than recommended weight, you should follow the procedure for "Forced air or Forced Air Combi"

MAINTENANCE & CLEANING

CLEANING IS THE ONLY MAINTENANCE normally required.

FAILURE TO MAINTAIN THE OVEN in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

DO NOT USE METAL SCOURING PADS, ABRASIVE

CLEANSERS, steel-wool pads, grit-

ty washcloths, etc. which can damage the control panel, and the interior and exterior oven surfac-

es. Use a sponge with a mild detergent or a paper towel with spray glass cleaner. Apply spray glass cleaner to a paper towel.

Do not spray directly on the oven.

At REGULAR INTERVALS, especially if spill overs have occurred, remove the turntable, the turntable support and wipe the base of the oven clean.

THIS OVEN IS DESIGNED to operate with the turntable in place.

Do not operate the microwave oven when the turntable has been removed for cleaning.

USE A MILD DETERGENT, water and a soft cloth to clean the interior surfaces, front and rear of the door and the door opening.

Do NOT ALLOW GREASE or food particles to build up around the door.

FOR STUBBORN STAINS, boil a cup of water in the oven for 2 or 3 minutes. Steam will soften the marks.

Adding some lemon juice to a cup of water, placing this on the turntable and boiling for a few minutes can eliminate odors inside the oven.

Do not use steam cleaning appliances when cleaning your microwave oven.

THE GRILL ELEMENT does not need cleaning since the intense heat will burn off any splashes, but the ceiling above it may need regular cleaning. This should be done with warm water, detergent and a sponge. If the Grill is not used regularly, it should be run for 10 minutes a month

to burn off any splashe in order to reduce the risk of fire.

→: Push the fastening thread gently towards the back of the ceiling and then lower it to release the grill element.

Return the fastening thread to its original position after cleaning.

Illustration of a hand holding a small object above a curved pipe or pipe (no text or symbols)

Illustration of a hand holding a tool with a blue handle, no text or symbols present

DISHWASHER SAFE:

TURNTABLE SUPPORT.

GLASS TURNTABLE.

WIRE RACK.

BAKING PLATE

BABY BOTTLE HOLDER

TROUBLE SHOOTING GUIDE

IF THE OVEN DOES NOT WORK, do not make a service call until you have made the following checks:

The Turntable and turntable support is in place.
The Plug is properly inserted in the wall socket.
\~: The Door is properly closed.
Check your Fuses and ensure that there is power available.
\~:Check that the oven has ample ventilation.
Wait for 10 minutes, then try to operate the oven once more.
- Open and then close the door before you try again.

THIS IS TO AVOID unnecessary calls for which you will be charged.

When calling for Service, please give the serial number and type number of the oven (see Service label). Consult your warranty booklet for further advice.

IF THE MAINS CORD NEEDS REPLACING it should

be replaced by the original mains cord, which is available via our service organization. The mains cord may only be replaced by a trained service technician.

Cartoon character wearing a blue shirt and holding a pen, standing with no visible text or symbols

SERVICE ONLY TO BE CARRIED OUT

BY A TRAINED SERVICE TECHNICIAN. It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives tection against exposure to micro energy.

Do not remove any cover.

ENVIRONMENTAL HINTS

THE PACKING BOX may be fully recycled as confirmed by the recycling symbol. Follow local disposal regulations. Keep potentially hazardous packaging (plastic bags, polystyrene etc.) out of the reach of children.

THIS APPLIANCE is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

THE SYMBOL on the product, or on the docu-

ments accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

DISPOSAL must be carried

out in accordance with local environmental regulations for waste disposal.

Diagram with intersecting lines and symbols, possibly representing a circuit or logic structure

FOR MORE DETAILED INFORMATION about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

BEFORE SCRAPPING, cut off the mains cord so that the appliance cannot be connected to the mains.

IN ACCORDANCE WITH IEC 60705.

THE INTERNATIONAL ELECTROTECHNICAL COMMISSION has developed a standard for comparative testing of heating performance of different microwave ovens. We recommend the following for this oven:

Test A	Amount Approx. time Power level Container
12.3.1	1000 g 11 min 750 W Pyrex 3.227
12.3.2	475 g 5 min 750 W Pyrex 3.827
12.3.3	900 g 15 min 750 W Pyrex 3.838
12.3.4	1100 g 28-30 min Forced air 200 °C + 350 W Pyrex 3.827
12.3.5	700 g 25 min Forced air 200 °C + 90 W Pyrex 3.827
12.3.6	1000 g 30-32 min Forced air 225 °C + 350 W Pyrex 3.827
13.3	500 g	2 min 12 sec	Jet defrost

TECHNICAL SPECIFICATION

SUPPLY VOLTAGE	230 V/50 Hz
RATED POWER INPUT	2800 W
FUSE	16 A (UK 13 A)
MW OUTPUT POWER	900 W
OUTER DIMENSIONS (HxWxD)	455 x 595 x 560
INNER DIMENSIONS (HxWxD)	210 x 450 x 420

INSTALLATION

FRANÇAIS

INSTALLATION DE L'APPAREIL

Illustration of two hands holding a document with blue tools inside (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a pliers (no text or symbols)

AVANT DE BRANCHER L'APPAREIL

1:30 P g2 Select ① ② ④ ③⑤ ⑥

Illustration of a hand holding a small object above a curved mechanical component, with a blue arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a blue triangular object attached (no text or symbols)

NETTOYAGE AU LAVE-VAISSELLE :

SUPPORT DU PLATEAU TOURNANT.

PLATEAU TOURNANT EN VERRE.

GRILLE MÉTALLIQUE.

Cartoon character wearing a tie and holding a sash (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

AUFSTELLUNG

DEUTSCH

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

VOR DEM ANSCHLIESSEN

TIEFGEKÜHLTE SPEISEN:

TIEFGEKÜHLTE SPEISEN:

Illustration of a hand holding a tool interacting with a metal bracket (no text or symbols)

Cartoon character with blue hair holding a folder and a document, standing in front of a building (no text or symbols visible)

Pure electrical circuit lines without any symbols

Illustration of two hands holding a folded paper with blue graphic elements (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

PRIMA DI COLLEGARE L'APPARECCHIO

RISCALD. R 2 25 ① ② ③

GUIDA RICERCA GUASTI

Cartoon character illustration with blue hair and a bandage, no text or symbols present

CONSIGLI PER LA SALVAGUARDIA DELL'AMBIENTE

HET APPARAAT MONTEREN

Illustration of two hands holding a document with three small tools drawn on it (no text or symbols visible)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

VOORDAT U DE OVEN AANSLUIT

SNEL VERH 2 2 5 ① ② ③

Illustration of a hand holding a tool with a blue handle, no text or symbols present

GESCHIKT VOOR DE VAATWASMACHINE:

PLATEAUDRAGER

GLAZEN DRAAIPLATEAU

ROOSTER

BAKPLAAT

BABYFLESHOUDER

STORINGEN OPSPOREN

Cartoon character with blue hair holding a bag, standing in front of a building (no text or symbols visible)

MILIEUTIPS

IN OVEREENSTEMMING MET IEC 60705.

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

Illustration of a toolbox, hand tools, and power tool (no text or symbols)

Illustration of a triangular mechanical component above a blue circular base (no text or symbols)

Cartoon character illustration with blue hair and a white shirt, holding a bag (no text or symbols)

LA ASISTENCIA TÉCNICA SÓLO DEBE LL- EVARLA A CABO UN TÉCNICO CUALIFI-

Pure electrical circuit lines without any symbols

Illustration of two hands holding a document with three small tools inside (no text or symbols visible)

Illustration of a toolbox with a hammer, a drill bit, and a power tool (no text or symbols)

ANTES DE LIGAR

Two abstract geometric shapes with crosshairs, one blue and one white, both without any text or symbols.

e- o regular-

Illustration of two hands holding a document with abstract blue shapes (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a tool (no text or symbols)

INNAN MIKROVÅGSUGNEN ANSLUTS

KONTROLLERA ATT SPÄNNINGENPÅ TYPSKYLTEN ÖVERENSSTÄMMER MED SPÄNNINGEN i ditt hem.

Illustration of three blue plastic containers with different shapes and internal patterns, no text or symbols present.

FELSÖKNING

OM UGNEN INTE FUNGERAR, kontrollera nedanstående punkter innan du tillkallar service:

Cartoon character holding a bag with text, no visible symbols or readable text

INSTALLATION AF APPARATET

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a tool (no text or symbols)

F∅R TILSLUTNING

Illustration of a hand holding a tool interacting with a car handle (no text or symbols)

den for at

VELEGNET TIL VASK | OPVASKEMASKINE:

DREJEKRYDS.

GLASDREJETALLERKEN.

Rist.

BAGEPLADE.

SUTTEFLASKEHOLDER.

FEJLFINDINGSOVERSIGT

Cartoon character with blue hair holding a bag, no visible text or symbols

MILJ∅TIPS

I OVERENSSTEMMELSE MED IEC 60705.

Illustration of hands holding a document with abstract blue shapes (no text or symbols)

FøLG DEN VEDLAGTE monteringsanvisningen när du skal installere apparatet.

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

F∅R TILKOPLING

Diagram illustrating hand tool application on a car interior, with Chinese annotations describing the process.

TILBEH∅R SOM KAN VASKES | OPPVASK-MASKIN:

HOLDEREN FOR DEN ROTERENDE TALLERKENEN.

ROTERENDE GLASSTALLERKEN.

GRILLRIST.

STEKEPLATE.

TÄTEFLASKEHOLDER.

FEILS∅KINGSLISTE

Cartoon character wearing a blue shirt and shorts, holding a pen (no text or symbols visible)

MILJ∅TIPS

I SAMSVAR MED IEC 60705.

Illustration of two hands holding a document with abstract blue shapes (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a tool (no text or symbols)

ENNEN KYTKENTÄÄ

TOIMINNAN KESKEYTTÄMINEN:

TOIMINNAN JATKAMINEN:

AUTOMAATTINEN KYPSENNYS

AUTOMAATTINEN KIERTOILMAYHDISTELMÄ

KYPSENNYS JA KUUMENNUS MIKROAALTOTOIMINNOLLA

1:30 ① ③ ② ④ ⑤

TOIMINNAN KÄYNNISTÄMISEN JÄLKEEN:

AUTOMAATTINEN KYPSENNYS

AUTO

[Non-Text]

20.0 ① ② ④ ③ ⑤ ⑥

AUTOMAATTINEN KYPSENNYS

Illustration of a hand holding a tool interacting with a curved mechanical component (no text or symbols)

Illustration of a hand holding a tool with a cable, no text or symbols present

KONEPESTÄVIÄ:

LASIALUSTAN PYÖRITIN

LASIALUSTA

KYPSENNYSALUSTA

PAISTOALUSTA

TUTTIPULLON PIDIKE

VIANMÄÄRITYS

Cartoon character with blue hair and glasses holding a bag (no text or symbols)

Illustration of hands holding a document with abstract blue shapes (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

A HÁLÓZATRA CSATLAKOZTATÁS ELÖTT

5 NYOMJUK MEG A START GOMBOT.

AMENNYIBEN A SÜTÉSI FOLYAMAT MEGKEZDÖDÖTT:

2 NYOMJUK MEG A START GOMBOT.

5 NYOMJUK MEG A START GOMBOT.

3 NYOMJUK MEG A START GOMBOT.

6 NYOMJUK MEG A START GOMBOT.

Illustration of a hand holding a tool interacting with a metal bracket, with a blue arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a blue handle, next to a metal bracket (no text or symbols)

Cartoon character wearing a sash and holding a bag (no text or symbols visible)

KÖRNYEZETVÉDELMI TANÁCSOK

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

PŘED PŘIPOJENÍM

Cartoon character holding a bag with blue hair (no text or symbols visible)

OPRAVY SMÍ PROVÁDĚT VÝLUČNĚ ODBORNĚ VÝSKOLENÝ TECHNIK.

Pure electrical circuit lines without any symbols

V SOULADU S NORMOU IEC 60705.

Illustration of hands holding a document with a blue ribbon and a close-up of small tools (no text or symbols visible)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

PRZED PODŁĄCZENIEM

Two blue rectangular objects with black cross marks, one above a white oval shape (no text or symbols)

Illustration of a hand holding a tool interacting with a curved mechanical component, no text or symbols present

ie za- zenia

Cartoon character illustration with blue hair and a long pipe, holding a bag (no text or symbols)

NAPRAWY SERWISOWE MOGA BYĆ

Pure electrical circuit lines without any symbols

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a power tool (no text or symbols)

ПЕРЕД ПОДКЛЮЧЕНИЕМ

P 200 ① ② ③ ④ ⑤ ⑥ Select

Two blue icons: a pen crossed out by a black X, and a tablet with cross lines (no text or symbols)

Cartoon illustration of a man in a suit holding a bag, no text or symbols present

Illustration of two hands holding a document with a blue ribbon and a close-up of small objects (no text or symbols visible)

Illustration of a toolbox with a hammer, a drill bit, and a magnifying glass (no text or symbols)

PRED PRIPOJENÍM

SKONTROLUJTE, ĉI NAPÄTIE na typovom štítku zodpovedá napätiu vo vašej domácnosti.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

POZORNE PREČÍTAJTE A ODLOŽTE NA BUDÚCE POUŽITIE

Illustration of a hand holding a tool interacting with a car handle (no text or symbols present)

stro- by sa

Cartoon character holding a bag, no text or symbols visible

SERVIS MÔŽE VYKONÁVAŤ IBA KVAL- IFIKOVANÝ SERVISNÝ TECHNIK.

Ak sa pri oprave demontuje akýkolvek ochranný kryt proti pósobeniu mikrovlnnej energie, je nebezpečné zverit opravu inému ako zaškolenémá nému technikovi.

NEDEMONTUJTE ŽIADNY KRYT.

OCHRANA ŽIVOTNÉHO PROSTREDIA

Illustration of two hands holding a document with abstract blue shapes inside (no text or symbols)

Illustration of a toolbox with a hammer, a drill bit, and a power tool (no text or symbols)

Two blue crossed-out signs: a plastic clip and a flat tray, both with black lines (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled parts and directional arrows indicating motion or movement.

Cartoon character holding a document (no text or symbols visible)

Illustration of a hand holding a document with a pen, no text or symbols present

Illustration of a hand holding a pen writing on a document (no text or symbols visible)

Illustration of a hand holding a document with a pen, no text or symbols present

© Inter IKEA Systems B.V. 2001.

18535
