USER MANUAL PAC F 300 OEKO DELONGHI

Thank you for having purchased an appliance made by De’ Longhi, the

international leader in portable air conditioning units. Thanks to our years

of experience all around the world we are constantly improving the qua-

lity and performance of Pinguino. We are confident that you will be sati-

sfied with your purchase and enjoy the cool comfort created by the Pin-

guino for many years to come. You should spend some time reading this

instruction manual and keep it handy to refer to in order to use your Pin-

guino in conditions of maximum efficiency and peace of mind.

to in senso contrario

I 8-08-2001 9:27 Pagina 1718

During the summer, optimum comfort is achieved with a temperature of between 24 and 27˚C

and about 50% relative humidity.

An air conditioner removes moisture and heat from the room where it is located. One advantage

of portable air conditioning units over fitted models is that they can be moved from one room to

another in the home or even transferred between different buildings.

The hot air in your room is passed through a

coil cooled by refrigerant gas, losing

excess heat and moisture before

being discharged again into the

In single unit models (Pinguino),

a small part of this air is used to

cool the refrigerant gas befo-

re, hot and moist, being

In suitcase models (Super-

Pinguino), the circuit is

cooled using the air outsi-

Each Pinguino and Super-

Pinguino can also be used

For more details, contact or

visit our Internet site

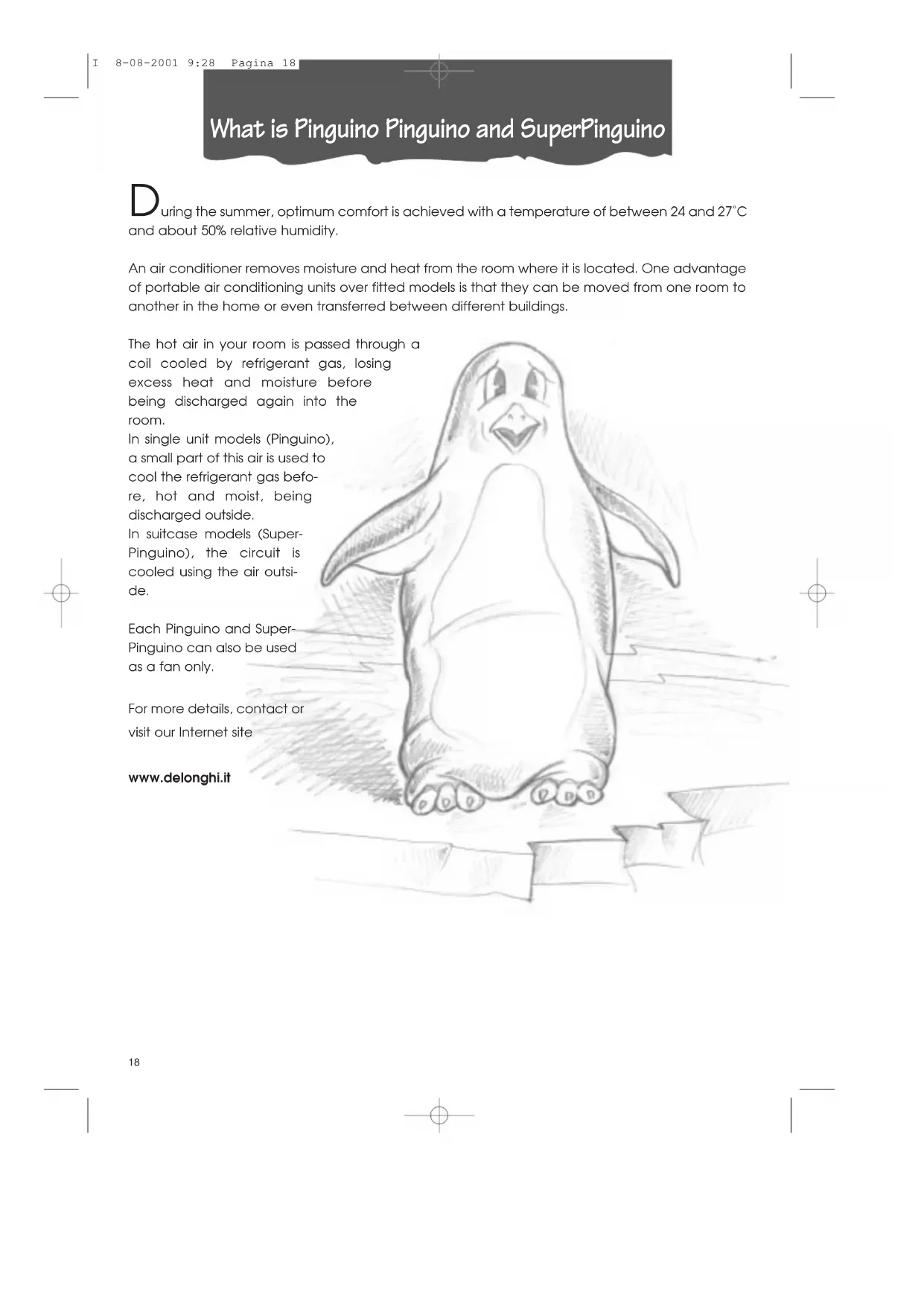

What is Pinguino Pinguino and SuperPinguino

I 8-08-2001 9:28 Pagina 1819

ENGLISH Important Safe-guards

• This appliance has been manufactured

to cool and de-humidify domestic envi-

ronments and should not be used for

• It is dangerous to alter or modify the

unit's characteristics in any way.

• The appliance must be installed in

conformity with the relevant national

• Should repairs be necessary, contact

the nearest authorised Repair Service

Centre. Unauthorised servicing can be

• This appliance is to be used by adults

only; keep children away from it.

• Always ground the appliance. Have the

electrical system checked by a quali-

• Avoid using extension leads with the

• Before cleaning or maintenance opera-

tions, always unplug the unit from the

• Do not pull on or place strain on the

power cable when moving the applian-

• The appliance should not be installed

where the atmosphere may contain

combustible gases, oil or sulphur, or near

• After turning off the conditioner, always

wait at least three minutes before tur-

• Do not rest hot or heavy objects onto

• Clean the anti-bacterial filters at least

• Avoid using heaters near the unit.

• If it is not possible to transport the

appliance in an upright position, then

either lay it on its side.

• Before transporting the unit drain the

condensation collecting-tray and tank.

After transportation, wait at least 1 hour

before switching on the unit.

• The packaging materials can be recy-

cled. You are therefore recommended

to place them in the special containers

for differentiated waste collection.

I 8-08-2001 9:30 Pagina 1920

USING THE RAPID COUPLINGS

(models F400 and F300 only)

As an alternative to the methods described

above, the sheath connecting the external

and internal units can be passed through a 6

cm diameter hole in a wall communicating

NB: Leave at least 30 cm between the wall

b) Through a small crack (5.5 cm x 2.5 cm) in

the bottom of a door or the frame of a

window, using the sheath frame pro-

PREPARING THE INTERNAL UNIT Install the appliance inside the room to be air

conditioned, usually near a window or a peri-

meter wall. The internal unit must be located

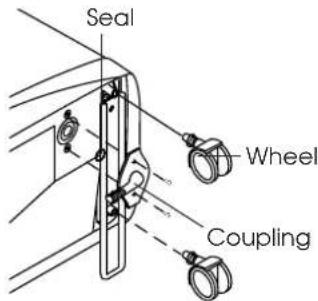

on the level. Also use the wheel blocks

supplied. The intake zone (intake grill and

emission zone (outlet grill ) of the internal

unit should be kept clear of obstacles.

POSITIONING THE CONNECTING SHEATH The sheath connecting the external and

internal units can be passed:

a) Through the crack of a window or door left

ajar. Use the suckers to prevent it from

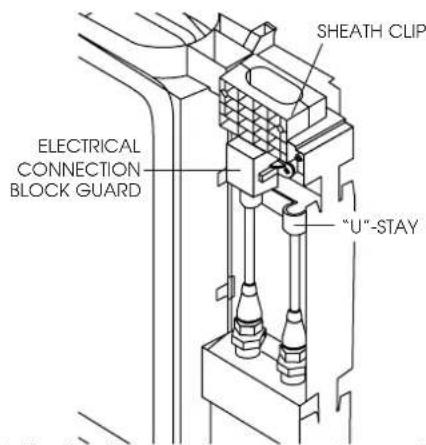

1) Unplug the appliance from the main.

2) Remove the handle by undoing the two

metric screws then remove the front panel.

3) Remove the “U”-stay by undoing the two

4) Remove the sheath clip by undoing the

5) Use a number 24 spanner to undo the

rotating union on the coupling. At the

same time, use a number 21 spanner to

hold the end of the flexible pipe steady.

Repeat for the second union using a num-

ber 24 and a number 19 spanner.

6) Disconnect the condensate pipe from the

7) Undo the two self-tapping screws holding

the guard and remove the electrical con-

Avoid tight curves in the connection sheath

Rapid couplings in the model F400

In this model, the connections of the external

unit must be disconnected as follows:

I 8-08-2001 9:30 Pagina 2021

Rapid couplings in model F300

In this model, the connections of the internal

unit must be disconnected as follows:

1) Unplug the appliance from the main.

2) Remove the filters on the side.

3) Remove the rear door in the back panel

by undoing the two screws.

4) Remove the metal “U”-stays fixing the

pipes to the appliance (2).

5) Use a number 24 spanner to undue the

rotating union on the coupling. At the

same time, use a number 21 spanner to

hold the end of the flexible pipe. Repeat

for the second union using a number 24

and a number 19 spanner

6) Disconnect the condensate pipe from the

7) Remove the electrical connection block.

Avoid tight curves in the connection

Reconnecting the sheath in models F400 and F300

To reconnect the ends of the connecting

sheath to the internal unit, repeat operations

1, 2, 3, 4, 5, 6 and 7 in reverse order, observing

the following precautions:

• Before passing the sheath through the

hole in the wall, protect the threaded

ends of the rapid couplings with insulating

• Fit the top two refrigerant couplings to the

bottom two and hand tighten them for

several turns. Check they fit well before

tightening with the spanners used previou-

• After connecting the two refrigerant cou-

plings, fix the stays.

• Check the seal of the refrigerant connec-

tions by covering the joins with a little

soapy water. No soap bubbles should

We recommend that disconnection and con-

nection of the rapid couplings be carried out

by qualified personnel.

I 8-08-2001 9:30 Pagina 2122

PREPARING THE EXTERNAL UNIT The external unit can be placed on a terrace

or balcony. In this case, the brackets should

The external unit can also be hung on a wall

using the brackets . Proceed as follows:

to the wall, taking care

to position it as indicated

in the figure. To make

the holes, use the jig on

the cover of the polysty-

2) Screw the support

blocks to the exter-

plied (taking care to

position them with the

hole for the screw on the top).

3) Hook the external unit

to the brackets, fixing it

Alternatively, for temporary installation, the

external unit can be suspended as shown in

the figure. In this case, use the belts sup-

plied hooked to the eyes ; Before inser-

ting the eyes, remove the rubber bungs.

The external unit can be installed above or at

the same level as the internal unit, providing

the difference in level is not greater than 1.5 m.

The air intake and outlet of the external unit

should be kept clear of obstacles.

Leave at least 6 cm between the wall and

The drops of condensation formed during the

air conditioning function (summer usage) is in

part drained by evaporation by the external

unit. The residual condensation exits the

appliance through the hole at the base of

the external unit. It is possible to utilise the

be assembled onto the base of external unit

The external unit should be protected from

rain, snow, drips from the roof and the sun.

ENGLISH Turning on and selecting the functions

CONNECTING TO THE ELECTRICAL MAIN AND TURNING THE APPLIANCE ON.

1. Before plugging the appliance into the

electrical main, check that:

• mains voltage conforms to the value indi-

cated on the rating plate on the back of

• the socket and power line are adequate

for the required load;

• the socket is the right type for the plug,

otherwise have the socket replaced;

• the socket is connected to an efficient

Failure to observe this

accident prevention rule absolves the

manufacturer of all liability.

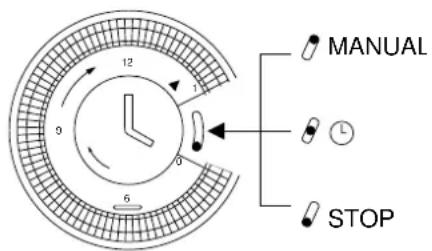

STOP MANUAL TIMER - SETTING THE TIME As with all clocks, the programmer/timer must

be set to the right time. If it is 16.00, rotate the

pointers clockwise (follow the direction of the

arrow) until you reach 16.00 p.m..

NB: never rotate the face in the opposite

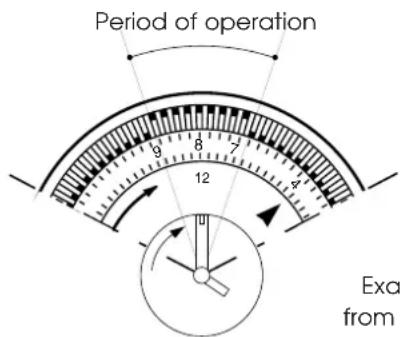

1) Set the times when the unit will function by

pushing the teeth in the required interval

towards the outside (each tooth repre-

2) Check that the timer indicates the exact

time (see setting the time).

3) Choose the required function according

to the instructions on the following page.

The timer is an electric clock and only

works while the unit is connected to the

mains. When it is unplugged or there is no

electricity, the timer stops (the clock is

“slow”) and must be put right.

In this mode, the unit will repeat the set pro-

N.B.: It is not necessary to modify the pro-

gramme to exclude “timer” operation. Just

2. Before setting the required function, check

that the switch on the timer is in position

If you wish to use the timer, position the switch

in the intermediate position .

Replacement of the power cable must be

carried out by qualified personnel.

I 8-08-2001 9:30 Pagina 23AS AIR CONDITIONER With the unit turned off, the function selector

is in the “O” position. To turn the unit on in

air conditioning mode, proceed as follows:

1. Rotate the function selector knob clockwi-

• Place the large crystal symbol in line

with the reference mark to operate the

unit in air conditioning mode at maximum

• Place the small crystal symbol in line

with the reference mark to operate the

unit in air conditioning mode at minimum

2. Now set the required temperature by rota-

ting the room thermostat knob.

The temperature is not expressed in degrees.

We therefore recommend rotating the room

thermostat knob to the maximum cool posi-

tion. When room temperature has reached

the required level, rotate the thermostat knob

slowly clockwise until the thermostat is activa-

ted, turning the unit off. This programs the unit

to the precise level of comfort required which

will then be automatically maintained by the

thermostat with considerable energy savings.

When regulating the thermostat, the air con-

ditioning function is temporarily interrupted

and the unit continues to operate in fan only

AIR PURIFICATION WITH FAN Your air conditioning unit has two special high

efficiency electrostatic 3M FILTRETE™ filters.

These filters, active in all modes, filter out

extremely fine particles (down to 0.3 thou-

sands of a millimetre).

If you want to purify the air by ventilating the

room only, rotate the function selector

• Place the large symbol in line with the

reference mark to operate the unit in air puri-

fication mode at maximum fan speed.

• Place the small symbol in line with the

reference mark to operate the unit in air puri-

fication mode at minimum fan speed.

clockwise to the symbol:

The temperature is not expressed in degrees.

We therefore recommend rotating the room

thermostat knob to the maximum heat posi-

tion. When the temperature in the room rea-

ches the comfort level desired, the thermo-

stat knob may be turned SLOWLY in a counter

clockwise direction until the thermostat inter-

venes, turning off the operation. This pro-

grams the unit to the precise level of comfort

required which will then be automatically

maintained by the thermostat with conside-

rable energy savings. When regulating the

thermostat, the air conditioning function is

temporarily interrupted and the unit conti-

nues to operate in fan only mode.

TURN THE APPLIANCE OFF TO TURN THE UNIT OFF COMPLETELY, SET THE FUNCTION SELECTOR TO THE “O” POSI-

THE LEDS Led displays come on depending on the selected function or as warning of possible anomalies.

* The leds will light up 3 minutes after the machine is turned on (that is, when the compressor

starts to work). They will turn off when the temperature set by the thermostat is reached.

I 8-08-2001 9:30 Pagina 2526

Follow these recommendations to achieve

maximum efficiency from your air conditio-

• Close the doors and windows in the room

where the unit is functioning. The only

exception is in the case of installation throu-

gh a hole in the wall. In this case, you are

recommended to allow a small amount of

air to enter through a door or window to

guarantee an adequate exchange of air.

• Protect the room from direct exposure to

the sun’s rays by drawing the curtains

and/or partially lowering the blinds so as

to maximise energy savings.

• Do not rest objects on the air conditioning

• Do not obstruct the air intake or outlet.

• Make sure there are no heat sources in the

close doors and windows

lower the blinds or draw the curtains

• Make sure the unit is located on a level

floor. If necessary, place the two blocking

devices under the front wheels.

• Do not install the heater in humid environ-

• Do not use the appliance outdoors.

Mod. F300: Keep the appliance a safe

distance from combustible surfaces

I 8-08-2001 9:30 Pagina 2627

ENGLISH Before cleaning or maintenance, always turn the

unit off by placing the selector in the “O” position

and unplug from the mains.

CLEANING THE EXTERNAL UNIT We recommend cleaning the unit with a sli-

ghtly damp cloth then drying with a dry cloth.

For safety reasons, do not wash the air condi-

Never clean with benzene, alcohol or sol-

vents. Never spray liquid insecticide or similar.

CLEANING THE AIR FILTERS.

To maintain the air conditioning unit at peak

efficiency, you are recommended to:

1. Clean the anti-bacteria filter weekly.

2. Replace the FILTRETE™ filter at the end of

each season or when spent (follow the

instructions on the unit near the filter).

The air purification filters are located behind the

two intake grilles. The grilles in fact house the fil-

To clean the filters:

1.Remove the intake grilles by rotating them

3. To remove dust deposited on the anti-bac-

teria filter, use a vacuum cleaner. If very dirty,

rinse repeatedly in warm water at a tempe-

rature of not more than 40°C.

After washing, dry the filter. To replace, put

the filters back into the filter holder, then hook

the latter to the unit.

Do not clean the FILTRETE™ filter as this

would reduce its filtering capacity.

BEGIN OF SEASON CHECKS Check that the power cable and socket are

undamaged and that the earth installation is

Meticulously observe the installation

END OF SEASON OPERATIONS Empty the residual water by removing the

bung in the drainage tube .

Take out the condensation tank located in

the rear of the unit and empty it. After repla-

cing the bung, put the condensation tank

Clean the anti-bacteria filters and dry well

Protect the unit from dust by covering with a

2. Remove the first FILTRETE™ filter (white).

PROBLEM CAUSES REMEDY The unit does not

the plug is not inserted into the electrical outlet

• the function selector is in the “•” position

• the timer pointer is on STOP

• the timer pin is in the position and it is not

programmed to operate at that moment

• move the selector to the desired

• set the timer pointer to the

• adjust the timer following the

• the thermostat has cut in

• the external unit intake is obstructed

• the fan is blocked

• turn the thermostat counter

• contact the Service Centre

• a heat source is operating in the room (bur-

ner, light, etc.) or there are a lot of people

• thermostat adjusted too high

• air filters clogged

• the output of the unit is insufficient for the

conditions or size of the room

• close the open window

• remove the heat source

• reinsert the tube into its place

• clean the filter or replace

The tank full light is

• condensate is not being drained externally • remove the water through the

does not heat suffi-

• the air filter is dirty

• the temperature setting is incorrect

• the grill openings are blocked

• the room is too big

• clean the filter or replace it

in air conditioning “

when heating (mod. F300) “

Refrigerating capacity* “

Number of fan speeds 2

Dimensions of internal unit:

Dimensions of external unit:

* Standard conditions:

Room temperature 27°C

47% relative humidity

Outside temperature 35°C

41% relative humidity

This appliance contains substances which, if liberated into the atmosphere, would damage the

ozone layer. Care should therefore be taken not to perforate the refrigerant circuit. At the end of

its working life, delivery the air conditioning unit to a special collection centre.

RECOMMENDED OPERATING CONDITIONS Room temperature 21 ÷ 32°C Outside temperature 21 ÷ 43°C ELECTRICAL CONNECTION (U.K. ONLY)

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should

be cut off from the mains lead, and on appropriate plug fitted, as below. warning: Very carefully dispose of the cut off

plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-

on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the

event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nea-

rest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructins provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED IMPORTANT The wires in the mains lead are coloured in accordance with

Green and yellow Earth

As the colours of the wires in the mains lead may not corre-

spond with the coloured markings identifying the terminals

in your plug, proceed as follows:

The green and yellow wire must be connected to the termi-

nal in the plug marked with the letter E or the earth symbol

or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with

the letter N or coloured black.

The brown wire must be connected to the terminal marked

with the letter L or coloured red.

N E L I 8-08-2001 9:30 Pagina 2930

male de ventilation.

* Conditions standards:

Schraubenschlüssel fest.

rar as tampas em borracha.
