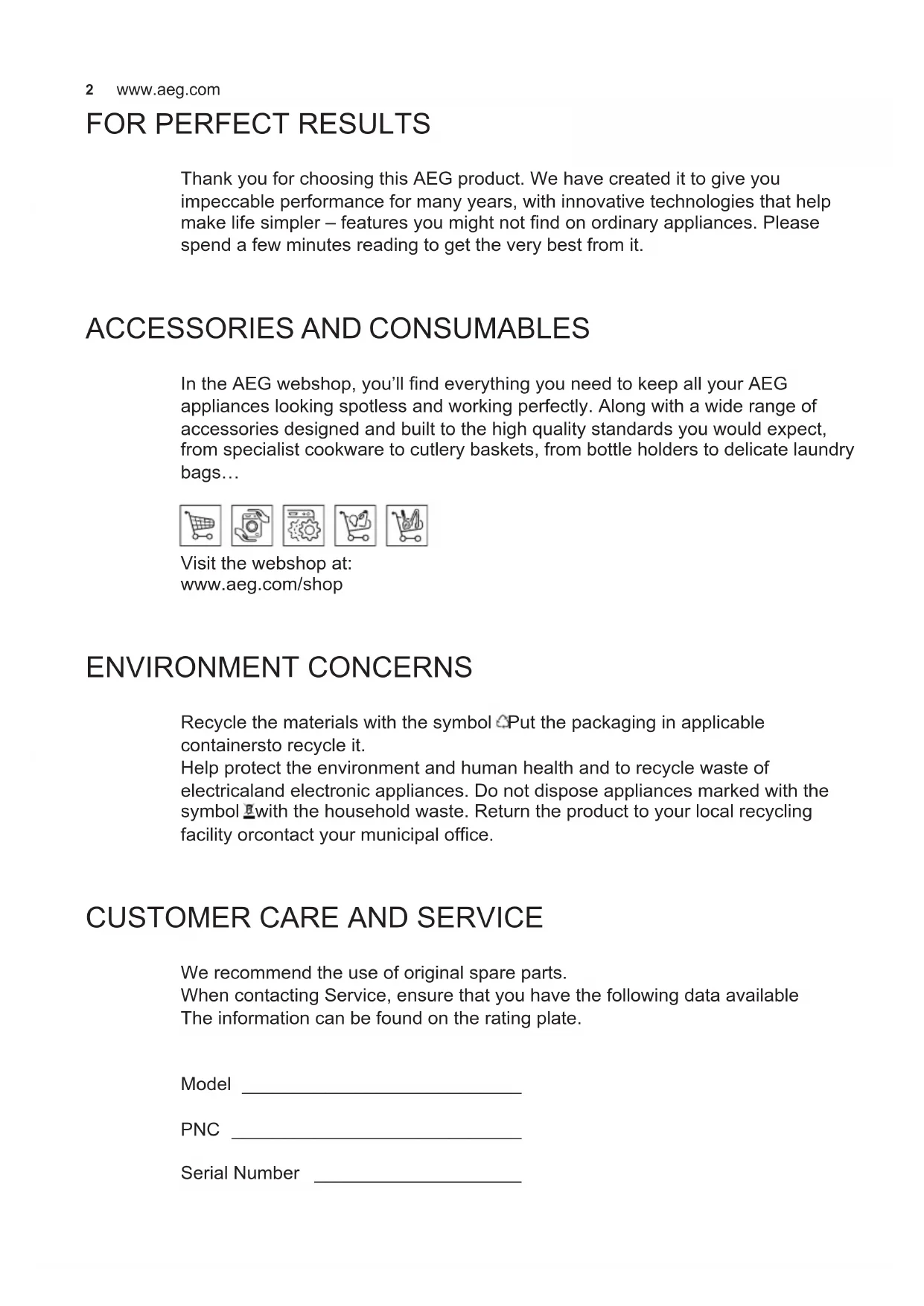

USER MANUAL X89384MD02 AEG

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you

impeccable performance for many years, with innovative technologies that help

make life simpler – features you might not nd on ordinary appliances. Please

spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES In the AEG webshop, you’ll nd everything you need to keep all your AEG

appliances looking spotless and working perfectly. Along with a wide range of

accessories designed and built to the high quality standards you would expect,

from specialist cookware to cutlery baskets, from bottle holders to delicate laundry

Visit the webshop at:

ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable

containersto recycle it.

Help protect the environment and human health and to recycle waste of

electricaland electronic appliances. Do not dispose appliances marked with the

symbol with the household waste. Return the product to your local recycling

facility orcontact your municipal ofce.

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available

The information can be found on the rating plate.

Model ___________________________

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several ver-

sions of this appliance. Accordingly, you may

nd descriptions of individual features that do

not apply to your specic appliance.

• The manufacturer will not be held liable for any

damages resulting from incorrect or improper

• The minimum safety distance between the

cooker top and the extractor hood is 650 mm

(some models can be installed at a lower

height, please refer to the paragraphs on work-

ing dimensions and installation).

• Check that the mains voltage corresponds to

that indicated on the rating plate xed to the

• For Class I appliances, check that the domestic

power supply guarantees adequate earthing.

• Connect the extractor to the exhaust ue

through a pipe of minimum diameter 120

mm. The route of the ue must be as short as

• Do not connect the extractor hood to exhaust

ducts carrying combustion fumes (boilers,

• If the extractor is used in conjunction with

non-electrical appliances (e.g. gas burning ap-

pliances), a sufcient degree of aeration must

be guaranteed in the room in order to prevent

the backow of exhaust gas. The kitchen must

have an opening communicating directly with

the open air in order to guarantee the entry of

clean air. When the cooker hood is used in con-

junction with appliances supplied with energy

other than electric, the negative pressure in the

room must not exceed 0,04 mbar to prevent

fumes being drawn back into the room by the

• In the event of damage to the power cable, it

must be replaced by the manufacturer or by

the technical service department, in order to

• Connect the hood to the mains through a

two-pole switch having a contact gap of at least

• If the instructions for installation for the gas hob

specify a greater distance specied above, this

has to be taken into account. Regulations con-

cerning the discharge of air have to be fullled.

• The extractor hood has been designed ex-

clusively for domestic use to eliminate kitchen

• Never use the hood for purposes other than for

which it has been designed.

• Never leave high naked ames under the hood

when it is in operation.

• Adjust the ame intensity to direct it onto the

bottom of the pan only, making sure that it does

not engulf the sides.

• Deep fat fryers must be continuously monitored

during use: overheated oil can burst into

• Do not ambè under the range hood; risk of

• This appliance is not intended for use by per-

sons (including children) with reduced physical,

sensory or mental capabilities, or lack of experi-

ence and knowledge, unless they have been

given supervision or instruction concerning use

of the appliance by a person responsible for

• Children should be supervised to ensure that

they do not play with the appliance.

• “ CAUTION: Accessible parts may become hot

when used with cooking ap-pliances”.

• Switch off or unplug the appliance from the

mains supply before carrying out any mainte-

• Clean and/or replace the Filters after the speci-

ed time period (Fire hazard).

- Activated charcoal lter W These lters are

not washable and cannot be regenerated,

and must be replaced approximately every 4

months of operation, or more frequently with

- Grease lters Z The lters must be cleaned

every 2 months of operation, or more fre-

quently for particularly heavy usage, and can

be washed in a dishwasher.

- Control lights, if present.

• Clean the hood using a damp cloth and a

4. CONTROLS AB CD FE A: Hood Functions On/Off.

When the button is touched with the hood

turned off, all functions light up (intensity

50%) and are enabled.

When the button is touched with the hood

in operation, all functions are turned off and

disabled (Motor Off + Lights Off).

B: Manages motor speed:

When the area is touched, the motor starts

at the speed required.

P = Intensive Speed, timed for 5 minutes,

after which the system returns to the

When activated from Motor Off it returns

to speed V1.When the required speed is

touched, it will become brighter (intensity

100%) than the other functions (intensity 50%).

Touching this button activates automatic

shutdown of the Motor, the Fans and the

Lighting with a 10 minute delay. It can only

be activated with the motor on, running at

any speed except Intensive, and with the

Enables / Disables the Remote Control

When this button is pressed and held for

4 seconds (Motor Off + Lights Off, in the

absence of other alarms, the Led will light

4 seconds to indicate that the Remote

Control has been Activated

2 seconds to indicate that the Remote

Control has been Deactivated.

In this mode the Hood operates

automatically for a maximum of 5 hours,

after which it switches the Motor off. The

hood modies the speed of the motor

according to the ndings of the sensor.

Buttons B and C do not work. The function

is disabled by pressing the Button or turning

E: Manages Lighting Intensity:

When this area is touched, the Lights turn on

at the required intensity. When the lighting

intensity is touched, it will become brighter

(intensity 100%) than the other functions

F: Filter ResetResets the Filter

Saturation alarm when the

button is touched with the motor

and lighting turned off.

After 100 hours operation the Led lights

up continuously to indicate saturation of

the Metal Grease Filters. After 200 hours

operation the Led ashes to indicate

saturation of the Activated Charcoal Filters.

Enables/Disables the Activated Charcoal

When this button is pressed and held for

4 seconds(Motor Off + Lights Off), in the

absence of other alarms, the Led will light

4 seconds to indicate the Activated Charcoal

Filter Alarm has been activated

2 seconds to indicate the Activated Charcoal

Filter Alarm has been deactivated.

After connecting the hood to the mains, the

commands are activated after 4seconds.

When the Hood is switched off, none of the

functions is displayed, and only the normal

lettering on the control panel is visible.

All the rest will light up (intensity 50%) when

button A is touched.

The controls are activated by touching the

selected function, which will light up more

brightly (intensity 100%) with respect to

the other hood functions (intensity 50%).

When no commands are given for at least

10 seconds, only the selected functions will

be lighted (Intensity 100%) and all the rest

will turn off (Intensity 50%). After 7 hours in

operation, if no further commands are given

the hood will switch off (Motor Off + Lights

Off), from here you can touch for activated

the function, and the next touch you can

select the desired function.It is possible to

activate one of the hood functions (Speed

and Lighting) not just by touching the control

panel, but also by placing a nger on the

panel and sliding it towards the chosen5

function without lifting it off. If the motor and

lights are turned off, by setting them to zero,

all the command LEDs will remain on at

50%, and if no further commands are given

in the next 10 seconds, then all the LEDs

will be turned off with the exception of the “0”

LEDs, which will remain on for a further 15

5. HOOD OPTIONS IN SEN SOR MODE When operating in Sensor mode, the type

of hob being used has an inuence. Two

options are available:

Initially it is set to electric hob. To change the

setting, proceed as follows:

• Turn the hood off using the hood on/off

• Press and hold the Sensor button for

8 seconds until the LED ashes as

- 4 ashes indicate selection of the

- 2 ashes indicate selection of the gas

• Remove power for 10 seconds and then

The calibration procedure is carried out

every time the type of hob is changed.

Calibration procedure: every time the

hood is turned on or the type of hob is

changed, the sensor calibration procedure

is run. During this time the hood must not be

used for cooking or subjected to particularly

intense smells, for example solvents or

This process requires:

• 13 minutes if the electric hob has been

• 1 minute if the gas hob has been selected;

This phase is marked by ashing of the LED

on the sensor button, if it has been pressed.

Do not turn the motor on during calibration.

Warning: Do not spray directly on the grill

cleaning products but only clean with a

cloth soaked in detergent. Avoid cleaning

the grill alcohol or silicone products.

6. LIGHTING Warning: This appliance is tted with a

white LED lamp classed as 1M according

to EN 60825-1: 1994 + A1:2002 + A2:2001

standards; maximum optical power emitted

@439nm: 7µW. Do not look directly at the

light through optical devices (binoculars,

magnifying glasses…).

• For replacement contact technical

support. (“To purchase contact technical
