USER MANUAL X79263MK10 AEG

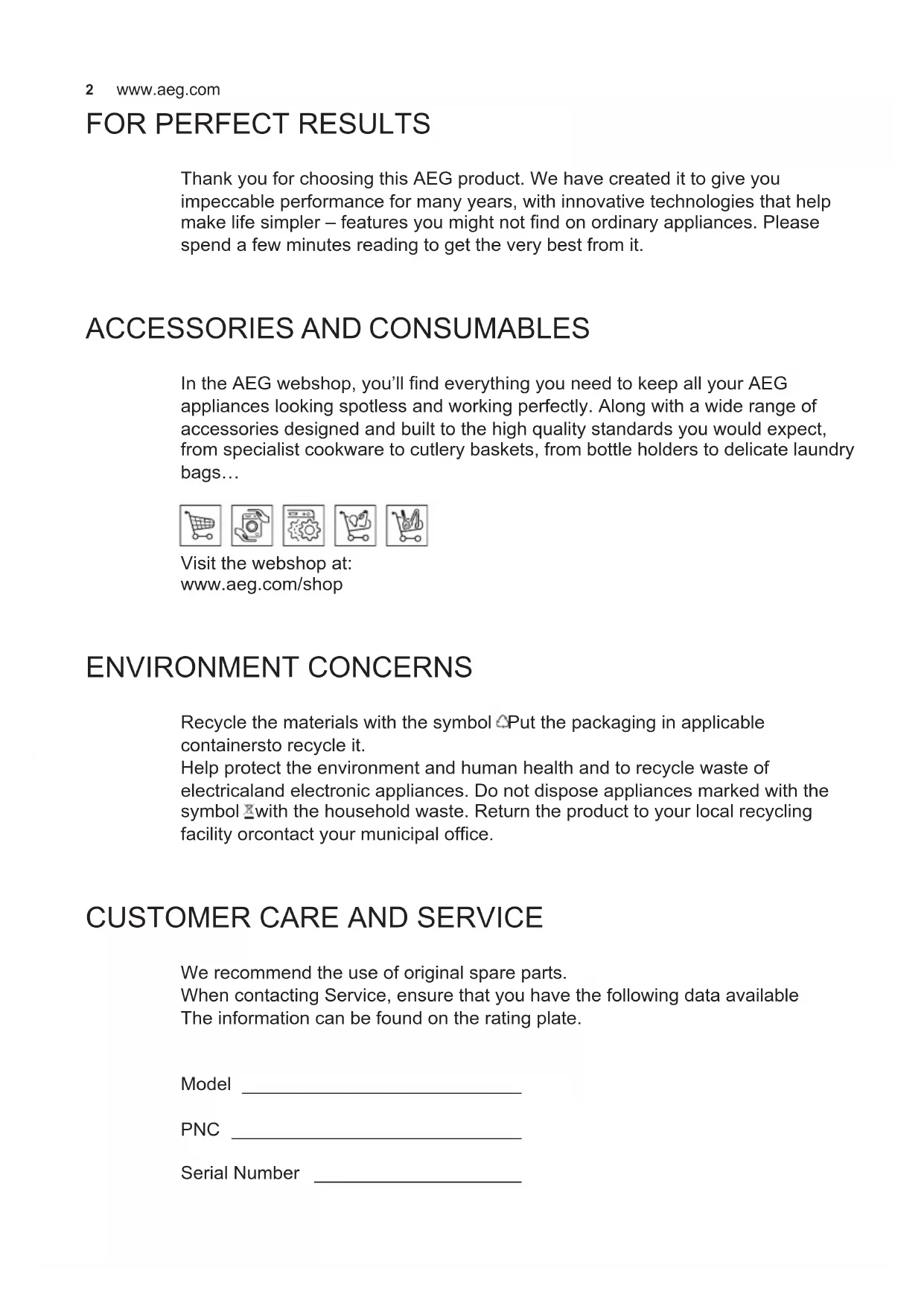

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you

impeccable performance for many years, with innovative technologies that help

make life simpler – features you might not nd on ordinary appliances. Please

spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES In the AEG webshop, you’ll nd everything you need to keep all your AEG

appliances looking spotless and working perfectly. Along with a wide range of

accessories designed and built to the high quality standards you would expect,

from specialist cookware to cutlery baskets, from bottle holders to delicate laundry

Visit the webshop at:

ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable

containersto recycle it.

Help protect the environment and human health and to recycle waste of

electricaland electronic appliances. Do not dispose appliances marked with the

symbol with the household waste. Return the product to your local recycling

facility orcontact your municipal ofce.

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available

The information can be found on the rating plate.

Model ___________________________

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several ver-

sions of this appliance. Accordingly, you may

nd descriptions of individual features that do

not apply to your specic appliance.

• The manufacturer will not be held liable for

any damages resulting from incorrect or

improper installation.

• The minimum safety distance between the

cooker top and the extractor hood is 650 mm

(some models can be installed at a lower

height, please refer to the paragraphs on

working dimensions and installation).

• Check that the mains voltage corresponds to

that indicated on the rating plate xed to the

• For Class I appliances, check that the

domestic power supply guarantees adequate

• Connect the extractor to the exhaust ue

through a pipe of minimum diameter 120

mm. The route of the ue must be as short as

• Do not connect the extractor hood to exhaust

ducts carrying combustion fumes (boilers,

• If the extractor is used in conjunction with non-

electrical appliances (e.g. gas burning appli-

ances), a sufcient degree of aeration must

be guaranteed in the room in order to prevent

the backow of exhaust gas. The kitchen

must have an opening communicating directly

with the open air in order to guarantee the

entry of clean air. When the cooker hood is

used in conjunction with appliances supplied

with energy other than electric, the negative

pressure in the room must not exceed 0,04

mbar to prevent fumes being drawn back into

the room by the cooker hood.

• In the event of damage to the power cable, it

must be replaced by the manufacturer or by

the technical service department, in order to

• Connect the hood to the mains through a

two-pole switch having a contact gap of at

• If the instructions for installation for the gas

hob specify a greater distance specied

above, this has to be taken into account.

Regulations concerning the discharge of air

have to be fullled.

• The extractor hood has been designed exclu-

sively for domestic use to eliminate kitchen

• Never use the hood for purposes other than

for which it has been designed.

• Never leave high naked ames under the

hood when it is in operation.

• Adjust the ame intensity to direct it onto the

bottom of the pan only, making sure that it

does not engulf the sides.

• Deep fat fryers must be continuously moni-

tored during use: overheated oil can burst into

• Do not ambè under the range hood; risk of

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or instruc-

tion concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to ensure that

they do not play with the appliance.

• “ CAUTION: Accessible parts may become

hot when used with cooking ap-pliances”.

• 1. Switch off or unplug the appliance from

the mains supply before carrying out any

• Clean and/or replace the Filters after the

specied time period (Fire hazard).

- Activated charcoal lter W These lters are

not washable and cannot be regenerated,

and must be replaced approximately every

4 months of operation, or more frequently

- Grease lters Z The lters must be cleaned

every 2 months of operation, or more

frequently for particularly heavy usage, and

can be washed in a dishwasher.

- Control lights, if present.

• Clean the hood using a damp cloth and a

5. LIGHTING Button Function Display

A Turns the suction motor on and off at speed one. Displays the set speed

Press and hold the button for approximately 5 seconds, with all

the loads turned off (Motor and Lights), to turn the Remote Control

IR+Dot (2 ashes)–Alarm On.

IR+Dot (1 ash)–Alarm Off.

B Decreases the working speed. Displays the set speed

C Increases the working speed. Displays the set speed

D Activates intensive speed from any other speed, including

motor off. This speed is set to operate for 5 minutes, after

which the system returns to the speed that was set before.

Suitable to deal with maximum levels of cooking fumes.

Displays HI and the time remaining

When the lters alarm is triggered, the alarm can be reset

by pressing and holding this button for approximately 3

seconds. These indications are only visible when the motor

F indicates the need to wash the

metal grease lters. The alarm is

triggered after the Hood has been in

operation for 100 working hours.

C indicates the need to change the

activated charcoal lters, and also to

wash the metal grease lters. The

alarm is triggered after the Hood has

been in operation for 200 working

Activates automatic switch-off with a 20’ delay. Suitable to

complete elimination of residual odours. Can be activated

from any position, and is disabled by pressing the button or

turning the motor off.

Displays the operating speed and the

dot at the bottom right ashes alterna-

tely with the remaining time.

Press and hold the button for approximately 5 seconds,

with all the loads turned off (Motor and Lights), to turn the

Activated Charcoal Filter alarm On and Off.

- C ashes twice - A.C. Filter alarm

F Turns the lighting system on and off at maximum intensity.5
