USER MANUAL X86264MP1 AEG

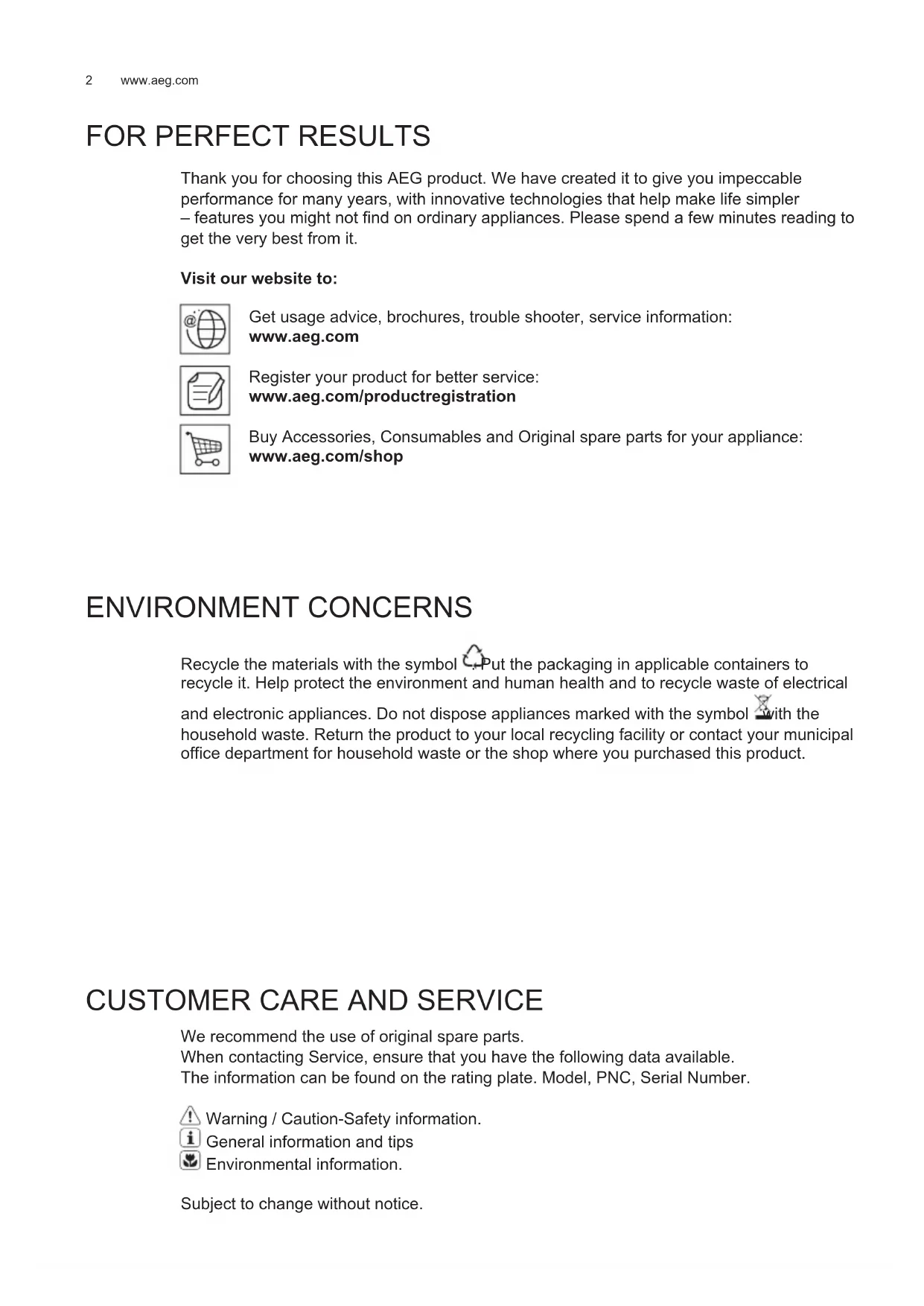

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable

performance for many years, with innovative technologies that help make life simpler

– features you might not find on ordinary appliances. Please spend a few minutes reading to

get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to

recycle it. Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol with the

household waste. Return the product to your local recycling facility or contact your municipal

office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

1. SAFETY INSTRUCTIONS Caution! Closely follow the instructions

set out in this manual. All responsibility,

for any eventual inconveniences,

damages or fires caused by not

complying with the instructions in this

manual, is declined. The extractor hood

has been designed exclusively for

Caution! Do not connect the appliance

to the mains until the installation is fully

Before any cleaning or maintenance

operation, disconnect hood from

the mains by removing the plug or

disconnecting the mains electrical

Always wear work gloves for all installation

and maintenance operations. The

appliance is not intended for use by

children or persons with impaired physical,

sensorial or mental faculties, or if lacking

in experience or knowledge, unless they

are under supervision or have been

trained in the use of the appliance by a

person responsible for their safety. This

appliance is designed to be operated

by adults, children should be monitored

to ensure that they do not play with the

appliance. This appliance is designed to

be operated by adults. Children should not

be allowed to tamper with the controls or

play with the appliance. Never use the hood

without effectively mounted grating! The

hood must NEVER be used as a support

surface unless specifically indicated. The

premises where the appliance is nstalled

must be sufficiently ventilated, when the

kitchen hood is used together with other

gas combustion devices or other fuels. The

ducting system for this appliance must not

be connected to any existing ventilation

system which is being used for any other

purpose such as discharging exhaust

fumes from appliances burning gas or other

fuels. The flaming of foods beneath the

hood itself is severely prohibited. The use

of exposed flames is detrimental to the

filters and may cause a fire risk, and must

therefore be avoided in all circumstances.

Any frying must be done with care in order

to make sure that the oil does not overheat

Caution! Accessible parts of the hood

may became hot when used with

With regards to the technical and safety

measures to be adopted for fume

discharging it is important to closely follow

the regulations provided by the local

authorities. The hood must be regularly

cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance

with the maintenance instructions provided

in this manual). Failure to follow the

instructions provided in this user guide

regarding the cleaning of the hood and

filters will lead to the risk of fires. Do not

use or leave the hood without the lamp

correctly mounted due to the possible risk

of electric shocks. We will not accept any

responsibility for any faults, damage or fires

caused to the appliance as a result of the

non-observance of the instructions included

Warning! Failure to install the screws

or fixing device in accordance with

these instructions may result in

2. USE The hood serves to aspirate the fumes and

vapors resulting from cooking.

The attached installation manual indicates

the version to be used depending on the

model you have, the suction version with

external evacuation or filtering with

internal recirculation .

3. INSTALLATION The mains power supply must correspond

to the rating indicated on the plate situated

inside the hood. If provided with a plug

connect the hood to a socket in compliance

with current regulations and positioned in

an accessible area, after installation. If it not

fitted with a plug (direct mains connection)

or if the plug is not located in an accessible

area, after installation, apply a double

pole switch in accordance with standards

which assures the complete disconnection

of the mains under conditions relating to

over-current category III in accordance with

installation instructions.

Warning! Before re-connecting the

hood circuit to the mains supply and

checking the efficient function, always

check that the mains cable is correctly

assembled.www.aeg.com

4.2 Activated charcoal filter

The saturation of the charcoal filter occurs

after more or less prolonged use, depend-

ing on the type of cooking and the regularity

of cleaning of the grease filter.

In any case it is necessary to replace the

cartridge at least every four mounths.

The charcoal filter may NOT be washed or

The minimum distance between the

supporting surface for the cooking

equipment on the hob and the lowest part

of the range hood must be not less than

50cm from electric cookers and 50cm from

gas or mixed cookers. If the instructions for

installation for the gas hob specify a greater

distance, this must be adhered to.

4. MAINTENANCE ATTENTION! Before performing any

maintenance operation, isolate the hood

from the electrical supply by switching off at

the connector and removing the connector

fuse. Or if the appliance has been

connected through a plug and socket, then

the plug must be removed from the socket.

The cooker hood should be cleaned

regularly (at least with the same frequency

with which you carry out maintenance of the

fat filters) internally and externally. Clean

using the cloth dampened with neutral liquid

detergent. Do not use abrasive products.

Warning! Failure to carry out the basic

cleaning recommendations of the cooker

hood and replacement of the filters may

cause fire risks. Therefore, we recommend

observing these instructions.

The manufacturer declines all responsibility

for any damage to the motor or any

fire damage linked to inappropriate

maintenance or failure to observe the above

safety recommendations.

4.1 Grease filter - The grease filter must

be cleaned once a month using non

aggressive detergents, either by hand or

in the dishwasher, which must be set to a

low temperature and a short cycle. When

washed in a dishwasher, the grease filter

may discolour slightly, but this does not

affect its filtering capacity.5

5. CONTROLS Use the high suction speed in cases

of concentrated kitchen vapours. It is

recommended that the cooker hood suction

is switched on for 5 minutes prior to cooking

and to leave in operation during cooking

and for another 15 minutes approximately

after terminating cooking.

The controls are located on the upper side

of the pull-out drawer of the hood.

Open the drawer to access the controls and

When the drawer closed, all hood functions

are disabled except for the light, whose

button is placed also on the underside of

By reopening the drawer, the previous

operation mode is restored and you can

see the related indicator lights.

T1. Button ON/OFF lights (Led L1 lit)

3 (Led L2+L3+L4 liti)

T5. Selection button intensive suction

speed (power) (Led L2+L3+L4 lit + Led

L5 flashing) - duration 5 minutes – after

which the hood automatically sets

suction speed (power) 2.

Delayed switch-off of the hood (flashing

It is possible to set the delayed hood

switch-off by pressing again for more than

2 seconds the button of the suction speed

(power) active at that time.

The available delayed switch-off options

Suction speed (power) 1: 20 minutes

Suction speed (power) 2: 15 minutes

Suction speed (power) 3: 10 minutes

Intensive suction speed (power): 5 minutes

Filter saturation indicator

The hood is equipped with a function that

warns the user, at regular time intervals,

when the filters are saturated and it is

necessary to perform their maintenance.

Grease filter saturation indicator: With

the hood off (OFF) all suction speed

(power) LEDs light up with steady light for

Activated charcoal filter saturation

indicator: With the hood off (OFF) all

suction speed (power) LEDsflash for 40

Activation of the active charcoal filterwww.aeg.com

saturation signal: normally, this function is

disabled; to activate it, switch off the hood

(OFF) and simultaneously press buttons T3

and T5 for more than 3 seconds. LEDs L3

and L5 will start flashing.

To disable repeat the operation: LEDs L3

and L5 light up with steady light.

Resetting the filters’ saturation

With the hood on (ON) press button T2 for

more than 2 seconds; all LEDs will light up

Note: if necessary, repeat the operation

in case both indicators (grease filter and

activated charcoal filter) are active.

6. LIGHTING The hood is equipped with a lighting system

based on LED technology.

The LEDs guarantee an optimum lighting,

a duration up to 10 times as long as the

traditional lamps and allow to save 90%

Caution! Do not look directly into the

For replacement, contact the technical
