CMPWEBCAM95BL - Webcam KONIG - Free user manual and instructions

Brand	Konig
Model	CMPWEBCAM95BL
Product Type	Webcam
Sensor Type	CMOS 1/3 inch
Maximum Resolution	1280 x 1024 pixels
Interface	USB 2.0
Frame Rate	30 frames/second (CIF/VGA), 10 frames/second (SXGA)
Focus	3 cm to infinity
Compatible Operating Systems	Windows XP, Vista, 7
Microphone Sensitivity	-40 dB
Supported Resolutions	1280x1024, 800x600, 640x480
Power Supply	Via USB port
Included Software	CD with drivers and software (Amcap)
Features	Plug & Play on Windows XP/Vista/7
Maintenance	Clean the lens with a damp cloth or neutral solvent
Precautions	Do not expose to water, moisture or excessive heat
Safety	Do not open the device; risk of electric shock. Unplug if a problem occurs.
Warranty	Warranty void in case of misuse or disassembly
Operating Conditions	Temperature: 5°C to 40°C, humidity: 10% to 80% RH
Minimum System Requirements	Intel Pentium 4 1.4 GHz / AMD Athlon 2.4 GHz processor, 128 MB RAM, 50 MB hard disk, 16-bit screen, CD-ROM drive, DirectX 9.0C or higher

Frequently Asked Questions - CMPWEBCAM95BL KONIG

How to install the webcam on Windows XP?

Make sure you have installed Service Pack 2 or higher. Plug the webcam into a USB port. Installation will be automatic (Plug & Play). Once finished, a confirmation message will appear.

What to do if the image is blurry?

First check if the lens is dirty; clean it with a soft cloth. If the image remains blurry, refocus. The webcam may have been moved.

What to do if no image appears?

Check the USB connections at both ends. Exit the program, reconnect the webcam, and restart the software. Make sure the driver is properly installed.

Why do black stripes appear on the image?

If you use the webcam indoors, check that the electrical frequency of the lighting system matches the webcam's specifications (50 Hz - 60 Hz). You can also reset the screen depth to true color 24 or 32 bits.

How to clean the webcam lens?

Use a slightly damp soft cloth or a neutral solvent. Do not use abrasive products or harsh solvents.

What operating systems are compatible with this webcam?

The webcam is compatible with Windows XP, Vista, and 7. Plug & Play works only on these systems.

What is the maximum resolution of the webcam?

The maximum resolution is 1280 x 1024 pixels (SXGA mode). Other resolutions are available: 800x600 and 640x480.

How to use the built-in microphone?

In your video capture software, select 'High-speed PC Camera' as the audio device. The built-in microphone is then active with a sensitivity of -40 dB.

What to do if the webcam is not recognized by the computer?

Try plugging the webcam into a different USB port. Make sure you have installed the driver from the provided CD. Restart the computer. If the problem persists, check that your system is up to date (Service Pack 2 under Windows XP).

How to change the capture resolution?

Launch the Amcap software. Go to Options > Video Capture Filter. In the settings, you can choose from the supported resolutions: 1280x1024, 800x600, or 640x480.

USER MANUAL CMPWEBCAM95BL KONIG

Webcam da1.3 Megapixel

HASZNÁLATI UTMUTATÓ (o. 29.)

1.3 Megapixels Webkamera

1.3 Megapixel Webcam

ANLEITUNG (s. 6)

1.3 MegaPixel Webcam

MANUAL DE USO (p. 24)

1.3 Megapixel Webcam

Plug & Play is only available in Windows XP, Vista and 7.

• To avoid damage of the image sensor please do not point expose to direct sunlight.

Please protect the camera from heat to avoid electronic shock.

Please protect the camera from rain or moisture.

The lens may be cleaned with a moistened cloth or neutral cleaning detergent.
- Misuse, abuse or disassembling the camera may cause electric shocks and will void the warranty.

SYSTEM REQUIREMENTS

Intel Pentium 4 1.4GHz, AMD Athlon processor 2.4GHz processor recommended

128 Mb RAM or higher

50 Mb available hard drive space

16-bit colour display adapter

Windows XP/Vista/7

CD-ROM drive

Soundcard

DirectX 9.0C or above

OPERATING ENVIRONMENT

Temperature: 5^ - 40^ (41^ - 104^)

Relative humidity: 10% R.H. - 80% R.H.

Illumination: 200 lux or more

PACKAGE CONTENTS

CMP-WEBCAM95
Software CD

User guide

TECHNICAL SPECIFICATIONS

Sensor type	1/3" CMOS sensor
Resolution	1280x1024 pixels
Interface	USB 2.0
Frame rate	30 fps (CIF mode); 30 fps (VGA mode); 10 fps (SXGA mode)
Focus	3 cm to infinity
OS system	Windows® XP, Vista, 7
Microphone sensitivity	-40 dB

CAMERA INSTALLATION

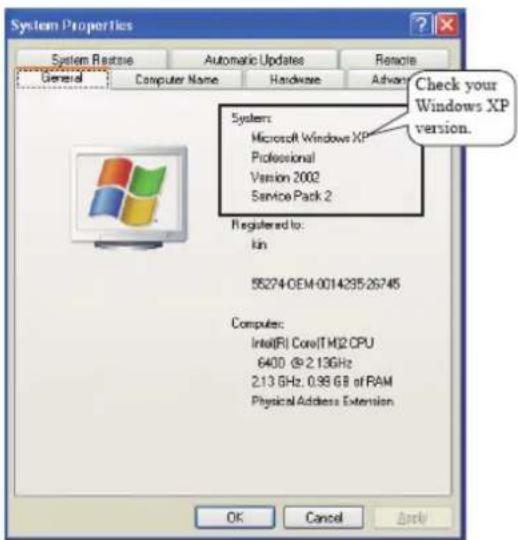

1. Please ensure that you have Service Pack 2 or later installed when using Windows XP. If you do not have Service Pack 2, please update your operating system.

1. Please plug your camera into the USB port.

1. The camera will install itself automatically. When the installation has finished you will see the following message:

HOW TO USE THE CAMERA

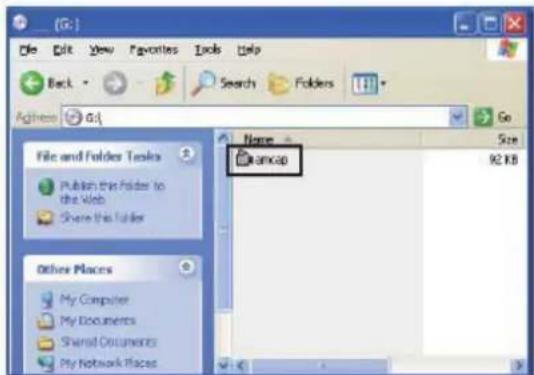

1. Insert the software CD into the CD-ROM drive. The software can either be run from the CD or you can copy the software to your hard disk.

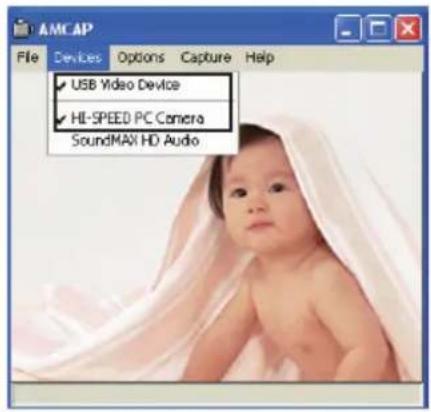

1. Please select "USB Video Device" as your video device and "HIGH-SPEED PC Camera" as your audio device.

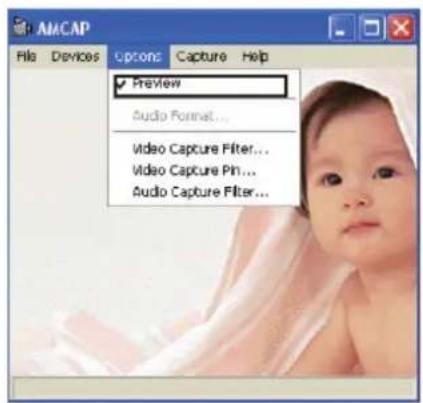

Select Preview from the options menu.

CAMERA FUNCTIONS

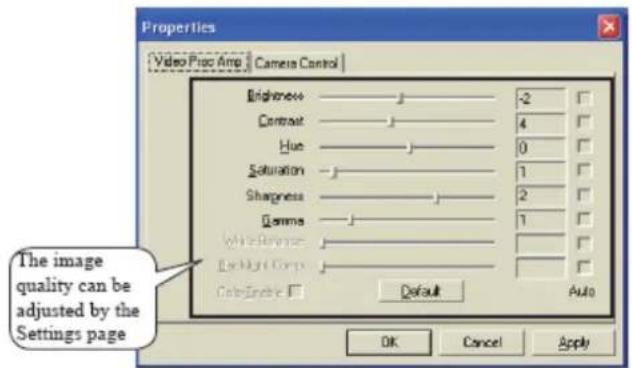

Please run Amcap software and navigate to Options > Video Capture Filter.

CAMERA INSTALLATION

1. Plug camera into USB port

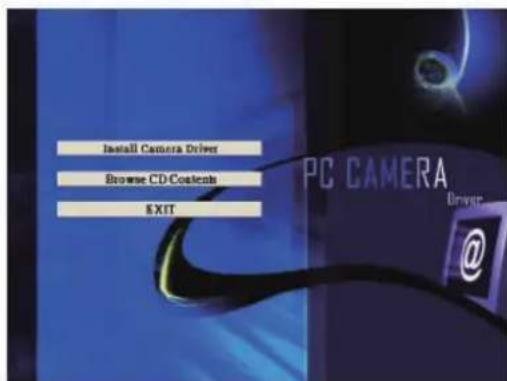

1. Select "Install Camera Driver" to start the installation.

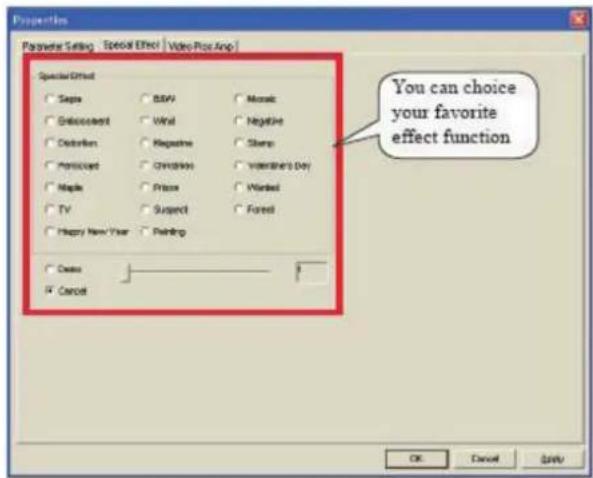

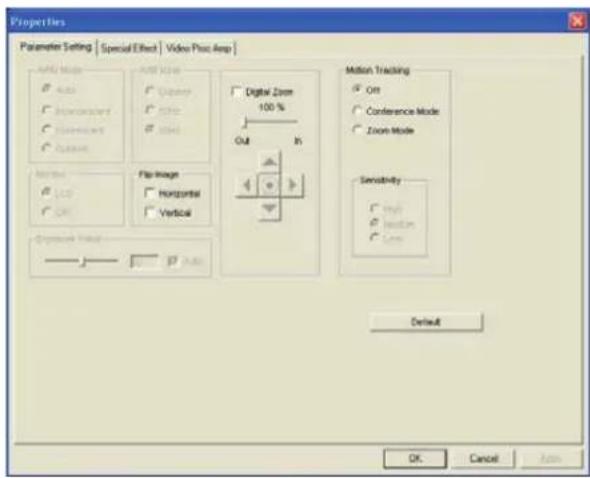

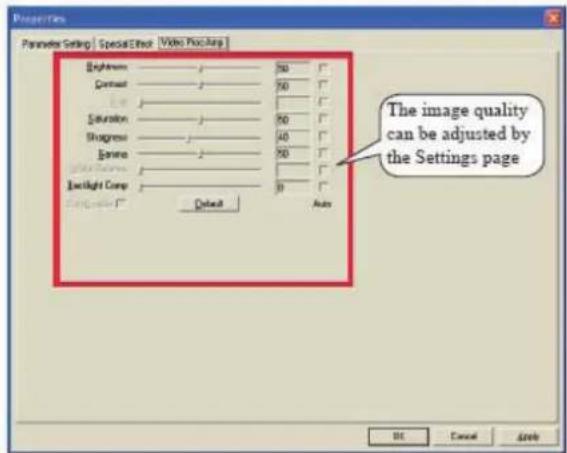

EXTENDED CAMERA FUNCTIONS

Please run Amcap and navigate to Options > Video Capture Filter

Resolution: 1280x1024 - 800x600 - 640x480 supported Enhance Options 2x

TROUBLE SHOOTING

PROBLEM SOLUTION
The camera shows no image after being connected to an USB port on the PC.	1.Make sure the USB connectors are connected properly at both ends.2.Exit the program,re-connect the device and start the program again.3.Make sure that you have installed the driver properly.
The image taken and shown on the PC screen is blurred.	1.The camera might have been dropped or moved accidentally. Try to adjust the focus again.2.Check if there is anything sticking on the camera lens,if so,clean it with a soft cloth.
The image shows black stripes.When using the camera indoors,make sure the electric frequency of the lighting system does match the camera's specifications (50Hz-60Hz).
The images turn slow when viewing in VGA mode (640x480 pixels).	This is because the volume of transmission data is getting bigger in VGA mode. To improve the performance,we suggest to upgrade the computer hardware.
There are stripes or black shadows on the images.	Please reset the display levels to 24-bits or 32-bits true color.
No image turns up while running the programs.	Please click the “Preview” button in “Options”.

Safety precautions:

CAUTION

BISK OF ELECTRIC SHOCK

DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product

to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
