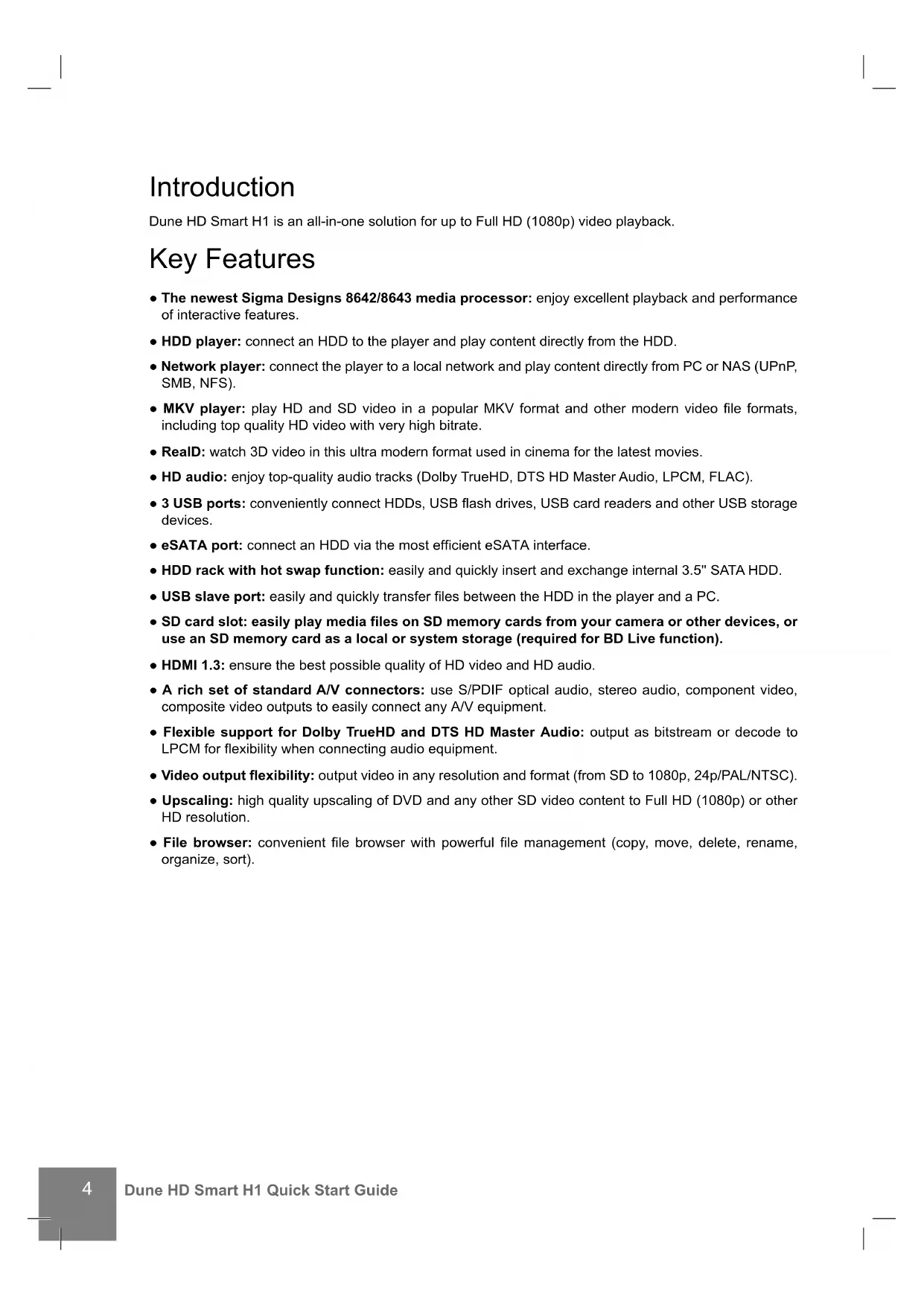

Короткий посібник Polski Skrócona instrukcja Szybki Start4 Dune HD Smart H1 Quick Start Guide Introduction Dune HD Smart H1 is an all-in-one solution for up to Full HD (1080p) video playback. Key Features ● The newest Sigma Designs 8642/8643 media processor: enjoy excellent playback and performance of interactive features. ● HDD player: connect an HDD to the player and play content directly from the HDD. ● Network player: connect the player to a local network and play content directly from PC or NAS (UPnP, SMB, NFS). ● MKV player: play HD and SD video in a popular MKV format and other modern video file formats, including top quality HD video with very high bitrate. ● RealD: watch 3D video in this ultra modern format used in cinema for the latest movies. ● HD audio: enjoy top-quality audio tracks (Dolby TrueHD, DTS HD Master Audio, LPCM, FLAC). ● 3 USB ports: conveniently connect HDDs, USB flash drives, USB card readers and other USB storage devices. ● eSATA port: connect an HDD via the most efficient eSATA interface. ● HDD rack with hot swap function: easily and quickly insert and exchange internal 3.5'' SATA HDD. ● USB slave port: easily and quickly transfer files between the HDD in the player and a PC. ● SD card slot: easily play media files on SD memory cards from your camera or other devices, or use an SD memory card as a local or system storage (required for BD Live function). ● HDMI 1.3: ensure the best possible quality of HD video and HD audio. ● A rich set of standard A/V connectors: use S/PDIF optical audio, stereo audio, component video, composite video outputs to easily connect any A/V equipment. ● Flexible support for Dolby TrueHD and DTS HD Master Audio: output as bitstream or decode to LPCM for flexibility when connecting audio equipment. ● Video output flexibility: output video in any resolution and format (from SD to 1080p, 24p/PAL/NTSC). ● Upscaling: high quality upscaling of DVD and any other SD video content to Full HD (1080p) or other HD resolution. ● File browser: convenient file browser with powerful file management (copy, move, delete, rename, organize, sort).5 Extra Functions ● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc). ● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions. ● NAS function: access files on storage devices (HDD, optical drive, etc) attached to the player from the local network (using SMB or FTP). ● BitTorrent: use built-in BitTorrent client to download files from P2P networks. ● Customizable user interface: work with media collections using cover art and icon browsing (with Full HD graphics). ● Flash applications: extend the player functionality with FlashLite applications. ● Internet radio: playback and record various Internet radio stations (HTTP/MP3). ● IPTV: playback and record IPTV streams (multicast UDP/RTP) from your Internet provider*. ● Digital TV option: playback and record Digital TV channels using an optional Digital TV USB dongle**. ● Internet browsing: view Internet Web sites on your TV using the built-in Web browser***.

• Check availability of multicast UDP/RTP streams with your Internet provider. ** Digital TV USB dongle is not included; this option can be purchased separately. *** Built-in Web browser has limitations and may not allow to view some Internet Web sites. English6 Dune HD Smart H1 Quick Start Guide A/V Package Contents

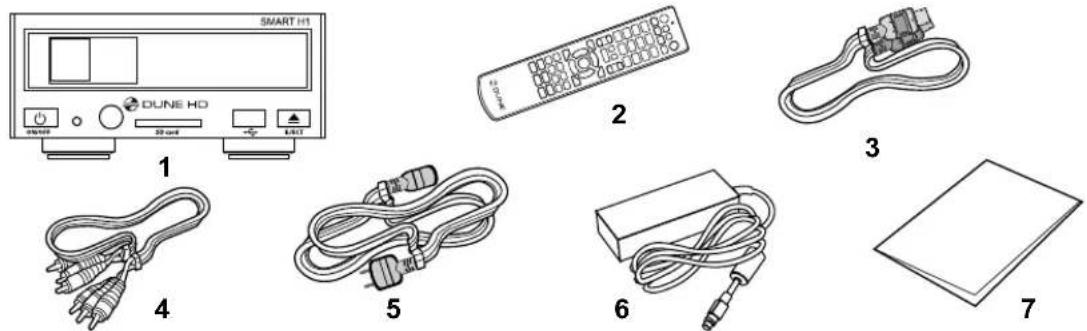

1. Dune HD Smart H1 media player 2. Remote control (batteries may not be included)

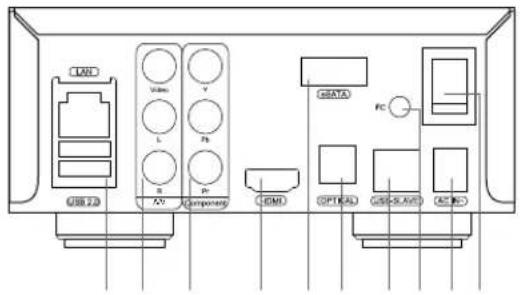

NOTE: Additional items (optional) may be included into the package, depending on player configuration, region, and distributor. Exterior Front view Rear view 3. HDMI cable4. AV cable5. Power supply cord6. External power supply 7. Quick start guide1. On/off button2. LED indicator3. IR eye4. SD card slot5. HDD rack6. USB 2.0 host7. Eject button** For controlling an external optical drive (when connected) 1. LAN and 2xUSB 2.0 host 2. Composite video and analog stereo audio output 3. Component (Y/Pb/Pr) video output 4. HDMI 1.3 5. eSATA host 6. Optical digital audio output 7. USB Slave 8. Dedicated bus connector (I C) (for future connecting external devices)* 9. DC power 12V10. Power switch* Not for headphones or other A/V devices; connecting headphones or other A/V devices may damage your equipment1 12 3 4 56 8791023 4 5 6 7

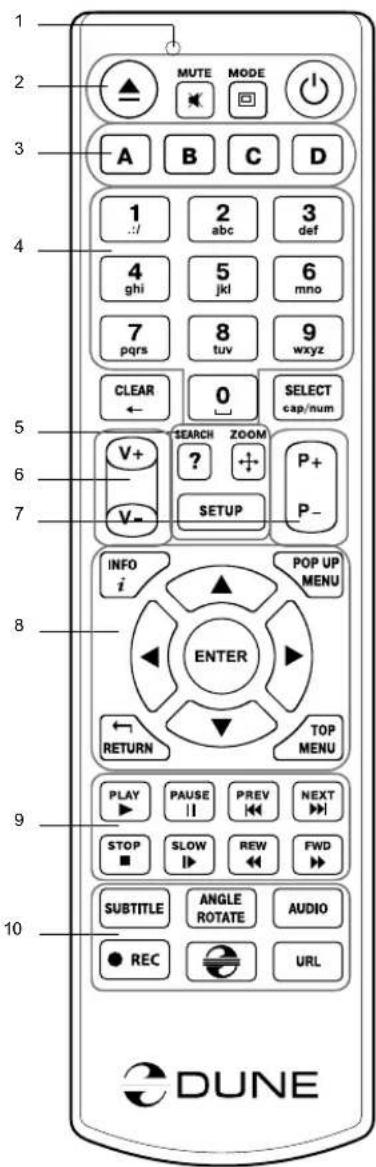

1. Command indicator — fl ashes in response to RC button pressing.

2. EJECT — open/close the optical drive tray. MUTE — turn the sound

on/off. MODE — switch the video output mode; control some other player functions. POWER — toggle the standby mode.

3. A (Red), B (Green), C (Yellow), D (Blue) — access Blu-ray disc

features; control some other player functions.

4. 0–9 — enter numbers and text; control some other player func-

change the zoom factor for the video content being played. SET- UP — enter/leave the setup menu; adjust playback settings during playback.

6. V+/V- (volume up / volume down) — adjust the volume.

7. P+/P- (page up / page down) — scroll up and down in various

lists; control some other player functions.

8. Arrows (LEFT, RIGHT, DOWN, UP), ENTER, RETURN, TOP

MENU, POP UP MENU, INFO — main buttons for controlling the player (navigate across the items on the screen, open/use the cur- rently selected item, go back to the previous screen, go to main menu, show popup menu with actions, show information, control some other player functions).

9. PLAY, PAUSE, STOP, SLOW, REW, FWD, PREV, NEXT — control

trol the playback and some other player functions. NOTES: ● Use alkaline AAA batteries. ● Observe polarity when inserting batteries. ● Direct the remote control to the player. There must be no obstacles between the RC and the player. ● If RC functions only at short distances or stops functioning, make sure to replace the batteries. ● Some RC buttons may have several functions depending on the current player mode. ● Some RC buttons may be available only in certain player modes or only during playback of a certain content. Remote Control

Dune HD Smart H1 Quick Start Guide Getting Started Ensure there is enough space around the player for proper cooling. The space at each side should be not less than 10 cm. Ensure the RC has batteries installed. Connect the player to your TV and to other A/V equipment in an appropriate way. Use HDMI connection to get the best possible quality of video and audio. Make sure to switch off the player and all relevant A/V equipment before connecting them. Ensure your TV and other A/V equipment are configured to use proper inputs. Switch on the player. The player will perform its initial loading procedure, which may take up to about 1 minute. During the loading procedure, "DUNE" logo is shown on the TV. ● If you do not see "DUNE" logo on the TV when you switch on the player, it may mean some problem with the connection between the player and the TV or that a wrong video input is chosen in the TV or A/V receiver/switch. In such a case, recheck the cables and the settings of the TV or A/V receiver/switch, or try to use different cables or a different way of connecting the player to the TV. ● If you see "DUNE" logo on the TV when you switch on the player, but then the picture disappears and no other picture appears during at least 10 seconds, it may mean that a wrong video output mode is configured in the player. In such a case, press the "MODE" RC button, and then press one of the RC buttons "1", "2", "3", "4" or "5" to switch to a different video output mode (see "Quick Setting of Video Output Mode"). Finally, you should see the main screen of the player menu. The main screen shows items allowing to use different player functions and access all storage devices and network drives connected to the player. Adjust the player settings as needed using "SETUP" item on the main screen of the player menu (or by pressing the "SETUP" RC button). In particular, you may want to adjust video settings, audio settings, and network settings. To choose the language of the player menu, use “Setup / General / Interface language” setting. Use the RC buttons "LEFT", "RIGHT", "UP", "DOWN", "ENTER", "RETURN" to navigate through the player menu. Use the "POP UP MENU" RC button to show the list of available commands. Use the "INFO" RC button to show the information about the selected item. Quick Setting of Video Output Mode The “MODE” RC button allows quick setting of video output mode without entering the player setup menu. This way of video output confi guration may be required if you see no picture on the screen after connect- ing your player to a TV. Press the “MODE” RC button and then one of the RC buttons “1”, “2”, “3”, “4”, or “5” to switch to one of the following video output modes respectively:
