USER MANUAL DBX33 ALECTO

3 Indication On/off en/hors indication

Ein/aus Indikator Indicación en/lejos

4 Raccordement DC input adaptateur

Anschluß Netz- Entrada de DC stromadapter

5 Microphone Microphone

Mikrofon Micrófono

6 Interrupteur On/off/channel en/hors/canal switch

Ein/Aus/Kanal Interruptor Schalter en/lejos/canal

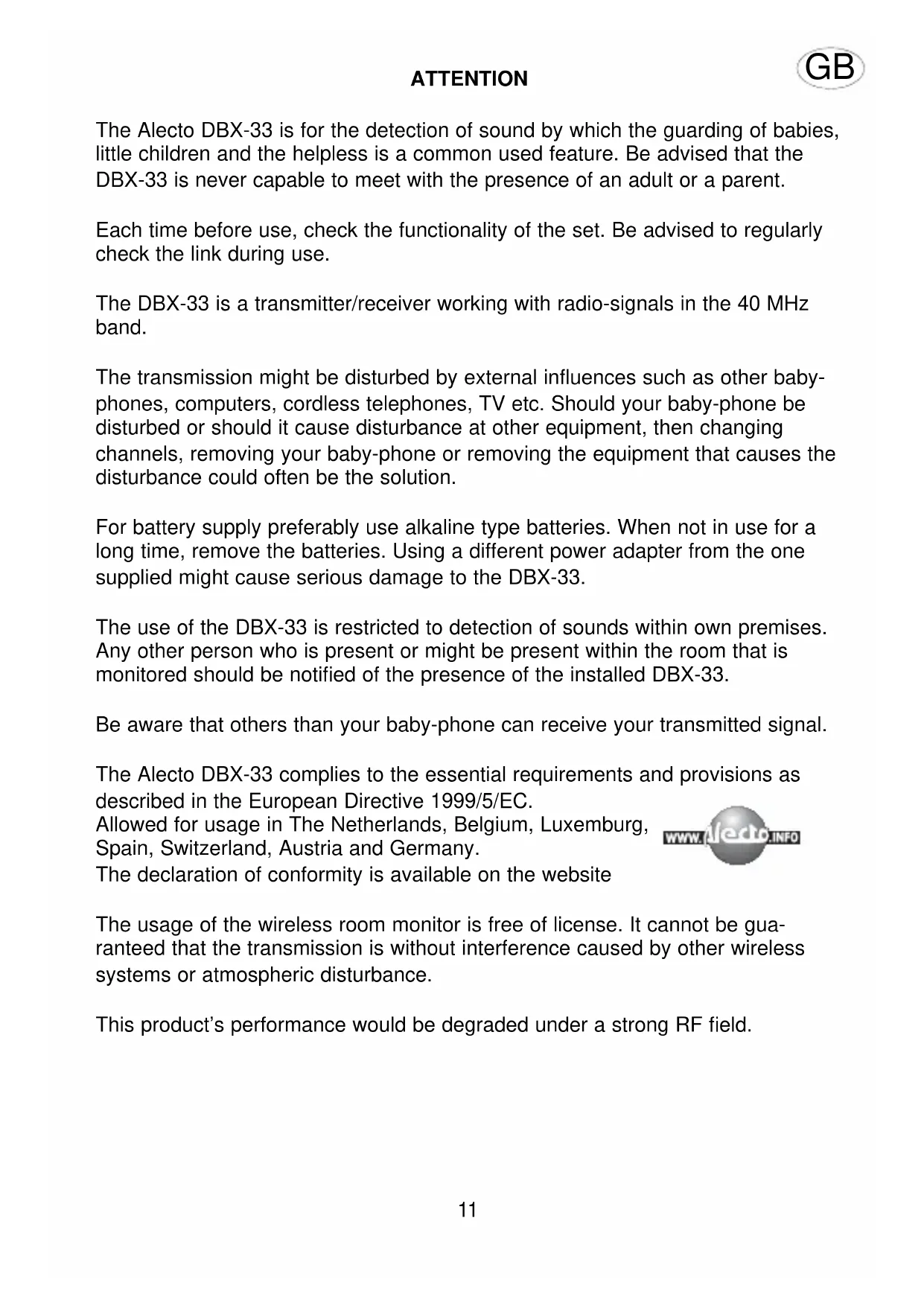

The Alecto DBX-33 is for the detection of sound by which the guarding of babies, little children and the helpless is a common used feature. Be advised that the DBX-33 is never capable to meet with the presence of an adult or a parent.

Each time before use, check the functionality of the set. Be advised to regularly check the link during use.

The DBX-33 is a transmitter/receiver working with radio-signals in the 40 MHz band.

The transmission might be disturbed by external influences such as other baby-phones, computers, cordless telephones, TV etc. Should your baby-phone be disturbed or should it cause disturbance at other equipment, then changing channels, removing your baby-phone or removing the equipment that causes the disturbance could often be the solution.

For battery supply preferably use alkaline type batteries. When not in use for a long time, remove the batteries. Using a different power adapter from the one supplied might cause serious damage to the DBX-33.

The use of the DBX-33 is restricted to detection of sounds within own premises. Any other person who is present or might be present within the room that is monitored should be notified of the presence of the installed DBX-33.

Be aware that others than your baby-phone can receive your transmitted signal.

The Alecto DBX-33 complies to the essential requirements and provisions as described in the European Directive 1999/5/EC.

Allowed for usage in The Netherlands, Belgium, Luxemburg, Spain, Switzerland, Austria and Germany.

The declaration of conformity is available on the website

The usage of the wireless room monitor is free of license. It cannot be guaranteed that the transmission is without interference caused by other wireless systems or atmospheric disturbance.

This product's performance would be degraded under a strong RF field.

INSTALLATION

POWER SUPPLY:

For portable use, the transmitter and receiver can be powered by one pcs 9 Volt battery each (excluding). Open the battery-compartment and insert the battery

For non-portable use, the transmitter and the receiver can be powered by the supplied power-adapters. The DC input can be find on the right side of the transmitter or receiver.

BELTCLIP:

With the aid of the beltclip the transmitter and / or receiver can be easily carried on a belt.

REMARKS:

Power supply: A power adapter is included for the transmitter and for the receiver as well. The power adapters are of the same type.

Battery use: When the set is battery-operated, the use of ALKALINE batteries is recommendable. Also rechargeable batteries can be installed but they have to be recharged in separate chargers. The DBX-33 has no provision to charge these batteries.

When the set is not in use for a longer period, please remove the batteries to prevent leakage, which might damage the electronic circuit.

Never throw away empty batteries but hand them over to your local depot for chemical waste.

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments.

USAGE

TRANSMITTER:

Locate the transmitter in the room you want to guard.

Slide the OFF-1-2 switch into position 1 to turn the transmitter on. The POWERLED will light

The transmitter is voice activated: as soon a sound is detected, the transmitter is activated and will transmit the sound. The sensitivity of the sound detection circuit can be adjusted with the controller on the right side of the transmitter. Turn upwards to decrease the sensitivity, turn downwards to increase the sensitivity. The required setting of this controller must be established by experiment.

RECEIVER:

Slide the OFF-1-2 switch into the position 1 to switch-ON the receiver. The POWER-LED will light.

As soon as the transmitter is being activated by a sound, the receiver will switch from STAND-BY to RECEIVE and the loudspeaker will produce the sound. Control the receiver's volume with the VOLUME controller on the right side.

The illumination of the LED's also indicates the reception. The more LED's light, the louder the sound. This feature can be used to guard the room while the volume is set to minimum.

CHANNEL 1 / 2:

The channel switch is for changing the channel in case the concerned channel is occupied by another transmitter / babyphone. The changing of the channels need to be done on both the transmitter and the receiver.

REACH:

The maximum reach of the DBX-33 is approximately 100 to 150 meters (300 to 450 ft). Be informed that large buildings, metal constructions, atmospheric disturbances and other wireless devices can influence this maximum reach.

MAINTENANCE

Use a soft moistened cloth to clean the set.

Avoid placing the receiver and the transmitter in direct sunlight or wet locations.

Do not let water and sand enter the units.

In case the transmitted signal is disturbed or interrupted, check the functionality at another location first, prior to send it in for repair.

Always remove the batteries in case the unit is not in use for a longer period.

TROUBLESHOOTING

Should any problem occur, please check the list below.

bad or no reception:

battery is weak or empty, replace battery

channel switch is set wrong, change channel

transmitter-receiver distance too large, reduce distance

adapter connection wrong, check adapter connection

noise and other sounds:

other transmitter present, change channels

disturbance by other devices, switch off other devices (when possible)

shrill tone:

transmitter too close to the receiver, increase distance

volume of receiver is set too high, reduce volume

You have a guarantee of 12 MONTHS after the date of purchase of this DBX-33. We guarantee during this period the free repair of defects caused by material- and construction faults. This at the importers discretion. It is only possible to claim to the guarantee when you enclose your purchase ticket with the defect DBX-33.

HOW TO ACT:

If you notice a defect, consult the manual first. If this manual gives you no definite answer, consult your dealer with a clear description of your complaint. He will collect the device together with this guarantee card and the dated purchase ticket and he will take care of a prompt repair, respectively free sending to the importer.

THE GUARANTEE EXPIRES:

• When used inexpert, faulty connections, leaking and faulty placed batteries, use of unoriginal parts or accessories, negligence and defects caused by fire, flood, stroke of lightning and natural disasters.
• With unqualified modifications or repairs by third persons.
• With incorrect transport without a suitable packing. If the device is not handed in with the correct filled in guarantee card and the purchase ticket.

NOT UNDER THIS GUARANTEE: batteries and antenna.

All further responsibilities, in particular subsequent damages, are excluded.
