ZY2PLA407 - Network card / adapter ZYXEL - Free user manual and instructions

Product Type	Powerline Adapter (PLC)
Brand	ZyXEL
Model	PLA-407 (ZY2PLA407)
Network Standard	HomePlug AV, IEEE 1901
Maximum Speed	200 Mbps
Interface	1 Ethernet port 10/100 Mbps (RJ-45)
Integrated Power Socket	Yes, passthrough (female socket)
Security Button	Yes, ENCRYPT button for 128-bit AES encryption
LED Indicators	Power, Ethernet, Powerline, Traffic
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Approximately 5 W in operation
Dimensions (W x D x H)	Approximately 10 x 6 x 4 cm
Weight	Approximately 200 g
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % (non-condensing)
Main Function	Extend home network via electrical wiring
System Requirements	Power socket, category 5 Ethernet cable or higher
Network Security	128-bit AES encryption via ENCRYPT button
Compatibility	HomePlug AV, compatible with all HomePlug AV powerline adapters
Management Software	PLA-4xx configuration utility (Windows)
Maintenance	Clean with a dry, soft cloth; disconnect before cleaning
Repairability	Spare parts not available, device not user-serviceable
Warranty	2 years (depending on retailer)
Box Contents	PLA-407 adapter, Ethernet cable, quick start guide, utility CD

Frequently Asked Questions - ZY2PLA407 ZYXEL

How to connect the PLA-407 to a modem or router?

Connect an Ethernet cable between the ETHERNET port of the PLA-407 and a free LAN port on your modem or router. Then plug the PLA-407 into a power outlet. The power and Ethernet LEDs should light up.

How to connect the PLA-407 to a computer?

Use an Ethernet cable to connect the ETHERNET port of the PLA-407 to the Ethernet port of your computer. Plug the PLA-407 into a power outlet. The power and Ethernet LEDs should light up or blink.

How to secure my powerline network with the ENCRYPT button?

Press the ENCRYPT button on each PLA-407 adapter you wish to pair. 128-bit AES encryption is then activated automatically. See the user guide for detailed procedure.

What to do if the LEDs do not light up?

Check that the power outlet works by plugging another device into it. Ensure Ethernet cables are properly connected and are category 5 or higher. Unplug and replug the PLA-407.

Can I plug other devices into the power socket of the PLA-407?

Yes, the PLA-407 has an integrated power socket (passthrough) allowing you to plug another electrical device or extension cord without disturbing the powerline network.

What is the maximum range of the powerline network?

The range depends on the quality of your home's electrical wiring. Generally, it can reach up to 300 meters within the same electrical circuit. Beyond that, additional adapters may be needed.

Is the PLA-407 compatible with other powerline adapters?

Yes, it is compatible with any adapter certified HomePlug AV (IEEE 1901). You can mix different brands as long as they comply with this standard.

How to reset the PLA-407 to factory settings?

Press and hold the ENCRYPT button for 10 seconds until the LEDs blink. The adapter will restart with default settings. See the guide for more details.

What is the power consumption of the PLA-407?

The consumption is approximately 5 watts in operation. It is recommended to plug it directly into a wall outlet, not a power strip, to avoid interference.

What to do if the internet connection is slow or unstable?

Ensure the outlets used are on the same electrical circuit. Avoid noisy power strips and high-current appliances. You can also use the configuration utility to optimize the network.

USER MANUAL ZY2PLA407 ZYXEL

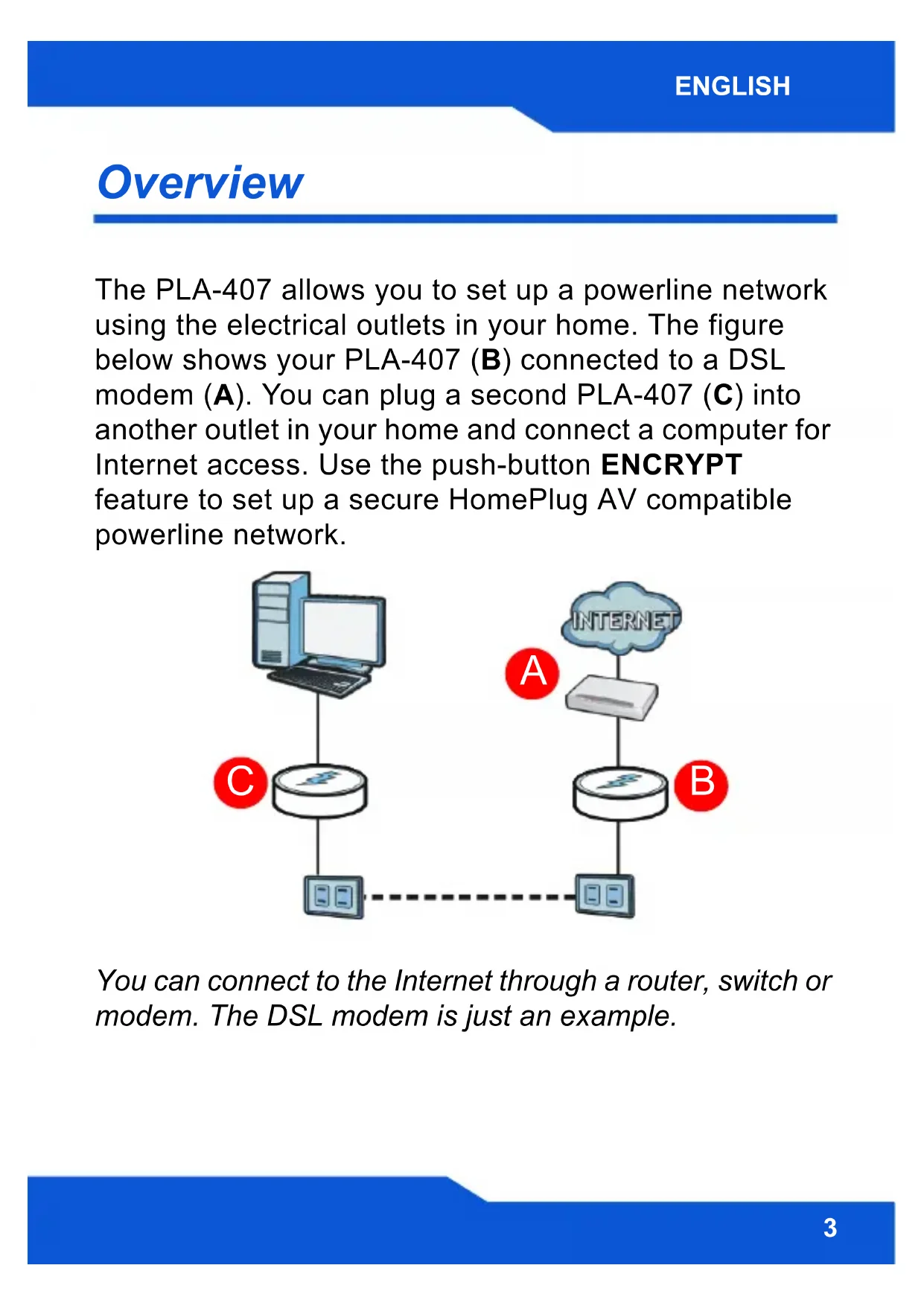

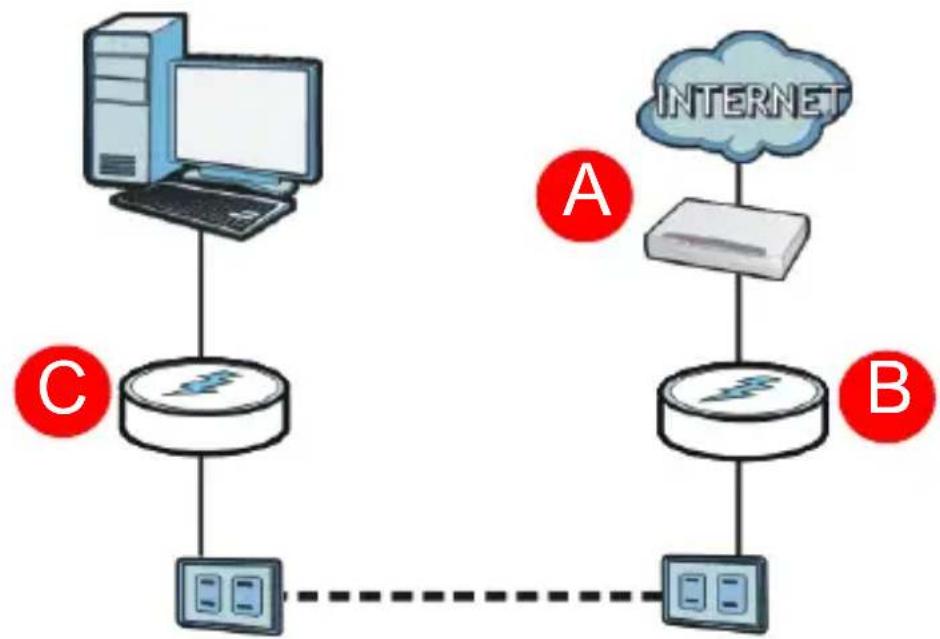

The PLA-407 allows you to set up a powerline network using the electrical outlets in your home. The figure below shows your PLA-407 (B) connected to a DSL modem (A). You can plug a second PLA-407 (C) into another outlet in your home and connect a computer for Internet access. Use the push-button ENCRYPT feature to set up a secure HomePlug AV compatible powerline network.

You can connect to the Internet through a router, switch or modem. The DSL modem is just an example.

This Quick Start Guide shows you how to do the following:

1. Connect the PLA-407 to a Cable/DSL Modem or Router (4)
2. Connect the PLA-407 to a Computer (5)

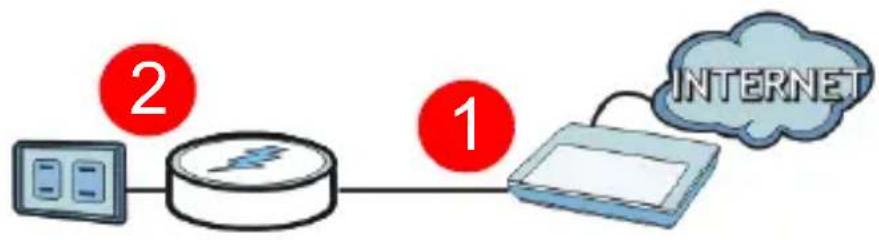

Connect the PLA-407 to a Cable/DSL Modem or Router

1. Use an Ethernet cable to connect the ETHERNET port on the PLA-407 to an available Ethernet port of your modem, router or switch.
2. Plug the PLA-407 into a power outlet.
3. The power (LED should be on and the Ethernet (Ethernet should be on or blinking.

If none of the LEDs are on, unplug your device and recheck your hardware connections.

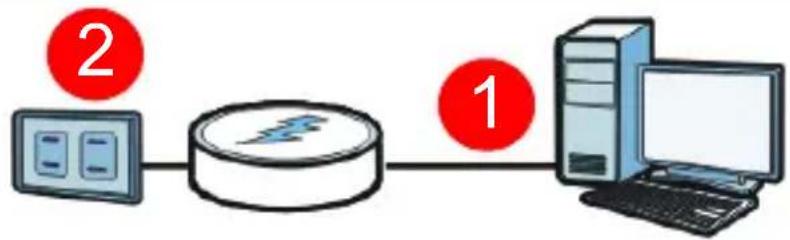

Connect the PLA-407 to a Computer

1. Use an Ethernet cable to connect the ETHERNET port on the PLA-407 to the Ethernet port on your computer.
2. Plug the PLA-407 into a power outlet.
3. The power (LED should be on and the Ethernet (Ethernet) should be on or blinking.
4. When the PLA-407 detects a connection to another PLA-407 (or another HomePlug AV compatible powerline adapter), the HomePlug LEDs turn on.

Pass-Through Design and Noise Filter

The PLA-407 has a power socket into which you can plug another network device or power strip. The extra socket can filter out interference from the electrical devices so that it does not affect the Powerline network. Refer to the User's Guide for more information on this feature.

Plug in another device such as a router or switch to the Powerline network you have set up.

If you are having trouble setting up your connections, make sure:

• Your outlets are working properly. Unplug the PLA-407 and plug in another electrical appliance that you know works.
• The Ethernet cables you are using are Category 5 or higher. Most cables are labeled with their specifications.
• All Ethernet cables are securely connected.

Congratulations! This sets up your powerline network. See the User's Guide for instructions on using the PLA-4xx Configuration Utility and/or ENCRYPT button to set up your secure Powerline network.

Übersicht

ENGLISH DEUTSCH
Green Product Declaration RoHS Directive 2002/95/EC RoHS VERIFIED	Green Product Declaration RoHS Directive 2002/95/EC RoHS VERIFIED
WEEE Directive 2002/96/EC (WEEE: Waste Electrical and Electronic Equipment) 2003/108/EC	WEEE Directive 2002/96/EC (WEEE: Waste Electrical and Electronic Equipment) 2003/108/EC
Declaration Signature: Alan Cho	Unterschrift des Erklärenden: Alan Cho
Name/Title: Alan Cho / Quality Assurance Director Date (yyyy/mm/dd): 2009/3/24	Name/Titel: Alan Cho / Quality Assurance Director Datum (JJJJ/MM/TT): 2009/3/24

FRANÇAIS ESPÁÑOL
Déclaration de Produit Green Directive RoHS 2002/95/EC ROHS VERIFIED	Declaración de Producto Ecológico Directiva RoHS 2002/95/EC ROHS VERIFIED
Directive DEEE 2002/96/EC (DEEE : Déchets des Equipements Electriques et Electroniques) 2003/108/EC	Directive REEE 2002/96/EC (REEE : Residuos de Equipos Eléctricos y Electrónicos) 2003/108/EC
Signature de la déclaration : Alan Cho	Firma de declaración: Alan Cho
Nom/Titre : Alan Cho / Quality Assurance Director Date (aaaa/mm/jj) : 2009/3/24	Nombre/Túlico: Alan Cho / Quality Assurance Director Fuca (aaaa/mm/dd): 2009/3/24
ITALIANO SVENSKA
Dichiarazione Green Product Direttiva RoHS 2002/95/CE RoHS VERIFIED	Miljödeklaration RoHS Direktiv 2002/95/EC RoHS VERIFIED
Direttiva RAEE 2002/96/CE (RAEE: Rifiuti di Apparecchiature Elettriche ed Elettroniche) 2003/108/CE	WEEE Direktiv 2002/96/EC (WEEE: hantering av elektriskt och elektroniskt avfall) 2003/108/EC
Firma dichiarazione: Alan cho	Deklaration undertechnad av: Alan cho
Nome/titolo: Alan Cho / Quality Assurance Director Data (aaaa/mm/gg): 2009/3/24	Namn/Titel: Alan Cho / Quality Assurance Director Datum (àààà/mm/dd): 2009/3/24

NEDERLANDS

Productmilitieuverklaring

RoHS-richtlijn 2002/95/EC

AEEA-richtlijn 2002/96/EC (AEEA: Afgedankte Elektrische en Elektronische Apparaten) 2003/108/EC

Verklaringshandtekening: Alan Cho

Naam/titel: Alan Cho / Quality Assurance Director Datum(jjjj/mm/dd): 2009/3/24

Declaration of Conformity

We, ZyXEL Communications Corp., located at No.6, Innovation Rd II, Science-Park, Hsin-Chu, 300, Taiwan, declare under our sole responsibility that the product:

Product information

Model Number : Powerline Pass-Thru Ethernet Adapter

Product Name : PLA-407

Produced by

Company Name: ZyXEL Communications Corporation

Company Add. No.6, Innovation Road II, Science-Park, Hsin-Chu, 300, Taiwan

to which this declaration relates, is in conformity with the following standards or other normative documents:

EN 55022:2006/A1:2007

EN 61000-3-2: 2006

EN 61000-3-3:1995+A1:2001+A2:2005

EN 50412-2-1: 2005

Following the provisions of 2004/108/EC; 92/31/EEC Directive; 93/68/EEC, 99/5/EEC and LVD 2006/95/EC.

In accordance with Annex III of the Directive 1999/5/EC.

The TCF-File is located at:

Company Name : ZyXEL Communications UK Limited

Company Address : 11 The Courtyard, Eastern Road, Bracknell, Berkshire, RG12 2XB United Kingdom

Person is responsible for marking this declaration:

Hung-Chun Kuo

Name (Full Name)

2008-08-05

Date

Managing Director

Position/ Title

Hany Chen Niu

Legal Signature
