USER MANUAL IDE 45 S EU INDESIT

Installation and use

Lava-vasseille

Instructions for installation and use

Lave-vasseille 23

H R D A 1 2 3 4 5 6 7 8 P E C

T L H 8:88 S I G

E G F H J K I L

Cestello superiore

Close-up of a kitchen sink with a white plastic mixer and metal components (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

White plastic basket containing various household items including a plate, cheese, and condiments (no text or symbols visible)

White plastic tray filled with various kitchen utensils and containers (no visible text or labels)

Cross-sectional illustration of a mechanical or industrial component with layered structure (no visible text or symbols)

Illustration of a birdcage containing a potted plant with fruit, no text or symbols present

Illustration of a plastic container with scattered metal ingots, labeled 'fig. A' (no text or symbols on the objects themselves)

Close-up of a hand pressing a component on a mechanical assembly (no visible text or symbols)

Close-up of a metallic mechanical component with a central circular feature and a diagonal handle (no visible text or symbols)

Technical line drawing of a household air conditioner unit with tubing and a control panel (no text or symbols)

Safety Is a Good Habit to Get Into

NOTICE

Carefully read the instructions contained in this manual, as they provide important information which is essential to safe and proper installation, use and maintenance of the appliance.

This appliance complies with the following EEC directives: -73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications.

- 97/17/EEC Labelling

1. Carefully dispose of the packing material.

2. After removing the packing, check to make sure that the appliance is not damaged. If in doubt, contact a qualified professional.

3. The dishwasher must only be used by adults for the washing of household dishes and cooking utensils.

4. Fundamental rules to follow when using the appliance:

- Never touch the dishwasher when barefoot or with wet hands or feet;

- We discourage the use of extension cords and multiple sockets;

- During installation, the power supply cord must not be excessively or dangerously bent or flattened;

- If the appliance is not operating properly or maintenance must be performed, disconnect the appliance from the power supply.

1. Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open.

2. This appliance cannot be installed outdoors, not even if the area in which it is installed is covered by a roof; it is also very dangerous to leave it exposed to the rain and elements.

3. Do not touch the heating element during or after a wash cycle.

4. Do not lean or sit on the door when it is open, as this could overturn the dishwasher.

5. If the appliance malfunctions, turn off water supply to the appliance and disconnect the plug from the wall socket. Then, consult the section entitled, "Troubleshooting." If you cannot resolve the problem, contact a service centre.

6. Appliances which are no longer being used must be made inoperable by cutting the power supply cord and removing the door lock.

To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:

- call only the Service Centers authorized by the manufacturer

• always use original Spare Parts

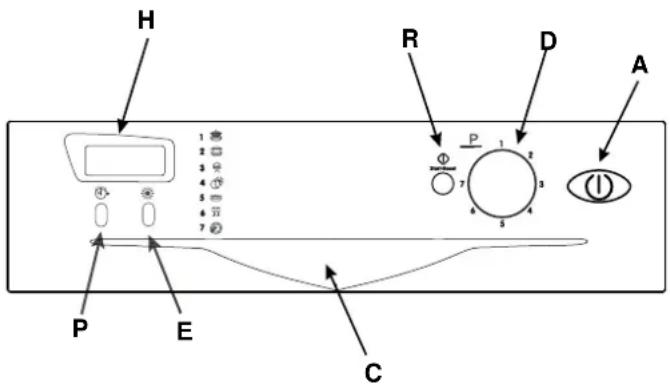

Close-up View (control panel)

H 1 ① 2 ② 3 ③ 4 ④ 5 ⑤ 6 ⑥ 7 ⑦ R D A P E C

A: ON-OFF button

C: Door handle

D: Cycle selection Knob

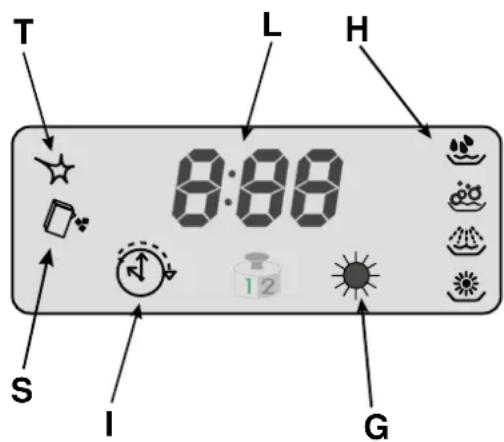

T L H 8:00 S I G

H: Display

E: "Extra drying" button

P: Delayed start select button

H: Cycle phase indicator lights

L: Alphanumeric indicator

S: Low salt indicator light

T: Low rinse aid indicator light

I: Delayed start indicator light

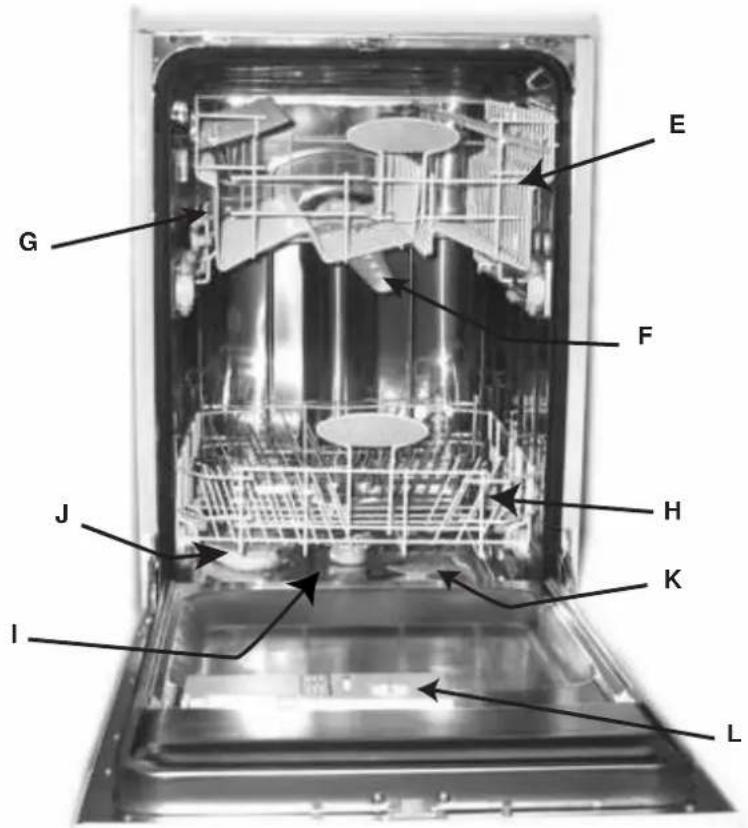

Close-up View (Interior)

E G F J H K I L

Upper Rack

Top Sprayer Arm

Rack Height Adjustor

Lower Rack

Bottom Sprayer Arm

Salt Container Cap

Washing Filter

Detergent and Rinse Aid Dispenser

Technical characteristics
Width cm. 45
Depth cm. 60
Height cm. 85
Capacity 9 standard place settings
Mains water pressure	4,3 psi - 145 psi 30KPa÷ 1MPa (0,3 ÷10 bar)
Power voltage See data plate
Total absorber power See data plate
Fuse See data plate

Salt .....

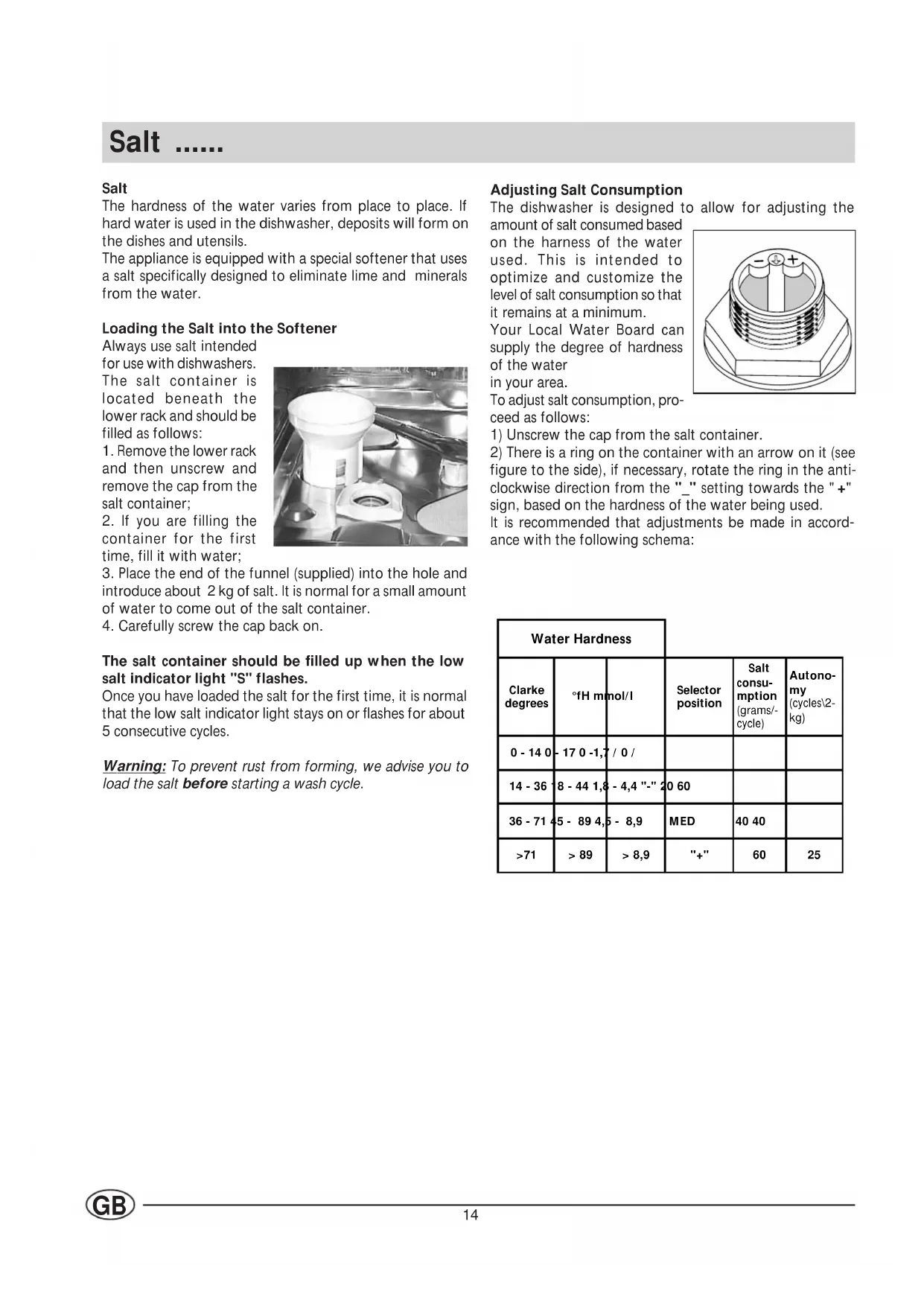

Salt

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

Loading the Salt into the Softener

Always use salt intended for use with dishwashers.

The salt container is located beneath the lower rack and should be filled as follows:

1. Remove the lower rack and then unscrew and remove the cap from the salt container;
2. If you are filling the container for the first time, fill it with water;
3. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container.
4. Carefully screw the cap back on.

The salt container should be filled up when the low salt indicator light "S" flashes.

Once you have loaded the salt for the first time, it is normal that the low salt indicator light stays on or flashes for about 5 consecutive cycles.

Warning: To prevent rust from forming, we advise you to load the salt before starting a wash cycle.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjusting the

amount of salt consumed based on the harness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum.

Your Local Water Board can supply the degree of hardness of the water in your area.

Technical line drawing of a mechanical component with no visible text or symbols

To adjust salt consumption, proceed as follows:

1) Unscrew the cap from the salt container. 2) There is a ring on the container with an arrow on it (see figure to the side), if necessary, rotate the ring in the anticlockwise direction from the "_" setting towards the "+" sign, based on the hardness of the water being used.

It is recommended that adjustments be made in accordance with the following schema:

Water Hardness
Clarke degrees	°fH mmol/l		Selector position	Salt consumption (grams/-cycle)	Autonomy (cycles\2-kg)
0 - 14 0	- 17 0 -1,7 / 0 /
14 - 36	8 - 44 1,8	- 4,4 "-"	20 60
36 - 71	45 - 89 4,5 - 8,9		MED	40 40
>71	> 89	> 8,9	"+"	60	25

Detergent and Rinse Aid ....

Detergent

Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel of the door.

Loading the detergent

To open lid "A", press button "B". The cleaning detergent should be introduced into the two containers "C" and "D" up to the rim.

After pouring in the detergent, replace the lid, pressing down until it clicks.

Dishwasher detergent in tablets is now available on the market, in which case you should place one tablet into container "D" and replace the lid.

Notice: To facilitate closing the cover, remove any excess detergent on the edges of the dispenser.

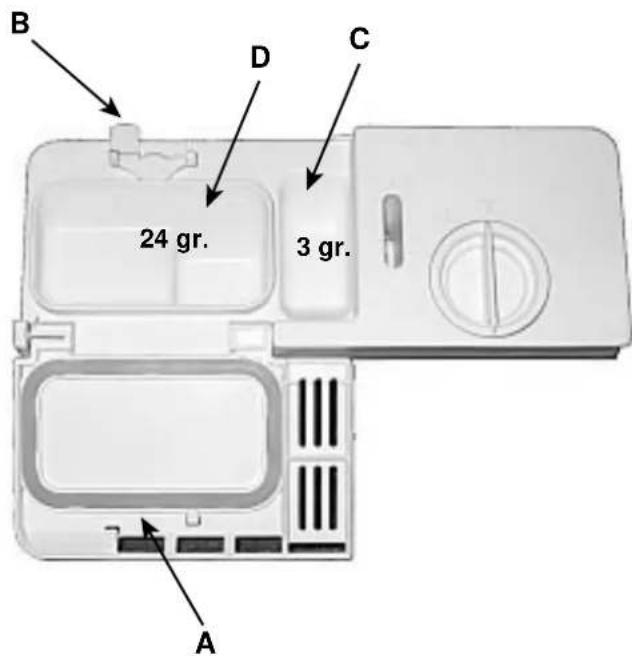

B D C 24 gr. 3 gr. A

Rinse Aid

This product makes dishes sparkle more as it improves their drying. The rinse aid container is situated on the inside of the appliance door; you should refill it when the low rinse aid indicator light "T" flashes.

Loading the Rinse Aid

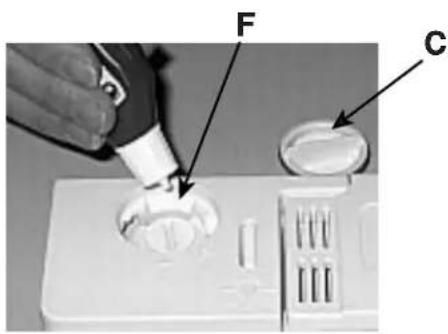

To open the dispenser, turn the "C" cap in the anti-clockwise direction and then pour in the rinse aid, making sure not to overfill. The amount of rinse aid used for each cycle can be regulated by turning the "F" dose adjustor, located beneath the "C" cap, with a screwdriver. There are 6 different settings; the normal dosage setting is 4.

F C

Important:

Proper dosage of the rinse aid improves drying. If drops of water remain on the dishes or spotting occurs, the dosage adjustor should be turned to a higher setting. If the dishes have white streaks, turn the dosage adjustor to a lower setting.

Warning

Three-in-one dishwasher tablets are now available on the market, and combine the detergent, salt and rinse aid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into the relevant dispenser to prevent the formation of white streaks on your dishes or on the appliance interior.

Add rinse aid to the corresponding container only if you are dissatisfied with the results on your dishes.

In any case, please read the manufacturer's instructions provided on the packet.

If you use only these products, it is normal for the salt and rinse aid indicator lights to flash permanently after a certain number of cycles.

Loading the Dishwasher

Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash.

If the saucepans and frying pans are very dirty, allow them to soak before being washed.

You will thus avoid having to wash them again.

To make it easier to load your dishes, pull the racks out fully.

How to use the lower rack

We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates (load examples are shown in the photo).

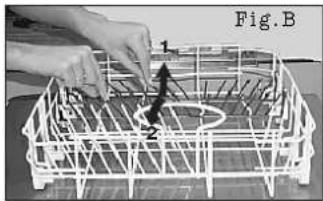

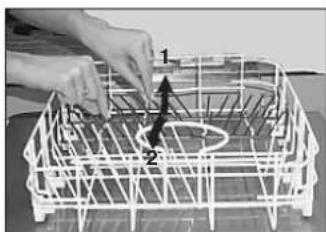

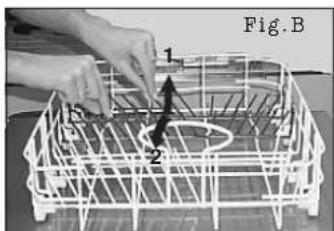

The lower rack has tip-up sectors (see figure B), so you can place even more saucepans and frying pans or make room for the larger one

Hand assembling a wireframe structure with a black arrow indicating rotation (no text or symbols)

• Serving dishes and large lids: place them on the sides of the rack.
• Saucepans, salad bowls: must always be placed upside down.
• Very deep dishes: place them obliquely, thus allowing water to run down them and cleaning them better.

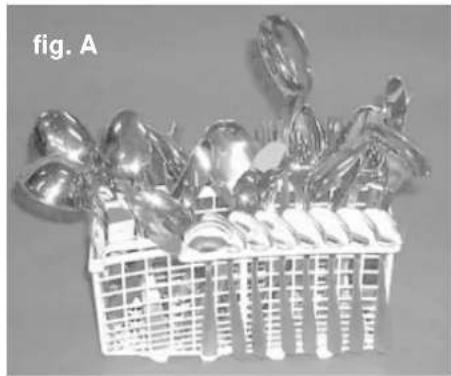

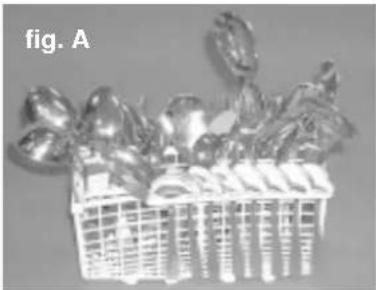

The cutlery basket (Fig. A)

This basket is equipped with a grids: insert the cutlery one by one into the slots; knives and utensils with sharp blades or tips should be positioned with the sharp parts at the bottom.

Position all cutlery items so that they don't touch.

Especially long utensils should be placed in the horizontal position at the front of the upper rack.

How to Use the Upper Rack

The upper rack is designed to hold more delicate and lighter dishware, such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without knocking against any dishes.

How to adjust the upper rack ....

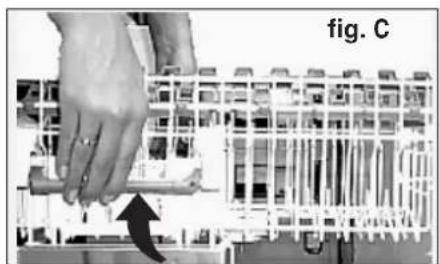

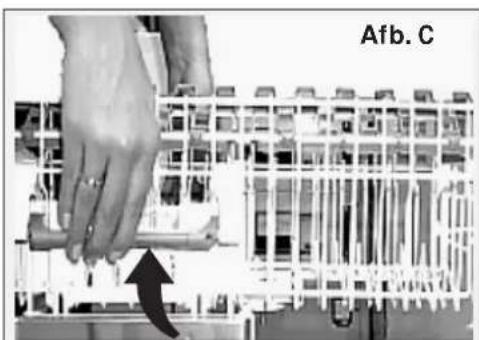

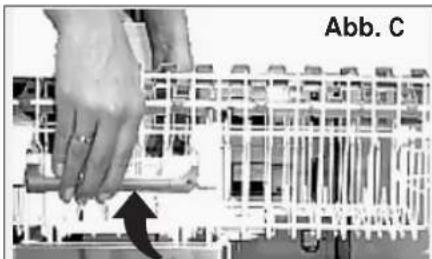

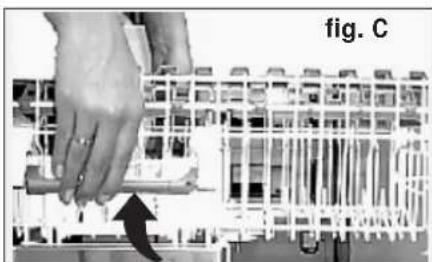

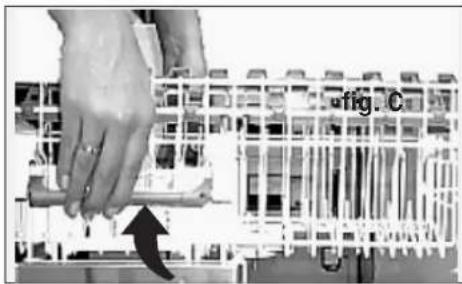

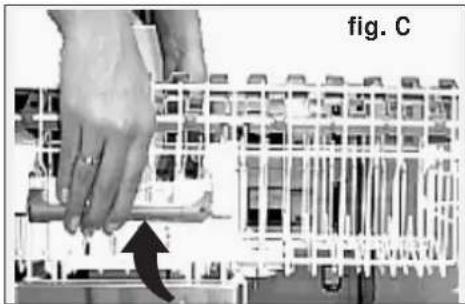

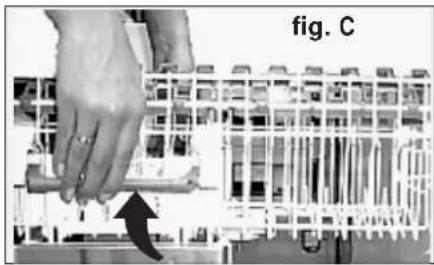

The upper rack can be set in a high or low position. There are two handles on the sides of the upper rack: use these to adjust its height (see figure C).

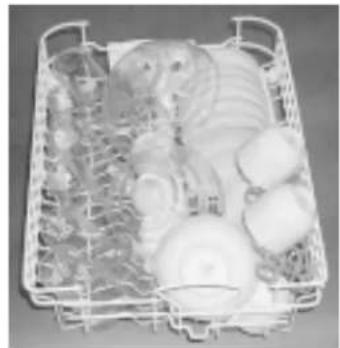

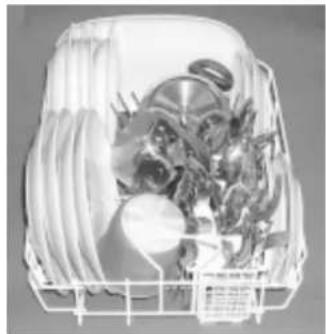

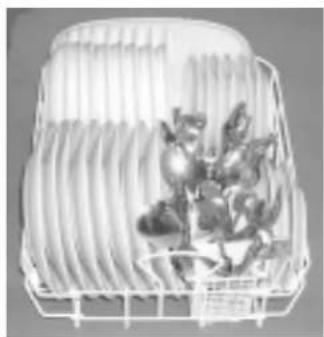

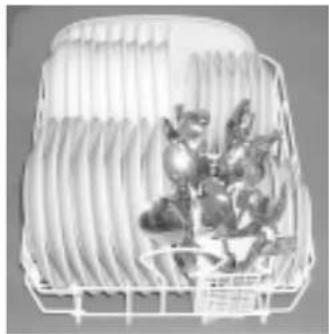

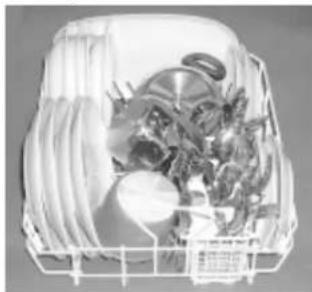

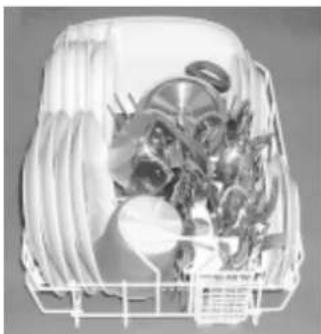

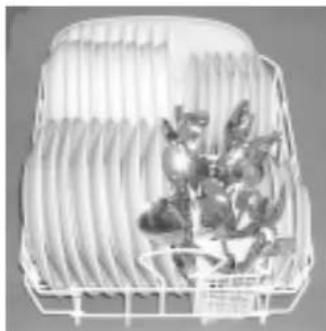

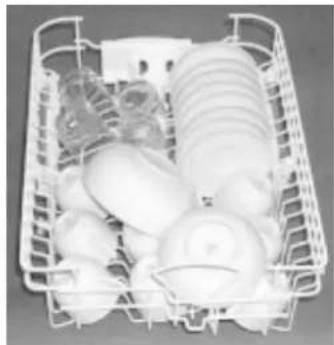

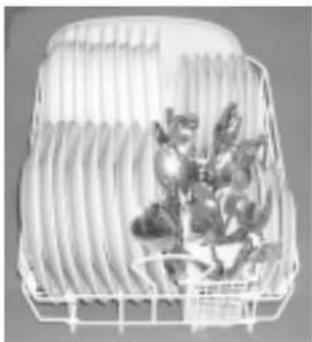

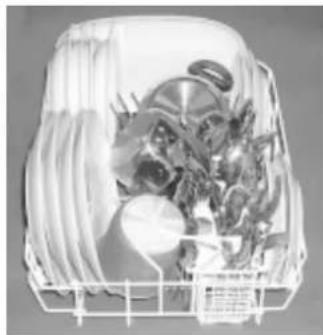

Load examples

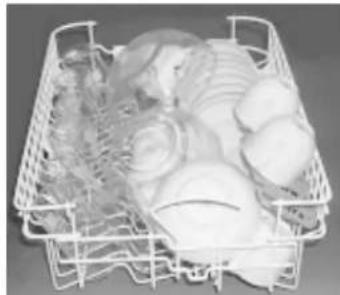

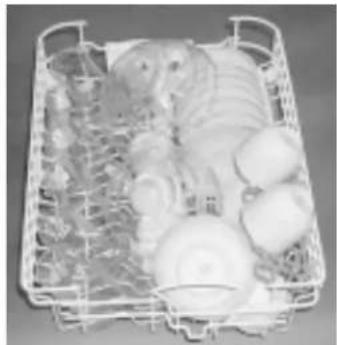

upper rack

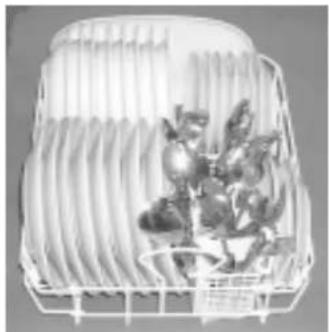

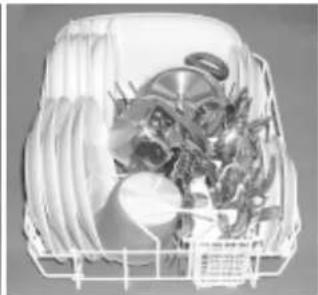

lower rack

White wire basket filled with various kitchen utensils, including a spoon and kitchenware (no text or symbols visible)

3D rendered illustration of a mechanical assembly inside a wire cage (no text or symbols visible)

White plastic basket containing various kitchen utensils (no text or symbols visible)

Illustration of a bird perched inside a wire cage (no text or symbols)

Illustration of a shopping basket filled with silver spoons and teapots, labeled 'fig. A' (no text on the items themselves)

Close-up of a hand pressing a component on a metal grid structure, labeled 'fig. C' (no text or symbols on the diagram itself)

Turning on the Appliance

First of all

Insert the plug into the electricity socket to power the dishwasher. Turn on the water tap completely and press ON-OFF button "A"; the display lights up and the wash cycle time selected on the knob will flash.

Selecting and starting a wash cycle.

• Select the desired wash cycle by turning knob "D" clockwise from wash cycle 1 to 7 and anticlockwise from 7 to 1; the display indicates the average duration of the wash cycle and the cycle phases it consists of (consult the wash cycle table contained on page 19, especially when first using the appliance).
• Press the Start button "R" and the wash cycle starts up, emitting a double beep; the approximate amount of time left until the end of the wash cycle is displayed.
• If the time indicated at the start of the wash cycle does not correspond to the actual duration of the cycle itself, this could be for a number of reasons: the temperature of the inlet water, the degree of soil, prolonged attempts by the appliance to clean the wash filter from food residue clogging it, etc.

Cycle phase under way indicator

While the wash cycle is under way, the symbols corresponding to the cycle phases light up in sequence.

Here are the symbols corresponding to each cycle phase:

Pre-wash

Wash

Rinses

Drying

Cancelling and modifying a wash cycle in progress

Premise: a wash cycle in progress can only be modified if it hasn't been running for long.

Keep the Reset button "R" pressed for about 3 seconds: a prolonged beep will sound, followed by three short beeps. The cancelled cycle time will flash on the display. Turn the knob to select a new wash cycle.

You've left out a dish?

You can interrupt a wash cycle by pressing the "ON-OFF" button, then place the forgotten dishes into the appliance, which will start up, after approximately 10 seconds, from where it was interrupted when you turn it back on.

There's been a power failure? Has the dishwasher door been opened?

The wash cycle stops and 3 dashes appear on the display; the cycle restarts as soon as the electricity comes back on or when the door is shut.

At the end of the wash cycle

The end of the wash cycle is indicated by two short beeps and the word "END" flashes on the display.

• Turn the appliance off at the ON-OFF button
• Turn off the water tap.
  • Empty the lower rack first.

Make sure the wash cycle has ended before removing the dishes!

Warning: when you open the dishwasher door after the wash cycle has just ended or is under way, take care not to scald yourself with the hot steam.

How to set the extra drying

Press button "E". After a prolonged beep, indicator light "G" lights up and the time corresponding to the wash cycle selected on the knob will flash on the display.

Note: The time indicated on the display is extended due to the extra drying time.

To disable the extra drying option, press the same button and indicator light "G" will be turned off after a beep is sounded.

This option is incompatible with the soak cycle.

Setting a delayed start

How to set a delayed start

When you have loaded the dishes, you can choose when to start your dishwasher before setting the wash cycle desired.

• Press button "P" repeatedly to postpone the start of the wash cycle from 1 hour to 24h.
• If you press the button again, the word "OFF" is displayed (no selection made).

Once you have made your selection, make sure the appliance door is shut and start the wash cycle by pressing the START button.

Symbol "I" lights up on the display and the countdown begins.

- Once the countdown is up, the wash cycle begins and the approximate amount of time left until the end of the wash cycle is displayed.

Have you changed your mind?

• If you change your mind, you can set a shorter time delay: press button "P" to select it. You need not reset the wash cycle.
• If you have changed your mind and wish to start the wash cycle immediately, press button "P" until the countdown is fully reset. Indicator light "I" will turn off and the cycle will start at the sound of a beep.

The indicator light corresponding to the cycle phase under way will come up on the display and the countdown to the estimated cycle end begins.

Warning: if the display indicates the word "dON" when you turn your dishwasher on, this means the demo mode is in operation. This mode is useful for exhibitors in that it simulates the wash cycles without actually carrying them out.

To quit this mode, keep the START/RESET button "R" pressed for approximately 4 seconds. The word "dOF" will be displayed once you have quit the demo mode successfully.

Wash Cycle Table

Dishwasher washing guarantees your dishes will be cleaned in a hygienic setting for safer, cleaner results.

Cycle	Cycle selection instructions	Cycle description	Detergent for pre-wash + wash	Rinse Aid	Wash cycle duration (±10% margin without extra drying)
1) Intensive	Very dirty dishes and pans (not to be used for delicate items)	Pre-wash with hot water at 40°C Wash at 65°C2 cold rinsesHot rinse at 65CDrying.	3+24 gr.	*	120'
2) Time 4 You	Normally dirty pans and dishes. Standard daily cycle.	Wash at 60°C.Cold rinseHot rinse at 70CDrying.	27 gr.	*	93'
3) Eco	Environmentally-friendly cycle, with low energy consumption levels, suitable for normally dirty pans and dishes.	2 pre-washes with cold waterWash at 50°CHot rinse at 65CDrying	3+24 gr.	*	145'
4) Rapid & Dry	Economic and fast cycle to be used for slightly dirty dishes.Run cycle immediately after use.	Short wash at 47°CHot rinse at 65CDrying	20 gr.	*	40'
5) Soak	Preliminary wash cycle for dishes and pans awaiting completion of the load with the dishes from the next meal.	Short cold wash to prevent food from drying onto the dishes.			12'
6) Crystal Care	Special cycle to be used for delicate items, which are more sensitive to high temperatures.	Wash at 52°CRinse at 45°CHot rinse at 65CDrying	20 gr.	*	90'
7) After Dinner	Quick and economic wash for a daily load of dishes.	Wash at 50°CHot rinse at 65CDrying	20 gr.	*	55'

Energy Saving Tips

- It is important to try and run the dishwasher when it is fully loaded in order to save on energy. In order to prevent odors from forming and food from caking onto the dishes, you can run the hold cycle.

- Choose the right wash cycle: the choice of cycle depends on the type of dishware, cookware and utensils being washed and how dirty they are.

- Use the right amount of detergent: if you use too much detergent, the result will not be cleaner dishes, but, rather, a greater negative impact on the environment.

- There is no utility in rinsing dishes, cookware and utensils before placing them in the dishwasher.

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

No Solvents or Abrasive Cleaning Products

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When You Go on Holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Cleaning and Special Maintenance

The filter assembly

If you want consistent good results from your dishwasher, you need to clean the filter assembly; this way the food particles are removed from the wash water, allowing it to be recirculated during the cycle, filtered perfectly. For this reason, it is a good idea to remove the larger food particles trapped inside the cup "C" and semi-circular filter "A" after each wash. All you need to do is

rinse them under running water; to remove these, pull the cup handle upwards. The entire filter assembly, comprising a semi-circular filter "A", a cup "C", and a cylindrical filter "B" should be cleaned thoroughly once a month. Rotate filter "B"

1 2 A B C

anticlockwise to remove it. For cleaning, use a non metallic brush.

Reassemble the three parts as shown in the figures and reinsert the whole assembly into the dishwasher, positioning it into its housing and pressing downwards.

The dishwasher is not to be used without filters. Improper replacement of the filters may reduce the efficiency of the wash and even damage your dishwasher.

Cleaning the Sprayer Arms

It may happen that food particle become encrusted on the sprayer arms and block the holes (see "Close up view (interior)", letters F-I). Check the sprayer arms periodically and clean them when needed.

Close-up of a metallic mechanical component with a handle and central circular feature (no visible text or symbols)

Troubleshooting

It may occur that the dishwasher does not function or does not function properly. Before calling for assistance, let us see what can be done first: have you forgot to press one of the buttons or to perform an essential operation?

The Dishwasher Does Not Start

Have you checked whether:

• the plug is pushed into the socket correctly;
• the power is on in the house;
• the door is closed properly;
• the ON-OFF switch is on "ON";
• the water supply is turned on.

The Dishwasher Does Not Load Water

Have you checked whether:

• the water is turned on and the hose is connected properly;
• the water supply to the house is on and has sufficient pressure;
• the water supply hose is crimped or bent;
• the filter for the water supply hose is clogged.

The Dishes Are Not Clean

Have you put the right amount of detergent into the dispenser?

Is the wash cycle suitable for the dishes you have placed inside the appliance?

Are the filter and microfilter clean?

Can the sprayer arms turn freely?

The Dishwasher Does Not Drain

Have you checked whether:

- the drain hose is crimped or bent.

Lime Deposits or a White Film Form on the Dishes

Have you checked whether:

- the lid to the salt container is closed properly;

- the rinse aid dosage is correct.

If the display indicates the word "dON" when you turn your dishwasher on, this means the demo mode is in operation.

Read the instructions on pages 18.

Error messages.

Your dishwasher is equipped with a safety system which is able to detect any operating anomalies.

These anomalies or faults are signalled by several codes consisting of letters and numbers that flash up on the display. Make a note of the error code that appears, turn the appliance off, turn off the water tap and call for technical assistance.

Tap off alarm

If you have forgotten to turn on the water tap, the appliance will remind you with a series of prolonged beeps and the wording H2O will flash up on the display. Turn the tap on and the wash cycle will start up after a few minutes.

If you are not there when the H2O signal appears, the appliance will switch to alarm mode and the code "A06" will flash on the display. Turn the appliance off at button "A", turn on the water tap and wait approximately 20 seconds before turning the appliance back on, the wash cycle will start up again.

Clogged filter alarm

If the appliance is blocked and the code "A05" is flashing, this means the filter is clogged by large particles of food residue. Turn the appliance off at the ON-OFF button, clean the filter thoroughly and reposition it in its seat, then turn the appliance back on. The wash cycle will start up as normal after a few seconds.

Water load solenoid valve malfunction alarm

If the code "A02" flashes, first of all turn off the water tap to avoid any flooding and then cut off the electricity supply and call for assistance.
If, despite all these checks, the dishwasher still does not function and/or the problem persists, contact the nearest authorised service centre and provide them with the following information:
- the nature of the problem;
- the model type number (Mod. ...) and the serial number (S/N ...), which are indicated on the plate located on the side of the inner part of the door.
Never call on unauthorised technicians and refuse to allow parts to be installed that are not original spare parts.

Installation

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the height of the dishwasher, making it level. In any case, the appliance should not be inclined more than 2^ .

If the appliance is level, it will help ensure proper performance.

This dishwasher model can be built under a single worktop (please read the relevant instruction sheet).

Cold water connection.

Connect the cold water supply hose to a 3/4 gas threaded connection, taking care to screw it tightly onto the tap. If the water hoses are new or have been out of use for an extended period of time, let the water run to make sure it is clear and free of impurities before making the connection. If this precaution is not taken, the water inlet could get blocked, causing damage to your dishwasher.

Hot Water Connection

The water supply to the appliance can also be connected to the house's hot water line (centralised system, heating system), as long as it does not exceed a temperature of 60^ C.

In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced.

The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.

Anti-flooding protection

Your dishwasher is provided with a special system which blocks the water supply in the event of leaks inside the appliance. It is further equipped with a water inlet hose that can withstand extremely high pressures and that turns bright red in the event of breakage. Safety in the event of flooding is ensured by the second clear hose that contains the former and thus highlights the latter when it has turned bright red. It is vital that you check it on a regular basis: if you see it has turned bright red, then you know you have to replace it as soon as possible. Call for an authorised technical engineer to come and replace it.

Drain Hose Connection

Fit the drain pipe into a drain line with a minimum diameter of 4 cm or place it over the sink. Avoid restricting or bending it. Use the special plastic elbow provided (see figure) to position it in the best possible way. The part of the pipe marked with the letter A should be between 40 and 100 cm above the ground.

Technical diagram showing a washing machine with tubing and a labeled component A, likely illustrating a medical or industrial procedure.

The pipe should not be immersed in water.

Attention: The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Electrical Connection

After making sure that the voltage and frequency values for the current in the home correspond to those on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical system is sized for the maximum voltage on the rating plate, insert the plug into an electrical socket which is earthed properly (the earthing of the appliance is a safety requirement mandated by law). If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the plug, rather than using adaptors or the like as they could cause overheating and burns.

Should the electricity supply cable be damaged, we recommend that you only contact authorised Technical Service Centres for the replacement.

H R D A 1 2 3 4 5 6 7 P E C

T L H 8:88 S I G

E G F J H K I L

Close-up of a kitchen sink with a white funnel and metal components (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

White wire basket filled with various food items, including eggs and tomatoes (no text or symbols visible)

panier inférieur

Cross-sectional illustration of a mechanical device with internal components (no visible text or symbols)

White plastic basket filled with various kitchen utensils (no text or symbols visible)

Illustration of a basket containing a tray with vegetables and a fruit, no text or symbols present.

Hand assembling a wireframe structure with a circular arrow symbol (no text or labels)

Black-and-white photo of a plastic container with scattered metallic components (no text or symbols visible)

C Cf.g. C

Close-up of a metallic mechanical component with a handle and central knob (no visible text or symbols)

Technical line drawing of a washing machine with hoses and a control panel (no text or symbols)

H R D A 1 2 3 4 5 6 7 8 P E C

T L H 8:88 S I G

R: Start/Reset-Taste
H: Display
E: Taste "Extratrocken"
P: Taste Startvorwahl

E G F J H K I L

Oberkorb

Oberer Sprüharm

Close-up of a kitchen appliance with a white funnel and metal tray (no visible text or symbols)

Technical line drawing of a mechanical component with threaded body and hexagonal base (no text or symbols)

White plastic basket filled with various kitchen utensils (no text or symbols visible)

White plastic basket filled with various kitchen utensils, no visible text or labels

3D rendered illustration of a mechanical component with gears and blades, enclosed in a wireframe bounding box (no text or symbols)

Illustration of a wire cage containing a basket filled with fruit and vegetables (no text or symbols)

Black-and-white photo of a basket filled with various items including chocolate chips, leafy greens, and nuts (no text or symbols visible)

Abb. C

Close-up of a metallic mechanical component with a handle and central knob (no visible text or symbols)

H R D A 1 2 3 4 5 6 7 8 P E C

A: On-Off knop
C: Handvat deur
D: Knop programmakeuze
R: Start/Reset knop

T L H 8:88 S I G

E G F H J K I L

Bovenkorf

Close-up of a kitchen appliance with a white funnel and metal tray (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

White wire basket filled with various food items including eggs, tomatoes, and condiments (no text or symbols visible)

onderkorf

Cross-sectional illustration of a mechanical device with internal components (no text or symbols visible)

White plastic basket filled with various kitchen utensils (no text or symbols visible)

Illustration of a basket filled with vegetables, no text or symbols visible

Afb.B

Child's hands assembling a wireframe structure with numbered components (no text or symbols visible)

Afb. A

Illustration of a basket filled with various fruits and vegetables (no text or symbols)

Close-up of a hand holding a mechanical component, with a black arrow pointing to a component (no visible text or symbols)

Close-up of a metallic mechanical component with a central circular feature and a diagonal tool (no visible text or symbols)

Technical diagram showing three types of hoses and a device with labeled components, including a magnified view.

T L H 8:88 S I G

E G F H J K I L

Cesto superior

Rociador superior

Close-up of a mechanical component with a white funnel and circular base (no visible text or symbols)

Technical line drawing of a mechanical component with threaded base and hexagonal base (no text or symbols)

White plastic basket filled with various household items including a bed, plate, and kitchen utensils (no text or symbols visible)

Illustration of a white plastic container with ribbed contents and a small plant inside (no text or symbols)

Fig. B 1 2

Illustration of a basket filled with various fruits and seeds, labeled 'fig. A' (no other text or symbols)

Close-up of a hand pressing down on a mechanical component, with no visible text or symbols

Close-up of a metallic mechanical component with a handle and central knob (no visible text or symbols)

Technical line drawing of a medical or industrial device with hoses and a control panel (no text or symbols)

H 1 2 3 4 5 6 7 P E C R D A P 1 2 7 6 5 4 (I)

T L H 8:00 S I G

E G F H J K I L

Cesto superior

Braço aspersor superior

Technical line drawing of a mechanical component with no visible text or symbols

Hand placing a black arrow on a wire mesh structure, labeled Fig. B (no text or symbols on the diagram itself)

White plastic basket filled with various kitchen utensils (no text or symbols visible)

White plastic kitchen appliance basket with various kitchen utensils (no visible text or labels)

3D rendered mechanical component with internal gear and housing, no visible text or symbols

Illustration of a birdcage containing a fruit cluster with leaves, no text or symbols present

Black-and-white photo of a basket filled with various small objects, no visible text or symbols

Close-up of hands operating a mechanical component with a black arrow pointing to a component (no visible text or symbols)

Como iniciar a máquina

Antes de mais nada

Close-up of a metallic mechanical component with a central circular base and a diagonal tool inserted (no visible text or symbols)

Há algum problema ?

Technical line drawing of a medical or industrial device with hoses and a washing machine (no text or symbols)
