D2I HD524 A - Dishwasher INDESIT - Free user manual and instructions

Product type	Dishwasher
Brand	Indesit
Model	D2I HD524 A
Number of programs	9
Available programs	Eco, Intensive, Mixed, Fast&Clean 28', Night, Extra Hygiene, Prewash, Self-cleaning, Push&GO
Energy consumption (Eco cycle)	0.95 kWh
Water consumption (Eco cycle)	9.5 L
Duration of Eco cycle	3 h 35 min
Options	Push&Go, Delay start (1-12 h), Tablet
Supported detergent type	Powder, liquid, all-in-one tablets
Water softener	Yes, with salt reservoir and hardness setting
Salt indicator	Yes, indicator on control panel
Rinse aid indicator	Yes, indicator on control panel
Height adjustment of upper basket	Yes, tool-free (side levers)
Foldable flaps	Yes, in upper basket
Cutlery basket	Yes, removable, to be placed at front of lower basket
Antibacterial function	Yes, Extra Hygiene program 65°C
Self-cleaning program	Yes, Self-cleaning cycle 65°C
Filter cleaning	Removable filter set (cylinder, basket, stainless steel plate)
Spray arm cleaning	Upper and lower arms removable
Availability of spare parts	7 to 10 years according to regulations
Automatic shut-off	Yes, in case of prolonged inactivity

Frequently Asked Questions - D2I HD524 A INDESIT

How to fill the salt reservoir?

Remove the lower basket and unscrew the reservoir cap (counterclockwise). The first time, fill the reservoir with water. Place the funnel and pour special dishwasher salt up to the edge (about 1 kg). Wipe off any residue and close the cap tightly. Start a wash cycle immediately to avoid corrosion.

How to adjust water hardness?

Turn on the appliance, then turn it off. Press the P button for 5 seconds (a beep sounds). Turn on the appliance: the salt indicator flashes. Use the P button to select the level corresponding to your hardness (see table in the manual). Turn off the appliance to confirm.

How to adjust the rinse aid dosage?

Turn on then turn off the appliance. Press the P button 3 times (a beep). Turn on the appliance: the rinse aid indicator flashes. Use the P button to choose the level (1-5). Turn off to confirm. If bluish streaks appear, reduce the level; if drops persist, increase it.

What to do if the dishwasher does not start?

Check that the plug is properly inserted and the water tap is open. If the door is not closed correctly, push it until it clicks. In case of a power outage, open the door, press Start/Pause, then close the door within 4 seconds.

Why is the dishes not clean?

Possible causes: incorrect placement of dishes (blocking spray arms), program too gentle, dirty filter, lack of salt, or unsuitable detergent. Check these points and restart an appropriate cycle. If foam appears, reduce the detergent dose.

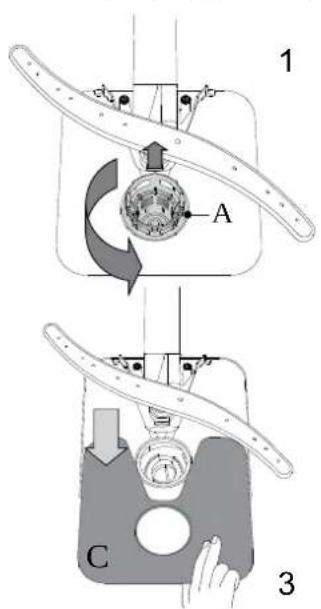

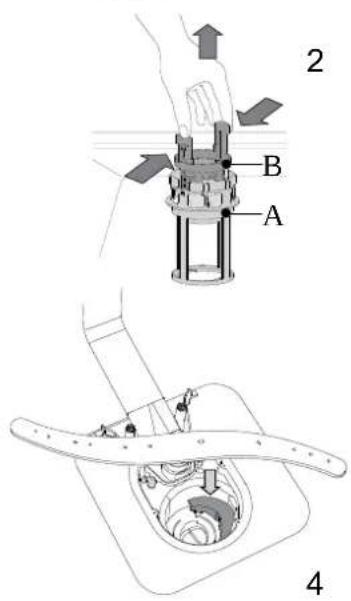

How to clean the filters?

Turn the cylindrical filter A counterclockwise and remove it. Remove basket B by pressing the side flaps. Remove the stainless steel plate C. Clean all parts under running water with a non-metallic brush. Reassemble in reverse order and make sure the assembly is properly in place.

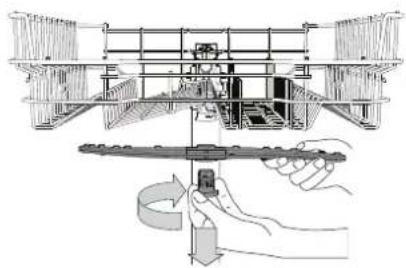

How to clean the spray arms?

Unscrew the locking ring of the upper arm (clockwise) to remove it. Pull the lower arm upward. Clean the holes with a small non-metallic brush. Replace the upper arm with the largest number of holes facing upward.

What do the error codes on the display mean?

The codes flash with the On/Off indicator: H6: water supply problem; 3: drainage blocked; 9 or 12: electronic fault; 15: cycle shortened. Follow the solutions in the manual (check hoses, filters, etc.). If it persists, turn off and restart the appliance after 1 minute.

How to use the Push&Go function?

Turn on the appliance, then press only the Push&Go button for 3 seconds. Close the door within 4 seconds. The Push&Go cycle (daily wash and dry) starts automatically.

How to use the delay start?

Select a program, then press Delay to choose a delay from 1 to 12 hours (the display shows 'h'). Press Start/Pause and close the door within 4 seconds. The countdown begins. To cancel, press Delay repeatedly until the 'h' indicator goes out.

USER MANUAL D2I HD524 A INDESIT

THANK YOU FOR BUYING AN INDESIT PRODUCT. In order to receive a more complete assistance, please register your appliance on: www.indesit.com/register

You can download the Safety Instructions and the User Manual, by visiting our website docs.indesit.eu and following the Instructions on the back of this booklet.

Before using the appliance carefully read Safety Instructions guide.

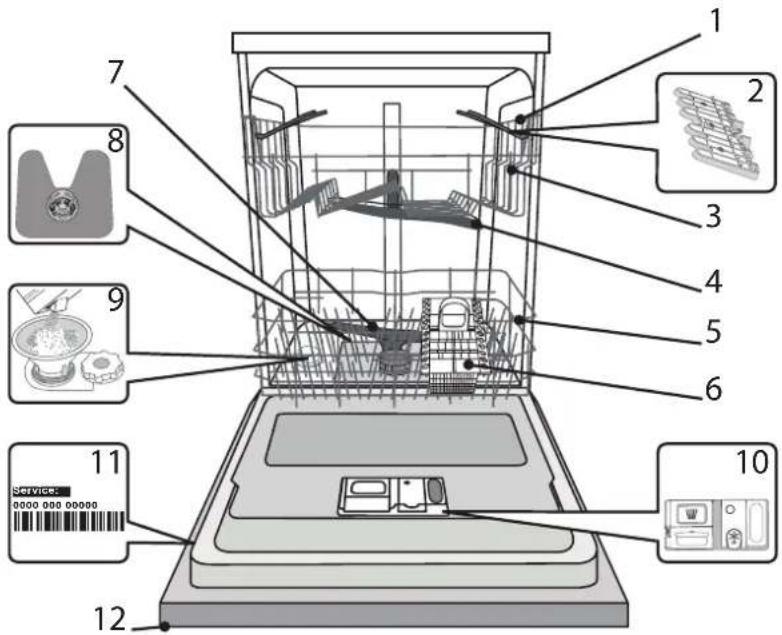

PRODUCT DESCRIPTION

APPLIANCE

1 2 3 4 5 6 7 8 9 10 Service: 0000 000 00000 11 12

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

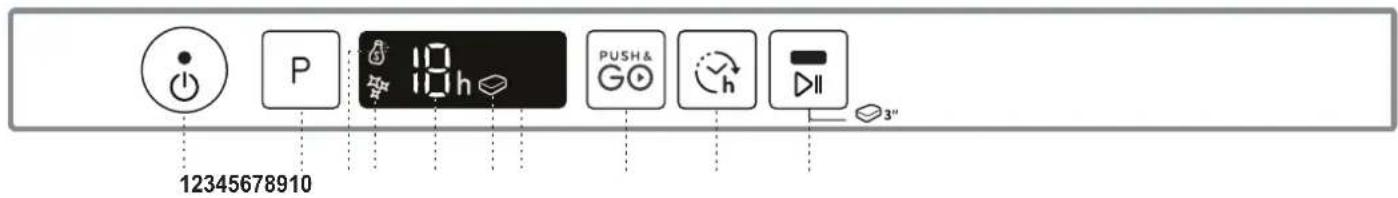

CONTROL PANEL

12345678910 18h PUSH& 3"

1. On-Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light

5. Program number and delay time indicator

6. Tablet (Tab) indicator light

7. Display
8. Push&GO button
9. Delay button
10. START/Pause button with indicator light/ Tablet (Tab)

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
• It is important to set the water hardness.
  The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced food item (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

B

Diagram of a washing machine with labeled parts and hand operating the valve

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.

• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

Diagram of a food processing machine with labeled components and directional arrows indicating flow or process steps.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program		Drying phase	Available options*)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1 Eco 50°	ECO	√		3:35 9.5 0.95
2 Intensive 65°		√		2:40 18.0 1.60
3 Mixed 55°		√		2:15 16.0 1.40
4 Fast&Clean 28' 50°		-		0:28 9.0 0.50
5 Night 50°		√		3:35 16.6 1.30
6 Extra Hygiene 65°		√		2:00 12.0 1.50
7 Prewash	-	-		0:12 4.7 0.01
8 Self Clean 65°		-		0:50 10.0 0.80
9 Push&GO	50°	√		1:30 11.5 1.30

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 INTENSIVE

Program for heavily soiled dishes and pans (not to be used for delicate items).

3 MIXED

Mixed soil. For normally soiled dishes with dried food residues.

4 FAST&CLEAN 28'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

5 NIGHT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

6 EXTRA HYGIENE

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

7 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

8 SELF CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.

9 PUSH&GO

Everyday wash and dry cycle that ensures great cleaning performance in a short time without the need to pre-treat dishes.

Notes:

Please note that cycle Fast&Clean 28' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

PUSH & GO

Push&GO button is an easily distinguishable button that allows you direct access to the Push&GO program, a wash and dry cycle that ensures great cleaning performance in a short time. You don't have to worry which program to choose, Push&GO cycle will do the work for you.

To select Push&GO program, switch on appliance, press only Push&GO button for 3 seconds and close the door within 4 seconds.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used.

Press the START/Pause button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

LOADING THE RACKS

UPPER RACK

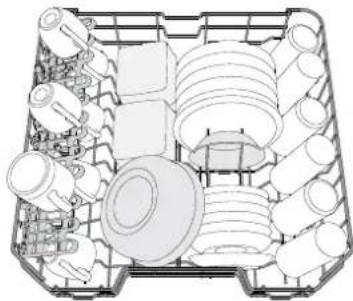

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

• to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

• to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Line drawing of a mechanical device with gears and a basket (no text or symbols)

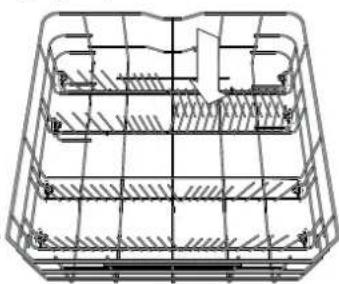

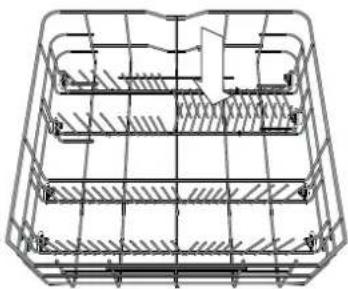

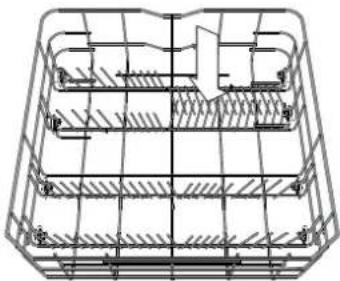

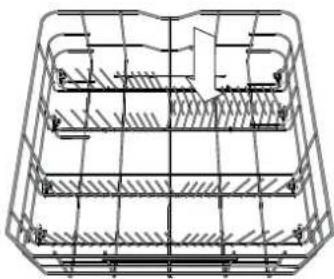

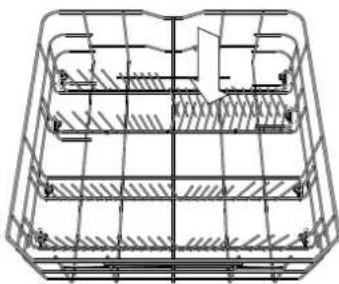

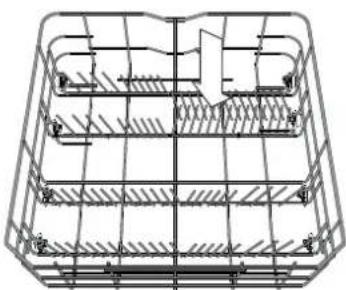

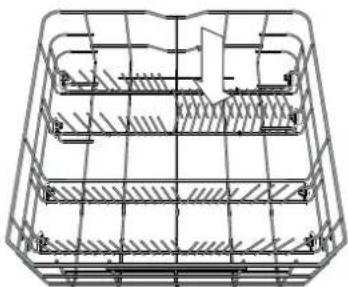

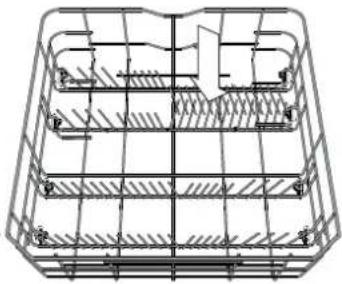

LOWER RACK

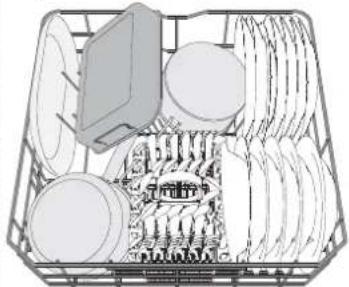

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Diagram of a shopping basket with cutlery and items, no text or symbols present

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

(loading example for the lower rack)

CUTLERY BASKET

It is fitted with top grids for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Line drawing of a hand placing a component into a wireframe basket (no text or symbols)

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

3. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the lter assembly so that the lters do not clog and that the waste water ows away correctly.

Using dishwasher with clogged liters or foreign objects inside ltration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The lter assembly consists of three lters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the letter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical Iter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup Iter B by exerting a slight pressure on the side aps (Fig 2).
3. Slide out the stainless-steel plate Iter C (Fig 3).
4. In case you and foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 A C 3

2 B A 4

After cleaning the Iters, re-place the Iter assembly and x it in position correctly; this is essential for maintaining the e cient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical line drawing of a mechanical assembly with a hand operating a balance scale (no text or symbols)

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in nal rinse and nishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
	Rinse aid indicator is lit	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed. Vigorously push	the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows: 9 or 12 and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is	not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dish-washers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate	wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwa-shers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt.	Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water.Display shows: H, 6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwa-sher and restart a new program.
Dishwasher finishes the cycle prematurely.Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.indesit.eu and parts-selfservice.whirlpool.com
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

400011659681C

03/2023 ks - Xerox Fabriano

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced food item (no text or symbols)

Technical diagram showing two views of a refrigerator with labeled compartments and control panel, including Chinese annotations.

Diagram of a food processing machine with labeled components and hand actions, including feed, drying, and packaging steps.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Technical line drawing of a mechanical assembly with wavy internal components and a cylindrical component (no text or symbols)

ДОЛНА КОШНИЦА

Diagram of a shopping basket with cutlery and patterned items (no text or symbols)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols present)

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced fruit (no text or symbols)

Diagram of a refrigerator interior with labeled compartments and a hand holding the lid, showing a washing machine.

Diagram of a food preparation or processing setup with labeled components and hand actions

Top-down technical diagram of a mechanical assembly with gears, springs, and housing (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

SKLOPNÉ OPĚRKY S NASTAVITELNOU POLOHOU

Technical line drawing of a mechanical assembly with wavy internal components and a cylindrical component (no text or symbols)

DOLNÍ KOŠ

Two technical line drawings of a shopping basket with cutouts and internal compartments (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and spring scale (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and a hand holding a fan, labeled A and B.

Diagram of a cleaning or cleaning device with labeled parts and hand actions, including hand holding a tool and pouring into a container.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram of a mechanical or electrical assembly with labeled components (no readable text or symbols)

KLAPPBARE KLAPPEN MIT VERSTELLBARER POSITION

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

UNTERKORB

Diagram of a shopping basket with circular items and a tray, no text or symbols present

Technical line drawing of a multi-tiered mechanical or architectural structure (no text or symbols)

Line drawing of a hand using a tool to cut or install a grid-patterned plastic crate (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand pressing down on a mechanical component with a valve (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a scale, with a sliced food item nearby (no text or symbols)

Diagram showing two views of a refrigerator with labeled parts A and B, including hand operating the interior panel.

Diagram of a cleaning or cleaning device with labeled parts D, C, and a tool interacting with the lid.

Exploded view diagram of a mechanical assembly (no text or labels)

Technical diagram showing labeled components A and E with directional arrows and grid lines, likely illustrating a mechanical or electrical system.

Technical line drawing of a mechanical assembly with layered components and no visible text or symbols

ΚΑΤΩ ΚΑΛΑΘΙ

Diagram of a multi-tiered kitchen sink with plates and dish, showing internal compartments (no text or labels)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Line drawing of a hand placing a grid-like object into a wireframe basket (no text or symbols)

Technical diagram illustrating four different mechanical or fluid handling setups labeled 1 to 4, with components A and B indicated.

Technical diagram showing a mechanical assembly with labeled components and a hand holding a tool, including a magnified view of the component.

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Labeled diagram of a kitchen appliance with numbered parts and accessories, including a refrigerator, washing machine, and computer.

Illustration of a hand pouring granular material into a bowl with a side view of a bread roll (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and a hand holding a fan, labeled A and B.

Diagram of a food preparation or processing setup with labeled components and hand actions

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Pure mechanical diagram showing internal components and lines without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

CESTO INFERIOR

Diagram of a shopping basket with circular items and a central patterned area (no text or symbols)

Technical line drawing of a multi-tiered mechanical or structural component (no text or symbols)

Line drawing of a hand placing a component into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and fan gauges.

Diagram of a cleaning or cleaning device with labeled parts and hand actions, including hand holding a tool and cleaning tools.

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, and directional arrows indicating flow or movement.

REGULEERITAVA PAIGUTUSEGA KOKKUKÄIVAD LABAD

Technical line drawing of a mechanical assembly with no visible text or symbols

ALUMINE REST

Cross-sectional diagram of a shopping basket with circular items and a tray (no text or symbols)

Technical line drawing of a multi-tiered mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a plastic sheet into a grid-patterned basket (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Illustration of a hand pouring granular material into a bowl with a slice of food on a stand (no text or symbols)

Diagram showing two views of a refrigerator with labeled compartments and hand holding a bag, marked with points A and B.

Diagram of a food processing machine with labeled components and hand actions, including feed, waste, and cleaning steps.

OPTIONS ET FONCTIONS

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Architectural cross-section diagram showing structural elements and a labeled section (A), no readable text or symbols present.

Technical line drawing of a mechanical assembly or circuit board (no visible text or symbols)

PANIER INFÉRIEUR

Diagram of a shopping basket with coins and a tray, no text or symbols present

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a metal object into a grid-patterned structure (no text or symbols)

INTERRUPTIONS IMPRÉVUES

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press a mechanical component on a base (no text or symbols visible)

Weighted Front screen Control Panel Control Panel Control Panel

400011659681C

03/2023 ks - Xerox Fabriano

VODIČ ZA SVAKODNEVNU UPOTREBU

ZAHVALJUJEMO VAM NA KUPOVINI PROIZVODA

INDESIT. Kako bismo vam mogli pružiti potpuniju pomoć, registrirajte svoj uređaj na adresi: www.indesit.com/register

www

Sigurnosne upute i Korisnički priručnik, možete preuzeti tako da posjetite naše web-mjesto docs.indesit.eu i slijedite upute na poleđini ove knjižice.

Diagram of a refrigerator interior with numbered parts and labeled service bar, showing internal components and product images.

1. Gornja košara
2. Pomični preklopi
3. Mehanizam za podešavanje gornje košare po visini
4. Gornji nosač prskalica
5. Donja košara
6. Košara za pribor za jelo
7. Donji nosač prskalica
8. Sklop filtra
9. Spremnik za sol
10. Spremnici za deterdžent i sredstvo za ispiranje
11. Natpisna pločica
12. Upravljačka ploča

UPRAVLJAČKA PLOČA

12345678910 P 10h PUSH&G h 3"

1. Gumb za uklj/isklj/ponovno postavljanje sa svjetlom indikatora
2. Gumb za odabir programa
3. Svjetlo indikatora za dodavanje sol
4. Svjetlo indikatora za dodavanje sredstva za ispiranje

5. Indikator broja programa i vremena odgode

6. Svjetlo indikatora Tablete (Tab)

7. Zaslon
8. Gumb Push&GO
9. Gumb Odgode
10. Gumb Start/Pauza sa svjetlom indikatora / Tablete (Tab)

PRVA UPOTREBA

SOL, SREDSTVO ZA ISPIRANJE I DETERDŽENT

SAVJETI ZA PRVU UPOTREBU

Nakon postavljanje uklonite graničnike s košara i pričvrsne elastične elemente s gornje košare.

PUNJENJE SPREMNIKA ZA SOL

Illustration of a hand pouring granular material into a bowl with a lid, next to a sash (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with icons and labels, likely illustrating a refrigerator or appliance layout.

1. Otvorite dozator B tako da pritisnete i povučete jezičac na poklopcu.
2. Pažljivo uvedite sredstvo za ispiranje do referente oznake maksimalne količine (110 ml) prostora za punjenje, pazite da ne dođe do prolijevanja. Ako se to dogodi, suhom krpom odmah očistite proliveno.
3. Pritisnite poklopac dok se ne zatvori uz klik.
   Sredstvo za ispiranje NIKADA ne ulijevajte izravno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste potpuno zadovoljni rezultatima sušenja, možete podesiti količinu upotrijebljenog sredstva za ispiranje.

Diagram of a food preparation or processing device with labeled parts D and C, showing tool, tray, and dish components.

1. Prilikom doziranja deterdženta pogledajte ranije navedene informacije kako biste stavili odgovarajuću količinu. Unutar dozatora D nalaze se oznake koje vam pomažu prilikom doziranja.
2. Uklonite ostatke deterdženta s ru- bova spremnika prije no što poklo- pac zatvorite tako da sjedne.
3. Poklopac spremnika za deterdžent zatvorite tako da ga povučete dok se mehanizam za zatvaranje ne učvrsti.

Top-down technical diagram of a mechanical assembly with gears and housing (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, and internal structure with connections.

POMIČNI PREKLOPI S PODESIVIM POLOŽAJEM

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

DONJA KOŠARA

Diagram of a shopping basket with plates and a tray, showing interior compartments (no text or symbols)

Technical line drawing of a multi-layered mechanical or architectural structure with grid lines and hatching (no text or symbols)

Line drawing of a hand using a tool to cut or install a grid-patterned plastic crate (no text or symbols)

Technical diagram of a mechanical assembly with hands operating a tool and rotating components (no text or labels)

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols present)

Donji krak mlaznice može se skinuti tako da se povuče prema gore.

SUSTAV OMEKŠAVANJA VODE

Weighted Model 1000lm Control Panel Control Panel Control Panel

400011659681C

03/2023 ks - Xerox Fabriano

MINDENNAPI HASZNÁLATI

ÚTMUTATÓ

KÖSZÖNJÜK, HOGY A INDESIT TERMÉKÉT

Illustration of a hand pouring granular material into a bowl on a gas stove (no text or symbols)

Diagram of a refrigerator interior with labeled compartments and hand gesture, showing front and side views with labels A and B.

Diagram of a food processing machine with labeled components and hand actions, including feed, funnel, and waste sorting.

Technical diagram of a mechanical assembly with multiple components and no visible text or labels

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

ÁLLÍTHATÓ MAGASSÁGÚ LEHAJTHATÓ POLCOK

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

ALSÓ KOSÁR

Technical line drawing of a multi-compartment kitchen unit with internal compartments and fixtures (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram showing two views of a refrigerator with labeled parts A and B, including a hand holding a fan above the refrigerator.

Diagram of a food processing machine with labeled components and hand actions, including a hand holding a spoon and a funnel.

Technical line drawing of a mechanical assembly with multiple cylindrical components and housing (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

REGULIUOJAMOS PADĖTIES UŽLENKIAMI SKYDELIAI

Technical line drawing of a mechanical assembly with no visible text or symbols

APATINÉ LENTYNÉLÉ

Diagram of a kitchen sink with plates and dish, showing internal compartments (no text or labels)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand using a tool to cut or spread a grid-patterned plastic crate (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand operating a mechanical device with an upward arrow (no text or symbols)

Wearshelf Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000000000 Wearboard 1000 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 Wearboard 100 SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEV SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEA SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE SHEE

400011659681C

03/2023 ks - Xerox Fabriano

LIETOŠANAS NORĀDĪJUMI

INSTRUKCIJA

PALDIES, KA IEGÄDÄJÄTIES INDESIT IZSTRÄDÄJUMU.

Illustration of a hand pouring granular material into a bowl on a stand next to a pan, with a slice of fresh onion visible (no text or symbols)

Diagram showing a hand holding a device with labeled parts and a magnified view of the device's internal structure.

[Non-Text]

Diagram of a kitchen appliance with labeled parts and a hand pouring into a bag, showing internal components like drawer, drawer handle, and sink.

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Technical diagram showing a mechanical or electrical assembly with labeled components A and B, and directional arrows indicating movement or force.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

APAKŠEJAIS STATIVS

Cross-sectional diagram of a shopping basket with plates and items (no text or labels)

Technical line drawing of a mechanical cage or enclosure with internal structural layers (no text or symbols)

Line drawing of a hand placing a plastic basket into a grid-like structure (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and tool, no visible text or symbols

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram of a kitchen appliance with labeled parts C and B, showing food containers and fixtures

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a dial indicator.

Diagram of a cleaning or cleaning device with labeled parts D, C, and an inset showing hand cleaning and spray bottle.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Ставете деликатни и лесни садови: чаши, шољи, чинии, ниски чинии за салата.

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Illustration of a mechanical device with a cylindrical component and wavy internal structure (no text or symbols)

ДОЛНА РЕШЕТКА

Diagram of a shopping basket with circular items and a window, no visible text or symbols

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a plastic basket into a wireframe crate (no text or symbols)

СЕКОЈДНЕВНА УПОТРЕБА

1. ПРОВЕРЕТЕ ГО ПОВРЗУВАЊЕТО ВО ВОДА

Technical line drawing of a mechanical assembly with a lever and rotating component (no text or symbols)

Illustration of a hand using a tool to press a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl with a spoon (no text or symbols)

Instellen is voltooid!

Diagram showing two labeled views of a refrigerator with icons and labels A and B, likely illustrating a refrigerator interior or appliance layout.

Instellen is voltooid!

Diagram of a food preparation or processing setup with labeled components and hand actions

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components A and B, likely from an engineering or mechanical drawing.

Pure mechanical diagram showing a gear and shaft assembly without any text, numbers, or symbols

Technical line drawing of a multi-compartment kitchen appliance with internal compartments and storage (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a rectangular container (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

Technical diagram showing front and side views of a shared air conditioner unit with labeled components A and B

Diagram of a food processing machine with labeled components and hand actions, including hand holding a spoon and feeding into a container.

Exploded view diagram of a mechanical assembly (no text or labels)

Technical diagram showing labeled components A and B with directional arrows and grid lines, likely illustrating a mechanical or electrical assembly.

Diagram of a mechanical device with layered structure and internal components (no text or symbols)

DOLNY KOSZ

Cross-sectional diagram of a kitchen appliance showing internal components like a tray, dish, and fan (no text or labels)

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and rotating component (no text or symbols)

Illustration of a hand operating a mechanical device with an upward arrow, no text or symbols present

Illustration of a hand pouring granular material into a bowl with a side dish (no text or symbols)

Diagram showing two views of a refrigerator interior with labeled compartments and a hand holding a bag above the lid.

Diagram of a food processing machine with labeled components and directional arrows indicating processing steps

Top-down schematic of a mechanical assembly with multiple components (no text or labels visible)

(exemplo de carga no cesto superior)

Carregue neste cesto a loiça frágil e leve: copos, chávenas, pires, tigelas.

AJUSTAR A ALTURA DO CESTO SUPERIOR

Technical diagram showing labeled components A and B with directional arrows and grid lines, likely illustrating a mechanical or electrical system.

ABAS DOBRÁVEIS COM POSIÇÃO AJUSTÁVEL

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Technical line drawing of a multi-tiered kitchen appliance with internal compartments and storage racks (no text or symbols)

(exemplo de carga para o cesto inferior)

CESTO PARA OS TALHERES

Line drawing of a hand using a tool to cut or install a plastic basket into a grid-patterned container (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols present)

Diagram of a dishwasher front panel with numbered parts and labeled components

Illustration of a hand pouring granular material into a bowl with a side view of a sliced food item (no text or symbols)

SETAREA DURITĂȚII APEI

Diagram of a kitchen appliance with labeled component B (no text or symbols beyond label)

一箱 瓶 A

Diagram of a cleaning or cleaning device with labeled parts and hand pouring process

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and section line A

CLAPETE RABATABILE CU POZITIE REGLABILĂ

Illustration of a person in a container with wavy patterned background (no text or symbols)

COŞUL INFERIOR

Diagram of a kitchen sink with plates and a tray, showing internal components (no text or labels)

Technical line drawing of a multi-layered structural framework (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a rectangular housing (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, showing internal components and motion direction (no text or symbols)

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and labeled icons for each part.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate side showing a whole (no text or symbols)

Diagram of a kitchen appliance with labeled parts including a griddle, toilet, and fan

Diagram of a refrigerator interior with labeled parts and a hand holding a fan above the refrigerator.

Diagram of a cleaning or cleaning device with labeled parts and hand actions, including hand gesture and spray bottle.

Exploded view diagram of a mechanical assembly (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

SKLÁPACIE KLAPKY S NASTAVITEL'NOU POLOHOU

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

SPODNÝ KÔŠ

Diagram of a shopping basket with multiple circular items and a tray, no text or symbols present

Technical line drawing of a multi-layered mechanical or architectural component (no text or symbols)

Line drawing of a hand placing a card into a grid-patterned basket (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Model 2010 Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel Control Panel

400011659681C

03/2023 ks - Xerox Fabriano

NAVODILA ZA ODPRAVLJANJE TEŽAV

HVALA, KER STE KUPILI IZDELEK ZNAMKE INDESIT.

Za popolno podporo aparat registrirajte na spletni strani: www.indesit.com/register

Diagram of a refrigerator interior with numbered parts and labeled icons for food delivery or storage.

Illustration of a hand pouring granular material into a bowl on a stand, with a side view of a bread roll (no text or symbols)

Ko to storite, zaženite program brez posode.

Diagram showing two views of a household air conditioner unit with labeled components A and B, including hand placement and fan arrangement.

Diagram of a washing machine with labeled parts and close-ups showing hand positioning and cleaning steps

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows, marked with letter A.

Technical line drawing of a mechanical assembly with no visible text or symbols

SPODNJA KOŠARA

Two technical line drawings of a multi-compartment kitchen appliance basket, showing internal compartments and structural components (no text or symbols)

(primer zlaganja posode v spodnjo košaro)

KOŠARICA ZA PRIBOR

Line drawing of a hand placing a component into a grid-like structure (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand operating a mechanical device with an upward arrow (no text or symbols)

Illustration of a hand pouring granular material into a pan on a stand next to a sliced onion (no text or symbols)

Diagram of a kitchen appliance with labeled parts including a toilet, sink, and showerhead

Diagram of a refrigerator interior with labeled parts and hand holding the lid, showing internal compartments and controls.

Diagram of a food delivery or packaging device with labeled parts and directional arrows indicating components.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Architectural cross-section diagram showing structural elements and a labeled section A (no text or symbols present)

KRAHËT E PALOSSHËM ME POZITËN E RREGULLUESHME

Illustration of a mechanical device with a bucket and gear mechanism (no text or symbols)

RAFTI I POSHTËM

Technical line drawing of a multi-tiered battery pack with internal components (no text or symbols)

Line drawing of a hand placing a component into a grid-patterned basket (no text or symbols)

PËRDORIMI I PËRDITSHËM

1. KONTROLLONI LIDHJEN ME RRJETIN E UJIT

(shihni NGARKIMIN I RAFTEVE)

4. MBUSHJA E KUTISË SË DETERGJENTIT

5. ZGJIDHNI PROGRAMIN DHE KONFIGURONI CIKLIN

Technical illustration of a mechanical assembly with a lever and rotating component (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

1. Uklonite donju korpu i odvrnite poklopac rezervoara (u smeru suprotnom od smera kretanja kazaljki na satu).
2. Samo prvi put kada ovo radite: napunite rezervoar za so vodom.
3. Postavite levak (vidite sliku) i napunite rezervoar za so do ivice (oko 1 kg); nije neuobičajeno da malo vode iscuri.
4. Uklonite levak i obrišite ostatke soli sa otvora.

Vodite računa da poklopac bude čvrsto zavijen, tako da deterdžent ne može da uđe u posudu tokom programa pranja (to može da ošeteti ome- kšivač za vodu tako da se ne može popraviti).

Kad god je potrebno da dodate so, obavezno je da obavite proceduru pre početka ciklusa pranja da bi se izbegla korozija.

PODEŠAVANJE TVRDOĆE VODE

Da bi omekšivač za vodu radio kako treba, neophodno je da tvrdoća vode bude podešena na osnovu stvarne tvrdoće vode u vašoj kući. Ove informacije možete dobiti od lokalnog snabdevača vodom. Podrazumevana vrednost tvrdoće vode se fabrički podešava.

• Uključite uređaj pritiskom na dugme UKLJUČI/ISKLJUČI.
• Isključite uređaj pritiskom na dugme UKLJUČI/ISKLJUČI.
• Zadržite dugme P 5 sekundi, dok se ne začuje zvučni signal.
• Uključite uređaj pritiskom na dugme UKLJUČI/ISKLJUČI.
• Uključeni su i broj nivoa trenutnog biranja i svetlosni indikator za so.
• Pritisnite taster P za izbor željene tvrdoće vode (videti TABELU TVRDOĆE VODE).

Tabela tvrdoće vode
Nivo		°dHnemačkistepeni	°fHfrancuskistepeni	°Clarkengleskistepeni
1	Meka 0 - 6 0 - 10	0 - 7
2	Srednja	7 - 11	11 - 20	8 - 14
3	Prosečna	12 - 16	21 - 29	15 - 20
4	Tvrda	17 - 34	30 - 60	21 - 42
5	Veoma tvrda	35 - 50	61 - 90	43 - 62

Technical diagram showing front and side views of a refrigerator with labeled compartments and a hand holding a bag above the door.

1. Otvorite posudu B takš što ćete pritisnuti i povući na gore jezičak na poklopcu.
2. Pažljivo sipajte sredstvo za ispiranje do oznake za maksimum (110 ml) na prostoru za punjenje - izbegavajte prosipanje. Ako se to dogodi, odmah obrišite prosuto suvom krpom.
3. Pritisnite poklopac dok se ne začuje zvuk škljocanja.
   NIKADA ne sipajte sredstvo za ispiranje direktno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste u potpunosti zadovoljni rezultatima sušenja, možete da podesite količinu sredstva za ispiranje koja se koristi.

Diagram of a food processing machine with labeled components and processing steps

1. Za odmeravanje deterdženta pogledajte prethodno pomenute informacije kako biste sipali odgovarajuću količinu. U posudi D nalaze se oznake koje vam mogu pomoći u doziranju deterdženta.
2. Uklonite ostatke deterdženta sa ivica posuda pre nego što i zatvorite poklo-pac dok se ne začuje zvuk škljocanja.
3. Zatvorite poklopac posude za deterdžent povlačenjem na gore dok uređaj za zatvaranje ne bude čvrsto na mestu.

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels)

(primer punjenja gornje korpe)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

SKLOPIVA KRILCA SA PODESIVIM POLOŽAJEM

Technical line drawing of a mechanical component with layered structure (no text or symbols)

DONJA KORPA

Diagram of a multi-tiered kitchen sink with plates and dish, no text or symbols present

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

(primer punjenja donje korpe)

KORPA ZA PRIBOR

Ima rešetke pri vrhu za bolje postavljanje pribora. Mora se postaviti samo u prednjem delu donje korpe.

Line drawing of a hand placing a grid-patterned object into a wireframe basket (no text or symbols)

Noževi i drugi pribor oštrih ivica se mora postaviti u korpu za pribor sa vrhovima okrenutim na dole ili se staviti u horizontalan položaj u odeljak koji se pomera u gornjoj korpi.

SVAKODNEVNA UPOTREBA

1. PROVERITE PRIKLJUČAK NA VODOVODNU MREŽU

Proverite da li je mašina za pranje sudova povezana na dovod vode i da je slavina otvorena.

2. UKLJUČITE MAŠINU ZA PRANJE SUDOVA

Otvorite vrata i pritisnite dugme UKLJUČI/ISKLJUČI.

3. NAPUNITE KORPE

(videti PUNJENJE KORPI)

4. PUNJENJE POSUDE ZA DETERDŽENT

(videti TABELU SA PROGRAMIMA).

5. IZABERITE PROGRAM I PRILAGODITE CIKLUS

Izaberite najprikladniji program u skladu sa vrstom posuđa i nivoom zaprljanosti (videti OPIS PROGRAMA) pritiskom na dugme P. Izaberite željene opcije (videti OPCIJE I FUNKCIJE).

6. POČETAK

NEODGOVARAJUĆE POSUĐE

• Drveno posuđe i pribor.
• Osetljive ukrašene čaše, umetničke rukotvorine i antičko posuđe. Dekoracija na njima nije otporna.
• Delovi od sintetičkog materijala ne podnose visoke temperature.
• Posuđe od bakra i kalaja.
• Posuđe zaprljano pepelom, voskom, mašću za podmazivanje ili mastilom.

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Da biste uklonili gornju prskalicu, okrenite plastični prsten za zaključavanje u smeru kretanja kazaljki na satu. Gornja prskalica se ponovo postavlja tako da strana sa više otvora bude okrenuta na gore.

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Diagram of a refrigerator interior with numbered parts and labeled components, including a barcode and appliance labels.

Technical diagram showing two labeled views (A and B) of a refrigerator interior with icons and components.

Diagram of a food processing machine with labeled components and directional arrows indicating flow or processing steps.

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

НИЖНІЙ КОШИК

Cross-sectional diagram of a shopping basket with circular items and decorative patterns (no text or symbols)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a component into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a pliers to press or install a mechanical component on a base (no text or symbols)
