NSPC210 - Speakers YAMAHA - Free user manual and instructions

Product type	Speakers
Brand	YAMAHA
Model	NSPC210
Speaker type	2-way bass reflex system with anti-magnetic shielding
Drivers	Bass: 8 cm cone x 2, Treble: 2.2 cm balanced dome
Impedance	6 Ω
Frequency response	50 Hz - 45 kHz (-10 dB), up to 100 kHz (-30 dB)
Nominal input power	40 W
Maximum input power	120 W
Sensitivity	86 dB / 2.83 V / m
Crossover frequency	8 kHz
Dimensions (W x H x D)	236 x 1050 x 236 mm (with stand)
Weight	7.3 kg
Included accessories	Speaker cable (4 m x 1)
Warranty	2 years (EEA and Switzerland)
Maintenance	Clean, dry cloth. No chemical solvents.
Safety precautions	Avoid moisture, heat, direct sunlight. Do not place objects or liquids on the speaker.
Connections	Screw terminals. Compatible with banana plugs (remove cap).
Placement	Flat and stable surface. Minimum distance of 20 cm from TV.
Front panel	Removable: gently pull at the sides. Do not touch the vibrating parts.

Frequently Asked Questions - NSPC210 YAMAHA

What is the maximum input power of the NSPC210 speaker?

The maximum input power is 120 W, with a nominal power of 40 W. It is important not to exceed these values to avoid damaging the speaker.

What is the impedance of the YAMAHA NSPC210 speaker?

The impedance is 6 Ω. Make sure your amplifier is compatible with this impedance.

How to connect the speakers to the amplifier?

Use the provided cable. Strip 10 mm of insulation, insert into the screw terminals respecting polarity (+ and -). Tighten the screws. You can also use banana plugs by removing the cap.

What are the dimensions and weight of the NSPC210 speaker?

Dimensions (W x H x D): 236 × 1050 × 236 mm with stand. Weight: 7.3 kg.

How to clean the YAMAHA NSPC210 speakers?

Use a clean, dry cloth. For stains, slightly dampen a cloth with water, wring it out, and rub gently. Never use chemical solvents (alcohol, thinners) as they may damage the finish.

Can I place the speakers near my TV?

Yes, but keep a distance of at least 20 cm to avoid magnetic interference. The speakers are anti-magnetic shielded, but it is best to respect this distance.

What to do if the sound is distorted?

Reduce the amplifier volume to avoid clipping. Make sure the amplifier power does not exceed the speaker's maximum power (120 W). Also check the connections and polarity.

What is the frequency response of the speaker?

The frequency response is 50 Hz to 45 kHz (-10 dB), and extends up to 100 kHz (-30 dB).

What is the warranty period?

Yamaha offers a 2-year warranty for manufacturing defects in the European Economic Area and Switzerland. Keep your purchase receipt.

How to remove the front panel of the speaker?

Hold the two sides of the panel and gently pull. To reattach, align the four holes and push carefully. Be careful not to touch the vibrating parts.

USER MANUAL NSPC210 YAMAHA

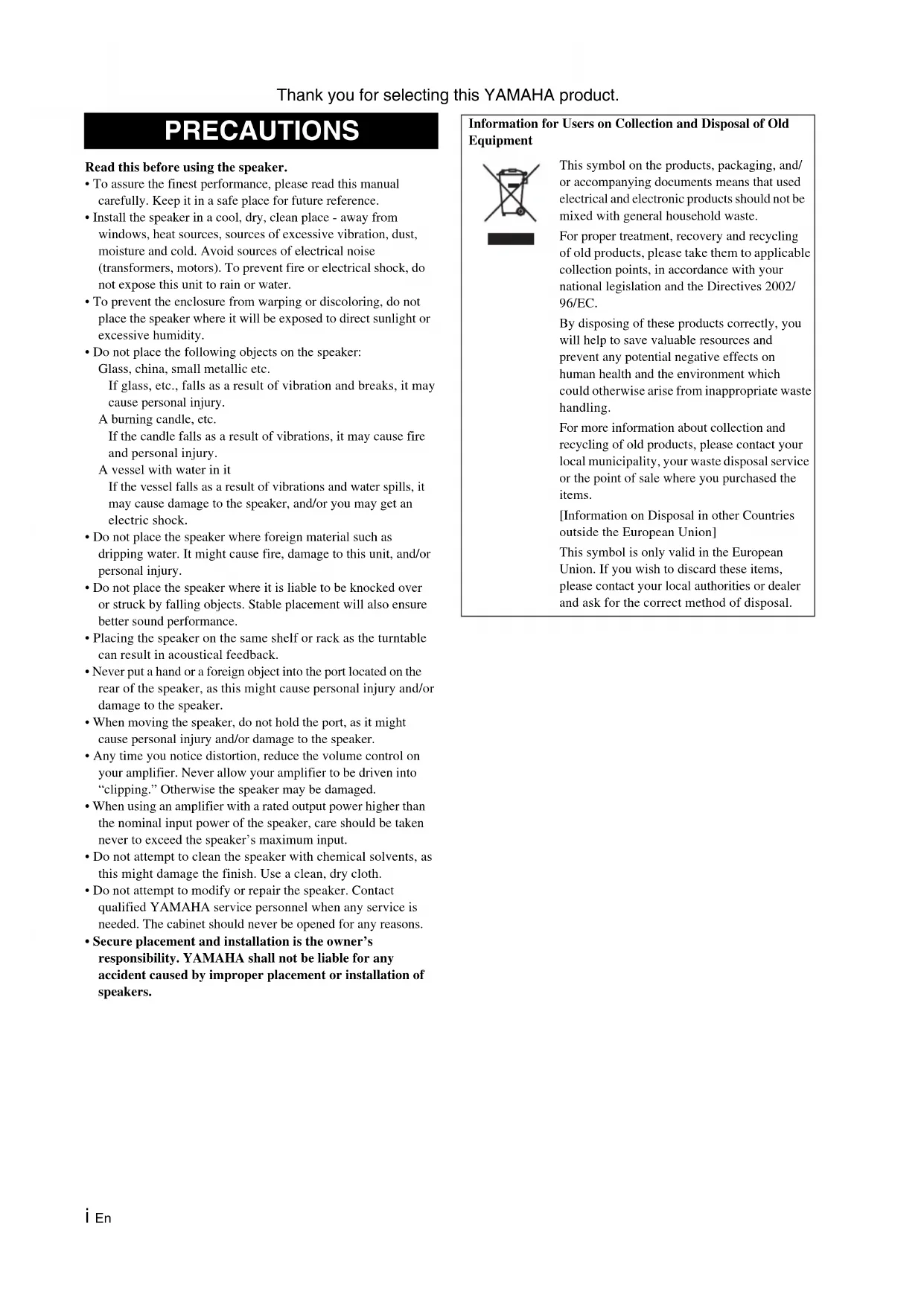

Read this before using the speaker.

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
• Install the speaker in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of electrical noise (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.

- To prevent the enclosure from warping or discoloring, do not place the speaker where it will be exposed to direct sunlight or excessive humidity.

- Do not place the following objects on the speaker: Glass, china, small metallic etc. If glass, etc., falls as a result of vibration and breaks, it may cause personal injury.

A burning candle, etc. If the candle falls as a result of vibrations, it may cause fire and personal injury.

A vessel with water in it If the vessel falls as a result of vibrations and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

- Do not place the speaker where foreign material such as dripping water. It might cause fire, damage to this unit, and/or personal injury.

- Do not place the speaker where it is liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.

- Placing the speaker on the same shelf or rack as the turntable can result in acoustical feedback.

- Never put a hand or a foreign object into the port located on the rear of the speaker, as this might cause personal injury and/or damage to the speaker.

- When moving the speaker, do not hold the port, as it might cause personal injury and/or damage to the speaker.

- Any time you notice distortion, reduce the volume control on your amplifier. Never allow your amplifier to be driven into “clipping.” Otherwise the speaker may be damaged.

- When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.

- Do not attempt to clean the speaker with chemical solvents, as this might damage the finish. Use a clean, dry cloth.

- Do not attempt to modify or repair the speaker. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

- Secure placement and installation is the owner's responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers.

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

SUPPLIED ACCESSORIES

Illustration of bundled wires with a tie (no text or symbols)

Speaker cable (4 m × 1)

PRECAUTIONS WHEN POSITIONING THE SPEAKERS

The speaker is constructed with the majority of the weight located in its upper portion, and is thus susceptible to falling over if proper care is not taken to insure its stability. If the speaker falls over, it may damage the speaker or be the cause of injury (or even death) to person and/or damage to personal property.

For safe and proper use of the speaker:

• Position the speaker in a location that is solid, level, smooth, and low (with respect to the floor).
• Do not push or apply pressure to the side of the speaker when moving, or lean objects against the side of the speaker.
• Do not sit on or set objects on top of the speaker.

Vibrations or jolts associated with earthquakes and other phenomena or activities may cause the speaker to fall over. For safety reasons, using commercially available products that increase stability of the speaker is recommended (metal fittings or chains, etc.).

■Using as 2ch stereo speakers

Better stereo images will be obtained when the speakers are slightly angled in towards the listeners.


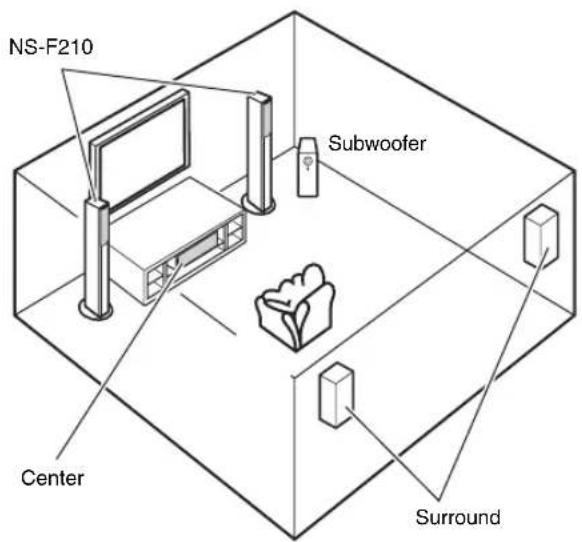

■Using as front speakers in a multi channel system

Position the speakers on both sides of the TV. The positioning of speakers is important, since this dictates the overall sound quality of the multi channel system. Set up the speakers on the basis of your listening position by following the owner's manual supplied with your amplifier.

NS-F210 Subwoofer Center Surround

Notes

- Placing this unit too close to a CRT TV set might impair picture color or create a buzzing noise. Should this happen, move the speaker away (more than 20 cm (7-7/8")) from the TV set.

When using a PDP or LCD TV, it would not happen.

- To avoid accidents resulting from tripping over loose speaker cables, fix them to the floor.

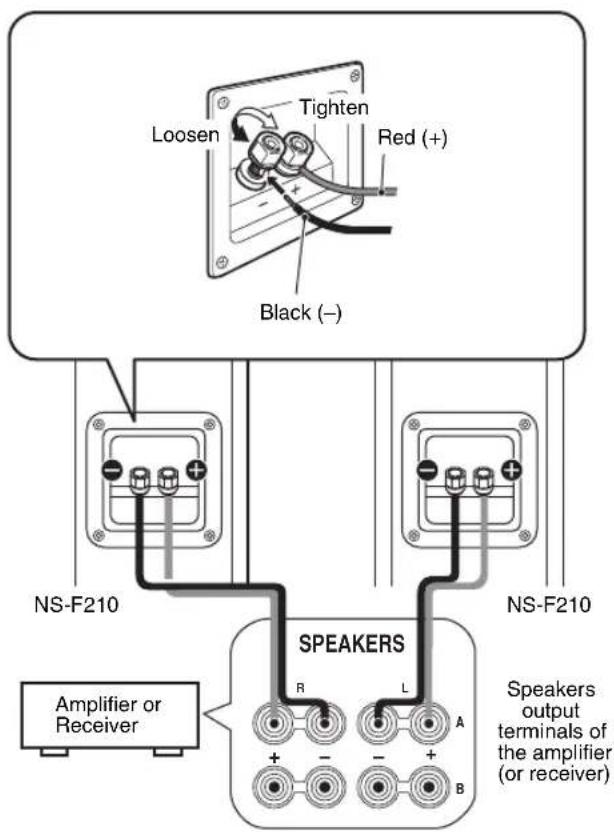

CONNECTIONS TO YOUR AMPLIFIER

Before making connections, make sure that the amplifier is switched off.

Loosen Tighten Red (+) Black (−) NS-F210 SPEAKERS Amplifier or Receiver R L A + - - + B NS-F210 Speakers output terminals of the amplifier (or receiver)

• Connect the screw-type input terminals at the rear of the speakers to the speaker output terminals of the amplifier (or receiver) with the speaker cable.
• Connect the (+) terminals on the amplifier (or receiver) to the (+) terminal of each speaker, making sure to confirm the color-coded wire of the cable at each end. Use the other wire of the cable to connect the (−) terminals of the components.
• Connect one speaker to the left (marked L) terminals of your amplifier, and another speaker to the right (marked R) terminals, making sure not to reverse the polarity (+,-). If one speaker is connected with reversed polarity the sound will be unnatural and lack bass.

■How to connect

1 Loosen the knob.
2 Remove 10 mm (3/8") of insulation from each end of the cables, and twist the exposed conductors together neatly and tightly, as shown below.

3 Insert the bare wire.
4 Tighten the knob and secure the cables. Test the firmness of the connection by pulling lightly on the cables at the terminal.

Notes

• Do not let the bare speaker wires touch each other as this could damage the speaker or the amplifier, or both.
• Do not insert the insulation into the hole. Sound may not be produced.

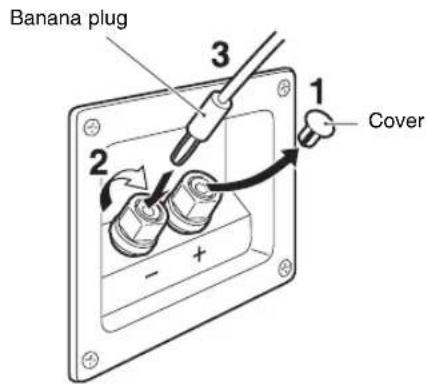

■When using a banana plug

Note

Do not take off this cover unless using a banana plug.

Banana plug 3 1 2 Cover - +

1 Remove the cover by pulling it toward you.
2 Tighten the terminal knob.
3 Simply insert the banana plug into the terminal.

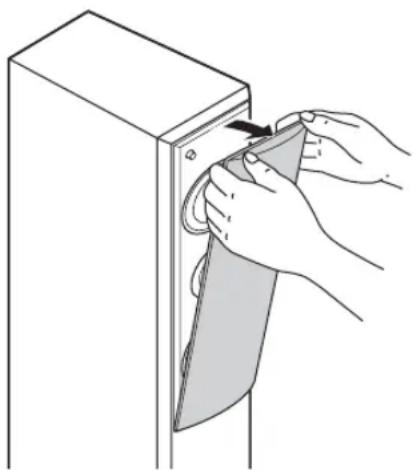

REMOVING THE FRONT COVER

The front cover is fastened to the enclosure at four points and can be removed if desired. To remove the cover, hold on to both sides and slowly pull straight out from the speaker. To reattach, line up the four holes on the inner surface of the cover with the four corresponding points on the speaker and push gently.

Illustration of hands installing or adjusting a door panel on a cabinet (no text or symbols)

Note

When removing the cover, be careful that you don't touch the drive units, and don't exert excessive force with any tools.

SPECIFICATIONS

Type ....2-way bass reflex speaker system Non-Magnetic shielding type

Driver.... 8 cm (3-1/8") cone woofer × 2 2.2 cm (1") balanced dome tweeter

Impedance....6 Ω

Frequency Response ....50 Hz to 45 kHz (-10 dB) to 100 kHz (-30 dB)

Nominal Input Power.... 40 W

Maximum Input Power 120 W

Sensitivity 86 dB/2.83 V/m

Crossover Frequency 8 kHz

Dimensions (with stands)(W × H × D) .....236 × 1050 × 236 mm (9-5/16" × 41-5/16" × 9-5/16")

Weight.... 7.3 kg (16 lbs. 1 oz.)

• Specifications subject to change without notice due to product improvements.
• Care should be taken not to exceed the input power values noted above.

Taking care of the speaker

When you wipe this unit, do not use chemical solvents (e.g., alcohol or thinners, etc.): this might damage the finish. Use a clean, dry cloth. For difficult soils, dampen a soft cloth in water, wring it out, and then wipe with the cloth.

(For polish-finished model) Bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to crack or peel. Use caution.

Limited Guarantee for European Economic Area (EEA) and Switzerland

Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident).

The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha's discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair.

Conditions

1. The original invoice or sales receipt (showing date of purchase, product code and dealer's name) MUST accompany the defective product, along with a statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer's expense.
2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland.
3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.
4. The following are excluded from this guarantee:

a. Periodic maintenance and repair or replacement of parts due to normal wear and tear.

b. Damage resulting from:

(1) Repairs performed by the customer himself or by an unauthorised third party.
(2) Inadequate packaging or mishandling, when the product is in transit from the customer. Please note that it is the customer's responsibility to ensure the product is adequately packaged when returning the product for repair.
(3) Misuse, including but not limited to (a) failure to use the product for its normal purpose or in accordance with Yamaha's instructions on the proper use, maintenance and storage, and (b) installation or use of the product in a manner inconsistent with the technical or safety standards in force in the country where it is used.
(4) Accidents, lightning, water, fire, improper ventilation, battery leakage or any cause beyond Yamaha's control.
(5) Defects of the system into which this product is incorporated and/or incompatibility with third party products.
(6) Use of a product imported into the EEA and/or Switzerland, not by Yamaha, where that product does not conform to the technical or safety standards of the country of use and/or to the standard specification of a product sold by Yamaha in the EEA and/or Switzerland.
(7) Non AV (Audio Visual) related products. (Products subject to “Yamaha AV Guarantee Statement” are defined in our website at http://www.yamaha-hifi.com/ or http://www.yamaha-uk.com/ for U.K. resident.)

1. Where the guarantee differs between the country of purchase and the country of use of the product, the guarantee of the country of use shall apply.
2. Yamaha may not be held responsible for any losses or damages, whether direct, consequential or otherwise, save for the repair or replacement of the product.
3. Please backup any custom settings or data, as Yamaha may not be held responsible for any alteration or loss to such settings or data.
4. This guarantee does not affect the consumer's statutory rights under applicable national laws in force or the consumer's rights against the dealer arising from their sales/purchase contract.

PRÉCAUTIONS

Illustration of bundled wires with coiled strands (no text or symbols)

Simple line drawing of a room with two chairs and a container, connected by dashed lines (no text or symbols)

NS-F210 Caisson de graves Centre Surround

Remarques

Illustration of hands installing or adjusting a door panel into a cabinet (no text or symbols)

Remarque

Illustration of a bundle of bundled wires (no text or symbols)

Illustration of hands installing or adjusting a door panel into a cabinet (no text or symbols)

Hinweis

Illustration of bundled wires with a tie (no text or symbols)

Cable de altavoz (4 m × 1)

NS-F210 Altavoz de subgraves Central Surround

Notas

Illustration of hands installing or adjusting a cabinet panel with a tool (no text or symbols present)

Nota

Illustration of bundled wires with a tie (no text or symbols)

Illustration of hands installing or adjusting a door panel into a cabinet (no text or symbols)

Примечание

Coiled cable or wire with multiple strands tied at the end (no text or symbols visible)

扬声器电缆 (4 m × 1)

安放时的注意事项

Simple line drawing of a room with two chairs and a person in a bowl, connected by dashed lines (no text or symbols)

■在多声道系统中用作前置扬声器

Illustration of hands installing or removing a mechanical component into a vertical panel (no text or symbols)

注意
