DS3700R 15177 - Keyboard TRUST - Free user manual and instructions

Product Type	Keyboard and mouse wireless
Brand	Trust
Model	DS3700R 15177
Connectivity	USB 2.4 GHz wireless
Frequency	2.4 GHz
Range	8 meters
Keyboard power	2 AA batteries
Mouse power	2 AA batteries (can work with 1 battery)
Mouse resolution	800 / 1600 DPI (switchable)
Number of keyboard keys	104 keys including multimedia and system keys
Mouse buttons	5 buttons including clickable scroll wheel
Special functions	Media keys, system keys, zoom in/out, forward/back navigation, normal/media mode
Compatible operating systems	Windows (XP, Vista, 7, 8, 10)
Included software	CD-ROM with drivers and software
Keyboard dimensions (L x W x H)	Approximately 440 x 150 x 25 mm
Mouse dimensions (L x W x H)	Approximately 115 x 65 x 35 mm
Keyboard weight (with batteries)	Approximately 550 g
Mouse weight (with batteries)	Approximately 90 g
Color	Black
Warranty	2 years

Frequently Asked Questions - DS3700R 15177 TRUST

How to install the Trust DS3700R keyboard and mouse?

Insert the batteries into the keyboard and mouse, plug the USB receiver into your computer, then wait for automatic installation. Then insert the CD-ROM to install additional software.

How to change the mouse resolution (DPI)?

Hold down the DPI switch button (J) for 1 second to toggle between 800 and 1600 DPI. A flashing indicator shows the change.

What to do if the keyboard or mouse does not work?

Check that the batteries are correctly inserted and not depleted. Keep metal objects away from between the devices and the receiver. Reconnect the USB receiver to assign a new communication ID. If the problem persists, visit www.trust.com/15177.

How to switch to media mode on the mouse?

Hold down the DPI switch (J) for 5 seconds. The low battery indicator will flash for 3 seconds to confirm the mode change. In media mode, the buttons control volume, playback, etc.

Which operating systems are compatible?

The keyboard and mouse are compatible with Windows XP, Vista, 7, 8, and 10. They may not work properly under Mac OS or Linux.

How to use the multimedia keys?

The multimedia keys (play/pause, mute, etc.) control the default Windows player (Windows Media Player). They also work with other software like iTunes.

What is the maximum wireless range?

The maximum range is about 8 meters. Metal objects or other wireless devices may reduce the range.

How to clean the keyboard and mouse?

Use a dry cloth to clean the surfaces. Do not use liquid or abrasive products. Do not open the device.

Can I use the mouse with only one battery?

Yes, the mouse can work with one battery, but the battery life will be reduced. It is recommended to use two batteries for optimal lifespan.

Where to find drivers and updates?

Go to www.trust.com/15177 to download the latest drivers, FAQ and manuals. Register your product for extended service at www.trust.com/register.

USER MANUAL DS3700R 15177 TRUST

Front view of a black Nusel computer keyboard with standard keys and a scroll wheel (no visible text or symbols on the keys)

LIFE IS MORE! TRUST US

TRUST.COM

LIFE IS MORE! TRUST US

TRUST.COM

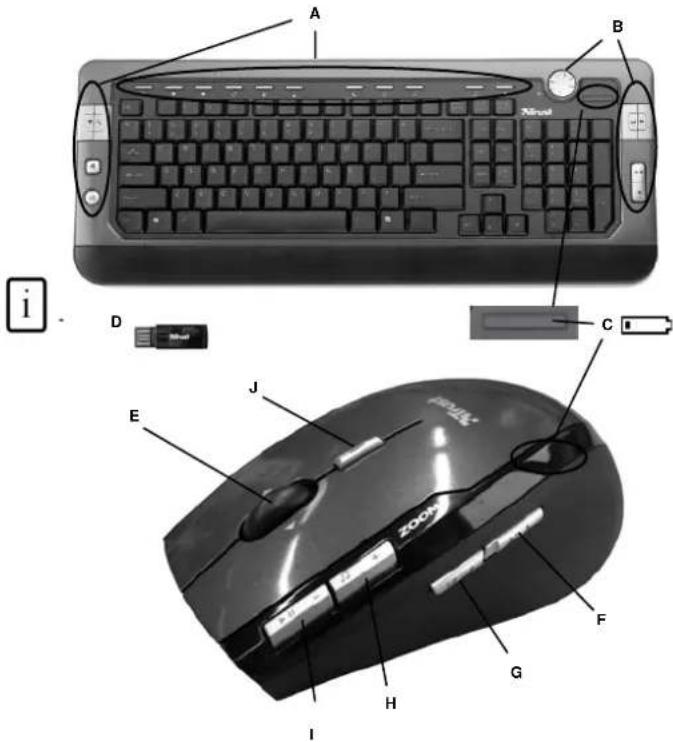

A B i D C E J F G H I ZOOM

Installation

1

Close-up of a remote control device showing battery and warning symbol (no text or labels)

2

PC I

3

Illustration of a hand holding a CD or DVD next to a tray labeled 'Xtrust' (no other text or symbols)

Trust Install software

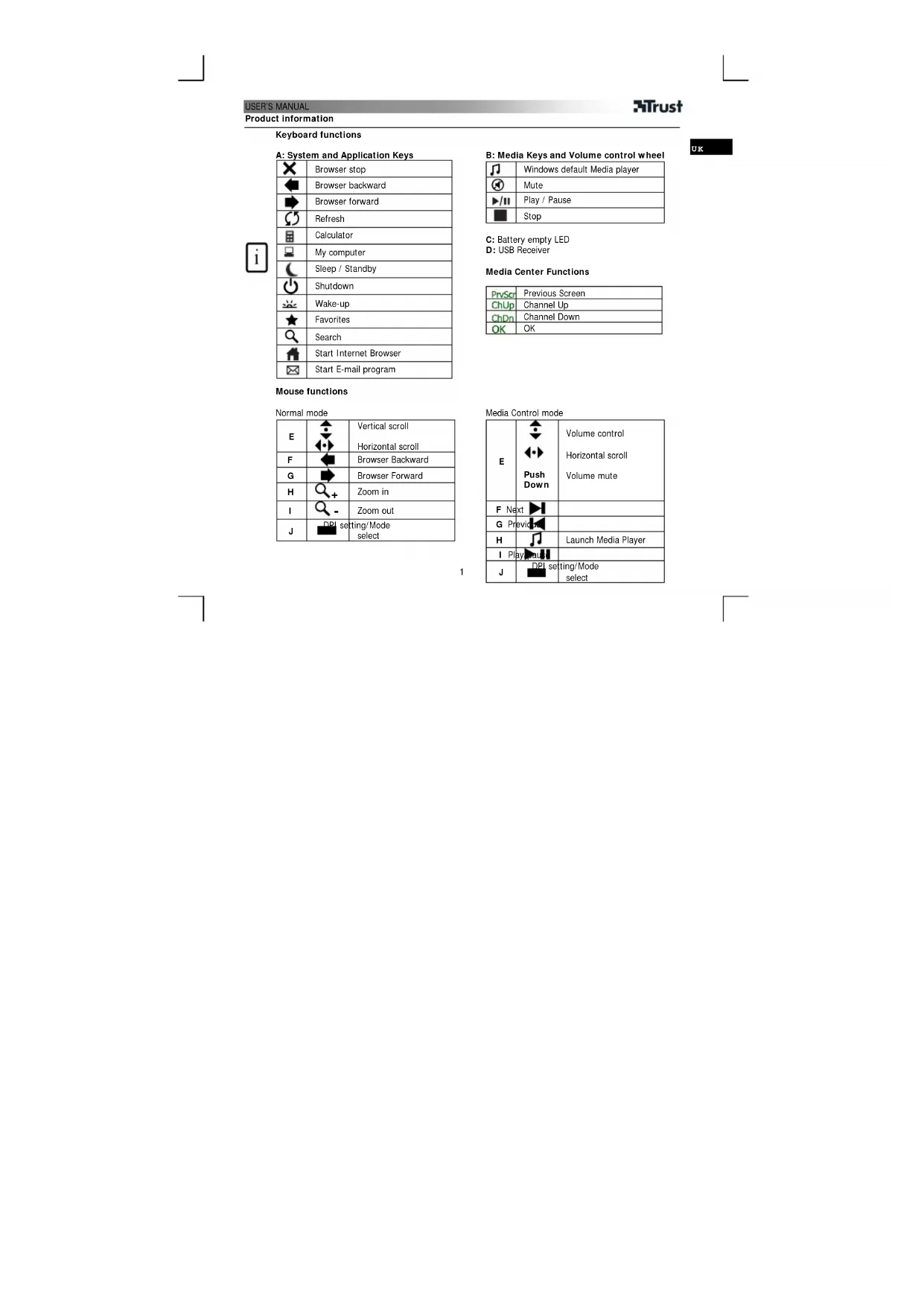

Keyboard functions

A: System and Application Keys

×	Browser stop
	Browser backward
	Browser forward
	Refresh
	Calculator
	My computer
	Sleep / Standby
	Shutdown
	Wake-up
	Favorites
	Search
	Start Internet Browser
	Start E-mail program

Mouse functions

Normal mode

E		Vertical scrollHorizontal scroll
F		Browser Backward
G		Browser Forward
H		Zoom in
I		Zoom out
J	DPI setting/Mode select

B: Media Keys and Volume control wheel

	Windows default Media player
	Mute
	Play / Pause
	Stop

C: Battery empty LED

D: USB Receiver

Media Center Functions

PrvScr	Previous Screen
ChUp	Channel Up
ChDn	Channel Down
OK	OK

Media Control mode

E	Push Down	Volume controlHorizontal scrollVolume mute
F Next
G Previous
H		Launch Media Player
I Play up
J	DPI setting/Mode select

UK

USER'S MANUAL

Trust

Installation

1	Open battery compartments on bottom side of keyboard and mouse to insert batteries.Turn on mouse
2	Connect USB Transmitter to PC; wait until automatic installation has completed → Ready to use.
3	Insert CD-ROM and install software

Mouse

• Hold down DPI switch (J) for 1 sec will change DPI setting between 800 DPI and 1600 DPI
• Hold down DPI switch (J) for 5 sec to change mouse modes (Normal/Media Control). Low Battery LED will flash for 3 sec.
  • Could also work on just 1 battery. Use 2 for extra long life-time.
• Tilt scroll is supported in MS Office, Internet Explorer, and Windows Explorer, but may also work in other applications.
• Zoom function is supported in MS Office and Internet Explorer 7 and up, but may also work in other applications.

Note

! Multimedia and Office keys

- Launch keys will start the default internet browser, E-mail program and Mediaplayer installed on your PC. Configure default programs:

XP: Start → Control Panel → Add/Remove Programs → Set Program Access and Defaults.

Vista: Start → Control Panel→Default Programs→Set programs access and computer defaults→Custom

• The multimedia keys also work with other media player software like iTunes.
- 4th and 5^th Mouse button only work in games that support standard 5 button mice (normal mode).

⚠️

- The keyboard country layout settings in Windows should correspond with the keyboard layout of your Trust keyboard. Layout of the Trust keyboard is specified by a sticker on the Box.

To set the keyboard Layout in Windows: Go to: Start → Control Panel (classic view) → Regional and Language Options → Languages → Details (Vista: "Change Keyboards")

- The Alt Gr key gives access to special characters like the € sign. An overview of the special characters per country is available at www.trust.com/keyboardlayout.

!

Performance

• Maximum Wireless working distance is around 8 meter.

- Reduced wireless performance can be caused by: - (Metal) objects close to or between transmitter and keyboard → Remove objects. - Other wireless devices close by → Remove devices or reconnect USB transmitter to get different communication ID. - Empty batteries → Replace batteries.

USER'S MANUAL

Trust

• Mouse will have reduced tracking performance on very shiny or transparent surfaces.
• Do not place USB dongle next to Bluetooth dongle.

UK

Energy

• Never recharge the batteries provided and never throw them onto a fire.
• Observe local regulations when disposing of batteries.
• Insert batteries in keyboard or mouse: low battery LED (C) will flash for 3 sec.

⚠️ Safety instructions

• Do not open or repair this device.
• Do not use the device in a damp environment. Clean the device with a dry cloth.

See www.trust.com/15177 for up-to-date FAQs, driver and instruction manuals. For extensive service, register at www.trust.com/register.

CE

- This device meets the essential requirements and other relevant conditions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.trust.com/15177/ce.

- If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste.

Wireless

• This class 1 wireless device works at a frequency of 2.4 GHz. It meets the essential requirements and other relevant conditions of R&TTE Directive 1999/5/EC.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-saving, sensitive electronic equipment, because this device transmits radio signals.

Warranty & copyright

• This device has a two-year product warranty which is valid from the date of purchase. See www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust International B.V.
