Product type	Range hood
Brand	Hotpoint-Ariston
Model	HRP 6.5 CM (AN)HA
Height (adjustable)	61 - 82 cm
Width	65 cm
Depth	50 cm
Exhaust duct diameter	150 mm (reducible to 120 mm)
Power supply	230 V ~ 50 Hz
Lighting	2 x 25 W halogen (type G9)
Number of speeds	3 (Speed 1,2,3) + stop
Control	Mechanical buttons
Installation type	External evacuation (recycling possible with optional kit)
Grease filter	Metallic, dishwasher safe
Charcoal filter	Active, replacement every 20 months
Minimum distance (gas hob)	65 cm
Minimum distance (electric hob)	55 cm
Material	Stainless steel
Approximate weight	12 kg
Repairability	Bulbs and power cable replaceable (after-sales service)

Frequently Asked Questions - HRP 6.5 CM (AN)HA HOTPOINT-ARISTON

How to install the hood correctly?

Installation must be carried out by qualified personnel. Observe the minimum distances: 65 cm above a gas hob, 55 cm above an electric hob. Ensure the wall can support the weight. Connect the exhaust to a duct with a diameter of 150 mm (reducible to 120 mm). For the recycling version, install the charcoal filter kit.

How to clean the grease filters?

The metal grease filters must be cleaned at least once a month. You can wash them by hand with a non-aggressive detergent or in the dishwasher at low temperature and short cycle. Pull the spring handle to remove them.

When should the charcoal filter be replaced?

The charcoal filter retains odors. It should be replaced approximately every 20 months, depending on use. It cannot be washed or regenerated. To remove it, turn it 90° and unhook it.

What to do if the hood does not work?

First check that there is no power outage and that a speed has been selected. If it turns off during operation, unplug it for 5 seconds and then plug it back in. If the problem persists, contact the support service.

How to replace a bulb?

Disconnect the hood from the power supply. Remove the grease filters. Make sure the bulb is cold. Use a small flathead screwdriver to pry off the cover. Replace the bulb with one of the same type (halogen 25 W, G9). Close the cover.

How to set up the hood for recirculation?

The hood is ready for external evacuation. To convert it to recirculation version, install the charcoal filter kit (not supplied). On models with a touch keypad, you can change the mode by pressing T5 (or T4) for 6 seconds with the appliance off.

What is the safety distance above a gas cooker?

The minimum distance between the cooking surface and the lowest part of the hood must be at least 65 cm. If the cooker's instructions specify a larger distance, follow that.

How to reset the filter saturation indicator?

On models with a touch keypad, when the T2 or T3 icon flashes, press T5 (or T4) for 3 seconds. The indicator flashes three times and then goes out. For both filters, repeat the operation.

Can I use the hood without the grease filter?

No, never use the hood without the grease filter properly installed. This could damage the motor and create a fire hazard.

How to maintain the exterior of the hood?

Frequently clean the exterior with a cloth soaked in neutral liquid detergent and warm water. Avoid abrasive products. For stainless steel, dry following the direction of the satin finish. Remove protective films before first use.

USER MANUAL HRP 6.5 CM (AN)HA HOTPOINT-ARISTON

HNP 6.5 CM X/HA
HNP 6.5S CD X/HA
HPS 60 IX/HA
HYM 60 IX/HA
HPM 61 IX/HA
HRP 9.8 CM (OW)/HA
HRP 9.8 CM (AN)/HA
HRP 6.5 CM (OW)/HA
HRP 6.5 CM (AN)/HA
HRP 6.5S CM (OW)/HA
HRP 6.5S CM (AN)/HA
HNP6.5SCM(W)/HA
HNP6.5SCM(K)/HA
HNP9.5SCMX/HNPN9.8ABX/HNPN6.5SCMX/HNPN94.SCMX/HA

François

Operating Instructions COOKER HOOD

Contents

Operating Instructions,1

Montage,4

Warnings,10

Assistance,28

Installation,35

PYRAMID controls,36

Maintenance and care,37

Troubleshooting,38

Portuges

PaindaHny HycKayIbIfbl

COPbIN

Ma3MyHbl

PaiDanaHny Hycaynblfbl,3

C6opka,4

EckepTynep.:26

Kemek,30

Opnaty,79

PYRAMID 6ackapy kypanapbi,80

TexHnKaIbIK Kbl3Met KepeCy XeHe KyTIm KepeCy,81

AkaaybikTapdbjkoio82

IT

Avvertenze

! Keep this manual for reference. If you sell, transfer or move the unit to another location, make sure to keep the manual with the product.

! Read the instructions carefully - they contain important installation, user and safety information.

! Do not tamper with the electrical or mechanical equipment of the product or its exhaust ducts.

General safety information

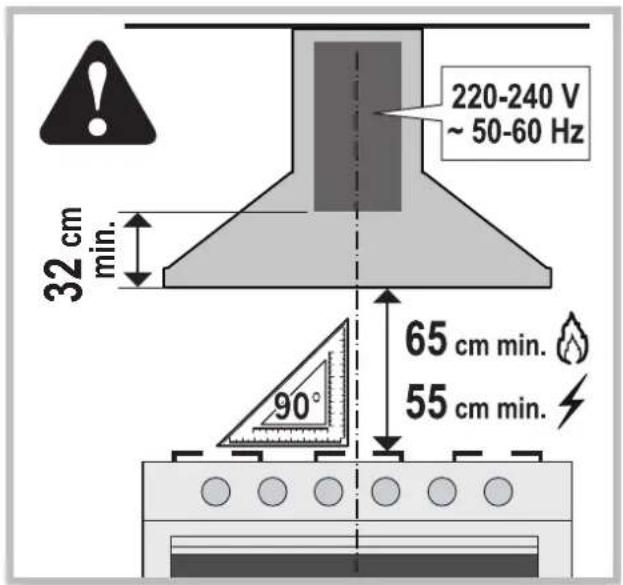

• The distance between the cookware support surface on top of the cooking appliance and the lowest part of the cooker hood must be at least:
  65 cm if the hood is installed over a gas cooktop
  55 cm if the hood is installed over an electric cooktop.
  If the installation instruction manual for the gas cooking appliance specifies a greater distance, this measurement should be taken into account.

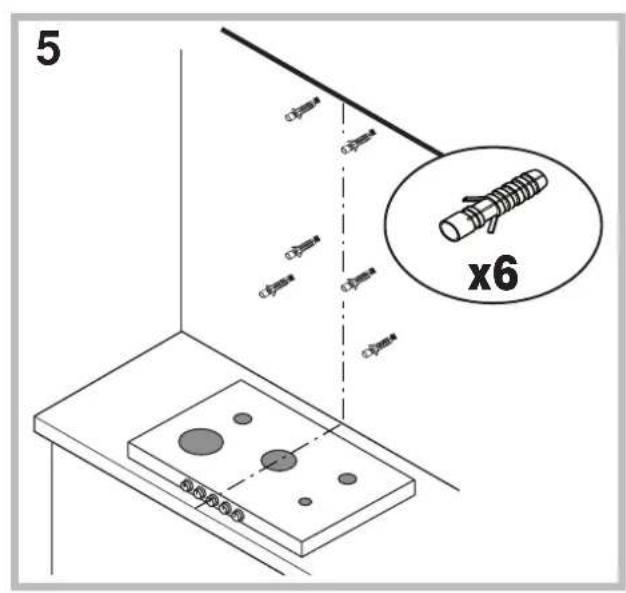

• The cooker hood comes with anchor plugs which are suitable for use with most walls/ceilings.
  However, you must contact a qualified technician to check the suitability of the materials in relation to the type of wall/ceiling, which must be strong enough to support the weight of the unit.
• Caution! Do not hook the unit up to its electrical power supply until the installation has been completed.
• Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.
• Always wear work gloves when installing and servicing the unit.
• It is not intended for use by children or persons with sensory or mental disability and lack of experience or familiarity, except under the supervision or instruction of a person responsible for their safety.

• Make sure children do not play with the unit.

• Never operate the unit without its grease filter installed!

• NEVER use the hood as a support, unless expressly instructed to do so.
• The room must be adequately ventilated if the hood is used at the same time with other equipment burning gas or other fuels.
• Extracted air must not be conveyed into a duct used for exhausting combustion fumes from gas or other fuel-fired equipment.
• Observe all regulations in relation to air extraction.
• NEVER cook food with an open flame under the hood; open flames will damage the filters and may cause fires. Never do this.
• Always supervise frying to make sure the heated oil does not catch fire.
• Strictly observe all local regulations in relation to the technical and safety measures to be employed in fumes extraction.
• Clean the product frequently, inside and out (AT LEAST ONCE A MONTH, and in observance of the maintenance instruction given in this manual).
• Failure to observe the hood cleaning and fi iter cleaning/replacement instructions can result in fi res.
• Never use the hood without its bulbs properly installed - electrocution hazard.
• The manufacturer is not liable for any inconvenience, damage or fire caused by the unit as a result of failure to observe the instructions given in this manual.
• Caution! The unit's accessible parts can get very hot when used with cooking equipment.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

FR

Avertissements

! Never use the services of an unauthorised technician.

Please have the following information to hand:

• The type of problem encountered.
  The appliance model (Mod.).
  The serial number (S/N).

The latter two pieces of information can be found on the data plate located on the appliance.

FR

Assistance

！3BepTaIeCBAKJIIOHNO Do yNOBHOBaXeHNxΦaxiBizB.

CniD nobiDMnT:

TnHecnpabHOcti;
Modenbpnnay (Mod.)
- CepiHnH HOpEe (S/N)

Dana iHopmauiMiCTnbCnHa Ta6nuci 3 xapaKTepeNCTnKaMn, npNKpInneHi Do DyXOBKn.

CZ

Servisni sluzba

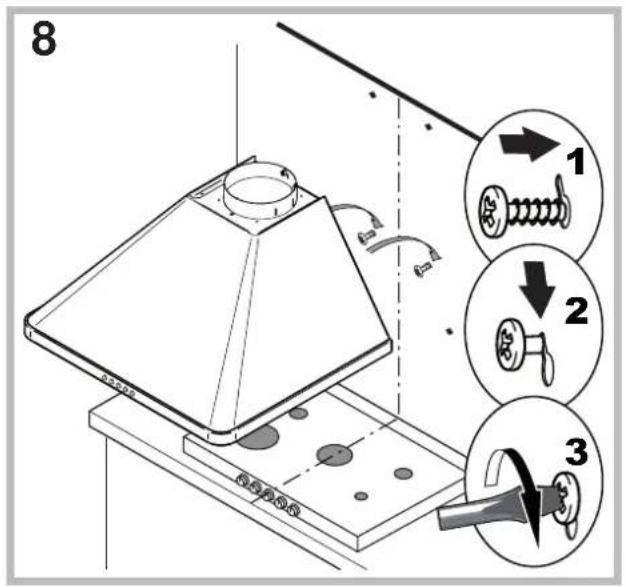

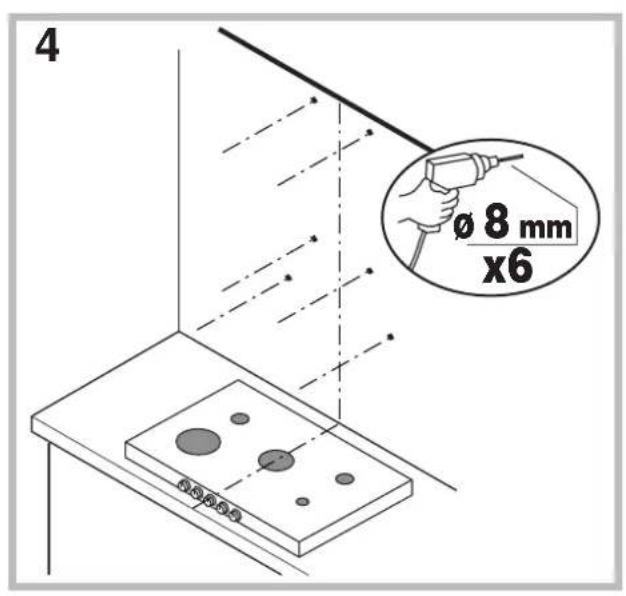

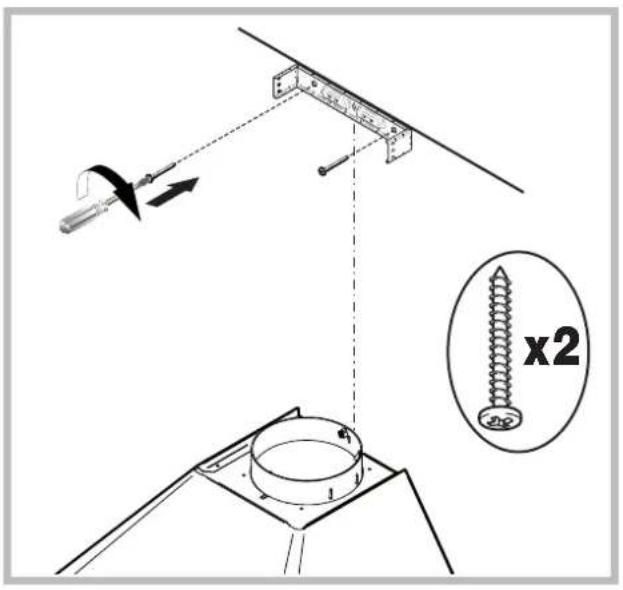

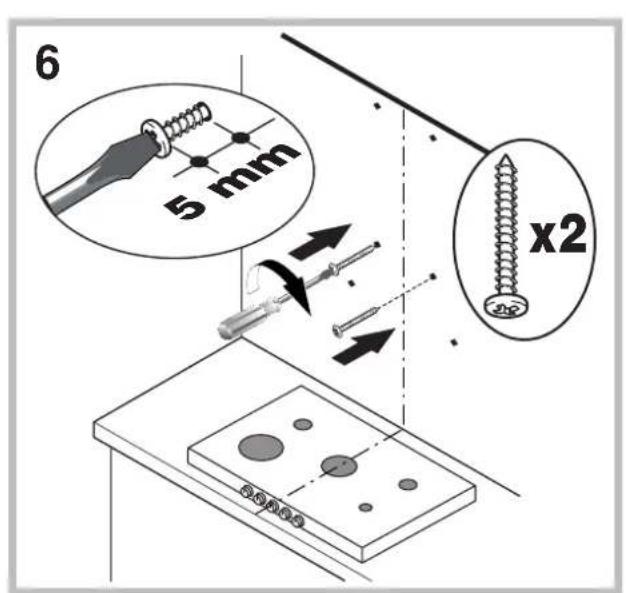

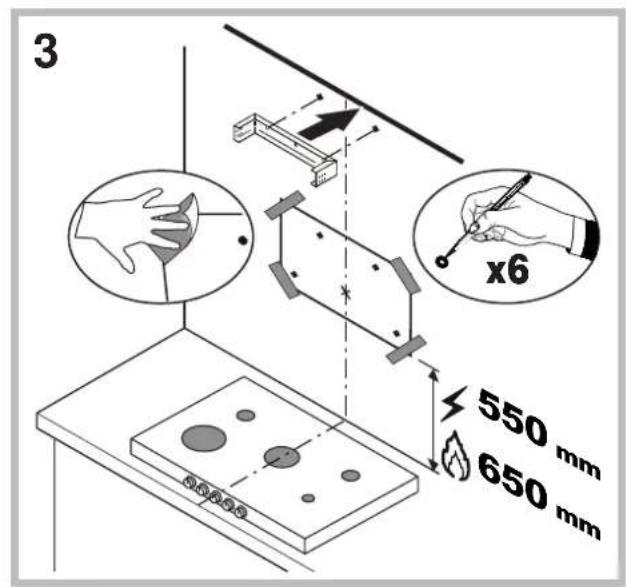

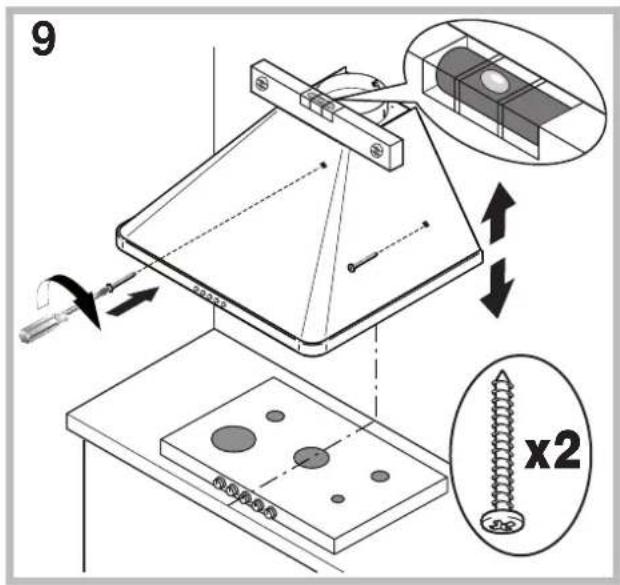

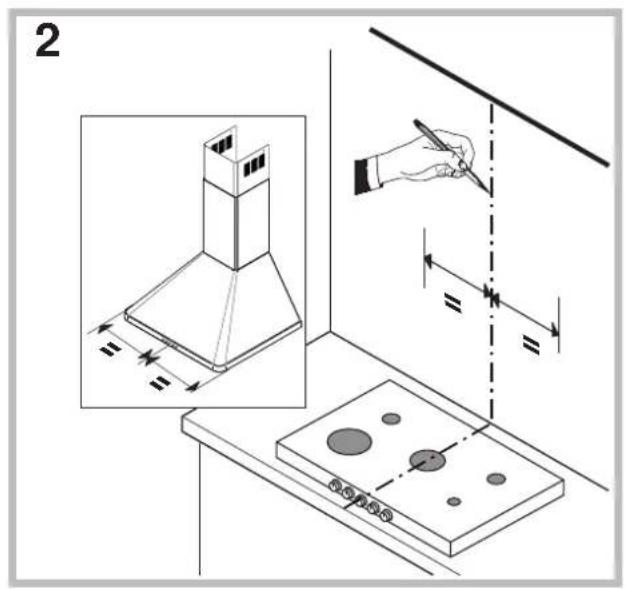

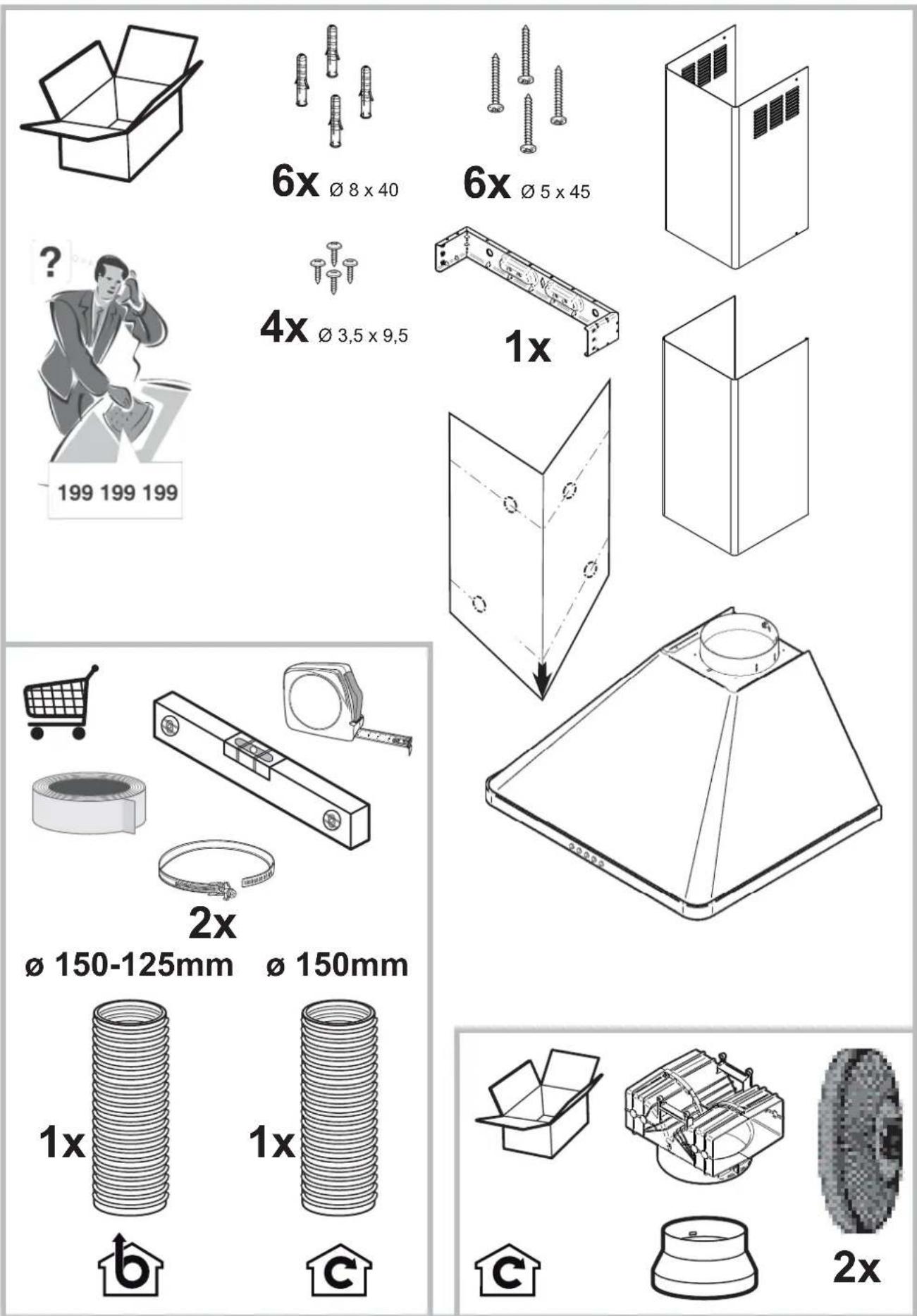

The installation procedure is illustrated in the first pages of this manual.

The installation must be done by a qualifi ed technician.

Electrical hook up

The mains voltage must match that given on the ratings label inside the hood itself. If the hood has a power plug, connect the hood to an easily accessible regulatory power socket. If it does not (direct connection to the mains), or the socket is not easily accessible, install a two-pole regulatory switch to enable total disconnection from the mains in case of category III overvoltage, as required by the installation regulations.

Caution! Always check that the mains cable is hooked up properly and check that it operates correctly before reconnecting the hood to the mains.

Air exhaust (for ducted units)

Connect the hood to a duct and wall exhaust hole of a diameter equal to that of the air outlet flange. Using a smaller diameter tube and exhaust hole reduces the extraction capacity of the hood and also increases its running noise. The manufacturer is not liable for any consequences of doing so.

! Use the shortest duct required to achieve the purpose.

! Use a duct with as few bends as possible

! Avoid suddenly changing the diameter of the duct.

! The duct must have as smooth an inner surface as possible.

! The duct must be made of regulatory material.

! Do not connect the hood to flues carrying combustion fumes from other equipment (boilers, chimneys, stoves, etc.).

! Observe the instructions of the competent authorities in relation to the air exhaust. The air being exhausted may not be exhausted into a wall cavity unless the cavity in question is specifi cally intended for this purpose.

! Equip the room with air intakes to prevent the hood creating suction pressure in the interior (this must not exceed 0.04 mbar).

! The manufacturer is not liable for any consequences of failure to observe these instructions.

Filter or ducted?

! Your hood is supplied as a ducted unit.

If you wish to use it as a filter unit, you must install the proper ACCESSORY KIT.

Note: If supplied with the hood, the accessory active charcoal filter unit may already be installed.

Instructions for transforming the hood from the ducted to the filter version are given in this manual (see "Filter version").

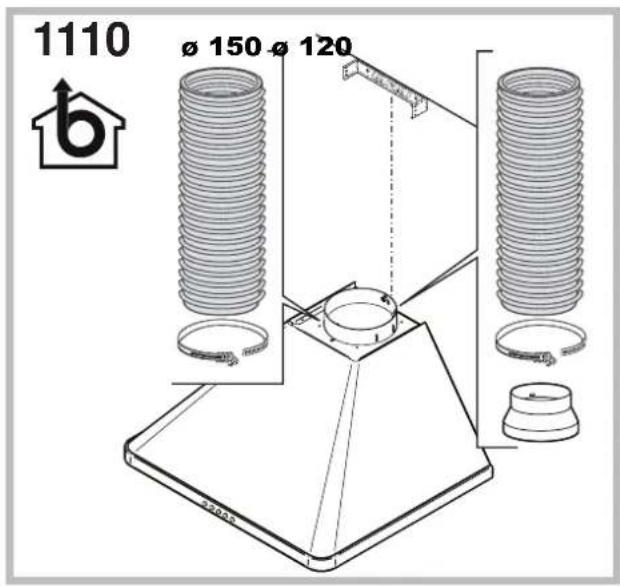

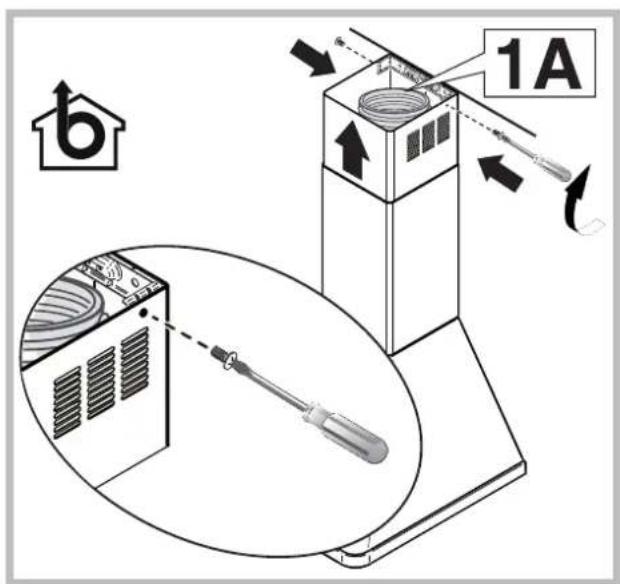

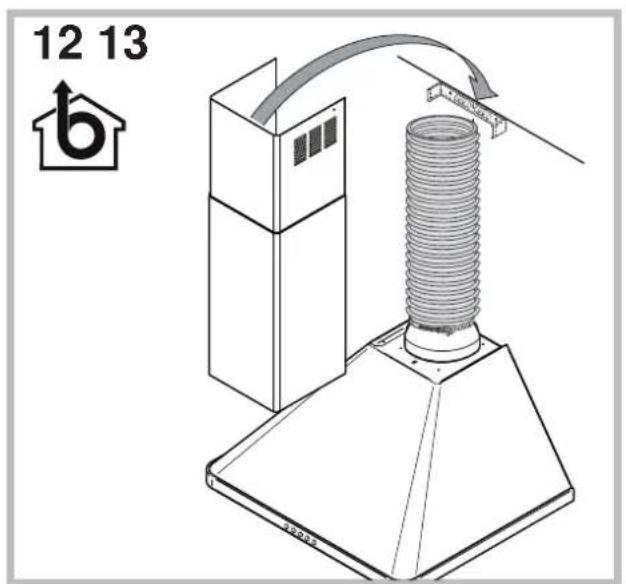

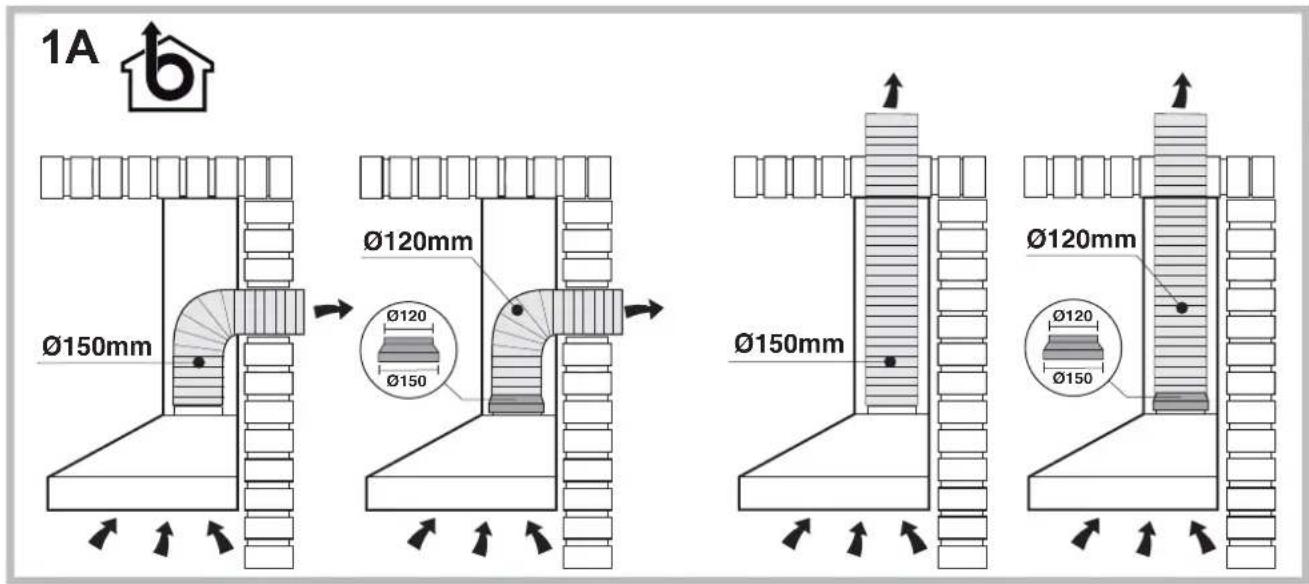

Ducted version

The hood purifies the air and expels it outdoors via an exhaust duct (dia. 150mm ) connected to its outlet flange. The diameter of the exhaust tube must be equal to that of the outlet flange. Caution! The exhaust duct is not supplied and must be purchased separately.

When routed horizontally, the tube must be angled slightly upwards (around 10^ ) to enable the air to be conveyed outdoors more easily. If the hood is fitted with charcoal fi iters, they must fi rst be removed.

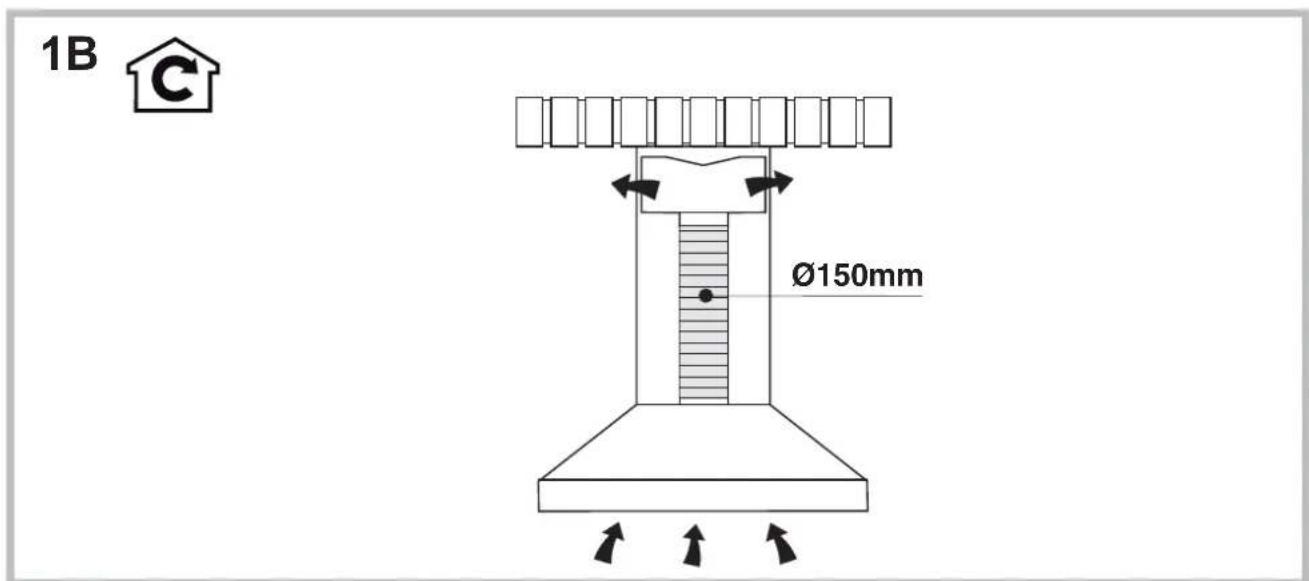

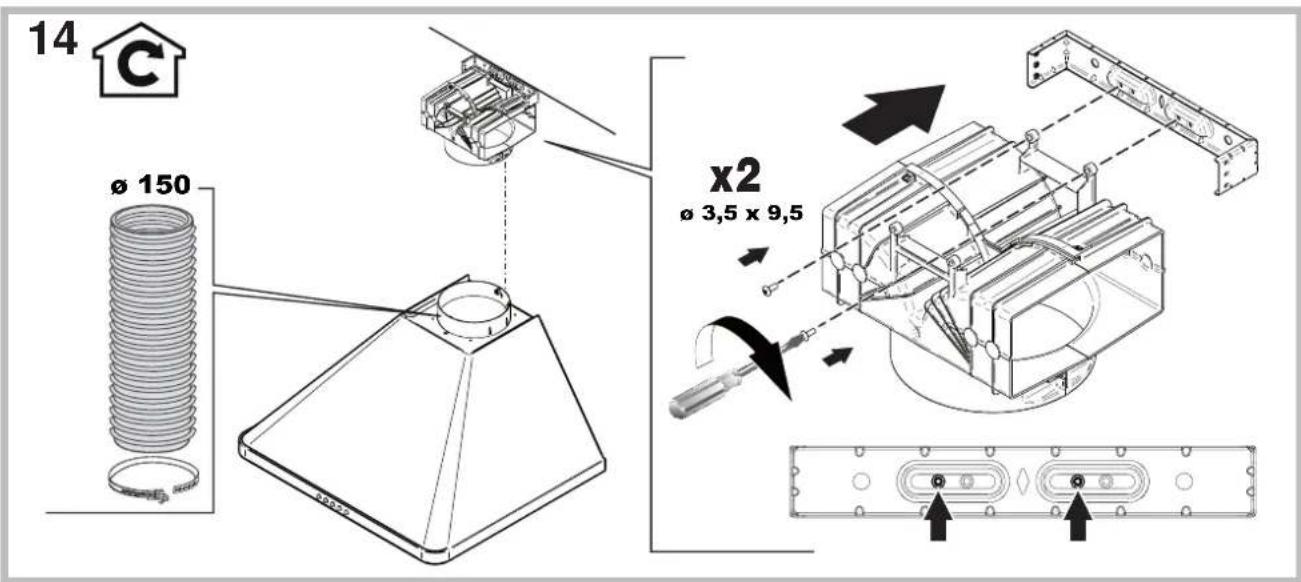

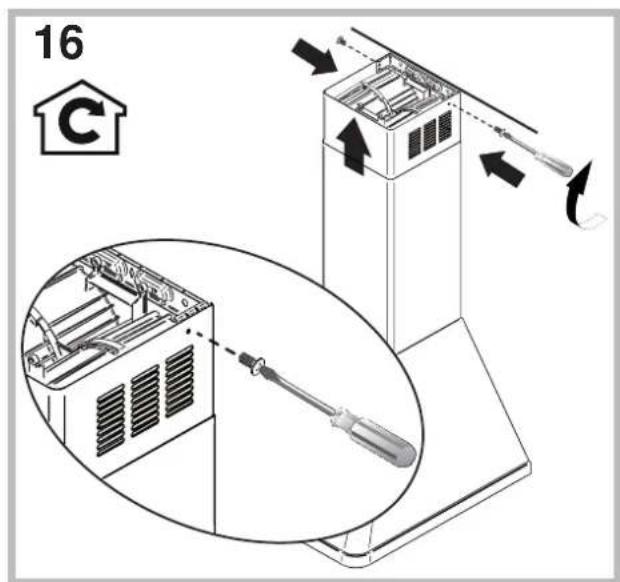

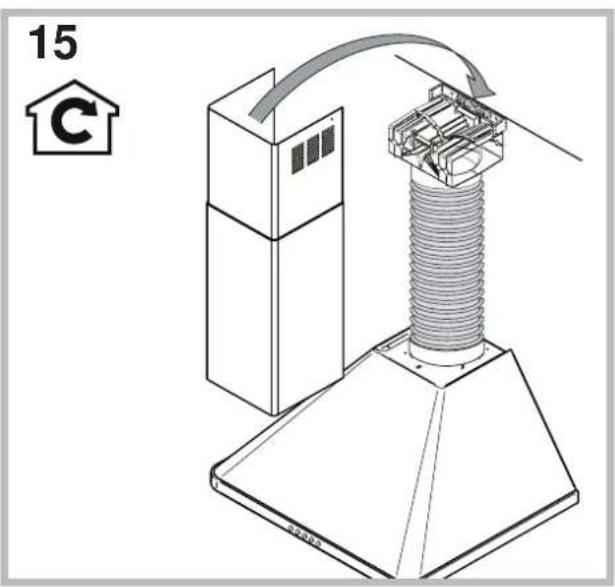

Filter version

The hood purifi es the air and returns it to the room. This version of the hood requires installation of an accessory active charcoal filter unit.

This version requires an air defl actor, a reduction adapter and the charcoal filter/s. The top tube must have its air outlet slots uppermost.

Technical data

Model	Height (cm)	Width (cm)	Depth (cm)	dia. of exhaust tube (cm)
PYRAMID 60cm 61-82	59.8 50	15/12
PYRAMID 70cm 61-82	69.8 50	15/12
PYRAMID 90cm 61-82	89.9 50	15/12

Please check the plate in order to verify the total absorption and the light absorption

	Power Voltage Cap Dimensions
Halogen 25 W 2	x 25 W 230 V	G9 L40xØ14
Halogen 20 W 2	x 20 W 12 V	G4 L30xØ10

LED*

Risk Group 1 according to Standard EN 62471

CE	The model is in accordance with the following EU directives: ·“Low voltage” Directive 2006/95/EC (12-12-2006) ·“EMC” Directive 2004/108/EC (15-12-2004) ·UR Reference no. 66/2014 integrating Directive no. 2009/125/EC.

Reference standard:

EN 60704-2-13:2011; EN 60704-3:2006
EN61591:1997;EN61591:1997/A1:2006;EN61591:1997/A2:2011 EN61591:1997/A11:2014

EN 50564:2011

GB

GB

PYRAMID controls

Models with mechanical keypad

HNP 6.5 CM X/HA

HYM 60 IX/HA

HPM 61 IX/HA

HRP 9.8 CM (OW)/HA

HRP 9.8 CM (AN)/HA

HRP 6.5 CM (OW)/HA

HRP 6.5 CM (AN)/HA

HRP 6.5S CM (OW)/HA

HRP 6.5S CM (AN)/HA

HNP6.5SCM(W)/HA

HNP6.5SCM(K)/HA

HNP9.5SCMX/HA

HNP6.5SCMX/HA

HNP94.5SCMX/HA

T1T2T3T4T5

T1 Motor reset

Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Lights ON/OFF

Models with soft button keypad

HNP 9.8 AB X/HA

T1T2T3T4T5

T6

T1 Motor reset

Press the button with the hood off to set speed 1. Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

• Only available in certain models

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Booster

Pressing the button sets the hood to high speed. After 5 minutes, the hood returns to the previous speed; pressing a speed button (T2, T3 or T4) quits booster mode and sets the selected speed.

T6 Lights ON/OFF

Grease/odour fi Iter warnings

The T2 icon flashes to indicate that the grease filter is saturated, while T3 flashes to indicate that the odour filter is saturated, and if both are flashing then both filters are saturated. You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see "Maintenance and care").

To reset the fi lter counter:

Hold down T5 for three seconds while the hood is on.

The warning led flashes three times, then returns to its normal mode If both filter warnings are active at the same time, you must reset each separately.

The first sequence resets the grease filter, while the second sequence resets the odour fi Iter.

Hood configuration:

To set the operating mode of the hood, hold down T5 for 6 seconds while the product is off. Icons T2 or T3 will light up to show the type of installation: T2 ventilation, T3 fi Itering. You can change the type of installation by pressing T4 cyclically.

To save the new configuration press T1 individually.

Models with soft button keypad and display

HNP 6.5S CD X/HA

HPS 60 IX/HA

T1T2T3

1 Motor ON/OFF

Press the button with the hood off to set speed 1. Pressing the button while the hood is in operation turns it OFF.

T2 Speed -

Pressing the button returns the hood to the previous speed.

T3 Speed +

Pressing the button returns the hood to the next speed.

T4 Booster

Pressing this button sets the hood to high speed; the letter "b" flashes slowly on the display. After 5 minutes, the hood returns to its previous speed; this can also be done while booster mode is on by pressing either speed button (T2 or T3).

T5 Timer

Pressing this button delays the hood turning off automatically by 5 minutes. The timer counts down on the display in minutes. The timer can only be set for manual speeds, not for booster mode.

T6 Lights ON/OFF

Grease/odour fi Iter warnings

The bar at the top left fl ashes to indicate that the grease fiiter is saturated.

The bar at the top right flashes to indicate that the odour fiiter is saturated.

If both bars are flashing, then both filters are saturated.

You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see "Maintenance and care"). The latter only applies to the fi/ter version.

To reset the fi lter counter:

Hold down T4 for three seconds while the hood is on. If both filter warnings are active at the same time, you must reset each separately. The first sequence resets the grease filter, while the second sequence resets the odour filter.

Confi guring the hood

To set the operating mode of the hood, hold down T4 for 6 seconds while the product is off. After a long beep, the type of installation displays:

Ducted

(square at bottom left flashing).

Filter

(square at bottom right flashing).

You can change the type of installation by pressing T4. To quit configuration mode, press T1 once; this switches the unit off and saves the last displayed setting.

Maintenance and care

Caution! Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

First cleaning

• Remove the protective fi lm
• Clean with a damp sponge and a little neutral soap
• Rinse off with a damp cloth
• Dry with a soft cloth; if the hood is stainless steel, dry along the metal's grain

Periodic cleaning

The hood must be cleaned frequently (at least as often as you service the grease fi liter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water. Do not use abrasive or corrosive products.

Warning: Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires. Follow the instructions carefully. The manufacturer is not liable for any damage to the motor or fi res caused by incorrect care or failure to follow the above instructions.

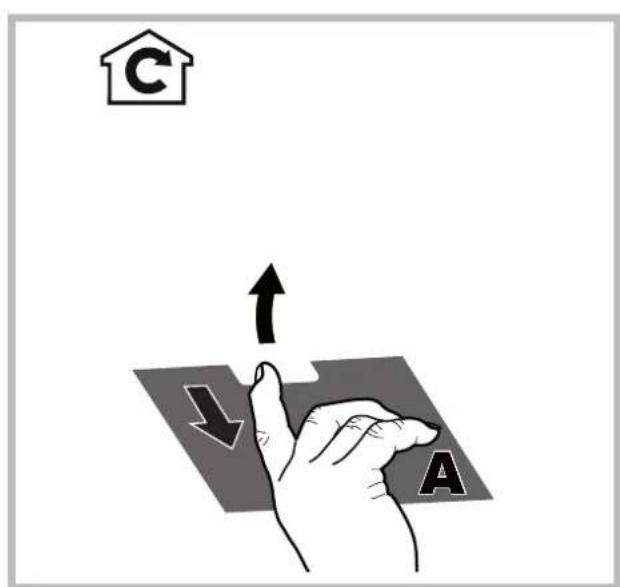

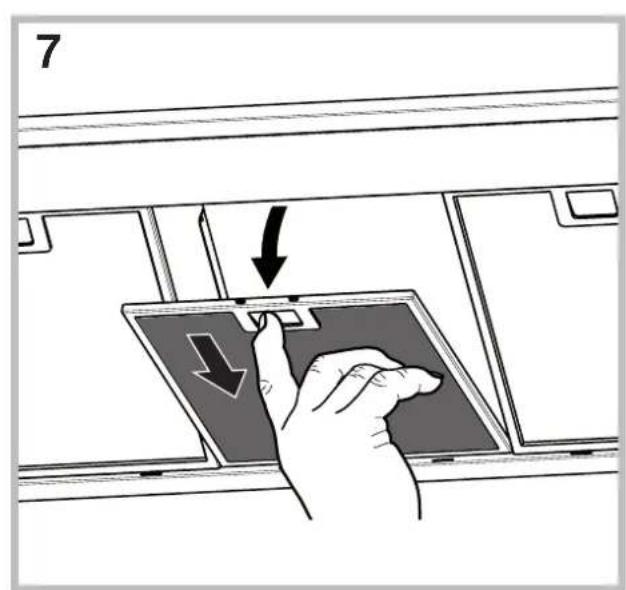

Servicing the grease fi Iter (A)

The grease filter retains the particles of grease produced during cooking; it must be cleaned at least once a month with a non-aggressive detergent, either by hand or with a low temperature, short dishwasher cycle. To extract the grease filter, pull the spring loaded handle.

If washed in a dishwasher, the metal filter may change colour, but this does not affect its performance.

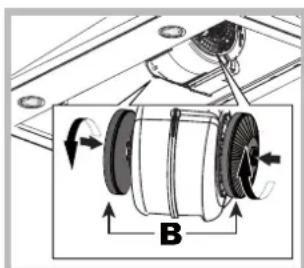

Servicing the charcoal filter (B)

The charcoal filter retains unpleasant cooking odours. The filter saturates after a variable time, depending on the type of cooking and how often the grease filter is cleaned. The cartridge must be replaced at least once every twenty months.

or regenerated

This filter can NOT be washed

GB

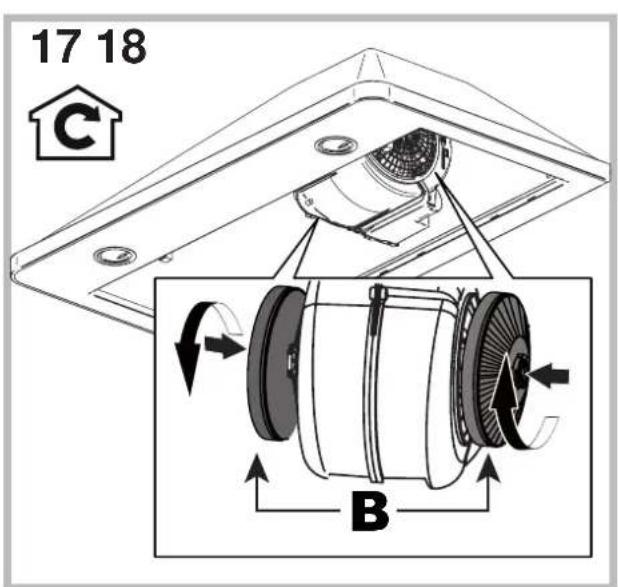

Disassembly: Rotate the filter 90^ to remove it from the suction assembly.

Assembly: Fit the active-carbon filter into the suction assembly and rotate it 90^ to secure it in place.

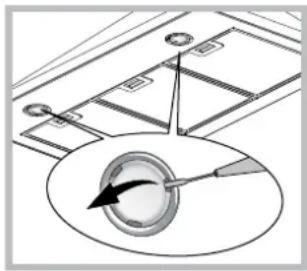

Replacing the bulbs

Disconnect the unit from the mains and remove the grease filter.

Caution! Make sure the bulbs are cool before touching them.

1. Extract the guard by prising it out with a small flat head screwdriver or something similar.
2. Replace the faulty bulb. Use only bulbs of the same type (for details, see the technical data in the following manual).
3. Refit the guard (push it in).

Replacing the lights LED*

The hood is fitted with a lighting system based on LED technology. The LEDs ensure optimal lighting, longer life and lower consumption compared with traditional lights. To replace them please contact the assistance service.

Electrical cable

If the power cable is damaged, it can be replaced by the manufacturer or his technical service, to prevent any attendant risks.

SCRAPPING

The unit is marked for conformity with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that the unit is scrapped properly, the user contributes to safeguarding the environment and public health.

The symbol on the product or on its accompanying documents indicates that the product may not be treated as domestic waste but must be handed over to a sorting centre for electrical and electronic waste. Dispose of it in accordance with local waste disposal regulations. For further information on the handling, recovery and recycling of this product, contact the local authority, domestic waste disposal service or the reseller from whom you purchased it

Save energy and respect the environment

• Please use the hood by setting the speed in line with the real extraction need; please limit the use of the "intensive speed" feature, if present. Using the hood in a rational way allows you to limit energy consumption and to avoid an useless waste of clean and air-conditioned air.

• Please don't turn on the hood light unless this is needed to light the cooking area.

• Only available in certain models

Troubleshooting

If something does not work, make the following simple checks before contacting Technical Service:

If the hood does not operate:

Check that:

the unit is powered up.
- a speed has been set.

If the hood is not working effectively:

Check that:

• the selected motor speed is sufficient to handle the amount of smoke and steam being produced.
• the kitchen is adequately ventilated for the unit to take air in.
• the charcoal filter is not exhausted (filter version).

If the hood turns off during normal operation:

Check that:

the unit is powered up.
- the circuit breaker has not tripped.

In case of faulty operation, before contacting Technical service, first disconnect the machine from the mains for at least 5 seconds by pulling its plug, then reconnect it. If the fault persist, contact Technical Service.

Installation

T1OCTaHOBka DBuRatEn

Ipn HaxkTN KHOKN B npoucepe pa60Tb I BblTgKKa nepeKJIIOUaETcB pexm BblKn.

T2 Ckopoctb 1

Pn Haxatnn KHOKN BbITAAKKa nepeKnHouaetcna 1-yocopoctb.

T2 Ckopoctb 2

Pn Haxkntn KHOKN BbITaKKa nepeKnOuaetcna 2-yoCKopocTb.

T2CKopoctb3

Pn Haxatnn KHOJKN BbITaKKa nepeKNoaetcna 3-bIO CKOPoCTb.

T5 BKJ./BbIK. ocBeuehenr

MoJeN C ceHcOpHoi KOHcoJIbU O npaBHeHn

HNP 9.8 AB X/HA

T1T2T3T4T5

T6

T1OcTaHOBKa DnBraTeJr

Pn Haxatnn 3ToH KONKn Ha BbIKIOueHHoB BbITAKKE 3aadaTc npBaar cKOpocTb. Pn Haxatnn KONKn B npOecce pa60tB bItAAknapeekuoyaeTcB pexm BblKJI

T2CKopoctb1

Pn HaxkTIN KHOKN BbITXKKa nepeKIOaETcra Ha 1-bIO CKOPoCTb.

T2 CkopoocTb 2

Pn HaxkTIN KHOKN BbITXKKa nepeKIOaETcra Ha 2-bIO CKOPoCTb.

T2CKopoctb3

Pn Haxkntn KHOKN BbITaKKa nepeKnHouaetcna 3-bIO CKOpocTb.

T3 BoIbToO6aBoUHoe yCTpoCTBO

Hn HaxaTn KhoNKn BbITaxKa nepeKJIIOyaeTcHa MaKcImaIbHyO cKOpocTb. Ype3 5 MmHyT BbITaxKa

NepeKIOUaETcHa paHee 3aDaHHyO CKOpocTb; npHaxKaTHN KHOJOK CKOpocTn (T2, T3 nIN T4) BOJbTOIO6aBOuHbI peKIM OTKIOUaETc, BbITJXKa NepeKIOUaETc Ha 3aDaHHoN CKOpocTn.

T6 BKJ./BbIKI. ocBeuehenr

CnHann3aun3acopeHnnKnpoBopro n cop6uohHoro HnltpoB

Mirauoun CmBON nepBockopocTn T2 CnHaun3npyET 3acopeHna KpOBOro fNtpa. Miraoun CmBON nepBoiCKopocTn T3 CnHaJIn3npyET 3acopeHna Cop6uOnHoro fNtpa. Oba miraoun CmBOnbl T2 n T3 CnHaJIn3npyIOT 3acopeHne obox fNtpoB. Heo6xOaIMNo npOuNCnTb/ 3ameHnTB XnPOBOH cNtpr"A" n/nnn cop6uOnHHb "B" (cm."Tex. obcnykBaHne n yxoD).

Iy6HyJHcHTnKaΦJIbTpA:

Ha BKNHoueHHo BbITaXke HaXaTb KONky T5 Ha Tprn CeKyHdbI. INHdkatop CnHraJIn3aUm MURHeT TpN pa3a, 3aTeM BEpHeTcK BN3yAn3aUHOPMaJbHOro pexkma.

B cnyuae OndnoHOBpeMeHHo CnHnHaJIIm3aun 3acopeHnro60nxΦnIbTPOB Heo6xOdmo NOBtOpNTb 6hnyJeHne.

PepBa onepaunr o6hnynreT cHTyK JnpoBOro fHbTpra, BTopa - copuohoro.

Hactpoika BbITaKKn:

Дян Habтpoин HxHOro pa6OerO peXnMa BbITaKn HaxMnte KhONky T5 npImepHo Ha 6 cekyHc. CmBOJbT2 nnn T3 3aropaoTc, nokaibra TnBtAaKKn: T2 -OTBoDHO,T3-ФinnbTyUOnu.MoxHO u3MeHHTb BepCNo, HaxKaB KhONky T5 HeckoIbko pa3.ДЯ coXpaHeHn HOBo HacTppoNn HaxKaTb ODNH pa3 KhONky T1.

MoJeN C ceHcOpHO KOHcOJIbU ynpaBHeHn +Incnne

HNP 6.5S CD X/HA

HPS 60 IX/HA

T1T2T3T4T5T6

T1 BKN./BbIKJ. Dnuratena

Pn Haxatnn 3toi KHONKn Ha BbIKNIOeHHoB BbITJXKE 3adaetc nepBaar cKOpocTb. Pn Haxatnn KONKn B npoecepea60tBbITJXKa nepeeknoaetcB pexkM BblKl.

T2 Ckopoctb

Pn Haxatnn KhoNKn BbITJkKa nepeKIOuayetcHa npdeIyUIO CKOpOCTb.

T3CKopoctb+

Hn Haxatnn KhoNk NbITXkna nepeKlIOyaeTcna CneIyUOyU CKOpocTb.

T4 BOnbToD06aBOHoe yCTPOIcTBO

Pn Haxkntn 3ToN KHONK BbITXKKa nepeKIOUaETcH MaKcImaBHyIO CKOpOCTb; Ha DmCIIeepeKO Mraer 6yKBa "b". Yepe35MnHyT bBITXKBA BHOBB nepeKIOHTcH aHaPee 3aDaHHyO CKOpOCTb, YTO MOKHO TaOKe CDeNaTb BBOIbTOIDo6aBOHOM peKIMe npn NOMOnu KHNKCKOpOCTn (T2 nIN T3).

T5 TaMep

PnKaJOM HaxaTIN 3ToH KONKn aBtOMaTueeCKoe OTKIOUeHHe BbITAAKKN OTKNaDbIBAeTCa Ha 5 MHyT.

UMeetcT OJbKO B HeKOTOpbIX MOeJIaX

O6paTbI OTCyET MNHyT TaMep NOKa3bIbaeTcH HaDnCnIe. TaMep MoKet 6bITb 3anporpamMupoBaH ToIbKO DnA CKOpOCTeN, 3aDaBaEmbIX BpyHyU, He DnA BOJIbTOdo6abOuHOro peXUMa.

T6 BKJI./BbIKJ. ocBeueHnra

CnHaJIH3aIg 3acopeHJxIpOBopro n cop6uOHHO qNtpoB

(MMraet KBaPaTnB npabom HxKHeM yIy).

MOxHO n3MeHnTB BepcH0, HaxaB KhoNkTy T4. Iy BbIXOda n3 peXmHa HAcTpoKn

HaxMnte Odn pa3 KhoNky T1, KOtopa BbIKIOaET BbITKKy, COxpaHra NocIeHIO HAcTpoNky, NOKa3aHHyIO Ha DnCnnee.

TexHnueckoe obcIyXnBaHne n yXoI

BHHMaHHe! Npeed HaayamKaknx-Jn60 pa60 no YnCTKe nnTex. 06cnyxHBnHO OTCOeHNHTe BbITXkky OT 3NeKtpocTeN, BbHyB WtencelbHyIO BNky n3 CeTeBoi

PO3ETKINNNBVIKIOUHOB6uINBVIKIOUaTeJIbDOMe.

PepBaIuCTka

CHIMMTE3aUHTHyIOJIeHKy
- PpOtpnTe 3aIrpA3HeHnBlaJXHOIy6KoC HeITpaJIbHbIM MOUcIM cpeDCTBOM.
TtataeIbHO npoTpNE BnaXHoN TpAkoN.
- Bbtpnte hacyxo mrgkO TpIrkO, ecnBbIgKa n3 HepxabeIOuei CTaII, npotnpaTe BDoN bNooc MetaJIJa.

PerynepnaHuaCTka

BbIaKky HxHOp peryIapHO uNCTNb (Hepeke uNCTKn JnpoBbIX qnIbTpOB) KAK BHyTpN, TaK n ChapyKn. IJra UcNtKN uCNOJIb3OBAbT TpAnKy HeHTpaJIbHbIM MOIOUIm CpeDCTBOM N TeNNyIO BODy. He cNe dyET uCNOJIb3OBAbT MOIOUne CpeDCTBa, CoepKaUne a6pa3NBhle BeueectBa.

BhimaHHe: HecobJIODeHHe npabn no yxOy 3a kxyHOH BbITAKKoN 3aMeHe pINbTPOB npINBOuNT K BO3ropaHIO. PekomeHdyeTCr cneIDOBaTB npNBedeHHbIM INHCTpyKcIyM. PpON3BOUInTeJIb CHImaET C ce6B BCAYO OTBeTCTBeHHOCtB 3a BO3MOXHoe NOBpeJKeHHe DBurTaTeJIa, BO3ropaHHe NO npNUnHe HeNPaBUNbHorO yxoJaNN Heco6JIODeHnB Bblweyka3aHHbIX npeDynpexKeHn.

HencnpaBHOCTN MeToDbInx yctpaHeHn

PnO6HApUKeHHN HeCnpaBHOCTN NpeeTem, KaK ObaPaTuTBcra B CepBnC, BbIIOJIHnTE CneDyUne IpocTbe IpOBePK:

Ecnn BbITJkKa He pa6oTaet:

IpoBepuTb:

HaJIyue 3NeKtpOnnTaHn
- 6bila nI 3aDaHa cKOpocTb.

Pn Hn3KoN 3ΦΦeKTHBHOCTN BbITaKKn:

PpOBepuTb:

• UTo6bI 3aHaHHa cKOpocb IdbVaTeJIa 6bJa nOCTaTOHoi DnIy Osbema NcnapeHn N dbMa.
• YTo6bI nOmeueHne KxHn mEno DoCTaTOHyIO BEHTNJLrAIO DnI BO3dyX03a6opa.
  He n3HOweHn yroIbHbIyΦnJIbTp (ΦnJIbTppyIOuaBepCnBaTJXK).

Ecnn BbITXkKa BbIKJIouaetcB npoecce pa60tbl:

PpOBepuTb:

HaHnue 3NeKtpOnnTaHn
He cpa6oTaj MHORONOJIIOCHbIx pa3beDInHITeB.

B cIyuae BO3MOxHbIX HEnCnpaBHOCTe NpeTe TM, KAK 6paTntbcra B CepBnC,OTcoEHNHTe BbITAAK Ky npImepHo Ha 5 cek.OT cTeBOrO NtTaHn, BbHyB WTeNCenbHyU BnIKy n3 cTeBoi po3ETKn, 3aTEM BHOb NODcoEHNHTe. Ecnn HeNcnpaBHOCTb He yctpHaaretc, 6paTntecb B CepBnC.

Издени:	Злесенческа ввашикka
Toproвая марka:	HotpointARISTON
Toproвий 3нak Изотовпета:
Мо徵:	HNP 5.5 CM XHA - HNP 6.5 AM WHA - HNP 9.5 AM WHA - HNP 9.5 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.6 AM XHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HNP 9.8 CM (ANXHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HHP 6.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM (OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA- HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 5.5 CM(OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA- HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM (OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA- HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 7.5 CM(OWYHA - HNP 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.5 CM (OWYHA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHVA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHBA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFB - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHF - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHKA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFG - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHGA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFTA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFF - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHAA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFR - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHPA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHMA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHCA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFC - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFD - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFE - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXH FA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFO - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFI - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFM - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFT - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFS - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHTA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHZA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHLA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHIA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHNA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHDA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHfA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHIF - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHRA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHTRA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHIFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHITA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHREA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHARA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHSA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHATA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHSTA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHJA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHJF - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHFA - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF - HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- HNP 6.CCMXHF- Gbpaatc no apecy:
Ipondennty:	Indesit Company
Mnnpotp:
Ipondennty:

MoHTax

IpaBnblHm MoTak HabeDeHm Ha MaJIOnKax Ha nepiin CTopIHUc bTOrO KepIBHnCTBa. MoTAX Mae 3diINCHOBaTNC KaJIiΦIKOBaHm φaxiBcE.

IiKJIIOUeHnE eJeKtpoeHepri

Hanpyra B eJektpnHi MepeKi MaE BiNobiDaTn Hanpy3i 3a3NaueHn Ha Ta6nNci ,Ka pO3TaWOBa BCEpeDeH BnTAAKK. B pa3i NoCTaHaHn BnTAAKK 3 BnIKOIO, NiKNIoHITb BnTAAKKy Do po3ETKn, Ka BiNobiJaE DIOOHm HopMaTHBAM Ta 3HaxODNTbcr y NERKO DCtynHom My CiU. B pa3i NoCTaHaHn BnTAAKK 6e3 BNJIk (6e3nocepEnHe Ni'DHaHHDo MEpeKi), a60 JaKIO BnIKA nepe6yBaC HEDOCYNHOMy CiU, BCTAHOBITb DBONIOCHN BnIMKauch, AKN BiNObiJaE DIQUHM HopMaTHBAM Ta aKIN 3a6e3neHTb NobHe BiD'EdHHH BID MEpeXi 3a YMOB Kateropi II nepenAnpyKeHHA III, 3rIDHO do npabIn MONTaxy.

Ybara! Nepw Hix NiEHyBAtn BNTJkKy Do MepeXi eNEKtpuHoro KMBHeHH i nepeBiprTu II cnpaHy po60Ty, 06OB'3KOBO nepekoHaIteC, lo uHyp KMBHeHH npabNJbHO BCTaHOBJIeHH.

BIDBeHnBaInpaCboBaHoro nobITpy

T5YbIMKHeHHBbIMKHeHHOcBiTneHH

Modiji c KhoNkoBOI naHeJIIO Soft Button

HNP 9.8 AB X/HA

T1T2T3T4T5

T6

T1pepe3anyckDbvryHa

HaTnCKaHHHa NcKONKy Ha BmKHeHbBnTgXu np3BeDe Do 3aBdaHHNepooi WbNdkOCTi. HATnCKaHHHa NcKONky NiJ vac po60Tu np3BeDe DO BmKHeHHBnTgXkN.

T2 WbndKictb 1

Pn HatackaHHi ciEi KhoKn BntjKa nepeJe y cTaH, nonepeHni WbNkoCTI 1.

T3 WbndkicTb 2

Pn HatackaHHi ciEi KhoKn BntJkKa nepeJe y cTah, nonepeHni WbNkoCTi 2.

*HaBnIe y deKnx Moenx

T4 Wbndkictb 3

Pn Hatackahhi ciie KhoKn BntkKa nepeJe y cTaH, nonepeDni WbNdkOci 3.

T5 BycTeP

Pn Hatackanhi ciie KhoNkn Bntkka nepeJe 3 nonepeHbOro cTahy Ha iHTeHCNBHy wBnKicTb. Ype3 5 XBNH BNTkKa NOBepHeTcR Do WnDkoCTi, kA 6yna nonepeHbo 3aHaHa; npn HatackanHi Ha KhoNky WBnKOcti (T2, T3 a6o T4) 3a6e3neHycTBcR BnXiD 3 fynKciB 6cyTepy i3 BCTaHOBneHHAM o6paHOI WnDkoCTi.

T6YbIMKHeHHBmKHeHHOCBITJehHH

CnHnI3auii qinbtpy-xynpoynoBIOBaayi Hnepmnhx 3anaxiB

BImaHHI KOHN, BiINOBiHOI Do nepWoI WBNKocTi T2, Bka3ye Ha 3abpyeHHa fiNbtpy-xnpOynOBnOBa4a, BImaHHI KOHN, BiINOBiHOI Do dpyroI WBnDKoCTi T3, Bka3ye Ha 3abpydHeHHa ByrInbHoro fiNbtpy, BImaHH o6ox iKOHOK T2 i T3 Bka3ye Ha 3abpydHeHHa o6ox fiNbtpib. Tomy Heo6xIDHO BVKOHaTH OunueHH/3amHy fiNbtpib-XnpOynOBnOBaiv "A" i/abo ByrInbHnx fiNbtpib npToHepnEMHx 3anaxib "B" (DnB. "Dorrri I texHicHe o6cnyroByBaHH).

106 6hnynnt liuHbHK fiibtpy:

Ha yBIMKHeHIn BNTaXci HATnCHytn i npntpnmatn Tpn CekyHn KONky T5.CnHbHn CBITNOIOd 6nMaTmMe Tpnui, nicna Yoro nobephetbcdo BiO6paKeHHn HopmaNbHOI po6oTN. B pa3i OndHocHOI CnHaJI3aui o6ox fInbTpIB Heo6XiHO BVkoHaTn ObHyNIHH. Nepua npoueDypa cKndae fInbTp-KnpoyOBnHOBa, dpyra ByrInbHn fInbTp npOTn HENPnEMHNx 3anaxib.

KoNphiirpaiaBnTAAKKn:

Uo6 hanaTbyBaTu dIa BNTAKK baxaHn po6ouH peXHM, HATNCiBt y BUMKHeHOMy cTahi T5 i npntpMaJte ii 6 ceKyHd. IKOHKn T2 a60 T3 cnaJaxyIOb, Uo6 BkAsaTH Ha TIN MoNphiKaui: T2 BCMOkyTBaJIbHn, T3 φiJIbTppyBaJIbHn. MoxHa 3MiHTn MoNphiKauiO, HATNCKaOuH nocJIOBOHO HA KHONKY T5.

Ioo6 36epertn HOby KOHphiirpauiio, Heo6xio HATNCHTN Ha KhoNky T1.

MoJIc KHOKOBIO naHeJIIO Soft Button ^+ IucnIeem

HNP 6.5S CD X/HA - HPS 60 IX/HA

T1T2T3T4T5T6

T1YbIMKHeHHBIMKHeHHaBnryHa

HaTnCKaHHa HcKONKy Ha BmKHeHbBnTgXu np3BeDe do 3aBdaHHn nepooi WbNdkOCTi. HatncKaHHa HcKONky niJ vac po60Tu np3BeDe Do BmKHeHHBnTgKKn.

T2 WbndKicTB

Pn Hatackahhi Ha 10 KHONky BntjKka nepexoNTb DO nonepedhboi wBnKDocTi.

T3 WbndKictb+

Pn Hatackahhi Ha cH KhoNky BNTJkKa nepexoHTb DO NaCTyHoi WBNKoCTi.

T4 Byctep

Pn Hatackahhi Ha 1Kho KNOKy BNTaKka nepexoDntb 3 nonepeHbOro cTahy Ha iHTeHCNBHy WbNdkictb;Ha dncnlei nobInbHO 6bnMaC 6yKa "b".Yepe3 5 xBnInn BNTaKka noBepnetbca Ha WbNdkictb,ka 6yna nonepenHbo 3aBdaHa, ue je pe3ynbTaT MoKHa oTpImaT niJ cac po60Tu 6yctepy, kAIO HATNCHYTN HA KHONKY WBndkocti (T2 a6o T3).

T5 TaMep

KoKHO rpo pa3 npn HaTnCKaHHI ciE KHNKn ABToMaTHUHe BmKHeHHBnTAAKKn BiD6yBaETbC4 i3 3aTpmuMKoO y 5 XBNH. 3BOpOTHI BiNik XBNIIN 3a TaImePOM BiO6pa3ntbc4 Ha DnCnnei. TaIMep 3aDaCTbCn Nnwe nnn WbNdkocTey PuyHoro HalaTuBaHHn I He nepeD6aueHn dny 6yctepy.

T6YbIMKHeHHBIMKHeHHOCBITJehHH

CnHnIaiaqf jInbtpy-kuPoyNoBIOBa a i ByrInbHorO fInbtpy BID HENpMHNx 3anaxIB

BnMaHHaCtpiKu3BepxJiBOpuyBka3yHa 3a6pydHHeHHaIbTpipB-KnipoynOBHOBaivB.

BnmaHn cpiuKn 3Bepx npabOpuy Bka3ye Ha 3a6pydHeHH ByrInbHnx fipibtpiB.

Блимань обх CTPIOK Bka3yE Ha 3a6pydнень o6ox pInbtpiB.

Tomy Heo6xioHO BnKoHaTN OunuHn/3amHy fipbtpiB KInpoynobIOBaHIB"A/iabOByrIbHnxfipnbTIPINOTHNpEMHIX 3anaxib"B"(DVB. "Dorjai TeXHiNe ObcnyroBaHH),OCTaHH IINIe dNFAIbTpuyOHx MoNphiAciJ.

Uo6 0hynntn liuibnK qinbtpy:

Ha yBIMKHeHn BnTAAKci HATNCHyTN i npntpumatn Tpu CekyHn KONkY T4.

B pa3i oDnoHocHOI cRHaJI3auiO 6oX φIbTpIB Heo6XiHo BnKoHaTn O6HyJIHH.

Iepwa npoceypa 06HyJne fIbTp-9npoynOBIOBAu, dpyra - ByrIbHnI pInbTp npOTn HnpeMnHex 3anaxIB

KoNphiirpyaia BNTaKKn

HanaTbATn DnBNTKKn 6aKaHN pOboHn peXHM, HATNCiTB T4 i npntpMaIte II 6 cekyHd. (Ha BmKHeHOM npOdykTy) IicN TpINBaIoro 3ymepy Ha dncnnei 3'BAITbc Ti nn IHwa MOnDcPikaJr BNTKKn:

BCMOKTyOHa

(6nmaquch Kbaapat Bn3y niBopyu).

Φinbtpyoua

(6nMaouy KBaDpaT Bn3y npaBopyu).

MoKHa 3miHHTM MoDnΦiKaIIO, HATNCHyBUN Ha KHONky T4. Uo6 BnHTN 3 pexmMy KOHphiIpyaIi, HATNCITb OINH pa3 Ha KNONky T1, IIO npu3BeDe Do BUMKHeHH BNTJKK i3 36epeXeHHAM OCTAHbOro HanaSTyBaHH.

Texhiye 6cbnyroByBaHHy ByrInbHoro pBtpy (B)

ByrnbHn pInbTp 3aTpmye HenpnemHi 3anaxn, lo BnHKaOTb Ni d Yac npnroTyBaHH Jx i. HacnueHicb ByrnbHoro fIbtpy nepeBipAeTbc nicra 6Ibaw a6o MeHdOBrO BnKOpNCTAHn B 3aJexHoCTi BiD TnY PnTT TapeyIapHocti UueneHn FInbTp -

Jnpoynobnioba. B 6ydb-kykomy pa3i, Heo6xidno 3amihrtn NaTPOH fIbtpy Koxhi DBAudTb Micci, a60 qactiwe.

UeifinbTp He nepeD6aue MNTT a6o BiHOBnEHn.

Demontk: o6epHtB pInbTp Ha 90°C TaKIM YINHOM, uO6 BiDkpiNITn BCMOKTyOHy rpyny.

MOHTaX: BCTaBTe ByrIbHn φiIbTp y BCMOKTyHou rpyny i o6epHITb NOr ha 90°C TaKIM YHOM, Μιδ 3aφikCyBaTn NOro.

3aMiHa JAMnOyOK

BiD'edhaIe npnad BiD MepeXe IeneKtpuHoro XNBneHHa i BmIMtB φinbtpu-KnpoyoNobIbuayi.

Ybara! Nepsh HIX TOPkATnCJ lamn, BneBhitc, 0o BOH XOIOHi.

1. BnmiB 3axnche npntocyBaHH.BNKOpNCTOByOuN BRAKoCTI BAXeJIa HeBeNnUky BnKpyTKy a6o noDi6Hn IHCTpymENT.
   2.3amHITb ykoJKeHy lamnOChy.BnkOpncTobyTe TINbKn lamnoCh 3 TmN X xapaKTePncTnKaMn, 10 o ykoJKeHi (3a DetanbHiO Do TexHiHNx daHnx, Habe
2. 3akpinye 3axnche npncTOcyBaHHa (fikcaia IJnxom 3auninaHH).

3amHa JAmnoyok LED\*

Bntjka ochaueHa cBITIOIOHOIO CnCTeMO OCBITHeHH. CBITIOIOIrapaHTyOTb ONTMaJIbHE OCBITHeHH, TpIBaIiWiN TepMin Cnyk6n 3aoUaJKeHH eHepriy npiBHHI 3 TpaINciHmN lamNoKamN. Dn 3amiHcBITNOIOID 3BepHITbcraY CepBiCy cnXk6y.

EneKtpnHnn shyp

Bpa3i ywkoJxHnHn Hhpy KnBnEHn, noo moKHa 3amHnTn, 3BepHyBwnCn Do Bnpo6nKa a6o do no oro cepbcHOcny6n. Lne nopeeHTb 6y-b-ky He63neky

YTNJI3AUJIA

Ue npnlaMc BiIMtky (WEEE) y BiNobiHocTi do CBponeickoi DnpeKTHBn 2012/19/EC: BiXoAneEkeKtpnHoro Ta eKeKtpoHHoro o6naHaHHa (WEEE). BdoCKoHaNBwncsra, Oo ceu Bnpo6 bYb Ytni3OBaHn HaneKHM 3acO6om, KopntyBauch pO6ntb CbiB BHeCOK 3 MeTOIO nonepdHexHH noteHciHnx HeratNBHX HaCNIkOB dnn DOBkllra Ta 3doopOB' JIOHN, kI MOKyTB HactaTn Chepe3 HnnpabInbHy yTNl3auio cboRo Bnpo6y.

Cnmbon Ha Bnpo6i a60 y cynpobidhi Dokymentaaii Bkazyc, 0u cei npinad He Mae po3rnaDacra JK no6ytoB iDxOa nTa Ioro CnId 3dabatu y cneiaian3oBaH i eHTpn 36bpy, kia 3aImaotbcpepe6koE neKtpnHOro Ta eNEKtpoHHORO oBnAdHaHH. YtNiisye npinad 3riHDo IO MicueBux Hopm 1o pepe6kn Ta Ytniisaui Bixdoib. 3a noanbwoio IHopmaicio 5o do nepe6kn, BiHOBnEHn Ta NOBTOHOI nepe6kn 2oro Bnp6y 3B'XKiTbcra 3 BiNOBIHNMI MICeBnMn Cnykbamn, i3 Cnykb00 3i 3bupanHn NOyTOBnx BIXoDIB a60 3 Mara3HOM, De BN pniudann CEu Bnpi6.

3aoaJxIe eHepriIO ta nobaxKaTe doBkinn

BnKOpNCToByIe BnTJkKy y pexkmi, 0o BiDnOBiJaec peaJIbHI nOtpe6i BiDBeDEHnRA NOBITp; OMeKyIte BnKOpNCTaHHA IInTEHCNBHorO pexkmy》，KIO TaIKINnpCyTHI. PaioHaJIbHe BnKOpNCTaHHA BnTJkKN Do3BOJNe OMeKHTN CNOXKBaHH eHepriT Ta YHnKHyTM MapHOI TpaTI NCTORO TA KOHNUCIOHOBAHOrO NOBITpr.
- BMUKaIte oCbitIeHHBnTJKKn TiIbKn Ha yac 6e3nocepEiHbOro cnoctepExeHHra npouecom npuroTyBaHH.

HecnpaBhocti i 3ac06n ix ycyHeHHa

JaKoBpO60I npuNaDy BnHKnN DeaKi np6NeMn, nepu HIX 3Beptatncsdo CepBicHoCnyXbNo DOnomory, BnKoHaTe taki npocti nepeBipkn

Kaio BuTjKa He npaioe:

IpeBipTe,io:

• He BiδyIoCЯ nepepNbAHH y noCTaHaHH eIeKtpuHOrO CTpyM.
• 6yna o6paHa トВИДКICTb.

He BiD6yNoC8 nepeepuBaHHaY noCTaHaHHeNEKtpuHOrO CTpyMy.
He cnpaIOBabDBOIIOHCHN BIMNKaU.

B pa3i HecnpabHoi p6oTn, nepw HIX 3BepTaTncrdo Cepbichoi cnyx6n no donomory, BiD'EnHaIte kKaHmMeHs Ha 5 cek. npnaD BiD mepekj eEeKtpuHoro JxBJIeHHa BnHraBwn BuNky 3 po3ETKn, i notim BCTaBte ii 3HOBy. RaIO He HecnpabHicTB He Bdaetbcra yCyHyTu, 3BepHiTbcrdo Cepbichoi cnyx6n no donomory.

Instalace

T1 Vynulovani motoru

T1 Vynulovani motoru

Modely s mechanickym tlaclidlovym panelom

HNP 6.5 CM X/HA

HYM 60 IX/HA

HPM 61 IX/HA

HRP 9.8 CM (OW)/HA

HRP 9.8 CM (AN)/HA

HRP 6.5 CM (OW)/HA

HRP 6.5 CM (AN)/HA

HRP 6.5S CM (OW)/HA

HRP 6.5S CM (AN)/HA

HNP6.5SCM(W)/HA

HNP6.5SCM(K)/HA

HNP9.5SCMX/HA

HNP6.5SCMX/HA

HNP94.5SCMX/HA

T1T2T3T4T5

T1 Vynulovanie motora

Po stlačeni tohto tlacidla poças cinnosti sa odsávac VYPNE.

T2 Rychlost'1

Ohcy3eTIN KpybInfbpeiHne naDanaHfbHb3 KeIcE, Tict KEPEK-KAPAKTAP KnbIbHbOpHaTy KaKeT.

Eckeptne: Copfblwnen 6ipre ketkisiince, Kocbimwa 6encehipinren KEMIP cy3ri opHaTbilFaH 6onyMiymkin.

CopfbltbyTytikkeXaJrFaHaTbH TypdeH cy3y HcKacbHa TpyHeDipy HcckaynapbI OcbI HcKaNbIkTa 6epinre (Ccy3y HcCKacbl)6enimin KapaHbI3).

Tyrikke JanaHaTaBn Hycka

Copfbltbyaataaptbin,blrapyphianeiheKocblfah WbIrapy tyiri (nam.150 MM) apkblnohcbiptka xipeidi. WbIrapy tyirih dAmetpi wlrapy pfaneuhi H dnametpimen 6ipde6onybi Tnic.

A6aB 60bHbI3! bIbIpy TyTiri 6ipre 6epinMei, OHbI 6eNEk catbn any kaxet.

KeIeHb6aftTaNraH Ke3e,aya cbiptKa OHa WbIryb yin tyikTi cAn Kofapbi (wamameh 10^ ) Kapaty Kepek. CopbIkw Kemip cy3rinepeMhen Ka6bIKtaNraH 6oJca, onapdb anDbimH wein any KepeK.

Cy3y Hyckacbl

Copfbi ayahb ta3aptbin, OHbl 6emere kaTapaab. CopfblTBH 6yN HcyckacbHa KocbIMwa 6eIceHdi Kemip cy3i kaket. Byn Hcyka fya aedePneKTopb, a3aHTy adanTepi XHe Kemip cy3ri (-lep) kaket. YctIHRI TYtIKTH aya WbIFAPA bH caHbnaynapb eH KOFapb kepe opHaJACby Tnic.

TexHnKaIbIK DepeKTepi

Модень	Биiktiri (см)	Енi (сm)	Терэндiri (сm)	аушытагу ТУтгінін діам. (сm)
PYRAMID 60 CM	61-82 59.8	50 15/12
PYRAMID 70 CM	61-82 69.8	50 15/12
PYRAMID 90 CM	61-82 89.9	50 15/12

PpOBepeTe 0eBcBbAHne nnonoouenHe CBeta NnTbI.

	Куаты	Керneyi	цори	Ельшевideрí
Галoreнд25 W	2x25W	230V		G9L40xØ14
Галoreнд20 W	2x20W	12V		G4L30xØ10

LED*

EN 62471 cTahapbHa cAekc 1-Tayekel Tobbl

Copfbltap KypblfTeMeHderi EO dIpuKeTbIbIaIbHa caikec KeJeI:

2006/95/EC «TemeH KePHey»ДиpeKtNbAcbI (12-12-2006)

TMyMe 6acbInFaHda copfbIi1-xbiJaMdbIKKa opHaTbIaIbI.

T3KbIJaamAbk2

TуIMe 6acbINFaHda copfbIu 2-xbiJaamdbiKka opHaTbIaIbI.

T4KbIaamdbk3

TMyMe 6acbInFaHda copfbilw 3-xbiJaMaDbikKa opHaTbIJaDbI.

T5JAmdapdbI KOCY/ΘUIPY

CeHcOpJIbIK nAHeIbMeH Xa6DbIKTaIFaH MoDeIbIep

HNP 9.8AB X/HA

T1T2T3T4T5

T6

T1 MoTopdbI ToKTaTy

Copfblw eWIn TpyraH Ke3e, TyImeHi 6acBn, 1-KbIaMdbkTbOpHaTbHb3. Copfblw Kymbic icTeN typraHda 6acbinca, on ΘWEJI.

T2KbIJaamabik1

TyIme 6acblfahda copfbliu 1-xbilamdbikka opHaTblaabI.

T3 KbldAmdbk2

Tyime 6acblfanda copfbll2-xbilamdbikka opHaTbIaIbI.

T4KbIaamabik3

TyIme 6acblfahda copfbliu3-xbllamdbikka opHaTbIaIbI.

T5 KyuseinKiw

Tynme 6acbifraHda copfbuXofapbI XbldAmdbikKa opHaTbnaDbI.5MHyTTaH KeiH, copfbw andbHFbl XbldAmdbikKa opanaDbI; XbldAmdbIK TyMeci 6acbllCa (T2,T3 HemeC T4), copfbIW KyweeTKiw pexKIMHeH sbIFbn, TaHdaFaH XbldAmdbkTbOpHataDbI.

T6JAmdapbIKOCY/OLIPy

Ma/nc cy3rilepiin h ckeptynepi

T2 6nriupeci kblnbltkTaca, dEmek MaN cy3rici KaHbIKKaH, an T3 6nriupeci kblnbltkTaca, on nic cy3ricin H KaHbIKKaHbIN 6nipedei, an ekeyi de KblnbltkTaca, dEmek Eki cy3ri de KaHbIKKaH. OHdai KaFdaJa, MaN cy3rici (A) nic cy3rici (B) Hemece ekeyi De Ta3anay/aybictbipy KaKet (《TexHnKaJbIK KbI3Met KepcTeY XaHe Kytim KepcTeY 6eJImin KapahbI3).

Cy3i caHaBbIbH KaIbHa KeTipy:

Copfbl Kocbln TpyraH Ke3e, T5 TYmecin 6acbln, yw CEkyHd YCTan TypbHbI3.

EckepTy dnoDbI yw pet XblbIbIKTaIdbI da, KaIbINTbI pexIMre opanaDbI.

Bip yaKbTTa cy3ri ecepeTynepiH ekeyi de Kocblca, onapdbH apKaancbicH 6ene KaanblaHa KeTipy Kepek.

AndbimEn MaCy3rici, OaH KeiH Nc Cy3rici KaNbHa KeNTipinei.

Copfbii KOHnpyauncbi:

CopfbltbH kymbic pexmimOpHaTy yin HtHIM eHIn TypfaH Ke3ne T4 tymecin 6acbn,6ceynyctan typbHB3.OpHAty Typin Kepcety wHn T2 He T3 genriwepej xHaBb: T2 - XenDey,T3-csy.

T4 Tymecin KaI-Ta-KaI-Ta 6acbIn, opHaty TyPiH e3reptyre 6oJaDbI.

KaHa KOHpyaunhaI caTay yuH T1 tyMecin Xeke 6acbHb3.

CeHcopJIbIK nAHeJIbMeH XeHe DnCnJIeIMeH Ka6DbIKTaIFaH MoJeBep

HNP 6.5S CD X/HA

HPS 60 IX/HA

T1T2T3T4T5T6

1 MoToPbI KOCY/ΘUIPY

CopfbiwewinTpyraHKe3e, TYmehi6acbln,1-ksbnamdbkTbOpHaTbHb3.CopfbiwKymbicIteN TpyraHda6acblnca,ON

T2 Kbɪnʌmʌbɪk -

TMyMe 6acblraHda copfbIaIbIHfbI KbIJaMdbIKKa opanaBl.

T3XbIaamdbik+

Tyme 6acblfHaHda copfbw keleci kbldamdbikka etedi.

T4 Kyeweitkiw

Tynme 6acbifraHda copfbiXofapbi XblndMbikKa ophaTbnaDb;DnCnneJeDe 已 _ 日 apni 6aay XblnbkTaNbI. 5 MNHyTTah KeiH, copfbi andbihfbi XblndMbikKa opanaDb; KyweiTkiw peKIM KocblbnT pyraHa Da Ke3 Keireh XblndMbIK TymeciH (T2 Hemece T3) 6acy apkblnda andbHfbxblndMbikKa opanyfa 6oJaDbI.

T5 TaHmep

ByI tyIme 6acblnc, copbIuTbIH ABToMaTTbI Tpyde eUyi 5 MInHyTkA KeiHRe KaIdbIpblnAbI. TaIepe DnCnneJeMnHyTTapblkepcTeIN, apTKa caHaIbI. TaIepePi TeK KOImeOpHaTbIaNbIH XblnDAMbIKTap yWih OPhaTyfA 6oJaNbI, KyweNtkiw peXmIy Wih 6yI MymKiH emec.

T6JAmapbIKOCY/THIPY

Ma/niic cy3rjepinie cckeptynepi

KorapfbcOnKaTafbIXoNaXkbInbInbIKTan, MaCy3rici KaHbIKKaHbIH BinDipei.

KorapfbOHHKaTarlKoJaKkbInbInkTan, nic cy3rici KaHbIkaHaBH 6inDipei.

EkiKoJaKaTa KbInblbIKtan Tyca,Emek Eki cy3ri De KaHbIKKaH.

Oha KaJa, MaCy3riciA (A) nic cy3riciH (B) Hemece ekeyIH de Ta3anay/aybICTbpyKaKeT (TexHKaNbIK KbI3Met Kepcety XeHe KyTim KepeSy 6eimin KapaHbI3). CoHfbl MAnimet TEK cy3y HcCKacbHa KaTbICTbl.

Cy3ri caHaBbIbH KaJIbHa KeNTipy:

Copfbl Kocblb TpyraH Ke3e, T4 TyMecin 6acbln, yw CEkyH yCTan TpyblbI3.

Bip yaKbTTa cy3ri ecepeTynepiH ekeyi de Kocblica, onapdbH apKaancbicBn 6eneK KaanblaHa KeTipy Kepek.

AnbimEn MaCy3rici, OaH KeiH Nic Cy3rici KaNbHaKeTIpinei.

Copfbltbi6eimdey

CopfbltbiH KymbIc peKmIMiH opHaTy yuHIN eHIM eWIn TypFaH Ke3e T4 tyMecin 6acBIn, 6 cekyHd YCTAN TypbHb13..￥3aK cnHAnDan KeHH opHaTy typ KepeTineJi:

Tyrikke XanraHaTbH Hcyka

UamapdbaybictbypLED\*

Copfblwta nnoT texHONornacbHa Heri3dennre HapblkTaHdbpy kyyneci 6ap. NIOqTAP aedteri wamdapra KaparaHda OHtaiJbXkapblKaHDbipybl, y3aftipak Kymbic icteydi XeHe a3bipak Kyat naJaHaHybl KaTMamacbIe etdi. Onapbl aybictbpy yuih KeMek Kepcety KbImetHe xa6apnaCbHb3.

3neKtp Ka6eJI

Kyat ka6eJI 3aKbIMdaIca, TayekEnIepiH andbH any yuH OHbl eHdipyWIRE Hemece OHbl HTexHnKaJIbIK KbI3MeTIHe aybIcTbIpTyfa 6oJaBl.

KOKbICKA TACTAY

Eyn Kypblfbl KOKbc 3neKtp XeHe 3JIeKTPoHdbIK XaBbIKKa (WEEE) KaTbIcTb EC/2012/19 EyponaNbIK DnpeKtnBaCbHa caikec keJei den 6enrineHreH. Kypblfb KOKbICKa Dypbc TactaJybi KaMTamacbi ety apKbIb naNdanaHywbl Kopwaah opta meH KOFAHbIH deHCaylbfiH KopFayra at caIbicabl.

ΘHimderi Hemece OHbIH KxKaTTaMaCbHaB TaHbAcbl ΘHIMdi TypMbICTbIK KOkBiC TactaImaybl, OHbIH OPhbHa 3NeKTP KHe JNEKTPoHDbIK KOkbICTbCypbINTay OptaNbIfbHa Ta6bictanybl Tnic eKeHH 6inipei. KepriikTI KoKbiC Tactay 3aHapbla CaNkec opeket etih3. ΘHIMdi KondaHy, Kannbla KaTipy XeHe KaTa eHdey TypaBl Kocmbua MAnimet any yuiH KeprilKiTI Ky3bIPnbI opraHapfa, KOkBi CxHay Kb3MetIe Hemece EHMdi caTbIN anfahOpbIHFa xa6apnacblbl3.

3KOHOMbTe 3HeprnIO n 6epeRrTe OkpykaioyUcpey

• IcnoIb3yIte BbITaXkCy, yCTaHaBnIBaR cKOpOCTb B COOTBeTCTBUN C peaIbHbIMN NOTpe6HoCTaM; ORpaHnUBAIe NCNoJIb3OBaHne FyHKuIN NIOBbiWeHHaR cKOpocTb》（“intensive speed") npn HAnuN TaKOBo. IcNoJIb3OBaHne BbITaXkN paUHOHaNbHbIM Cnocobm No3BOJraE rpaHnUBaTb NOTpe6JeHne 3Heprn n I36eRaTb 6ecnone3HOI TpaTb YNCTOI KOHNIOHINPOBaHHORO BO3Dyxa.
• He BkIIOuayaIte OcBeUeHne BbITJxKn, KpOme CnyuaeB, KOrda 3To Heo6XoDmO dIy OcBeUeHnBaOpOHn NobepxHOCTn.

AkaayIbIKTapdbIXOIO

Kymbc icteme KaIca, TexHkaIbIK KbI3MeT Kepcety optaIbIbHa xa6apnacnac 6ypbIH TeMeHderi KapanaBIM XaraIaNapDbI TEKcepH3:

Copfbw kymbic ictemecce:

KeIeci KaTdaIaIapDbI TeKcepHi3:

KpypbIbI KocblbnTYP.
XbIJaMDbIK OPhaTbINfAH.

Copfbw TImdi Xymbic ictemec:

Keleci kafdaanapdbteekcepin3:

TaHdaIraH MOTOP XbIaMdbIbI bIKKaH TyIH MeH 6y KeNemH eHdeyre XeTkiNikTi.
KpypbilfbyayaanybyiyuihacyndeTniciBeHTnlaqna6ap.
KEMip cy3ri KaHbIKNaFAH (Cy3y HcCKacbl).

Xymbic icten TyphaH Ke3de, copfbuW ewiN KaNaTbIH 6onca:

KeIeci KaFdaIaIapDbI TeKcepiH3:

Kypblfbl Kocbltin Typ.
aibipbIN KockblI W KocblImaHaH.

AkayIbKymblc icterenKaFdaJa,TexHnKanblk KbI3Met KepceTy opTaIbIbHa xa6apnacnac 6ypbIH, aibpblh afblty apKblb KypbInfBhlb TokTah Kem DereHde 5 cekyHdka afblTbIN, KaTaNocblb3. AkayIbIKweinMece, TexHnKanblk KbIMET KepceTy opTaIbIbHa xa6apnacblb3.

*TeK6enrini 6ip MoDenebepde 6ap

KZ

KZ

Indesit Company S.P.A.

Viale Aristide Merloni,47

60044 Fabriano (AN)

www.hotpoint.eu
