USER MANUAL VC10HD AIRIS

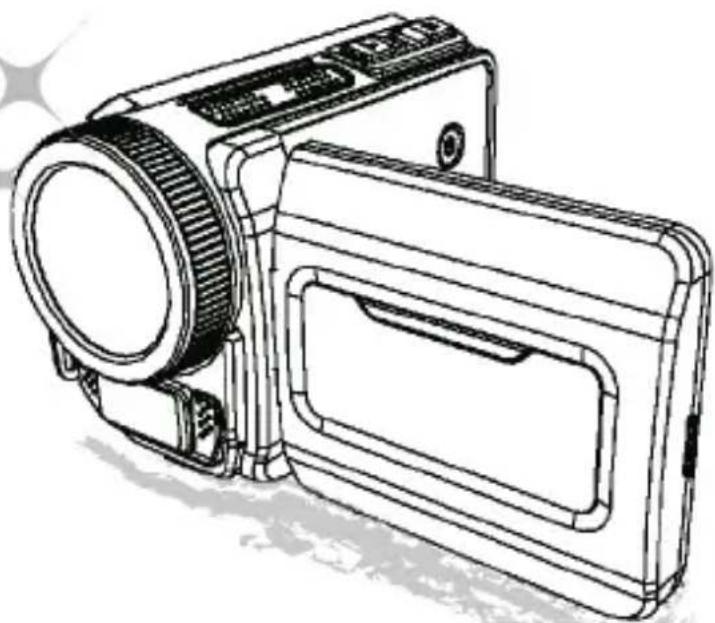

Line drawing of a digital camera with lens and screen (no text or symbols)

High Definition Camcorder

Dear user, thanks for purchasing this product.

Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference

in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment.

Safety Notice

1. Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.
2. Avoid all contact with water, and dry hands before using.
3. Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder.
4. Use the camcorder with care. Avoid pressing hard on the camcorder body.
5. For your own safety, avoid using the camcorder when there is a storm or lightning.
6. Do not use batteries of different specifications. Doing so may lead to the potential for serious damage.
7. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder.
8. Remove the battery if it shows signs of leaking or distortion.
9. Use only the accessories supplied by the manufacturer.
10. Keep the camcorder out of the reach of infants.
11. Risk of explosion if battery is replaced by an incorrect type.
12. Dispose of used batteries according to the instructions.

If the time arises to throw away your product, please recycle all the components possible.

Batteries and rechargeable batteries are not to be disposed in your domestic waste! Please recycle them at your local recycling point.

Together we can help to protect the environment.

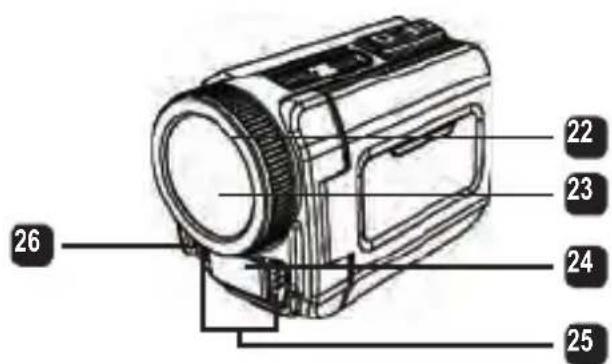

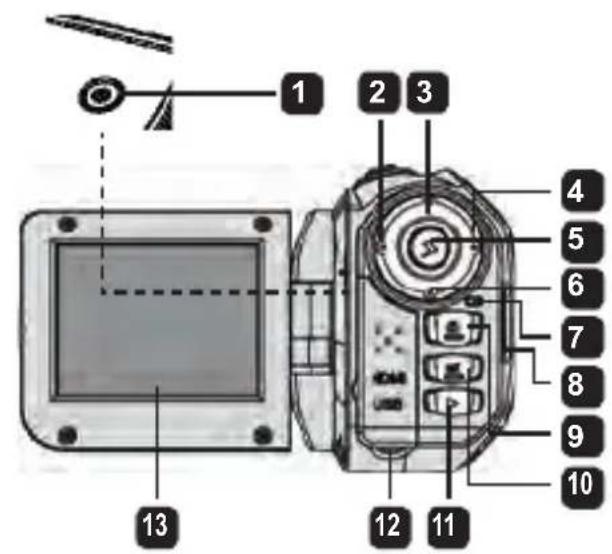

- Knowing the camcorder parts

1 Power button Directional button:
2 Left/Mode/Exit
3 Up /EV
4 Right/Menu/OK
5 Flashlight hot key
6 Down /Snapshot mode
7 LED indicator
8 Wrist strap holder (back)
9 Shutter
10 Record
11 Playback
12 Connector cover
13 LCD display
14 Speaker
15 Zoom in/Volume up
16 Zoom out/Volume down
17 HDMI output
18 TV-out connector/earphone
19 USB port
20 Tripod socket
21 SD/MMC card slot

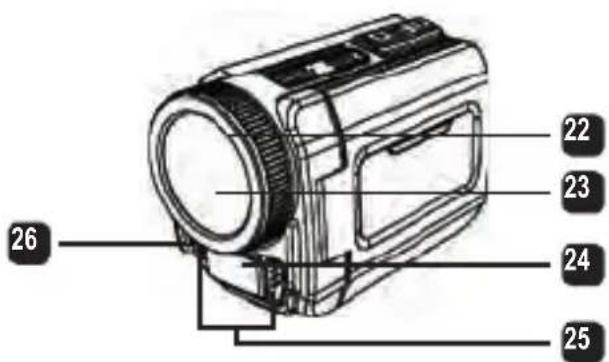

22 Focus switch
23 Lens
24 Flash strobe
25 Microphone
26 Wrist strap holder (front)

* For the battery compartment cover and the locker, please refer to section "Load the battery (batteries)".

1 2 3 4 5 6 7 8 9 10 11 12 13

14 6 19 17 18 20 21

22 23 24 25 26

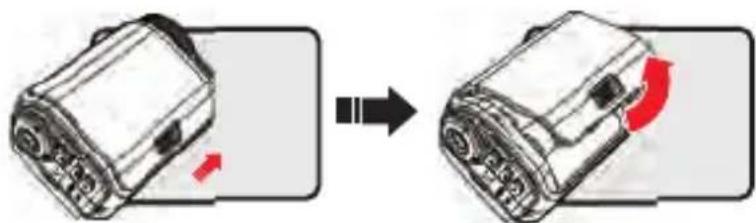

- Loading the battery (batteries)

1. Slide latch open to remove the battery compartment cover.

Diagram showing a device being processed from a component, with no visible text or symbols

1. Load the battery (batteries) based on specifications of the camcorder as follows:

Camcorder supplied with AA batteries

Load four AA batteries into the compartment according to the (+) (-) orientation shown in the battery compartment.

Technical illustration of a mechanical assembly with no visible text or symbols

* Never use different types or brands of batteries together, or mix used and unused batteries.

Camcorder supplied with a lithium battery

Slide in the connector end of the lithium battery as the direction of the arrow shown and make sure that the metallic contacts are aligned with the contacts in the compartment.

S ①

1. Replace the cover.

* For select model only. Please refer to the package printing for detailed specification.

- Inserting the SD/MMC card (optional accessory)

The camcorder has built-in internal memory for storage, but you can insert a SD/MMC memory card to expand your camcorder's memory capacity.

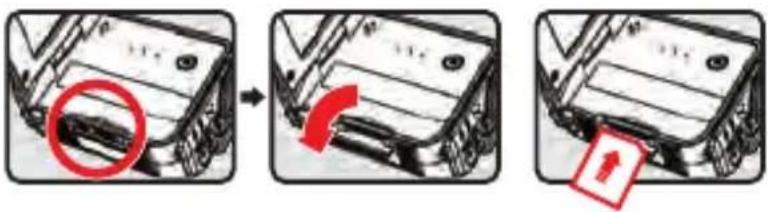

1. Lift the memory card cover as shown.

2. Insert the card as the direction of indication until it reaches the end of the slot.

3. When the card is inserted successfully, the icon (☐) will appear on screen and the internal memory will become inaccessible.

To remove the card, push the card to release it and then pull it out gently.

1. Put the cover back.

* When using a brand new memory card, you are recommended to format the card with the camcorder or other devices.

* The camcorder will use the inserted memory card as the main storage medium. Only when the inserted card is removed will the files stored in the built-in memory become accessible.

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

Using the USB adapter (optional accessory)

Connect one end of the adaptor to the camcorder and the other end to a power outlet.

When the USB adaptor is plugged successfully, the following circumstances will occur, according to specifications of the camcorder:

Camcorder supplied with AA batteries

When the icon ( ) appears on the screen, the device power is supplied by DC input instead of the loaded batteries. You can record and playback continuously for long periods of time.

* This device does not support battery-charging function.

* If you want to use NiMH rechargeable batteries, please fully charge those batteries with a NiMH battery charger before using for the first time. You can purchase a NiMH battery charger (DC 1.2V) at your local shop.

Camcorder supplied with lithium battery

The battery life indicator ( ) will keep running until the lithium battery is fully charged.

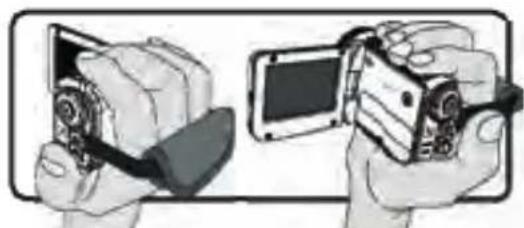

Attaching and adjusting the wrist strap

Attach the strap to the strap holder on the front of the camcorder, then attach the other end to the strap holder on the back of the camcorder, as shown in the illustration.

1. Open the cloth of the wrist strap.
2. Adjust the length of the strap according to your palm size.
3. Close and affix the cloth of the wrist strap.

Illustration of two hands holding a small electronic device, one with a curved blade and the other with a flat screen (no text or symbols)

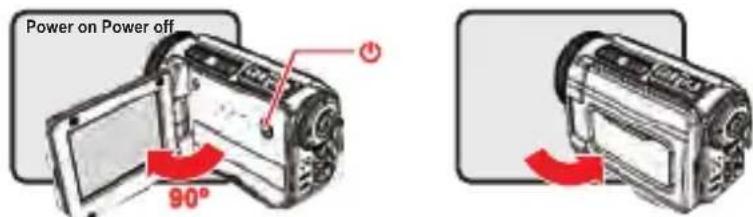

- Turning the power on/off

To turn on the camcorder, either open the LCD panel or press the Power button. To turn off the camcorder, either close the LCD panel or press the Power button.

Power on Power off 90°

* If the power is not turned on after you have completed the above procedures, please check the following have been done correctly: Batteries are correctly loaded.

The loaded battery (batteries) has enough power.

* The [Auto Off] setting may cause the camcorder to turn off after it is idle for a period of time.

Mode selection

1. Turn on the camcorder.
2. Use the Up button or Down button to select the desired item.
3. Press the Right button to confirm.
4. Press the Left button to exit.

- Choosing the screen language

Power-on → enter Setting mode → select the Language item → press the Up button or Down button to select the language → press the Right button to confirm.

Setting the date and time

Power-on → enter Setting mode → select the Clock item → press the Up button or Down button to select numbers for the YY/MM/DD and HH:MM fields → press the Right button to confirm each field → press the Left button to exit.

Realizing the battery life indicator

Icon Description
	Full battery life
	Moderate battery life
	Low battery life
	Empty battery life
	Charging battery

Note: To avoid sudden outage of power supply, you are recommended to replace the battery when the icon indicates low battery life.

Comprehending icons on the screen

Camera mode:

1 Mode icon (camera mode)
2 Number of recordings
3 Exposure
4 Flash mode
5 Still resolution
6 Video resolution
7 Memory card inserted
8 Battery life
9 Stabilizer
10 Focus tape
11 Effect
12 White balance
13 Snapshot mode

1 2 3 4 001 EV 5.0 2M HD 101 192

Playback mode:

1 Mode icon (play mode)
2 Current / total recordings
3 File format (JPG)
4 Memory card inserted
5 Battery life
6 Recording time

1:5 001/001 JPG 00:00:00 6

Voice mode:

1 Mode icon (voice mode)
2 Number of recordings
3 Memory card inserted
4 Battery life
5 Voice recorder

1 3 4 001 Voice Rec 5

Recording a video clip

1. Set the focus to an appropriate setting. Normally, you may set the focus to ( ) for most filming conditions. Select ( ) only for close-ups.
2. Press the Record button to start recording.
3. Use the Zoom buttons to zoom in or zoom out the screen.
4. Press the Record button again to stop recording.

Taking a still picture

1. Set the focus to an appropriate setting. Normally, you may set the focus to ( 🚗 for most filming conditions. Select ( 🚗 only for close-ups.
2. Use the Zoom buttons to zoom in or zoom out the screen.
3. Press the Shutter button to take a still picture.

	50cm ~∞
	30cm ~ 50cm

- Recording an audio clip

1. Enter Voice mode.
2. Press the Record button to start recording.
3. Press the Right button to pause, and the Left button to resume.
4. Press the Record button again to stop recording.

- Playing-back

1. Enter Playback mode.
2. The last recorded picture, video clip, or audio clip starts playing.
3. Press the Up button or Down button to shift between files.
4. The file you go to is displayed or automatically begins playing.

Setting menu options

The menu items provide several options for you to fine-tune your camcorder functions. The following table gives details on menu operations:

How to... Action
Bring up the menu in Camera/Playback mode	Press theRightbutton.
Move the highlight bar Press theUpbutton	orDownbutton.
Confirm an item Press theRightbutton.
Exit menu/Go back to previous menu Press theLeftbutton.

Menu options in Camcorder mode

Power on → enter Camera mode → press the Right button.

Item Option Description
Video Resolution	Please refer to the package printing for resolution specification.
Picture Resolution	Please refer to the package printing for resolution specification.
Flash Strobe	Auto The flash automatically fires when the lighting is insufficient.
	On The flash is forced to fire in every shot.
	Off The flash is disabled.
Night Mode On/Off		This setting allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs at a dark place, we recommend using a tripod to eliminate blurring from hand shake.
Stabilizer On/Off Minimize blur caused by hand shake.
Exposure -2~+2		Manually adjust the exposure to gain better effect when the preview image appears too bright or too dark. A positive value indicates the image will be brighter than usual; while a negative value makes the image dimmer.
Snapshot Mode	Single	The camcorder will take a single shot when the Shutter button is pressed.
	Self-Timer	The camcorder will have ten seconds delay before taking a shot when the Shutter button is pressed.
	Continuous	The camcorder will take a sequence of shots when the Shutter button is pressed.
White Balance	Auto The camcorder automatically adjusts white balance.
	Sunny This setting is suitable for outdoor recording in sunny weather.
	Cloudy	This setting is suitable for recording in cloudy weather or shady environments.
	Fluorescent	This setting is suitable for indoor recording with fluorescent lamp lighting, or environments with high color temperature.
	Tungsten	This setting is suitable for indoor recording with incandescent lamp lighting, or environments with low color temperature.
Effect	Normal Make recordings in natural color.
	Black&White Make recordings in black and white.
	Classic Make recordings in sepia-toned color.
Date Stamp On/Off Enable this feature to print a date mark on each picture.
Flicker 50Hz/60Hz		Set flicker frequency to 50Hz or 60Hz. For more information, please refer to the "Flicker Settings reference" table in the Appendix.

The “Video resolution” and “Picture resolution” menu items are model-dependent. Please refer to the package printing for detailed specifications.

- Menu options in Playback mode

Power on → enter Playback mode → press the Right button.

Item Option	Description
Slide show On/Off Start picture slideshow. / Repeat playing all video clips.
File Info -		View the file's title, saved date and time, size, and length of recording.
Delete One Yes/No Delete current file.
Delete All Yes/No Delete all files of the same type stored in the memory.

- Menu options in Setting mode

Power on → enter Setting mode → press the Right button.

Item Option	Description
Beep On/Off	Enable beep sound on/off.
Start up	Menu Use	the default start screen.
	Camera Use	Camera mode as the start screen.
Auto off	Off1min/3min/5min	Set how long the camcorder will automatically shut down when staying inactive. Setting to [Off] will make the camcorder stay powered on until it runs out of power.
AV Mode	Earphone	Play sound through your earphones.
	AV Out	Use the loudspeaker of the camcorder.
TV System	NTSC	Set TV system compatibility to NTSC. This option is suitable for America, Taiwan, Japan, and Korea areas.
	PAL	Set TV system compatibility to PAL. This option is suitable for Europe, China, Japan, and Hong Kong.
USB Mode	PC Cam	When connected to a PC, the camcorder automatically enters Camera (PC camera) mode.
	Disk	When connected to a PC, the camcorder automatically enters Disk (removable disk) mode.
Language	-	Let you select the language used for OSD.
Clock	-	Set date and time.
Format Yes/No		Format the storage medium. Note that all files stored in the medium will be gone.
Reset Default Yes/No		Restore factory defaults. Note that your current settings will be overridden.

Exporting to a standard TV and HDTV

Connect your camcorder and TV via the accessory AV cable for real-time display. You can display your video clips, still pictures, and audio recordings directly on your TV, sharing them with your friends and family.

TV : Traditional CRT TV

The TV system is different across areas. If you need to adjust the TV-out setting, please refer to the “Advanced settings” section for more information. (Taiwan: NTSC; America: NTSC; Europe: PAL; China: PAL)

1. Turn on your TV and switch the TV to AV mode.
2. Connect the audio and video ends of the AV cable to the TV.
3. Turn on the camcorder.
4. Connect the other end of the AV cable to your camcorder.

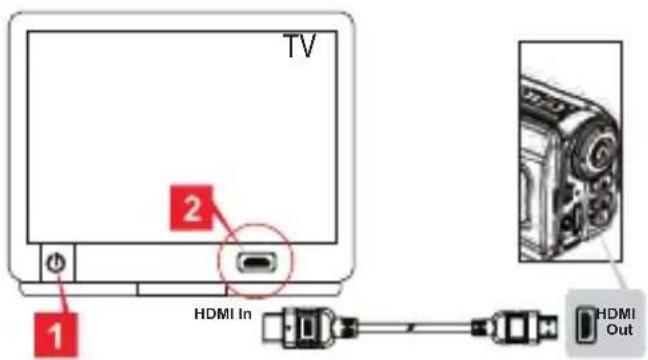

TV : HDTV with HDMI input port

TV 1 2 HDMI In HDMI Out

1. Turn on your HDTV.
2. Connect the HDMI-in connector (the bigger end) of the HDMI cable to the HDTV.
3. Turn on the camcorder.
4. Connect the other end of the HDMI cable to your camcorder.
5. Switch the HDTV to the "HDMI input" mode.

Copying files to your computer

Please notice that the video clips are recorded in MP4 format. To view these videos on your PC, you may need to install some special programs. For first time use, please install the software on the bundled CD.

1. Turn on the camcorder.
2. Connect the camcorder to your computer by the USB cable.

The default is set to "Disk" mode. When connected to a PC, the camcorder will automatically enter Disk (Removable disk) mode.
If you would like to change the setting, please refer to the "Advanced settings" section for more information.

Using your camcorder as a webcam

Using PC Camera

Installing the software

The PC Camera driver is included in the accessory CD, and therefore you should install the driver before using PC Camera.

Starting the application

1. Connect the camcorder to your computer.
   Turn on your computer, then connect the accessory USB cable to the USB port of your computer. Make sure the connector and the port are correctly aligned.

2. Switch to Camera mode.

Connect the other end of the USB cable to your camcorder. Power on the camcorder, and the following items will appear on the screen:

1): PC Cam
2): Disk (removable disk)
Select [PC Cam] and press the OK button to confirm.

1. Launch PC Camera.

After the camcorder is correctly connected to and detected by your PC, you are ready to launch your favorite software (such as MSN Messenger or Yahoo Messenger) to use PC Camera functions.

Flicker settings reference

Area England Germany	France Italy	Spain Russia
Setting 50Hz 50Hz 50Hz	50Hz 50Hz 50Hz
Area Portugal America	Taiwan China	Japan Korea
Setting 50Hz 60Hz 60Hz	50Hz 50/60Hz	60Hz

Note: The flicker setting is based on the frequency standard of your local power supply.

System Requirements

For Mac OS X:

• CPU: 1.8 GHz PowerMac G5 or faster Macintosh computer; 1.83 GHz Intel Core Duo or faster
  • System Ram: At least 256MB of Ram
  • Graphic Card: 64 MB or greater video card
  • CD-ROM speed: 4X and above
• Software: H.264 decoder (Quick Time Player 7.4.1 or above)
• Other: USB port

For Windows:

• Operating system: Windows XP Service Pack 2 or Vista
  • CPU: 2.8 GHz Pentium 4 or faster processor
  • System Ram: At least 512 MB of RAM
  • Graphic Card: 64 MB or greater video card
  • CD-ROM speed: 4X and above
  • Software: H.264 decoder (Quick Time player 7.4.1 or above)
• Other: USB port

Note: The specification might be modified without notice.

The contents in this manual are subject to change without prior notification.

When using the camcorder:
Problem Cause Solution
The camcorder can not be powered on normally.	The battery is out of power. Replace the battery.
	The battery is incorrectly installed.	Re-install the battery.
Can not take pictures or video clips when pressing the Shutter or Record button.	Out of memory.	Free some space from the SD/MMC card or the internal memory.
	The camcorder is recharging the flash strobe.	Wait until the flash strobe is fully charged.
	Using a “protected” SD card.	Set the SD card to be writ-able.
The LCD screen displays “MEMORY ERROR” or “CARD ERROR” message. Or the camcorder cannot read the memory card.	The format of the memory card is not compatible with the camcorder.	Use the camcorder “Format” function to format the card.
	The memory card is cor-rupted.	Replace the memory card with a new one.
I did not delete the pictures and video clips, but can not find them in the memory card.	The lost recordings are saved in the internal memory.	It happens when you insert a memory card after taking a few pictures or video clips. You can access those files after removing the memory card.
Cannot use the flash strobe.	If the battery icon indicates low battery, the flash strobe may be disabled due to insufficient voltage.	Replace the battery.
The camcorder does not respond to any action during operation.	The camcorder encounters software failure.	Remove the battery pack and replace it into the compartment. Then power on the camcorder.
The recorded pictures appear too blurred.	The focus is not correctly set.	Adjust the focus to an appropriate position.
The recorded pictures or video clips appear too dark.	The environment of shooting or recording does not have adequate light.	Use flash strobe when taking pictures. Add extra light sources when recording video clips.
Noises occur when viewing images on the LCD screen or on the computer.	The flicker setting does not match the standard of the country you are staying.	Adjust the flicker setting. For more information, please refer to the “Flicker Settings” table.
I want to restart the serial number of the file name (IMG_xxxx).	The counting of the serial number is handled by the camcorder firmware.	Use the camcorder “Format” function to format the card.
I convert a media file and name it as IMG_xxxx.* (xxxx indicates number). Then I copy the file to the camcorder but cannot find it on the camcorder.	There is another file with duplicate serial number (e.g. IMG_0001.MP4 and IMG_0001.JPG), or the file type is not supported.	Give the file a distinctive serial number and make sure the file type is supported by the camcorder.
When connecting the camcorder to the computer or TV:
Problem Cause Solution
I cannot view the video clips on my computer.	Driver or software is not installed on the computer.	Install Direct X 9.0c or above and Windows Media 9.0 Codecs to solve this problem. Install the software and driver in the bundled CD, or go to http://www.microsoft.com to download the required files. Please refer to "Copying files to your computer".
Driver installation failed.	The installation is terminated abnormally.	Remove the driver and other related programs. Follow the installation steps in the manual to re-install the driver.
	The camcorder has been connected to the PC via the USB cable before installing the driver.	Install the driver before plugging in the USB cable.
The TV screen does not display after connecting the camcorder to the TV.	The camcorder is not correctly connected to the TV.	Reconnect the camcorder to TV correctly.
A conflict with other installed camcorder or capture device occurred.	The device is not compatible with the camcorder.	If you have any other camcorder or capture device installed in your computer, please completely remove the camcorder and its driver from the computer to avoid the conflict.
Noises occur on my computer screen when using Video Conferencing.	The flicker setting does not match the standard of the country you are staying.	Adjust the flicker setting. For more information, please refer to the “Flicker Settings” table.

Line drawing of a digital camera with lens and screen (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Labeled diagram of a camera module with numbered parts for identification

14 6 19 17 18 20 21

22 23 24 25 26

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Technical diagram of a car interior with a red arrow pointing to a labeled component on the windshield

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

Illustration of two hands holding a small electronic device, one open and one closed (no text or symbols visible)

Ein-/Ausschalten

Line drawing of a digital camera with lens and screen (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference

in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Three-step diagram showing a vehicle's rear door and side door assembly, with red arrows indicating motion (no text or symbols)

Illustration of two hands holding a device, one open and one closed, with no visible text or symbols.

Marche/arrêt

Mode Camera (Appareil photo):

Line drawing of a digital camera with lens and screen (no text or symbols)

High Definition Camcorder

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment.

Labeled diagram of a digital camera module showing front, back, and internal components with numbered parts

14 6 19 17 18 20 21

22 23 24 25 26

Diagram showing a device being processed from a component, with no visible text or symbols

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram showing three-step assembly process of a mechanical component with red arrows indicating motion and rotation.

Camcorder supplied with lithium battery

Illustration of two hands holding a device with a screen, showing mechanical components (no text or symbols)

Line drawing of a digital camera with lens and screen (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Technical diagram of a vehicle showing a component with red annotation and label 'B' and 'C'

1. Recoloque a tampa.

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

Illustration of two hands holding a device with a screen, showing mechanical components (no text or symbols)

Line drawing of a digital camera with lens and screen (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

2.

Technical illustration of a mechanical assembly with no visible text or symbols

Technical diagram of a car interior with a red arrow pointing to a labeled component on the windshield

3.

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

Illustration of two hands holding a device, one open and one closed, with no visible text or symbols.

Line drawing of a digital camera with lens and screen (no text or symbols)

高清便携式摄像机

欢迎

非常荣幸您选择我们的产品。

在使用之前，请认真阅读下面的声明。

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Move the equipment away from the receiver.

- Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a left-side component to a right-side component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram of a car interior with a red arrow pointing to the top panel, labeled 'S' and 'R'

1. 装回盖子。

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

使用 USB 适配器（可选配件）

Illustration of two hands holding a device with a screen and lens (no text or symbols visible)

开关电源

Line drawing of a digital camera with lens and screen (no text or symbols)

高解析度攝影機

歡迎

我們很榮幸您選擇我們的產品。

在使用前，請仔細閱讀以下的聲明。

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a left-side component to a right-side component, with no visible text or symbols.

1. 裝入以下符合攝影機規格的電池：

使用 AA 電池

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram showing three-step assembly process of a device with red arrows indicating motion and rotation, including a magnified view of the component.

使用 USB 充電器 (選購配備)

Illustration of two hands holding a device with a screen, showing mechanical components (no text or symbols)

開啟/關閉電源

Line drawing of a digital camera with lens and screen (no text or symbols)

고화질 HD 캠큐더

환영합니다.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram showing three-step car door repair process with red arrows indicating tool movement and adjustment

Illustration of two hands holding a flip-flop device, one open and one closed (no text or symbols visible)

전원 켜기/끄기

Line drawing of a digital camera with lens and screen (no text or symbols)

ハイ・デフィニション・カムコーダ

ようこそ

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a

Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram showing three-step car door repair process with red arrows indicating component removal and adjustment

Illustration of two hands holding a small electronic device, one open and one closed (no text or symbols visible)

- 電源のオン/オフ

Line drawing of a digital camera with lens and screen (no text or symbols)

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Move the equipment away from the receiver.
• Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for additional suggestions.

Diagram showing a device being processed from a component, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

* Nunca use diferentes tipos de marcas de pilhas juntas, ou misture pilhas usadas e novas.

Three-step diagram showing a vehicle's side panel being removed, with red arrows indicating the process (no text or symbols present)

Illustration of two hands holding a flip-flop device, one open and one closed (no text or symbols)

Line drawing of a vintage digital camera with front panel and control buttons (no text or symbols)

High Definition Camcorder
