USER MANUAL Lithium Sweeper SQ 7200 SEVERIN

Doppelbürstkehrer.book Seite 10 Freitag, 18. Juli 2014 7:06 0711

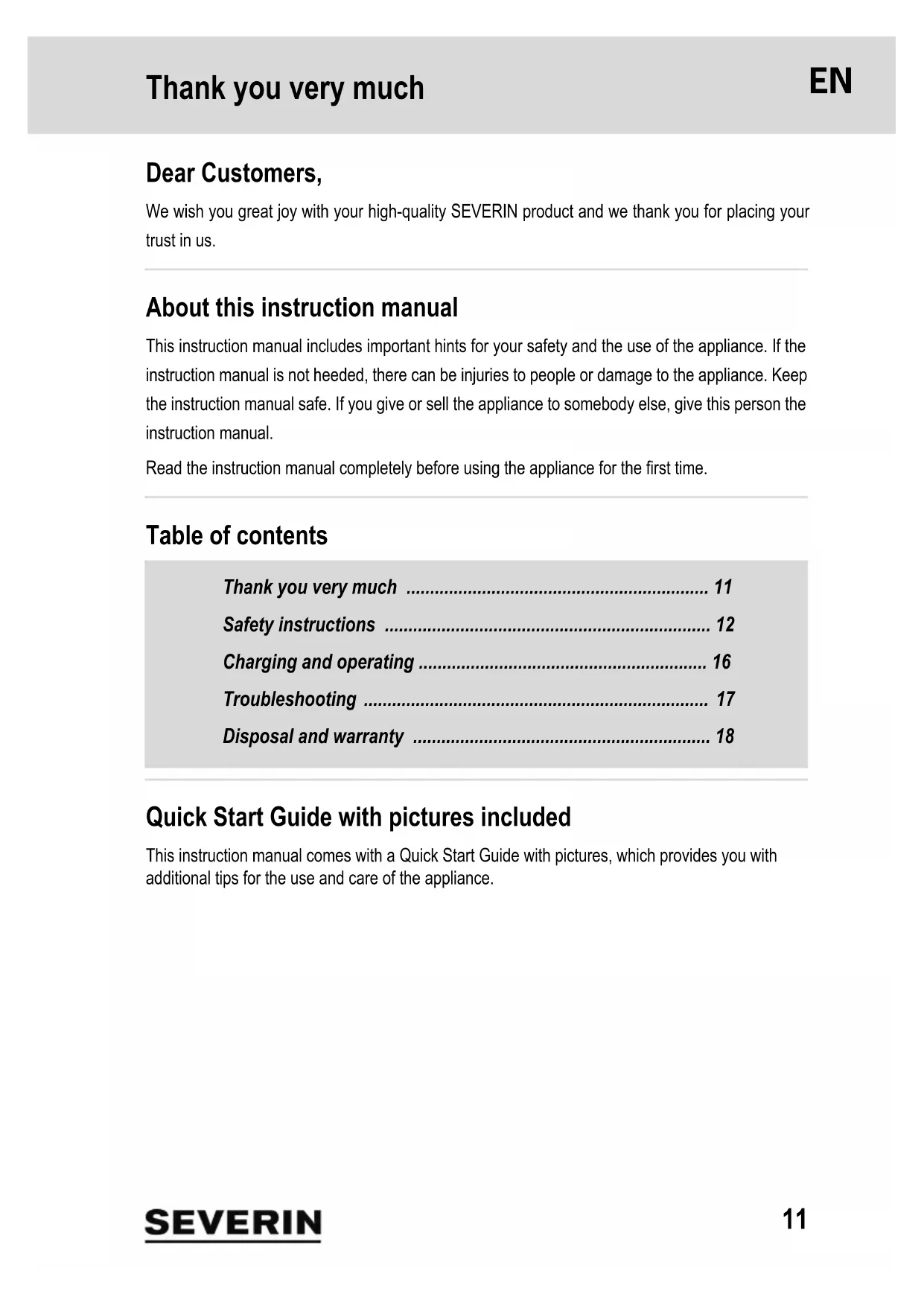

Thank you very much 1 Thank you ver y much Dear Customers,

We wish you great joy with your high-quality SEVERIN product and we thank you for placing your

About this instruction manual

This instruction manual includes important hints for your safety and the use of the appliance. If the

instruction manual is not heeded, there can be injuries to people or damage to the appliance. Keep

the instruction manual safe. If you give or sell the appliance to somebody else, give this person the

Read the instruction manual completely before using the appliance for the first time.

Thank you very much 11

Safety instructions 12

Charging and operating 16

Disposal and warranty 18

Quick Start Guide with pictures included

This instruction manual comes with a Quick Start Guide with pictures, which provides you with

additional tips for the use and care of the appliance.

EN Doppelbürstkehrer.book Seite 11 Freitag, 18. Juli 2014 7:06 0712

Safety instructions 2 Safety instructions Safety of particular groups of people

– This appliance may only be used by children over the age of 8 and

by persons with reduced physical, sensory or mental capacities or a

lack of experience and/or knowledge when they are supervised or if

they have been instructed about the safe use of the appliance and

have understood the risks resulting from the use of the appliance.

– Children may not play with the appliance or stand or sit on the appli-

ance. Cleaning and user maintenance may not be performed by chil-

dren without supervision.

– Keep children younger than 8 away from the appliance and mains

– Keep packaging materials out of the reach of children and dispose of

them. Otherwise they present a suffocation risk.

– People with pacemakers or other active medical implants must keep

a distance of 1 m from the magnet on the underside of the device.

Connect the appliance safely

Since the appliance is operated with electrical current, there is a danger

of electric shock. Therefore, pay special attention to the following:

– Check the appliance and mains adapter for possible damage before

use. Never operate a defective appliance or an appliance with a de-

fective mains adapter.

– Never try to repair the appliance or its mains adapter yourself. To

prevent hazards, repairs to the appliance and the mains adapter may

only be made by our customer service. Give a defective appliance to

a dealer or make contact with SEVERIN customer service.

– Only connect the mains adapter to outlets that correspond to the de-

tails on the type plate of the mains adapter.

Doppelbürstkehrer.book Seite 12 Freitag, 18. Juli 2014 7:06 0713

– Do not immerse appliance in water or other liquids or treat it with liq-

uids. Keep appliance and mains adapter away from rain and wet

conditions. Do not operate the appliance outdoors or in rooms with

– Do not handle the mains adapter with wet hands. When unplugging

the mains adapter from the outlet, always pull directly on the plug.

– Make sure that the mains adapter is not kinked, crushed or run over

and that it does not come into contact with sources of heat, humidity

and sharp edges. Make sure that the mains adapter does not be-

come a stumbling hazard.

– Before cleaning or maintaining the appliance, as well as before

changing accessories, switch off the appliance and unplug the mains

adapter from the outlet.

Safety when handling rechargeable batteries

A rechargeable battery is installed permanently in the device. With im-

proper handling of rechargeable batteries, there is a danger of injury

– Should it be necessary to replace the rechargeable battery, contact

a dealer or SEVERIN customer service. Never replace the recharge-

able battery yourself. Never replace with other rechargeable batter-

ies or other batteries.

– Before removing the rechargeable battery, make sure that the mains

adapter is unplugged from the outlet.

– Never short-circuit rechargeable batteries, that is, never touch both

poles at the same time, especially not with objects that conduct elec-

tricity. Store rechargeable batteries so that they cannot be short-cir-

cuited by other rechargeable batteries or metal objects during stor-

Doppelbürstkehrer.book Seite 13 Freitag, 18. Juli 2014 7:06 0714

– Only use the included mains adapter to charge the rechargeable bat-

tery. Never charge the rechargeable battery with another mains

adapter. Only use the included mains adapter to charge the re-

chargeable battery for this appliance.

– At the end of its life span, remove the rechargeable battery as de-

scribed. Then take the rechargeable battery to an appropriate collec-

tion point nearby, thus ensuring safe and environmentally-appropri-

ate disposal. Never throw rechargeable batteries away in household

– Never take rechargeable batteries apart, expose them to high tem-

peratures or throw them in the fire.

– In case of improper handling, liquid can escape from the rechargea-

ble battery. Do not use rechargeable battery if it is damaged or if liq-

uid escapes from it.

- If liquid has escaped, avoid contact with the liquid.

- If there is contact with the liquid, rinse immediately with a lot of

water. In case of follow-up symptoms (regardless of what kind),

seek a physician's advice.

The device contains driven brushes. In the worst case, these can cause

injuries. Therefore, heed the following:

– Before cleaning or maintenance of the device, make sure that the de-

vice is switched off and the mains adapter is not connected.

– Make sure that at no time can body parts get underneath the brush-

– Do not sweep near cables, lines and long fringes. On the one hand,

there is a danger that the cable insulation will be damaged. On the

other hand, these objects can get tangled in the brushes and dam-

The appliance may only be used in households. The device may only

be used for cleaning on level, normally-soiled hard floors or short-pile

carpets that can stand up to the loads of the rotating brushes unharmed.

Any other use is improper and is forbidden.

In order to prevent injuries, fires and damage, the appliance may

not be used to vacuum:

– People, animals and plants. Always keep the device away from all

body parts, hair and clothing.

– Glowing or burning particles (such as ash, coals, charcoal, ciga-

– Explosively or flammable materials or toner.

– Water and other liquids, e.g. damp carpet cleaners.

– Pointy objects such as glass splinters, needles

– Quantities of dirt that exceed normal quantities of dirt in their quantity

or particle size, e.g. construction waste.

– Independent alteration or repair of the appliance or its mains adapter.

– Use, storage or charging outdoors.

Doppelbürstkehrer.book Seite 15 Freitag, 18. Juli 2014 7:06 0716

Charging and operating 3 Charging and operating Assembling the device and locking in the handle

illustrated Quick Start Guide.

Charging the rechargeable battery

It is best to charge the rechargeable battery before each use, especially after the appliance has not

been used for a while.

This increases the life span of the rechargeable battery and ensures the longest cleaning cycles.

1. Make sure that the appliance is switched off. Otherwise the device cannot be charged.

2. Plug the mains adapter of the included mains adapter into the connection socket of the device.

3. Connect the included mains adapter to an outlet. The LED on the device lights up steadily.

4. Wait until the LED blinks. The rechargeable battery inside the device is completely charged.

For additional information, see also illustrated Quick Start Guide.

1. Make sure that the surface can stand up to the rotating

2. Switch on the device as shown using the foot switch.

4. Switch off the device as shown using the foot switch.

5. Empty and clean the dust container (see chapter

„Emptying and cleaning the dust container“).

Emptying and cleaning the dust container

The dust container can only accommodate limited quantities of dirt. In addition, during transport dirt

swept up can escape again. Therefore, it is best to empty the dust container after every cleaning

1. Make sure that the appliance is switched off and the mains adapter is not connected.

2. Separate the dust container and device from one another.

TIP: Make sure that the dust container is always held horizontally. Otherwise dirt will escape.

For additional information, see also illustrated Quick Start Guide

Doppelbürstkehrer.book Seite 16 Freitag, 18. Juli 2014 7:06 0717

Troubleshooting 4 Troubleshooting Using the table below, check whether you can remedy the problem:

If you cannot solve the problem using the table above, call our Service hotline

(see contact data in the appendix to this instruction manual).

Together with our trained service employees, we are sure to find a solution.

Ordering spare parts and accessories

You can order spare parts or accessories on the Internet at http://www.severin.com/go/to/8365

by using the "Service / Spare Parts Shop" menu.

Use this QR code to reach our website directly.

Rechargeable battery is completely discharged. Switch off the appliance and

charge rechargeable battery, chapter „Charging and operating“.

Mains adapter is not plugged in correctly. Check whether the mains adapter or

adapter plug is seated properly in the outlet (chapter „Charging and operat-

Appliance was switched on during charging. Switch off device using the foot

switch. The device can now be charged.

It is possible that dirt is preventing the brushes from moving freely. Free brush-

es of dirt. If necessary, carefully use a scissors or tweezers for this.

Item number Description

5277048 1 mains adapter

Doppelbürstkehrer.book Seite 17 Freitag, 18. Juli 2014 7:06 0718

Disposal and warranty 5 Disposal and warranty Removing the rechargeable battery

1. Make sure that the appliance is switched off and the mains adapter is not connected.

2. Remove the 12 screws on the underside of the device with a screwdriver.

3. Remove the rechargeable battery cover.

4. Disconnect the rechargeable battery plug.

5. Remove the rechargeable battery from the compartment.

6. Replace the cover and put the screws back on.

7. Now dispose of rechargeable battery and the device separately from one another, see below.

Disposing of the appliance and rechargeable battery

Appliances and rechargeable batteries that are marked with this symbol must be

disposed of separately from household garbage. Appliances and rechargeable bat-

teries contain valuable raw materials that can be recycled. Proper disposal protects

the environment and the health of your fellow men. Dispose of the device and the

removed rechargeable battery separately in the appropriate collection locations.

The legal warranty rights with respect to the seller and any seller warranties are unaffected by the

following warranty conditions.

If repair should be necessary, contact our customer service via telephone or mail. The con-

tact data is in the appendix to this instruction manual. In case of warranty claim, you may also

contact the dealer directly. In addition, SEVERIN grants a manufacturer's warranty of two years

from the purchase date. In this period, we will eliminate all defects due to material or manufacturing

errors and which compromise the function. Other claims are excluded.

Excepted from the warranty are: Damage that is due to non-observance of the instruction manual,

improper handling or normal wear; also easily-breakable parts such as glass, plastic or LEDs. Ex-

cepted from the warranty are also the batteries and rechargeable batteries, which as a consequence

of normal wear or improper handling have become defective or whose run-time has shortened.

Intervention of people not authorised by SEVERIN voids the warranty.
