USER MANUAL SC 7172.142 SEVERIN

• Gerät und Akku separat entsorgen Geräte und Akkus, die mit diesem Symbol gekennzeichnet sind, müssen getrennt vom Hausmüll entsorgt werden! Geräte und Akkus enthalten wertvolle Rohstoffe, die wiederverwertet werden können. Eine ordnungsgemäße Entsorgung schützt die Umwelt und die Gesundheit Ihrer Mitmenschen. Gerät und den ausgebauten Akku separat zur Entsorgung an die entsprechenden Sammelstellen geben. Garantie Von den nachfolgenden Garantiebedingungen bleiben die gesetzlichen Gewährleistungsrechte ge- genüber dem Verkäufer und eventuelle Verkäufergarantien unberührt. Sollte eine Reparatur erforderlich werden, setzen Sie sich telefonisch oder per Mail mit un- serem Kundendienst in Verbindung. Die Kontaktdaten finden Sie im Anhang dieser Ge- brauchsanleitung. Wenden Sie sich im Garantiefall alternativ auch direkt an den Händler. Zusätz- lich gewährt SEVERIN eine Herstellergarantie von zwei Jahren ab Kaufdatum. In diesem Zeitraum beseitigen wir kostenlos alle Mängel, die nachweislich auf Material- oder Fertigungsfehlern beru- hen und die Funktion wesentlich beeinträchtigen. Weitere Ansprüche sind ausgeschlossen. Von der Garantie ausgenommen sind: Schäden, die auf Nichtbeachtung der Gebrauchsanleitung, unsachgemäße Behandlung oder normalen Verschleiß zurückzuführen sind, ebenso leicht zer- brechliche Teile wie z. B. Glas, Kunststoff oder LEDs. Von der Garantie ausgenommen sind außer- dem Batterien und Akkus die infolge normalen Verschleißes oder unsachgemäßer Handhabung de- fekt geworden sind bzw. deren Laufzeit sich verkürzt hat. Die Garantie erlischt bei Eingriff nicht von SEVERIN autorisierter Stellen.11 Many thanks 1 Many thanks Dear Customers, We hope you will enjoy your high-quality SEVERIN product and thank you for placing your trust in us. About this instruction manual This instruction manual includes important hints for your safety and the use of the appliance. If the instruction manual is not adhered to, this can result in personal injuries or damage to the appliance being caused. Keep the instruction manual safe. If you give or sell the appliance to somebody else, give this person the instruction manual. Read the instruction manual completely before using the appliance for the first time. Table of contents Many thanks p. 11
• Safety guidelines p. 12
• Charging the battery and operating the appliance p. 16
• Appliance maintenance and ordering spare parts p. 17
• Disposal and warranty Illustrated quick start guide This instruction manual comes with an illustrated quick start guide, which provides you with addi- tional tips for the use and care of the appliance. EN12 Safety guidelines 2 Safety guideline s Safety of particular groups of people – This appliance may be used by children over 8 years if age and by persons with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or if they have been instructed about the safe use of the appliance and have understood the risks resulting from the use of the appliance. – Children must not be allowed to play with the appliance or stand or sit on it. Cleaning and user maintenance may not be performed by children without supervision. – Keep the appliance, the charger, the mains adapter and connection cable out of reach of children under 8 years of age. – Keep packaging material out of the reach of children and dispose of it properly. Otherwise, there is a risk of suffocation. Connect the appliance safely Since the appliance is operated with electrical current, there is a danger of electric shock. Therefore, pay special attention to the following: – Check the appliance, charger and mains adapter for possible dam- age before use. Never operate a defective appliance, a defective charger or an appliance with a defective mains adapter. – Only connect the mains adapter to outlets that correspond to the de- tails on the type plate of the mains adapter. – Never attempt to repair the appliance, charger or mains adapter yourself. To avoid risks, repairs to the appliance, charger and the mains adapter must only be effected by our customer service depart- ment. Give a defective appliance to an authorised dealer or contact SEVERIN customer service department. – Do not handle the appliance, charger and mains adapter with wet hands. When unplugging the mains adapter from the outlet, always pull directly on the plug.13 Safety guidelines – Do not immerse the appliance, charger or mains adapter in water or other liquids, or treat with liquids. Keep appliance, charger and mains adapter away from rain and wet conditions. Do not operate the appliance, charger and mains adapter outdoors or in rooms with high humidity. – Make sure that the mains adapter is not kinked, crushed or run over and that it does not come into contact with sources of heat, humidity and sharp edges. Make sure that the mains adapter does not be- come a stumbling hazard. – Before cleaning or maintaining the appliance, as well as before changing accessories, switch off the appliance and unplug the mains adapter from the outlet. Safety when handling rechargeable batteries A rechargeable battery is installed permanently in the appliance. With improper handling of rechargeable batteries, there is a danger of injury and explosion. – Should it be necessary to replace the rechargeable battery, contact a dealer or SEVERIN customer service. Never replace the recharge- able battery yourself. Never replace with other rechargeable batter- ies or other batteries. – Never short-circuit rechargeable batteries, i.e. never touch both poles at the same time, especially not with objects that conduct elec- tricity. Store rechargeable batteries so that they cannot be short-cir- cuited by other rechargeable batteries or metal objects during stor- age. – Only use the mains adapter and charger provided to charge the re- chargeable battery. Never charge the rechargeable battery with an- other mains adapter or charger. Only use the mains adapter and charger provided to charge the rechargeable battery for this appli- ance.14 Safety guidelines – At the end of its life span, remove the rechargeable battery as de- scribed. Then take the rechargeable battery to an appropriate collec- tion point nearby, thus ensuring safe and environmentally-appropri- ate disposal. Never throw rechargeable batteries away in household garbage! – Before removing the rechargeable battery, make sure that the mains adapter is unplugged from the outlet. – Never take rechargeable batteries apart, expose them to high tem- peratures or throw them onto fires. – In case of improper handling, liquid can escape from the rechargea- ble battery. Do not use the rechargeable battery if it is damaged or if liquid escapes from it. - If liquid has escaped, avoid contact with the liquid. - If contact is made with the liquid, rinse immediately with a lot of water. In case of after effects (irrespective of type), consult a doc- tor. Rotating brush roller The appliance contains a driven brush roller. This can cause injuries. Therefore, heed the following: – Before cleaning or maintaining the appliance, make sure that the ap- pliance is switched off and is not on charge. – Make sure that at no time can body parts get underneath the brush- es. – Do not vacuum clean near cables, wires and long fringes. On the one hand, there is a danger that the cable's insulation will be damaged. On the other hand, these objects can get tangled in the brush roller and damage the appliance.15 Safety guidelines Intended use The appliance must only be used in households. The appliance must only be used for cleaning on level, normally-soiled, hard floors or short-pile carpets that can withstand the loads applied by the rotating brush roller without suffering damage. Depending upon the nozzle accessory fitted, separate hand-held vacu- um cleaner can also be used to clean non-sensitive furniture. Any other use is deemed improper and is forbidden. In order to prevent injuries, fires and damage, the appliance must not be used to clean: – people, animals and plants. Always keep the appliance away from body parts, hair and clothing. – glowing or burning particles (such as ash, coals, charcoal, ciga- rettes, matches). – explosive or flammable materials or toner. – water and other liquids, e.g. wet carpet cleaning agents. – pointed objects such as glass splinters, nails – quantities of dirt that exceed normal quantities of dirt in their quantity or particle size, e.g. building waste. It is also forbidden to: – modify or repair the appliance or its charger and mains adapter. – insert objects into openings in the appliance. – use, store or charge the appliance outdoors.16 Charging the battery and operating the appliance 3 Charging the battery and operating the appliance Assembly of the appliance illustrated quick start guide. Charging the rechargeable battery It is best to charge the rechargeable battery before each use, especially after the appliance has not been used for a while. This increases the useful life of the rechargeable battery and ensures the longest cleaning cycles. p. 18

1. Make sure that the appliance is switched off. Otherwise the appliance can not be charged.

2. Plug the adapter plug from the mains adapter provided into the charger's connection socket.

3. Connect the mains adapter provided to an outlet socket.

4. Place the appliance on the charger. The LED on the appliance blinks.

5. Wait until the LED lights up continuously. The battery inside the appliance is fully charged.

For further information, see also illustrated quick start guide. Vacuum cleaning floors

1. Make sure that the surface can withstand the rotating brushes undamaged.

parts“). Use as a hand-held vacuum

1. Make sure that the appliance is switched off.

2. Hold the hand-held vacuum cleaner with one hand.

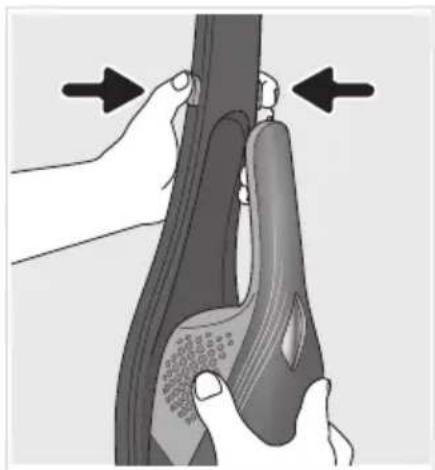

3. Press the two unlatching buttons on the handle with the

other hand (see illustration to the left).

4. Fit one of the accessory nozzles provided, illustrated

quick start guide.17 Appliance maintenance and ordering spare parts 4 Appliance mai ntenance and ordering spare parts Emptying and cleaning the dust container The dust container can only hold a limited quantity of dirt. It is therefore best to empty the dust container after every cleaning procedure.

1. Make sure that the appliance is switched off and is not on charge.

2. Remove the hand-held vacuum from the appliance, see chapter „Use as a hand-held vacuum“.

3. Unlatch the dust container and remove the filters.

4. Empty the dust container and clean the filters if necessary.

For further information, see also illustrated quick start guide Troubleshooting by yourself So that as few problems as possible arise, it is important to empty the dust container regularly and to take this opportunity to check the filters and clean them if they are dirty. If you can not solve the problem using the table above, call our Service hotline (see contact information in the appendix to this in- struction manual). The motor protection filter, article number 8608048 can be conveniently ordered via the internet under http:/ /www.severin.com/go/to/8364 in the menu "Service/Spare Parts Shop" or through our customer service department. Use the QR code on the left to reach our website directly. Problem Possible cause/Remedy Appliance can not be switched on. Rechargeable battery is completely discharged. Switch off the appliance and charge rechargeable battery, chapter „Charging the battery and operating the appliance“. The appliance can not be charged (LED does not blink). Mains adapter is not plugged in correctly. Check whether the mains adapter or adapter plug is seated properly in the outlet (chapter „Charging the bat- tery and operating the appliance“). The appliance does not sit correctly on the charger. Place the appliance on the charger correctly. The appliance has lost suction power. The dust container must be emptied or the filters must be cleaned, chapter „Emptying and cleaning the dust container“. Operating dura- tion is becoming ever shorter. It is possible that dirt is preventing the brush roller from rotating freely. Free the brush roller of dirt (illustrated quick start guide). If necessary, carefully use a pair of scissors or tweezers to do this.18 Disposal and warranty 5 Disposal and warranty Removing the rechargeable battery

1. Make sure that the appliance is switched off and is not on charge.

2. Remove the 5 screws on the underside of the appliance using a screwdriver.

3. Remove the cover.

4. Disconnect the rechargeable battery's plug-in connection.

5. Remove the rechargeable battery from the compartment.

6. Replace the cover and put the screws back on.

7. Now dispose of rechargeable battery and the appliance separately from one another, see below.
