Before using the appliance, please read

the use instructions carefully and com-

pletely and keep them for future reference.

Braun «Face» is a facial care system that

combines two beauty treatments: The

small, precise epilation head removes

even the finest facial hairs from the roots.

The cleansing brush attachment improves

your skin’s appearance through gentle

and deep-pore cleansing.

For hygienic reasons, do not

share this appliance with other

Do not use the appliance on

Do not use the epilation head

on eyelashes. You may use the

epilation head for removing

individual hairs between or

above the eyebrows, but not

for shaping eyebrows.

Never epilate with a damaged

When the appliance is switched

on, it must never come in con-

tact with clothing, ribbons or

long hair to prevent any risk of

personal injury or damage.

This appliance can be used

by children aged from 8 years

and above and persons with

reduced physical, sensory or

mental capabilities or lack of

experience and knowledge if

they have been given super-

vision or instruction concerning

the safe use of the appliance

and understand the hazards

involved. Children should not

play with the appliance.

Cleaning and user mainte-

nance should not be made by

children unless they are older

than 8 years and supervised.

This appliance is suit able

for use in bath or shower.

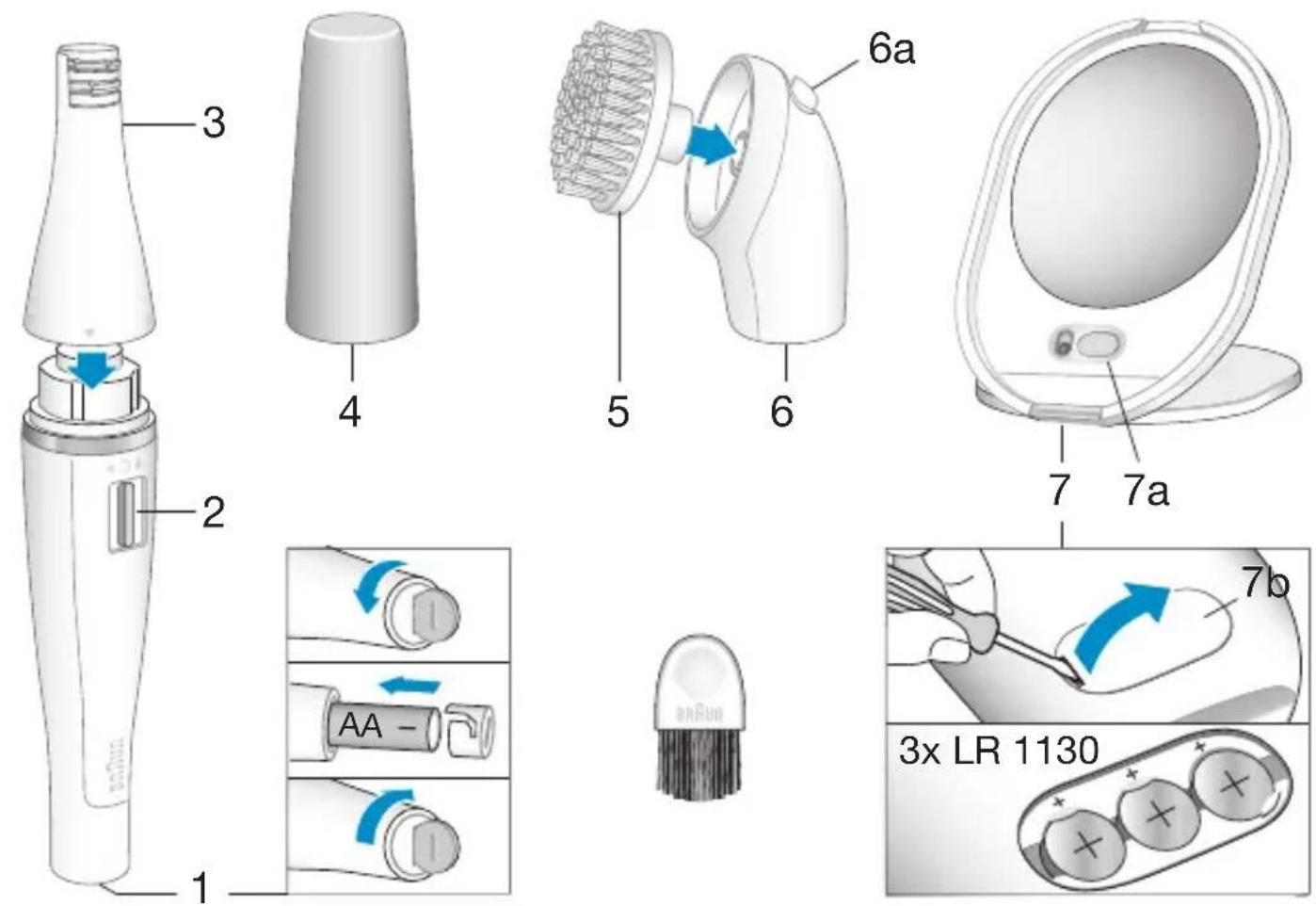

1 Battery compartment

4 Protective cap for epilation head

6 Brush adapter with release button (6a)

7 Mirror (only with models 830, 831)

7a On/off switch for light

7b Battery compartment

Open the battery compartment (1) by

turning the bottom anti-clockwise with a

coin. Insert one AA alkaline battery (1.5 V)

observing correct polarity. Replace the

bottom by fitting it onto the battery

compartment and turning clockwise to

lock it. Replace the battery as needed.

Make sure your hands and the appliance

are dry when replacing the battery.

Mirror: Open the battery compartment

(7b) as shown with a screw driver. Insert

3 button cells (type LR1130) with the

+ poles on top. Replace the battery cover.

Batteries may leak if empty or not used

for a long time. In order to protect you

and the appliance, please remove

batteries in a timely manner and avoid

skin contact whilst handling leaking

96892473_SE810_S4-110.indd 796892473_SE810_S4-110.indd 7 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 7 of 1108

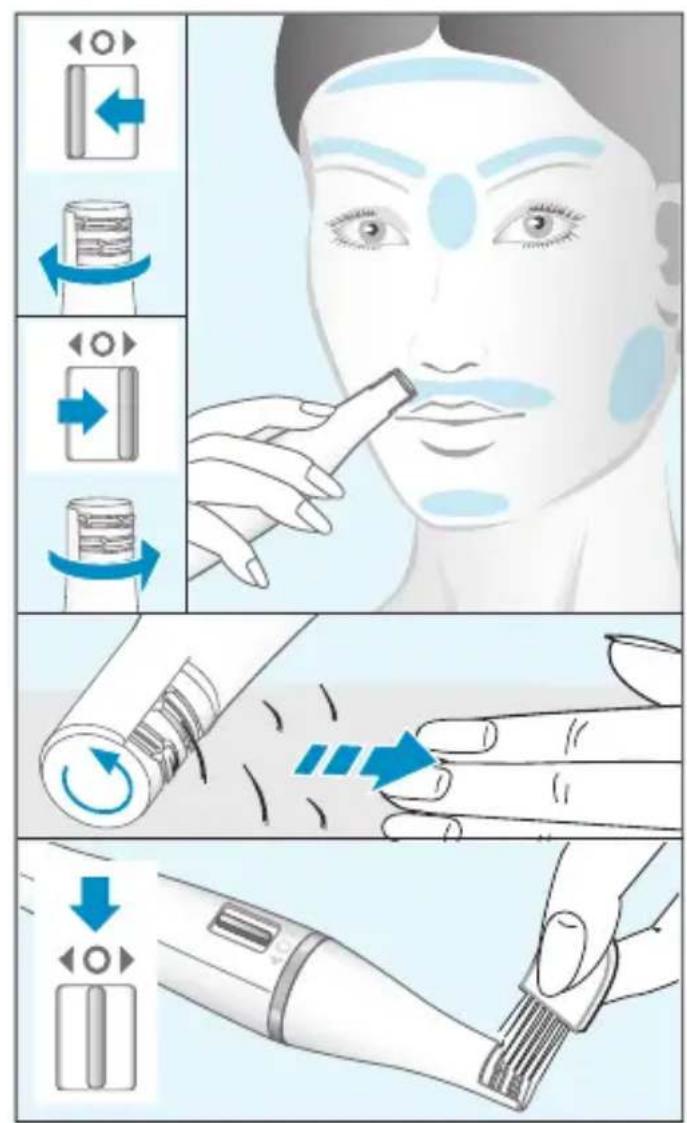

• Before use, make sure your skin and

the epilation head are thoroughly clean.

• Turn on the appliance by sliding the

on/off switch (2) to the left or to the

right. The rotating direction of the

tweezers depends on the direction

you move the switch when turning on.

For best results, make sure that the

tweezers rotate against the direction

• To become familiar with the appliance

we recommend trying it first on the chin

or near the outer corners of the mouth.

• Hold the appliance with the tweezers

against a section of skin that you keep

stretched with your free hand. Carefully

guide it with gentle pressure against

the direction of hair growth. Do not

press too hard as this may lead to skin

injury. To stretch the upper lip area,

use your tongue to push from below.

• After use, slide the on/off switch to the

«o» (= off) position.

• Carefully clean the epilation head

using the cleaning brush provided. You

may want to dip the brush into ethanol

(70%). Make sure that it is completely

dry before you re-attach it and close it

with the protective cap.

• To relax the skin we recommend

applying a moisturizing cream after

• When epilating for the first time, it is

advisable to epilate in the evening, so

that any possible reddening can disap-

General information on epilation

All methods of hair removal from the

root can lead to irritation (e.g. itching,

discomfort and reddening of the skin)

depending on the condition of the skin

and hair. This is a normal reaction and

should quickly disappear, but may be

stronger when you are removing hair at

the root for the first few times or if you

have sensitive skin. If, after 36 hours, the

skin still shows irritation, we recommend

that you contact your physician. In gene-

ral, skin reactions and the sensation of

pain tend to diminish considerably with

the repeated use. In some cases inflam-

mation of the skin could occur when bac-

teria penetrate the skin (e.g. when sliding

the appliance over the skin). Thoroughly

cleaning the epilation head and your skin

before each use will minimise the risk of

If you have any doubts about using this

appliance, please consult your physician.

In the following cases, this appliance

should only be used after prior consulta-

tion with a physician: eczema, wounds,

inflamed skin reactions such as folliculitis

(purulent hair follicles) and varicose

veins around moles, reduced immunity of

the skin, e.g. diabetes mellitus, during

pregnancy, Raynaud’s disease, koebner

phenomenon, haemophilia or immune

When you begin taking hormones or if you

change the type of hormone medication

(e.g. contraceptive pill), the growth of your

hairs may be influenced due to a change

of your hormone level. This is caused by

the change of hormonal conditions but

not by the appliance.

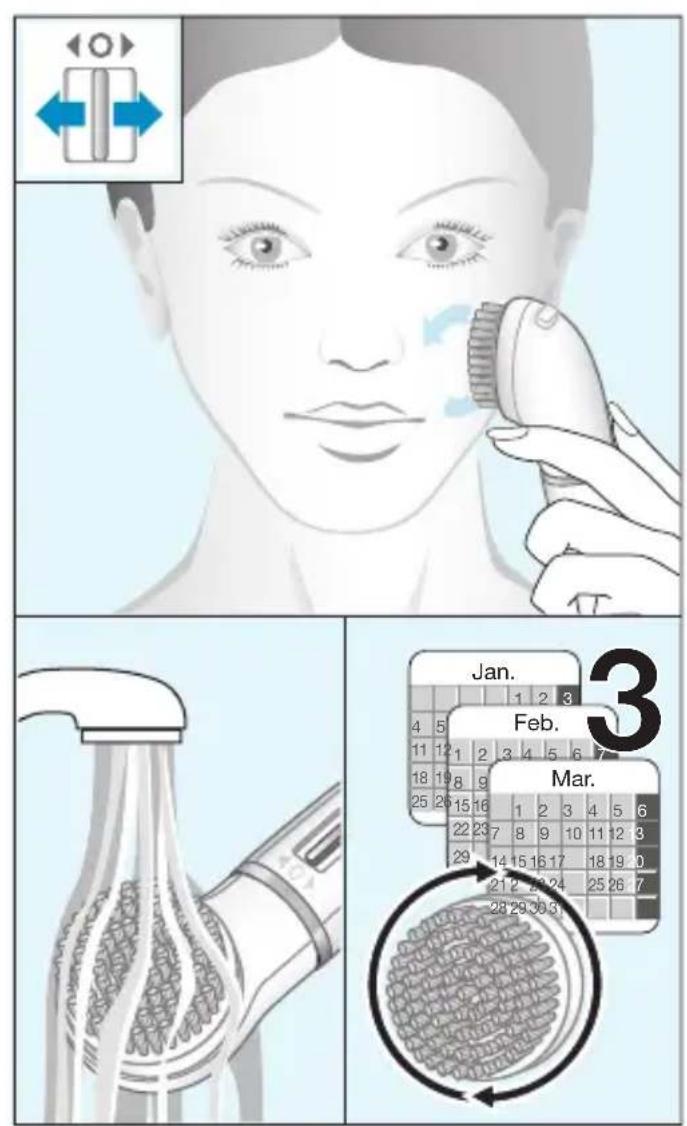

• Pull off the epilator head, attach the

brush adapter (6) and click-in the

cleansing brush (5).

• Moisten your skin and the brush head

lightly with water. You may use the facial

brush as part of your daily cleansing

routine: with soap, cleanser, cleansing

milk, gel or simply with water.

• Turn on the appliance by sliding the

on/off switch (2) to any direction.

• Guide the brush with gentle pressure

and circular motions for approximately

one minute. Avoid the eye area and

96892473_SE810_S4-110.indd 896892473_SE810_S4-110.indd 8 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 8 of 1109

• After use, slide the switch back to

• Rinse your face with water to remove

residues of the cleaning product used.

• The brush can be rinsed with warm

water. If you prefer cleaning it thor-

oughly with soap, you may detach the

brush unit (5) by pressing the release

button (6a). After cleaning, leave all

parts to dry completely before reat-

• For best results, replace the brush unit

(5) every 3 months or sooner if bristles

become deformed due to frequent

usage. Brush refills (ref. no. 89 Facial

Spa) are available from your retailer,

Braun Service Centres or via

This product contains batteries

and/or recyclable electronic waste.

To protect the environment, do

not dispose of it in the household

waste, but take it to appropriate local

collection points for recycling.

Subject to change without notice

We grant a 2 year guarantee on the

product commencing on the date of

purchase. Within the guarantee period

we will eliminate any defects in the appli-

ance resulting from faults in materials or

workmanship, free of charge either by

repairing or replacing the complete

appliance at our discretion.

This guarantee extends to every country

where this appliance is supplied by Braun

or its appointed distributor.

This guarantee does not cover: damage

due to improper use, normal wear or use

as well as defects that have a negligible

effect on the value or operation of the

appliance. The guarantee becomes void

if repairs are undertaken by unauthorised

persons and if original Braun parts are

To obtain service within the guarantee

period, hand in or send the complete

appliance with your sales receipt to an

authorised Braun Customer Service

This guarantee in no way affects your

rights under statutory law.

For Australia & New Zealand only:

In Australia, our goods come with

guarantees that cannot be excluded

under the Australian Consumer Law.

You are entitled to a replacement or

refund for a major failure and for

compensation for any other reasonably

foreseeable loss or damage.

You are also entitled to have the goods

repaired or replaced if the goods fail

to be of acceptable quality and the

failure does not amount to a major

The benefits given by this warranty

are in addition to other rights and

remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd

1 Innovation Road, Macquarie Park

For claims in New Zealand please

Procter & Gamble Distributing New

Unit 3, Building I, 5 Orbit Drive

Rosedale, North Shore City 0632

Auckland, New Zealand

96892473_SE810_S4-110.indd 996892473_SE810_S4-110.indd 9 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 9 of 11010

This appliance is also covered by a 24

Month Replacement Warranty

commencing on the date of purchase

Our Warranty applies in all States

and Territories of Australia and in

New Zealand and is in addition to any

mandatory statutory obligations

imposed on Procter & Gamble

Australia Pty. Ltd., its distributors

and its manufacturer. Our Warranty

does not purport to exclude, restrict

or modify any such mandatory

statutory obligations.

Our Warranty only covers defects in the

appliance resulting from faults in

workmanship or materials. Therefore, if

your appliance becomes faulty as a result

of faults in workmanship or materials, it

will be exchanged by your retailer, on

presentation of proof of purchase.

Our Warranty only applies to domestic or

household use of this appliance and the

warranty will only apply if the correct

operating instructions included with this

product have been followed. For any

appliance replaced under this warranty,

Our Warranty ends on the expiry of the

warranty period that applied to the

Our Warranty does not cover:

A. Damage arising from improper use or

operation on incorrect voltages.

B. Breakages to shaver foils, glass jars,

C. Normal wear due to moving parts.

D. Repairs undertaken by unauthorised

service personnel or use of non

E. Appliances that are outside the

warranty period or are not faulty.

This appliance is not intended for use by

young children or infirm persons without

supervision. Young children should be

supervised to ensure that they do not

play with the appliance.

If the appliance is powered by a cord

extension set or electrical portable outlet

device these should be positioned so

they are not subject to splashing or

ingress of moisture.

To the extent permitted by the laws of

the Commonwealth of Australia and

New Zealand and applicable laws of a

State or Territory of Australia, and

without affecting any mandatory

statutory obligations imposed by law,

Our Warranty is given in exchange for

any other rights you may have against

Procter & Gamble Australia Pty. Ltd. or

its distributors or manufacturer, whether

at law, in tort (including negligence), in

equity or under statute.

Please retain proof of purchase of this

appliance. If you have any questions in

relation to Our Warranty, please call our

Consumer Service line (see below for

If you intend to make a claim please

telephone our Customer Service line on

the numbers set out below to obtain

information about your claim and any

costs associated with claiming under

Our Warranty. You will bear the cost of

returning your product to us.

If you are sending your appliance for

repair under Our Warranty, please pack

the appliance adequately and send it to

your nearest Service Agent, at your

expense. For service or replacement parts

refer to the authorised Service Agents

listed overleaf. Local Service Agents may

change from time to time – in that event

please contact the Consumer Service

free call number below for updated local

service agent details.

96892473_SE810_S4-110.indd 1096892473_SE810_S4-110.indd 10 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 10 of 11011

Australian Consumer Service

(free call): 1 800 641 820

New Zealand Consumer Service

(free call): 0 800 108 909

Australian & New Zealand Service

VICTORIA & TASMANIA Statewide Services Pty Ltd trading

17-19 Hossack Avenue

QUEENSLAND Walters Import trading as Brisbane

Appliance Service Centre

Email: basc@waltersimport.com.au

WESTERN AUSTRALIA Mark 1 Appliances

Unit 1, 46 Abernethy Road

Rooty Hill, NSW 2766

SOUTH AUSTRALIA & NT Adelaide Service Centre

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

NEW ZEALAND Key Service Ltd

(PO Box 38569, Howick, Auckland,

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 11 of 11012

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 12 of 11013

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 13 of 11014

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 14 of 11015

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 15 of 11016

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 16 of 11017

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 17 of 11018

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 18 of 11019

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 19 of 11020

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 20 of 11021

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 21 of 11022

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 22 of 11023

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 23 of 11024

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 24 of 11025

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 25 of 11026

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 26 of 11027

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 27 of 11028

retailer, Braun Service Centres of via

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 28 of 11029

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 29 of 11030

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 30 of 11031

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 31 of 11032

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 32 of 11033

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 33 of 11034

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 34 of 11035

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 35 of 11036

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 36 of 11037

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 37 of 11038

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 38 of 11039

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 39 of 11040

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 40 of 11041

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 41 of 11042

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 42 of 11043

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 43 of 11044

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 44 of 11045

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 45 of 11046

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 46 of 11047

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 47 of 11048

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 48 of 11049

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 49 of 11050

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 50 of 11051

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 51 of 11052

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 52 of 11053

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 53 of 11054

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 54 of 11055

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 55 of 11056

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 56 of 11057

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 57 of 11058

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 58 of 11059

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 59 of 11060

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 60 of 11061

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 61 of 11062

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 62 of 11063

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 63 of 11064

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 64 of 11065

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 65 of 11066

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 66 of 11067

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 67 of 11068

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 68 of 11069

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 69 of 11070

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 70 of 11071

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 71 of 11072

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 72 of 11073

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 73 of 11074

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 74 of 11075

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 75 of 11076

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 76 of 11077

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 77 of 11078

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 78 of 11079

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 79 of 11080

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 80 of 11081

mustuse ka pooridest.

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 81 of 11082

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 82 of 11083

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 83 of 11084

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 84 of 11085

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 85 of 11086

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 86 of 11087

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 87 of 11088

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 88 of 11089

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 89 of 11090

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 90 of 11091

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 91 of 11092

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 92 of 11093

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 93 of 11094

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 94 of 11095

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 95 of 11096

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 96 of 11097

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 97 of 11098

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 98 of 11099

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 99 of 110100

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 100 of 110101

Standard factory C-4 Export Process

Zone, 20# Datong Rd. SND Suzhou,

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 101 of 110102

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 102 of 110103

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 104 of 110105

96892473_SE810_S4-110.indd 10596892473_SE810_S4-110.indd 105 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 105 of 110106

96892473_SE810_S4-110.indd 10696892473_SE810_S4-110.indd 106 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 106 of 110107

96892473_SE810_S4-110.indd 10796892473_SE810_S4-110.indd 107 27.02.14 15:3327.02.14 15:33

CSS APPROVED Effective Date 5Mar2014 GMT - Printed 02Oct2014 Page 107 of 110
