Product Type	DSL Modem Router
Brand	TP-Link
Model	Archer D5
DSL Technology	VDSL/ADSL
Wi-Fi Standard	IEEE 802.11ac/n/g/b/a
Wi-Fi Speeds	Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
LAN Ports	4 Ethernet 10/100/1000 Mbps ports
WAN Port	1 Ethernet 10/100/1000 Mbps port
USB Port	1 USB 2.0 port
Power Supply	12 V DC, 1.5 A
Dimensions (L×W×H)	242 × 160 × 35 mm (approximate)
Weight	330 g (approximate)
Main Features	Integrated DSL modem, wireless router, firewall, parental control, guest network, QoS
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK, WEP encryption
Remote Management	Via web interface (http://tplinkmodem.net) and Tether app
Mobile App	TP-Link Tether (iOS and Android)
Warranty	Manufacturer's warranty (check packaging or TP-Link website)
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use liquids.
Safety Instructions	Keep away from water, fire, and moisture. Do not disassemble.
Spare Parts and Repairability	No user-serviceable parts. For repair, contact TP-Link support.

Frequently Asked Questions - Archer D5 TP-LINK

What to do if the login page does not appear?

Check that you have entered http://tplinkmodem.net in the address bar. If not, ensure your computer obtains an IP address automatically. Try another browser, restart the router, or disable and re-enable the network adapter.

What to do if the LED status is incorrect?

Check the connections (telephone cable and power supply). Reset the router to factory defaults. Try connecting the router directly to the phone jack without a DSL filter. Contact your ISP to check the line.

What to do if I cannot access the internet?

Make sure cables are properly connected. Log in to the web interface at http://tplinkmodem.net. Check VCI/VPI settings, connection type, username, and password with your ISP. Reset the router if necessary.

What to do if I forgot my password?

For the admin interface password, reset the router by holding the RESET button until the LEDs change, then create a new password or use 'admin'. For the Wi-Fi password, check the label under the product or log in to the interface to change it.

How to restore the router to factory defaults?

With the router powered on, hold the RESET button until the LEDs flash or change state, then release. You can also do this from the admin interface under System Tools.

How to configure the router in router-only mode (without modem)?

Connect your existing modem to the WAN port of the router via an Ethernet cable. Log in to the web interface, go to WAN > WAN Configuration, and change the WAN physical type accordingly. Follow the instructions in the section 'You already have a modem or a gateway?'.

How to use the Tether app?

Download the TP-Link Tether app from the App Store or Google Play. Connect to the router's Wi-Fi network, then open the app to manage your devices, configure parental controls, Wi-Fi, etc.

What safety precautions should be followed?

Keep the device away from water, fire, moisture, or any heat source. Do not attempt to disassemble or repair the device. Use only the supplied charger. Read all safety instructions before use.

How to update the router firmware?

Log in to the router's web interface. Go to System Tools > Firmware Upgrade. Download the latest firmware from the TP-Link website and follow the instructions to install it.

How to change the Wi-Fi password?

Log in to the router's web interface (http://tplinkmodem.net). Go to Wireless Settings or Wi-Fi. Change the password in the appropriate field. Save the settings and reconnect your devices with the new password.

USER MANUAL Archer D5 TP-LINK

Wireless DSL Modem Router

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support.

© 2024 TP-Link 7106511773 REV1.5.3

CONTENTS

1 / Deutsch
6 / English
11 / Español
16 / Ελληνικά
22 / Français
27 / Italiano
32 / Português
37 / Suomi
42 / Svenska
47 / Nederlands
52 / Norsk
57 / Dansk

Hardwareinstallation

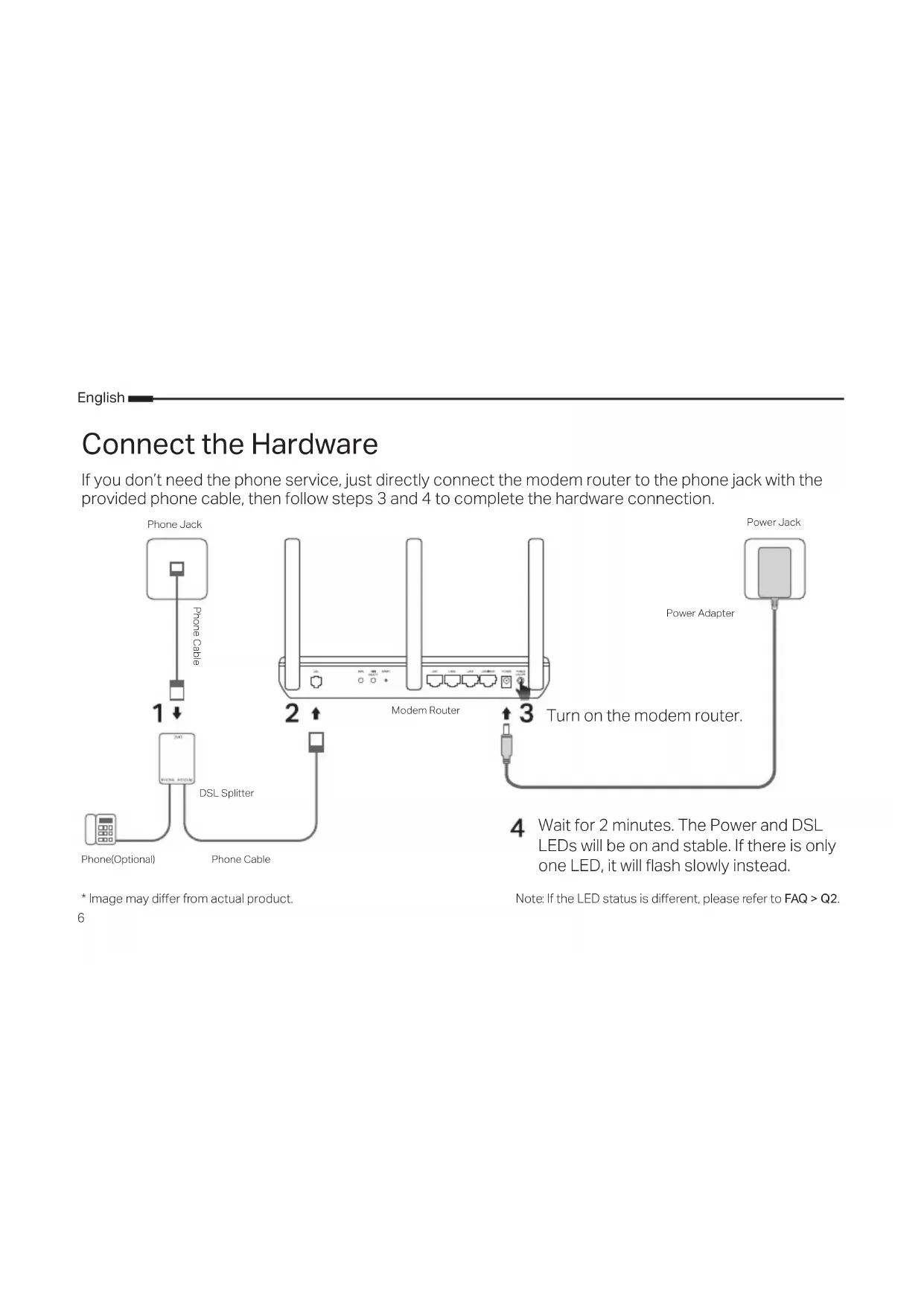

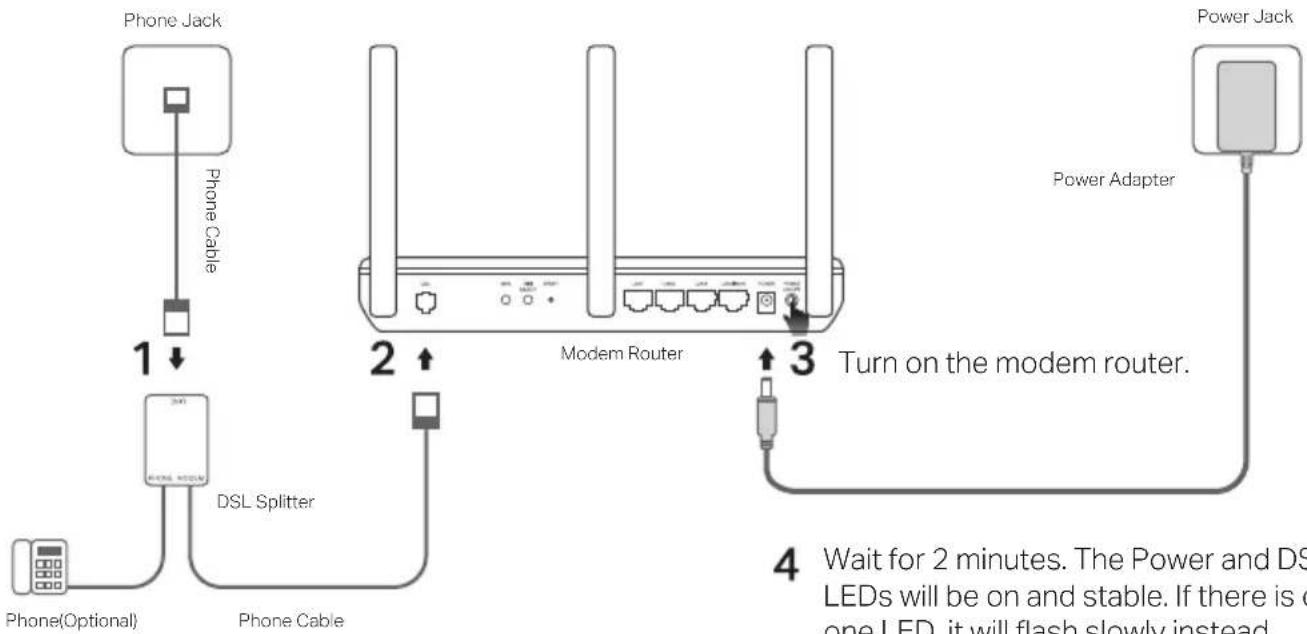

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product.

4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.

Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connecting your computer to the modem router via a wired or wireless connection

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Ethernet Cable

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configuring the modem router via a web browser

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

http://tplinkmodem.net

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet.

Already Have a Modem?

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.

1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection.

Note: The SSIDs (network names) and wireless password are printed on the product label.

2 Configuring the modem router via a web browser

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

http://tplinkmodem.net

B Create a password for future login attempts, or use admin for both username and password for some routers.

3 Connect the modem to the router's WAN port via an Ethernet cable.

Modem Ethernet Cable Power Adapter

4 Go to WAN > WAN Configuration to change WAN PHYSICAL TYPE and finish the setup.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

- Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

- Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.

Cable Ethernet

Por Wi-Fi

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only.

For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/.

Español
