Product Type	ADSL2+ / VDSL2 Router with N300 Wi-Fi
Brand	TP-Link
Model	Archer D20
Dimensions (L x D x H)	175 x 115 x 36 mm
Weight	Approximately 250 g
Power Supply	DC 12 V, 1 A power adapter
Wi-Fi Standards	IEEE 802.11 b/g/n (2.4 GHz, up to 300 Mbps)
Ports	1 ADSL/VDSL port, 4 LAN 10/100 Mbps ports, 1 USB 2.0 port
Main Functions	ADSL/VDSL modem, Wi-Fi access point, NAT router, SPI firewall, parental controls, QoS
Wireless Security	WEP, WPA/WPA2-PSK, WPA2-AES, MAC filtering, WPS
Supported Protocols	PPPoE, PPTP, L2TP, IPoA, PPPoA, IPv6
Maintenance and Cleaning	Disconnect the device, clean with a soft, dry cloth. Do not use chemical products.
Security	Change the default administrator password; enable WPA2 encryption; disable WPS if not used.
Spare Parts and Repairability	Power adapter and Ethernet cable available as spare parts. The device is not designed to be repaired by the user.
General Information	All-in-one DSL router for fixed Internet connection. Configuration via web interface (http://192.168.1.1).

Frequently Asked Questions - Archer D20 TP-LINK

How to set up my TP-Link Archer D20 router?

Plug in the router, open a browser and go to http://192.168.1.1. Log in with the default username and password (admin/admin). Follow the quick setup wizard to enter your ADSL/VDSL settings.

What to do if I forget the administrator password?

Perform a hard reset: press and hold the Reset button on the back of the router for about 10 seconds with a paperclip until the LEDs flash. The settings will revert to factory defaults.

How to update the firmware of the Archer D20?

Download the latest firmware version from TP-Link's official website. Log in to the administration interface, go to System Tools > Firmware Upgrade, select the downloaded file and click Update. Do not turn off the power during the operation.

Why is my Wi-Fi slow or unstable?

Try changing the Wi-Fi channel in the wireless settings. Avoid interference by placing the router away from other electronic devices. You can also enable 20/40 MHz bandwidth and verify that encryption is set to WPA2.

How to enable parental controls?

In the administration interface, go to Access Control or Parental Controls. You can block websites by keywords or URL, or restrict access to certain times for specific devices.

The DSL LED is flashing or off, what should I do?

Check that the telephone cable is properly connected to the DSL port of the router and to the wall socket. If the LED remains off, contact your Internet service provider to check the line. Flashing indicates synchronization in progress.

Can I use the Archer D20 as a simple Wi-Fi access point?

Yes, you can disable the DHCP server and connect an Ethernet cable between a LAN port of the main router and a LAN port of the Archer D20. You can also configure Access Point mode in the advanced settings.

How to reset the Wi-Fi password?

Log in to the administration interface, go to Wireless > Security. Change the pre-shared key (password) and click Save. Restart the router if necessary. All devices will need to reconnect with the new password.

What is the difference between LAN and WAN ports?

The WAN port (blue) is used to connect the router to a modem or telephone socket for the internet. The LAN ports (yellow) are used to connect wired devices like a computer or switch. The Archer D20 has a combo DSL WAN port.

My device does not detect the Wi-Fi network, what should I do?

Check that Wi-Fi is enabled: the Wi-Fi LED on the router should be on. Restart the router. If the problem persists, log in to the interface and verify that the SSID (network name) is not hidden. Try changing the Wi-Fi channel.

USER MANUAL Archer D20 TP-LINK

TP-Link Technologies Co., Ltd. South Building floors 1,345 and 26 floors 1-6 Central Science & Engineering Data Engineering Development Charter Phase

Technology Park, Shenzhen Rd, Norbent, Shenzhen, China

TP-116 Deutschland Green Roof-Electro-Silica 3, 65/19 Holzern am Thurs. Germany

TP Link US Limited Unit 2 & 3 Roverview (142-144), Cardiff Road, Reading, RGT 8P9

Specifications are subject to change without notice. P_IP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TRLink Technologies Co., Ltd. Copyright © 2020 TR-Link Technologies Co., Ltd. All rights reserved.

For technical support, replacement services, the user guide and other information. please visit https://www.tp-link.com/support, or simply scan the QR code.

7106508605 REV13.0

tp-link

Quick Installation Guide

Wireless DSL Modem Router

CONTENTS

1 / Deutsch
6 / English
11 / Español
16 / Ελληνικά
21 / Français
26 / Italiano
31 / Português
36 / Suomi
41 / Nederlands
46 / Svenska
51 / Norsk
56 / Dansk

Hardwareinstallation

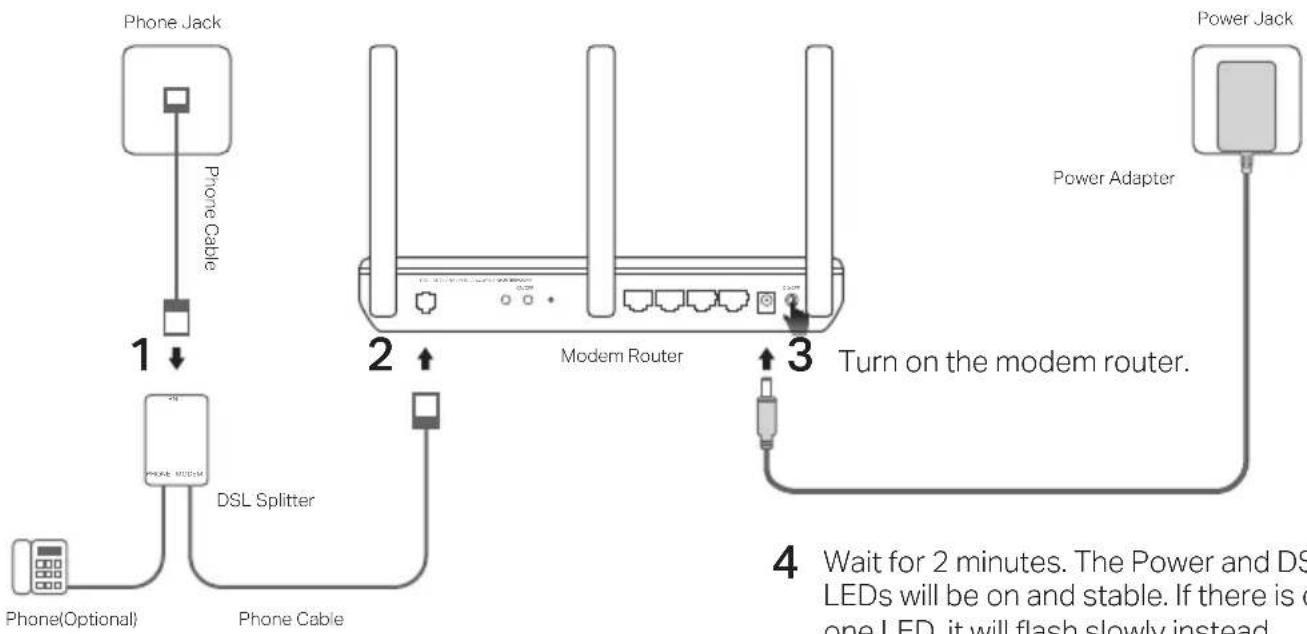

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product.

4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.

Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connecting your computer to the modem router via a wired or wireless connection

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configuring the modem router via a web browser

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet.

English

Already Have a Modem?

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.

1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label.
2 Configuring the modem router via a web browser

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Advanced > Operation Mode page and switch to Wireless Router Mode. Wait until the restart finished.

3 Connect the modem to the router's LAN4/WAN port via an Ethernet cable.

4 Go to Basic > Internet to finish the setup.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

- Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

- Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.
