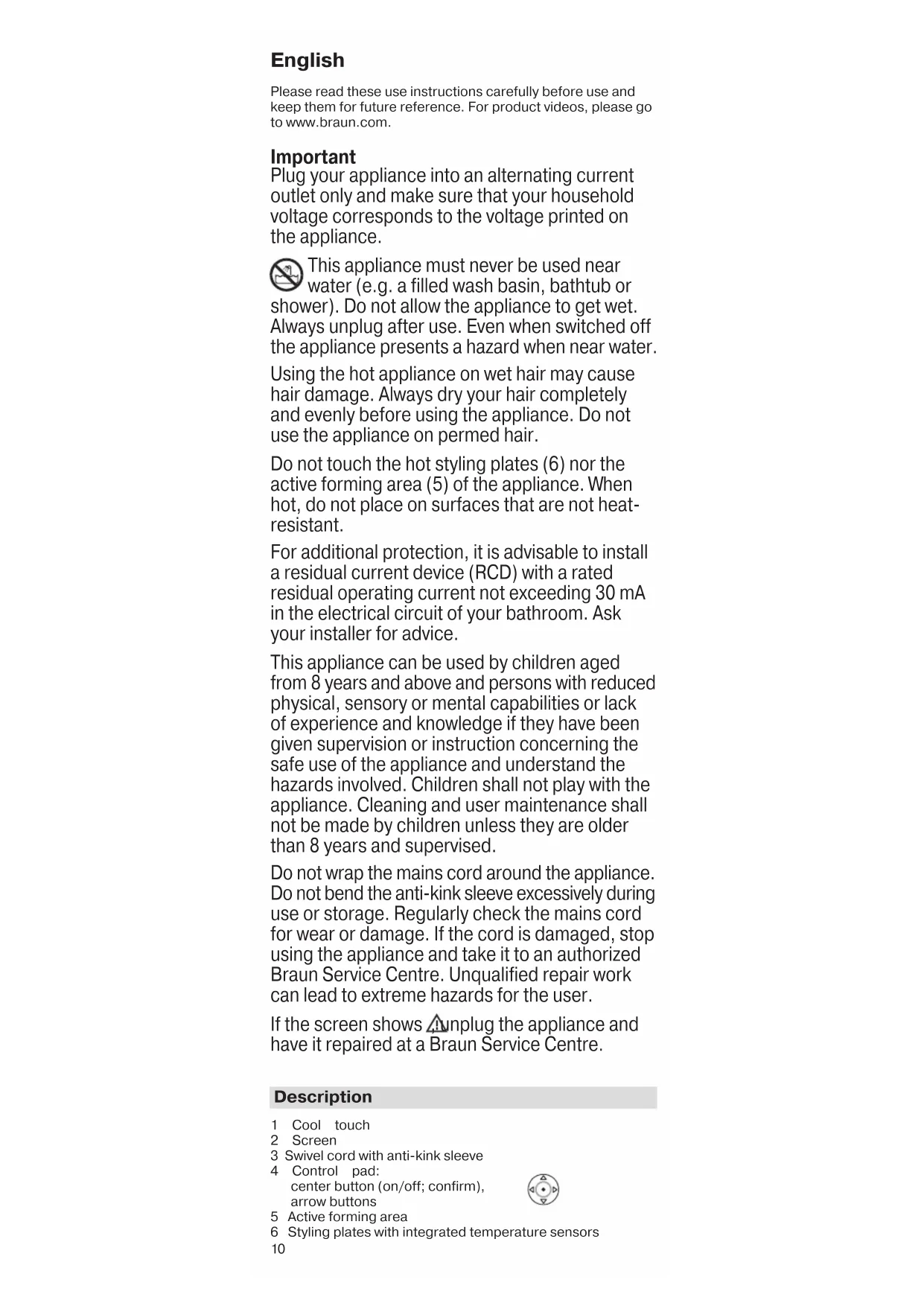

Please read these use instructions carefully before use and

keep them for future reference. For product videos, please go

Plug your appliance into an alternating current

outlet only and make sure that your household

voltage corresponds to the voltage printed on

This appliance must never be used near

water (e.g. a filled wash basin, bathtub or

shower). Do not allow the appliance to get wet.

Always unplug after use. Even when switched off

the appliance presents a hazard when near water.

Using the hot appliance on wet hair may cause

hair damage. Always dry your hair completely

and evenly before using the appliance. Do not

use the appliance on permed hair.

Do not touch the hot styling plates (6) nor the

active forming area (5) of the appliance. When

hot, do not place on surfaces that are not heat-

For additional protection, it is advisable to install

a residual current device (RCD) with a rated

residual operating current not exceeding 30 mA

in the electrical circuit of your bathroom. Ask

your installer for advice.

This appliance can be used by children aged

from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning the

safe use of the appliance and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children unless they are older

than 8 years and supervised.

Do not wrap the mains cord around the appliance.

Do not bend the anti-kink sleeve excessively during

use or storage. Regularly check the mains cord

for wear or damage. If the cord is damaged, stop

using the appliance and take it to an authorized

Braun Service Centre. Unqualified repair work

can lead to extreme hazards for the user.

If the screen shows , unplug the appliance and

have it repaired at a Braun Service Centre.

3 Swivel cord with anti-kink sleeve

center button (on/off; confirm),

5 Active forming area

6 Styling plates with integrated temperature sensors

97234773_ST780_S6-108.indd 1097234773_ST780_S6-108.indd 10 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 9 of 10711

Using the control pad

Connect the appliance to an electrical outlet. To switch on,

push the center button for at least 2 seconds. To move the

cursor on the screen, push the respective arrow.

To confirm your selection, press the center button .

To return to the previous screen, press t .

In order to prevent an unintended change of settings, the

control pad is provided with an automatic lock feature. When

the control pad is locked and you try to press any button, the

symbol appears on the screen. To unlock the control pad,

press the center button for at least 1 second.

Select your language and the operation mode:

Using the q p arrows, select your language and confirm.

Next, select one of the operation modes: SensoCare or

Manual Mode, then confirm.

In SensoCare mode, intelligent sensor technology enables

continuous temperature adaptation according to the specific

needs of your hair type. The styling temperature is not shown

on the display, but continuously optimized based on your hair

profile. This feature prevents hair damage caused by high

styling temperatures.

Set your profile / first use

To set your profile, go through the hair length, thickness and

coloration screens and select according to your hair type.

Confirm each setting with the center button and save your

settings by selecting a profile name (e.g. Profile 1). Confirm

and select «Continue» if you want to use your profile right

The flashing thermometer symbol shows that the appliance

is heating up. Once the thermometer symbol stops flashing,

the optimum styling temperature is reached and you can start

Once a profile has been saved (e.g. Profile 1), the screen will

show it right after switching on the next time. Just confirm and

the appliance starts heating up.

You can add new profiles or delete existing profiles. Up to

3 profiles can be saved.

You can modify your profile (e.g. if your hair length or colour

If you want to reset all settings (language and all profiles)

Manual Mode allows you to select the styling temperature.

This temperature will remain the same throughout the styling

process since the sensor-based automatic temperature

adaptation is deactivated in manual mode.

Move the cursor to «Manual Mode» and confirm. The default

temperature setting of 160 °C is displayed. Using the q p

arrows, you may change the temperature setting in a range

from 120 to 200 °C. While the appliance heats up, the temper-

ature screen flashes. When the flashing stops, the selected

temperature is reached and you can start styling.

Recommended temperature settings

Hair structure Coloured

97234773_ST780_S6-108.indd 1197234773_ST780_S6-108.indd 11 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 10 of 10712

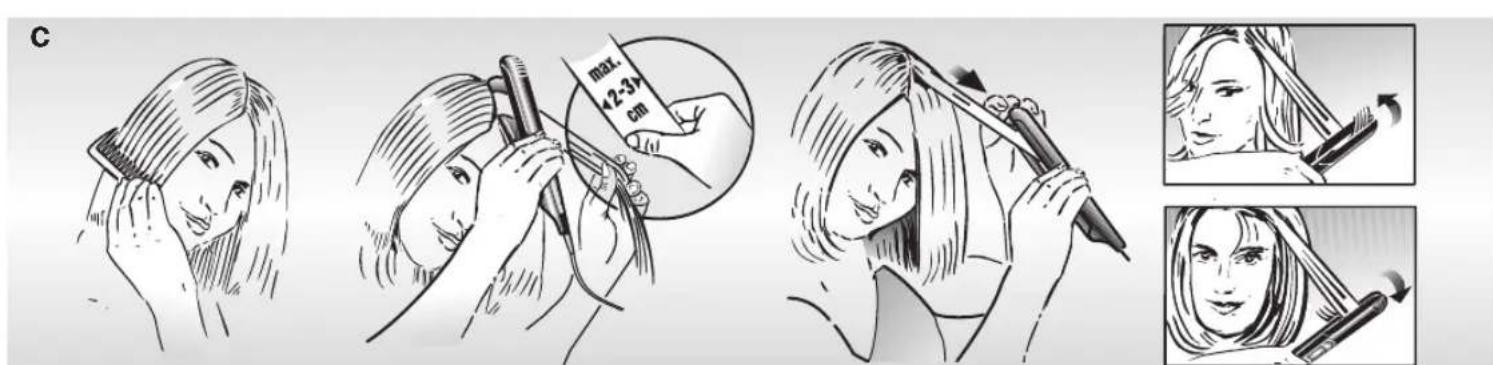

C Using the appliance

• Make sure your hair has been dried completely and evenly

before using the appliance.

• Comb your hair with a wide toothed comb to remove tangles.

• Section your hair off. Starting close to the roots, take a thin

strand (2-3 cm maximum or 2 fingers wide) and clamp it

firmly between the styling plates.

How to straighten your hair

• Gently run the appliance through the entire length of the

hair, slowly and steadily, from roots to the ends without

stopping for longer than 2 seconds. This will ensure best

straightening results without damaging your hair. The styling

plates ensure easy and smooth gliding.

• For improved control when gliding along a strand, you may

stabilise the appliance by holding it with the other hand on

the cool touch points (1).

• You can create flicks at the hair ends by slowly turning the

appliance either outwards or inwards before releasing a

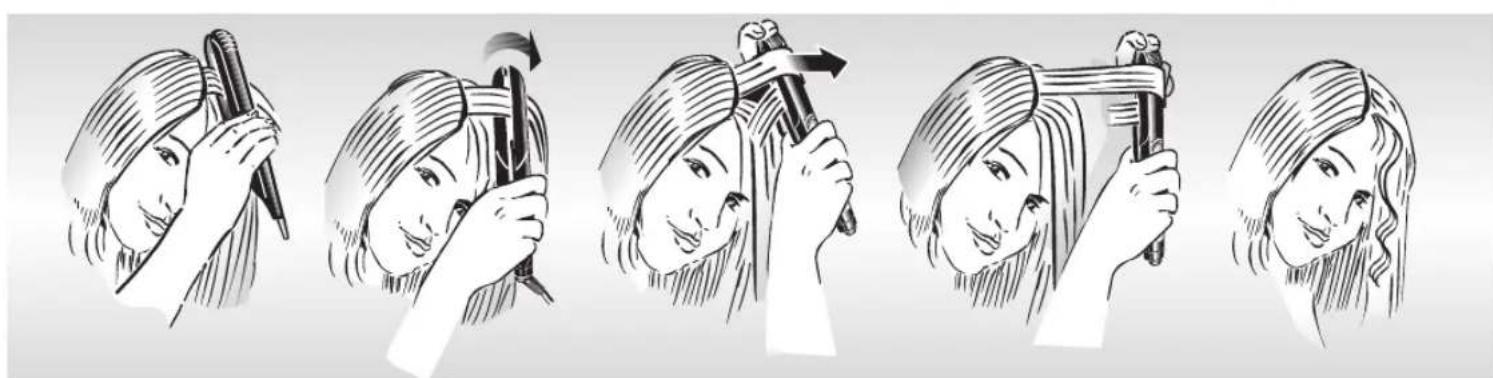

How to form loose curls and waves

– Clamp a thin strand at the roots,

– rotate the appliance half a turn so that the strand glides

through the styling plates and then over the active forming

– then slowly move the appliance horizontally towards hair

tips. When pulling the appliance beyond the hair tips, the

strand will turn into curl.

The SensoCare mode provides feedback on the

straightening performance after each stroke.

J Good, go on like this.

K Move appliance more

J Good, go on like this.

K You will get better

results on evenly dry

L In both SensoCare and Manual Mode, the screen

will show a hair dryer symbol if wet hair is detected

during styling. As a safety feature, the temperature

This means that you should dry your hair before straightening.

To deactivate the hair dryer symbol, push the center key.

Turn off the appliance by pushing the center button for

2 seconds. The screen shows two options:

To switch off, select and confirm with the center button.

The «cooling down» screen is shown provided the appliance

is still plugged in. When the temperature has dropped below

60 °C, the screen turns off and you can touch the appliance

Select if you want to resume styling later on. In sleep mode,

the temperature decreases to 100 °C. To quit sleep mode,

press any button. After 30 minutes in the sleep mode, the

appliance will switch off automatically.

97234773_ST780_S6-108.indd 1297234773_ST780_S6-108.indd 12 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 11 of 10713

After 30 minutes of operation, the appliance switches

off automatically. The cooling down screen is shown as

long as the temperature is above 60 °C.

As long as the cooling down screen is shown, you can

resume styling: Press the center button and the previous

screen will be shown.

When the screen has turned off, you can touch the appliance

Always unplug before cleaning. Never immerse the appliance

Clean the appliance with a damp cloth and use a soft cloth to

Subject to change without notice.

Please do not dispose of the product in the household

waste at the end of its useful life. Disposal can take

place at a Braun Service Centre or at appropriate

collection points provided in your country.

We grant a 2 year guarantee on the product commencing

on the date of purchase. Within the guarantee period we will

eliminate any defects in the appliance resulting from faults in

materials or workmanship, free of charge either by repairing

or replacing the complete appliance at our discretion. This

guarantee extends to every country where this appliance is

supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use,

normal wear or use as well as

defects that have a negligible effect on the value or operation

of the appliance. The guarantee becomes void if repairs are

undertaken by unauthorized persons and if original Braun

To obtain service within the guarantee period, hand in or

send the complete appliance with your sales receipt to an

authorised Braun Customer Service Centre (address

information available online at www.service.braun.com).

This guarantee in no way affects your rights under statutory

97234773_ST780_S6-108.indd 1397234773_ST780_S6-108.indd 13 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 12 of 10714

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 13 of 10715

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 14 of 10716

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 15 of 10717

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 16 of 10718

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 17 of 10719

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 18 of 10720

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 19 of 10721

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 20 of 10722

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 21 of 10723

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 22 of 10724

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 23 of 10725

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 24 of 10726

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 25 of 10727

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 26 of 10728

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 27 of 10729

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 28 of 10730

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 29 of 10731

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 30 of 10732

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 31 of 10733

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 32 of 10734

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 33 of 10735

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 34 of 10736

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 35 of 10737

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 36 of 10738

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 37 of 10739

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 38 of 10740

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 39 of 10741

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 40 of 10742

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 41 of 10743

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 42 of 10744

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 43 of 10745

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 44 of 10746

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 45 of 10747

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 46 of 10748

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 47 of 10749

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 48 of 10750

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 49 of 10751

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 50 of 10752

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 51 of 10753

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 52 of 10754

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 53 of 10755

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 54 of 10756

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 55 of 10757

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 56 of 10758

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 57 of 10759

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 58 of 10760

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 59 of 10761

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 60 of 10762

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 61 of 10763

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 62 of 10764

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 63 of 10765

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 64 of 10766

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 65 of 10767

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 66 of 10768

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 67 of 10769

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 68 of 10770

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 69 of 10771

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 70 of 10772

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 71 of 10773

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 72 of 10774

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 73 of 10775

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 74 of 10776

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 75 of 10777

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 76 of 10778

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 77 of 10779

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 78 of 10780

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 79 of 10781

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 80 of 10782

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 81 of 10783

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 82 of 10784

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 83 of 10785

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 84 of 10786

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 85 of 10787

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 86 of 10788

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 87 of 10789

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 88 of 10790

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 89 of 10791

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 90 of 10792

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 91 of 10793

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 92 of 10794

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 93 of 10795

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 94 of 10796

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 95 of 10797

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 96 of 10798

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 97 of 10799

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 98 of 107100

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 99 of 107101

Huangpu 2nd Industrial Estate, Shajing, Baoan, Shenzhen,

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 100 of 107102

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 101 of 107103

97234773_ST780_S6-108.indd 10397234773_ST780_S6-108.indd 103 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 102 of 107104

97234773_ST780_S6-108.indd 10497234773_ST780_S6-108.indd 104 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 103 of 107105

97234773_ST780_S6-108.indd 10597234773_ST780_S6-108.indd 105 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 104 of 107106

97234773_ST780_S6-108.indd 10697234773_ST780_S6-108.indd 106 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 105 of 107107

97234773_ST780_S6-108.indd 10797234773_ST780_S6-108.indd 107 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 106 of 107108

97234773_ST780_S6-108.indd 10897234773_ST780_S6-108.indd 108 27.10.14 14:3427.10.14 14:34

CSS APPROVED Effective Date 4Nov2014 GMT - Printed 06Apr2017 Page 107 of 107
