Product type	Food processor
Brand	Koenic
Model	KHB 700
Rated voltage	220-240 V
Rated frequency	50/60 Hz
Rated power	700 W
Main functions	Blending, chopping, whisking
Included accessories	Blending shaft, whisk, chopping bowl with lid and blade
Speed control	Variable control + Turbo button
Maximum continuous operation time	1 minute, then let it cool down
Maximum capacity of chopping bowl	Approximately 650 g (depending on food)
Material of chopping bowl	Plastic (not microwave-safe)
Safety	Very sharp blades, do not immerse motor unit, unplug before cleaning or changing accessories
Cleaning and maintenance	Motor unit and gear unit wiped with a soft cloth; other parts hand washed in soapy water; do not put in dishwasher
Insulation type	Class II (double insulation)
Intended use	Household only, for food processing
Storage	In its box, in a dry place, out of reach of children
Weight	Approximately 1.2 kg (estimate)

Frequently Asked Questions - KHB 700 Koenic

How to adjust the speed of the blender?

Turn the speed control on top of the motor unit. The higher the setting, the faster the speed. For maximum power, press the Turbo button.

Can I use the chopping bowl in the microwave?

No, the chopper bowl and lid are not microwave-safe. Use them only for chopping with the appliance.

How to clean the motor unit?

Never immerse it in water. Wipe it with a soft cloth or a slightly damp sponge. The gear unit is cleaned in the same way.

Can I wash the accessories in the dishwasher?

No, none of the accessories (blending shaft, whisk, chopping bowl, lid, blade) are dishwasher safe. Wash them by hand in soapy water and dry thoroughly.

What is the maximum food quantity for chopping?

Respect the MAX marks on the chopping bowl. In general, do not exceed 100 g for hard vegetables and 650 g for meat. Consult the chopping guide in the manual.

How to use the whisk?

Insert the whisk into the gear unit, then attach the motor unit onto the gear unit. Place the whisk in a bowl before starting. Use it to whisk egg whites or cream.

What to do if the blades are blocked?

Unplug the appliance immediately before removing food blocking the blades. Never touch the blades directly.

How long can I use the appliance continuously?

Maximum 1 minute. Then unplug it and let it cool down before reuse. The recipes in the manual are not heavy loads.

Is the appliance suitable for persons with reduced abilities?

It may be used under supervision or after receiving instructions from a responsible person. Children should not play with the appliance.

How to assemble the blending shaft?

Attach the blending shaft to the motor unit by turning counterclockwise until it locks. Plug in the appliance, immerse the shaft in the ingredients, and hold down the switch.

USER MANUAL KHB 700 Koenic

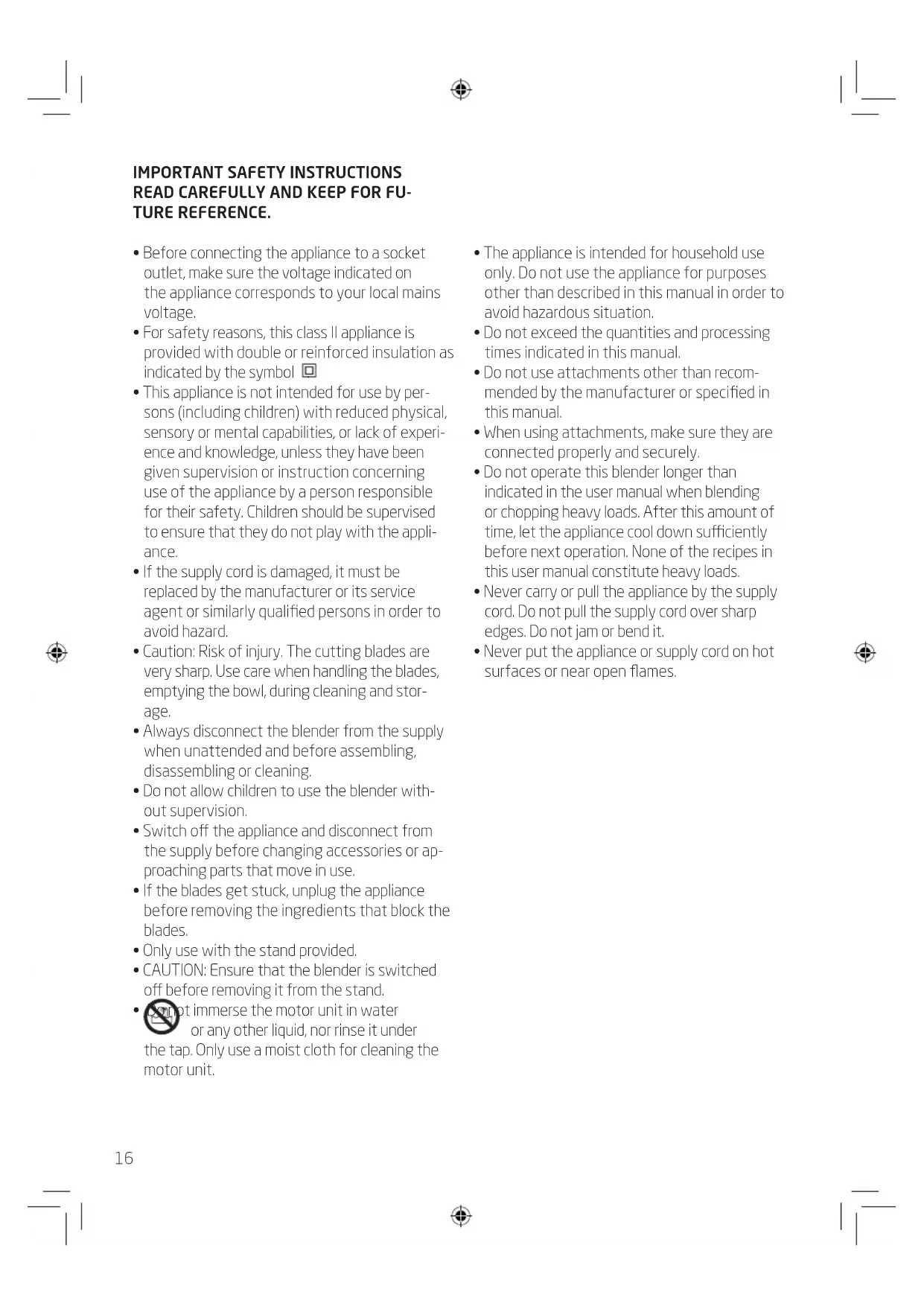

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

• Before connecting the appliance to a socket outlet, make sure the voltage indicated on the appliance corresponds to your local mains voltage.
• For safety reasons, this class II appliance is provided with double or reinforced insulation as indicated by the symbol
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified persons in order to avoid hazard.
• Caution: Risk of injury. The cutting blades are very sharp. Use care when handling the blades, emptying the bowl, during cleaning and storage.
  Always disconnect the blender from the supply when unattended and before assembling, disassembling or cleaning.
• Do not allow children to use the blender without supervision.
• Switch off the appliance and disconnect from the supply before changing accessories or approaching parts that move in use.
• If the blades get stuck, unplug the appliance before removing the ingredients that block the blades.
• Only use with the stand provided.
• CAUTION: Ensure that the blender is switched off before removing it from the stand.

• cannot immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth for cleaning the motor unit.

• The appliance is intended for household use only. Do not use the appliance for purposes other than described in this manual in order to avoid hazardous situation.

• Do not exceed the quantities and processing times indicated in this manual.
• Do not use attachments other than recommended by the manufacturer or specified in this manual.
• When using attachments, make sure they are connected properly and securely.
• Do not operate this blender longer than indicated in the user manual when blending or chopping heavy loads. After this amount of time, let the appliance cool down sufficiently before next operation. None of the recipes in this user manual constitute heavy loads.
• Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.
• Never put the appliance or supply cord on hot surfaces or near open flames.

Intended use

This appliance is intended for processing food. Only use according to these instructions. Improper use is dangerous and will void any warranty claim. Observe the safety instructions.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment

(WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Technical Data

Rated voltage: 220-240 V
Rated power input: 700 W
Rated frequency: 50/60 Hz

English

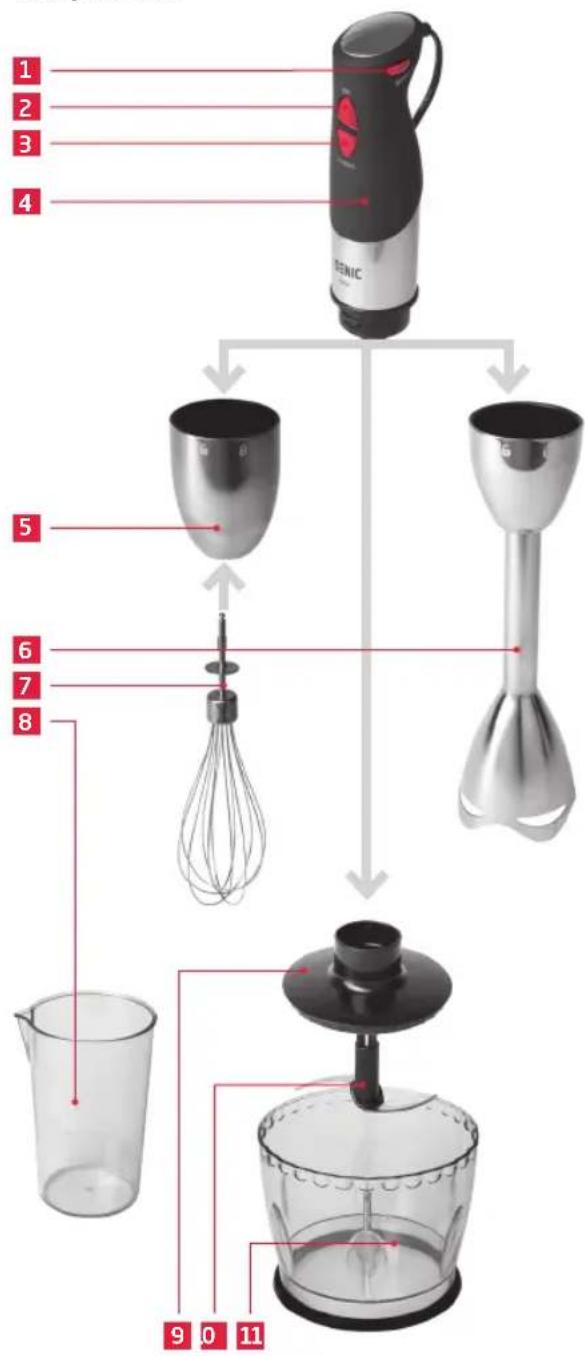

Components

1 Speed control Whisk
2 Powerswitch
3 Turbo button
4 Motor unit
Gearbox
6 Blender bar

7
8 Beaker
9 Chopper bowl lid
10 Chopper blade
11 Chopper bowl

Congratulations

Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Before and after each use

Detach blending bar from the motor unit by turning it clockwise.

Wipe the surface of the motor unit and gearbox with a moist cloth or sponge. Never immerse them in water or other liquid.

Wash the blending bar under running water. Make sure that no liquid enters the hollow shaft. Dry thoroughly.

Wash all other parts in warm soapy water, then rinse and dry thoroughly.

Caution

• Never touch the blade, risk of injury.
  Always unplug the unit before cleaning.

Instructions for use

Note

Make sure that none of the parts is washed in an automatic dishwasher.
- Avoid harsh or abrasive cleaning agents or solvents.
- For storage, keep the appliance in its box in a cool, dry place, out of reach of children.
- Remove chopper blade before storing the chopper bowl in the refrigerator.
- Chopper bowl and beaker are not suitable for microwave use.

Caution

• Unplug the unit when attaching or removing any of the attachments.
  Make sure that the motor unit and gearbox do not get in contact with any food or liquid.

Make sure not to operate the unit continuously for more than one minute. Unplug and let it cool down before using it again.

Speed settings

The processing speed corresponds to the setting of the speed control. The higher the setting, the faster the chopping results. Maximum speed can be achieved by pressing the Turbo button.

Using the blender bar

Attach the blender bar to the motor unit by turning it anticlockwise.

Plug in the unit. Place ingredients into the beaker or any other bowl tall enough to avoid splashing.

Select the speed first. Then switch on the unit by holding down the power switch.

Dip the blender bar as deeply as possible into the ingredients.

Work through the ingredients by moving the unit gently up and down.

Unplug the unit when finished. Use for blending, mixing or pureeing.

EN

Using the chopper attachment

Place the chopper blade into the chopper bowl by its hub. Make sure it is locked by the pins.

Plug in the unit

Put food ingredients into the chopper bowl. Observe the MAX markings on the bowl.

Press the Turbo button and hold the unit firmly during the chopping process.

Place chopper bowl lid on the chopper bowl. Turn anticlockwise until it locks.

After chopping process, unplug the unit from the outlet.

Attach the motor unit to the chopper bowl lid. Turn anticlockwise until it locks.

Remove the motor unit from chopper bowl by turning clockwise.

Detach chopper bowl lid by turning it clockwise. Remove chopper blade by its hub.

Note

• When pureeing food, make sure to use enough liquid (juice, milk, etc.) for obtaining a smooth mixture. Adjust the consistency of the mixture by adding more liquid or soft solids.

Caution

• Select a stable flat surface for chopping.
  Always take the chopper blade by its hub, make sure not to touch the blade.
• Pre-cut the food into small and even pieces.

EN

Chopping Guide

Food Quantity (max.) Time Preparation

Carrots 100 g	15 s - 20 s Peeled, cut into 2 cm pieces
Apples 100 g	15 s - 20 s Peeled and pitted, cut into 2 cm pieces
Cheese 30 g	15 s - 20 s Cut into 2 cm pieces
Eggs 2 5 s -	20 s Hard-boiled, peeled, cut into quarters
Meat (raw or cooked)	550-650 g	10 s	Cut into 2 cm pieces. Raw meat will take longer than cooked meat.
Walnuts	50 g 10 s - 15 s
Onions	100 g 10 s - 15 s Peeled, cut into quarters
Parsley	few springs	10 s	Make sure the bowl and the parsley are completely dry
Dough	340 g flour + 35 g sugar	10 s	Mix with 225 g water

Using the whisk

Insert the whisk into the gearbox. Attach the motor unit to the gearbox and turn until it locks.

Place the whisk in the bowl, only then press the power switch. Use for whipping cream, beating eggs, etc.
