USER MANUAL Plancha Colormania CB670312 TEFAL

THERMO-SPOT THERMO-SPOT

Black-and-white photo of a plated dish featuring sliced mushrooms, mushrooms in the center, and a glass jar with food items on a wooden table (no visible text or symbols)

www.tefal.com

Made in China

CONSIGNES DE SECURITE PRECAUTIONS IMPORTANTES

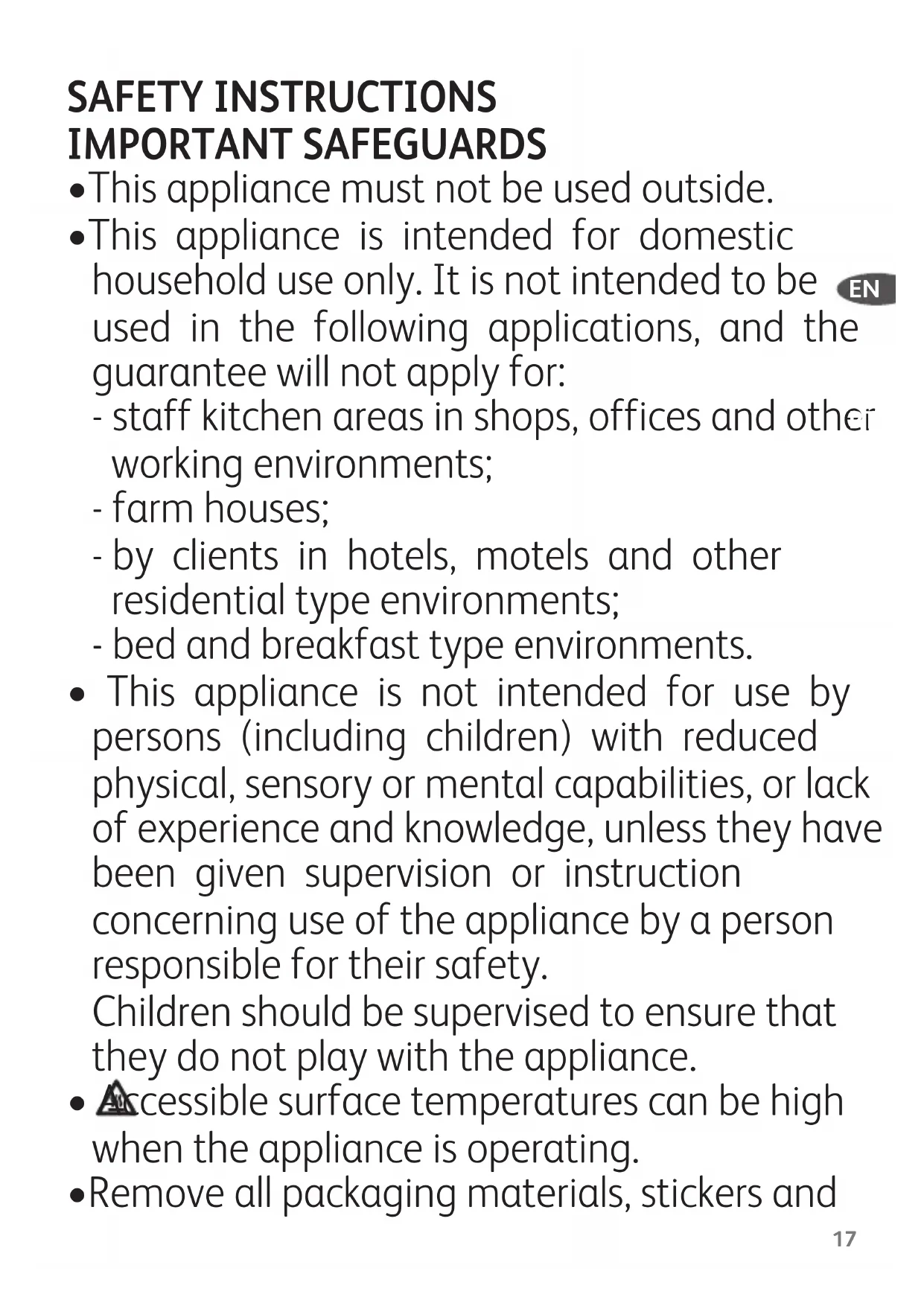

SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS

• This appliance must not be used outside.
• This appliance is intended for domestic household use only. It is not intended to be

used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Accessible surface temperatures can be high when the appliance is operating.
• Remove all packaging materials, stickers and

accessories from the inside and the outside of the appliance.

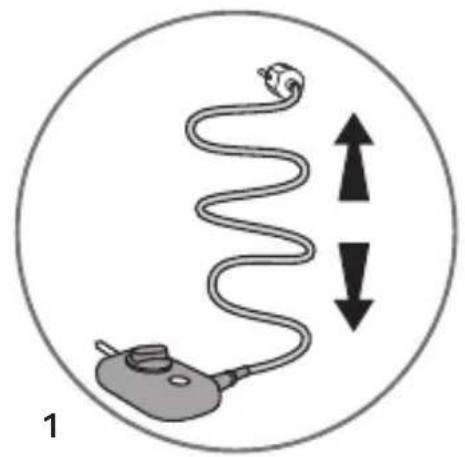

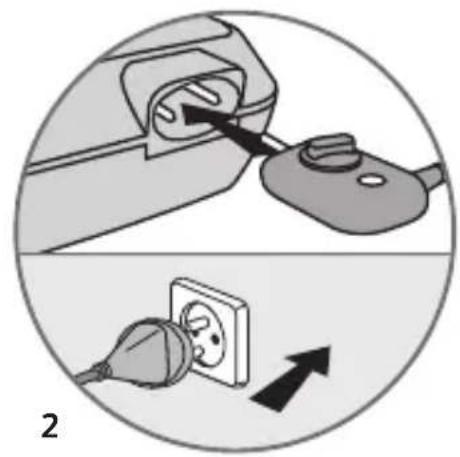

• Fully unwind the power cord.
• Make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.
• Any connection error may cause irreversible damage and will invalidate your guarantee.
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.
• Always plug the appliance into a socket outlet with an earth connection.
• If it is necessary to use an extension lead ensure that it is of suitable construction and power rating, with an earth connection; take all necessary precautions to prevent anyone tripping over an extension cord.
• If the power cord is damaged, it must be replaced at a Tefal approved service centre.
• The power supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• This appliance is not intended to be operated

by means of an external timer or separate remote-control system.

- Never leave the appliance unattended when in use.

- Never immerse the power cord or control box in water or any other liquid.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Children under the age of 8 years should not use this appliance unless continuous supervision by a responsible adult is given. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

- The mobile connector plug must be removed before cleaning the device, and the connector must be dried well before the device is used again.

- You must only use the appropriate mobile plug or mobile connector plug.

Thank you for buying this Tefal appliance.

Tefal has an ongoing policy of research and development and may modify these products without prior notice.

Do

- Read the instructions carefully, common to different versions depending on the accessories supplied with your appliance, and keep them within reach.

- If the appliance is used in the centre of the table, keep it out of the reach of children.

- Make sure the device is placed in a stable position before using it.

- If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

- Cooking fumes may be dangerous for animals which have a particularly sensitive respiratory system, such as birds. We advise bird owners to keep them away from the cooking area.

●Always use a wooden or plastic spatula to avoid damaging the cooking plate.

- In order to avoid deterioration of the plate, use it only as it was designed to be used (for example, do not place it in an oven or on a stove, whether it be gas or electric).

- Use only the plate provided with the device or a plate bought at an authorized Service Centre.

- Before first use, wash the plate (see paragraph After Use), pour a small amount of oil on it and dry with a soft cloth.

- Be careful where you place the electric power cord, whether you use an extension or not. Take all the necessary precautions in order not to hinder people from moving around the table, so that nobody gets tangled or trips over the cord.

Do not

- Never leave the appliance unattended when plugged in or in use.

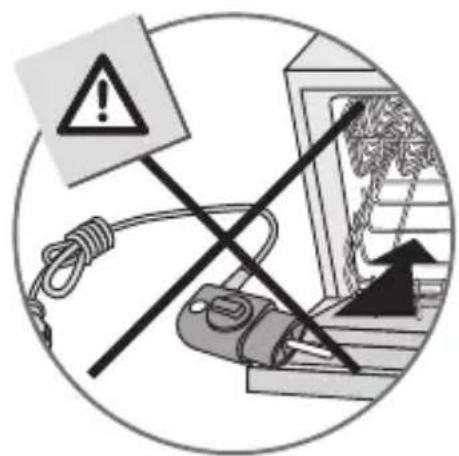

- To prevent the appliance from overheating, do not place it in a corner or against a wall.

- Never place the appliance directly on a fragile surface (glass table, tablecloth, varnished furniture, etc.) or on a soft surface such as a tea-towel.

- Never place the appliance on or near hot or slippery surfaces; never leave the cord hanging over a heat source (hotplates, gas stove, etc.).

- Do not place cooking utensils on the cooking surfaces of the appliance.

●Never use a knife directly over the plate.

- Do not place the plate on a fragile surface or under water when it is hot.

- Do not move the appliance when in use.

- Do not use aluminium foil or other objects between the plate and the food being cooked.

- Do not cook food in aluminium foil.

- To avoid spoiling your product, do not use flambé recipes in connection with it at any time.

- Do not use metal scourers or scouring powders to avoid damaging the cooking surface.

- Do not remove the grease collector tray during cooking.

- If the grease collector tray gets filled during cooking, let the contents cool before emptying it.

Advice / information

• For your safety, this appliance conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).
• On first use, there may be a slight odour and a little smoke.
• Do not consume foodstuff that comes into contact with the parts marked with 📄.

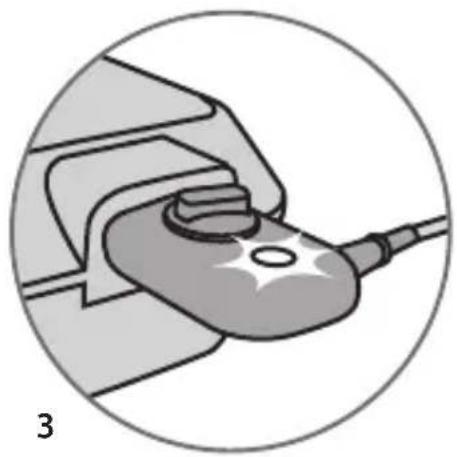

- If the electrical box is incorrectly positioned, the safety system will prevent the appliance from working.

- The device will be ready for use once it is preheated.

Using

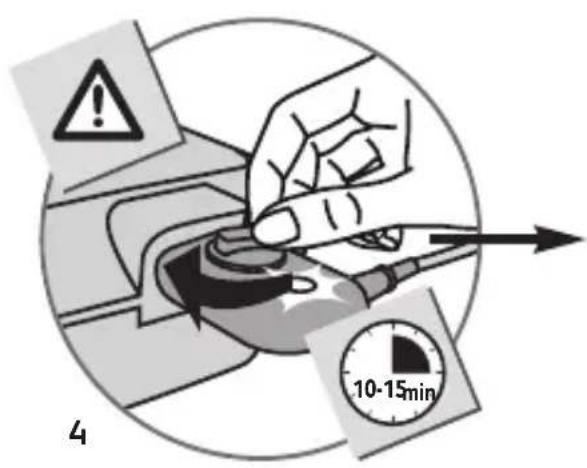

• Preheat the device for about 10-15 minutes at maximum temperature - 4 - 5.
• Once the device is preheated, is will be ready for use.

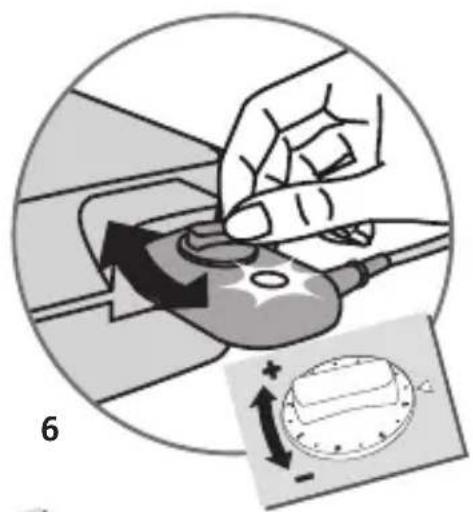

• Fix the thermostat according to the heat level you wish - 6.

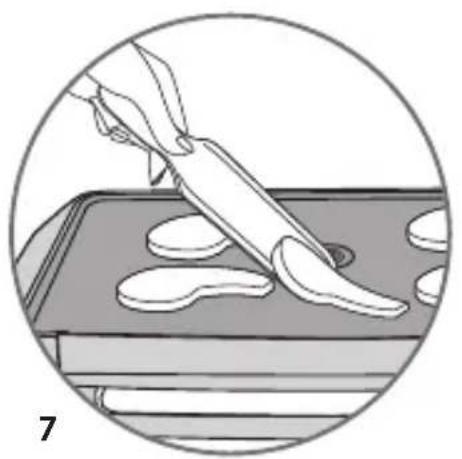

• Cook according to taste.

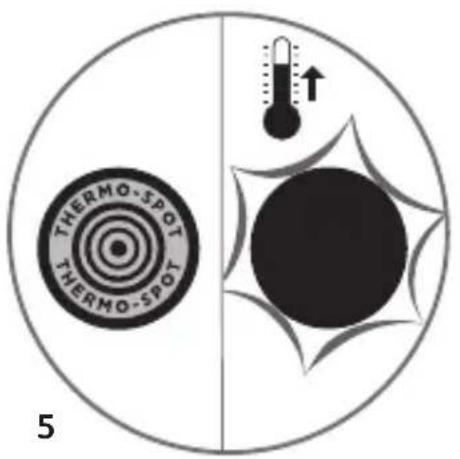

• Thermo-Spot™: when the device is hot, the Thermo-Spot™ icon turns red - 5.

After use

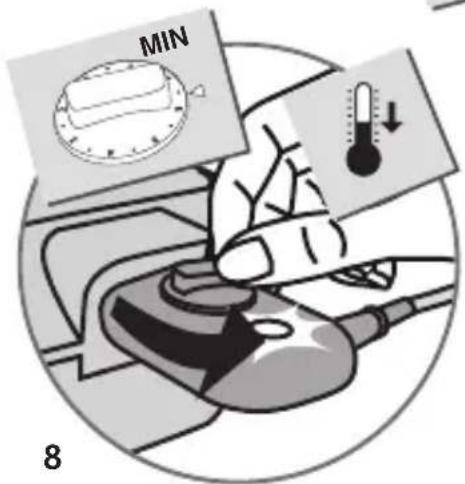

• Place the thermostat in the min. position - 8.

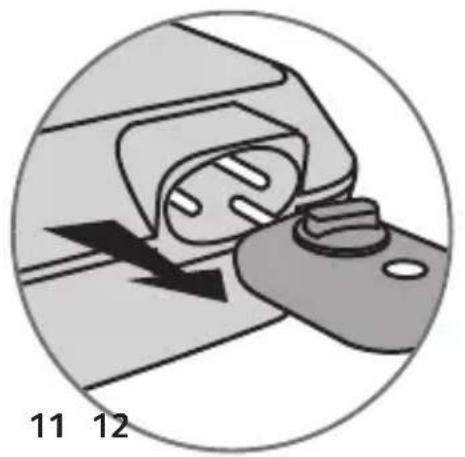

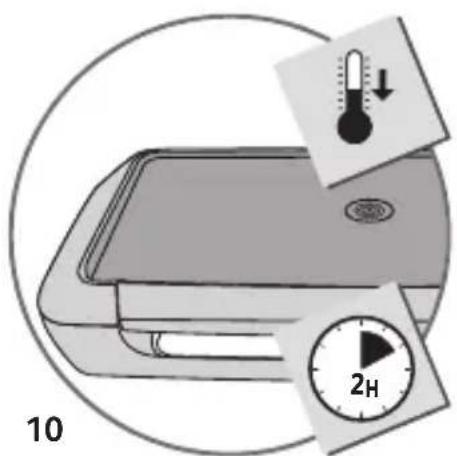

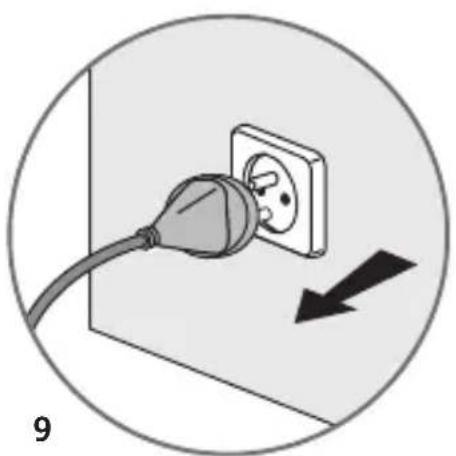

• Unplug the appliance. Leave it to cool down before cleaning - 9 - 10 - 11.

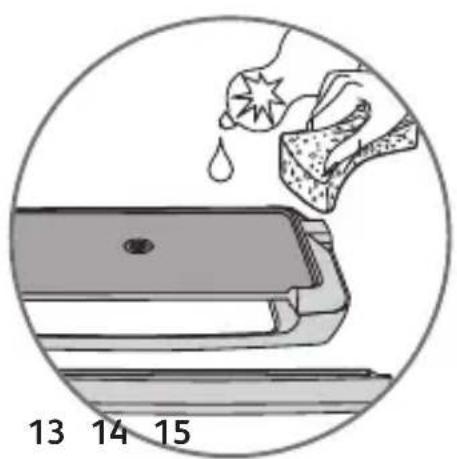

• Clean the plate and the body of the device with a sponge, hot water and a dishwashing agent - 12 - 13 - 14.

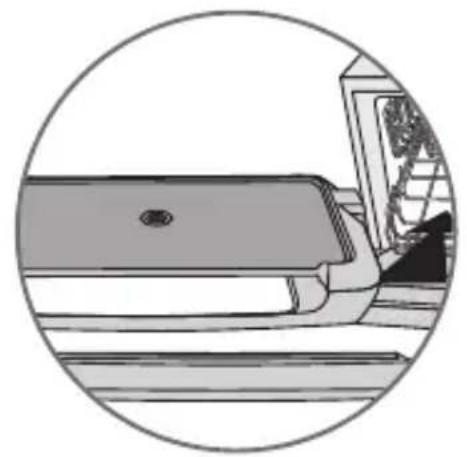

  The plate, the plastic base and the collector tray can go in the automatic dishwasher - 12.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

SIGURNOSNE UPUTE VAŽNA UPOZORENJA

Diagram showing a device being processed with a plug and cable, no text or symbols present

Diagram of a coiled device with two opposing arrows indicating bidirectional movement (no text or symbols)

Illustration showing two electrical plug connections: one with a plug inserted into a socket, the other with an outlet plug inserted (no text or symbols present)

Illustration of a medical or laboratory device with a bulb and star-shaped opening, enclosed in a circular frame (no text or symbols)

4 10-15min

THERMO-SPOT THERMO-SPOT 5

6

Illustration of a hand using a knife to cut dough on a baking tray (no text or symbols)

MIN 8

Illustration of a plug inserted into an electrical outlet with a downward arrow indicating power or current direction (no text or symbols)

10 2H

Diagram of a mechanical component with directional arrows indicating movement, no text or symbols present

Illustration of a mechanical device inside a circular frame, showing components and parts (no text or symbols)

Illustration of a hand cleaning a car with a water droplet and cloth (no text or symbols)

Warning symbol and warning sign depicting safety or hazard, with a warning sign and cable to a device.

Diagram of a mechanical device with a central component and an arrow indicating upward motion (no text or symbols)

TEFAL/T-FAL INTERNATIONAL GUARANTEE

Date of purchase: ....../ Date d'achat / Fecha de compra / Data da compra / Data d'acquisto / Kaufdatum / Aankoopdatum / Købsdato / Inköpsdatum / Kjøpsdato / Ostopäivä / Data zakupu / Data vânzării / Isigijimo data/ Ostukuupäev / Datum nakupa / Sorozatszám / Dátum nákupu / Pirkuma datums / Datum Kupovine / Datum kupnje / Data cumpărării / Datum nákupu / Tarikh pembelian / Tanggal pembelian / Ngày mua hàng / Satın alma tarihi / Дата продажи / Дата на закупуване / Датум на купување / Сатылған мерзімі / Нμερομηνία αγοράς / Ч. шфшпf | opp / วันที่ซื้อ / 購買日期 /購入日/구입일자/ تاريخOthers

Product reference: ....../Référence du produit / Referencia del producto / Nome do produto / Tipo de prodotto / Typnummer des Gerätes / Artikelnummer van het apparaat / Referencenummer / Produktreferens / Artikkelnummer / Tuotenumero / referencja produktu / Model / Gaminio numeris / Toote viitenumber / Tip aparata / Vásárlás kelte / Typ výrobku / Produkta atsauces numurs / Model proizvoda / Oznaka proizvoda / Cod produs / Produk rujukan / Referensi produk / Mā sān phām/ Ürün kodu / Модель / Модель / Модел на уреда / Модели / К Lewisкоς προιόντος / Uπηλ/ رุ่นผลิตภัณฑ์ / 產品型號 / 製品レファレンス番号/제품명/ مرجع محصول/ مرجع المنتج

Retailer name & address: / Nom et adresse du vendeur / Nombre y dirección del minorista / Nome e endereço do revendedor / Nome e indirizzo del negozzio / Name und Anschrift des Händlers / Naam en adres van de dealer / Forhandler navn & adresse / Äterförsäljarens namn och adress / Forhandler navn og adresse / Jälleenmyyjän nimi ja osoite / nazwa i adres sprzedawcy / Numele şi adresa vânzătorului / Parduotuvès pavadinimas ir adresas / Müüja kauplus ja aadress / Naziv in naslov trgovine / Tipusszám / Názov a adresa predajcu / Veikala nosaukums un adrese / Naziv i adresa maloprodaje / Naziv i adresa prodavca / Naziv i adresa prodajnog mjesta / Nume şi adresă vânzător / Název a adresa prodejce / Nama dan alamat peruncit / Nama Toko Penjual dan alamat / Tên và đja chi cúa hàng bán/ Satici firmanin adı ve adresi / Название и адрес продавца / Назва і адреса продавця / Търговки обект / Назив и адреса на продавницата / Сатушының аты және мекен-жайы / Епшвупідا кαι διεύθυνση καταστήματος / Чшбшппнг шбіцішінієлі ішнібілі / चื่อและที่อยู่ของห้าง/ر้านที่ซื้о /零售商的店名和地址/販売店の名前、住所/소매점 이름과 주소/ نام خردده فروش وأدرس/اسم بائع التجزئة وعنوانه

Distributor stamp:....../ Cachet distributeur /Sello del distribuidor / Carimbo do revendedor / Timbro del negozzio / Händlerstempel / Stempel van de dealer / Forhandler stempel / Àterförsäljarens stämpel / Forhandler stempel / Jälleenmyyjän leima / pieczęć sprzedawcy / Štampila vânzătorului / Antspaudas / Tempel / Žig trgovine / Eladó neve, címe/ Razítko predajcu / Zimogs / Pečat maloprodaje/ Pečat prodavca / Pečat prodajnog mjesta / Štampila vânzătorului/ Razítko prodejce/ Cap peruncit / Cap dari Toko Penjual / Cùa hàng bán dông dấu/ Satici Firmanın Kaşesi / Печать продавца / Печатка продавця / Печат на търговския обект / Печат на продавницата / Сатушының мөрі / Σφραγίδα καταστήματος / ۱.۶۹۵۸۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۷۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸۸

INTERNATIONAL GUARANTEE : COUNTRY LIST
		1 an1 year
	GRO	2 años2 years
		2 years
		1 year
		2 Jahre2 years
		2 ans2 years
		2 years
		2 godine2 years
	SEB	1 ano1 year
		2 years
		1 an1 year
		2 years
		2 years
HRVATSKA CROATIA	SEB Developpement S.A.S.Vodnjanska 2610000 Zagreb	2 godine2 years	01 30 15 294
ČESKÁ REPUBLIKCZECH REPUBLIC	GROUPE SEB ČR spol. s r .o.Jankovcova 1569/2c170 00 Praha 7	2 roky2 years	731 010 1111
DANMARKDENMARK	GROUPE SEB NORDIC ASTempovej 272750 Ballerup	2 år2 years	44 663 155
DEUTSCHLANDGERMANY	GROUPE SEB DEUTSCHLANDGmbH / KRUPS GmbHHerrnrainweg 563067 Offentbach	2 Jahre2 years	0212 387 400
EESTIESTONIA	GROUPE SEB POLSKA Sp. z o.o.ul. Bukowińska 22b02-703 Warszawa	2 aanstatt2 years	5 800 3777
SUOMIFINLAND	Groupe SEB FinlandKutojantie 702630 Espoo	2 Vuotta2 years	09 622 94 20
FRANCEIncluant uniquementGuadeloupe, Martinique,Réunion, Saint-Martin	GROUPE SEB FRANCEService Consommateur MoulinexBP 1569131 ECULLY CEDEX	1 an1 year	09 74 50 47 74
EMAAAAGREECE	SEB GROUPE EΛΛΑΔΟΣ A.E.Oδός Καβαλιεράτου 7T.K. 145 64 N. Κηφισιά	2 χρόνια2 years	2106371251
香港HONG KONG	SEB ASIA Ltd.Room 903, 9/F, South Block, Skyway House3 Sham Mong Road, Tai Kok Tsui, KowloonHong-Kong	1 year	852 8130 8998
MAGYARORSZÁGHUNGARY	GROUPE SEB CENTRAL-EUROPE Kft.Távíró köz 4 2040 Budaörs	2 év2 years	06 1 801 8434
INDONESIA	GROUPE SEB INDONESIA(Representative office)Sudirman Plaza, Plaza Marein 8th FloorJL Jendral Sudirman Kav 76-78,Jakarta 12910, Indonesia	1 year	[phone]
ITALIAITALY	GROUPE SEB ITALIA S.p.A.Via Montefetro, 420156 Milano	2 anni2 years	199207354
JAPAN	GROUPE SEB JAPAN Co. Ltd.11F-Takanawa Muse Building,3-14-13, Higashi Gotanda,Shinagawa-Ku,Tokyo 141-0022	1 year	0570-077772
KA3AKCTAHKAZAKHSTAN	ЖАК «Группа СЕБ- Восток»125171, Мескеу, Ленинградскоешосесі,16А, 3 уйі	2 жыл2 years	727 378 39 39
한국어KOREA	(유)그룹 세브 코리아서울시 종로구 서린동 88 서린빌딩 3층110-790	1 year	1588-1588
LATVJALATVIA	GROUPE SEB POLSKA Sp. z o.o.ul. Bukowińska 22b02-703 Warszawa	2 gadi2 years	6 716 2007
LIETUVALITHUANIA	GROUPE SEB POLSKA Sp. z o.o.ul. Bukowińska 22b02-703 Warszawa	2 metai2 years	6 470 8888
LUXEMBOURG	GROUPE SEB BELGIUM SA NV25 avenue de l'Espérance - ZI6220 Fleurus	2 ans2 years	0032 70 23 31 59
MACEDONIA	Groupe SEB Bulgaria EOODOfficeel 1 fibroot 1,52G Borovo St.,1680 Sofia - BulgariaГРУП СЕБ БЪЛГАРИЯ ДООЕЛУл. Борово 52 Г, сп. 1, офис 1, 1680 София,България	2 години2 years	(0)2 2050 022
MALAYSIA	Unit No.402-403, Level 4, Uptown 2,No.2, Jalan SS21/37, Damansara Uptown,47400 Petaling Jaya,Selangor D.E., Malaysia.	1 year	(603) 7710 8000
MEXICO	Groupe.S.E.B. México, S.A. DE C.V. Goldsmith38 Desp. 4011, Col. PolancoDelegación Miguel Hildalgo11 560 México D.F.	1 año1 year	[phone]
MOLDOVA	TOB «Груп СЕБ Україна»02121, Харківське шосе, 201-203, 3поверх, Київ, Україна	2 ani2 years	(22) 929249
NEDERLANDThe Netherlands	GROUPE SEB NEDERLAND BVGeneratorstraat 63903 LJ Veenendaal	2 jaar2 years	0318 58 24 24
NEW ZEALAND	GROUPE SEB NEW ZEALANDUnit E, Building 3, 1195/Main Highway Ellerslie,Auckland	1 year	0800 700 711
NORGENORWAY	GROUPE SEB NORDIC ASTempovej 272750 Ballerup DANMARK	2 år2 years	815 09 567
PERU	Groupe SEB PerúAv. Camino Real N° 111 of. 805 BSan Isidro - Lima – Perú	1 año1 year	441 4455
POLSKAPOLAND	GROUPE SEB POLSKA Sp. z o.o.ul. Bukowińska 22b02-703 Warszawa	2 lata2 years	0801 300 423koszt jak zapołączenie lokalne
PORTUGAL	GROUPE SEB IBÉRICA SAUrb. da MatinhaRua Projectada à Rua 3Bloco1 - 3° B/D 1950 - 327 Lisboa	2 anos2 years	808 284 735
REPUBLIC OFIRELAND	GROUPE SEB IRELANDUnit B3 Aerodrome Business Park,College Road, Rathcoole, Co. Dublin	11 year	01 677 4003
ROMÂNIEROMANIA	GROUPE SEB ROMÂNIAStr. Daniel Constantin nr. 8010632 Bucureşti	2 ani2 years	0 21 316 87 84
РОССИЯRUSSIA	ЗАО «Группа СЕБ-Восток»,125171, Москва, Ленинградское шоссе,д. 16А, стр. 3	2 года2 years	495 213 32 30
SRBIJA SERBIA	SEB Developpement Đorđa Stanojevića 11b 11070 Novi Beograd	2 godine 2 years	060 0 732 000
SINGAPORE	GROUPE SEB SINGAPORE Pty Ltd.59 Jalan Pemipin, #04-01/02 L&Y Building Singapore 577218	1 year	65 6550 8900
SLOVENSKO SLOVAKIA	GROUPE SEB Slovensko, spol. s r.o.Rybničná 40831 06 Bratislava	2 roky2 years	233 595 224
SLOVENIJA SLOVENIA	SEB d.o.oGregorčičeva ulica 62000 MARIBOR	2 leti2 years	02 234 94 90
ESPAÑA SPAIN	GROUPE SEB IBÉRICA S.A.C/ Almogàvers, 119-123, Complejo Ecourban 08018 Barcelona	2 años2 years	902 31 24 00
SVERIGE SWEDEN	TIEFAL SVERIGE SUBSIDIARY OF GROUP SEBNORDICTruckvägen 14 A, 194 52 Upplands Väsby	2 år2 years	08 594 213 30
SUISSE CHWEIZ SWITZERLAND	GROUPE SEB SCHWEIZ GmbHThurgauerstrasse 1058152 Glattbrugg	2 ans2 Jarhre2 years	044 837 18 40
TAIWAN	SEB ASIA Ltd.Taipei International Building, Suite B2, 6F-1,No. 216, Tun Hwa South Road, Sec. 2Da-an District Taipei 106, R.O.C.	1 year	886-2-27333716
THAILAND	GROUPE SEB THAILAND2034/66 Italthai Tower, 14th Floor,n° 14-02,New Phetchburi Road,Bangkapi, Huaykwang,Bangkok, 10320	2 years	662 351 89111
TÜRKIYE TURKEY	GROUPE SEB ISTANBUL ASBeybi Giz Plaza Dereboyu Cad.Meydan Sok.No: 28 K.12 Maslak	2 YIL2 years	216 444 40 50
U.S.A.	GROUPE SEBBUSSA2121 Eden RoadMillville, NJ 08332	1 year	800-395-8325
Україна UKRAINE	ТОВ «Груп СЕБ Україна»02121, Харківське шосе, 201-203, 3поверх, Київ, Україна	2 роки2 years	044 492 06 59
UNITED KINGDOM	GROUPE SEB UK LTDRiverside HouseRiverside WalkWindsorBerkshire, SL4 1NA	1 year	0845 602 1454
VENEZUELA	GROUPE SEB VENEZUELAAv Eugenio Mendoza, Centro Letonia, TorreING Bank, Piso 15, Ofc 155Urb. La Castellana, Caracas	2 años2 years	0800-7268724
VIETNAM	GROUPE SEB VIETNAM(Representative officè)127-129 Nguyen Hue Street District 1,Ho Chi Minh City, Vietnam	1 year	[phone]

FR p. 2 - 6
NL p. 7 - 11
DE p. 12 - 16
EN p. 17 - 21
ES p. 22 - 26
PT p. 27 - 31
IT p. 32 - 36
EL p. 37 - 41
HU p. 42 - 46
CS p. 47 - 51
SK p. 52 - 56
TR p. 57 - 61
BG p. 62 - 66
HR p. 67 - 71
RO p. 72 - 76
SL p. 77 - 81
AR p. 82 - 86
FA p. 87 - 91
