USER MANUAL TAB97DC Sunstech

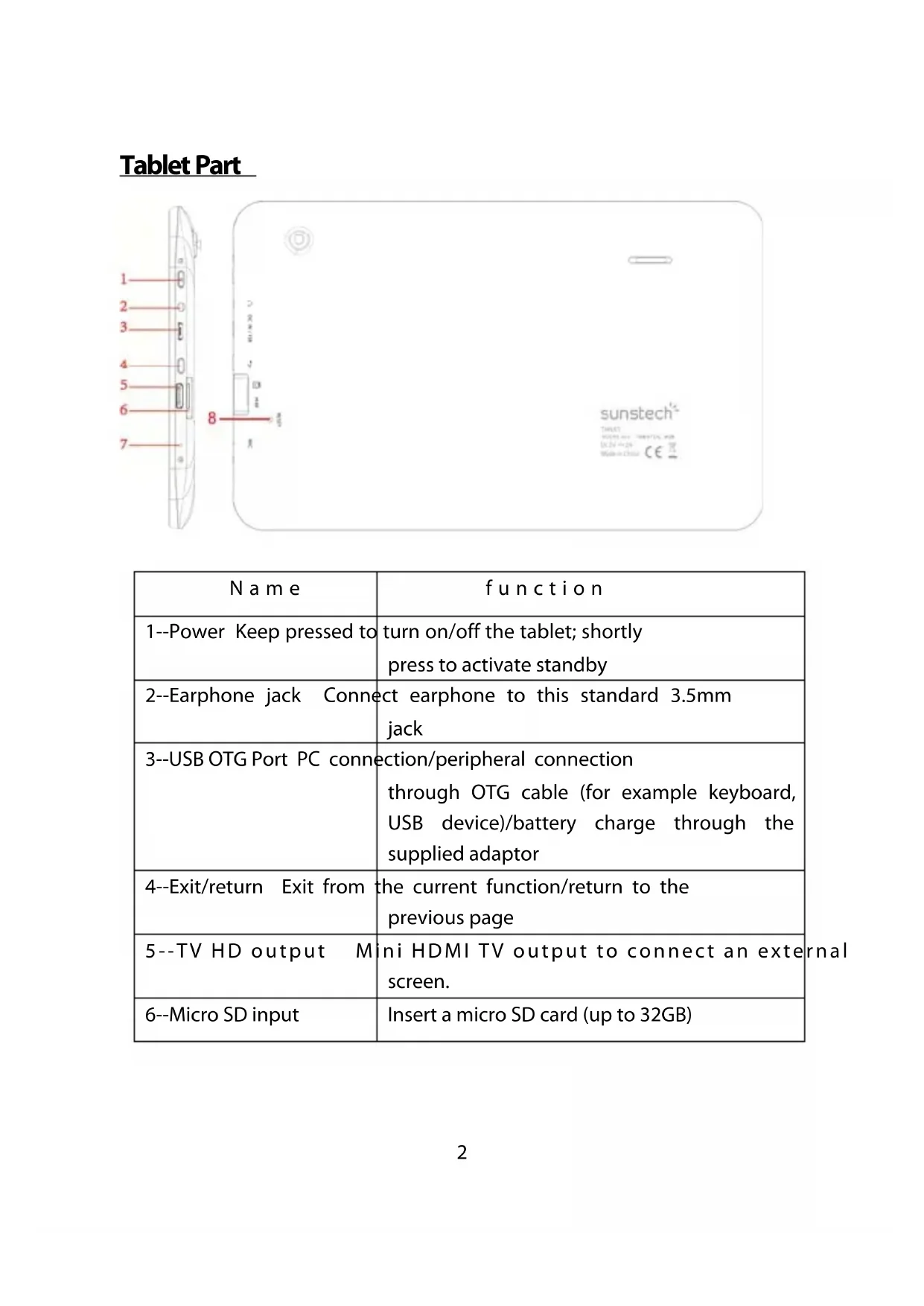

Name function 1--Power Keep pressed to turn on/off the tablet; shortly press to activate standby 2--Earphone jack Connect earphone to this standard 3.5mm jack 3--USB OTG Port PC connection/peripheral connection through OTG cable (for example keyboard, USB device)/battery charge through the supplied adaptor 4--Exit/return Exit from the current function/return to the previous page 5--TV HD output Mini HDMI TV output to connect an external screen. 6--Micro SD input Insert a micro SD card (up to 32GB)

2Getting Started Battery Charging The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the micro USB jack on the

right side of the tablet.

2. The battery icon shows the battery status and charging status

3. The tablet can be used even if the battery is being charged.

the above icons indicate the different level of electricity left in the battery

4. No replacement of battery without authorization, or the explosion hazard

5. Recharge it for at least half hour if it has been idle for long time and fails

6. Regularly recharge it at least one time monthly

7. 40°—5° is the optimum temperature for the battery recharging or the

battery performance might deteriorate slightly 3Disposal The battery might contain the polluting material, please give it to the official recycling-station before disposing the tablet pc, and don’t litter.

Power ON/OFF ON: press the button for continuous 5 seconds until the tablet turns “ON”. OFF: 1.Press the button for continuous 5 seconds and it will appear 2.Select OK to power off the tablet Screen Lock This feature locks the screen, at the same time turn OFF the screen’s backlight after a few seconds. Screen locks when:

2. Manually activated by pressing the Power button once.

Home screen The Home screen will look similar to the picture below. It is actually five screens, each of which can have a different layout of icons. To switch between screens, simply slide your finger left or right across the display. The status bar and navigation buttons are always visible, no matter which Home screen you can currently viewing.

4The Desktop contains shortcuts to your most-used applications and widgets Touch the screen icon to quickly search the World Wide Web using Google. The icon will launch the Application menu. The status bar displays system information, such as current time, wireless connectivity and battery. Touch to Expand the status bar for more detailed information. The button moves back one step to the previous menu/page. The buttons returns immediately to the Android desktop. The button display a menu of recently opened applications. Settings Menu The settings menu allows you to adjust Tablet system configuration.

5To change settings:

2. Guide your finger up or down the left side of the screen to scroll through

the list of available categories.

3. Touch a category title to view further options on the right side of the

screen. Wi-Fi - Connect to /disconnect from wireless networks, view connection status Data usage - Enable / disable mobile data, view current usage, set mobile data limit (note: this function is available only on devices supplied with 3G card) Sound - Change volume, touch sound, screen lock sounds etc Display - Change brightness, wallpaper, sleep settings, font size etc Storage - Manage NAND and Micro SD card, view available capacity etc Battery - See battery status and powered-on time Apps - Manage applications, running services etc Accounts - Manage accounts etc Location services - Change approximate location detection, improve search results Security - Change screen lock type, encryption, password, credential storage etc Language & input Select language, add to the dictionary, edit on-screen keyboard settings, vocal search, etc Backup & reset - Backup & restore data, perform factory reset, etc Date & time - Set date, time zone, time, clock format etc Accessibility - Set up large text, auto-rotate screen, speak password etc Developer options - Advanced functions for Android developers - debugging, HDCP check etc About tablet - Information about your Android device

1. Insert the TF card into the TF card slot. Gently push TF card into slot until it

2. A prompt will be seen on the screen saying “ Preparing SD card “

1. Close all applications and documents which have been opened from the TF

3. Select “Setting” and find “ Storage” then click “Unmount SD card”.

4. A prompt will be seen on the screen saying “ SD card safe to remove”

5. Gently press the TF card to remove and pull out the TF card.

Note: Insert the TF card in correct position, otherwise it will damage the card and the slot. Software Keyboard The tablet has a software keyboard which automatically show up when you tap the place on screen where text or number are to be entered. Touch Screen The touch screen responds to finger touch. Note: don’t place any object on the touch screen for it may damage or crush the screen. Single Click: single click one icon to choose the icon or option you want. Long Press: press and hold one icon to make appear a menu related to the executed function (if available). Drag: drag on the screen and you can move between magic cube sides or drag the application icons into the shortcut bar.

7How to connect with computer Note: Turn on your Tablet before connect the Tablet to PC by USB cable. 1 Use USB cable to connect with computer. System will notice USB connected on bottom of screen. 2 Press USB connected on the top bar, then click Turn on USB storage, click OK.

3. Then the USB connection has been successfully.

Connection to Internet Wireless: 1 Select “ Settings” 2 Select “Wi-Fi” and slide OFF to ON status. 3 All detected wireless networks in the area will be listed, Click to select desired wireless connection. 4 Enter WEP key or network key if necessary. 5 Once connected to a wireless network, settings will be saved 6 Wireless icon will appear on the taskbar when connected successfully. Note: when the tablet detects the same wireless network in the future, the device will connect to the network automatically with same password record. 8Web Browsing Connect to the internet and launch the browser.

Camera Touch the icon to enter camera mode and the interface is shown as follows:

91. Touch the icon in the middle to take photo

2. Move the icon on bottom and you can switch camera mode to

camera recording mode.

3. Touch the icon on the top right to see the previous picture and you

can also delete, share, set it as the wallpaper. Click return button to exit camera interface.

4. Touch the icon to select back or front camera.

Trouble Shooting Close Application All running applications take up system memory and will slow down system response. Please shut down all idle applications to release memory and get the system speed back to normal. To close the application, click the icon on the shortcut bar to enter the system configuration interface. Select the Application → Running services and the interface is shown as follows:

10Tap the application you want to close. A pop-up window will be displayed. Tap “Stop” to close that application.

1. Press and hold the power button for 5 seconds and the device will be

2. Press the reset button on the back and the device will be forced to be

powered off. Restore Default Setting If you want to reset the factory setting and erase all materials, please press Settings → Backup & Reset → Factory data reset. ** Warning: Factory data reset setting will delete your data and configuration of system and applications from downloading. **Please use this function carefully. Recovery Mode: How to enter in recovery mode. Please follow these steps. 1-To enter in the recovery mode first you should power off the device, 2-Then long-press the “ON-OFF” key and “Return” Key at the same time until the Recovery mode has appeared, pls try it. 3-After a new menu will appear and then you must use the touch panel to select “Wipe data/ factory reset” then press “Power” and then select “Yes delete all user data” Then press “power” again. The unit will then begin the recovery mode.(this process may last for a few minutes). 114-When it finishes select “reboot system now” press the “power button” and the unit will re-start itself. (this process may last for a few minutes) How to download the software using the unit. IMPORTANT: When you download the software, all data will be deleted as photos, videos and Apps that you have been installed. Do not interrupt this process please make sure the battery is fully charged. Please, follow these steps.

1- Open browser and search and open this link:

2- Select the model of the tablet that you have and download the

software.(This software is installed In the INTERNAL SD).

3- When it finished the download, select the App " Update " in your unit.

4-Select "Local Update", "Download". 5-Select the software / download and wait until the process is finished.

12Warranty conditions - The warranty of this product is for 2 years since the purchase date. - The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company. - For any request regarding the warranty terms, the purchase receipt must be attached. Correct disposal of this Product (Waste Electrical & Electronic Equipment(WEEE) Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.Please help us to conserve the environment we live in!1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty

3. DO NOT place the device on an

5. DO NOT expose the device to strong

magnetic or electrical field.

6. DO NOT expose the device to directsunlight as it can damage the device. Keep it away from

7. DO NOT store your device in

temperatures higher than 40°C(104°F). The internal operating temperature for this device is from 20°C(68°F) to 60°C(140°F).

8. DO NOT use the device in the rain.

9. Please check with your Local

Authority or retailer for proper disposal of electronic products.

10. The device and adaptor may

product some heat during normal operation of charging. To prevent discomfort or injury from heat exposure, DO NOT leavethe device on your lap.

11. POWER INPUT RATING:

Refer to the rating label on the device and be sure that the power adaptor complies with the rating. Only use accessories specified by the manufacturer.

12. Clean the device with a soft cloth.

If needed, dampen the cloth slightly before cleaning. Never use abrasives or cleaning solutions.

13. Always power off the device to install

or remove external devices that do not support hot-plug.

14. Disconnect the device from anelectrical outlet and power off before cleaning the

Only a certified service technician should perform repair.

16. The device has apertures to

disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

17. Risk of explosion if battery

replaced by an incorrect type. Dispose of used batteries according to the instruction.18. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.TAB97DC Tablet PC
