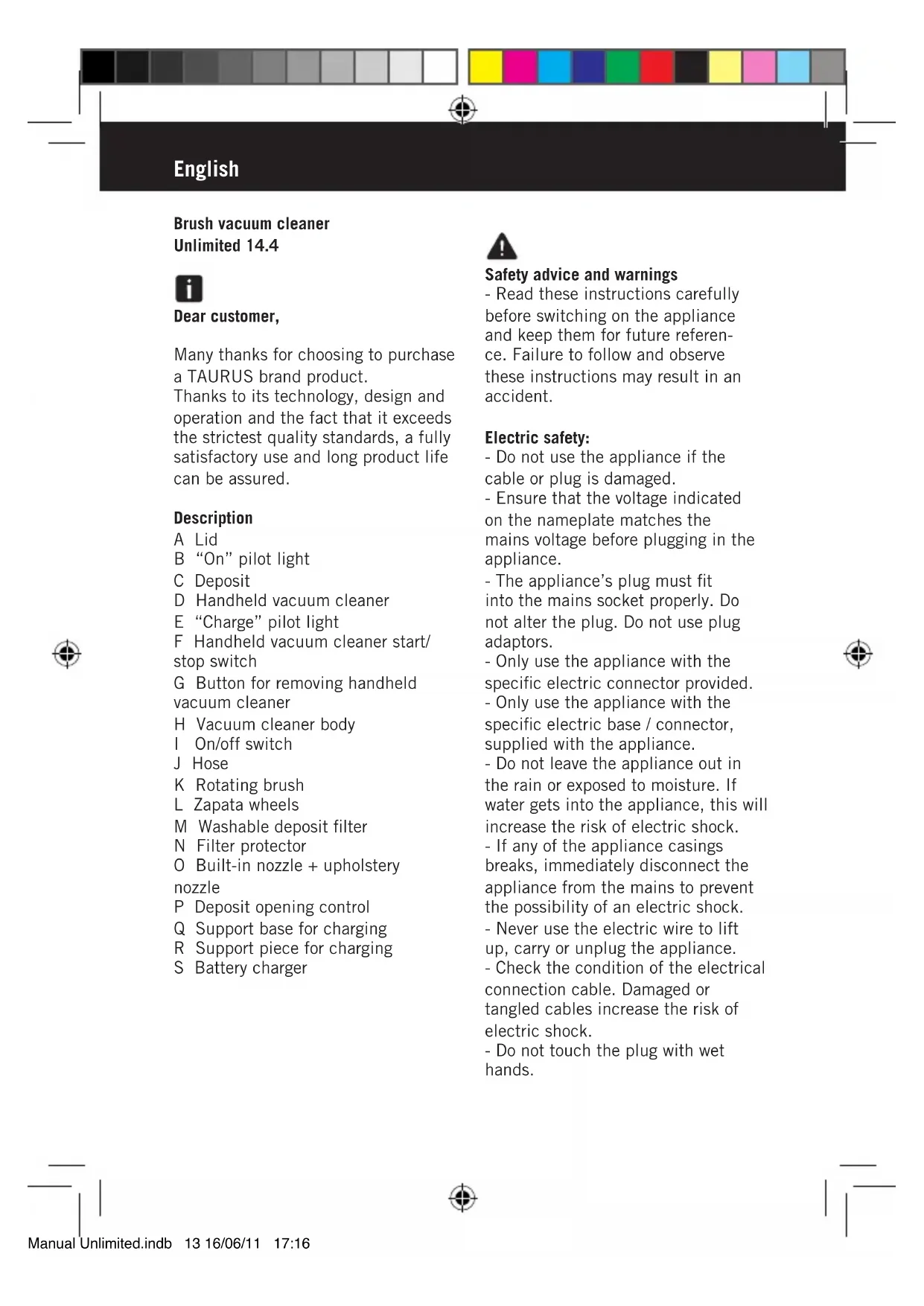

USER MANUAL Unlimited 14.4 TAURUS

Brush vacuum cleaner

professional o industrial.

Brush vacuum cleaner

Many thanks for choosing to purchase

a TAURUS brand product.

Thanks to its technology, design and

operation and the fact that it exceeds

the strictest quality standards, a fully

satisfactory use and long product life

D Handheld vacuum cleaner

E “Charge” pilot light

F Handheld vacuum cleaner start/

G Button for removing handheld

H Vacuum cleaner body

O Built-in nozzle + upholstery

P Deposit opening control

Q Support base for charging

R Support piece for charging

Safety advice and warnings

- Read these instructions carefully

before switching on the appliance

and keep them for future referen-

ce. Failure to follow and observe

these instructions may result in an

- Do not use the appliance if the

cable or plug is damaged.

- Ensure that the voltage indicated

on the nameplate matches the

mains voltage before plugging in the

- The appliance’s plug must fit

into the mains socket properly. Do

not alter the plug. Do not use plug

- Only use the appliance with the

specific electric connector provided.

- Only use the appliance with the

specific electric base / connector,

supplied with the appliance.

- Do not leave the appliance out in

the rain or exposed to moisture. If

water gets into the appliance, this will

increase the risk of electric shock.

- If any of the appliance casings

breaks, immediately disconnect the

appliance from the mains to prevent

the possibility of an electric shock.

- Never use the electric wire to lift

up, carry or unplug the appliance.

- Check the condition of the electrical

connection cable. Damaged or

tangled cables increase the risk of

- Do not touch the plug with wet

Manual Unlimited.indb 13 16/06/11 17:16Use and care:

- Do not use the appliance if its

filter(s) are not correctly in place.

- Do not use the appliance if the

accessories or parts are not fastened

- Do not use the appliance to vacuum

up water or any other type of liquid.

- Do not use the appliance if the on/

off switch does not work.

- Do not force the appliance’s work

- Disconnect the battery charger from

the mains when not in use and before

undertaking any cleaning task.

- This appliance is for household use

only, not professional or industrial

- Children should be supervised to

ensure that they do not play with the

- Ensure that this product is not used

by the disabled, children or people

unused to its handling.

- This appliance should be stored

out of reach of children and/or the

- Make sure that dust, dirt or other

foreign objects do not block the fan

grill on the appliance.

- Never vacuum hot or sharp objects

(cigarette butts, ash, nails, etc.).

- Do not open the battery/ies under

any circumstances whatsoever.

- The battery/ies should be stored at a

temperature of below 40ºC.

- Any misuse or failure to follow

the instructions for use renders the

guarantee and the manufacturer’s

liability null and void.

Assembling the base:

-Couple the charging support piece to

the charging support base. (Fig. 1)

- The charging base must be fixed to

the wall using two screws. Once the

screws are in place, insert the char-

ging base onto them to secure it.

Charging the battery

The new battery does not come com-

pletely charged and must be charged

up to the maximum before using the

appliance for the first time.

- Charge the battery at room tempera-

ture between 4 and 40ºC.

- Plug the charger into the mains.

- Approximately 6 to 8 hours are

needed for a complete charge of the

battery. Never attempt to over charge

the battery (although it is recommen-

ded that the first charge of the battery

be of 10 hours in duration).

- While the battery is charging, the pi-

lot light will come on indicating that

the charger is charging the battery.

- When the battery is charged dis-

connect the charger from the mains

Do not use the appliance while it is

connected to the charger.

Instructions for use

- Before using this product for the

first time, it is important to make a

full charge of batteries.

Manual Unlimited.indb 14 16/06/11 17:16Use:

- Remove the appliance from its

- Turn the appliance on using the on/

- The “On” pilot light will light up

- To use the handheld vacuum

- Uncouple the handheld vacuum

- Turn the appliance on using the on/

- To use the nozzle attached to the

handheld vacuum cleaner, remove the

- When you have finished using it,

press the nozzle accessory button to

return it to its place.

Once you have finished using the

- Turn the appliance off, using the on/

- Replace the appliance on its char-

- Disconnect the charger from the

mains and let it cool before underta-

king any cleaning task.

- Clean the equipment with a damp

cloth with a few drops of washing-up

liquid and then dry.

- Do not use solvents, or products

with an acid or base pH such as blea-

ch, or abrasive products, for cleaning

- Do not submerge the appliance in

water or any other liquid, or place it

under a running tap.

Emptying the dust box:

- Empty the vacuum deposit when

dust is visible though the transparent

walls, when it is full, or when the

vacuum cleaner does not work to its

- Uncouple the handheld vacuum

- Press the deposit opening control.

- Remove the cloth filter and its

- Empty the contents into a suitable

- Check the condition of the filters

before replacing them.

Changing the filters:

- Deposit filter machine-washable, but

we recommend changing annually.

- Uncouple the handheld vacuum

- Press the deposit opening control.

- Remove the cloth filter and its

- To reassemble the filter, proceed

with the above instructions, in reverse

- Supplies can be acquired from

distributors and authorised establish-

ments (such as filters, etc. ) for your

- Always use original supplies, desig-

ned specifically for your appliance

Manual Unlimited.indb 15 16/06/11 17:16Anomalies and repair

- Take the appliance to an authorised

technical support service if problems

arise. Do not try to dismantle or repair

without assistance, as this may be

- If the connection to the mains has

been damaged, it must be replaced

and you should proceed as you would

in the case of damage.

Ecology and recyclability of the product

- The materials of which the packa-

ging of this appliance consists are

included in a collection, classification

and recycling system.

- The product does not contain

concentrations of substances that

could be considered harmful to the

This symbol means that in

case you wish to dispose of

the product once its working

life has ended, take it to an

authorised waste agent for

the selective collection of

waste electrical and electronic

This symbol means that

the product may include a

battery or batteries; the

user must remove them

before disposing of the product.

Remember that batteries must be

disposed of in duly authorised contai-

ners. Do not dispose of them in fire.

How to remove the batteries from the

interior of the device:

It is important that the batteries are

fully discharged prior to its with-

drawal from the apparatus.

The batteries have been housed in

the handheld vacuum cleaner.

To remove the batteries, once the life

of the appliance, proceed as follows:

Open the top shell of the apparatus,

removing previously with the help of a

screwdriver fixing screws (Fig 6)

- To avoid risks of a short circuit with

a possible residual battery load, first

cut the Red wire and protect it by

using insulating tape, then proceed to

cut the Black wire proceeding in the

- Safely remove the battery from its

This appliance complies with Direc-

tive 2006/95/EC on Low Voltage and

Directive 2004/108/EC on Electro-

magnetic Compatibility.
