USER MANUAL DC 671 SWITEL

BEEP BATT. FAIBLE ON/OFF

MELODIA EST =1 MELODIA INT = 2

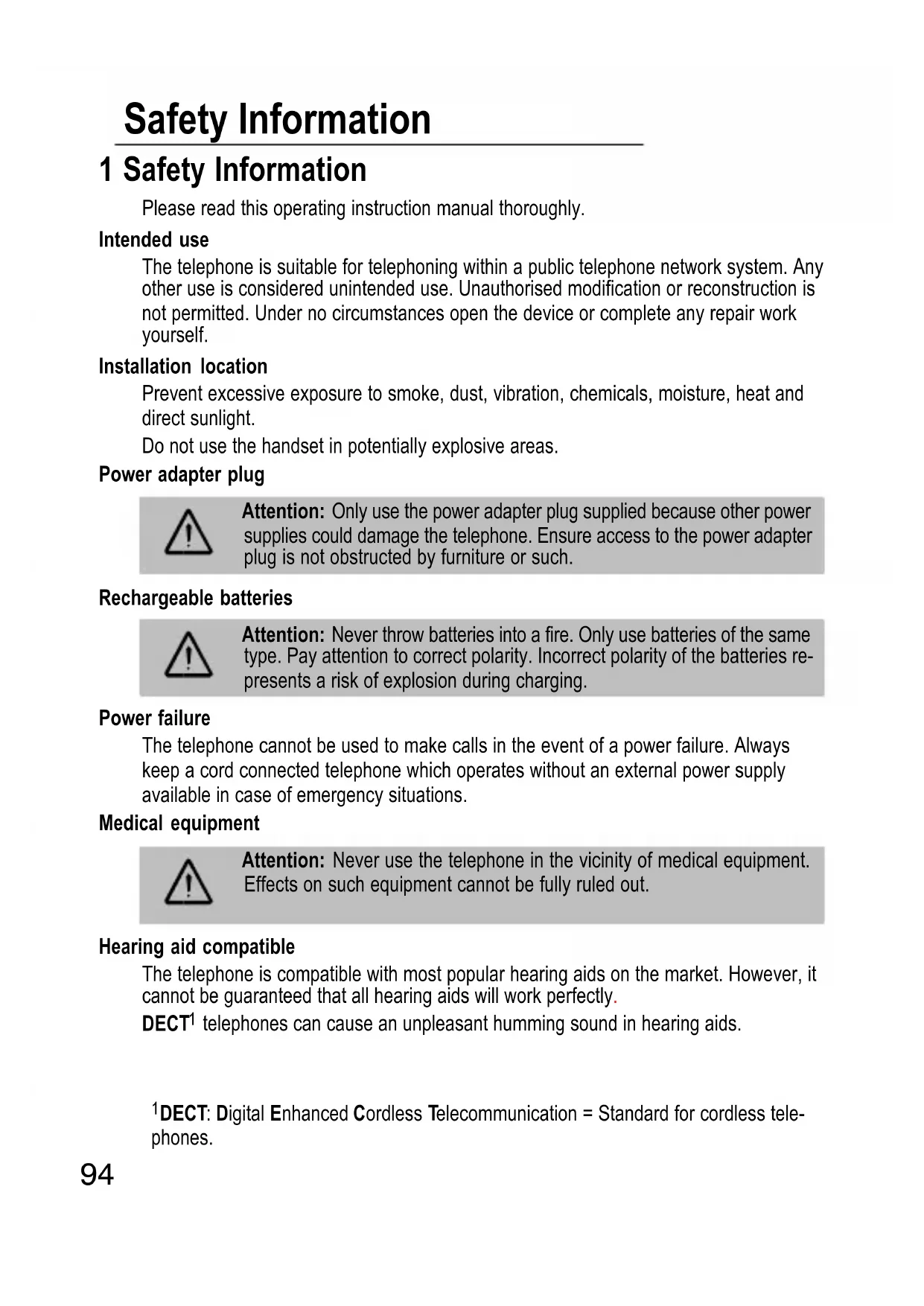

1 Safety Information Please read this operating instruction manual thoroughly. Intended use The telephone is suitable for telephoning within a public telephone network system. Any other use is considered unintended use. Unauthorised modification or reconstruction is not permitted. Under no circumstances open the device or complete any repair work yourself. Installation location Prevent excessive exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. Do not use the handset in potentially explosive areas. Power adapter plug Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such. Rechargeable batteries Attention: Never throw batteries into a fire. Only use batteries of the same type. Pay attention to correct polarity. Incorrect polarity of the batteries re- presents a risk of explosion during charging. Power failure The telephone cannot be used to make calls in the event of a power failure. Always keep a cord connected telephone which operates without an external power supply available in case of emergency situations. Medical equipment Attention: Never use the telephone in the vicinity of medical equipment. Effects on such equipment cannot be fully ruled out. Hearing aid compatible The telephone is compatible with most popular hearing aids on the market. However, it cannot be guaranteed that all hearing aids will work perfectly. DECT

telephones can cause an unpleasant humming sound in hearing aids.

DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless tele- phones.59 Preparing the Telephone

Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). The adjacent sym- bol indicates that the device must not be disposed of in normal domestic waste! According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. Batteries must be disposed of at the point of sale or at the appropriate collection points pro- vided by the public waste authorities. Packaging materials must be disposed of ac- cording to local regulations. 2 Preparing the Telephone Safety information Attention: It is essential to read the Safety Information in Chapter 1 before starting up. Checking the package contents The package contains: Content Model DC67x

Base station with power adapter plug 1 1 1 1 Charging station with power adapter plug − 1 2 3 Handset 1 2 3 4 Telephone connection cable 1 1 1 1 Batteries 2 4 6 8 Operating instructions 1 1 1 1

Visit www.switel.com to find out whether the telephone/telephone set is already avail- able.Preparing the Telephone

Connecting the base station Attention: Position the base station at least 1 m away from other electronic devices, otherwise there is a risk of mutual disturbance. Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone connection cable supplied with the product. Telephone line socket Mains power outlet For the base station, use the power adapter plug labelled with no. KG2B−060−0250D and output data 6 V, 250 mA. Inserting the batteries Insert the batteries in the open battery compartment. Only use batteries of the type AAA NiMH 1.2 V. Pay attention to correct polarity. Close the bat- tery compartment cover.60 Preparing the Telephone

Charging the batteries Before the handset is used for the first time, insert it in the base station/char- ging station for at least 16 hours. [When the handset is correctly inserted in the base station / charging station, an acous- tic signal issued.] [When the handset is correctly inserted in the base station / charging station, the charge control lamp lights up.] The handset warms up during the charging process. This is normal and does not represent a risk. Do not charge the handset with charging units from other manufacturers. The current battery charge status is indi- cated in the display: Full Half empty Low Empty Setting the display language Select the required language (also refer to Menu Structure"): > MOBILTEIL > SPRACHE >... ( > HS SETTINGS > LANGUAGE >...) The German, French, Italian, English, Spanish, Dutch and Turkish languages are available for selection. Setting the time and date on the handset The time and date are set via the menu. Refer to Page 103 for the sequence of menu option selections. Automatic answering If the Auto Talk function is activated, an incoming call is taken when the handset is re- moved from the base station. The automatic answering function is activated and deacti- vated using the menu. Refer to Page 104 for the sequence of menu option selections. Private branch exchanges The information on Page 114 explains how to install your telephone in a private branch exchange. Low−radiation operation (ECO mode) The level of radiation is considerably lower than that of standard DECT cordless telephones when in Standby mode when the handset is in the base station. In talk mode, radiation is reduced (depending on the distance between the handset and base station).Operating Elements

3 Operating Elements The buttons in this operating manual are subsequently depicted with a uniform contour. Therefore, slight deviations in the appearance of the symbols on the telephone buttons compared to those depicted here are possible. Handset 1 Receiver 2 Quick dial button M1 3 LCD display 4 Quick dial button M2 5 Headset connection 6 Delete /R button 7 Handsfree button 8 Digit keys 9 # button / Key lock 10 Microphone 11 Pause button 12 * button / Internal call 13 Call / On−hook button 14 Menu / OK button 15 Scroll down / Call log 16 Scroll up / Redial 17 LED Connecting the headset The headset can be connected using a connection port located on the right−hand side of the handset. Use a 2.5 mm stereo phone jack to connect the headset. There is no guarantee the headset will function properly.

Base station 1 Charging contacts 2 Operating status LED 3 Charging LED 4 Paging button 4 Preliminary Information This chapter provides basic information on using the operating instruction manual and the telephone. Description of operating sequences in the manual Display Description Displays the contour of buttons Press the button depicted briefly 2 sec. Press the button depicted for 2 seconds Enter digits or letters {} Handset rings Remove the handset from the base station Place the handset in the base station Depicts text in the display Depicts icons in the display

Icons and texts in the handset display Icon Description On: Battery charge capacity indicator. When the capacity indicator is blank, the batteries should be charged. Run−through segments: The batteries are being charged; Page 97. 1 Internally assigned call number of the handset; Page 113. 12:59 Displays the time; Page 103. A call is currently being made Page 110. You have accessed the call log. New calls have been registered in the call log; Page 108. The ringing tone has been switched off; Page 103. The handsfree facility is activated; Page 112. The key lock function is activated; Page 112. The alarm function is enabled. MESSAGE WAITING Answering machine provided in the telephone network. VMWI

− Supplementary service offered by telephone network providers; Page 115. The connection to the base station is good. Standby mode All descriptions in this operating manual assume that the handset is in Standby mode which is the case when you are not talking on the phone and if a menu is not open. Press the button, several times if necessary, to enable the Standby mode.

VMWI: Visual Message Waiting Indication = Visual indicator that new messages have been recorded.62

Navigating in the menu All the functions can be accessed via the various menus. Refer to Menu Structure Page 102 for information on how to access each respective function. Open the main menu or Select a submenu Open the submenu or Select a function Open the function or Select a setting Use the digit keys to enter numbers or letters Confirm the input Move one level back several times, if necessary Cancel the programming and saving processes and return to Standby mode Every process is automatically cancelled if there is no input within 15 se- conds. Creating phone book entries − example The way in which to navigate through the menus and select settings is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings. Open the main menu PHONEBOOK Open the phone book Skip selection of entries

Select the submenu and confirm it , Enter the name (max. 16 characters) and confirm it , Enter the phone number (max. 24 digits) and confirm itMenu Structure

5 Menu Structure Main menu Press the button to open the main menu. Then move to and select an entry using the or button and confirm your selection by pressing the but- ton. Further information on the menu and operation; Chapter 4. PHONEBOOK, select an entry / skip selection

, select an entry /, skip selection

SAVE TO PHONEBOOK NAME NUMBER

Letters are also imprinted on the digit keys. Letters, digits and special characters are entered by pressing the relevant key the respective number of times.

) is required to be able to display and store phone numbers in call log. The caller number display (CLIP) is a supplementary service of- fered by your telephone network provider. Contact your network provider for further information. For further information on the CLIP feature, refer to Page 108.

REDIAL, select entry /, skip selection

SAVE TO PHONEBOOK NAME NUMBER

SET DEFAULT CONFIRM?

For the languages available, refer to Chapter 2.66 Menu Structure

BS SETTINGS, INPUT PIN

VMWI: Visual Message Waiting Indication = Visual indication of new messages.67 Phone Book

6 Phone Book You can use the phone book to store up to 50 phone numbers together with the asso-ciated names. Always enter the area access code with the phone numbers so that incoming local calls can also be assigned to a phone book entry. When the memory capacity is used up, the message MEMORY FULLappears when an attempt is made to store anothernumber. To create space, an existing entry must first be deleted. The phone book entries are arranged alphabetically. Entering namesLetters are also imprinted on the digit keys. Letters, digits and special characters areentered by pressing the relevant key the respective number of times. Enter a space Delete characters or Moves the cursor To enter the same letter twice, press the button to enter the letter. Wait untilthe cursor skips one position forwards. Enter the letter again.Creating phone book entries Open the main menuPHONEBOOK Open the phone book Skip selection of entries ADD NEW ENTRY Select the submenu and confirm it, Enter the name (max. 16 characters) andconfirm it, Enter the phone number (max. 24 digits)and confirm it68 Phone Book

Editing phone book entries Open the main menu PHONEBOOK Open the phone book or , Select and confirm an entry or , EDIT Select the submenu and confirm it , Change the name and confirm it , Change the phone number and confirm it Deleting phone book entries Deleting an entry Open the main menu PHONEBOOK Open the phone book or , Select and confirm an entry or , DELETE RECORD Select the submenu and confirm it CONFIRM? , or Confirm the deleting process or cancel it Deleting all entries Open the main menu PHONEBOOK Open the phone book Skip selection of entries or , DELETE ALL Select the submenu and confirm it CONFIRM? , or Confirm the deleting process or cancel it69

Quick dial You can assign one phone number each to the quick dial buttons and . Storing phone numbers as quick dial numbers Enter the phone number or select one from the phonebook, redialling list or call log. 3 sec. or Assign the selection to the corresponding one−touch dialling button Entries assigned to the quick dial buttons cannot be deleted, they must be overwritten. 7 Call Log A total of 20 calls are stored in the calls log. The caller number display (CLIP

) is a supplementary service offered by your telephone network provider. The caller’s number appears in the display if the service is offered by your telephone network provider. Contact your network provider for further information. Messages in the display: UNKNOWN The phone number is received only partially or with errors. UNKNOWN Information related to the phone number is not available. This could signify an international call. PRIVATE The caller has suppressed the transmission of their phone number. Displaying numbers in the call list , or Display the call log and select an entry Press the button, several times if necessary, to switch between the Name", Number" and Received time/date" displays.

CLIP: Calling Line Identification Presentation = Displays the caller’s phone number.Call Log

Storing a phone number in the calls log in the phone book A phone number in the call list can be stored in the phone book directly. , or Display the call log and select an entry Open the menu

Select and confirm the submenu , Enter the name (max. 16 characters) and confirm it , Change the phone number and confirm it As soon as the phone number in the phone book has been saved together with a name, the name entered appears in the call list. Deleting phone numbers from the call list Deleting individual phone numbers , or Display the call log and select an entry Open the menu or , DELETE RECORD Select the submenu and confirm it CONFIRM? , or Confirm the deleting process or cancel it Deleting all phone numbers Open the call log Open the menu or , DELETE ALL Select the submenu and confirm it CONFIRM? , or Confirm the deleting process or cancel it71 Telephoning

8 Telephoning Taking a call {}, or Take the call Ending a call End the call Making a call Enter the phone number (max. 32 digits) Deletes the last digit if incorrect or Dials the phone number It is also possible to press the Call button first to obtain the dialling tone for an outside line. The digits then entered are dialled immediately. It is not possible to correct wrong digits individually using this dialling proce- dure. Redialling The telephone stores the last 10 phone numbers dialled in a redialling list. , or Open the redialling list and select an entry Dial the number Editing phone numbers on the redialling list is identical to editing phone numbers on the call log; Chapter 7. Calling back calls received Your telephone stores 20 phone numbers in a call log. , or Display the call log and select an entry Dial the number Dialling numbers from the phone book Phone numbers must have been stored in the phone book for this function;

Open the main menu PHONEBOOK Open the phone book or , Select an entry and dial the number Quick dial Phone numbers must have been stored in the phone book for this function;

3 sec. or Execute the quick dial call72 Telephoning

Making internal calls There must be two or more handsets (HS1, HS2, ...) registered on your base station in order to make internal calls free of charge. HS1: 3 sec. Activate the internal call function e.g. Dial the internal call number of the handset required HS2: Other handset answers the call HS1/HS2: End the internal call Forwarding external calls internally HS1: 3 sec. During an external call e.g. Dial the number of the internal handset HS2: Other handset answers the call HS1: Forward the call If the handset called does not answer, the external call is returned to the calling handset after 30 seconds. Making conference calls An external call can be transferred to another internal handset for a conference call. HS1: 3 sec. During an external call e.g. Dial the number of the internal handset HS2: Other handset answers the call HS1: 3 sec. Start the conference HS1 / HS2: End the conference Setting the receiver volume The volume can be adjusted to one of 5 levels during a call. or Select a volume level Boost mode There are further boosted volume levels in addition to the 5 basic levels;

Chapter 5. Activate the boost level required to be able to use it.

BOOST MODE Function OFF Only volume levels 1−5 are available

Internal calls are only possible when at least two handsets are registered in the system; Checking the contents of the package" on Page 95.73

ON, LOW Additional low boost can be selected ON, MEDIUM Additional low and medium boost can be selected ON, HIGH Additional low, medium and high boost can be selected AUTO Press for 2 sec., the loudest setting is automatically selected Displaying the duration of a call The duration of a call is displayed in hours, minutes and seconds during the call. Handsfree This function is used to listen to the caller via the loudspeaker. Enables handsfree conversation Disables handsfree conversation Muting the microphone in the handset The microphone in the handset can be activated and deactivated during a telephone conversation. 3 sec. Switch the microphone off (muting) 3 sec. Switch the microphone on Key lock The key lock feature prevents functions assigned to buttons being activated acciden- tally. 3 sec. Locks the keys Incoming calls can still be taken in the normal way even when the key lock function is activated. 3 sec. Unlocks the keys Searching for the handset (Paging) If you have mislaid your handset, you can sound a paging tone to find it. Base station , Sound the paging tone or Stops sounding the paging toneExtending the Telephone System

9 Extending the Telephone System The internationally approved GAP

standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate SWITEL devices and devices from other manufacturers together in one telephone sys- tem. It is possible, however, that some functions are not available. Multiple handsets Up to 6 handsets can be registered on the base station. Registering handsets Before starting to register a handset, switch the base station to Registration mode. 15 sec. Enables the Registration mode Now register the handset; Chapter 5. Use your current PIN code, Chapter 5, to register it. The handset is automatically assigned an internal call number following registration. The internal call number appears in the display. To register handsets from other manufacturers, please refer to the opera- ting manual supplied with them. Deregistering handsets A handset can only be deregistered from a base station by using another handset registered to the same base station. Handsets are deregistered via the menu. Chapter 5 indicates the position in the menu.

GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from different manufacturers.Special Functions

Multiple base stations You can increase the range of your handset by registering it on several base stations. The handset can be registered on up to 4 different base stations simultaneously. Each base station requires its own telephone line socket. Connections can be used with the same call number or with different ones. Calls in progress cannot be transferred from one base station to another. 10 Special Functions Dialling mode The telephone can be operated in analogue exchanges (PULSE mode) as well as new, digital exchanges (TONE/DTMF mode). The dialling mode is controlled via the menu.

Chapter 5 indicates the position in the menu.

11 PABX / Supplementary Services R−button on private branch exchanges If the telephone is connected to a private branch exchange, functions such as transfer- ring calls and automatic call back can be used via the R button. Refer to the operating manual provided with your private branch exchange as to which Flash time must be set in order to use these functions. The sales outlet where you purchased the exchange can provide information as to whether the telephone will work properly with the ex- change. The Flash time is set using the menu. Chapter 5 indicates the position in the menu. Dialling pause When using private branch exchanges, it is necessary to dial an access code to obtain the dialling tone for an outside line. When using some older private branch exchanges, it takes a little time before the dialling tone becomes audible. In the case of such private branch exchanges, a dialling pause can be inserted after the number for an outside line in order to continue dialling directly without having to wait for the dialling tone. The dial- ling pause is inserted by pressing and holding the button for 3 seconds. The actual phone number is dialled a certain time after the number for an outside line. The dialling pause can also be entered with the phone numbers in the phone book.76 In Case of Problems

R−button and supplementary services Your telephone supports supplementary services provided by your telephone network provider, such as brokering, call waiting and conference facilities. These supplementary services can be used by implementing the R button. Please contact your telephone network provider regarding which Flash time must be set to use the supplementary ser- vices. Contact your telephone network provider with regard to enabling supplementary services. The Flash time is set using the menu. Chapter 5 indicates the position in the menu. Caller number display (CLIP

The caller number display (CLIP) is a supplementary service offered by your telephone network provider. Contact your network provider for further information. If this function is available with your telephone line, the number of the caller appears in the display when the phone rings. If the caller has suppressed transmission of his phone number, the corresponding message appears in the display. The phone number is not displayed and, as a result, is not stored in the call list. Answering machine in the telephone network An answering machine in the telephone network is a supplementary service offered by many telephone network providers. If your telephone network provider offers an answering machine in the telephone network for you, an icon on the display informs you of new messages received (VMWI

). This function can only be used when your tele- phone network provider actually offers the service. Contact your network provider for further information. You can switch the new message indicator icon off. Refer to Chapter 5, VMWI OFF?. 12 In Case of Problems Service Hotline Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can contact our hotline service, Tel. [phone] within Switzerland (Swisscom fees at time of going to print: CHF 2.60/min). In the case of claims under the terms of guarantee, please contact your sales outlet. The period of guaranteeis 2 years.

CLIP: Calling Line Identification Presentation = Displays the caller’s phone number.

VMWI: Visual Message Waiting Indication = Visual indicator that new messages have been recorded.In Case of Problems

Problems and solutions Problems Solutions No telephone calls possible − The telephone is not connected properly or is defective. Only use the telephone connection cable supplied. − Test whether the telephone connection is in order by using another telephone. − The power adaptor plug is not plugged in or there is a complete power failure. − The rechargeable batteries are empty or de- fective. − The handset is too far from the base station. − The wrong dialling mode is set; Page 105. No connection to base station poss- ible − Check that the handset has been registered on the base station with the correct PIN code; Page 105. Connection is disturbed or cut off − The handset is too far from the base station. − The base station is in an unsuitable location. The system no longer responds − Reset all the functions to their default settings; Page 104/105. − Disconnect the power adapter plug briefly from the power socket. The batteries are empty within a short time − The batteries are empty or defective. − Place the handset in the base station properly. Clean the contact surfaces on the handset and base station with a soft, dry cloth. − Place the handset in the base station for 16 hours. The caller number display (CLIP

does not function − The caller number display (CLIP) is a supple- mentary service offered by your telephone net- work provider. Contact your network provider for further information. − The caller has suppressed the transmission of their phone number.Technical Properties

Power supply (base station) Input: 230 V, 50 Hz Output: 6 V, 250 mA Power supply (charging station) Input: 230 V, 50 Hz Output: 6 V, 150 mA Range Outdoors: Approx. 300 m Indoors: Approx. 50 m Standby time Up to 100 h Max. talk time Up to 10 h Rechargeable batteries 2 x AAA NiMH 1.2 V Dialling mode Tone dialling mode Pulse dialling mode Permissible ambient temperature 10°C to 30°C Permissible relative humidity 20% to 75% Flash function 100 ms, 300 ms, 600 ms

DECT: Digital Enhanced Cordless Telecommunication = Standard for cordless tele- phones.

GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from different manufacturers.Technical Properties

BACKLIGHT SETTING = 10 sec. Base station The default settings can be restored via the menu. Refer to Page 105 for the sequence of menu option selections.

BASE MELODY = 1 BASE VOLUME = 2

DIAL MODE = TONE PIN = 0000

Declaration of Conformity This device fulfils the requirements stipulated in the EU directive: 1999/5/EC directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above mentioned directive is confirmed by the CE symbol on the de- vice. To view the complete Declaration of Conformity, please refer to the free download available on our web site www.switel.com .Maintenance / Guarantee

14 Maintenance / Guarantee Maintenance Clean the housing surfaces with a soft, fluff−free cloth. Do not use any cleaning agents or solvents. Guarantee SWITEL equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble−free functioning and a long service life. The terms of guarantee do not apply where the cause of equipment malfunction is the fault of the telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase. All deficiencies related to material or manufacturing errors within the period of guaran- tee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external in- fluences are excluded from the terms of guarantee. In the case of complaints, we re- serve the right to repair defect parts, replace them or replace the entire device. Re- placed parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer. If your device does show signs of a defect within the period of guarantee, please con- tact the sales outlet where you purchased the SWITEL device, producing the purchase receipt as evidence. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet. No claims under the terms of guar- antee can be asserted after a period of two years from the date of purchase and hand− over of the product.Index
