USER MANUAL CP30 SWISSVOICE

Diagram of a landline telephone with labeled components including a switch, keypad, and cord connection

Wandmontage

Technical diagram showing two views of a wall-mounted phone with labeled components and wiring connections.

CP-30 1

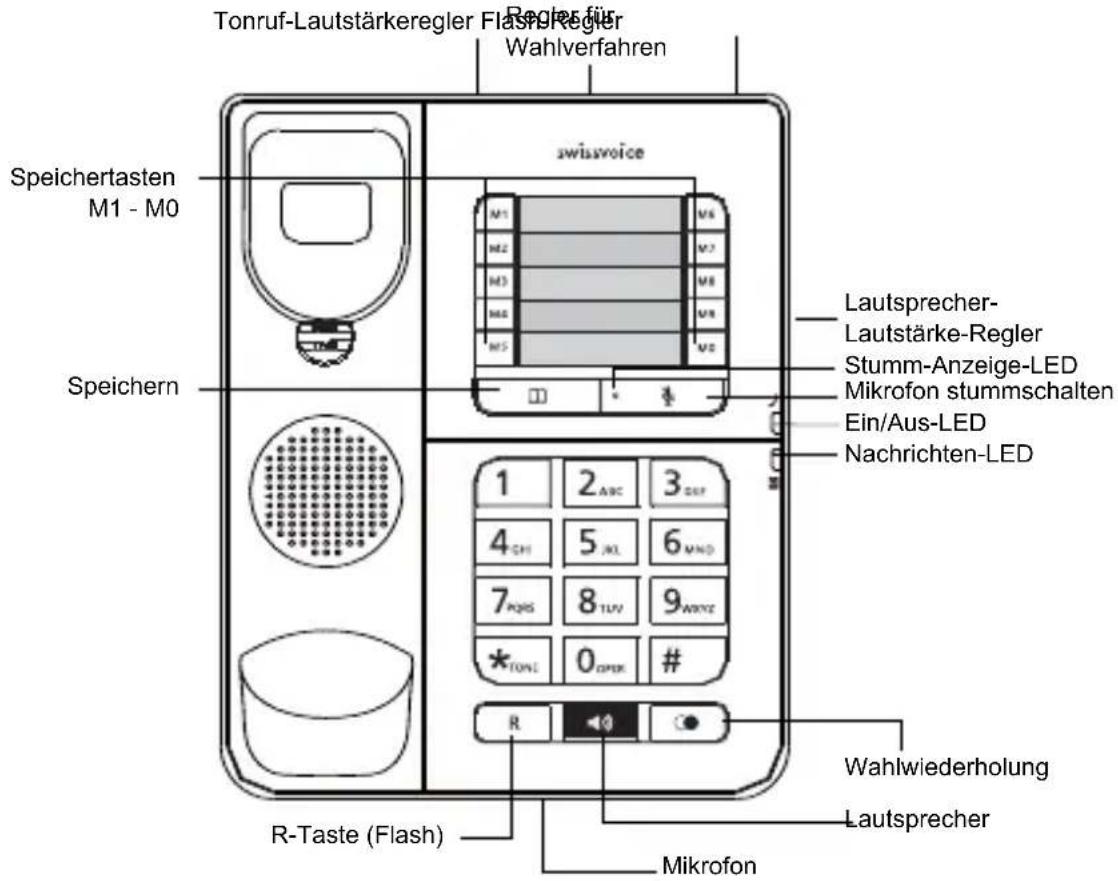

Tasten

Welcome to Swissvoice

Your CP-30 is a corded telephone designed for connection to an analog telephone network.

Please read these operating instructions carefully to familiarise yourself with and take full advantage of the benefits of your new CP-30.

Contents

Parts checklist 9

Installation 9

Telephone keys 10

Telephone configuration 10

Phone operation 11

Safety instructions 13

Appendix 13

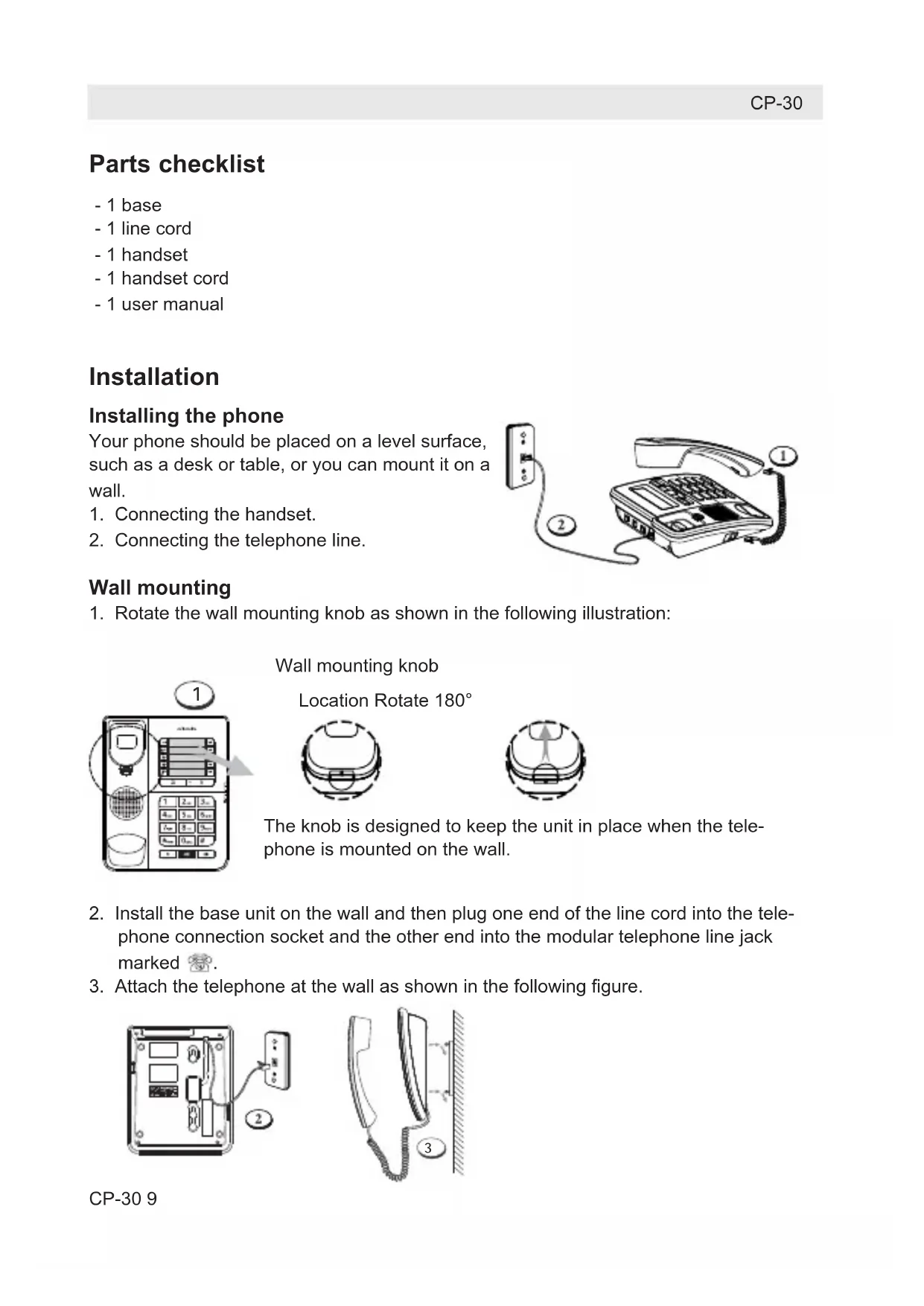

Parts checklist

• 1 base
• 1 line cord
• 1 handset
• 1 handset cord
• 1 user manual

Installation

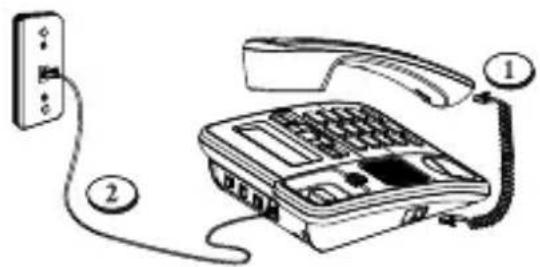

Installing the phone

Your phone should be placed on a level surface, such as a desk or table, or you can mount it on a wall.

1. Connecting the handset.
2. Connecting the telephone line.

Diagram of a telephone handset with labeled parts, showing connections between the handset and a power outlet.

Wall mounting

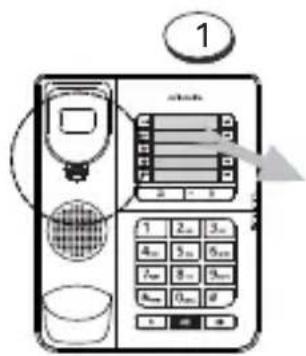

1. Rotate the wall mounting knob as shown in the following illustration:

1 chakes 1 2 3 4 5 6 7 8 9 8 0 1 + - +

Wall mounting knob

Location Rotate 180^

The knob is designed to keep the unit in place when the telephone is mounted on the wall.

1. Install the base unit on the wall and then plug one end of the line cord into the telephone connection socket and the other end into the modular telephone line jack marked 📋.

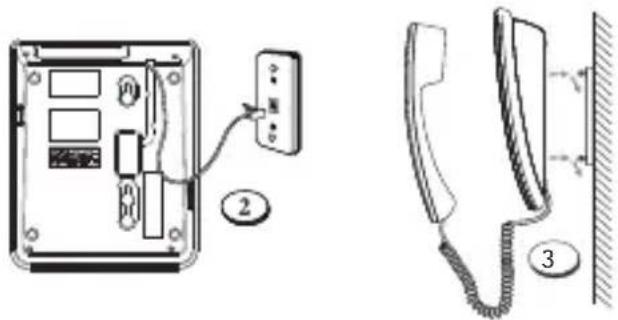

2. Attach the telephone at the wall as shown in the following figure.

Technical diagram showing two views of an electronic device: one with a cable and labeled connection, the other with a telephone handset and labeled connection.

CP-30 9

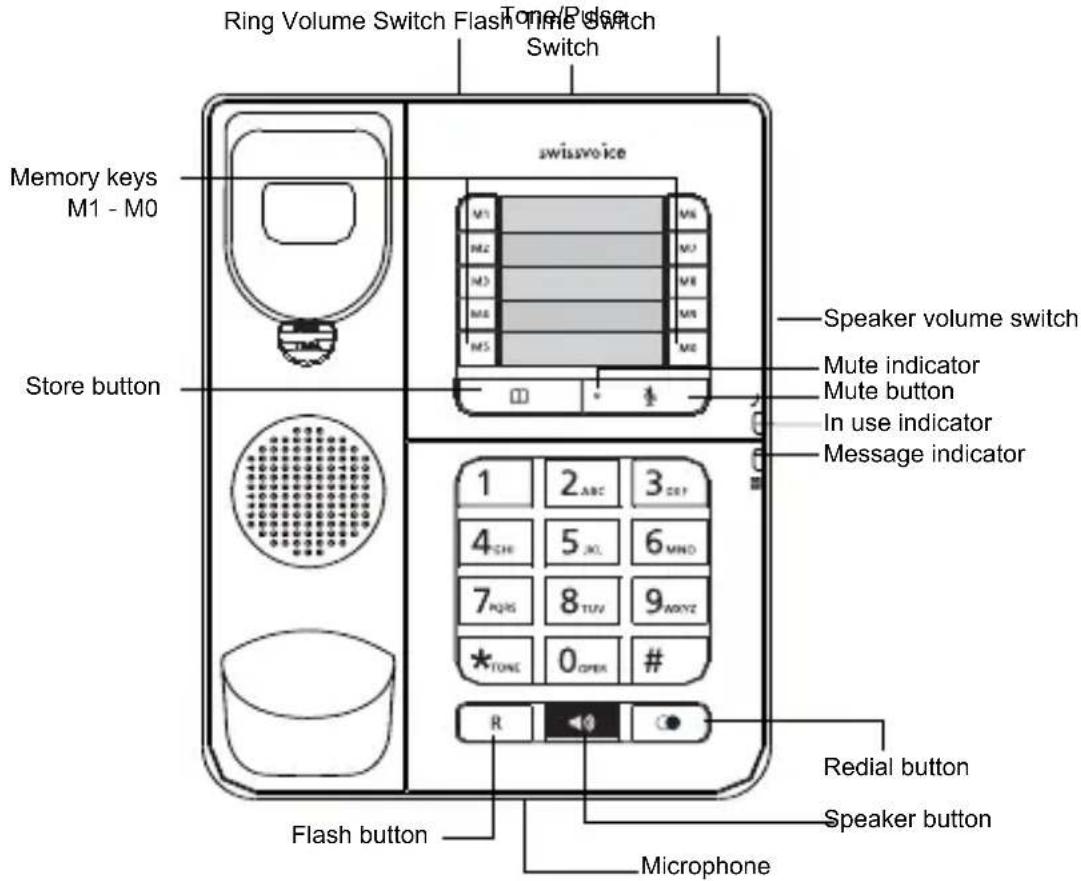

Telephone keys

Ring Volume Switch Flash Time Switch Switch Swissvoice M1 - M0 Memory keys Store button Speaker volume switch Mute indicator Mute button In use indicator Message indicator 1 2 ABC 3 CEP 4 CH 5 XL 6 MNO 7 PQIS 8 TUV 9 AXYZ * TONE 0 OPEN # R Flash button Redial button Speaker button Microphone

Telephone configuration

Note : Immediately change the following factory settings.

Speaker volume level adjustment

You can adjust the speaker volume level using the switch on the right side of your telephone.

Ringer volume level

The phone will ring when there is an incoming call. You can set the ringer volume to high, middle or low level. The ringer volume switch is indicated in the following illustration under A.

Pulse tone setting

You can select P (PULSE) or T(TONE) dialing mode according to the requirements from the local telephone operator. The T/P switch is indicated in the following illustration under B.

Flash time setting

You can use the Flash feature to access services provided by your telephone operator. The Flash time is dependent on the local telephone exchange. You can change the setting using the switch indicated in the following illustration under C.

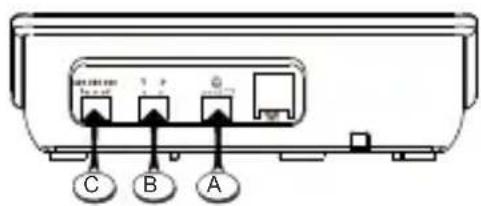

C B A

A - Ringer Volume Switch
B - Tone/Pulse Switch
C - Flash Time Switch

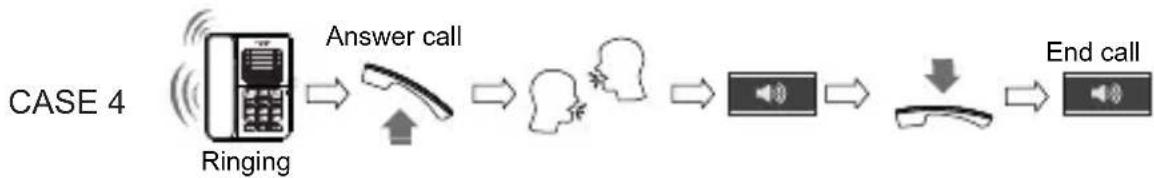

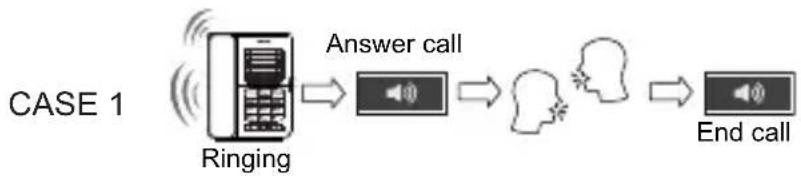

Phone operation Receiving a phone call


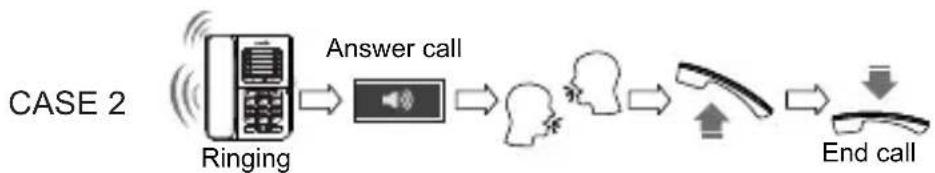

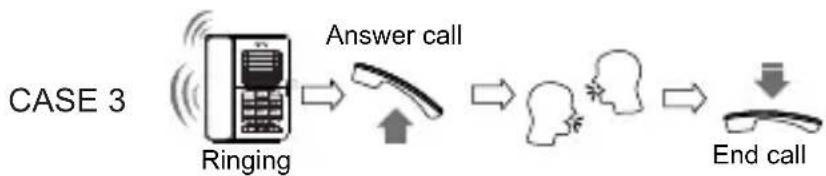


Making a phone call

Redial

Mute

In off-hook state, the user can press the button to activate the mute function. When MUTE is on, the MUTE indicator will light up. Press the button to deactivate the mute function and resume normal conversation.

Access telephone operator services

During conversation, press button to interrupt momentarily the telephone conversation and to access your telephone operator's services.

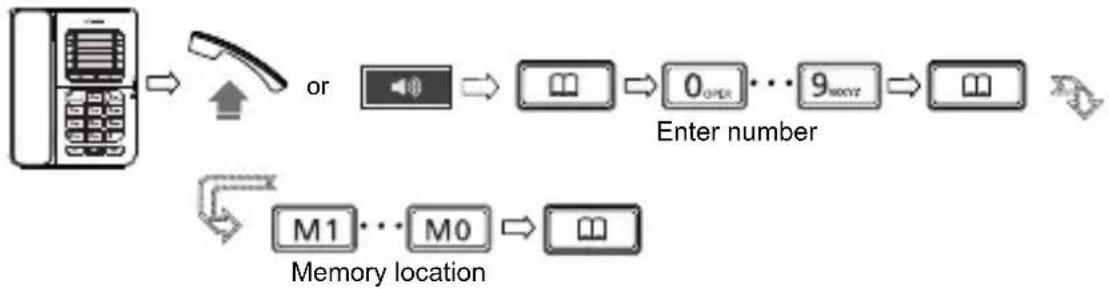

Storing / editing a telephone number


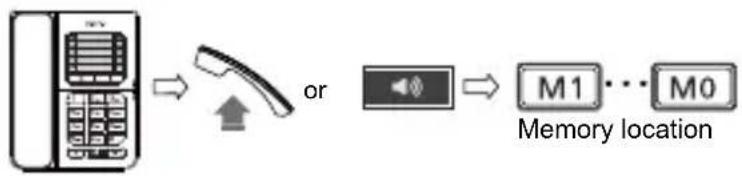

Dialing a memory location

Safety instructions

Please observe the following instructions:

- Place the phone at the appropriate distance:

– from sources of heat,
– from direct sunlight,
– from other electrical appliances.

• Protect your phone from damp, dust, aggressive liquids and steam.
• Connect the cables only using the sockets provided.
• Connect only approved accessories.
• To clean the phone, use only a slightly damp cloth.
• Do not use your phone in damp rooms (for example, in the bath).

Appendix

Care

Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care.

To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth.

Recycling (environmental protection)

At the end of the product's life cycle, the telephone must not be disposed of in normal domestic waste. Please take it to a collection point for processing electrical and electronic equipment: see symbol on the product, in the user manual and/or packaging.

Some materials used in this product can be recycled if you take it to a recycling depot. By recycling parts or raw materials from used products you will be making an important contribution to environmental protection. Please contact your local authority if you require information about collection points in your neighbourhood.

Warranty conditions

Your telephone is subject to a guarantee from the date of purchase in accordance with the legal provisions of the country in which the telephone was purchased. As evidence of the date of purchase, please keep the receipt or the warranty card completed by the retailer. All defects attributable to material and manufacturing faults will be corrected free of charge within the warranty period, either by repairing or replacing the defective equipment.

The warranty does not cover expendable materials, defects which affect the value or use of the equipment only insignificantly, and damage caused by incorrect use, ordinary wear and tear, or manipulation by third parties.

This warranty does not cover consequential damage caused by the use, failure or defectiveness of the product. In particular, no liability whatsoever is accepted for damage to property and pecuniary loss.

To claim under this warranty, please contact the retailer where you purchased your telephone.

Approval and conformity

This corded analog telephone complies with the basic requirements contained in the R&TTE Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and is suitable for connection and operation in the member state indicated on the base station and/or packaging.

The declaration of conformity may be viewed at: www.swissvoice.net.

The CE symbol confirms the conformity of the telephone with the above directive.

Bienvenue chez Swissvoice

Line drawing of a telephone handset connected to a wall-mounted device via cable (no text or symbols)

Fixation au mur

Technical line drawing showing two views of an electrical panel with a cable and a telephone handset, no text or symbols present.

CP-30 17

Diagram of a landline telephone with labeled components including a switch, keypad, and cord connection

Montaggio a parete

Technical diagram showing two views of a wall-mounted phone with labeled components and wiring connections.

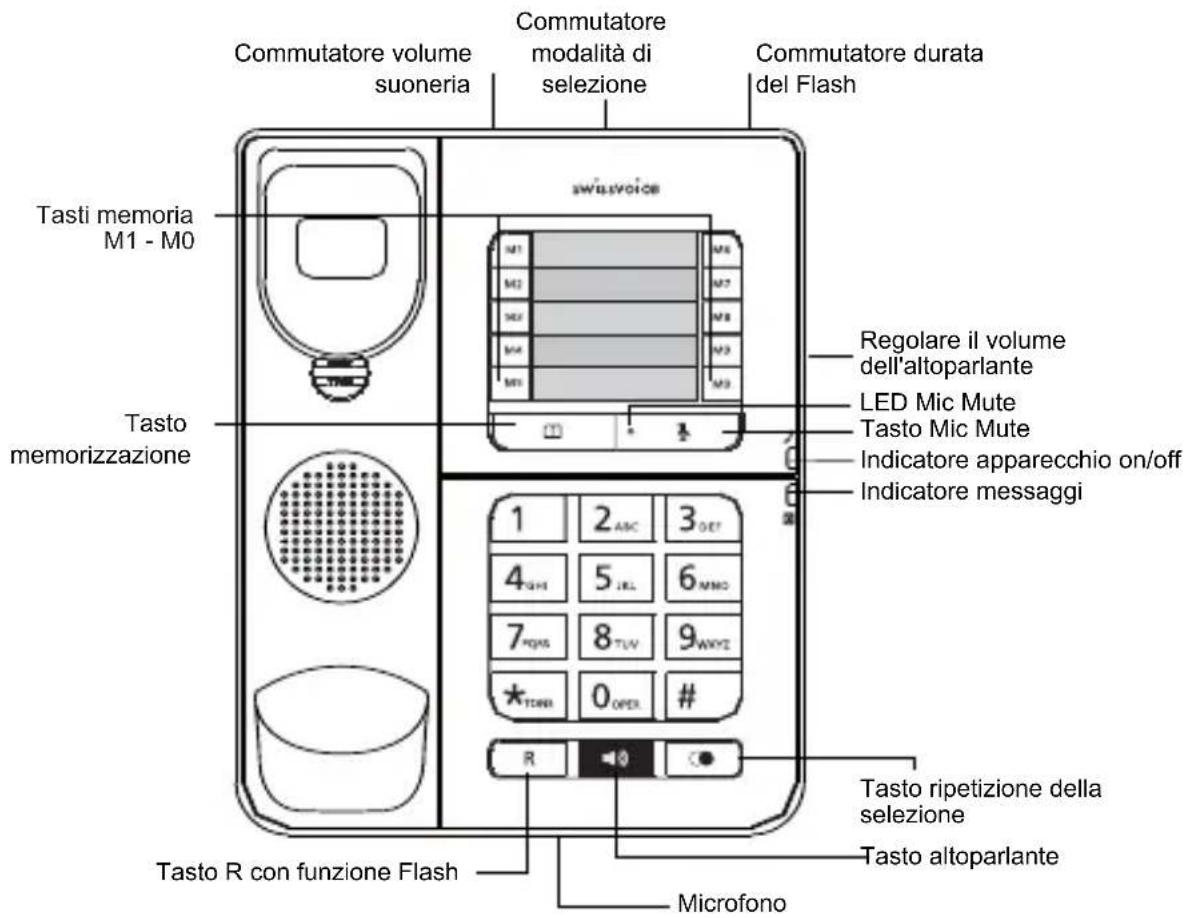

Tasti

Diagram of a landline telephone with labeled components including a switch, keypad, and cord connection

Instalación mural

Technical diagram showing two views of an electrical panel connection: one with a switch and cable, the other with a telephone handset and wiring.

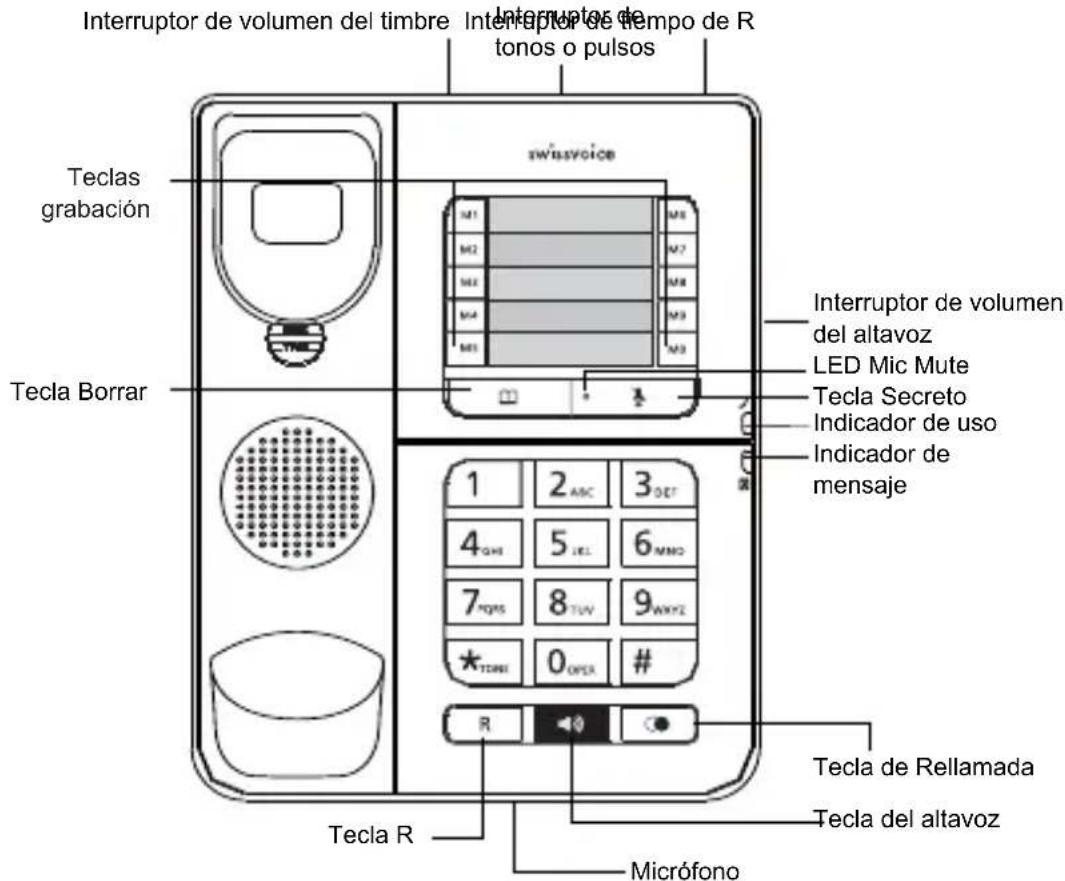

Teclas

Line drawing of a telephone handset with attached case load and cord (no text or symbols)

Technical diagram showing two views of an electrical panel with labeled components and connections

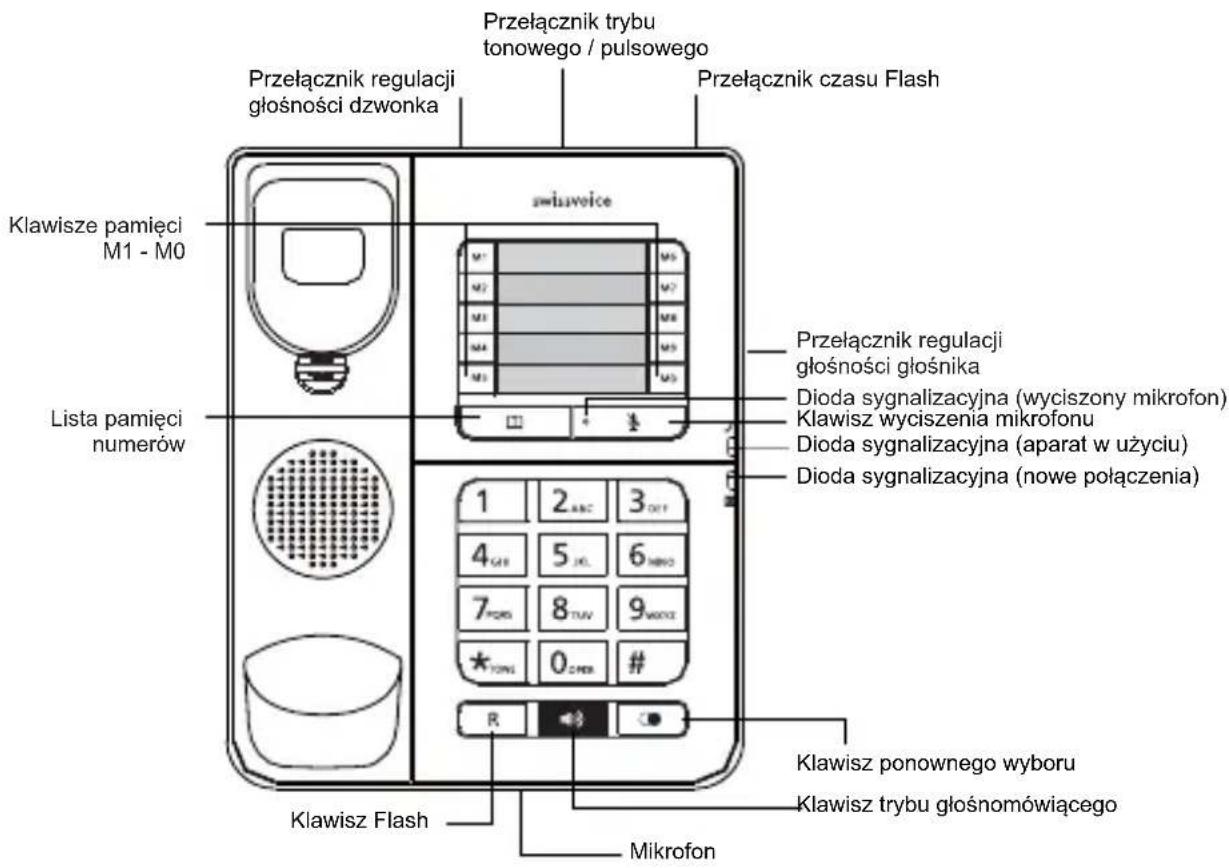

Klawisze

Warranty Certificate

swissvoice

Warranty Certificate

Garantieschein, Bon de garantie, Certificato di garanzia, Garantiebewijs, Takuutodistus, Garantibevis, Garantisedel, Garantibevis, Certificado de Garantía, Talão de garantia

device type:	(Gerätetyp, type d'appareil, tipo di apparecchio, toesteltype, laitetyppi, maskintype, apparattyp, apparattype, modelo del aparato, modelo do aparelho):
serial number:	(Seriennummer, numéro de série, numero di serie, serienummer, sarjanumero, serienummer, serienummer, serienummer, número de serie, número de série):
dealer's stamp:	(Händlerstempel, sceau du vendeur, timbro del rivenditore, stempel van de dealer, kauppiaan leima, forhandlerens stempel, försäljarens stämpel, forhandlerstempel, sello del comerciante. carimbo do vendedor):
dealer's signature:	(Unterschrift des Händlers, signature du vendeur, firma del rivenditore, handtekening van de dealer, kauppiaan allekirjoitus, forhandlerens underskrift, försäljarens underskrift, forhandlers underskrift, firma del comerciante, assinatura do vendedor):
date of purchase:	(Kaufdatum, date d'achat, data d'acquisto, datum van aankoop, ostopäiväys, kjøpsdato, datum för köpet, salgsdato, fecha de adquisición, data de compra):

Internet: www.swissvoice.net

© Swissvoice SA 2010 20405705xx_ba_a0 SV 20405705
