USER MANUAL SW343DPM SWANN

2424 © Swann Communications 2009 Swann Technical Support

current time in Melbourne, Australia compared to your local time.

(Su, 2pm-10pm US PT)

(M-Th, 6am-10pm US PT)

USA Exchange & Repairs

(M-F, 9am-5pm US PT)

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

These devices comply with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) These devices may not cause harmful interference, and

(2) These devices must accept any interference received, including interference

that may cause undesired operation.

IMPORTANT NOTE: Prohibition against eavesdropping

Except for the operations of law enforcement ofﬁ cers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁ cations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁ xed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

· Do not cover vents on the side or back of the DVR and allow adequate space for

Warranty Information

Swann Communications warrants this product against defects in workmanship

and material for a period of one (1) year from it’s original purchase date. You must

present your receipt as proof of date of purchase for warranty validation. Any unit

which proves defective during the stated period will be repaired without charge

for parts or labour or replaced at the sole discretion of Swann. The end user is

responsible for all freight charges incurred to send the product to Swann’s repair

centres. The end user is responsible for all shipping costs incurred when shipping

from and to any country other than the country of origin.

The warranty does not cover any incidental, accidental or consequential damages

arising from the use of or the inability to use this product. Any costs associated with

the ﬁ tting or removal of this product by a tradesman or other person or any other

costs associated with its use are the responsibility of the end user. This warranty

applies to the original purchaser of the product only and is not transferable to any

third party. Unauthorized end user or third party modiﬁ cations to any component

or evidence of misuse or abuse of the device will render all warranties void.

By law some countries do not allow limitations on certain exclusions in this warranty.

Where applicable by local laws, regulations and legal rights will take precedence.

Swann Communications USA Inc.

Building 4, 650 Church Street,

Richmond, Victoria 3121

Limited Warranty Terms & Conditions2222

Audio Output: RCA x 1, Line-Out

Display and Recording

Display Frame: NTSC: 120 fps (4 × 30 fps)

PAL: 100 fps (4 × 25 fps)

Global Recording Frame Rate: NTSC: Max. 60 fps

Video Operation Duplex : Record, Playback

Display Resolution: NTSC: 640 x 448

Recording Resolution: NTSC: 640x224

HDD Interface: SATA HDD x 1

Backup Method: USB Flash Drive, Thumbdrive (up to 2GB max)

Search Mode: Time/Date, Event

Brightness Adjust: Yes

Contrast Adjust: Yes

Recovery Mode: Auto Restore Record on power failure

DC Input: DC 12V Dimensions: 8.9” x 8.2” x 2.1”

225mm X 208mm X 53mm

Technical Specifications

Front Panel & Removable Remote 6

Connections & Installation

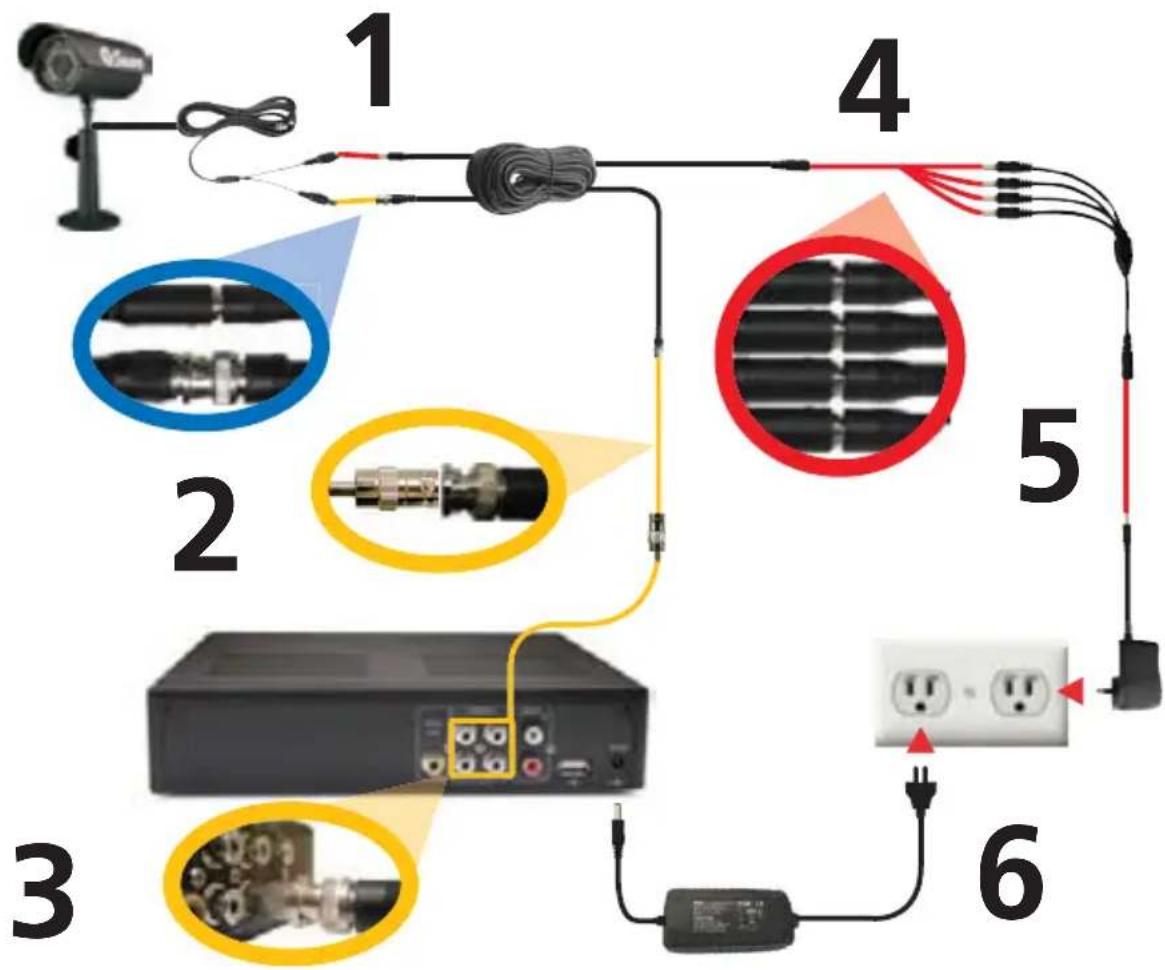

Connecting Cameras and Power Adapter 7

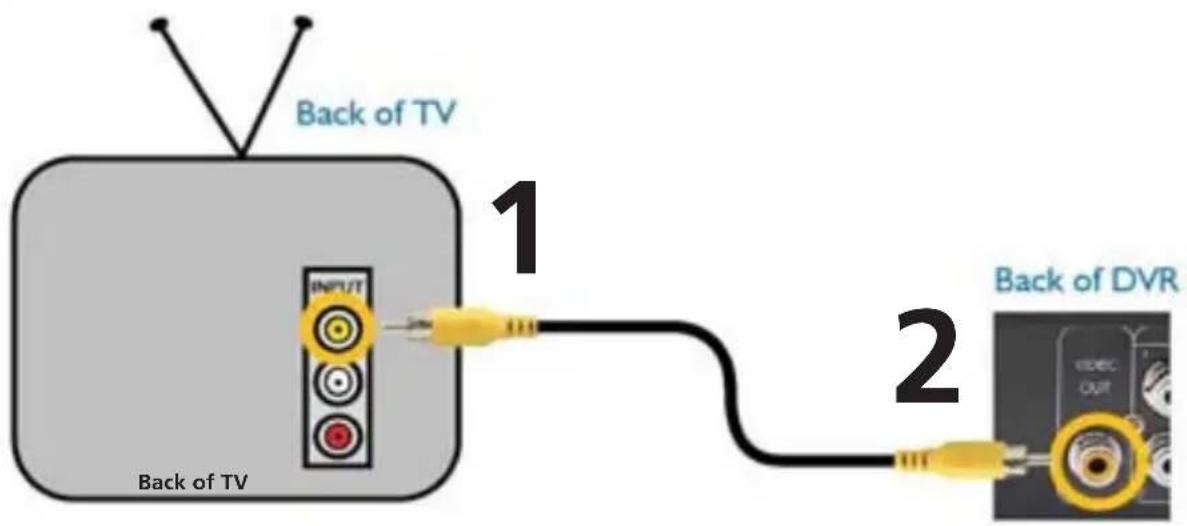

Connecting the DVR to a TV Monitor 8

Turning the DVR On/Off and Auto Recovery 8

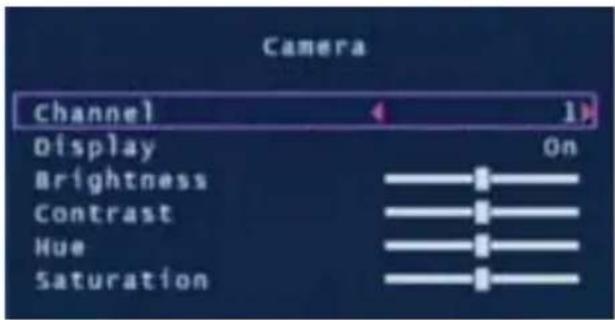

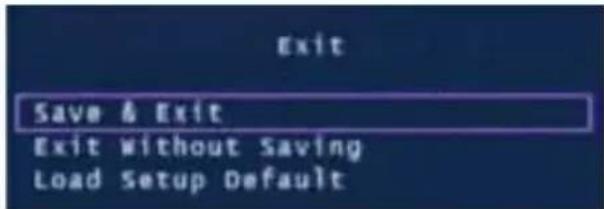

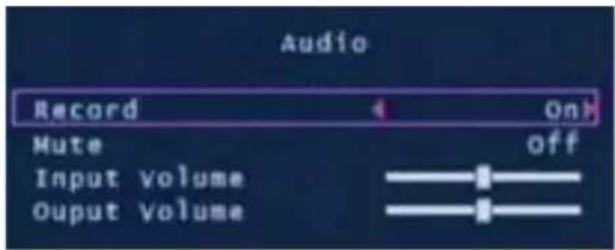

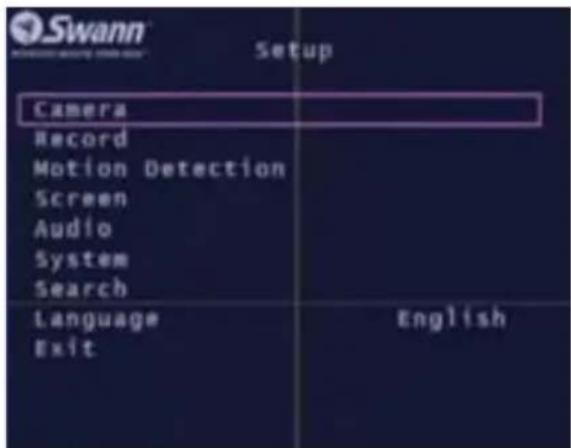

Accessing and Navigating the Menu System 9

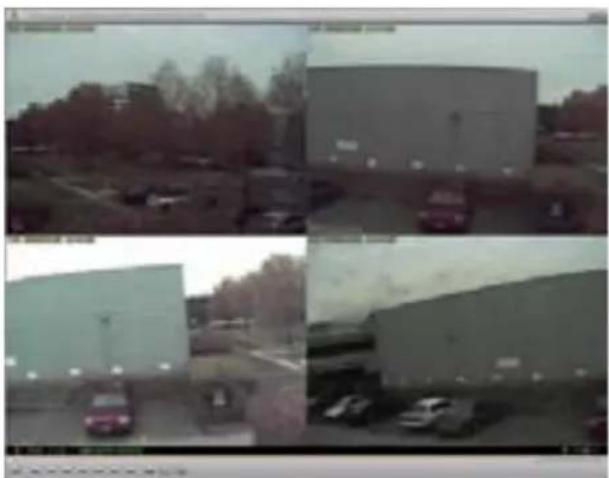

Multi Camera View 10

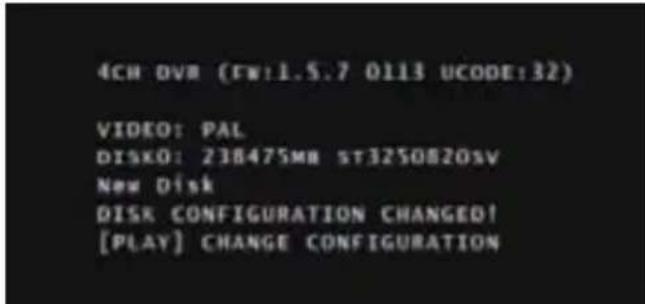

Starting the DVR With a New Hard Drive 16

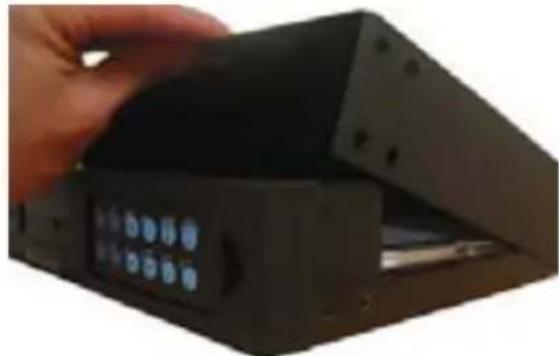

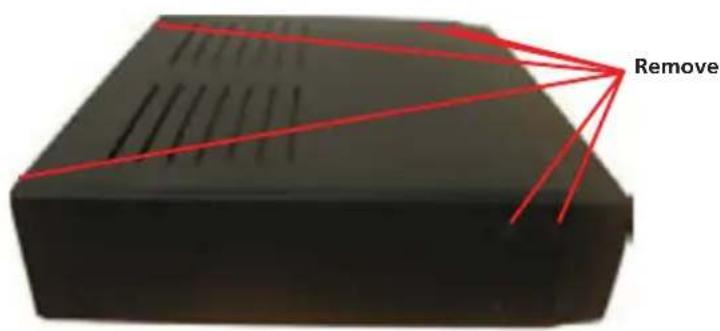

Changing the Hard Drive 17

Backing Up Footage to PC 18

Viewing Backup Footage on a PC 19

Using the VVFPlayer software 19

VVFPlayer Interface 19

Extract footage from a larger video clip 20

Technical Support Details Back cover44

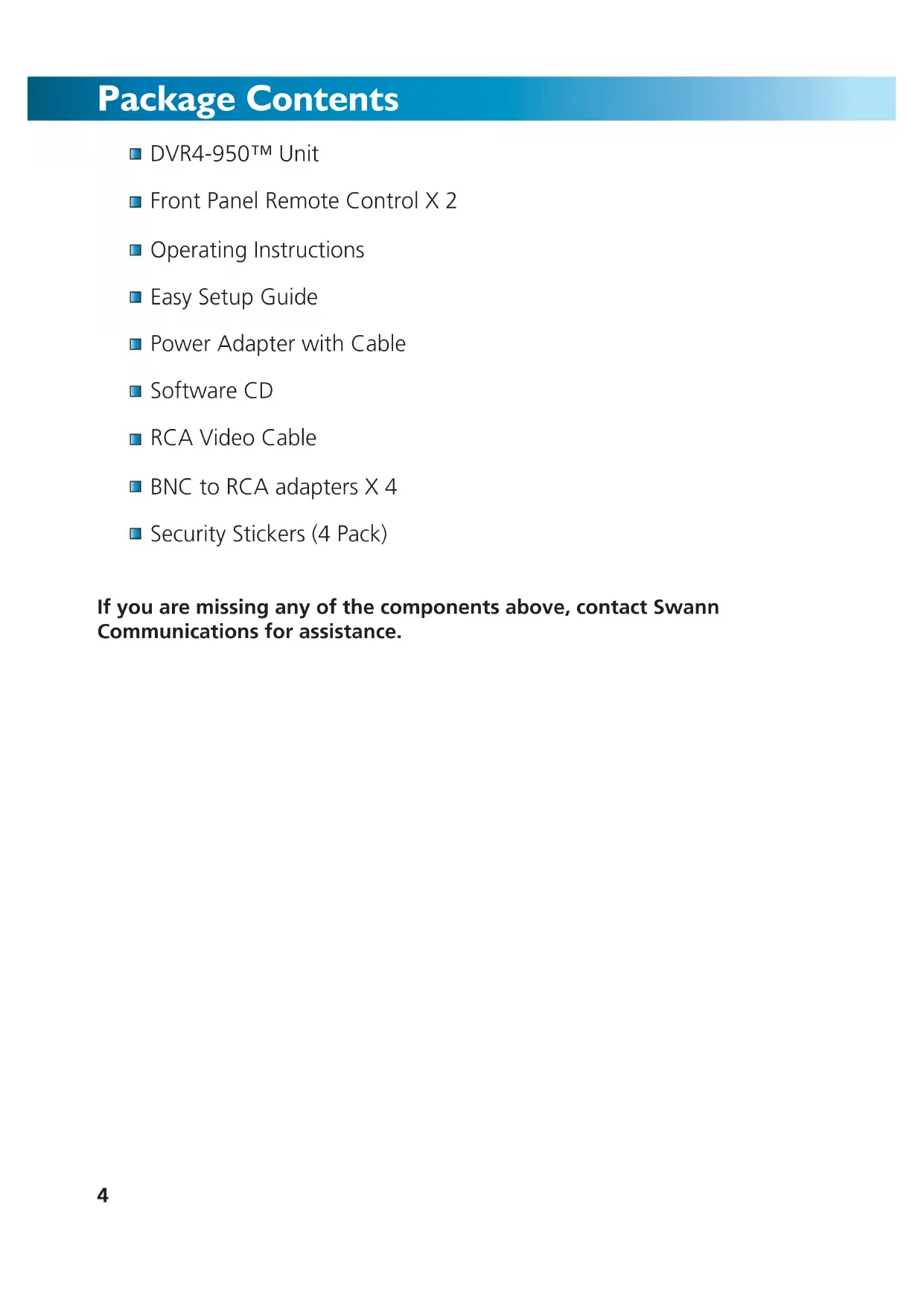

Front Panel Remote Control X 2

Operating Instructions

Power Adapter with Cable

Software CD RCA Video Cable

BNC to RCA adapters X 4

Security Stickers (4 Pack)

If you are missing any of the components above, contact Swann

Communications for assistance.

Problem: The Power light keeps blinking red.

Ensure you are using the correct Power Adapter provided for the DVR.

If you have purchased the DVR as part of a kit, make sure the cameras are oper-

ating on a separate Power Adapter. The larger power adapter with higher amps

is designed speciﬁ cally for the DVR.

Problem: The hard drive is not working.

Solution: Ensure the DVR is using the correct Power Adapter supplied. Open

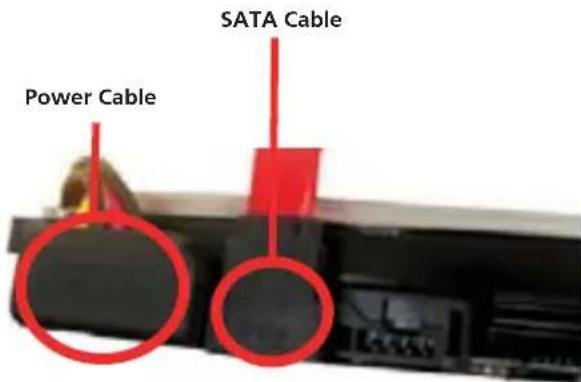

the DVR and ensure the SATA cable is connected to the DVR and Hard Drive.

Problem: The hard drive usage is at 100% and will not record.

Solution: Format the hard drive or set the hard drive to overwrite mode.

Problem: I can only see a blue screen where my camera should be.

Solution: If only 1 camera view is blue, the DVR is not receiving that camera’s

signal. Check that the camera connections on the back of the DVR are secure.

Ensure the camera is plugged in and has power.

Problem: The DVR will not turn on.

Solution: Make sure you are using the correct Power Adapter for the DVR. Try

a second power outlet. Check the connections on the back of the DVR.

Problem: My DVR does not save footage more than a few days old.

Solution: Change the quality settings to Normal, lower the camera frame rates

or enable motion recording to conserve hard drive space.

Problem: I want to format my Hard Drive but I don’t remember the password.

Solution: The default password is “111111”. Swann recommends changing

the default password to prevent tampering or unauthorized use.

Problem: I am using wireless cameras and the DVR keeps beeping and motion

records all the time.

Solution: Analog wireless cameras suffer from interference. The DVR interprets

the change of image as motion and records. Swann recommends the use of wired

cameras or digital wireless cameras such as the ADW-300 for DVR recording.

Problem: I am unable to playback recorded footage.

Solution: Make sure when selecting footage to playback that you have high-

lighted the START time of that footage and not the STOP time

Troubleshooting Guide2020

Viewing Backup Footage on a PC (cont)

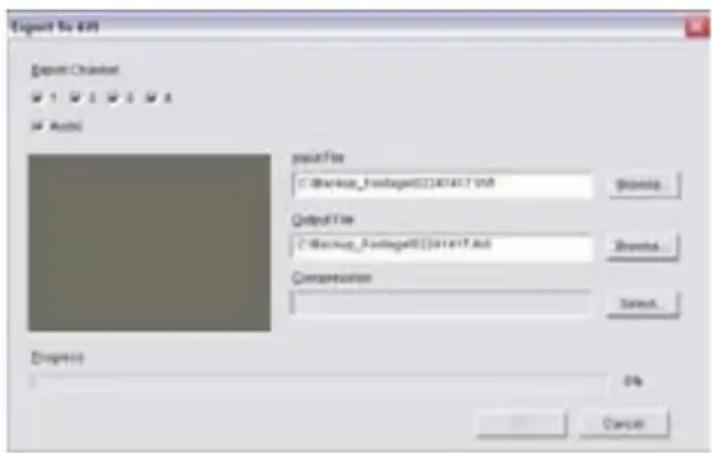

Exporting an AVI ﬁ le

Extract footage from a larger video clip

To view video footage on another computer create an AVI ﬁ le using the built in

1. Right-click the main Camera view and click Export > AVI

2. Click “Browse...” next to Input File and select the video you want to convert.

3. Click “Browse...” next to Output File to select a location to export.

4. Choose your preferred compression method by clicking Select... If you are

unsure which method to use, select the default uncompressed mode.

5. Click OK to export the ﬁ le.

6. Playback the ﬁ le in your preferred media player.

When dealing with larger backup ﬁ les it may be necessary to extract smaller clips.

The following describes how to extract footage and export to a new .VVF ﬁ le.

1. Open and play the clip to extract from.

2. Pause the clip where you want to start the extraction.

3. Right-click the camera view and select Capture > Mark In

4. Find and Pause the clip at the end of the extraction.

5. Right-click the camera view and select Capture > Mark Out

6. Right-click the camera view and select Capture > Export and save the ﬁ le

name and location. Note this export is in .VVF format.

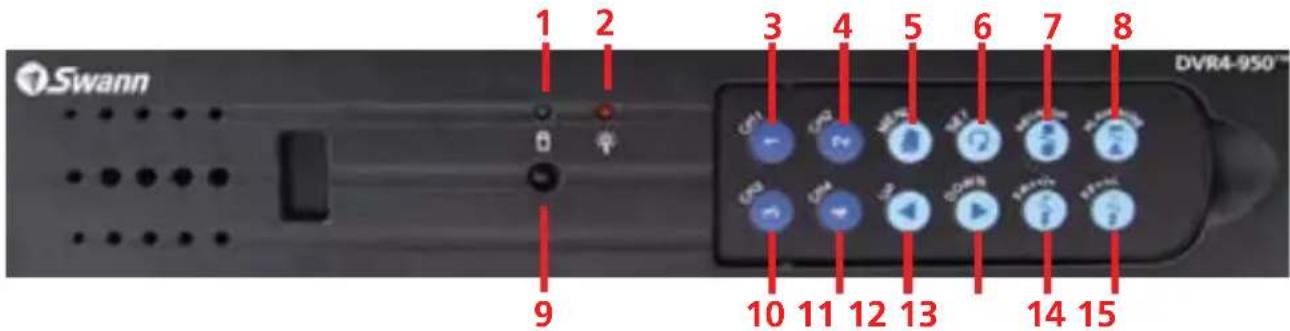

1. Hard Drive Indicator

Lights when hard drive is ac-

tive (ﬂ ashes when recording,

Lights on when DVR powered

Press to view camera 1 in full

screen / Press again to return to

Press to view camera 2 in full

screen / Press again to return to

Press to select Menu / previous

Note: some menu functions

password is “111111”

Press to conﬁ rm selection

7. Record/Stop Button

Push to begin or stop recording

Note: will not work if time

or motion record is set.

8. Play/Pause Button

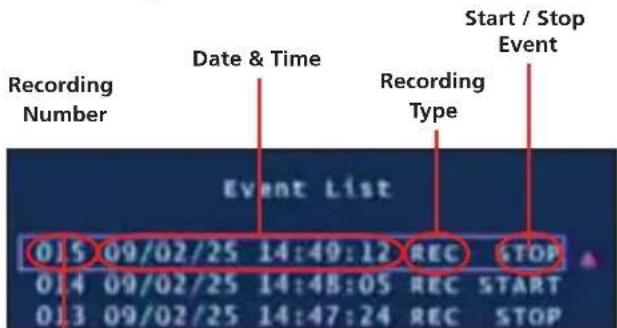

Push to open EVENT LIST,

begin last recording or pause

9. Remote Control Sensor

10. Channel 3 Button

Press to view camera 3 in full

screen / Press again to return to

11. Channel 4 Button

Press to view camera 4 in full

screen / Press again to return to

Push to rewind playback /

Move cursor left in menus

15. Fast Forward Button

Push to fast forward playback

Activate AUTO SWITCH func-

Note: 3-15 removable front

Front Panel & Removable Remote

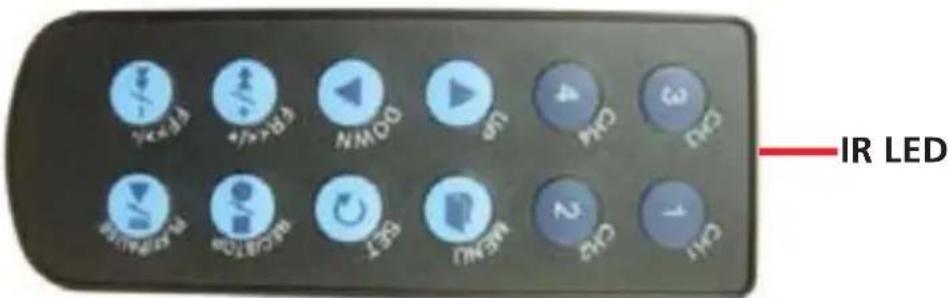

The remote control contains a battery that must be activated before use.

Find and remove the clear plastic tab at the bottom of the remote. The

remote will now be ready for use.

Using the Remote Control for the First Time

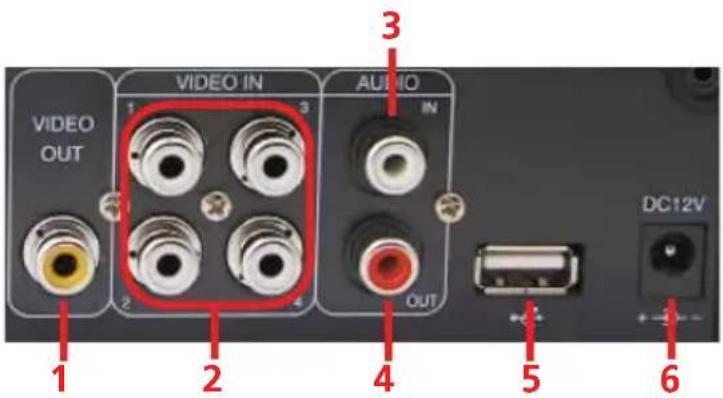

Output to speaker 1 x RCA

Download backup footage to Flash Drive (not

6. DC 12V Power Input

Power Adapter connection for DC 12V adapter

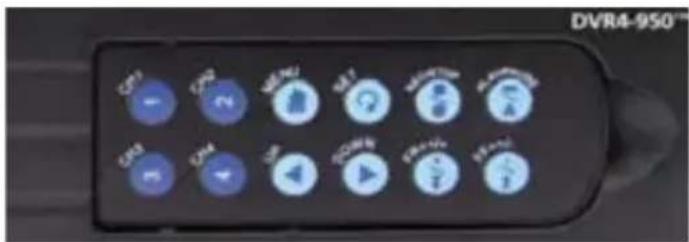

remove the control from

Removing the Remote Control

Note: To secure the DVR and prevent unauthorised use remove the

remote and store in a secure place.

View backed up footage from the DVR4-950™ with the included VVFPlayer soft-

ware located on the CD.

1. Put the CD in the CD drive. If it does not open automatically, click START open

MY COMPUTER and Double click the CD drive.

2. Copy the VVFPlayer_V2_6_4B software from the CD to your computer.

3. Double click to open the VVFPlayer software.

4. Click the File Folder (4) to bring up the open screen. Navigate to the video

you want to view and press Open. The backup ﬁ le will have a .VVF extension.

5. Use the controls to view the video footage.

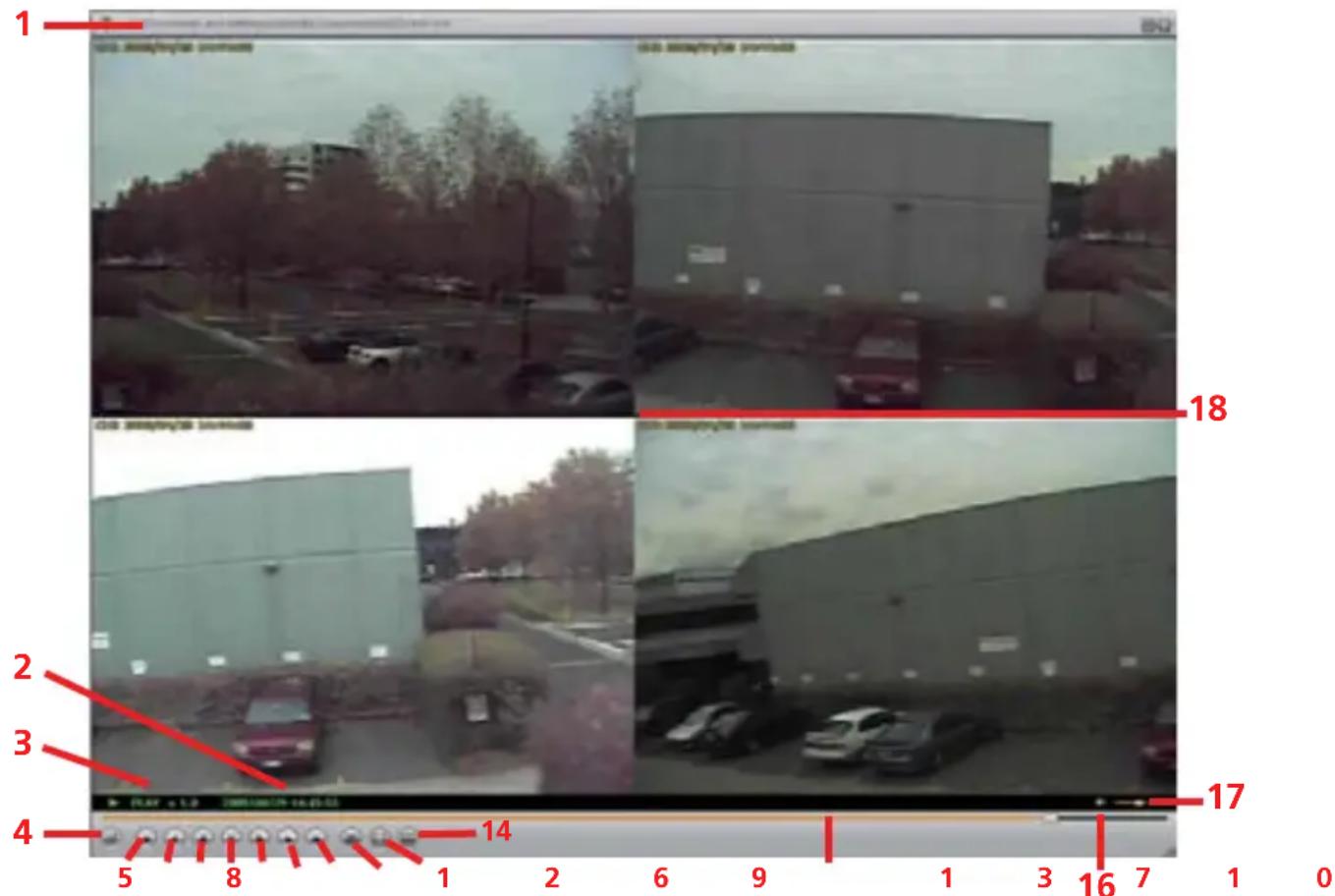

Viewing Backup Footage on a PC Using the VVFPlayer software

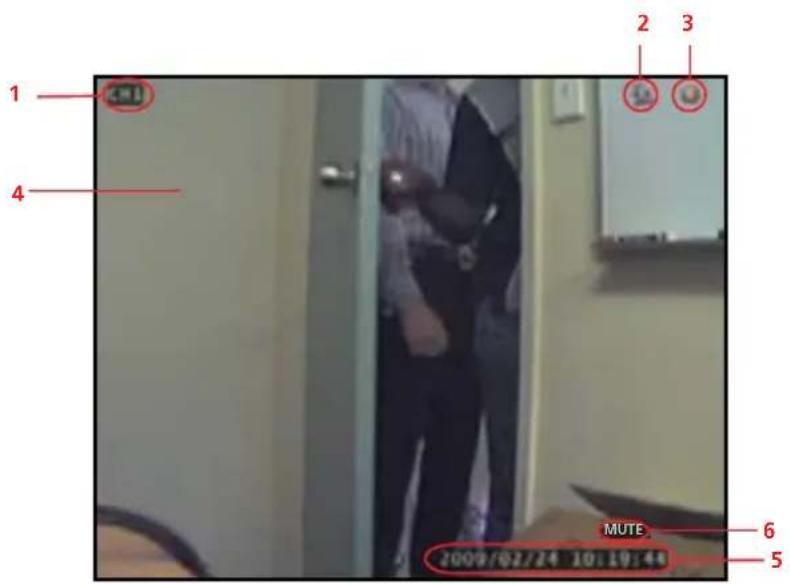

2. Date & time of recording

3. Current play state

Backing Up Footage to PC The DVR4-950™ has a backup feature via the USB port on the back of the DVR.

The DVR accepts most ﬂ ash drives or thumbdrives. The ﬂ ash drive / thumb-

drive must be formatted to the FAT32 ﬁ le system. Please see your ﬂ ash drive’s /

thumbdrive’s instructions regarding formatting. Follow the steps below to backup

1. Insert a USB ﬂ ash drive / thumbdrive (not included) to the USB port.

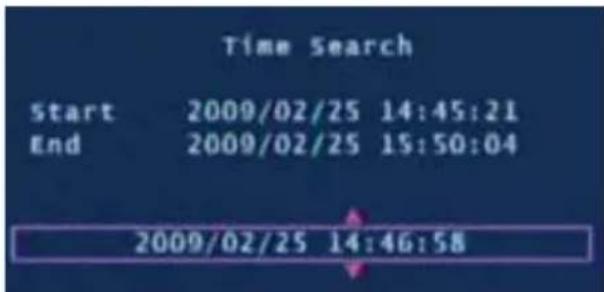

2. Press Play to enter playback mode or use the Time Search feature to ﬁ nd a

3. Pause playback at the start of the footage you would like to backup.

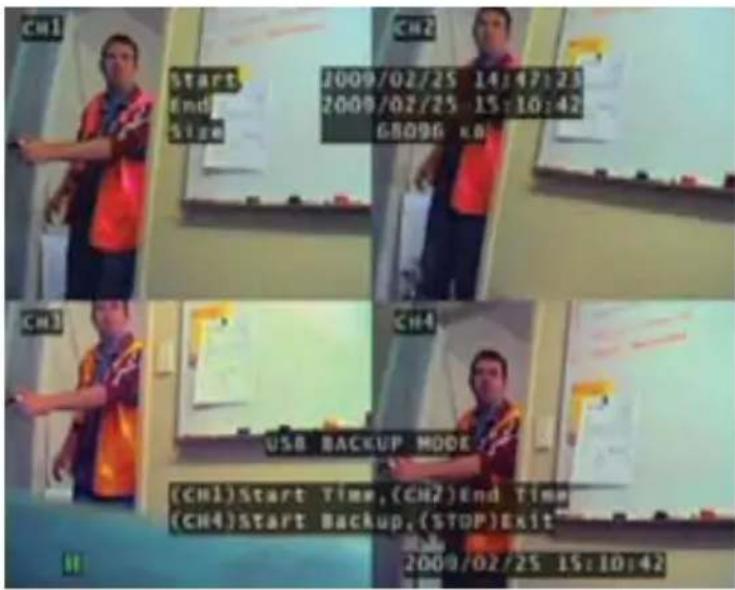

4. Press the Menu / File button to display the USB Backup Mode.

5. Press the CH1 button to

designate the start of a backup

6. Play and ﬁ nd the end of the

footage you want to backup

7. Press the CH2 button to

indicate the end of a backup

8. When you have chosen the

START and END time of the

recording press the CH4 button

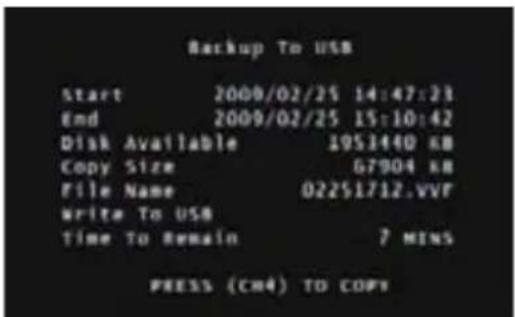

9. The Backup to USB screen will appear

with details of the USB device inserted, size

requirements and ﬁ le name. Press CH4 to

10. When the backup is complete press the

Stop button and remove the USB device.

NOTE: USB back up can take up to the same amount of time as playing

back the video on screen. Eg. 1 hour play back may take up to 1 hour to

WARNING: Do not connect the DVR directly to a computer. Do not

remove the USB Flash Drive while the DVR is copying footage. Damage

may occur to attached devices if used improperly.

Connecting Cameras and Power Adapter

1. Connect the Power and BNC ends of the Security Camera to an

2. Connect the BNC end of the Extension Cable to the RCA adapter.

3. Connect the end of the RCA adapter to camera input on the back of the DVR.

4. Connect the power end of the Extension Cable to the Power Splitters.

5. Connect the Power Splitter to the Camera Power Adapter.

6. Plug in the Camera Power Adapter and the DVR Power Adapter to mains

Connecting the DVR to a TV Monitor

1. Connect an RCA end of the Video Cable to the Yellow Video

INPUT on the back of the TV Monitor.

2. Connect the other RCA end of the Video Cable to the Video OUTPUT

connection on the back of the DVR.

3. Tune your TV to the correct input channel to view the DVR. Using your TV’s

Remote Control press the Input button until the DVR appears on screen. Most

TVs will label this button as Input, Video, Source, A/V, TV/AV, Line, Channel 0,

etc. If you are unable to view your DVR on your TV contact your TV’s manufac-

turer for assistance.

Back of TV Powering the DVR On/Off

To turn on your DVR connect the Power Adapter to the DC 12V input on the

back of the unit. To turn the DVR off unplug the DVR from the wall outlet or

If the DVR will not be in use for extended periods of time Swann recommends

unplugging the unit.

Auto-Recovery Feature

The DVR4-950™ is equipped with an Auto-Recovery feature. Should a power

outage occur while you are recording the DVR will automatically resume record-

ing once power is restored.

Turning the DVR On/Off and Auto Recovery

6. Replace the Hard Drive and plug in the SATA and the power cable as shown in

7. Screw in the hard drive to the bottom of the case as in step 4.

8. Replace the top of the case.

9. Screw in the remaining screws to the sides and back of the DVR as in step 2.

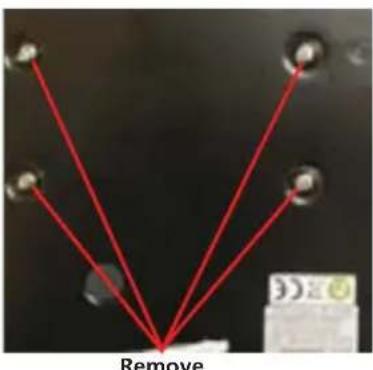

4. Locate the screws below the hard

drive. Secure the hard drive before re-

moving the 4 screws to avoid damaging

5. Push the metal clip on the SATA

cable (single RED or ORANGE cable)

to unplug the cable from the hard

drive. Unplug the power cable (2

BLACK 1 YELLOW and 1 RED cable)

from the back of the Hard Drive.

IMPORTANT NOTE: The following instructions are for installing or changing the

hard drive. If your DVR4-950™ already has a hard drive pre-installed disregard

Installing / Changing a Hard Drive in the DVR4-950™

1. Ensure the DVR4-950™ is unplugged and removed from mains power.

2. Locate and remove the 6 screws 2 on

each side at the front and 2 at the top

on the back. (The bottom screws on the

front do not need to be removed.

3. Pull up the top case of the DVR.

Press SET to select the highlighted option.

Save & Exit: Use this option to save all settings that have been changed in the

DVR menus. All changes made will be lost if you do not choose this option.

Exit Without Saving: Select to disregard any changes that have been made

and return to camera view.

Load Setup Default: Reset all settings on the DVR to factory defaults.

With the Language option selected push the SET button to switch between

English and Chinese.

When starting the DVR4-950™ for the ﬁ rst time or starting the DVR after chang-

ing to a new hard drive, the DVR will conﬁ gure the hard drive for use. Follow the

on screen prompts to conﬁ gure the hard drive.

IMPORTANT NOTE: If format is chosen all existing data on the hard drive will

be deleted and unrecoverable.

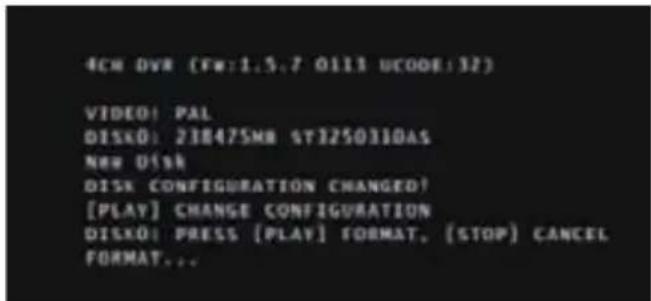

1. After the DVR recognizes the new

hard drive press PLAY to conﬁ gure for

2. When the hard drive is conﬁ gured

you will be asked to format or cancel.

Press PLAY to conﬁ rm the format.

Starting the DVR With a New Hard Drive

Accessing and Navigating the Menu System

The main Setup Menu can be accessed by pressing the MENU Button

To navigate the menus press the directional arrow keys UP DOWN To change selections use the REWIND & FAST FOWARD

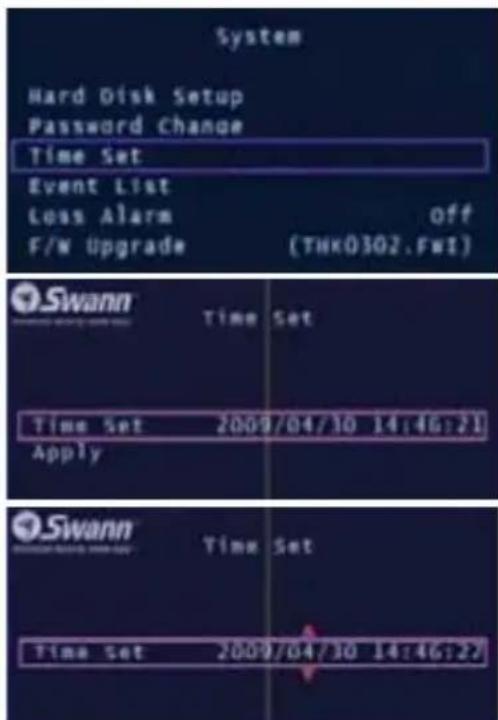

To change the DVR time, go into the SYSTEM

menu and select TIME SET.

With TIME SET highlighted press the SET

button to display the selection arrows.

Use the FAST FOWARD & REWIND buttons to

select between the date (year, month, day)

and time (hour, minute, seconds)

Using the UP & DOWN buttons change the

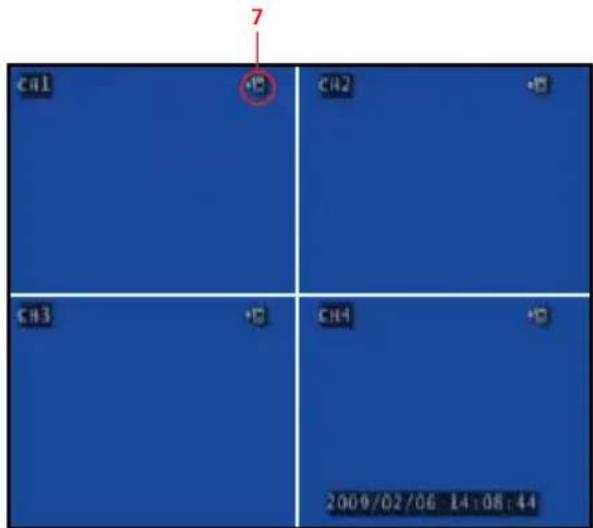

1. Current Camera Channel

5. Current Date & Time

7. No Camera Signal Icon

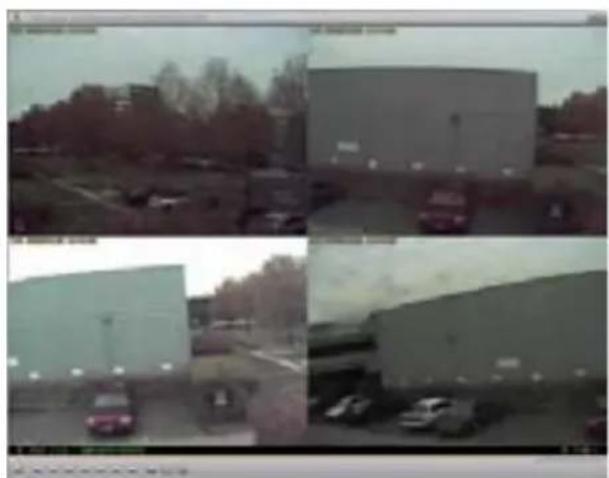

Multi Camera View with 4 Cameras Multi Camera View with No Cameras

Use the arrow buttons to select and

playback the highlighted Event. Press

Stop to exit playback mode.

Hint: You can also access the Event

List by pressing the Play button while

viewing your cameras.

Loss Alarm: When enabled an audible alarm will sound indicating the DVR has

lost the camera signal or a camera has been unplugged.

F/W Upgrade: Displays the current ﬁ rmware version and allows future

upgrades via a USB Flash Drive. Do not remove the Flash Drive while the ﬁ rm-

ware is updating as it may damage the DVR. Only use updates authorized by

Swann. When complete, remove the Flash Drive and restart the DVR.

Event List: Displays a list of the last 127 recorded events from the most recent

recording to the oldest. Use the Time Search feature for older events not in list.

Time Search allows you to quickly jump

to a speciﬁ c time and date to view a

Start time: This is the date and time of the oldest recording on the DVR.

Stop time: This is the date and time of the ﬁ nal recording on the DVR.

Enter a time between the Start and End time and press the Play button to view a

Press the Fast Forward and Rewind buttons to quickly scan through recordings.

Press Fast Forward or Rewind multiple times to speed up playback.

Press the Stop button to exit playback mode.

The Audio menu sets the audio

recording and volume options.

Note: You must have a camera with

audio or a powered microphone to

record or monitor audio.

Record: Set to ON to record audio from the Audio Input on the back of the

Mute: Turns Audio output on or off when viewing or recording cameras.

Alternatively, press the Mute button to turn Audio on or off while viewing your

Input Volume: Move the slider to change the volume of the audio recorded.

Output Volume: Move the slider to change the volume of audio playback.

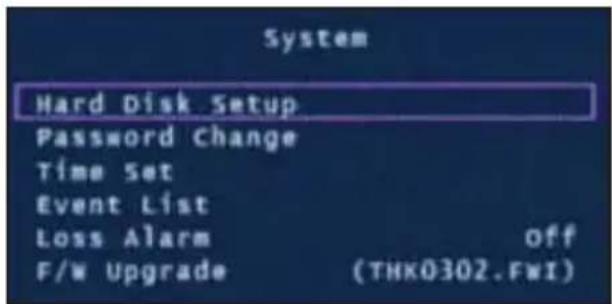

The System menu provides general

setup options such as hard disk

information, time, date and ﬁ rmware

Hard Disk Setup: Display information about the installed hard disk including

total size and memory usage.

Overwrite Enable: If activated, when the hard disk is full the DVR will overwrite

the oldest footage automatically. Default: Yes.

Format HDD: This option will permanently delete all data on the hard disk. The

password must be correctly entered to format the hard disk.

Password Change: This option will change the current password. You will be

prompted to enter the current password, the new password and then conﬁ rm

the new password before the change is complete. Note: The default password is

“111111”. If you have lost or forgotten your password contact Swann

Communications Technical Support for assistance.

The Camera menu allows you to

change visual attributes on each of the

Channel: Display the attributes of currently selected camera 1-4.

Display: Turn the selected camera On or Off in the main display.

Brightness, Contrast, Hue, Saturation: Using the UP & DOWN buttons high-

light the display option you want to change. Use the FAST FOWARD button to

increase the settings and the REWIND button to decrease them.

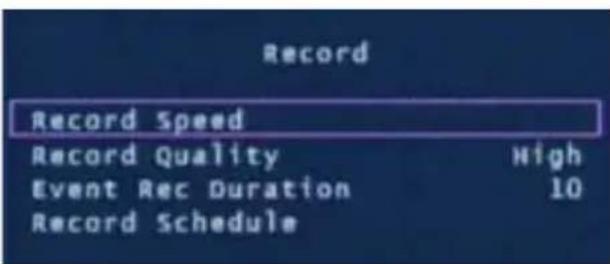

The Record Menu adjusts recording

quality, timers and schedules.

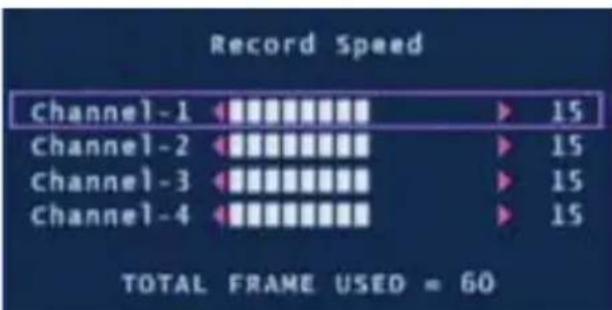

You may individually set the Record

Speed of each camera. The total

number of frames used can not exceed

60 for NTSC systems or 50 for PAL

systems. Setting lower frame rates will

consume less hard drive space.

Record Speed: Set the recording frame rate per camera. Note: higher frame

rates provide smoother recordings but use more hard drive space.

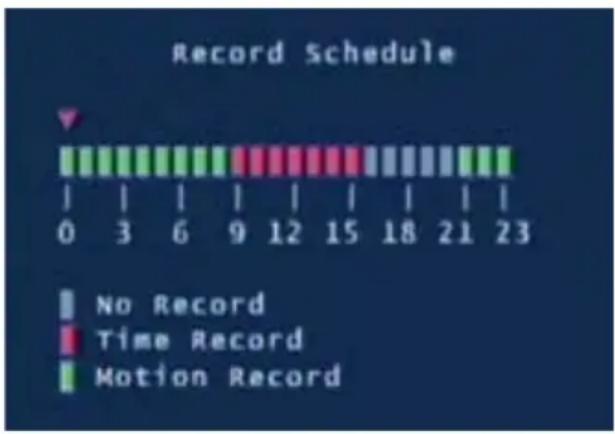

The Record Schedule allows you to set

the recording mode for each hour of the

day based on a 24 hour clock. Use the

left / right keys to move and up / down

keys to change the current selection.

No Record: will not record

Time Record: will record for the entire

Motion Record: will only record when

Important: To enable Motion Recording you must set the hour to Motion

Record (green) AND set the Sensitivity and Motion Area in the Motion

Record Quality: Set the image quality of the recordings from Normal, High or

Highest. Note: higher image quality settings use more hard drive space.

Event Rec Duration: When Motion Detection is active, Event Rec Duration is

the length of time in seconds the DVR will record after motion stops, from 5, 10,

15, 20, 25 or 30 seconds. Default is set to 10 seconds.

Record Schedule: Set different recording modes depending on the time of day.

Motion Detection Menu

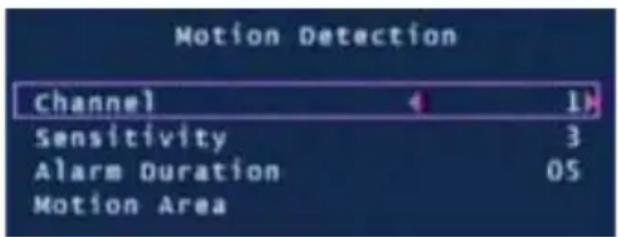

The Motion Detection menu allows you

to set motion options for each camera.

Note: The DVR detects motion based

on the level of change in the picture.

Channel: Select which camera attributes to change from camera 1-4.

Sensitivity: Set the amount of movement necessary before motion detection

triggers recording. Set from 1 (most sensitive) to 4 (least sensitive), default Off.

Note: this feature must be set from 1-4 to enable motion recording.

Alarm Duration: Set the length of time the alarm will sound when motion is

detected. Set to Off, 5, 10, 15, 20, 25, 30 seconds or Continuous. Note: If the

Alarm Duration is set to Continuous the alarm will continue to sound until this

Motion Area: Select the area of the Camera to detect motion. Motion

occurring outside this designated area will not trigger a recording.

Use the UP, DOWN, REWIND & FAST FOWARD buttons to move the cursor.

Press the SET button to begin to

draw the motion detection area.

Using the arrow buttons draw your

desired motion area and press the

SET button again once complete.

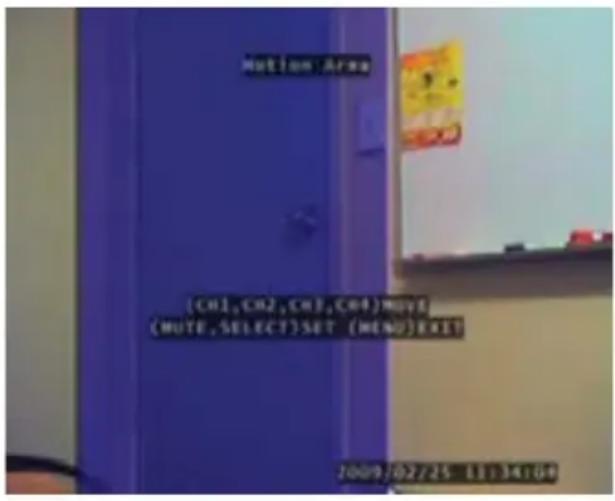

In the example to the left, the blue

motion box is drawn over the door.

Only motion occurring in this area will

trigger recording i.e. the door opening.

This feature is helpful in high trafﬁ c areas where only a small portion of the

screen needs to be monitored for example, looking down a driveway with a busy

Important: To enable Motion Recording you must set the Sensitivity, Motion

Area for each camera AND set Motion Record in the Record Schedule menu.

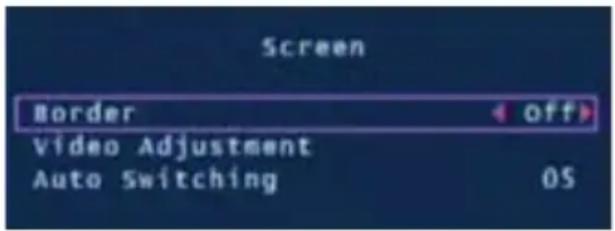

The Screen menu adjusts the display of

cameras in the main camera view.

Border: Applies a border between the cameras in multi camera view.

Video Adjustment: Adjust the display to ﬁ t on your TV monitor.

Auto Switching: When active, in live view mode, the DVR will automatically

switch between camera channels in full screen mode. Set the delay from 1-10

seconds between changes or Off. To activate Auto Switching, press the FAST FORWARD /- button when viewing your cameras. Press the /- button

again to stop Auto Switching.

Motion Detection Menu (cont)1212
