Product type	Surveillance camera
Brand	Swann
Model	SWIFITRACKERCAM
Power supply	AC adapter via micro USB port
Night vision	Integrated infrared LEDs
Microphone	Built-in
Speaker	Built-in
Storage	microSD card up to 128 GB (class 10 or higher recommended)
Connectivity	Wi-Fi 2.4 GHz
Mobile app	Swann Security (iOS and Android)
Motion detection	Yes, with event recording
LED indicator	Solid red (live/recording), blinking blue (pairing/connection mode), blinking purple (offline)
Mounting	On table, shelf, or wall (mounting plate and magnetic base included)
Viewing angle	Rotatable thanks to flexible stand
Settings	Via Swann Security app
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Child safety	Keep the cable and camera more than one meter away from babies and young children (strangulation risk)
Spare parts and repairability	Contact Swann support or the retailer for parts and repairs
General information	Compliant with CE and IC standards. Do not dispose of with household waste.

Frequently Asked Questions - SWIFITRACKERCAM SWANN

How to reset the Swann SWIFITRACKERCAM camera?

Use the reset button on the back of the camera (near the micro USB port). Press and hold for about 5 seconds until the LED blinks.

How to pair the camera with the Swann Security app?

Make sure the camera is powered on and your smartphone is connected to a 2.4 GHz Wi-Fi network. Open the app, tap 'Pair Device' and follow the on-screen instructions. You will need the QR code located under the camera base.

Where to insert the microSD card?

The microSD card slot is on the back of the camera, near the micro USB port. Insert a microSD card (up to 128 GB, class 10 or higher) until it clicks.

How to mount the camera on the wall?

Drill two holes at the locations of the included mounting plate, insert wall plugs if necessary, screw the plate to the wall, then attach the magnetic base of the camera to the plate.

What does the blinking purple LED mean?

The blinking purple LED indicates that the camera is offline and cannot access the Internet. Check your router and Wi-Fi connection, then turn off the camera for 10 seconds before turning it back on.

Can I view the camera remotely?

Yes, via the Swann Security app. After pairing the camera, you can access the live feed and recordings from anywhere via your smartphone.

How to update the camera firmware?

Firmware updates are done automatically through the Swann Security app, provided that the microSD card is inserted and the camera is connected to the Internet.

Is the camera suitable for outdoor use?

The manual does not mention an IP rating. This camera is designed for indoor use only.

How to get additional technical support?

Visit the Swann support center at support.swann.com or email [e-mail]. You can also register your product for dedicated support.

What are the requirements for installing the app?

The Swann Security app is available for free on the Apple App Store and Google Play Store. Your smartphone must be connected to a 2.4 GHz Wi-Fi network. A Swann account is required.

USER MANUAL SWIFITRACKERCAM SWANN

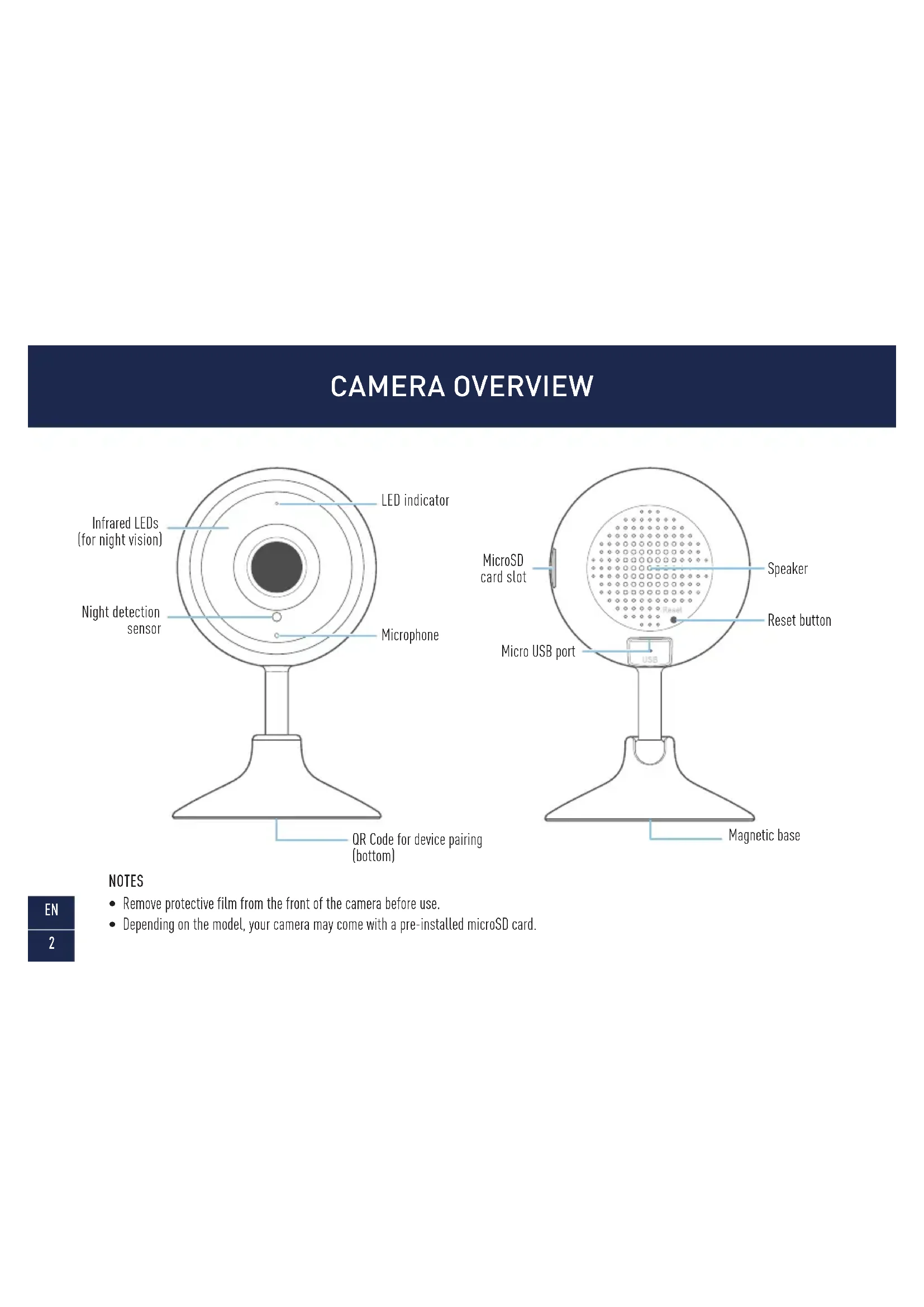

Security Tracker Camera

Infrared LEDs (for night vision) Night detection sensor LED indicator Microphone QR Code for device pairing (bottom)

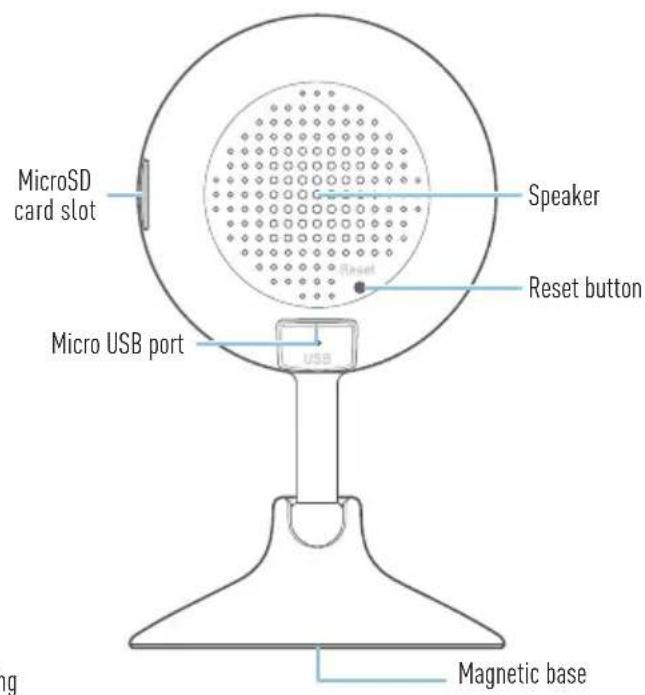

MicroSD card slot Speaker Reset button Micro USB port USB Magnetic base

NOTES

• Remove protective film from the front of the camera before use.
• Depending on the model, your camera may come with a pre-installed microSD card.

INSTALLING THE CAMERA

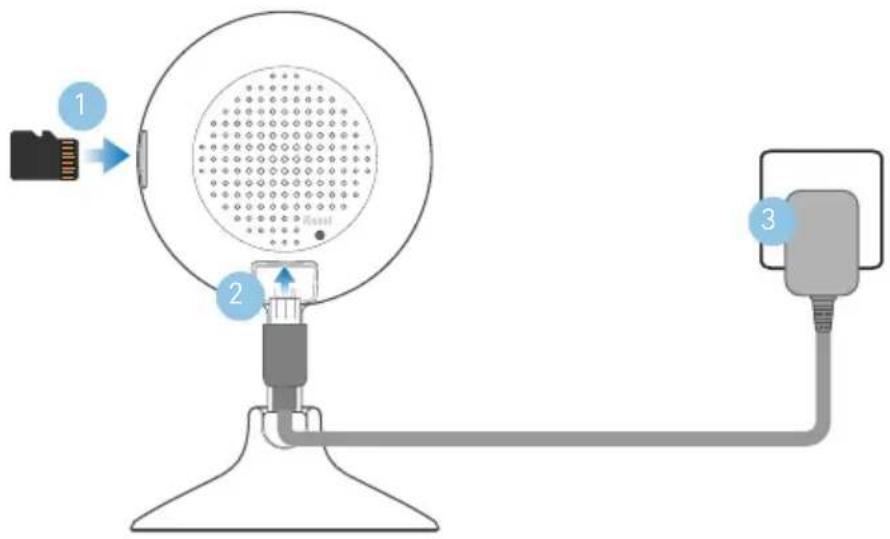

1 Insert a microSD card (up to 128GB, minimum Class 10 or higher recommended) into the microSD card slot on the camera as shown. Skip this step if a microSD card has been pre-installed. The camera requires a microSD card for streaming video, saving recorded events, and firmware updates.
2 Insert the micro USB plug of the supplied power adapter into the micro USB port on the back of the camera.
3 Connect the power adapter to a power outlet. Make sure the camera is within range of the Wi-Fi network to which you want to connect.

Diagram showing a device with labeled components: battery, fan, and plug, illustrating a digital interface setup.

EN

3

GET THE SWANN SECURITY APP

1 Download the latest version of the Swann Security app from the Apple App Store® or Google Play™ Store on your iOS or Android device. Simply search for "Swann Security".
2 Open the app and create your Swann Security account. You will need to activate your account by confirming the email sent to the registered email account before you can sign in.

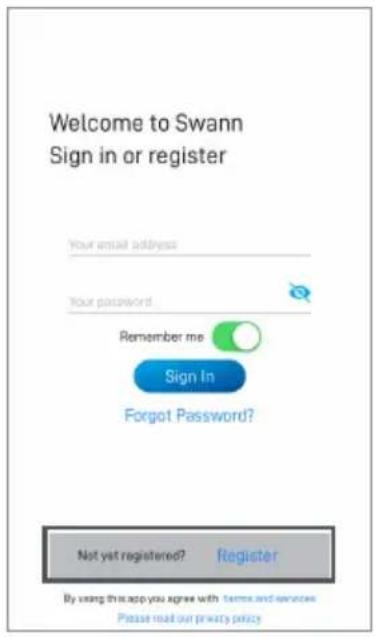

Welcome to Swann Sign in or register Your email address Your password Remember me Sign In Forgot Password? Not yet registered? Register By using this app you agree with terms and services Please read our privacy policy

Cancel Let's get started. First name Last name Next

SET UP THE CAMERA

Launch the Swann Security app and sign in. Tap the Pair Device button on the screen (or open Menu and select Pair Device) and follow the in-app instructions to set up your new camera. Before you begin, be close to your router or access point and have your Wi-Fi network information (including password) handy. Please note that the camera can connect to a 2.4GHz Wi-Fi network only.

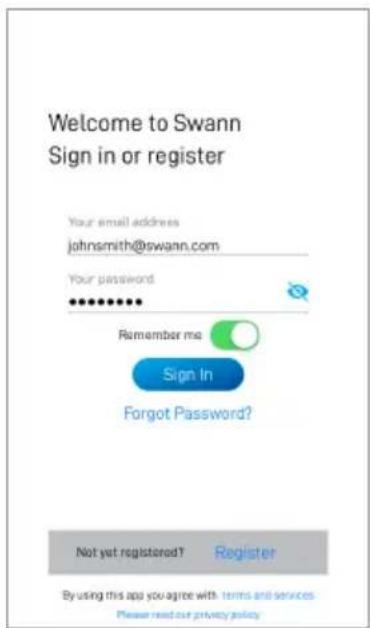

Welcome to Swann Sign in or register Your email address [e-mail] Your password ****** Remember me Sign In Forgot Password? Not yet registered? Register By using this app you agree with terms and services Please read our privacy policy

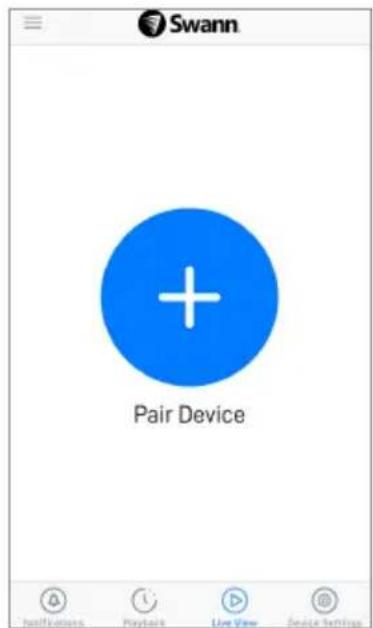

Swann + Pair Device Notifications Playback Live View Service Settings

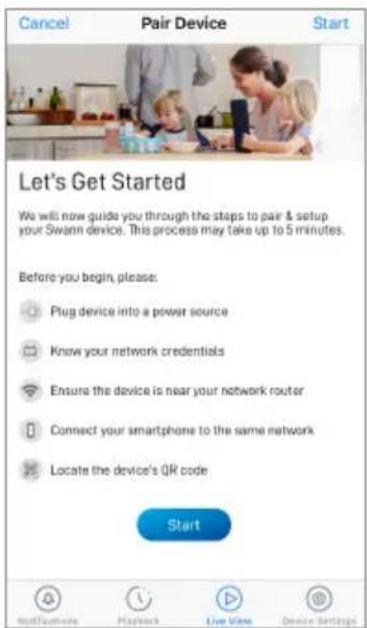

Cancel Pair Device Start Let's Get Started We will now guide you through the steps to pair & setup your Swann device. This process may take up to 5 minutes. Before you begin, please: Plug device into a power source Know your network credentials Ensure the device is near your network router Connect your smartphone to the same network Locate the device's QR code Start Notifications Playback Live View Device Settings

CAMERA PLACEMENT

The camera can be placed on a table or shelf, or easily mounted on the wall using the included wall mounting plate. With its flexible stand, you can freely swivel the camera around and monitor your home from any angle that you need. Pick a location with good, reliable Wi-Fi reception to ensure best video streaming performance. As a general rule, the nearer your camera is to your router, the better the wireless connection quality.

Mounting the camera (optional)

Simply drill two screw holes and screw the wall mounting plate to the wall using the supplied screws (and plugs if necessary). Then attach the magnetic base of the camera to the wall mounting plate for a strong and secure hold.

Simple geometric diagram showing a circle with two small circles inside, no text or symbols present.

TIPS

LED indicator guide

The LED light on the front of your camera helps inform you of what is happening with the device.

Solid Red Live streaming/Motion recording
Slow Blinking Blue Wi-Fi Pairing mode
Fast Blinking Blue Connecting to Wi-Fi
Blinking Purple	Camera offline - no internet access(Check your Wi-Fi router, then turn the power to the camera off for 10 seconds before turning it back on to reconnect to your Wi-Fi router)

Swann Security app manual

Download the Swann Security manual via the app menu to learn more about using the camera to view live video and recorded clips as well as the various camera settings that you can adjust.

Technical support

We're here to help! Visit our Support Center at support.swann.com. You can register your product for dedicated technical support, find answers to commonly asked questions, and more. You can also email us at any time via: [e-mail]

Diagram showing a device with labeled components: file folder, fan, and plug connection

ES

9

Simple geometric diagram showing a circle with two small circles inside, no text or symbols present.

SUGERENCIAS

Diagram showing a device with labeled components: file folder, sensor, and plug connection

OBTENIR L'APPLICATION SWANN SECURITY

Simple geometric diagram showing a circle with two small circles inside, no text or symbols present.

ASTUCES

Diagram showing a device with labeled components: file folder, sensor, and plug connection

OTTENERE L'APP SWANN SECURITY

Simple geometric diagram showing a circle with two small circles inside, no text or symbols present.

SUGGERIMENTI

Diagram showing a device with labeled parts: file folder, sensor port, and plug connection

INSTALLATION DER SWANN SECURITY APP

Simple geometric diagram showing a circle with two small circles inside, no text or symbols present.

TIPPS

Important Safety Warning

For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. FCC ID: ZASMNSWIFI-TRACKCAM

FCC Statement

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC's RF exposure guidelines, place the product at least 20cm from nearby persons.

WARNING: Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.

WiFi Frequency:2412\~2462MHz.Max RF POWER:14.86dBm

IC Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device is compliance with RF field strength limits, users can obtain Canadian information on RF exposure and compliance.

This Class B digital apparatus complies with Canadian ICES-003. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration IC
