USER MANUAL SWIFIPTCAM2 SWANN

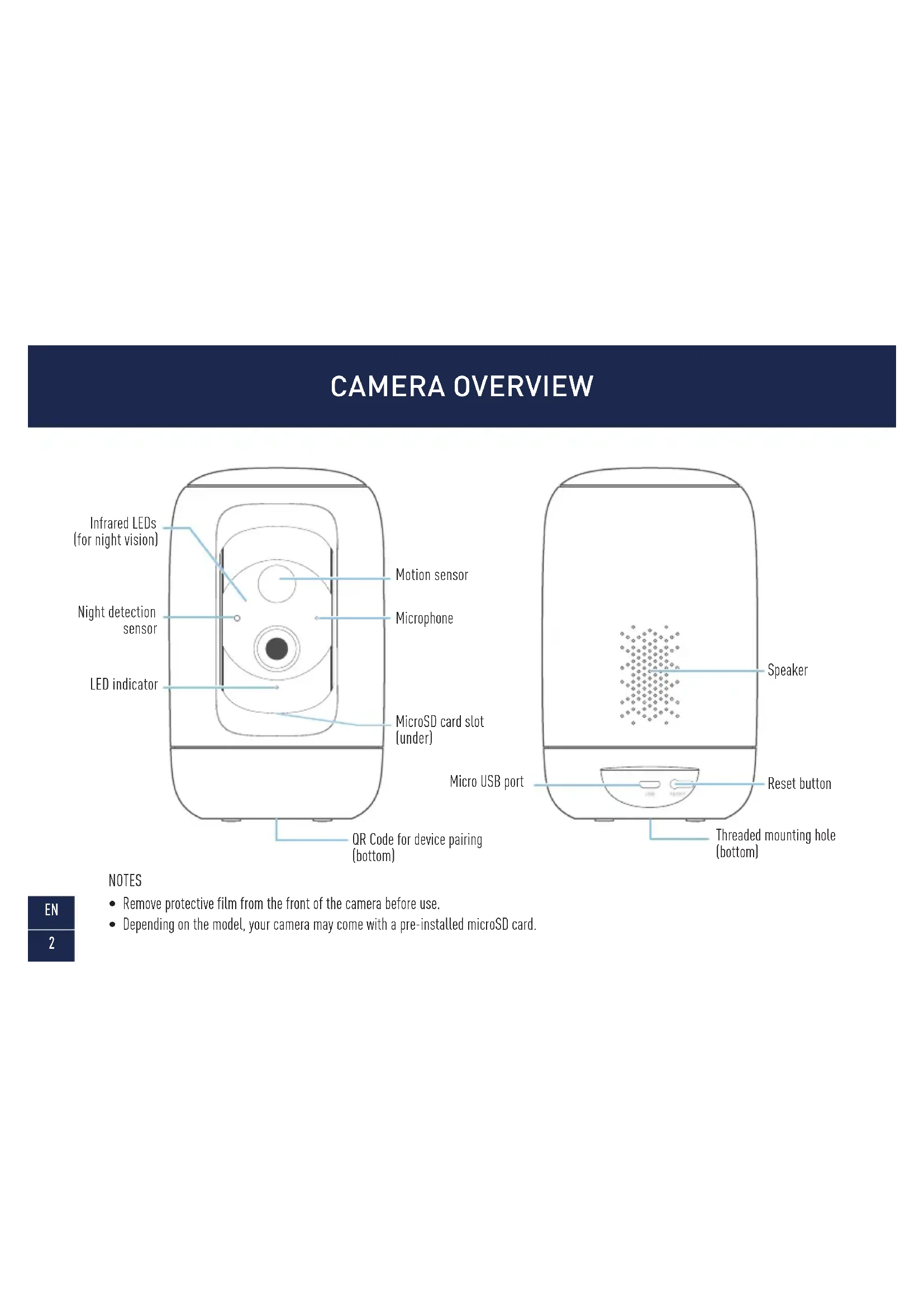

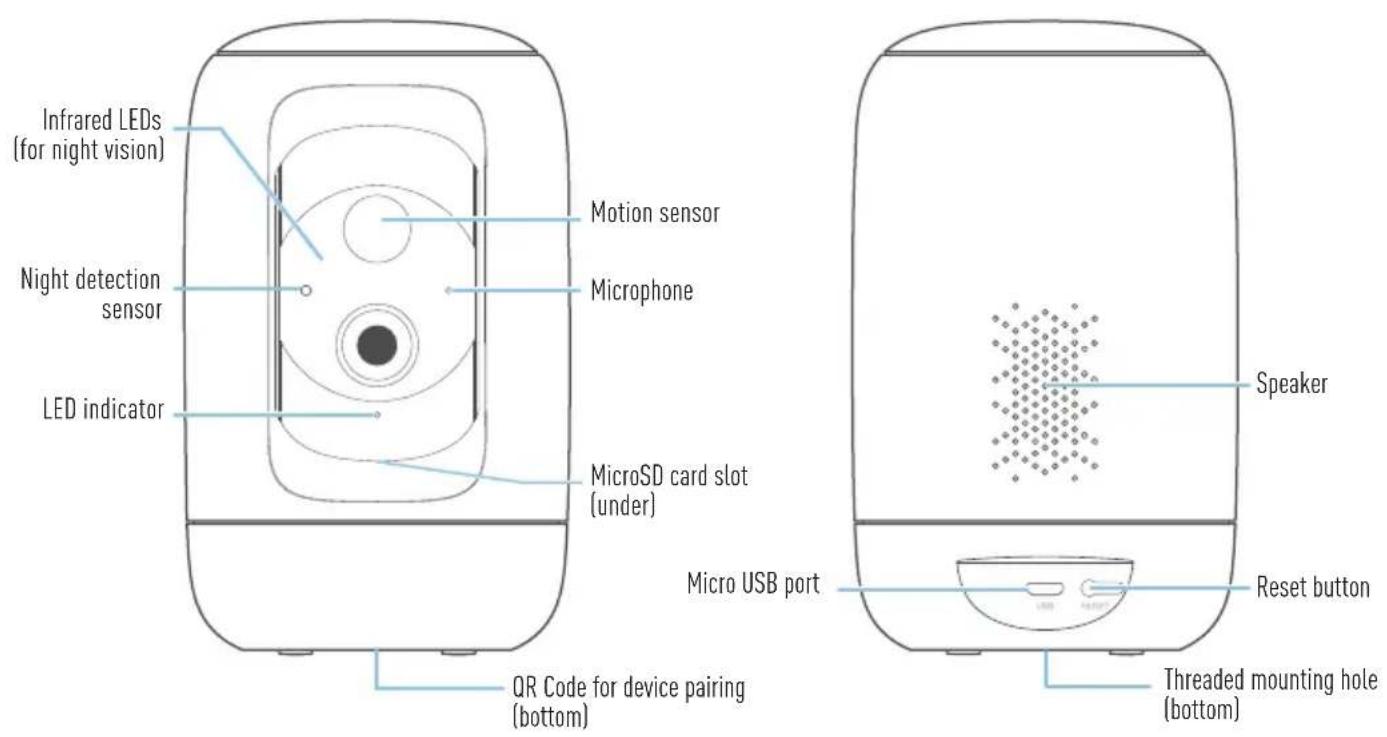

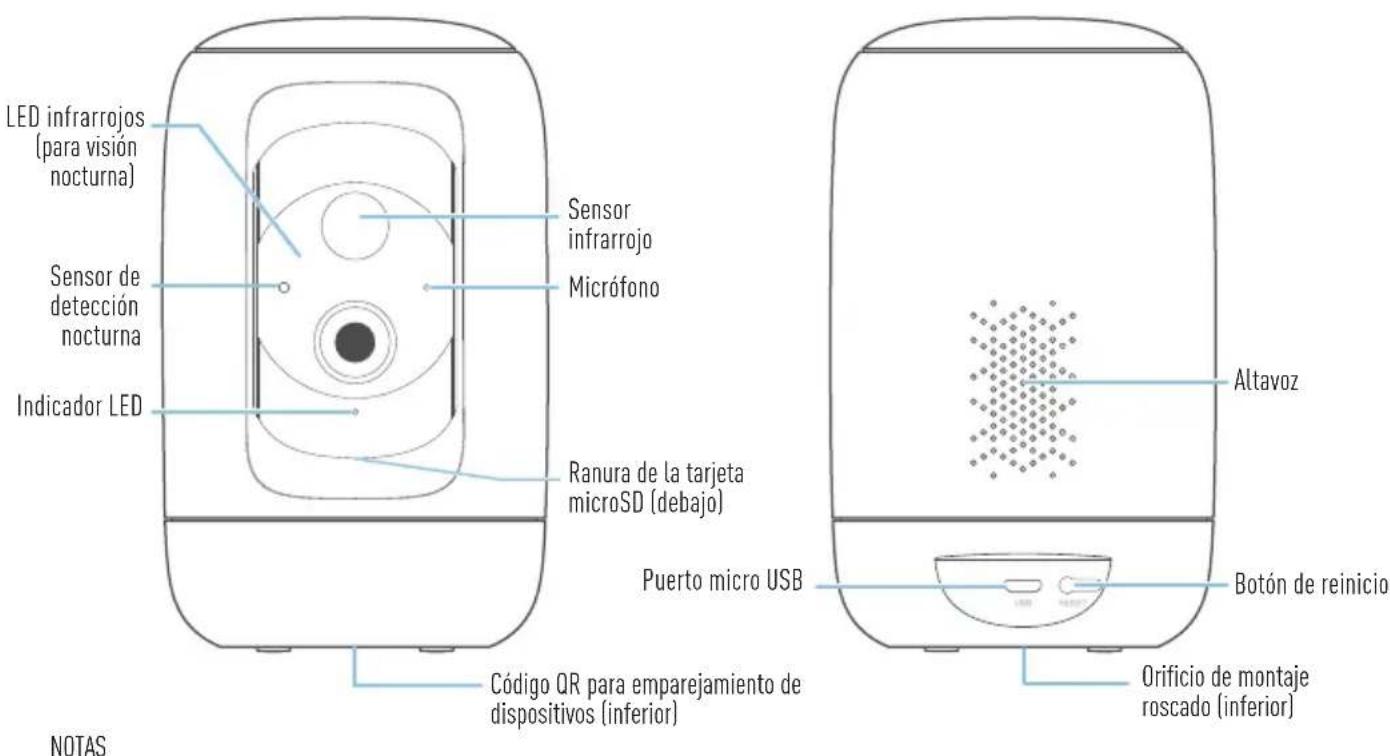

CAMERA OVERVIEW Night detection sensor LED indicator Micro USB port MicroSD card slot (under) Infrared LEDs (for night vision) Microphone QR Code for device pairing (bottom) Motion sensor Speaker Reset button NOTES

• Remove protective film from the front of the camera before use.

• Depending on the model, your camera may come with a pre-installed microSD card. Threaded mounting hole (bottom)3

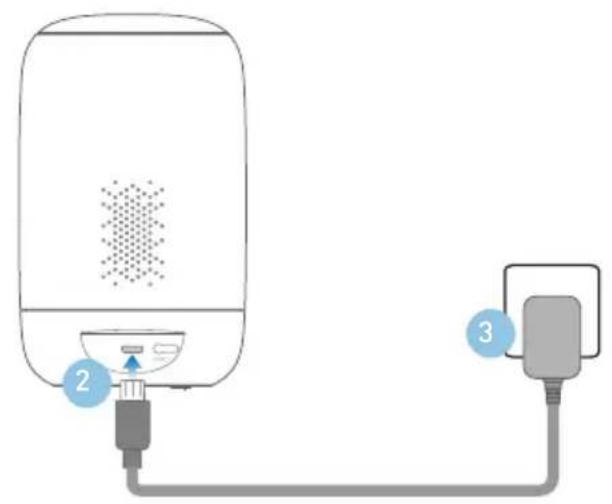

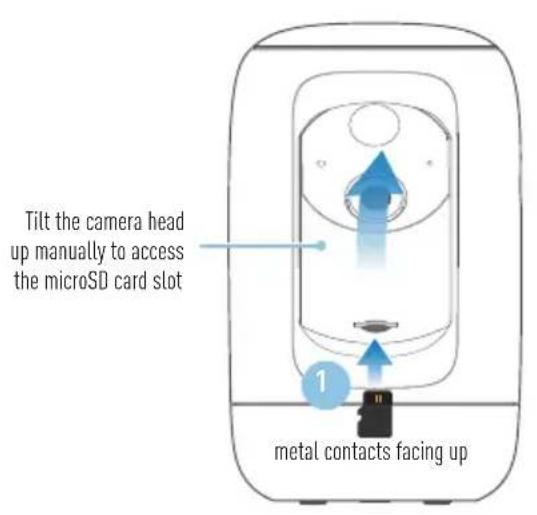

1 Insert a microSD card (up to 128GB, class 10 or higher recommended) into the microSD card slot on the camera. Skip this step if a microSD card has been pre-installed. The camera requires a microSD card for streaming video, saving recorded events, and performing firmware updates. 2 Insert the micro USB plug of the supplied power adapter into the micro USB port on the back of the camera. 3 Connect the power adapter to a power outlet. Make sure the camera is within range of the Wi-Fi network to which you want to connect. metal contacts facing up Tilt the camera head up manually to access the microSD card slot

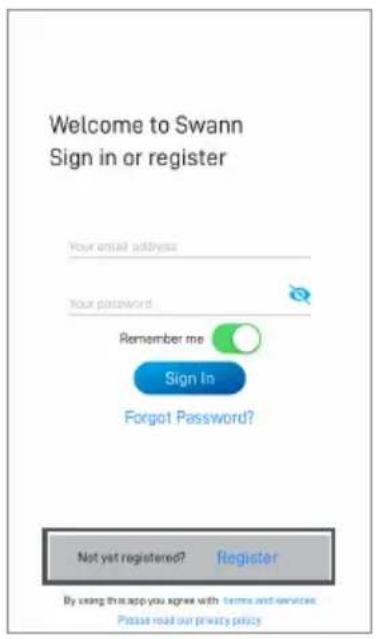

1 Download the latest version of the Swann Security app from the Apple App Store® or Google Play™ Store on your iOS or Android device. Simply search for "Swann Security". 2 Open the app and create your Swann Security account. You will need to activate your account by confirming the email sent to the registered email account before you can sign in.5

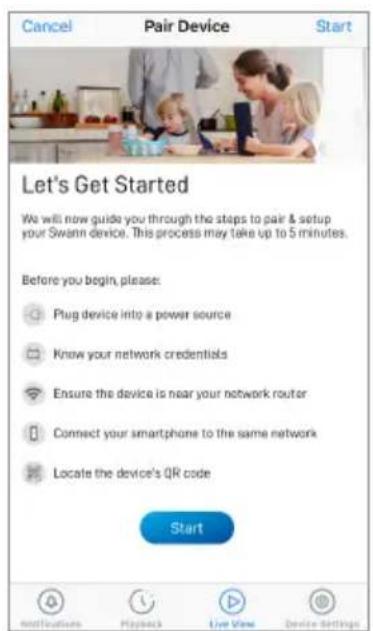

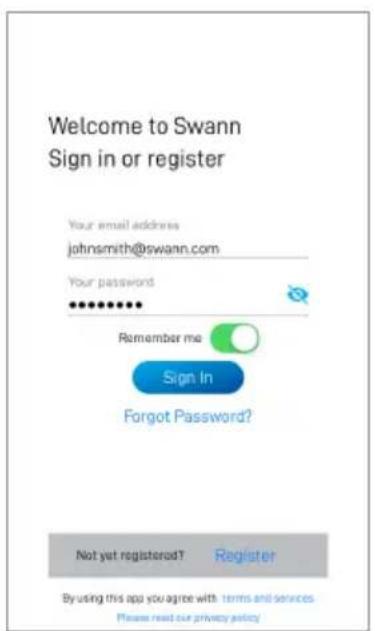

Open the Swann Security app on your phone and sign in. Tap the Pair Device button on the screen (or open Menu and select Pair Device) and follow the in-app instructions to set up your new camera. Before you begin, be close to your internet router or access point and have your Wi-Fi network information (including password) handy. Please note that the camera can connect to a 2.4GHz Wi-Fi network only.6

The camera can be conveniently placed on a table or shelf, or easily mounted on the wall. With the flexibility of pan and tilt operations using the app, you can freely rotate the camera around and monitor your home from any angle that you need. Pick a location with good, reliable Wi-Fi reception to ensure best video streaming performance. As a general rule, the nearer your camera is to your router, the better the wireless connection quality. CAMERA PLACEMENT Mounting the camera (optional) Simply attach the mounting stand to the wall (drill template supplied), then align the threaded hole on the bottom of the camera (as shown here) with the threaded stud on the mounting stand, and screw in the camera. Tighten the mounting stand knob to secure the camera.7

Technical support We’re here to help! Visit our Support Center at support.swann.com. You can register your product for dedicated technical support, find answers to commonly asked questions, and more. You can also email us at any time via: [e-mail] Swann Security app manual Download the Swann Security app manual via the app menu to learn more about using the camera to view live video and recorded clips as well as the various camera settings that you can adjust. TIPS Motion detection The camera’s PIR motion sensor detects heat signatures of moving objects. You’ll generally get good detection results by pointing the camera at an angle where people will be moving across the coverage area before heading directly towards the camera. LED indicator guide The LED light on the front of your camera helps inform you of what is happening with the device. Solid Red Live streaming/Motion recording Slow Blinking Blue Wi-Fi Pairing mode Fast Blinking Blue Connecting to Wi-Fi8

CONFIGURE LA CÁMARA12

© Swann Communications 2020

QSGSWIFIPTCAM2VER15L

Input: DC5V 1.5A DC voltage Important Safety Warning For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. FCC Statement This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.

WARNING: Modifications not approved by the party responsible for compliance could void user’s authority to
