USER MANUAL SJ340VBE SHARP

• Household use only • Free standing type

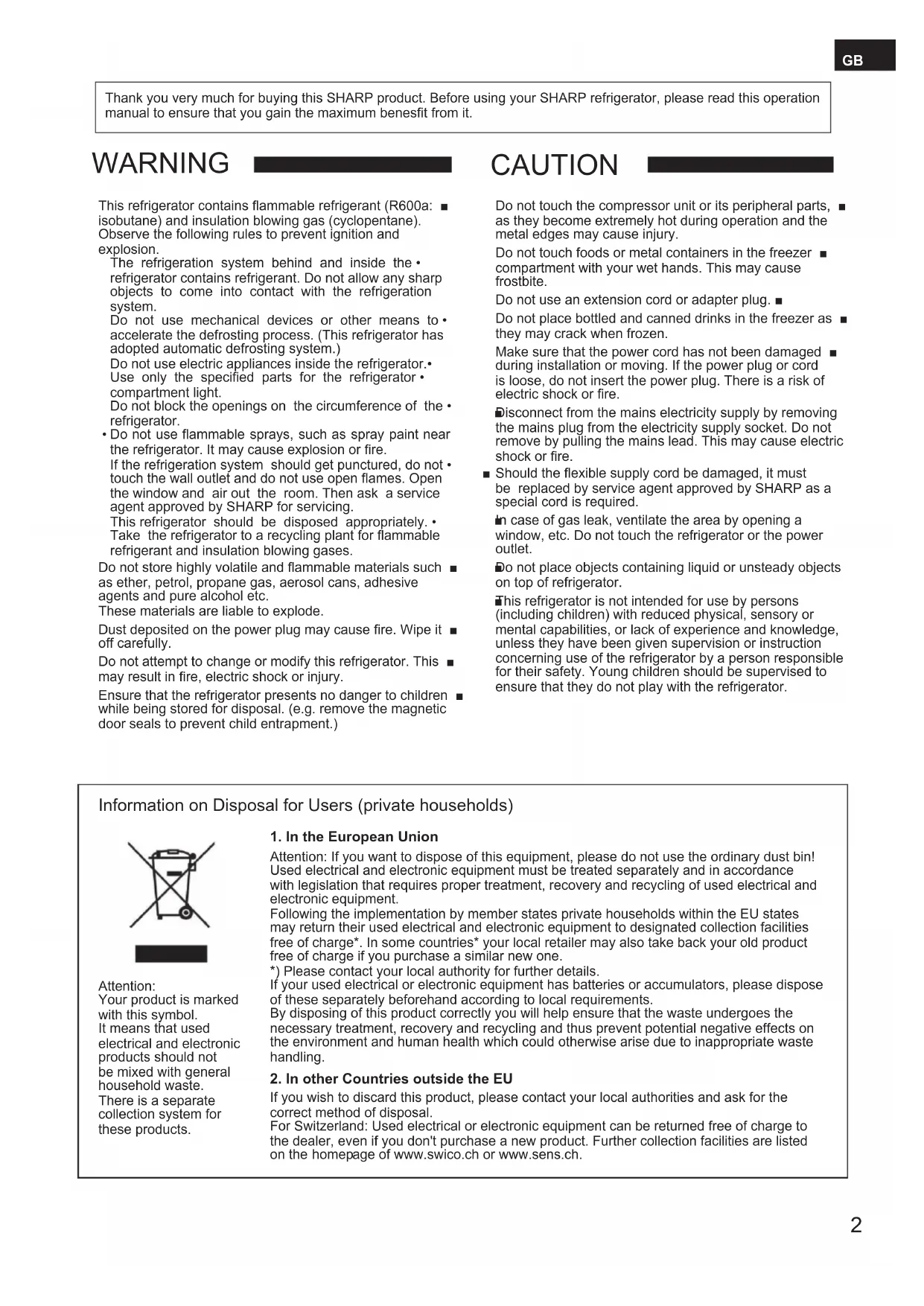

• Толькі для хатняга ўжывання • Асобна стаячага тыпу2 Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benesfit from it.

This refrigerator contains flammable refrigerant (R600a: ■isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.The refrigeration system behind and inside the • refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.Do not use mechanical devices or other means to • accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)Do not use electric appliances inside the refrigerator.• Use only the specified parts for the refrigerator • compartment light.Do not block the openings on the circumference of the • refrigerator. Do not use flammable sprays, such as spray paint near • the refrigerator. It may cause explosion or fire.If the refrigeration system should get punctured, do not • touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.This refrigerator should be disposed appropriately. • Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.Do not store highly volatile and flammable materials such ■as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are liable to explode.Dust deposited on the power plug may cause fire. Wipe it ■off carefully.Do not attempt to change or modify this refrigerator. This ■may result in fire, electric shock or injury.Ensure that the refrigerator presents no danger to children ■while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

WARNING CAUTION Do not touch the compressor unit or its peripheral parts, ■as they become extremely hot during operation and the metal edges may cause injury.Do not touch foods or metal containers in the freezer ■compartment with your wet hands. This may cause frostbite.Do not use an extension cord or adapter plug. ■Do not place bottled and canned drinks in the freezer as ■they may crack when frozen.Make sure that the power cord has not been damaged ■during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.Disconnect from the mains electricity supply by removing ■the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire. Should the flexible supply cord be damaged, it must ■ be replaced by service agent approved by SHARP as a special cord is required.In case of gas leak, ventilate the area by opening a ■window, etc. Do not touch the refrigerator or the power outlet.Do not place objects containing liquid or unsteady objects ■on top of refrigerator.This refrigerator is not intended for use by persons ■(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator. Information on Disposal for Users (private households)

1. In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.*) Please contact your local authority for further details.If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling. 2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products. GB3

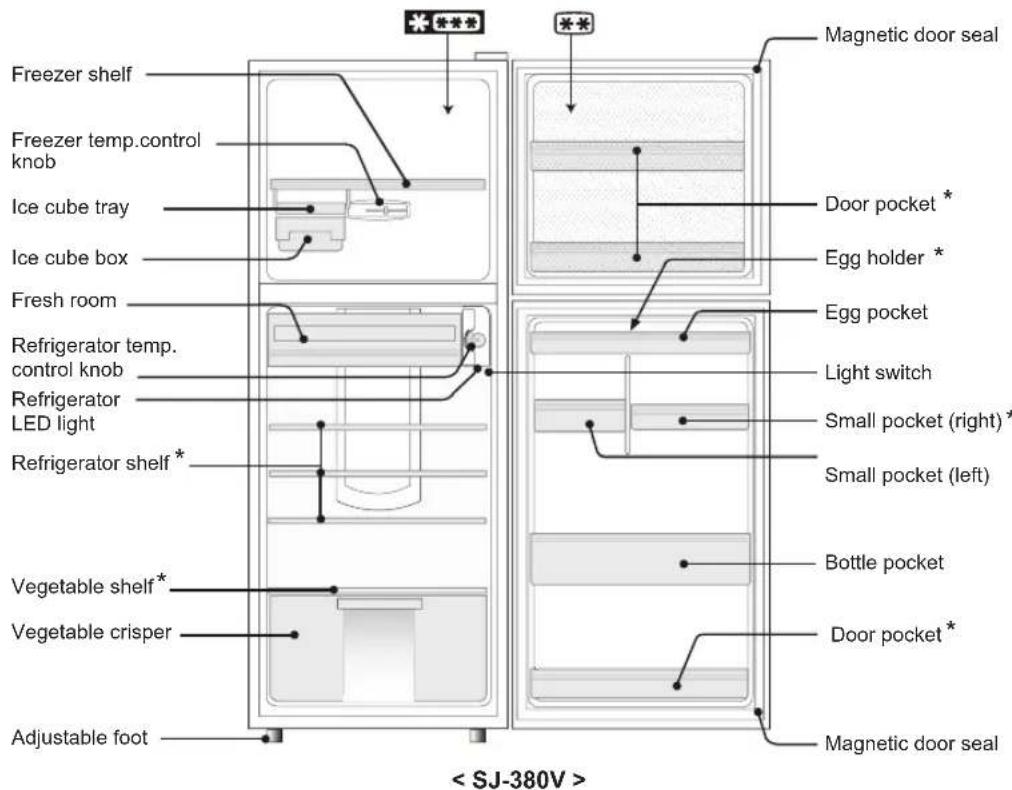

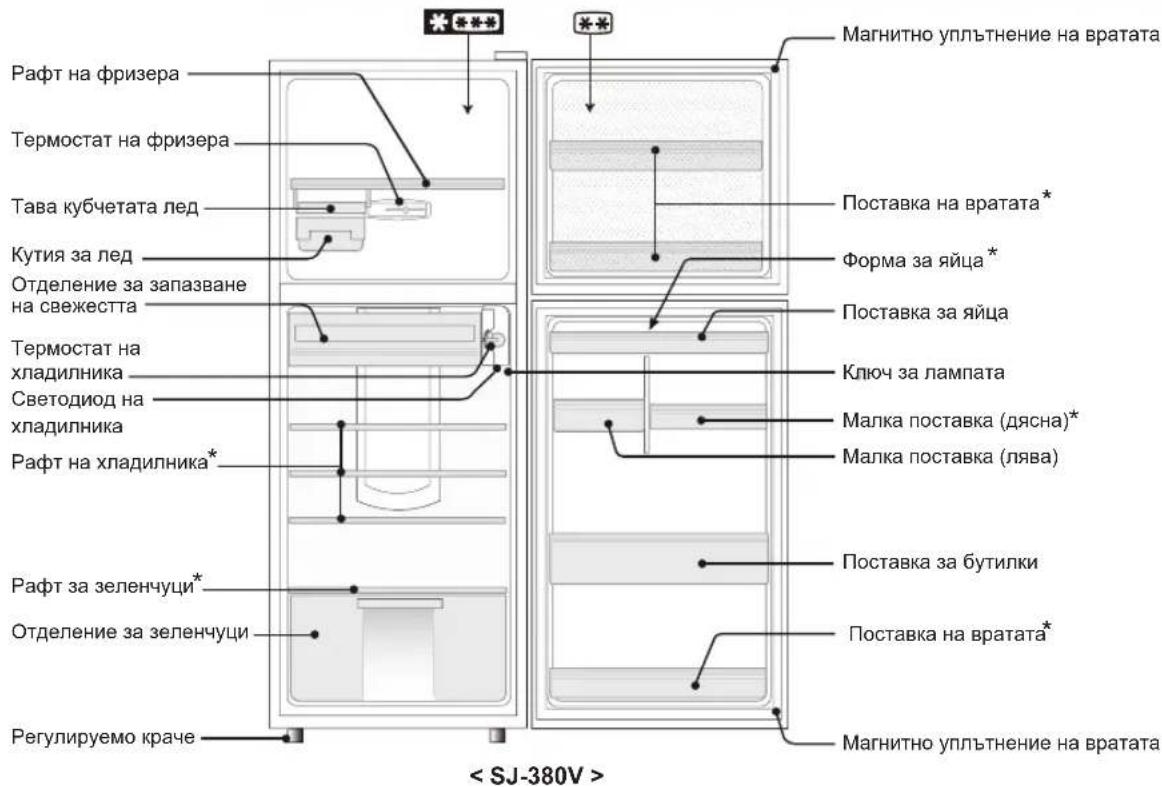

DESCRIPTION INSTALLATION WARNING Do not install the refrigerator in a damp or wet

location as this may cause damage to the

insulation and a leak. Condensation may also

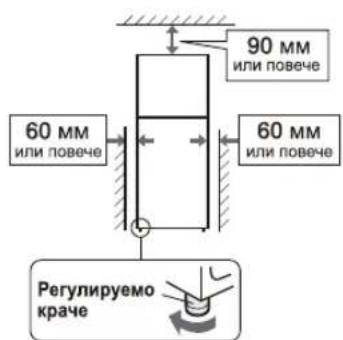

build on the outer cabinet and cause rust. 1. Keep adequate ventilation space around the refrigerator. • The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption. • It is possible to use the refrigerator with a less amount of power consumption by keeping greater space. • If using the refrigerator in the space below dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure. 2. Using the front Adjustable foot, ensure that the refrigerator is positioned firmly and level on the floor. NOTE: • Position your refrigerator so that the plug is accessible.• Keep your refrigerator out of direct sunlight.• Do not place next to heat generating appliance.• Do not place directly on the ground. Provide suitable stand. Before using your refrigerator Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.Freezer shelfMagnetic door sealDoor pocket * Door pocket * Magnetic door sealEgg holder * Egg pocketLight switchSmall pocket (right) * Small pocket (left)Bottle pocketFreezer temp.control knob Refrigerator temp.control knobRefrigerator LED lightRefrigerator shelfVegetable shelfVegetable crisperAdjustable footIce cube trayIce cube boxFresh room *

* • 2 star section for storing frozen food only.Model name 300V 340V 380V 420V Refrigerator shelf 3 3 3 3Vegetable shelf 1 1 1 1Door pocket 3 3 3 3Egg holder - - 1 1Small pocket (right) 1 1 1 2 a

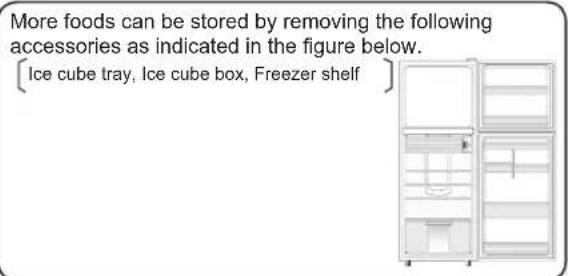

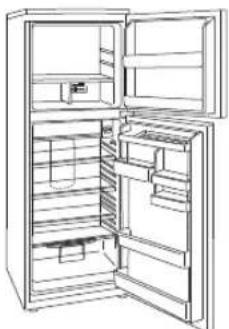

1221mm < SJ-380V > More foods can be stored by removing the following

accessories as indicated in the figure below.

Ice cube tray, Ice cube box, Freezer shelf

OPERATION Controlling temperatures • FREEZER TEMP. CONTROL regulates the quantity of cold air to the freezer.• If the freezer does not cool even when setting FREEZER TEMP. CONTROL to MAX, set REFRIGERATOR TEMP. CONTROL to MAX as well.• With FREEZER TEMP. CONTROL set to MAX, there will be less cold air directed to the refrigerator compartment, and the refrigerator compartment may not become cold enough.• REFRIGERATOR TEMP. CONTROL controls the compressor running time of the refrigeration system.• MAX setting will result in colder temperature in the both (refrigerator and freezer) compartments.• The freezer compartment may not cool sufficiently when leaving REFRIGERATOR TEMP. CONTROL as MIN for an extensive period. To cool the freezer compartment properly, set REFRIGERATOR TEMP. CONTROL closer to MAX.

Over 35°C ambient temperature Under 10°C ambient temperature Hints when making ice

When the ice cubes are made,

hold the Ice cube tray upside down

whilst twisting either end in opposite

directions, allowing the ice cubes to

NOTE: To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it. Deodorizing unit Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required. Defrosting Defrosting is fully automatic due to a unique energy saving system. Indicator of temperature This refrigerator is provided with a indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone. COLDEST ZONE The symbol indicates the coldest zone in the refrigerator compartment.(The door pocket positioned at the same height isn’t the coldest zone.)

CHECKING THE TEMPERATURE IN THE COLDEST ZONE You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control as indicated in the chapter “Controlling Temperature”.To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again. NOTE: • The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

This is because MAX setting (FREEZER TEMP. CONTROL) may result in too little air flow to the refrigerator compartment, causing too warm temperature in the refrigerator compartment.

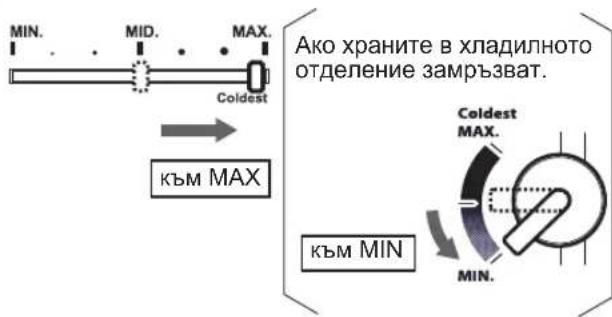

If the foods in the refrigerator compartment freeze.This is because the compressor operation is too short in winter, and not enough cold air is provided to the freezer compartment.

CARE AND CLEANING WARNING Unplug the refrigerator first to prevent electric

Do not splash water directly on the outer cabinet

or the interior. This may lead to rusting and

deterioration of the electrical insulation.

IMPORTANT To prevent cracking on inside surfaces and plastic

components, follow these tips.

• Wipe any food oils adhered to plastic components.

• Some household chemicals may cause damage, so use

only diluted washing-up liquid (soapy water).

• If undiluted detergent is used or soapy water is not wiped

off thoroughly, cracking of plastic parts can result.

1. Remove the shelves and pockets from the cabinet and

door. Wash them in warm soapy dishwashing water;

rinse in clean water and dry.

2. Clean the inside with a cloth soaked in warm soapy

dishwashing water. Then, use cold water to wipe off

3. Wipe the exterior with a soft cloth each time it is soiled.

4. Clean the Magnetic door seal with a toothbrush and

warm soapy dishwashing water.

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.). • If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack. When the compartment light is blown

Contact the service agent approved by SHARP to request

a replacement compartment light. The compartment light

is not to be removed other than by qualified service

Switching off your refrigerator

If you switch your refrigerator off when you are going away

for an extended period, remove all food, clean the interior

thoroughly. Remove the power cord plug from the power

socket and leave all doors open.

STORING FOOD Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products,

ensure that the food is of the freshest possible quality. The

following is a general guide to help promote longer food

To minimize moisture loss, fruit and vegetables should be

loosely enclosed in a plastic material e.g. wrap, bags

(do not seal) and place in the vegetable crisper.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer

packaging which informs the recommended temperature

and shelf life of the product.

• Eggs should be stored in the Egg pocket.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic

• For larger cuts of meat, fish, or poultry, place to the rear

• Ensure all cooked food is wrapped securely or placed in

an airtight container.

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently. • Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage. • Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator. • Do not place food directly in front of cold air outlet. This may lead to the food freezing. • Keep the door securely closed.

• Quality of foods should be fresh.

• Freeze small quantities of food at a time to freeze them

• Food should be properly stored or covered and the air

should be removed to seal tightly.

• Evenly place the food in the freezer.

• Label bags or containers to keep an inventory of freezing

GB BEFORE YOU CALL FOR SERVICE Before you call for service, check the following points. IF YOU STILL REQUIRE SERVICE Refer to your nearest service agent approved by SHARP.SolutionProblemThe outside of a cabinet is hot when touched.It is normal. The hot pipe is in the cabinet in order to prevent dew generation.When there is refrigerator noise.• Loud noise produced by the compressor when operation starts --- Sound becomes quieter after a while.• Loud noise produced once a day by the compressor --- Operating sound produced immediately after automatic defrost operation.• Sound of flowing fluid (gurgling sound, fizzing sound) --- Sound of refrigerant flowing in pipes (sound may become louder from time to time).• Cracking or crunching sound, Squeaking sound --- Sound produced by expansion and contraction of inner walls and internal parts during cooling.Frosting or dew generation occurs inside or outside the refrigerator.This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.• When the ambient humidity is high.• When the door is frequently opened and closed.• When foods containing plenty of moisture are stored. (Wrapping is required.)The foods in the refrigerator compartment freeze.• Is the refrigerator operated for a long time with REFRIGERATOR TEMP. CONTROL set at MAX?• Low ambient temperature may cause placed foods to freeze even if REFRIGERATOR TEMP. CONTROL is set to MIN.It smells in the compartment. • Wrapping is required for the foods with strong smell.• Deodorizing unit cannot remove all of smell.

It is normal for the refrigerator to produce the following sounds. Tips for saving energy Keep the ventilation space as much as ■possible around the refrigerator.Keep your refrigerator out of direct sunlight, ■and do not place next to heat generating appliance.Open your refrigerator door as briefly as ■possible.Hot foods should be cooled before storing. ■Place the food evenly on the shelves to allow ■the cooling air to circulate efficiently.The amount of power consumption of this model is measured according to the international standard of the refrigerator performance. If the refrigerator is operated with these accessories[Ice cube tray, Ice cube box]taken out, it works under the most energy-efficient condition.The amount of power consumption of this • model is measured with these accessories taken out as indicated on the right figure.The amount of power consumption • of this model is measured under the space dimensions on the right figure. 300
