HT 0139 - Hair dryer SEVERIN - Free user manual and instructions

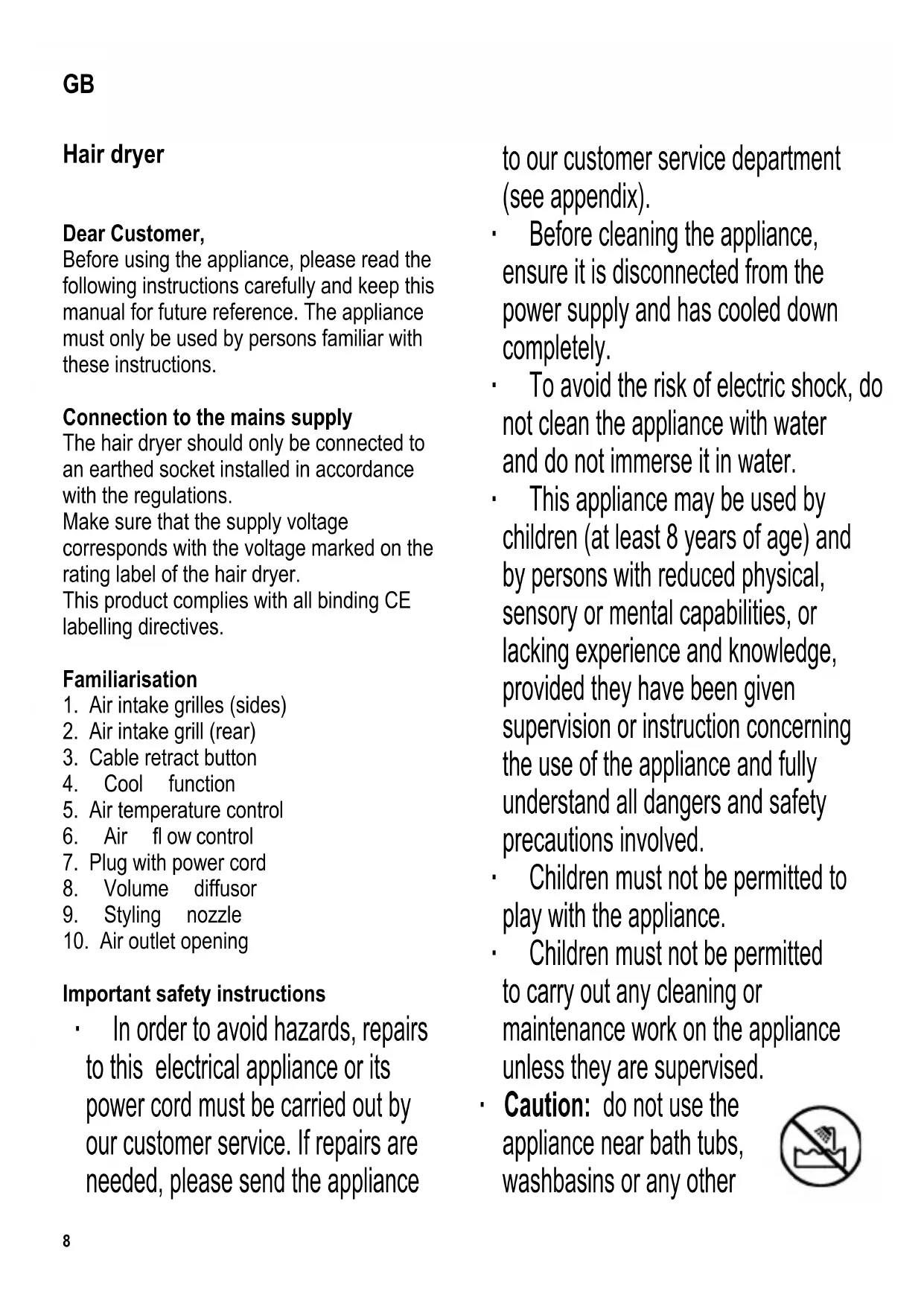

USER MANUAL HT 0139 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The hair dryer should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label of the hair dryer.

This product complies with all binding CE labelling directives.

Familiarisation

1. Air intake grilles (sides)
2. Air intake grill (rear)
3. Cable retract button
4. Cool function
5. Air temperature control
6. Air flow control
7. Plug with power cord
8. Volume diffusor
9. Styling nozzle
10. Air outlet opening

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance

to our customer service department (see appendix).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  Children must not be permitted to play with the appliance.
  Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised.
• Caution: do not use the appliance near bath tubs, washbasins or any other

receptacle containing water.
- In the vicinity of any water source, there is a risk even when the appliance is switched off. Therefore, always remove the plug from the wall socket after use, especially if the appliance is being used in a bathroom.
Additional protection is available by fitting an earth-leakage circuit breaker with a rated tripping current not exceeding 30mA into your bathroom installation. Please consult a qualified electrician.
- Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
- Protect the appliance from moisture and splashing water and do not operate it with wet hands.
Electric heating appliances operate at very high temperatures. Do not touch any part of the appliance except the grip. Otherwise there is a real risk of burning.
- Do not use the appliance on synthetic hair-pieces or wigs, as the heat emitted might cause damage to the synthetic fibres.
Make sure the air intake and outlet openings are not blocked (e.g. by fingers or hair), and that no fluff or fibre particles are allowed to accumulate in the air intake.
- A blockage in the air-flow system may

cause the integral thermal safety cut-out to switch off the appliance. Should this occur, immediately disconnect the appliance from the mains power and allow suffcient time for it to cool down before the blockage is removed and the appliance is switched on again.

• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• To prevent damage to the power cord, -do not bend or kink the cable, especially where it leaves the housing, -do not pull on the cord, -do not coil the power cord around the appliance.
• Do not leave the appliance unattended while in use.
  Always switch off and remove the plug from the wall socket after use, and also in the event of any malfunction.
• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• Do not place the appliance on any surfaces sensitive to heat during or immediately after use.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.
  This appliance is intended for domestic or similar applications, such as - in shops, offices and other similar

working environments,

-in agricultural working environments,
-by customers in hotels, motels etc. and similar establishments,
-in bed-and breakfast type environments.

Cable retract mechanism

Unwind the cable before use.

To unwind, pull the cable downwards, but be careful not to pull it out further than the red mark.

allow the power cord to rewind automatically, press the retract button while holding the plug.

Styling nozzle

The styling nozzle can be fitted to the air outlet to facilitate shaping the hair during blow drying.

Volume diffusor

The volume diffusor is also fitted to the air outlet.

The volume diffusor is used to maintain the volume of the hair. Move the diffusor with a slightly circular motion over the head.

Air-fl ow and temperature controls

By using different combinations of the air-flow and temperature controls, various settings are possible when drying the hair.

The air-flow control regulates the air-flow intensity, while the temperature control regulates the heat of the air-flow.

With the air-flow control set to the

'0'-position, the hair-dryer is switched off.

Cool function

The cool function can be used at any time during the drying process. It will supply cooler air, which helps firming and shaping the hair.

Operation

Connect the hair dryer to a suitable wall socket and select the desired power setting with the switches integrated in the handle.

Cleaning and care

Before cleaning the hair dryer, remove the plug from the wall socket and let the appliance cool down completely.
- To avoid the risk of electric shock, do not clean the hair dryer with water nor immerse it in water.
If necessary, the housing of the hair dryer may be wiped with a dry lint-free cloth.
The air intake grilles on the side should be cleaned regularly with a soft brush.
- The rear intake grill can be removed for easy cleaning by turning it anti-clockwise. Remove any accumulated lint particles or hair; replace the grill after cleaning and lock it by turning clockwise.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health.

Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase.

Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the

appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
