HS 0701 - Hair dryer SEVERIN - Free user manual and instructions

Product type	Rechargeable hair clipper
Brand	Severin
Model	HS 0701
Power supply	Mains adapter (voltage according to model)
Battery type	Ni-MH rechargeable
Charging time	Approx. 1 hour
Operating time	Approx. 45 minutes (estimate)
Adjustable cutting height	From 1 to 3 mm (5 positions)
Included cutting combs	3/6 mm, 9/12 mm, right taper comb, left taper comb
Included accessories	Cleaning brush, lubricant, scissors, styling comb, adapter, charging base
Main functions	Hair cutting, thinning with taper comb
Safety	Do not use near water, sharp blade (caution)
Maintenance	Cleaning with brush, regular lubrication
Weight	Approx. 200 g
Dimensions (L x W x H)	Approx. 16 x 5 x 5 cm
Warranty	2 years

Frequently Asked Questions - HS 0701 SEVERIN

How long does it take to charge the Severin HS 0701 clipper?

Full charging takes about 1 hour. During charging, the indicator light flashes red quickly, then changes to a slow green flash when charging is complete.

How to adjust the cutting height?

Turn the adjustment wheel at the front of the device. It allows you to set the cutting height from 1 mm to 3 mm in five positions. By turning backwards (flat part visible), you get the shortest cut (1 mm).

Can I use the clipper in the shower?

No, the device must not be used near a bathtub, shower, or swimming pool, nor over a sink filled with water. Never use it with wet hands.

How to clean the clipper after use?

Turn off the device and unplug the adapter. Use the provided cleaning brush to remove hair between the comb and blade. For deep cleaning, remove the cutting head by pushing it downwards.

Do I need to lubricate the blade?

Yes, before each use and after about 15 minutes of operation, put a few drops of non-acidic lubricant between the comb and blade, then turn on briefly to distribute the oil.

How to replace the battery?

Press the release button on the back of the device to remove the old battery pack. Order a replacement pack from Severin customer service.

What accessories are included with the clipper?

The package contains: 3/6 mm and 9/12 mm cutting combs, right and left taper combs, cleaning brush, lubricant, scissors, styling comb, mains adapter, and charging base.

How to use the taper comb?

The taper comb allows thinning the hair and avoiding a 'staircase' effect. Use the 'Right Taper' comb for the right side of the head and 'Left Taper' for the left. Start at the back, cut against the grain towards the temples.

What to do if the clipper stops working?

First check the battery charge. If the indicator light is red, recharge it. If the problem persists, contact Severin customer service (contact details in the manual).

Can the clipper be used on wet hair?

It is recommended to cut dry hair for best results. The clipper is not designed for use on wet hair.

USER MANUAL HS 0701 SEVERIN

GB Instructions for use

F Mode d'emploi

Simple line drawing of a trash bin with a crossed X symbol (no text or labels)

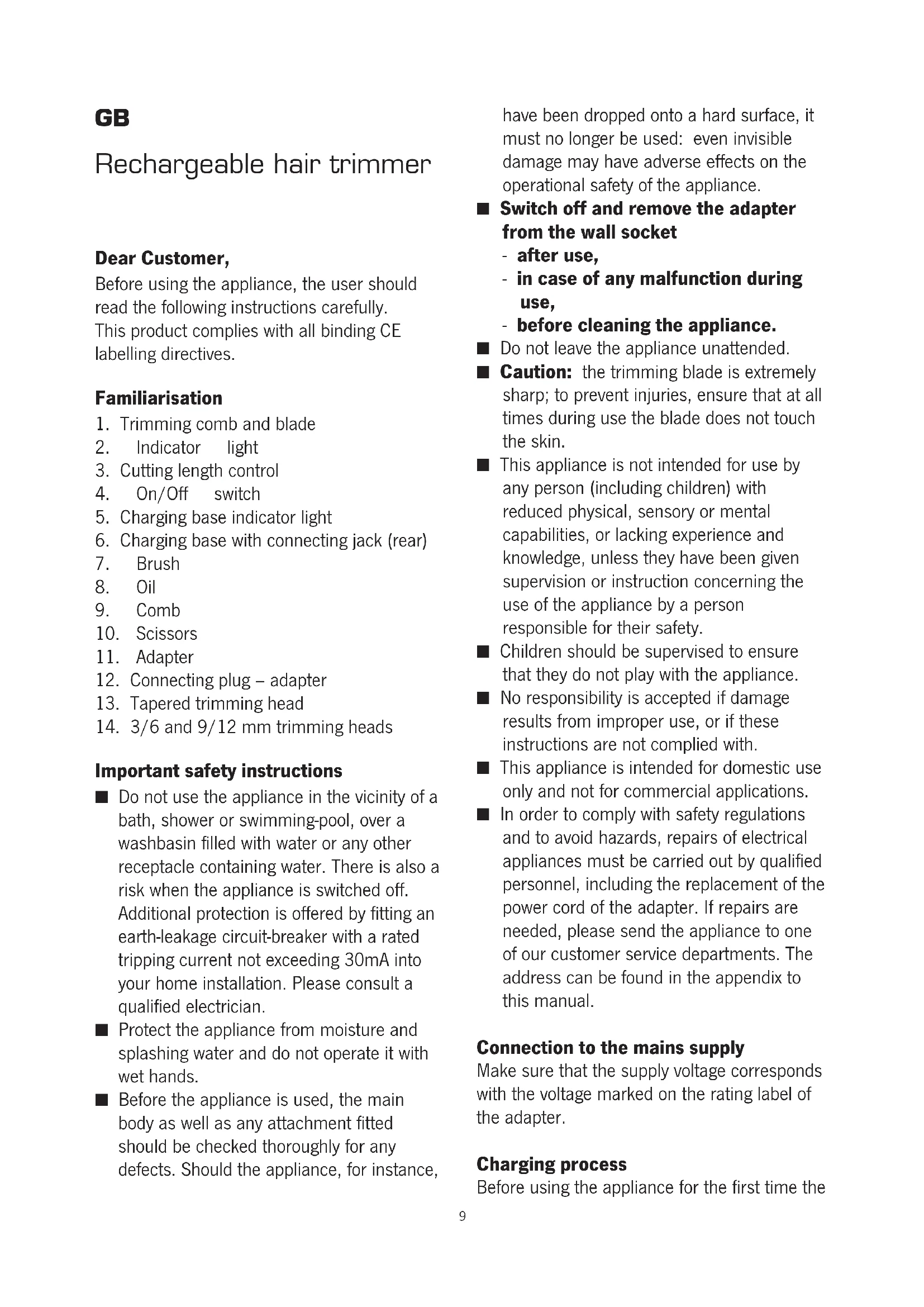

Rechargeable hair trimmer

Dear Customer,

Before using the appliance, the user should read the following instructions carefully. This product complies with all binding CE labelling directives.

Familiarisation

1. Trimming comb and blade
2. Indicator light
3. Cutting length control
4. On/Off switch
5. Charging base indicator light
6. Charging base with connecting jack (rear)
7. Brush
8. Oil
9. Comb
10. Scissors
11. Adapter
12. Connecting plug - adapter
13. Tapered trimming head
14. 3/6 and 9/12 mm trimming heads

Important safety instructions

• Do not use the appliance in the vicinity of a bath, shower or swimming-pool, over a washbasin filled with water or any other receptacle containing water. There is also a risk when the appliance is switched off. Additional protection is offered by fitting an earth-leakage circuit-breaker with a rated tripping current not exceeding 30mA into your home installation. Please consult a qualified electrician.
  ■ Protect the appliance from moisture and splashing water and do not operate it with wet hands.
  ■ Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance,

have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

■ Switch off and remove the adapter from the wall socket

• after use,
• in case of any malfunction during use,
• before cleaning the appliance.

■ Do not leave the appliance unattended.

■ Caution: the trimming blade is extremely sharp; to prevent injuries, ensure that at all times during use the blade does not touch the skin.

This appliance is not intended for use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

■ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

■ This appliance is intended for domestic use only and not for commercial applications.

In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord of the adapter. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.

Connection to the mains supply

Make sure that the supply voltage corresponds with the voltage marked on the rating label of the adapter.

Charging process

Before using the appliance for the first time the

battery must be fully charged, which will take about one hour. However, the appliance can remain on charge for a longer period without damage or danger.

If you experience a considerable decrease in trimming performance, or if the indicator light shows red, switch off the appliance and recharge the battery.

• Insert the connecting plug of the adapter into the corresponding jack on the charging base.
• Ensure that the trimmer is switched off and place it in the charging base.
• Insert the adapter into a suitable wall socket. The charging process begins automatically and is shown by the rapid-flashing red indicator light on the charging base.
• When the battery is fully charged, the indicator light shows a slow-flashing green light.
• Once the charging process is complete, always remove the adapter from the wall socket first before disconnecting the jack from the charging base.
• While charging, the transformer within the adapter will become warm. This is perfectly normal and safe and does not indicate a malfunction of any kind.
• If the appliance has not been used for a long period, the capacity of the battery may decrease by a certain amount. However, full capacity will be restored after several charge/discharge cycles.

Use

Cutting length fine adjustment

The cutting length is adjustable, from 1 to 3 mm, in five steps by turning the cutting length control back or forth, as required. With the control turned back all the way (the flat section is visible), the cutting length is 1mm. With it turned forward all the way, the cutting length is 3mm.

Trimming head

When fitting a trimming head, ensure that it is safely locked by the locking buttons on either side. To remove a trimming head, push it away to one side.

3/6 mm and 9/12 mm trimming heads

The trimming heads provide cutting lengths of 3, 6, 9 and 12 mm.

Set the control in such a way that the markings on the adjustment wheel are properly aligned with the corresponding dots on the housing.

Tapered trimming head

The tapered trimming head is designed for cutting the hair while avoiding a 'stepped' effect.

In this way, the hair above the ears is cut shorter, while remaining longer towards the top of the head. For the right side of the head, the attachment marked 'Right Taper' should be used; for the opposite side use the one marked 'Left Taper'. Start trimming from the back of the head and cut the hair against its natural direction of growth towards the temples, before changing the attachment to trim the opposite side.

Operation

■ Before each use, always put a few drops of acid-free oil between the trimming comb and the trimming blade.
- Always start with the highest setting of the push-on comb.
- The hair should first be combed, and then generally cut against its natural direction.
- For longer hair-cuts use the push-on comb or a normal comb.
- Cut from bottom to top with the trimming comb lying against the head; lead the appliance upwards through the hair, moving it gradually away from the head at the same time.
- For a shaped cut, reverse the appliance and shorten the hair from top to bottom without using the push-on comb.

Removing the batteries

Battery replacement

- If a battery pack proves defective or ceases to operate properly, it may be replaced. To remove the pack, press the release button on the rear of the appliance and take out the old pack. Replacement packs may be ordered from the Severin Service.

Care and Cleaning

It is essential to switch off the appliance and then remove the adapter from the wall socket before cleaning and oiling.
■ To avoid the risk of electric shock, the appliance and the adapter must not be immersed in liquid or even allowed to come into contact with liquid.
- If necessary, the exterior surfaces of the charging base and hair trimmer may be wiped with a dry, lint-free cloth.

Trimming comb and trimming blade

• After each use, use the cleaning brush to remove hair from between the trimming comb and the blade. The trimming head itself can be removed for occasional thorough cleaning, by using the thumbs to push the head gently down towards the base of the appliance.
  Before use, and again after every 15 minutes' operation,, put a few drops of acid-free oil between the trimming comb and the trimming blade and then switch the appliance on briefly to ensure that the oil is evenly distributed. Regular oiling will guarantee good cutting performance over a long period and a long service life.
• When the appliance is not in use, put the protective cover over the trimming comb.

Battery pack and battery disposal

Simple line drawing of a trash bin with a crossed X symbol (no text or labels)

Remember to protect our environment. Do not dispose of the rechargeable Ni-MH battery pack contained in the hair trimmer in your

domestic garbage. All batteries must be disposed of through the proper local 'special garbage collection points'.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
